USER MANUAL CTH310NFWH THOMSON

Voorraad nee = = = = Wijnbewaring nee — — — — Kelder nee = = = = Vers voedsel ja 224,0 4 — Z Chill nee = = = = O sterren of ijsmaker nee = = = = 1ster nee = = = = 2sterren nee = = = = 3 sterren nee = = = = Asterren ja 86,0 -18 3,9 Z

Table of Contents IMPORTANT SAFETY INSTRUCTIONS..................,..,,.......,.44 is 1 PRODUCT OVERVIEW.

CLEANING AND MAINTENANCE

TROUBLESHOOTING PRODUCT INFORMATION SHEET.................,...,....,..444 een 18 REPAIR AND SPARE PARTS SERVICE................................,..,,...,, eu 20 DISPOSAL............,....,..44. iii eee esenceeeeseneeeneeeneseneeeeeseeneeeenene 21 This product has been manufactured and sold under the responsibility of Etablissements Darty et Fils (S.A.S). THOMSON, and the THOMSON logo are trademarks used under license by Etablissements Darty et Fils (S.A.S) — further information at www.thomson-brand.com. All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

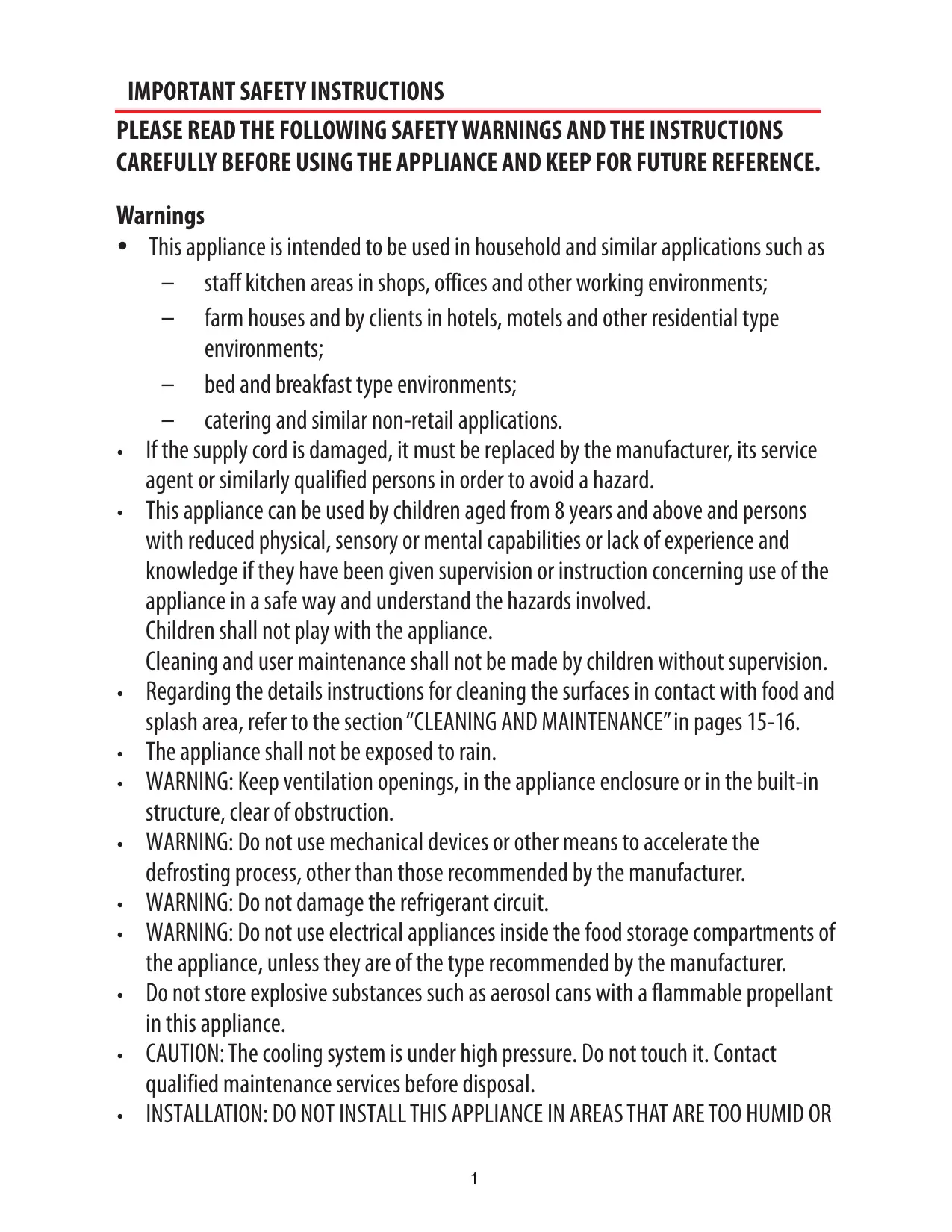

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE. Warnings + This appliance is intended to be used in household and similar applications such as — staff kitchen areas in shops, offices and other working environments; — farm houses and by clients in hotels, motels and other residential type environments; — bed and breakfast type environments; — catering and similar non-retail applications. the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons With reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Regarding the details instructions for cleaning the surfaces in contact with food and Splash area, refer to the section “CLEANING AND MAINTENANCE” in pages 15-16. The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in

Structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of

the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal. INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR

TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. For disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal. For installation, servicing: Appliance should be placed on a horizontal surface and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage.

WARNING: For making ice (ice cubes), use potable water only.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted. Warning; Risk of fire / flammable materials

WARNING: When positioning the appliance, ensure the supply cord is not trapped or

WARNING: Do not locate multiple portable socket-outlets or portable power

supplies at the rear of the appliance. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. To avoid contamination of food, please respect the following instructions: — Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. — Clean regularly surfaces that can come in contact with food and accessible drainage systems. — Store raw meat and fish in suitable containers in the refrigerator, so that it is

not in contact with or drip onto other food. — Two-star frozen-food compartments are suitable for storing pre-frozen food, Storing or making ice cream and making ice cubes. — One-,two- and three-star compartments are not suitable for the freezing of fresh food. — ftherefrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Safety Precautions Keep all packaging away from children as there is risk of suffocation. The plug must be accessible when the refrigerator freezer is in position. Unplug the refrigerator freezer from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance. Never unplug the refrigerator freezer by pulling the cord. Grip the plug firmly and pull it out. Place the refrigerator freezer in a dry place — avoid areas of high moisture or humidity. Keep the refrigerator freezer out of direct sunlight. Do not place the refrigerator freezer near stoves, fires or heaters. Do not use electrical appliances in the refrigerator freezer. Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. Do not insert oversized food as this could cause incorrect operation. Extreme caution must be used when moving the appliance. Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper. Never use the base, doors etc. to stand on or as supports. Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause ‘freezer burns' on the lips. Effervescent drinks should not be stored in the freezer compartment. The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance,

ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600à) is flammable. WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

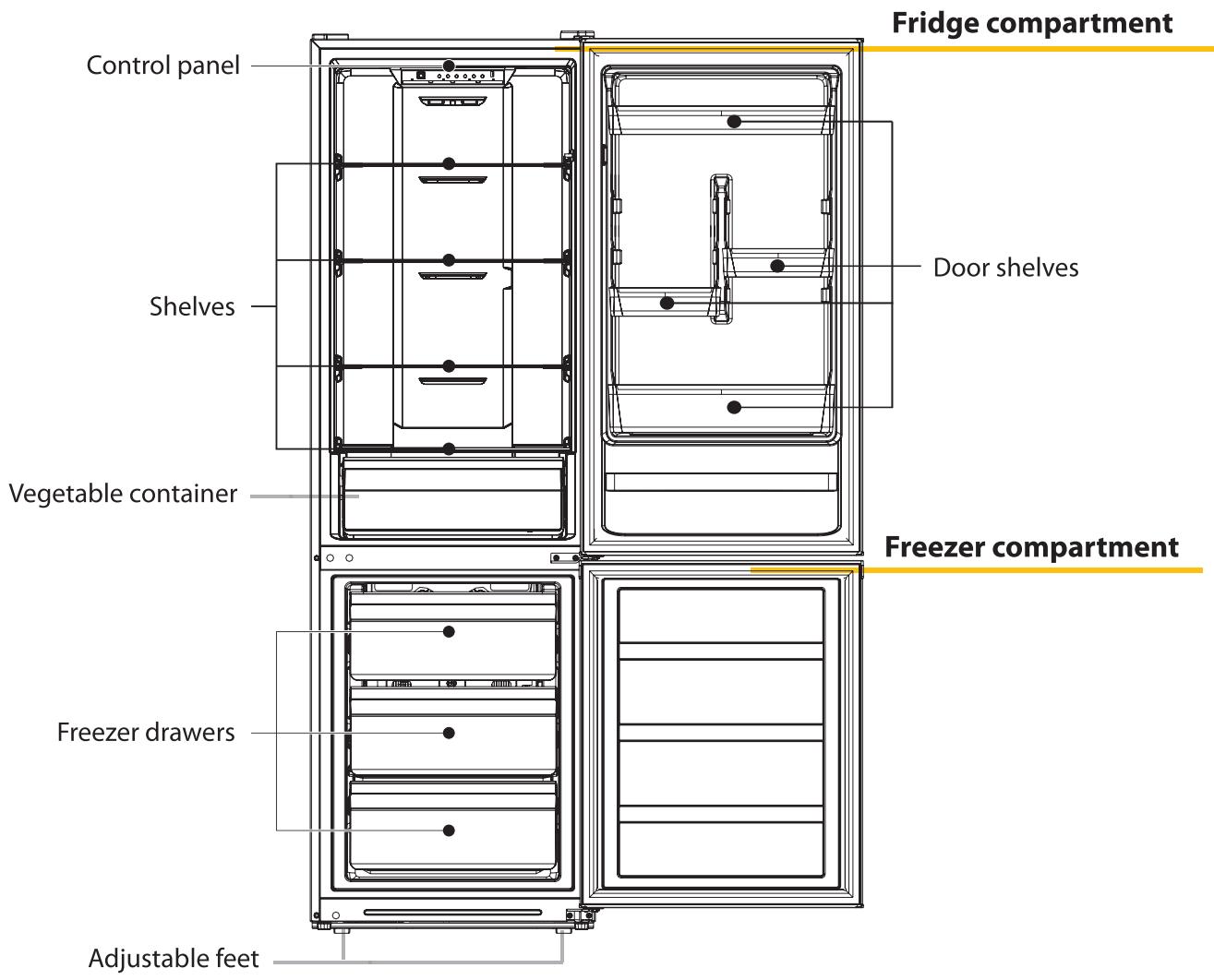

PRODUCT OVERVIEW Fridge compartment Control panel =— | il e Door shelves Shelves — Le — | e 1 Vegetable container | Freezer compartment Freezer drawers e D ——— ; Adjustable feet Egg tray Ice cube tray Recommended food arrangement Refrigerator compartment (4°C): Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste. Top section: canned food, bread, cake. Middle section: dairy products, readymade food, desserts. Bottom section: meat, meat products, delicatessen … Container: fresh fruit, vegetables, salads…

Refrigerator door shelves (2°C - 8°C): Top section: eggs, butter, cheese.… Middle / Bottom section: beverages, cans, bottles… Freezer compartment (-18°C): Top/middle drawers: Cakes and pastries Dairy products such as cheese and butter Bottom drawer: Cooked meat and fish

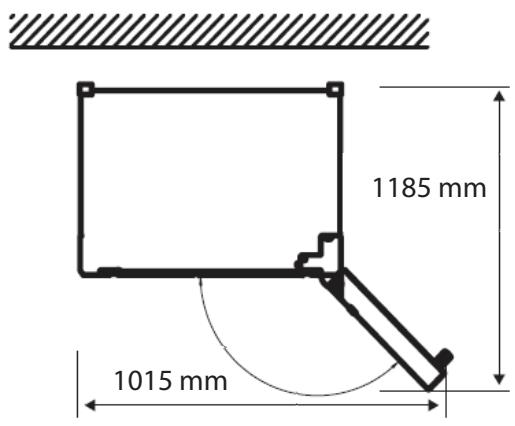

BEFORE INSTALLING THE APPLIANCE

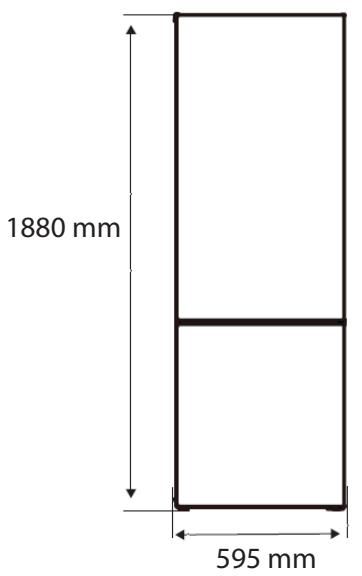

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. INSTALLATION Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow à minimum of 10 cm of airspace on each side of the cabinet. Adjust the feet to keep the refrigerator freezer level. 1880 mm 1185 mm

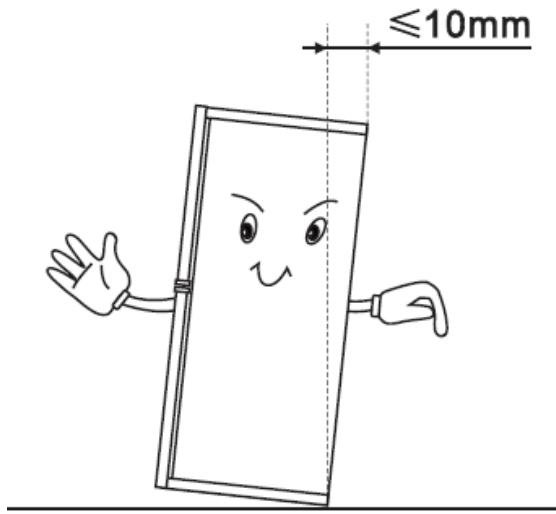

.,<10mm Tips for proper levelling Tilt the refrigerator freezer slightly backwards {the front should be a little higher than the back). Ifitis tilted correctly, the front doors should close by themselves when they are opened to less than 45 degrees. To achieve a balanced rear tilt, adjust the front feet. Generally, the front of the refrigerator freezer is recommended to be approximately 10 mm higher than the back. AMBIENT TEMPERATUE This appliance is designed to operate in ambient temperature between 10°C and 38°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18°C and food spoilage may occur. POWER FAILURE Ifthere is a power failure during the storage of frozen foods, keep the door closed. Frozen food should not be affected if the power failure lasts for less than 8 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

USING YOUR REFRIGERATOR FREEZER

M Before placing food in the appliance Remove all packaging. + Allowthe appliance to run empty for 2 - 3 hours so the compartment can cool to the appropriate temperature. + __ Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust. B Hints for fresh food refrigeration + Good temperature setting that ensures preservation of fresh food is a temperature less than or equal to +4°C. + Higher temperature setting inside the appliance may lead to shorter shelf life of food. + Coverthe food with packaging to preserve its freshness and aroma. + Always use closed containers for liquids and for food, to avoid flavours or odours in the

compartment. + __ To avoidthe cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one. + __Itis recommended to defrost the food inside the fridge. + Do not place hot food inside the appliance. Make sure it has cooled down at room temperature before placing it inside the appliance. BH Hints for refrigeration + Meat (all types): wrap in a suitable packaging and place it in the refrigerator. Store meat for at most 1-2 days. + Fruit and vegetables: clean thoroughly (eliminate the soil) and place them in the refrigerator. + __Itis advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator. + Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator. + Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible. + Bottles: close them with a cap and place them on the door bottle shelf. + Always refer to the expiry date of the products to know how long to keep them. H Temperature control Temperature control for the fridge compartment

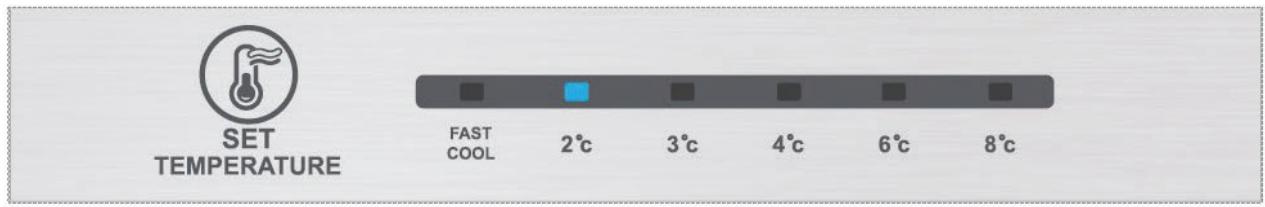

une oo 75 se #e Fe Repeatedly press until the desired temperature indicator light illuminates. There are 5 temperature settings for choice: 2°C, 3°C, 4°C, 6°C and 8°C. The appliance will run under the chosen temperature setting after 15 seconds. Super cooling / Fast cool function You can use the fast cool function to increase the cooling capacity of the fridge compartment when placing larger amounts of food within it. To activate this function, repeatedly press © until the FAST COOL indicator light illuminates. The function will be automatically deactivated after 24 hours of operation.

Adjustment of manual air damper slider | FREEZER.TEMP | The air damper slider is located in the fridge comparment. The temperature inside the freezer compartment can be adjusted by COLDEST changing the position of the air damper slider. COLDER Move the air damper slider up, the actual temperature inside the freezer compartment will decrease. Move the air damper slider down, the COLD actual temperature inside the freezer compartment will increase. Error code The following warnings appearing on the display indicate corresponding faults of the appliance. Though the appliance may still have cooling and freezing function with the following faults, contact a maintenance specialist to ensure normal use of the appliance. Error code Fault description LEDs 1 and 2 light up Refrigerator temperature sensor circuit LEDs 1 and 3 light up Freezer defrost sensor LEDs 1 and 4 light up Ambient temperature sensor M Freezing and storing food in the freezer compartment Using the freezer compartment °__Tostore deep-frozen food ° To makeice cubes e To freeze food Note: Ensure that the freezer compartment door has been closed properly. Purchasing / Storing frozen food e Packaging must not be damaged. ° Use by the‘use by/best before/best by/'date. °__lf possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen. °__ The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells,

dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. °__ The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise. Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months Non-oily fish, shellfish, pizza, scones and muffins 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked 6 months crayfish, minced meat (raw), pork (raw) Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, 12 months lamb (raw), fruit cakes Never forget: °__ When you freeze fresh foods with a‘use by/best before/best by/' date, you must freeze them before this date expires. ° Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. ° Once defrosted, food should be consumed quickly. H Makingice cubes Fill the ice cube tray with 3/4 full of drinking water and place in the freezer compartment. Ifthe ice cube tray is stuck to the freezer compartment, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water. H Operating noises Normal noises + Motors are running. + Refrigerant is flowing through the tubing.

M Energysavingtips For the most energy efficient use of your appliance: + Ensure your refrigerator freezer has adequate ventilation as recommended in the installation instructions. + Allow warm food and drinks to cool down before placing in the appliance. + Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food + Keep door openings to a minimum. + Openthe appliance as briefly as possible. + Regularly defrost the refrigerator freezer to remove the layer of frost. + Ensure that the fridge and freezer doors are always closed properly. DOOR CONVERSION If you need to hinge the doors on the opposite sides, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the doors, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

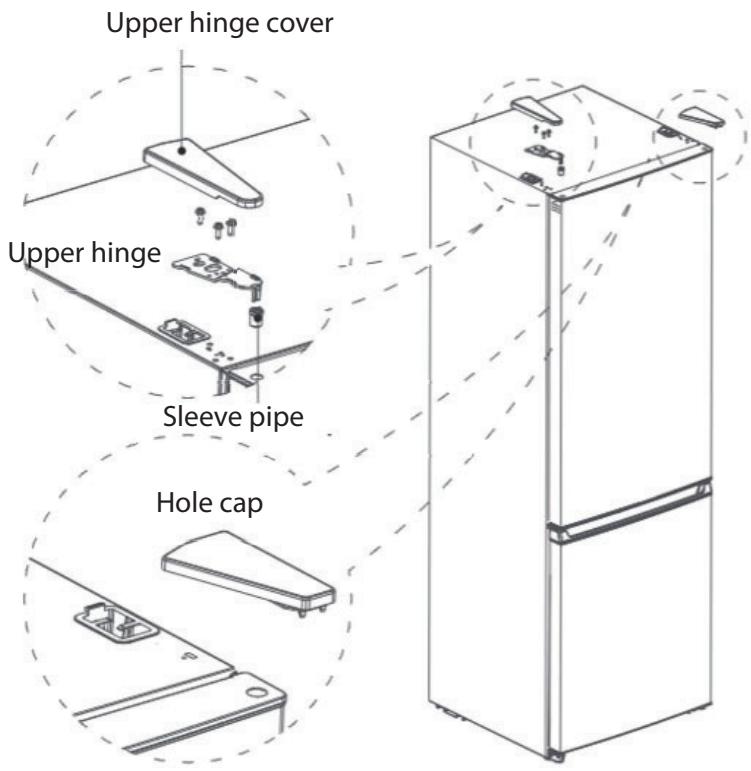

1. Remove the upper hinge cover from the top of the appliance. Unscrew the screws and sleeve pipe

then remove upper hinge. Lift the fridge door and place it on a padded surface to prevent it from scratching. Remove the hole cap. Upper hinge cover - Î Sleeve pipe Hole cap

2. Remove the hole caps. Unscrew the middle hinge screws and remove the middle hinge. Lift the

freezer door and place it on a padded surface to prevent it from scratching.

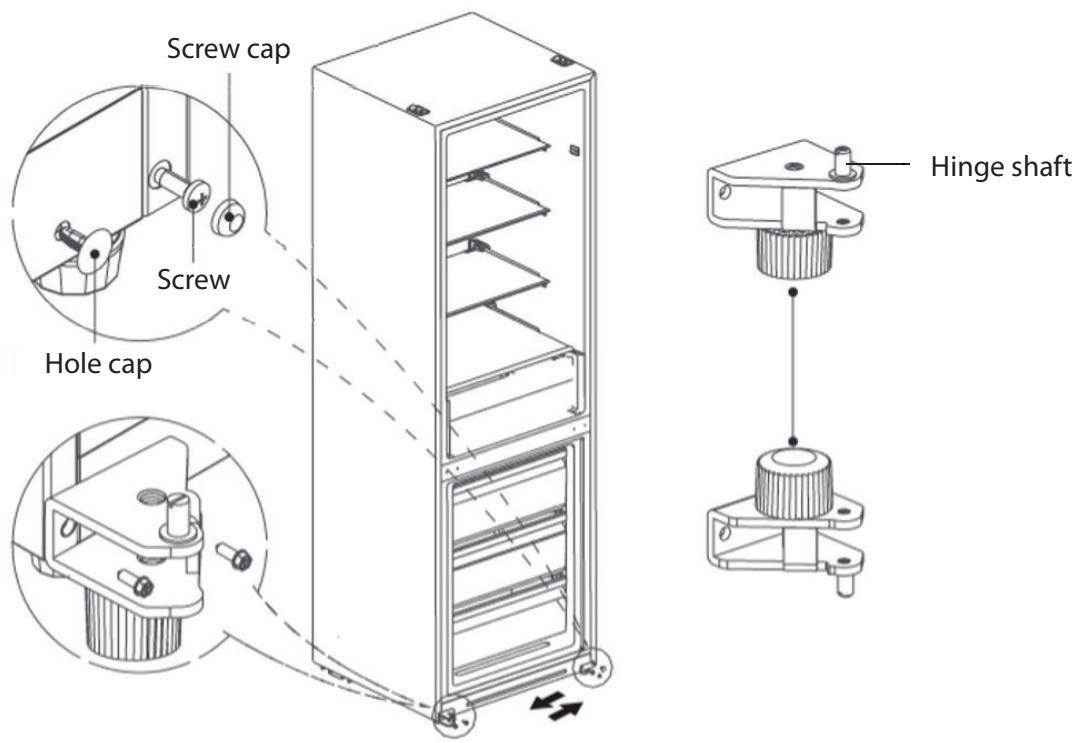

3. Remove the bottom hinge assembly and remove the hole cap and screw cap. Dismantle the hinge

shaft and adjustable foot and install them on the opposite sides. Install the bottom hinge assembly on the opposite side and install the hole cap and screw cap. Screw cap Hinge shaft

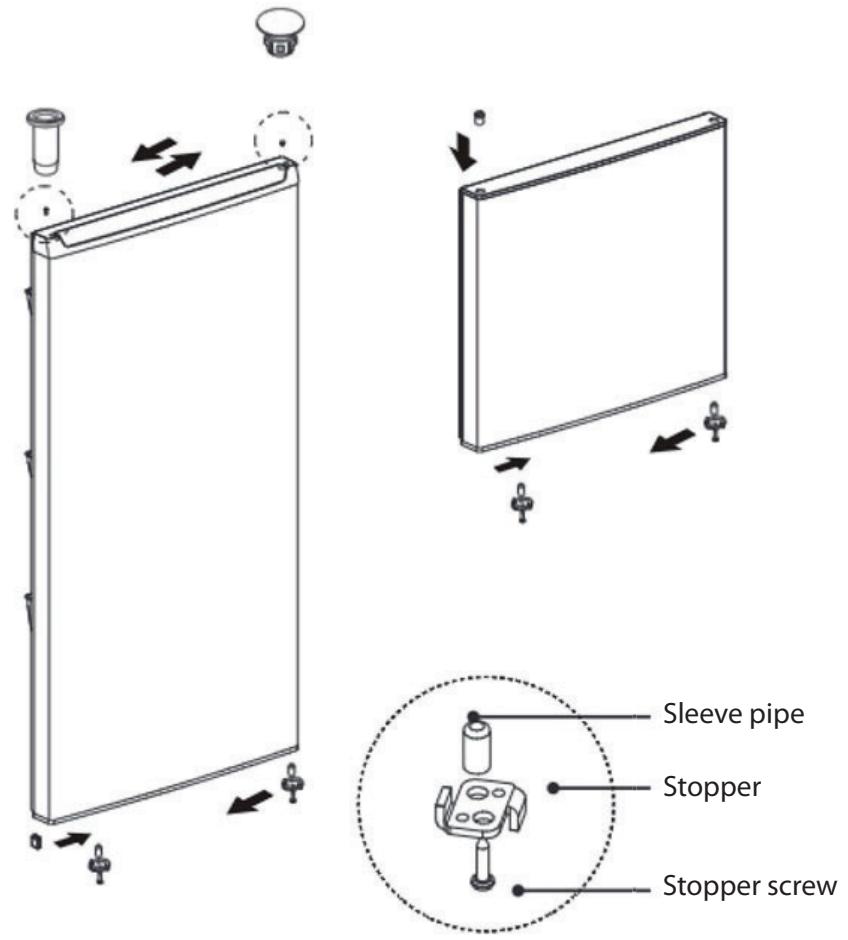

4. Dismantle the screw, sleeve pipe and stopper from the fridge door and freezer door, and the support

on the lower cover of the fridge door is also removed. Then install them on the opposite side of the doors in order. (Take out the bottom stopper from accessories package) Exchange the position of sleeve pipe and hole cap at the top cover of fridge door, and install the upper hinge sleeve on the freezer door to the hole on the other side of axis sleeve.

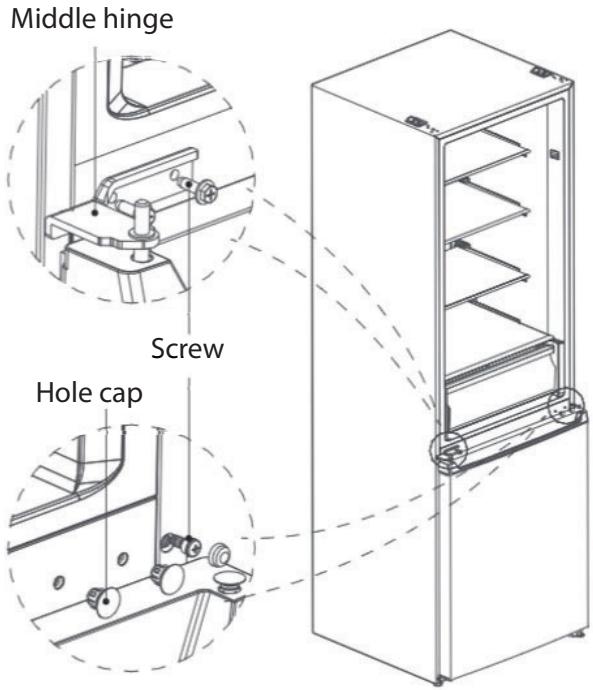

5. Install the freezer door on the bottom hinge. Install the middle hinge, the screws and the screw hole

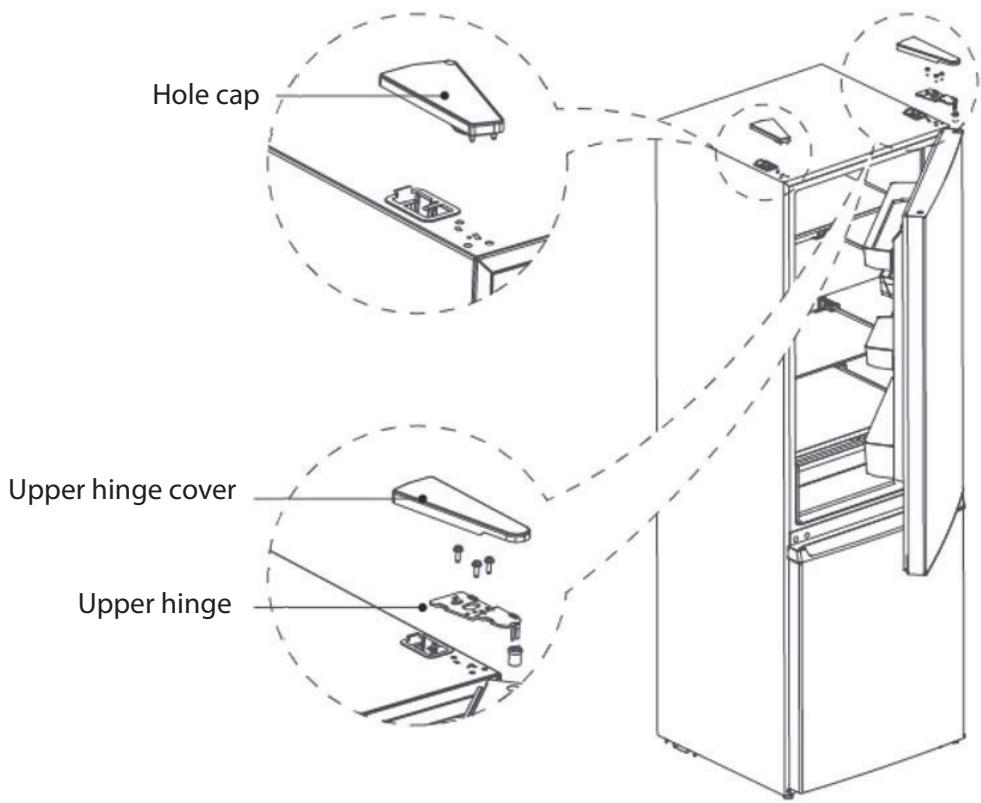

6. Install the fridge door on the middle hinge. Install the upper hinge to the fridge door and fix the hinge

with screws tightly. Assemble the upper hinge cover. Fit and hole cap to the opposite side of the top of the appliance. 7 \ Hole cap SK :

DEFROSTING Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. Ifthe frost is too thick, choose a time when the supply of food stocks is low and proceed as follows:

1. Remove food and drawer from the freezer compartment, unplug the appliance from the mains

power and leave the doors open. Ventilate the compartment thoroughly to accelerate the thawing process.

2. When defrosting is completed, clean your freezer compartment using a soft cloth or sponge.

CAUTION! Do not use sharp objects to remove frost from the freezer compartment. Only after the interior walls completely dry then plug the appliance back into the mains socket.

CLEANING AND MAINTENANCE

Upon installation of your new appliance, it is recommended to clean it thoroughly. AN Always unplug the appliance before cleaning.

1. Take out the food and store in a cool location.

2. Remove all removable parts, such as shelves, vegetables containers, drawers etc.

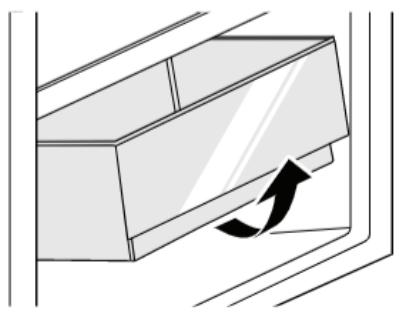

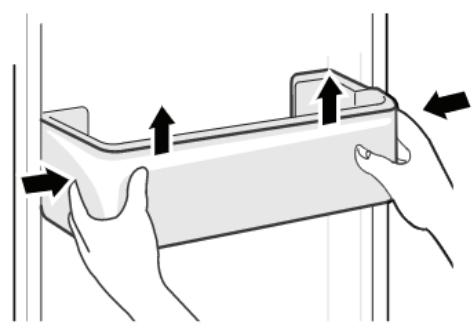

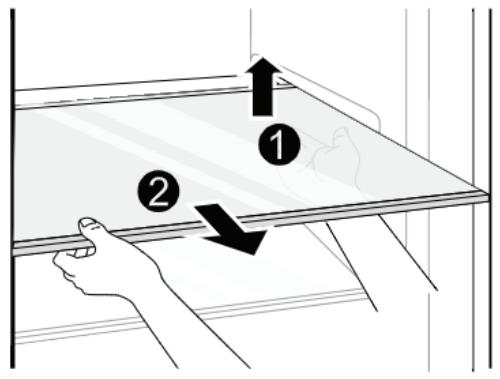

Remove the shelves from the appliance by Use both hands to squeeze the door slightly lifting up while sliding them out. shelves, and then pull them out. D Removal of the vegetable container Remove contents from the container. Hold the handle of the vegetable container and pull it out completely until it stops. $ Lift the vegetable container up and remove it by pulling it out.

3. Use a soft damp cdoth or paper towel to clean the interior and exterior including all

different drainage area and water evacuation port.

4. Wipe up spills in the fridge and freezer compartment with a damp cloth

immediately. <_ Use a mild cleanser such as dish detergent or use either some baking soda or vinegar to clean the splash area. <_ Place a small amount of detergent, vinegar, or baking soda in a bowl and add warm water to it. Dip a towel or cloth into the cleaning solution and wash the inside of your appliance.

5. Clean the removable parts using à clean sponge or soft cloth in warm soapy water.

Rinse and dry thoroughly before replacing them. < Do not use abrasive or chemical cleaning agents.

6. Clean the door liners and gaskets using a clean sponge or soft cloth and a mild

detergent in warm water. < Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

7. Dryall surfaces thoroughly and then plug in the appliance. Adjust the temperatures.

8. Putthe food back in the appliance.

The LED light in the fridge compartment cannot be replaced by the user. If the LED light Stops working, please contact the local authorised service agent. TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service. Warning! Do not try to repair the appliance yourself. Ifthe problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product. Problem Possible Causes & Solution Check that the appliance is plugged into the mains socket properly and that the outlet is switched on. Check the fuse or circuit of your power supplyreplace if necessary. Appliance does not operate.

Unusual noises Re-adjust the feet to ensure the appliance is level. Check that the appliance is not touching the wall or other objects. Move the appliance slightly. Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal. Creak: Refrigerant flowing inside the appliance may produce creak, which is normal. Inadequate refrigeration Adjust the temperature control to a colder setting and allow several hours for the temperature to stabilize. Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often. Check that the door is closed completely. Ensure that the door gasket does not seal properly. A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has reached its set temperature. Bad smell in the appliance Food with strong odour should be packed tightly before being put inside the appliance. Please check whether there is any deteriorated item or whether the door seals are left dirty for a long time. Long-time operation of the compressor Long operation of the refrigerator is normal in summer when the ambient temperature is high. It is not recommended to place too much food in the appliance and at the same time, food shall get cool before being put into the appliance. The doors are opened too frequently. Doors cannot be properly closed. The door is stuck by food packages. Too much food is placed. The refrigerator is tilted. Door seal fails to be tight. Remove foreign matters on the door seal. Heat the door seal and then cool it for restoration. (or blow it with an electrical drier or use a hot towel for heating) Surface condensation Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel. Hot housing Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of too much food, it recommended to provide good ventilation to facilitate heat dissipation.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France Model identifier: CTH310NFWH Type of refrigerating appliance: Low-noise appliance: no Design type: free standing Wine storage appliance: no Other refrigerating appliance: | yes General product parameters: Parameter Value Parameter Value Overall Height 1880 dimensions Width 595 Total volume (dm or l) 310 (millimeter) Depth 630 EEI 81 Energy efficiency class E Airborne acoustical noise 38 Airborne acoustical noise c emissions (dB(A) re 1 pW) emission class Extended Annual ener : temperate/ consumption (6Wh/a) Et Climate class: nn Subtropical Minimum ambient Maximum ambient temperature (°C), for temperature (°C), for which which the refrigerating 1ù the refrigerating appliance is ES appliance is suitable suitable Winter setting no Compartment Parameters: Compartment parameters and values Recommended Compartment | temperature Freezin Defrosting type Compartment type Volume setting for capacity fauto-defrost A, (dm or) optimised food (kg/24h) manual defrost = M) storage (°C) Pantry no = — _ _ Wine storage no = — _ — Cellar no = — _ — Fresh food yes 224,0 4 — A Chill no = — _ — 0-star or ice-making no = = En — 1-star no = — —_ = 2-star no = — _ —_ 3-star no = — _ —_ 4-star yes 86,0 -18 3,9 A 2-star section no = — _ —_ Variable temperature no — — _ _ compartment

For 4-star compartments Fast freeze facility [ Yes For wine storage appliances Number of standard wine bottles | — Light source parameters (°) : Type of light source LED Energy efficiency class F Minimum duration of the guarantee offered by the manufacturer : 24 months Additional information: Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : https://www.madocumentationreparation.com () as determined in accordance with Commission Delegated Regulation (EU) 2019/2015. Climate class: — Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C: — Temperate:‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °Cto 32°C: — Subtropical:‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°Cto 38 °C: This refrigerating appliance is not intended to be used as a built-in appliance. To find the model information in the product database: Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/2244602 Rated voltage and frequency 220-240V- 5OHz Refrigerant/Amount R600a / 37g Insulation blowing gas Cyclopentane Rated current 1,5A Electric shock protection class Class | Max. lamp power 2W Defrosting power 170W Temperature rise time Power cut safe 8h Net weight 57kg Replaceable (LED only) light source by a professional This product contains a light source of energy efficiency class F.

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Availability of spare parts: a minimum period of 10 years Please Note! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at: Vanden Borre in alle vertrouwen www.darty.com www.vandenborre.be QE 0978970070 Q 023340000 24 Hours 8AM-6PM 7 Days a week Mon to Sat (J 9 Rue des Bateaux-Lavoirs, [e) Slesbroekstraat 101 94200 Ivry-sur-Seine, 1600 Sint-Pieters-Leeuw France Belgium

DISPOSAL BE À: à responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 20/02/2025

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf. In forced air refrigerators (equipped with a fan or No Frost models), the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING : This indicator is only intended for use in your refrigerator. Do not use it in another

refrigerator (as the coldest area will not be the same) or for any other purpose. TEMPERATURE INDICATOR : THE COLDEST PART OF YOUR REFRIGERATOR CHECKING THE TEMPERATURE IN THE COLDEST AREA Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance. When the indicator shows “OK, it means your thermostat is set properly and the temperature inside your refrigerator is correct. Ifthe indicator is white it means the temperature is too high, so you should increase the thermostat setting and wait for 12 hours before checking the indicator again. After loading the refrigerator or opening the door, the indicator may turn white for a few seconds. Correct setting Temperature too high, adjust the thermostat
