Product type	Gas plancha 2 burners
Brand	LEMARQUIER
Model	260 DUO
Origin	France (certified Origine France Garantie)
Gas supply	Butane (28-30 mbar) or Propane (37 mbar)
Regulator type	Fixed regulator standard NF EN 12864 (28 mbar for butane, 37 mbar for propane)
Gas connection	Flexible metal hose NF D 36125 + NF EN 14800 (unlimited life) or reinforced rubber NF D 36112 (10-year life), max length 1.5 m
Total power	5.4 kW (2 x 2.7 kW)
Nominal flow rate	Butane: 262 g/h; Propane: 256 g/h
Burners	2 burners with individual power adjustment
Ignition	Integrated piezo (ignition button); possibility of manual ignition with flame
Plate material	Enameled steel (recommendation: do not use ice cubes)
Juice collection tray	Yes, located on the left side, capacity to check regularly
Usage	Outdoor only, on non-flammable horizontal surface
Safety distance	0.50 m from any combustible material
Cleaning	Warm plate after use: scrape residues, wash with water and stainless steel wool, dry
Burner maintenance	Check and clean the orifices with compressed air if prolonged non-use
Storage	Away from moisture and dust; gas cylinder stored outdoors, dry and ventilated
Warranty	Commercial warranty (see lemarquier.com); After-sales service: [e-mail]
Approximate dimensions	Max height under cart 400 mm (6 kg cylinder); width 310 mm

Frequently Asked Questions - 260 DUO LEMARQUIER

What types of gas to use with the 260 DUO plancha?

The plancha operates on butane (pressure 28-30 mbar) or propane (pressure 37 mbar). Use the appropriate regulator: 28 mbar for butane, 37 mbar for propane, compliant with standard NF EN 12864.

How to light the plancha?

Open the gas cylinder valve, press the regulator reset button, then turn the knob to full flow while pressing the ignition button. Visually check the flame under the plate. Repeat for each burner. If the igniter fails, use a long match or a long-neck lighter.

How to clean the cooking plate?

After turning off the plancha, wait until the plate is warm. Scrape residues with a stainless steel spatula, pour a little water and scrub with a stainless steel wool ball. Rinse and wipe with paper towel. Never use ice cubes (risk of thermal shock).

Which gas cylinder to use with the cart?

For storage in the cart, use a maximum 6 kg cylinder (height 400 mm, width 310 mm). 13 kg cylinders must be placed outdoors, away from any heat source.

What to do in case of gas smell?

Immediately close the gas cylinder valve. Check the connections. If the smell persists, contact the manufacturer. Never use a leaking appliance.

How to store the plancha in winter?

Store the plancha in a dry place, away from moisture and dust. Disconnect the gas cylinder and store it outdoors, in a dry and well-ventilated area, away from any heat source.

What is the lifespan of the gas hose?

The flexible metal hose (NF D 36125 + NF EN 14800) has an unlimited lifespan. The reinforced rubber hose (NF D 36112) must be replaced every 10 years or if it shows cracks or signs of wear.

Can the plancha be used under a canopy or pergola?

No, the plancha must be used outdoors only, in an open space. Keep it at least 0.50 m away from any combustible material.

How to maintain the burners?

After a long period without use, check and clean the burners and air openings (venturi) with compressed air to remove dirt, cobwebs, or insect nests.

What to do if the flame is irregular or hard to light?

Check that the regulator is correctly reset and that the cylinder is not empty. Clean the injectors and burners. Ensure the gas line is not blocked. If the problem persists, contact after-sales service.

USER MANUAL 260 DUO LEMARQUIER

Thank you for purchasing a contact-griddle by LE MARQUIER.

The contact-griddle is ideal on a terrace or in the garden as it provides for healthy and natural cooking of all your barbecued foods: fish, seafood, meat, poultry, game, etc. in a fun-filled atmosphere.

Every burner is controlled by a valve topped with a control lever used to adjust its power.

FOR YOUR SAFETY

CAUTION: Accessible parts may be very hot. Keep young children away.
Should only be used outside.
Do not move the appliance during use.
Close the gas container's valve after use.
Any modification made to the appliance could be dangerous.
This appliance must be kept away from flammable materials.
Allow the appliance to cool down before cleaning.
Do not use an adjustable pressure reducer.
The parts protected by the manufacturer or its representative should not be handled by the user.
Use protective gloves when handling particularly hot elements.
There must be no flammable material around or under the appliance.
If you smell gas, close the gas bottle's valve.

ASSEMBLY AND INSTALLATION

This appliance must be kept away from flammable materials during use.

Do not store or use petrol - or other flammable liquids or vapours - close to the appliance.

PLACE OF USE

This appliance must be used outdoors on a heat-resistant, non-flammable horizontal support (firebrick, tiling, stainless steel, etc.). There should be no flammable materials within a radius of 0.50 metres from your appliance.

GAS CONNECTION

We recommend 6 to 13kg commercial butane or propane bottles and using the appropriate safety pressure reducer. The gas bottle used, equipped with the pressure reducer, must have a maximum height of 615mm and width of 310mm . If the gas bottle is placed on the trolley, it must have a maximum height of 400mm and depth of 310mm .

For butane gas: Use a fixed pressure reducer of 28 mbar which meets the NF EN 12864 standard.

For propane gas: Use a fixed pressure reducer of 37 mbar which meets the NF EN 12864 standard.

The connection from the appliance to the gas bottle (Butane or Propane) is carried out by a flexible metal hose with an NF D 36125 mechanical connector (unlimited usage) or a flexible rubber hose equipped with an NF D 36112 mechanical connector (10-year usage) with a maximum length of 1.5 metres. Regularly check that the gas hose is in good condition and do not hesitate to change it if shows cracks or signs of wear. Change when the expiry date printed on the hose has been reached.

The plancha must be connected using the G1/2 connector located on the right-hand side of the appliance. After having connected the hose to the plancha, connect the pressure reducer on the hose then on the bottle by following the indications supplied with the hose and the pressure reducer.

If a gas leak is observed, close the gas bottle's valve and double check the connections and carry out another leak test. If the leak continues or originates from another part, contact the manufacturer.

Never use a leaking appliance.

When changing the gas bottle, please respect the following instructions:

It must only be changed outside, far from any source of ignition or heat.

Wait for the appliance to have completely cooled down.
Before changing the gas bottle, ensure its valve is fully closed.

BEFORE STARTING UP

Ensure:

That there are no leaks.
- That the flexible metal or rubber hose is not in contact with the parts of the appliance that may become hot and that it is visible along its full length (from the appliance to the bottle) and easily accessible.

TURNING ON THE "PLANCHA" CONTACT-GRIDDLE

Every burner is controlled by a valve with a control lever and an ignition button.

The control lever has a symbol (l) that indicates the valve's condition.

1. Open the valve located on the gas bottle, press the fixed pressure reducer's reset button.
2. Press and turn the control lever to the full flow position (large circle) and simultaneously press the ignition button.
3. Visually check that the appliance is on by looking through the cooking plate.
4. Do the same for each burner.
5. Then adjust the height of the flame by turning the control lever(s) from full flow (large circle) to reduced flow (small circle) (See Figure 2).
6. To turn it off, bring the control lever(s) to the closed position (○) then close the gas bottle's valve.

Closed flow position (Heat off)

Full flow position (Full heat)

Medium flow position

Reduced flow position
Figure 2: Adjusting the control lever

Note:

A flame (long match or long-beaked lighter) can also be used if the igniter is not working. To this end, place the flame close to the burner by passing through the plancha's body and the cooking plate and ignite as explained above. Repeat the action for each burner.

USE

NOTE: When using for the first time, we recommend operating your plancha empty for 10 minutes at medium flow. It is possible that a slight smell will emanate from your appliance for a few minutes.

Before cooking, pre-heat your appliance for approximately 10 minutes.

To recover your food's cooking juices, place a jar in the intended opening located on the left-hand side of the plancha.

CLEANING AND SERVICING

To clean your plate, leave it on the frame of the plancha. It only takes one minute to clean your plate. Cleaning must be carried out when the plancha is turned off but while the plate is still warm. If this is not the case, continue to operate the burners for another few minutes. Scrape the largest residues using a stainless steel scraper. Pour water on the plate and scrub using stainless steel wool. Renew the operation until the plate is spotless. Carefully wipe with a paper towel. Be careful with the capacity of the collecting tray: do not forget to empty it on a regular basis. Use protective gloves if

the tray is still warm.

Check out our tutorial on our YouTube channel.

CAUTION: The ice cube method is to be avoided. It presents a risk of thermal shock which could damage the plate (flaking of the enamel, for example).

If the appliance has not been used for a long period of time, check and, if need be, clean the burners and the air vents with pressurised air so as to remove potential residues (dirt, insect nests, spider webs, etc.).

STORAGE

Store your plancha in a dry and dust-free place where it will not be damaged. Before storing your plancha, disconnect the gas bottle and store it outside in a dry and well-vented place, far from any source of heat.

FEATURES

Countries of destination:	Category:
FR - BE - CH - ES - GB - IT - PT - LU	I3+(28-30/37)
DK - NL - IT	I3B/P 30

2-burner plancha					Σ Qn = 5.4 kW		262g/hr with G30 (butane) 257g/hr with G31 (propane)
Burners	Nominal flow (Qn)	Gas	Pressure (mbar)	Marker on injector		Flow (g/h)	CE CE 1312
Left	2.7 kW	(G30) Butane	28-30	84		131	1312......
Right	2.7 kW	(G31) Propane	37			128

WARRANTIES

The appliance enjoys the following commercial warranties: lemarquier.com

Our aftersales convention can be viewed online on our Website: lemarquier.com

Every appliance is inspected at every manufacturing stage.

In the event that anomalies were to be detected, it is important to ensure all the requirements of the manual have been strictly adhered to. In particular, the fact that the safety pressure regulator used is the one that is intended to be used with your gas bottle.

Failure to follow the rules laid down for use of the appliance can lead to its deterioration.

Do not modify the appliance.

Any modification made to the appliance could be dangerous.

In the event of a breakdown or a damaged part, please contact our Aftersales Department.

Dimensions of the Plancha appliance (in cm)

LENGTH	122
DEPTH	51
HEIGHT	123

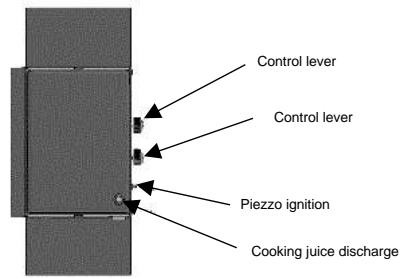

Description of the Plancha (top view)

PRÄSENTATION DES KONTAKTGRILLS „PLANCHA“

Thank you for purchasing this product with certificate of guaranteed French origin! Consult this instruction manual before use.

Please contact our after-sales services by e-mail [e-mail]
