USER MANUAL Divali ATLANTIC

Manual must be kept by end user

© Programmation © Programmation (© LUN: Plages confort IC LUN: Plages confort

NV auoprogemmaton | ©) || &xm | ©

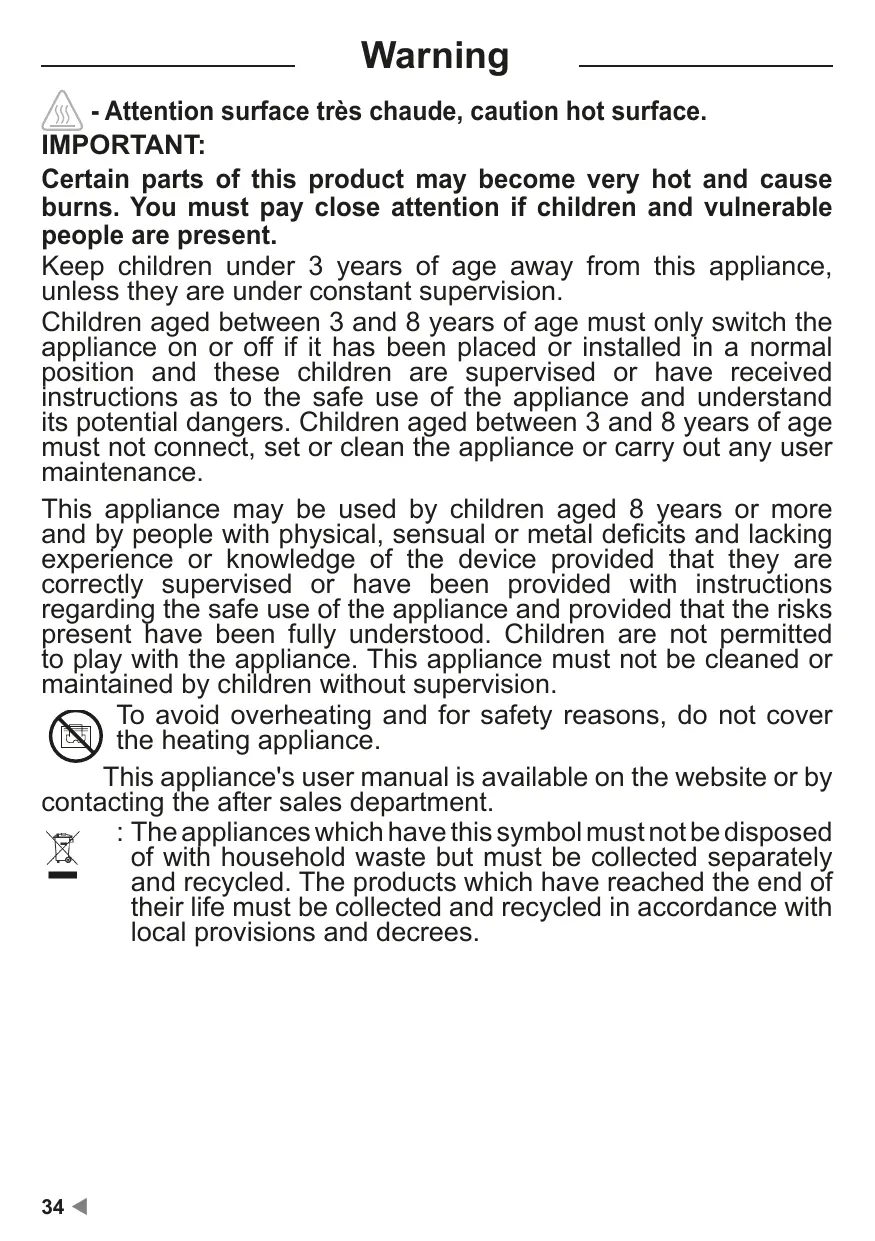

Warning Declaration of Conformity with the RED Directive 2014/53/EU 35

2 - Quick start 2.1 - Operating principle . 2.2 - Switching the appliance onvoff . 2.3 - Quick temperature setting . 2.4 - Operating mode selection . .

2.4.1 - Auto mode .. 2.4.2 - Basic mode 2.4.3 - Prog mode . . . ee 2.5 - Light function 14

3 - Connectivity 3.1 - Pairing appliances in the same room... . . 3.2 - Remote connections

4 - Advanced settings .. 4.1 - Occupancy detection . . 4.2 - Window open/window closed detection . 4.3 - Energy consumption and saving . 4.4 - Command locking .... 4.5 - Calibration

4.6 - Shedding 5-Expert mode 59 6 - Troubleshooting 61 Technical characteristics 63

Thank you for showing your trust in us by choosing this appliance. The radiator you have just bought has undergone numerous tests and checks to guarantee you the best quality and pro- vide you with complete satisfaction. Take the time to read your radiators manual and discover the usage tips it provides to improve your comfort. Keep the manual, even after you install the radiator.

- Attention surface très chaude, caution hot surface. IMPORTANT:

Certain parts of this product may become very hot and cause burns. You must pay close attention if children and vulnerable people are present.

Keep children under 3 years of age away from this appliance, unless they are under constant supervision.

Children aged between 3 and 8 years of age must only switch the appliance on or off if it has been placed or installed in a normal position and these children are supervised or have received instructions as to the safe use of the appliance and understand its potential dangers. Children aged between 3 and 8 years of age must not connect, set or clean the appliance or carry out any user maintenance.

This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully understood. Children are not permitted to play with the appliance. This appliance must not be cleaned or maintained by children without supervision.

To avoid overheating and for safety reasons, do not cover

the heating appliance.

This appliance's user manual is available on the website or by contacting the after sales department. : The applances which have this symbol mustnotbe disposed Æ of with household waste but must be collected separately and recycled. The products which have reached the end of their life must be collected and recycled in accordance with local provisions and decrees.

DECLARATION DE CONFORMITE DIRECTIVE RED 2014/53/EU (*)

Thermor hereby declares that the equipment referenced below conforms to the essential requirements in the directive RED 2014/53/EU.

The complete EU declaration of conformity for this equipment is available on request from our after sales department (see address and tel. No. at the end of the manual).

Description: Radiator with BD3.3 radio card Models: see the model reference in the manual header

Radio frequency bands used by the Transmitter-Receiver 868MHZz to 868.6MHz 868.7MHz to 869.2MHz 869.7MHz to 870MHz

Maximum radio frequency power: <25mW Class 2 Microwave Radio Equipment: may be marketed and commissioned without restrictions.

Radio range: 100 to 300 metres in free field, variable according to the associated equipment (range may be altered according to the installation and electromagnetic environment conditions).

Conformity with the radio and Electromagnetic compatibility standards has been verified by the notified organisation 0081: LCIE France, Fontenay aux Roses.

1.1 - Installing the appliance

Your appliance is delivered with its wall support. However, the choice of screws

and plugs depends on the nature of your wall and

you must ensure that you are using screws and plugs

which are suitable for the weight of the appliance.

1.2 - Installation rules

This appliance has been designed to be installed in residential premises.

It must be installed in accordance with good practice rules and the standards which apply in the country where the radiator is installed (NEC 15100 for France). Its operating range is -10 ° C to 55 ° C. Respect the minimum and maximum distances from furniture when positioning the appliance. It should be installed to ensure maximum detection (e.g.: do not install behind a sofa, a busy area such as a corridor, inside a unit, etc.) (see diagram).

Horizontal Vertical model and Skirting board model

IL Dimensions:en) Dimensions: cm

Most optimal location area . Ÿ - We do not recommend using the Open

Window function in corridors and rooms located near an entry door which opens to the outside. Choose the best location.

Do not install a shelf above vertical appliances.

If you have foam-mounted wall coverings, you must place a wedge under the appliance support which is as thick as the foam in order to keep a free space behind it and avoid interference with its regulation.

Do not install the appliance in a current of air likely to disturb its regulation (under a Central Mechanical «Ventilation, etc).

The appliance should not be placed directly under a power outlet.

Do not install the appliance in volume 1 of the bathrooms

The appliances which are used in bathrooms must be installed so that the switches and other command mechanisms for the appliance cannot be touched by anyone in the bath or shower.

Installing a vertical appliance at altitude creates an w) |elevation in air output temperature (of around 10°C per ‘ [1000 min altitude).

We strongly recommend that you do not fit vertical appliances above an altitude of 1000 m (risk of the appliance not working correctly).

Itis prohibited to fit a vertical appliance horizontally and vice versa.

It is prohibited to use the appliance in mobile configuration, on feet or on wheels.

1.3 - Installing Horizontal and Skirting board appliances

Once you have removed the lid from the cardboard box, you may remove the wall support (Horizontal and Skirting board versions) which you can use as a scale to drill the holes.

Leave the appliance in its cardboard box.

1.3.1 - Unlocking the appliance's mounting lugs

SEE DETAIL A DETAIL A Use a screwdriver Unlocked wall mount to unlock the wall bracket

1.3.2 - Attaching the wall support to the wall

_ : ST f f A AN 4 L + à 11 k 2 Ê] Lo) ) DETAIL A si ï

Place the wall support on Lift the wall support, lining the floor. Mark the drilling up the drilling points A with

points A (cross) with a pen. the lower holes on the wall These provide the position support. Mark the 2 drilling for the lower attachments. points B with a pen.

Drill the 4 holes and insert the plugs which are suitable for your 3 | wall (e.g. plasterboard, concrete). Position the wall support and screw in.

1.3.3 - Connecting the appliance

Take the appliance out of its cardboard box and remove the wedges. To facilitate connection, this appliance has been designed to remain upright during connection.

- The appliance must be supplied with 230V 50 Hz.

- The radiators power supply must be connected directly to the network after the single-pole disconnection mechanism, in accordance with the installation rules. The radiator will be connected to the mains with a 3-wire cable (Brown = Live, Blue = Neutral, Black = Pilot wire) via a connection box.

- In damp rooms such as kitchens and bathrooms, the connection box must be installed at least 25 cm from the ground. Theinstallation must be equipped with a 30mA differential circuit breaker-type protection device.

- Connection to the earth is prohibited. Do not connect the pilot wire (black) to the earth.

- If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or any suitably qualified person, in order to avoid any danger.

- Ifthe pilot or piloted appliance is protected by a 30mA differential

(e;g.: bathroom), the pilot wire supply to this differential must be protected.

The pilot wire end 1st case: appliance only 1) ]insuiated and not further

Once you have removed the lid from the cardboard box you will find a cardboard scale to drill the holes.

1.4.1 - Modifying the position of the control box

By default, the radiator's control box is positioned on the right hand side (the appliance installed on the wall).

On the VERTICAL model, the box may be placed on the left. To do so, carry out the following operations:

4 Operations to be carried out with the power off. Leave the “appliance in its cardboard box and its wedges.

Use the spanner provided with the radiator.

ORemove and keep the 4 holding screws located at the rear of the control box support.

@Pivot the box's support one

half-t ds to the right. 8 Fun UpWarcs 10 Me ng @Attach the box's support

with the 4 screws. 40

@Position the radiator in its 2 wedges, on the side

OPress the side of the box to take it out of the support.

Pull the side of the box so that it is fully visible.

Remove and keep the 2 holding screws for the rear part of the

pulling gently on it.

@Unclip the front part of the control box by

@Pivot and re-position the box's cable.

®Re-position ®Put back the 2 ® Press the side of the the front part in holding screws for box to push it into the the rear partof the rear partofthe support.

the control box. control box.

1.4.2 - Unlocking the appliance's mount-

ing lug _264mm Take the plugs and screws which are Ÿ de suitable for your type of wall according to Î D

the appliance's weight (the screws and plugs are not supplied).

Use the installation scale.

Mark the middle of the radiator with a dotted line.

Mark the 4 drilling points to attach the radiator and dot them with a pencil.

Power A B 1000/1500/2000W | 1259 | 391

- Drill the 4 holes to attach the radiator and

- Insert the screws into the FAN plugs (leave the screws out Er $ $ S by 6 mm max.). + B B : be

- Position the supports, running the screw heads through slots. - Make sure that the supports are

level. - Screw in the supports.

If the electrical connection box is located above the low wall support, run the power cable into the support to connect it. This will prevent you from pinching the cable.

1.4.3 - Connecting the appliance

Take the appliance out of its cardboard box and remove the wedges. To facilitate connection, this appliance has been designed to remain upright during connection.

- The appliance must be supplied with 230V 50 Hz.

- The radiator's power supply must be connected directly to the network after the single-pole disconnection mechanism, in accordance with the installation rules. The radiator will be connected to the mains with a 3-wire cable (Brown = Live, Blue = Neutral, Black = Pilot wire) via a connection box.

- In damp rooms such as kitchens and bathrooms, the connection box must be installed at least 25 cm from the ground. The installation must be equipped with a 30mA differential circuit breaker-type protection device.

- Connection to the earth is prohibited. Do not connect the pilot wire (black) to the earth.

- If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or any suitably qualified person, in order to avoid any danger.

- fthe pilot or piloted appliance is protected by a 30mA differential (e;g.: bathroom), the pilot wire supply to this differential must be protected.

Phase Electrical network

The pilot wire end st case: appliance only insulated and not further

2nd case: appliance controlled ? To pilot wire of a appliance in prog. external or to programming

1.4.4 - Attaching the appliance

Your device has been delivered with two grip tabs for you help lift and stand on the wall bracket.

- Once the connection is made, turn off the power on the board electric.

- Place the radiator on the floor in front of the wall supports. - Insert the tabs into the side grids

- Lift the radiator to place the radiator's lower hooks on the low wall support.

- Bring the top of the radiator close to the high wall support until it comes into contact.

- Lift the radiator slightly off the wall. - Bring the top of the radiator close to the wall. - Lower the radiator slightly.

- Place the upper hooks on the high wall support and the lower hooks on the low wall support.

> 17 É 2 £ Z £ = £ É 2

Before you carry out any maintenance, switch your appliance off by turning the On/Off switch to position O.

To maintain your radiator's performance, around twice a year you must use a vacuum cleaner or brush to remove the dust from the appliance's upper and lower or side grills. The appliance may be cleaned with a damp cloth and liquid soap; never use abrasives or solvents. In a polluted atmosphere, dirt may appear on the appliance's grill. This phenomenon is caused by poor ambient air quality. In this case, we recommend verifying the ventilation in the room (fan, air flow, etc.). This dirt does not justify the appliance's replacement under warranty.

2 - Quick start 2.1 Operating principle

‘Turn ONVOFF the Increase, decrease Return light navigate

2.2 - Switching the appliance on/off

An On/Off switch is located at the rear of the appliance's unit.

Use the switch only for long shutdown periods (excluding heating periods). Turn the switch at the back of the appliance to l to switch the appliance on. Ifthe switch is set to O, the appliance is not longer connected and the light is off. When the appliance is switched off, you may need to set the day and time again. MENU 88 MODE AUTO

-} Détections ° D V © l@atlantic (# Settings

CD Turn OFF I O O @ atlantic

turn ON Whichever menu you are in, you may stop the heating function. The light function remains accessible.

To switch off the heating function, press NV” until you see () off and press © to confirm.

To switch the heating function on, press @} 46

2.2.1 - Switching the appliance on / off

2.2.1.1 - Setting the time and date

The first time you switch the radiator on, select the language and enter the date and time.

The first time the radiator is switched on, - AUTO mode is selected, - the setpoint temperature is set at 19° C.

2.3 - Quick temperature settin

To modify the setpoint temperature, use \ or \/.

Langue Langue Æ Daerime AUTO P F o English L 9 May 2020 o 19.0° Engin Cane 1526 dat Mon 15:26

Use the consumption indicator to optimise your setting. When the consumption indicator is at the green symbol, you are at a temperature level lower than or equal to the recommended temperature.

It takes at least 6 hours for the temperature to stabilise

Depending on your installation, you may note a different temperature to the one displayed on your appliance. In this case, refer to the "Calibration" chapter.

2.4 - Operating mode selection

3 operating modes are proposed: - AUTO: Smart management activation. - BASIC: Access to temperature setting only. - PROG: Manual functions programming.

Before you do anything, wake up the screen by pressing the © key. Select the mode which is best suited to your needs.

This mode lets you activate smart management. You set the temperature you want when you are in the room and the appliance optimises your comfort while saving energy. The appliance:

+ Remembers your weekly routine and any changes toit to set the optimum programming automatically,

+ Anticipates heating so that you have the right temperature when you come back into the room,

+ Detects when you are in the room or away from it to adjust the temperature automatically,

+ Detects when windows are opened and closed to lower the setpoint temperature to 7°C when you are airing out the room.

2.4.1.1 - Functions accessible in Auto mode

85 MODE AUTO CO Turn OFF

+ __ Detection function The occupancy detection function is always active. By default, the open window detection function is active and may be deactivated

FH) Detections L)} Open window L:) Open window The device Ex Occupation Disable O during aeration V O Enable

.Viewing smart management information

Lets you see the presence periods seen by the appliance for each day of the week. Your appliance learns and permanently remembers your routine to adapt the temperature of your room.

After the appliance is switched on for the first time, it takes a week to define the auto-programming. It is then refined and adapts over time. During this first week the appliance follows the Comfort temperature.

À Informations L Autoprogramming

Observed presence Anticipation time

Energy savings Terre, Consumption

For optimum anticipation of its heating up before your return, your appliance remembers the temperature rise time according to the

characteristics of your room (volume, insuation, external temperature, etc.).

IL Anticipation time

For your comfort, temperature rise starts 1H30 before arrival

Your appliance informs you of the savings you have made by indicating the percentage of time it lowered the temperature over the last 7 days.

After the appliance is switched on for the first time, it takes a week's operation to be able to see a first result. It will then be updated permanently. During this period, the appliance will be in Comfort mode continuously.

+ __ Accessing the temperature lowering parameters

Enables you to set the maximum temperature reduction you want to make when you are absent (from -2°C to -4°C). By default, it is set to -3°C.

Æ# Settings Æ# Maxreduct. # Maxreduct. Æ Maxreduct.

Drop of -3"C maximum Drop of 4°C maximum Drop of -2'C maximum

2.4.2 - BASIC mode MENT The appliance follows the setpoint temperature adjusted at all 8 mone gasicl times. [& Settings

All the smart functions are deactivated. O TURN OFF

2.4.3 - PROG mode PROG mode lets you manage your appliance's functions manually.

2.4.3.1 - Detection functions

MENU H)) Detections (+) Open window +)) Open window (88 MODE PROG The device ) Detections ILE Open wind. Enable A switches off LA No surpervision [E Programming Fix Occupation Disable during aerationl Æ Settings Enable O TURN OFF O O Disable

By default, open window/closed window is active.

MENU +) Detections H) Occupation ) Occupation 84 MODE PROG This device É) Detections O Eee © Nosupervision | /N {3x adaptsto [E Programming N7 | unforeseen [Æ Settings Enable O TURN OFF Disable

By default, occupancy detection is inactive.

2.4.3.2 - Setpoint temperature setting

The following ranges are defined when the appliance is switched on:

Monday to Friday, comfort from 5am to Sam and from 5pm to 11pm

Saturday and Sunday, comfort from 5am to 11pm. You may modify these ranges and define 3 Comfort temperature ranges per day. During these Comfort ranges, the temperature setpoint is adjusted using LAN or VV. Outside the Comfort ranges, lowering the temperature is set in "Lower Eco T°" mode.

The default reduction value of -3.5°C is recommended for better energy performance.

2.4.3.3 - Setting the programming

2.4.3.3.1 - Internal programming

+ Modifying the programs

You may program up to 3 Comfort temperature ranges for each day of the week. Out- side the Comfort ranges, the Eco temperature (by default -3.5°c) is set. To change this value, see chapter 2.4.3.2.

Select the day with V”. Confirm ©.

Select "Modify" with V/_. Confirm ©.

Select the start time for the 1st Comfort range with /N or V.

Confirm ©. Select the end time with /\_ or V”. Confirm ©.

Repeat the same operation for the 2nd Comfort range then for the 3rd Comfort range and confirm ©.

Select Æ then go to the next day with NV.

© Programming © Programming [€ MON: Comfort range | (€; MON:Comfort range A ee ) 5 Thu O 05:00 17:00 / | 10500, 17:00, =" |\y Lower T° ECO on En el e) Tue Sat Wed Sun 2 EX ce, | 2

You may copy a day's program to one or more days.

Select the day to be copied with N7, confirm O (e.g.: Monday).

Select "Copy" with NV. Confirm ©.

Move between days with ©.

Confirm the day to be copied to with N/ then move onto the next day with ©.

© Programming @ Programming € MON: Comfort range € Copyto Monday LA M [MS 0 Vi LS D

05:00 17:00 | O = Thu O NE bocboo M Lower.T°ECO on EE 0900 2300 O Tue Sat Validation Wed Sun B Edit Cancel

+ __ Deleting a comfort temperature range

Select the day with V”. Confirm ©.

Select "Modify". Confirm oO.

At the start time, select 0:00 with V7. Confirm ©.

At the end time, also select 0:00 with V/ then confirm O .

2.4.3.3.2 - External programming

The appliance follows your installation's external command orders by Pilot Wire link. Select "Programming source" with V/ then confirm ©. Select "External control" with V/ then confirm ©.

2.5 - Light function

Æ Settings \Æ# Prog.source

‘The followed rhythm is given by

Whether you want to create a cosy atmosphere in your living room, have a night light in your children's bedrooms or make sure you can get up safely during the night, you can choose by integrating a light function into your radiator. This function can be managed from your control box on the product and/or directly from your Cozytouch smartphone/ tablet app.

You may then modify the timer (from 20 mins to permanent), the brightness (4 levels possible) and even choose to activate or deactivate the 30-second automatic independent lighting function if anyone is detected in the dark.

The "Auto lighting" function can also be accessed from the Cozytouch app.

2.5.1 Switching the light on/off

Press the Light button to switch the light on or off.

When you are in "light" mode, pressing the light button switches the light off and returns to heating mode.

Pressing the back button returns to heating mode without switching the light off.

The "Auto lighting" function (see below) is independent of the other settings and detection in the dark remains active (or inactive) even if the light is off.

2.5.2 Setting the brightness

The "Brightness" menu lets you select the level of light diffused by the appliance, over 4 levels.

Bnghiness O Auto lighting

The "Timer" menu lets you set how long the light is switched on for. This time may be set to permanent / 4 hours / 1 hour / 40 minutes / 20 minutes. It is set to "permanent" position by default.

40mn O ES 7 Timer EU Auto Mghting_ Inactif

The "Auto lighting" option detects anyone in the dark and switches the light on at low brightness automatically for 30 seconds.

#\Ifthe radiator is installed in a bedroom, if the presence detector is facing the bed, the light may come on depending on how you move at night. In this case, we recommend leaving the "Auto lighting" function inactive.

2.5.5 Activatinq the light from the Cozytouch app

inthe dark. Enable Auto lighting /Disable

If your appliances are connected via the Cozytouch app, you may switch the radiator light on and off in each room from the app on the radiators that have the light function.

If several of your appliances are twinned in the same room, you may use the app to switch the light on/off on all the room's radiators at the same time.

If you want to switch a room's radiators on independently, activate the light directly on the radiator.

The "Auto lighting" function can be accessed from the Cozytouch app.

Before you do anything, wake up the screen by pressing a key. This menu lets you access the Connectivity settings.

25 O V | cock pasetnes |

© TURN OFF Our units are compatible with iO-homecontrol®.

This highly-secure radio communication technology is integrated into a wide range of home equipment from specialist home equipment partner brands.

On our radiators which feature i0-homecontrol you may do the following from the "“connectivity" menu:

+ Pair several compatible appliances with each other in the same room.

For optimum operation, only appliances located in the same room must be paired (up to a maximum of 5 appliances in the same room).

+ Connect your appliances to the Cozytouch app to manage them by remote (from the app, requires a Cozytouch bridge).

3.1 - Pairing appliances in the same room

The radiators which are located in the same room may be paired to enable them to communicate and share information. For example, when several appliances are paired, a change in setpoint temperature or mode on an appliance is passed on immediately to the other radiators in the room.

In the same way, if one of the radiators in the room detects your presence or a window opening/closing, it will communicate this information to the other radiators.

k MENU Æ Settings Æ Connectnity

jE MODE AUTO) M} Detections

N/_ [informations OV lock OV O #1] Max requct. Connection D TURN OFF “onn

Example: pairing 3 appliances in the same room

Appliance 1 Appliance 1 Appliance 2 Pairing x Æ Connecttwins Æ# Pairing Onewtwin(s)

Unit not paired detected > Unit not paired

Seeinq the paired appliance: You may see the appliances you have paired with each other.

Cancellinq the pairing: nl This operation removes all the links between appliances

You must cancel the existing pairing (see "Cancelling the pairing") and restart the operation to pair all the appliances with each other.

3.2 - Remote connections

This appliance is compatible with our Cozytouch Offer (all the information is available on our website) and with the bridges which use the iO-homecontrol protocol.

Accessories required:

iOS and Android-compatible Cozytouch bridge. Sold by | Internet Cozytouch app. Free | our brand's distributors or on | access box download from the App Store or | our website.

This installation enables you to manage, programme and control your appliance(s) by remote via a smartphone or tablet.

For example, you may modify the setpoint temperature or operating mode, manage your absences by indicating your return date or view your appliances' consumption.

If you want to pair multiple devices in the same room via the app, you need to connect the devices one by one, up to 20 appliances in the same home.

Carry out all the connection or management operations from the app N[Æ Settings Æ Connectivity

(follow the instructions displayed on your smartphone or tablet).

€) Connecting your appliances -" Follow the instructions provided in the app.

1/1f devices are already paired with each other, and you want to connect to the app, cancel pairing.

2 / Connect the radiators of the same room, one by one.

Just as you can not pair products locally if they have already been connected in the application in different rooms.

4 - Advanced settings

4.1 - Occupancy detection

Lets you heat your room when someone is in it. The appliance will then heat up to Comfort temperature.

Occupancy is detected below the sensor (Z 40 cm from the

ODE A Open wind. Enable |

Information FSetings

ram OFF E.g.: Your appliance is set to 19°C in Comfort.

- Jam, you leave the room;

- 9.30am, the operating temperature changes to 18°C; - 10.00am, the operating temperature changes to 17°C.

Leave the room LA 9h30 l'm coming back T° Comfort 1% ter 12 hour LA san de at 1 go to Comfort -1°C hi

pres sohoo To bo conf. T-Comfort-2°L tar another 1 haur, LA Le |

1 go into comfort -2°C T°Comfort

Prog mode By default, occupancy detection is inactive.

MENU +) Detections Lj) Occupation (88 MODE PROG :) Detections RH Open win._Enable “No supervision [ES Programming © © LÆ Settings Enable CO TURN OFF

Activating the occupancy detection function in Prog Mode lets you manage unexpected presence automatically.

Example: On Monday, you programmed a temperature range from 5pm to 11pm. You come home at 3pm. The appliance detects your presence and automatically switches to the Comfort temperature range.

+ One-off programming change Occupancy detection function Inactive When activated, this function lets you manage your unexpected presences.

Example: On Monday, you programmed a Comfort temperature range from 5pm to 11pm. You come home at 3pm and the appliance displays an Eco temperature.

You may increase the temperature manually.

The one-off change is active until the next Comfort temperature range defined in the program. The appliance then returns to its normal operation.

4.2 - Open window detection

Used to detect variations in temperature related to the opening and closing of your windows. If you forget to switch off your appliance when a window is open for a long time, this function lets you get around this and prevents your appliance from heating up unnecessarily. The appliance automatically switches to Frost Protection temperature (7°C) when it detects an open window and rises to the setpoint temperature when it detects that the window has been closed (the detection time is variable). The appliance reacts to window opening and closing according to several variables, including in particular: + The required temperature in the room + The outdoor temperature + Theinstallation's configuration In the case of paired appliances, the detection on one of the appliances is passed onto all of the paired appliances. In the same way, if the function is deactivated on * one of the appliances, it is deactivated on all of the paired appliances.

Activating/deactivatinq the function This function is only accessible in AUTO or PROG modes.

MENU :)) Detections [3} Open window Hi) Open window (88 MODE PROG The device No siot lo) O A st or |A |G Programming 4 Occupation Disable during aeration| [# Settings Enable TURN OFF Disable NOTE:

Via the "Expert Menu”, you may deactivate the open window detection on a single appliance without deactivating the others in the case of paired appliances (see the "Configurations" chapter in the expert menu on page 58). This same appliance will switch to frost protection if an open window is detected by one of the other paired products.

4.3 - Energy consumption and saving

Regardless of the mode, you have access to the energy consumption indicator via the information menu. lt will display the consumption in KWh and the price in Euro.

Accessinqg the information menu. Energy savings

Ÿ Informations O IL Energy savings Since 7 days, AUTO

VW V7 Brent À | svinos during 52% Érnee fthe time.

L Informations Consumption KWh price

Autoprogramming O sun |O Cancel UN O Anticpation time z V Energy savings 636€

4.4 - Command locking

To avoid the commands being changed by children, you may lock a

your appliance's commands by pressing and holding (_).

Select "Lock" a and validate with O. Turn OFF Do the same to unlock the commandés by selecting "Unlock" à.

You must wait at least 6 hours for the temperature to stabilise.

Depending on your installation, you may note a different temperature to the one dis- played on your appliance (a difference of 0.5° C is normal.). In this case, refer to the "Expert Menu”, "Function config. chapter.

Our appliances are compatible with the different shedding systems via the pilot wire or io-homecontrol radio. However, you must not use mains disconnection shedding as this system is incompatible with our appliances. Sharp unplanned and repeated electricity supply disconnections may cause premature wear and damage to electronic boards which are not covered by the manufacturer's warranty. During shedding peri-

ods, the screen displays "priority shedding order". The appliance then returns to its initial operating mode.

To access the Expert menu, press the © and /\ keys at the same time. This menu enables you to access the appliance's advanced functions.

1 Enables you to get information about the appliance which you may be asked for if you contact the After Sales department. information Automatic Summer/Winter Enables you to activate/deactivate the automatic change from Clock summer Üime to winter time.

By default, this configuration is active. Date and time.

General Language Lets you select the language: French, English, Spanish, guag German, Portuguese, Dutch.

Lets you retum to the basic factory setting (Auto mode active,

Reset setpoint at 19°C, lowering to 3.5°C, detection functions active).

The pairing between appliances, the connection to the app or the connection to a command point will be removed.

# Depending on your installation, you may note a different

temperature to the one displayed on your appliance. Before you do anything, leave the temperature to stabilise for at least 6 Parameters hours at the required temperature in comfort mode. You may then calibrate your appliance to adjust the setpoint temperature to the temperature recorded in the room. The calibration value is between -3°C and +3°C.

Example: the temperature displayed on your radiator is 20°C. Function The temperature displayed on your thermometer is 22°C => config. select the calibration value +2°C.

In pairing, used to deactivate the open window function on this appliance only. Deactivating the function on this appliance does not deactivate the function on the other paired appliances and enables it to follow the Open window detection function for the other paired appliances.

Erasure Reserved for appliances managed by radio

Used to record a maximum setpoint temperature which may Max. temperature | not be exceeded. It is set by default to 28°C and ma be modified (from 19°C to 28°C).

Used to lock the appliance's settings partially or completely.

(# Access Control @& Access control Authorised settings:

AT Restrictions Temperature only None (al locked)

Used to record a personal Expert Menu access code. Once activated, the Expert Menu access is coded.

You may write PIN code your personal code here. [] [] []

To deactivate it, go back to the Expert Menu, enter your

personal code and go back to Parameters --> Restrictions

# —> PIN code. The security key lets you secure your iQ installation so that Parameters it doesn't interfere with any neighbouring equipment. The

key exchange provides the possibility of associating an 10 command point with your installation.

Pur jh Enables the security key to be sent to an iO command point. d # Use this operation if the appliances are paired.

Warning, if you use a ripple control for rolling slat blind a new key will be sent to iO order point. This last will be returned it to ripple control.

Enables the security key to be received from an i0 Receiving the command point.

security key #h Makes the existing pairing non-operational if the security key is not sent to the other paired appliances.

After the key exchange, this operation is required to enable

Authorise ° Association the association with an external i0 command point of our brand.

Reset Removes all the connectivity (appliance pairing, connection Connectivity to the app, connection to a centralised command point).

Main body Start-up of the heating body for 5 minutes to verify operation.

Presence Activates the sensor to verify correct operation.

Test Test signal Used to verify the radio communication between two

transmission appliances by transmitting a signal to one appliance

Radio and receiving a signal on the other. There is a risk of the Test signal communication being lost if the signal is weak. Verify reception the installation (distance and/or obstacles between the

To exit the Expert Menu, go back as many times as necessary En) , select "Abandon"

with V and confirm with ©.

Problem encoun- tered

Verifications to carry out

The control box screen does not switch on.

Check that the switch at the back of the appliance is in position |. Check that the appliance is supplied with power.

The room temperature is different from the temperature displayed on the appliance.

You must wait at least 6 hours for the temperature to stabilise.

Depending on your installation, you may note a different temperature to the one displayed on your appliance (a difference of 0.5° C is nor- mal). In this case, refer to the "Expert Menu","T° Calibration" chapter.

The appliance does not heat up.

If you are in programming, check that you are in a Comfort time range. Make sure that the installation's circuit breakers are activated or that the shedder (if you have one) has not switched the appliance off. Check the air temperature in the room:if it is too high in relation to the setpoint temperature the appliance will not heat up.

Check that the appliance is not located in a draft (door open nearby, air output through the cable cover at the back of the appliance) or that the temperature setting has not been modified.

There may be a problem in the electricity network. If there is a prob- lem (thermostat blocked, etc.), disconnect the appliance's power supply (fuse, circuit breaker) for around 10 minutes, then switch it back on. If the phenomenon reoccurs frequently, have the power supply checked by your energy distributor.

The appliance does not heat up enough

Increase the temperature by pressing Afefer to the "Setting the temperature" chapter).

Ifit is set to maximum, carry out the following checks:

- Check whether there is another heating mode in the room.

- Check that your appliance only heats up the room (door closed).

- Have the appliance's power supply voltage checked.

- Check that your appliance's power is suitable for the size of your room (we recommend an average of 100 Wim? for a ceiling height of 2.50 m or 40WIm°).

The appliance is very hot on the surface.

Ifis normal for the appliance to be hot when it is working; the max- imum surface temperature is limited according to the NF Electricity standard. If, however, you think that your appliance is too hot, check that the power is suitable for the surface of your room we recom- mend an average of 100 Wim? for a ceiling height of 2.50 m or 40W/ nm) and that the appliance is not positioned in a draft which would interfere with its regulation.

Problem encoun- tered

Verifications to carry out

Traces of dirt appear on the wall around the appliance.

In a polluted atmosphere, dirt may appear on the appliance's air out- lets or on the wall. This phenomenon is caused by poor ambient air quality (cigarette smoke, incense, chimney, etc.). In this case, we recom- mend verifying the ventilation in the room (fan, air flow, etc.).

The Expert Menu is not accessible.

You saved a PIN Code. You must enter your code to access the Ex- pert menu (see Expert menu chapter).

The appliance does not follow the internal

Check that the date and time are set.

Check that the appliance is in PROG mode and that internal programming is selected.

The appliance does not follow the ex- ternal programming orders.

Make sure that the programming unit is used correctly (see unit user manual).

Check that the appliance is in PROG mode and and that the "Ext. management" programming source is selected. .

The appliance does not respond to the pilot wire orders.

Carry out the following checks to verify that the programming or- ders are being transmitted correctly.

Oscilloscope Ref! . Orders received | Reenes Mode obtained 0 voit ——— |coMFoRT 230V COMFORT — 3-5 min VV rc 230V COMFORT — 7-5 min WW 2C 230V NS |eco : FROST

— 115 V negative T2 PROTECTION

+ 115 V positive a ET In the case of programming by pilot wire or bearer current, the frost protection or shedding orders are priority.

The time for the switchover from Comfort mode to Eco mode is around 12 seconds.

The time for the switchover from Comfort -1/-2 mode to Com- fort mode is around 5 minutes.

If you did not manage to resolve your problem,

contact your distributor/installer; have the

appliance's references with you. They are located on the side of the appliance. Measure the

temperature in the room.

The Commercial code (C) and the Serial number (E) provide the manufacturer's identifica-

tion of the appliance you have just bought.

A Standards, quality labels

D Manufacturing reference E Serial No.

F Manufacturer's No.

Technical characteristics measured and calculated according to REGULATION (EU) 2015/1188.

el sb 0.95 W Type of heat output / room temperature check Characteristic Unit Additional information Electronic room temperature check and weekly programmer JS Other inspection options Room temperature check, with presence detector. JS Room temperature check, with open window detector. JS Remote control option. yes Adaptive activation control. yes Activation time limiter. no Black globe sensor. no

Idem last cover page
