Product type	Ceiling fan with LED lighting
Brand	Sulion
Model	ATENA
Power supply	220-240 V ~ 50/60 Hz
Motor power (max)	10 W
LED power	18 W
Luminous flux	1800 lm
Color temperature	3000 / 4000 / 5000 K (switchable)
Protection rating	IP44
Weight	5.6 kg
Number of speeds	5 (via remote control)
Max air flow	60 m³/min (3600 m³/h)
Max noise level	48 dB
Max ceiling slope	15°
Minimum mounting height	2.3 m
Minimum side clearance	30 cm
Remote control	Yes (included)
Special functions	Breeze mode (natural wind), iFeel mode (auto), timer, summer/winter direction
Dimmable lighting	Yes
Energy class (LED)	F
Motor warranty	8 years
LED warranty	5 years
General warranty	3 years
Replaceable spare parts	LED, driver, receiver, remote control
Maintenance	Clean with a soft dry cloth; no water

Frequently Asked Questions - ATENA SULION

How to install the ATENA fan?

Installation must be carried out by a qualified electrician. Ensure the mounting bracket is fixed to a structure capable of supporting at least 30 kg. The blades must be more than 2.3 m from the floor and at least 30 cm from walls. Follow the instructions provided in the manual.

How to use the remote control?

The remote control allows you to control the speed (5 speeds), turn the light on/off, change the color temperature (3000/4000/5000 K), activate breeze mode (natural wind), iFeel mode (automatic speed according to temperature), and the timer. The FAN OFF button turns off the fan.

How to synchronize multiple fans with one remote control?

Turn off at the wall switch the fans you do not wish to synchronize. Turn on the power to the fans to be synchronized, then press FAN OFF on the remote control. The light will blink 3 times. Cut then restore power to finalize.

What to do if the fan oscillates excessively?

A wobble of up to 2 cm is normal. If oscillation is excessive, use the balancing kit provided. Check that all screws are tight and that the blades are not warped. Consult the instructions on the Sulion website.

How to reverse the rotation direction of the fan?

Use the summer/winter button on the remote control or the switch on the fan body. In summer, counterclockwise rotation creates a cooling breeze. In winter, clockwise rotation redistributes warm air.

How to clean the fan?

Disconnect the power. Use a soft, dry cloth or a soft brush to dust. Never use water or abrasive products to avoid damaging the motor or finish.

What to do if the remote control no longer works?

Check the batteries of the remote control. Make sure the wall switch is on. If the problem persists, you may need to resynchronize the receiver and remote control (see manual). Contact Sulion if needed.

Does the warranty cover fan noise?

The warranty does not cover normal operating noises, especially those more noticeable at night. Slight noise is normal. Excessive vibrations or noise may be caused by loose screws or unbalanced blades.

Can I use a wall dimmer with this fan?

No, using a wall switch or dimmer voids the warranty. Use only the provided remote control.

How to replace the LED bulb?

The LED is replaceable. Cut the power, remove the diffuser, and replace the LED module with an identical model. For the driver and receiver, contact Sulion customer service.

USER MANUAL ATENA SULION

Diagram of a dome-shaped structure with a central column and a top endpoint, no text or symbols present.

ATENA

Ref. 2179421

Vídeo de instalación / Installation video / Vidéo d'installation / Vídeo de instalação / Video zur Installation / Video dell'installazione

email: [e-mail]

[phone]

Chat online: sulion.es

EN Do you have questions about the installation? Any problem or missing components? At Sulion we help you. Contact us, tell us your problem, the IMP and reference that you will find behind the control.

Customer service: Monday to Thursday from 9:00 a.m. to 6:00 p.m., Friday from 9:00 a.m. to 2:00 p.m. Time Spain

Download the userguide in our web: sulion.es/ean/8426107059147

FR

Pala / Blade - Ref. 2174242

PCB Led - Ref. 2174235

Kit receptor + mando / Kit receiver + RC - Ref. 2174228

Difusor / Diffuser - Ref. 2174259

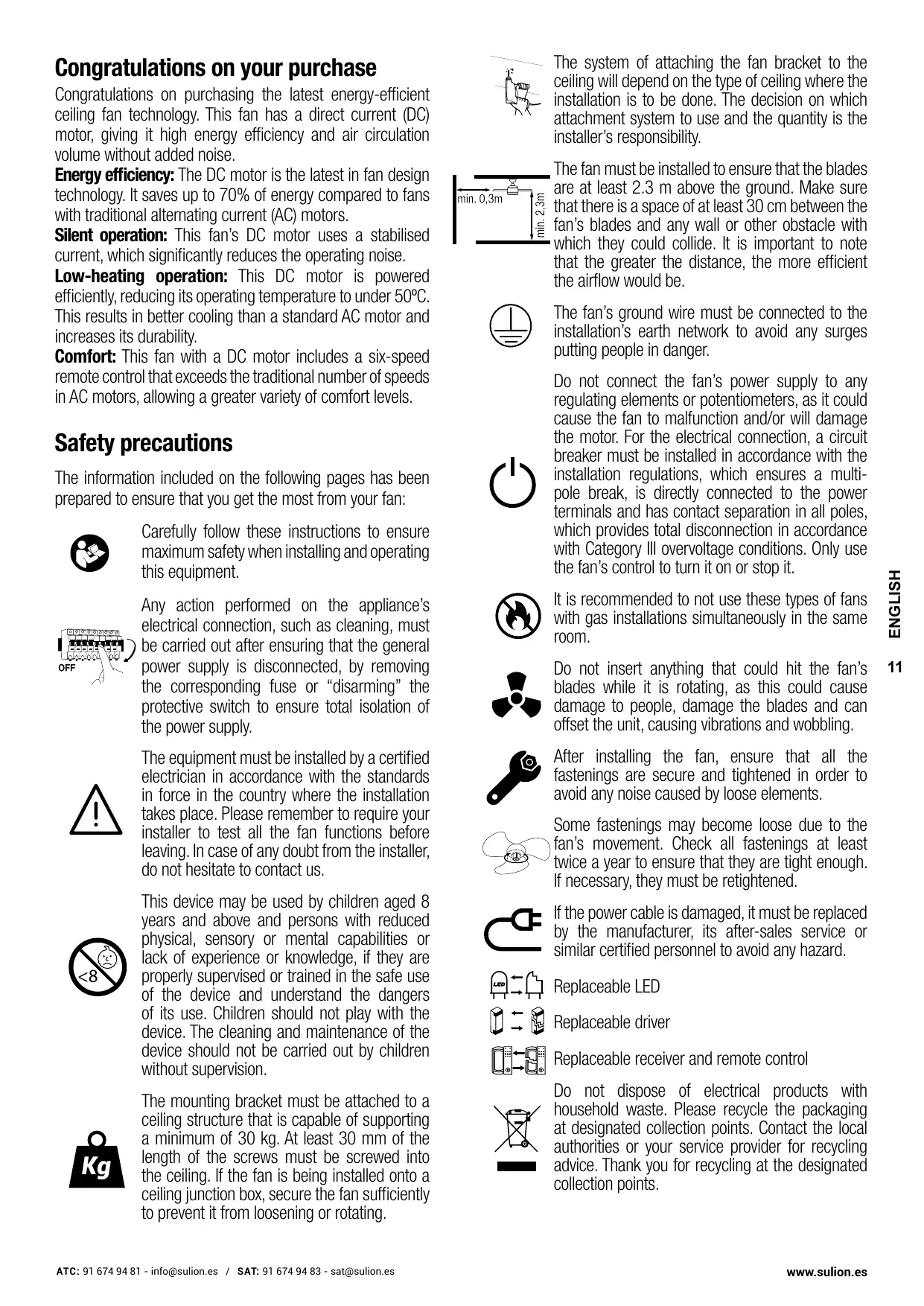

Congratulations on your purchase

Congratulations on purchasing the latest energy-efficient ceiling fan technology. This fan has a direct current (DC) motor, giving it high energy efficiency and air circulation volume without added noise.

Energy efficiency: The DC motor is the latest in fan design technology. It saves up to 70% of energy compared to fans with traditional alternating current (AC) motors.

Silent operation: This fan's DC motor uses a stabilised current, which significantly reduces the operating noise.

Low-heating operation: This DC motor is powered efficiently, reducing its operating temperature to under 50^ C. This results in better cooling than a standard AC motor and increases its durability.

Comfort: This fan with a DC motor includes a six-speed remote control that exceeds the traditional number of speeds in AC motors, allowing a greater variety of comfort levels.

Safety precautions

The information included on the following pages has been prepared to ensure that you get the most from your fan:

Carefully follow these instructions to ensure maximum safety when installing and operating this equipment.

Any action performed on the appliance's electrical connection, such as cleaning, must be carried out after ensuring that the general power supply is disconnected, by removing the corresponding fuse or “disarming” the protective switch to ensure total isolation of the power supply.

The equipment must be installed by a certified electrician in accordance with the standards in force in the country where the installation takes place. Please remember to require your installer to test all the fan functions before leaving. In case of any doubt from the installer, do not hesitate to contact us.

This device may be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly supervised or trained in the safe use of the device and understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision.

The mounting bracket must be attached to a ceiling structure that is capable of supporting a minimum of 30 kg. At least 30 mm of the length of the screws must be screwed into the ceiling. If the fan is being installed onto a ceiling junction box, secure the fan sufficiently to prevent it from loosening or rotating.

The system of attaching the fan bracket to the ceiling will depend on the type of ceiling where the installation is to be done. The decision on which attachment system to use and the quantity is the installer's responsibility.

The fan must be installed to ensure that the blades are at least 2.3 m above the ground. Make sure that there is a space of at least 30 cm between the fan's blades and any wall or other obstacle with which they could collide. It is important to note that the greater the distance, the more efficient the airflow would be.

The fan's ground wire must be connected to the installation's earth network to avoid any surges putting people in danger.

Do not connect the fan's power supply to any regulating elements or potentiometers, as it could cause the fan to malfunction and/or will damage the motor. For the electrical connection, a circuit breaker must be installed in accordance with the installation regulations, which ensures a multipole break, is directly connected to the power terminals and has contact separation in all poles, which provides total disconnection in accordance with Category III overvoltage conditions. Only use the fan's control to turn it on or stop it.

It is recommended to not use these types of fans with gas installations simultaneously in the same room.

Do not insert anything that could hit the fan's blades while it is rotating, as this could cause damage to people, damage the blades and can offset the unit, causing vibrations and wobbling.

After installing the fan, ensure that all the fastenings are secure and tightened in order to avoid any noise caused by loose elements.

Some fastenings may become loose due to the fan's movement. Check all fastenings at least twice a year to ensure that they are tight enough. If necessary, they must be retightened.

If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similar certified personnel to avoid any hazard.

Replaceable LED

Replaceable driver

Replaceable receiver and remote control

Do not dispose of electrical products with household waste. Please recycle the packaging at designated collection points. Contact the local authorities or your service provider for recycling advice. Thank you for recycling at the designated collection points.

Note: The important warnings and instructions in this manual are not guaranteed to cover all possible conditions and situations that may arise. Products do not come with common sense, caution and care. Users must use the fan with due care and caution, employing common sense, to make good use of the fan.

Device technical specifications

General
Voltage and nominal frequency	220-240V~AC 50/60Hz
Energy rating	Class I
Ingress protection	IP44
Working temperature	-20 ↔50°C
Maximum ceiling slope angle on which it can be installed	15°
Weight	5,6 kg
Energy consumption in standby mode (W)	<0,5
Service value measurement standard	IEC 60879:2019

LED
Power	18 W
Light output	1800 lm
Color temperature	3000, 4000, 5000 K
RGB	No
Light data measurement	360°
ON/OFF cycles	10.000
Life hours	30.000
Dimmable	Yes
Light beam angle	120°
CRI	>80
This product have a light source of energy efficiency class	F

Fan
No. of speeds	5
Power (W)	10
RPM	350
Airflow (m3/min)	60
Airflow (m3/h)	3600
Max noise level (dB)	48
Service value SV ((m3/min)/W)	6
Maximum air speed (m/s)	1,42 m/s

Preparing for setup

Note: The estimated Setup time is 120 minutes. This product must only be installed by a certified electrician.

Remove the fan from the packaging carefully, avoiding the use of knives which could scratch any part of it.

Remove all the components. Place the motor on a cloth or soft surface so as not to damage its surface finish.

Carefully handle the unit to make sure that its casing does not bend or get scratched.

The fan must be mounted on the floor or a large enough table to prevent any component from falling off.

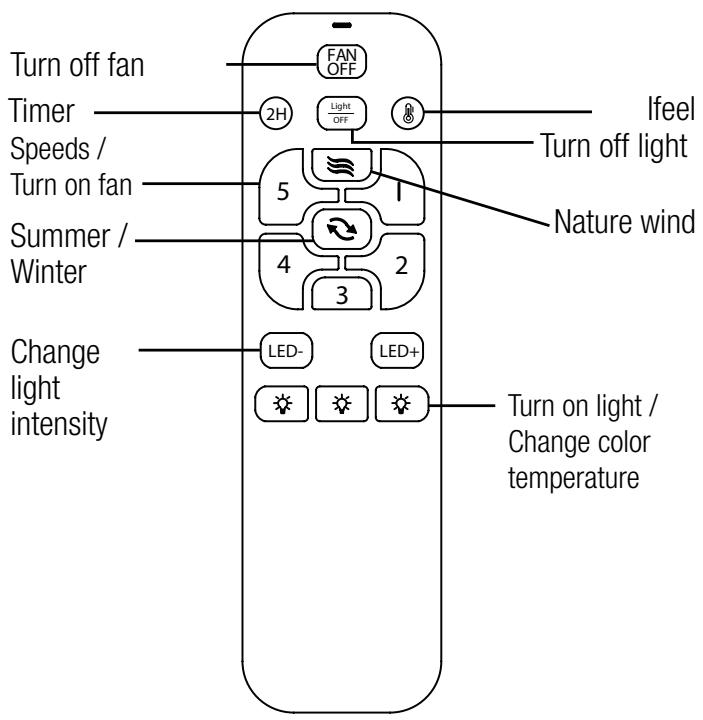

Remote control

Turn off fan Timer Speeds / Turn on fan Summer / Winter Change light intensity FAN OFF 2H Light OFF 5 1 4 2 3 LED- LED+ turned off light Nature wind Turn on light / Change color temperature

Timer: If any button is pressed after a shutdown schedule has been selected, it will be cancelled.

Nature wind: Increase and decrease the fan speed automatically, generating a breeze effect. To link this function, the fan must be previously turning at a certain speed. Pressing any button afterward will override this feature.

I feel mode. Automatically changes the fan speed based on the ambient temperature.

If T^a < 19^ --> Speed 1

If T^a 19°C - 26°C --> Speed 3

If T^a ≥ 26^ --> Speed 5

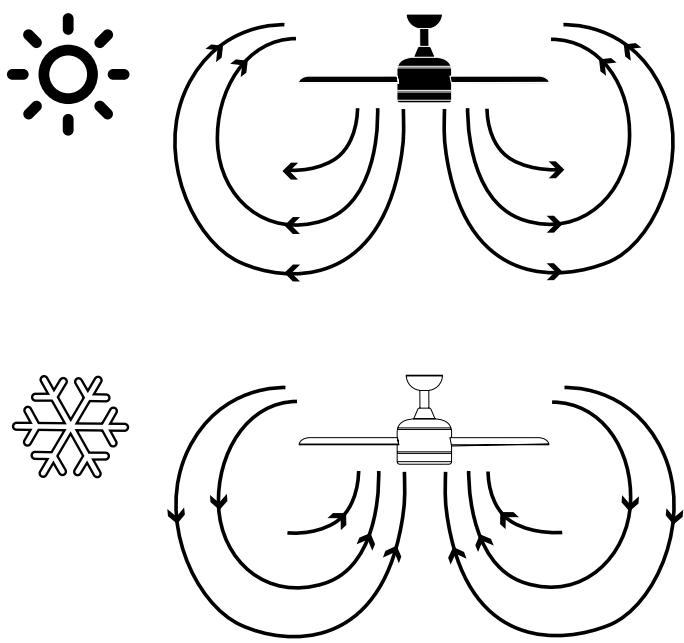

Rotation direction: summer and winter

The sliding switch controls the direction, whether clockwise or counterclockwise.

Summer option/down - he downwards air current creates a refreshing effect as indicated in diagram A.

Winter option/up - An ascending air current pushes hot air away from the fan area near the ceiling, as indicated in diagram B. This allows you to use less central heating.

Synchronisation of one or more fans with a single control:

CAVEAT! Prior to syncing, make sure the ceiling fans you don't want to sync to the same remote are turned off at the wall switch, otherwise they might be synced too, and once synced they can't be unsynchronized

1.- Switch on the power (wall switch) of the fans to be controlled, and then, press the remote control button
2.- The light of the ceiling fans flah 3 times, that indicates that the connection has been made and the equipment can work normally.
3.- Now, the remote control and the fan receivers will have been synchronised. Turn off the power to the fans using the switch or the automatic switch and then turn them on again, this step is the one that closes the synchronisation process.

Troubleshooting

Remote control malfunction

1. Make sure all connections are correctly made.
2. Make sure that the remote control contains batteries.
3. Make sure that all switches (main and isolation) are on.
4. Receiver resynchronization and remote control.

The receiver and remote for this fan are paired at the factory, they do NOT need to be paired once the fan is installed. Synchronization will only proceed due to a malfunction of the remote control. If you have questions before performing the resynchronization, contact Sulion.

CAVEAT! Before syncing, if you have another ceiling fan in the same or another room that you don't want to sync, check that it is turned off at the wall switch, if not; it could be synced also with the same remote control and once synced it cannot be unsynchronized.

Blade balancing kit / Balancing problems in fan operation

Your fan box may include one of the following blade balancing kits.

If you notice your fan is excessively swinging, you can use this kit to fix this. You will find the instructions on our website or in the following QR Code.

Maintenance and warranty information Maintenance and cleaning:

1. The fan's natural movement can cause certain connections to loosen. Check the mounting bracket's connections, fastening parts and blade accessories twice a year. Make sure that they are securely fastened.
2. Regularly clean the fan to help keep it looking new over the years. Do not use water to clean it, as this may damage the motor or the wood, or could cause an electrical shock.
3. Only use a soft brush or a microfibre cloth so as not to scratch the finish. The veneer is sealed with a layer of lacquer to minimise discolouration or loss of shine.
4. The fan does not need to be oiled. The motor contains bearings with permanent lubrication.

Note: Failure to comply with these instructions results in the loss of the equipment warranty.

Warranty service:

The manufacturer's warranty covers real faults that may occur but not minor complaints, such as the noise generated by the appliance, as all electric motors generate a certain amount of noise.

Operating the fan with slightly loose components (i.e. screws that have not been tightened enough) or deformed blades due to excessively vigorous cleaning may cause excessive noise and wobbling that will not be covered by the warranty. Regularly retightening elements and non-aggressive cleaning are enough to prevent these problems.

Controller:

The appliance's warranty will be invalid if it is installed for use with a wall controller or a solid-state dimmer. The product must only be used with the remote control supplied.

Installing the fan:

According to this warranty's terms and conditions, this fan can only be installed by a certified electrician. Fans that are installed incorrectly can be dangerous for people and very expensive to repair and will lose their warranty. This fan is designed for interior use only. It must be protected and kept away from water and damp, otherwise, the warranty will be lost.

The system of attaching the fan bracket to the ceiling will depend on the type of ceiling where the installation is to be done. The decision on which attachment system to use and the quantity is the installer's responsibility.

Wobbling:

All ceiling fans tend to wobble while operating. Movement of a couple of centimetres is perfectly acceptable and does not indicate any malfunction nor will it cause the fan to fall, as long as it is mounted to the ceiling correctly following the instructions in this manual. This ceiling fan has a completely secure mounting system that uses steel brackets and ball joints to allow it to rotate and to prevent the transmission of vibrations to the ceiling structure. Please note that all ceiling fans are different, even the same model.

Some may move more or less than others and it does not indicate that the fan is malfunctioning or there is a manufacturing fault.

Increased perception of noise when operating at night:

The manufacturer's warranty does not cover when the user perceives the fan's operating noise as being more apparent during the night when the surrounding area is quieter. In addition, the power supply may experience alterations that could cause the device to make more noise, which does not indicate any malfunctioning or manufacturing fault.

Fan lighting system:

Except for extremely rare manufacturing defects, the fan's lights are not covered by the fan warranty. Noises and vibrations can be greater when the lighting system is on. For example, the light diffuser can produce a slight buzz if it is not securely fastened. Once again, non-aggressive cleaning and regularly checking that elements are securely fastened will prevent these disturbances. Glass light diffusers are covered by the warranty until the distributor warehouses and are subject to verification during shipping.

Warranty:

Sulion guarantees the correct functioning of the equipment and the possible repairs or supply of spare parts in the event of manufacturing defects for up to 3 years from the date of sale. This warranty is 5 years for the LED diodes and 8 years for the DC fan motor. Sulion is not responsible for improper use.

More info on warranty terms and conditions at: https://sulion.es/es/content/12-terminos-y-garantia

Technical diagram showing a mechanical assembly with labeled parts and a schematic of wiring connections, including numbered annotations.

04

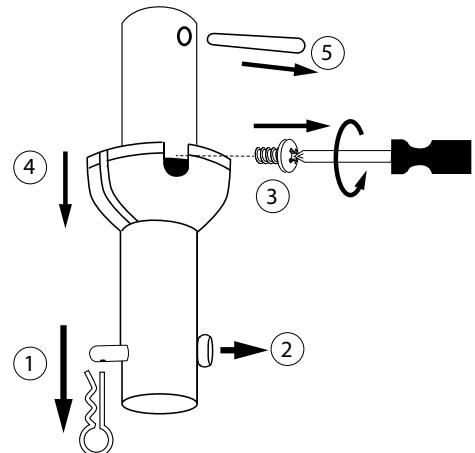

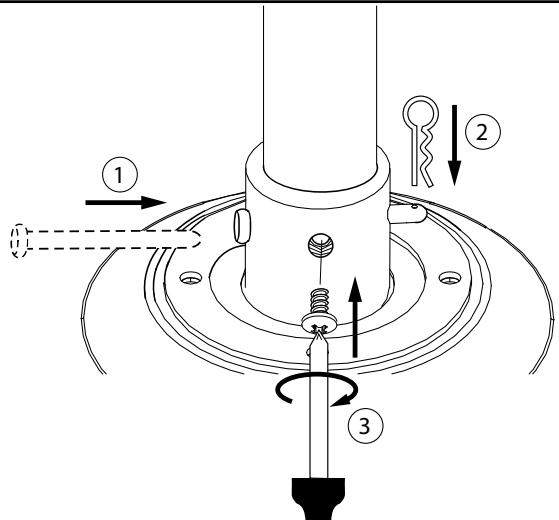

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

05

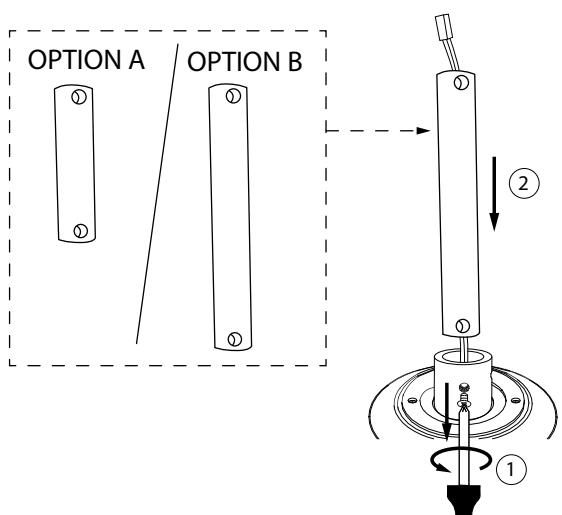

OPTION A OPTION B ① ②

06

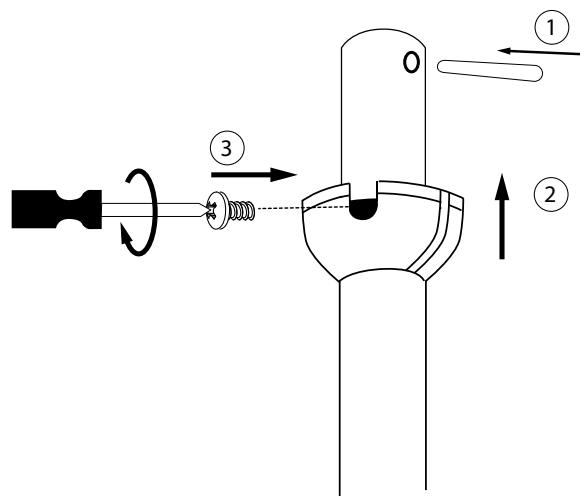

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

07

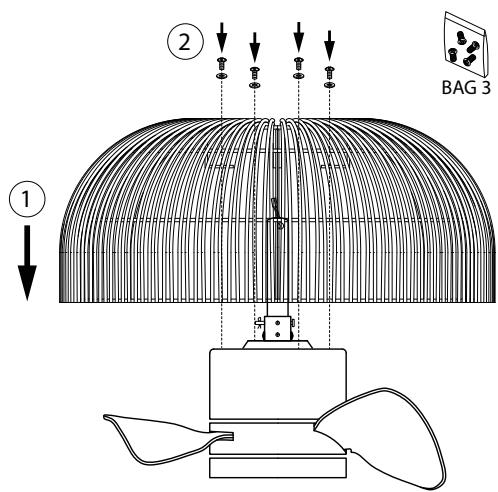

① ② BAG 3

08

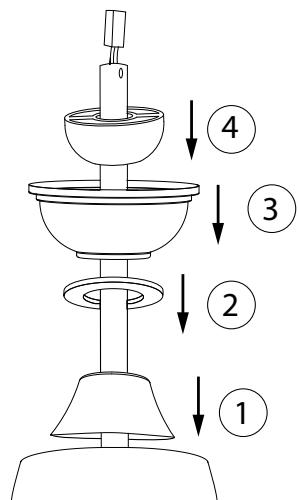

① ② ③ ④

09

Technical diagram showing mechanical assembly with labeled components and directional arrows

10

Line drawing of a hand using a handheld tool to lift a cylindrical object (no text or symbols)

11

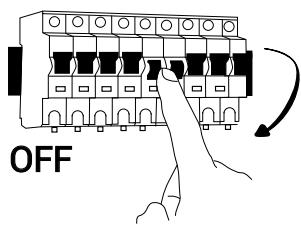

OFF

12

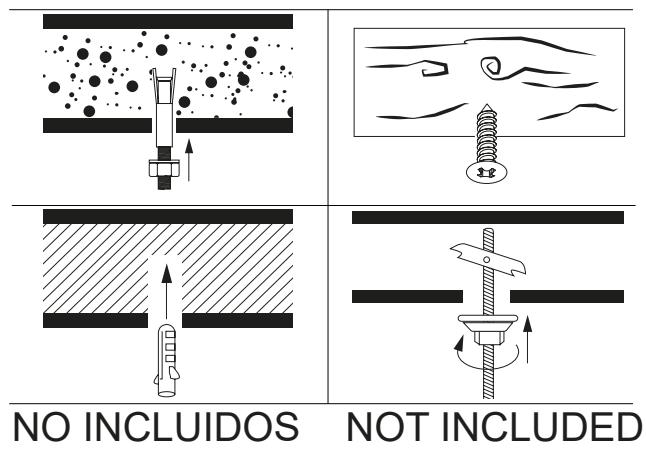

NO INCLUIDOS NOT INCLUDED

Technical diagram showing three views of a circular component with internal features and mounting brackets, no text or symbols present.

13

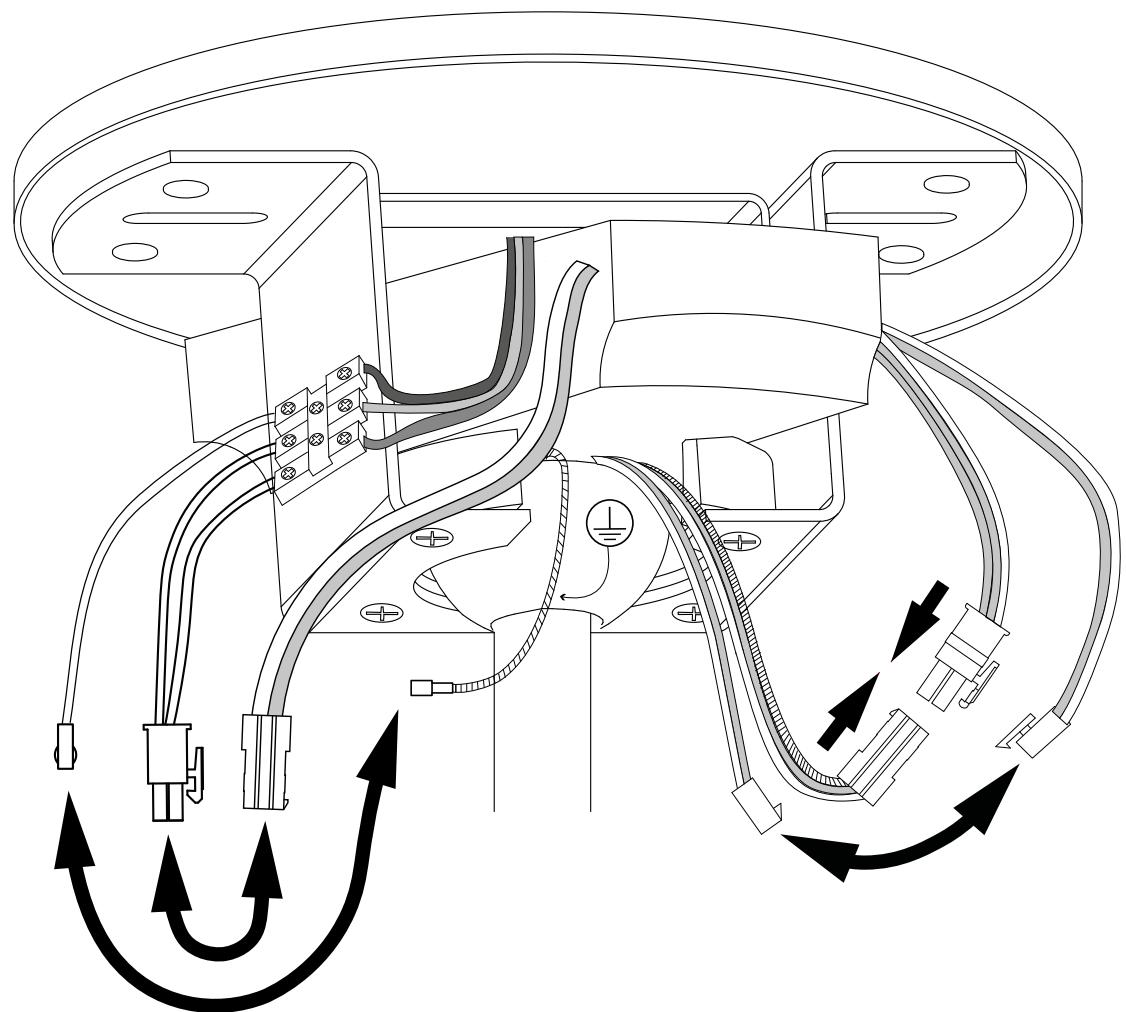

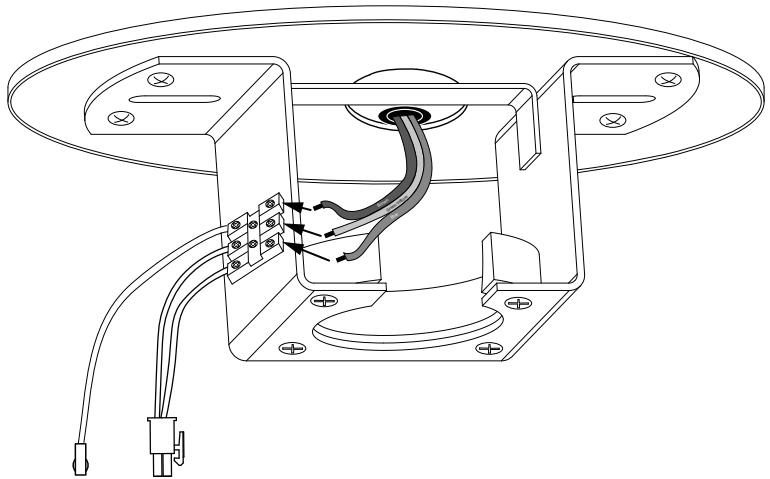

Technical line drawing of an electrical connector assembly with wiring and mounting brackets (no text or symbols)

14

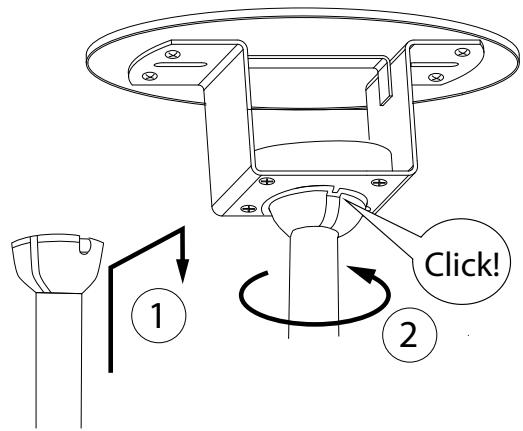

1 2 Click!

15

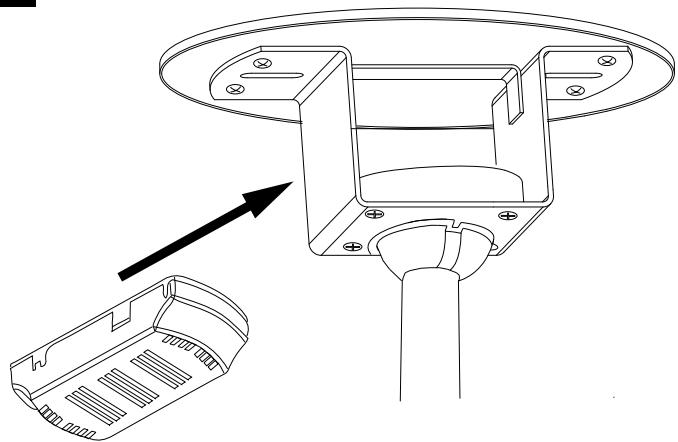

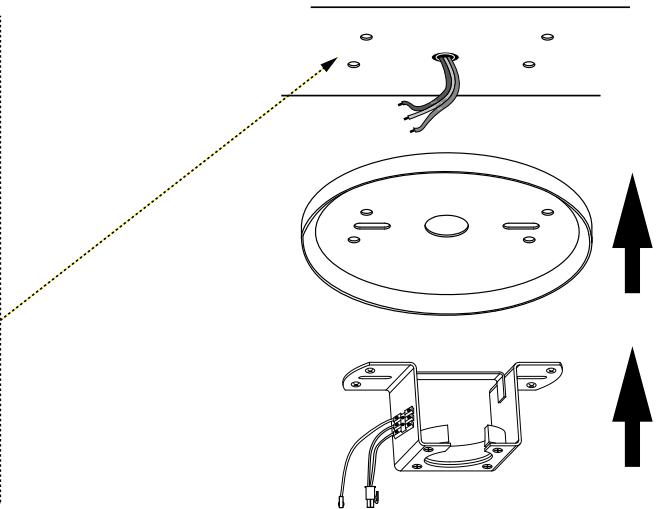

Technical line drawing of a mechanical bracket assembly with an arrow indicating direction (no text or symbols present)

38

15

Technical line drawing of an electrical connector assembly with wiring and mounting points (no text or symbols)

16

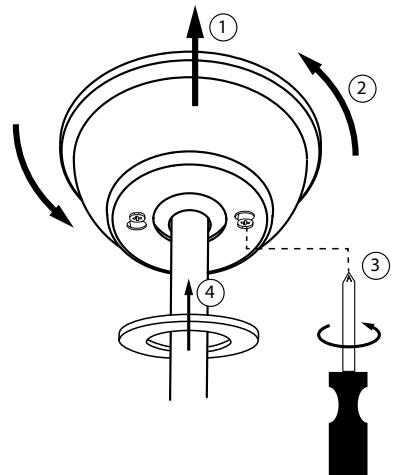

Diagram illustrating a mechanical or electrical system with numbered components and directional arrows indicating motion or flow.

17

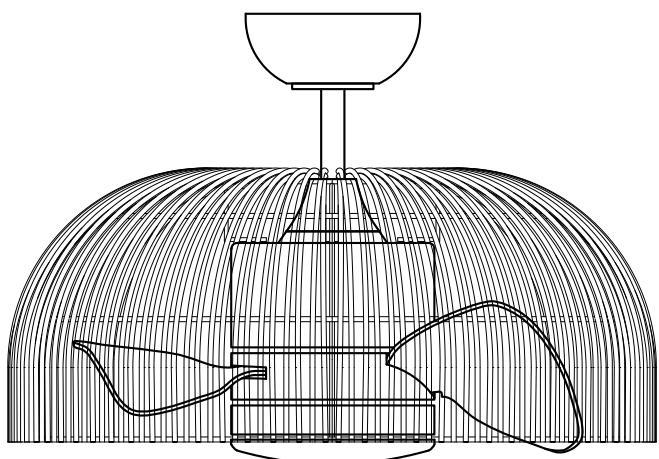

Diagram of a dome-shaped structure with internal curved and rectangular elements, showing directional arrows (no text or symbols)

18

Technical line drawing of a dome-shaped structure with internal components and curved elements (no text or symbols)

ON
