USER MANUAL RIVER 2 MAX ECOFLOW

Portable Power Station

Quick Start Guide

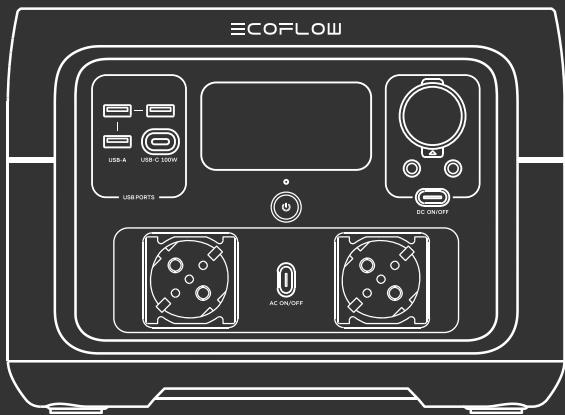

ECOFLOW USB-A USB-C 100W USB/PORTS DC ON/OFF AC ON/OFF

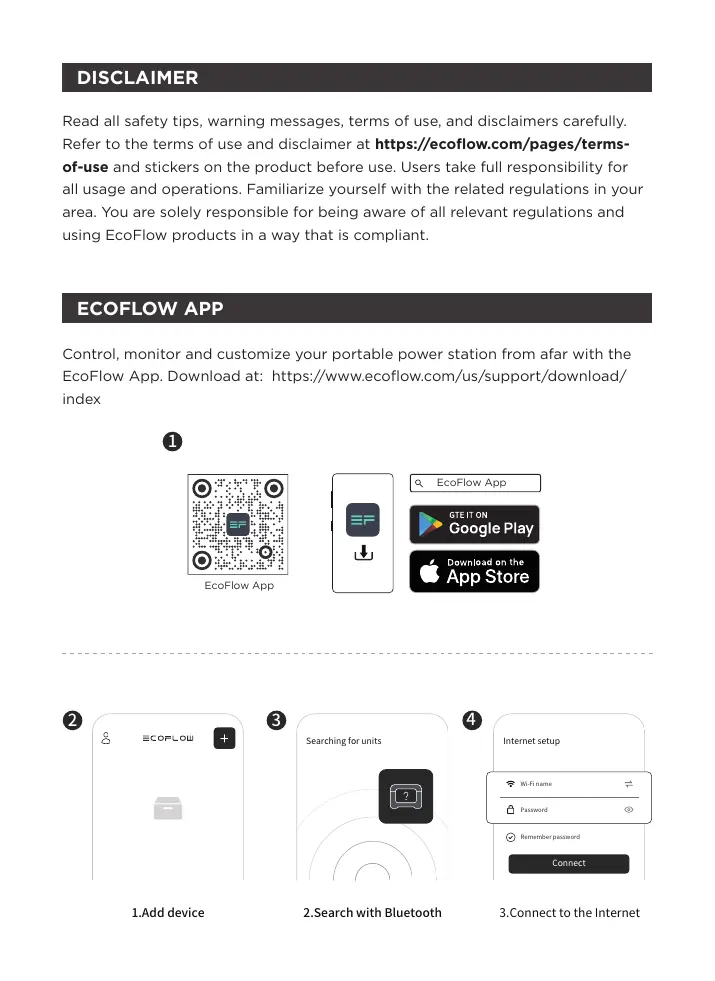

DISCLAIMER

Read all safety tips, warning messages, terms of use, and disclaimers carefully. Refer to the terms of use and disclaimer at https://ecoflow.com/pages/terms-of-use and stickers on the product before use. Users take full responsibility for all usage and operations. Familiarize yourself with the related regulations in your area. You are solely responsible for being aware of all relevant regulations and using EcoFlow products in a way that is compliant.

ECOFLOW APP

Control, monitor and customize your portable power station from afar with the EcoFlow App. Download at: https://www.ecoflow.com/us/support/download/index

1

QR code with embedded logo in center, likely linking to a digital resource or website

EcoFlow App

EF ↓

EcoFlow App GTE IT ON Google Play Download on the App Store

2

ECOFLOW

1.Add device

3

Searching for units

1. Search with Bluetooth

4

Internet setup Wi-Fi name 1 Password ◎ Remember password Connect

1. Connect to the Internet

Privacy Policy

By using EcoFlow Products, Applications and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the “About” section of the “User” page on the EcoFlow App or on the official EcoFlow website at https://www.ecoflow.com/policy/terms-of-use and https://www.ecoflow.com/policy/privacy-policy.

For more information, Please go to EcoFlow Official Website to get the Complete Version of the User Manual.

www.ecoflow.com/pages/download

In compliance with laws and regulations, the company has the final right to interpret this document and all related documents of this product. If there is any update, revision or termination without notice, please visit EcoFlow official website for the latest product information.

GETTING STARTED

1. Product On

When switched off, press the main power switch briefly to turn on the power.

2. Product Off

Press and hold the main power switch to turn off the product. When there is a charging input source, the product will not be the turn off.

3. USB Output Port

The USB outlet (USB-A output/USB-C output) can be used after making sure that the main power is on.

4. 12V Car Output Port

After ensuring that the main power is turned on, press the DC output switch briefly to use the 12V DC output port. Press the DC output switch briefly again to turn it off.

5. AC Output Sockets

After ensuring that the main power is turned on, press the AC output switch briefly to use the AC output port. Press the AC output switch briefly again to turn it off(Switching frequency: With AC power on, press and hold the AC power button for 10 seconds to switch the frequency, or use the APP to switch the frequency).

6. APP Control

When the main power is switched on, the Wi-Fi module and Bluetooth module are turned on by default. The user can connect the product to the app through Bluetooth. If you want to use the app from a long distance and you have a router, you may choose Wi-Fi for network distribution.

ECOPLOW ⑤ ④ ③ ② ① ⑥ ⑦ ⑧ ⑨ ⑩

Diagram of a device rear panel with labeled ports and indicators

1. AC output switch
2. Main power switch
3. Power Indicator
4. USB-A port

5. USB-C port

6. LCD

7. Car charger outlet (10A)
8. DC5521 output port (3Ax2)

9. DC output switch
   10*. AC output socket

10. X-Stream AC Charging
    Input Port

11. Solar/Car Charging
    Input Port

*Note:The type of AC socket varies in different countries or regions, the picture above is for illustration only, please refer to the actual product.

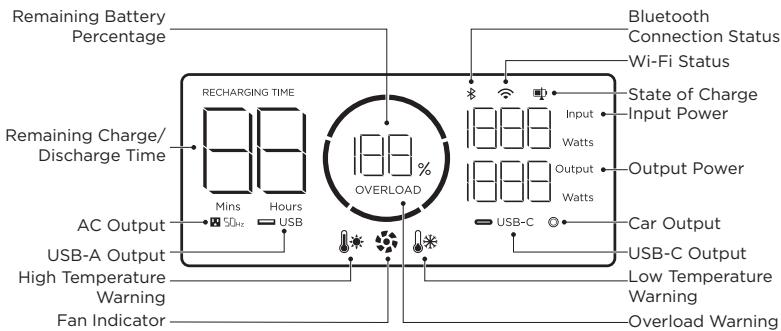

Remaining Battery Percentage RECHARGING TIME Remaining Charge/ Discharge Time AC Output USB-A Output High Temperature Warning Fan Indicator Mins 50Hz Hours USB 188% OVERLOAD Bluetooth Connection Status Wi-Fi Status State of Charge Input Power Output Power Car Output USB-C Output Low Temperature Warning Overload Warning USB-C Output Watts Output Watts USB-C Wireless Wireless Wireless Wireless

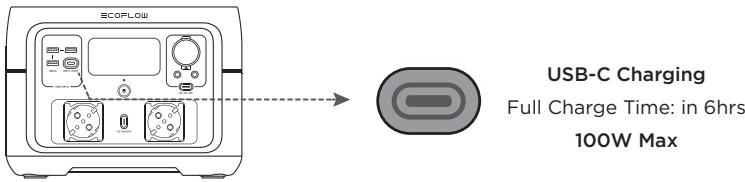

ECOFLow USB-C Charging Full Charge Time: in 6hrs 100W Max

AC Charging

Charge Time:

100% in 1hr

660W Max

Line drawing of a device casing with two outlets and a door (no text or symbols)


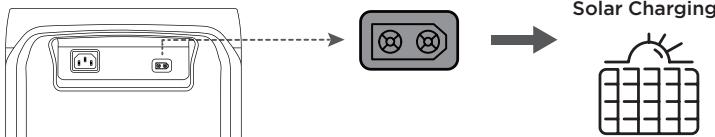

    B --> D["Solar Charging"]
    D --> E["Grid Panel"]

Full Charge Time: 3\~6hrs

220W Max

Car Charging

Full Charge Time: in 6hrs

100W Max

Line drawing of a device rear panel with two outlets (no text or symbols)

Details of Error Icons			Error Type	Recovery Methods
	[18A]	icon flashes	Battery discharge low temperature protection	Normal operation will resume automatically when the battery warms up.
	[19X84]	icon flashes	Battery discharge high temperature protection	Normal operation will resume automatically after the battery cools down.
RECHARGING TIME		icon flashes	Battery charging low temperature protection	Normal operation will resume automatically after the battery temperature is restored to above 3^ ( 37.4^ ).
RECHARGING TIME	[4X7E]	icon flashes	Battery charging high temperature protection	Normal operation will resume automatically after the battery cools down.
	[14E]		AC output low-temperature protection	Normal operation will resume automatically after the ambient temperature is restored.
	[46E]	[19P]	AC output over-temperature protection	Please confirm that the air inlet and outlet of the product are unobstructed. Normal operation will resume automatically once the cause is eliminated and the temperature decreases.
	[2000]	icon flashes	USB-C or car charging overload protection	Normal operation will resume after removing the over-powered device and restarting the machine.
	[2200]	icon flashes
	[27]	icon flashes	AC output overload protection	Normal operation will resume after removing the over-powered device and restarting the machine. Electrical appliances must be used within the rated power (for the power limit of electrical appliances in the X-Boost mode, please refer to the X-Boost function introduction)
RECHARGING TIME OVERLOAD		icon flashes	Charging overload protection	Remove the charger and normal operation will resume automatically after being restarted.
	[2719]	icon flashes	Fan blocking	Please check whether the fan is blocked by foreign objects and remove the cause of the error.
	[244]	icon flashes	Failure of communication between main control board and AC	Normal operation will resume automatically after being restarted.

If any alert occurs during the use of this product and the alert icon does not disappear after the product is restarted, please stop using the product immediately (do not attempt to charge or discharge).

If the above information fails to resolve your problem, please contact customer service for further support.

SAFETY INSTRUCTIONS

1. Do not use the product near a heat source, such as a fire source or a heating furnace.
2. Avoid contact with any liquid. Do not immerse the product in water or get it wet. Do not use the product in rain or humid environments.
3. Do not use the product in an environment with strong static electricity/magnetic fields.
4. Do not disassemble the product in any way or pierce the product with sharp objects.
5. Avoid using wires or other metal objects that may result in a short circuit.
6. Do not use unofficial components or accessories. If you need to replace any components or accessories, please visit official EcoFlow channels to check relevant information.
7. When using the product, please strictly follow the operating environment temperature specified in this user manual. If the temperature is too high, it may result in a fire or explosion; if the temperature is too low, the product performance may be severely reduced, or the product may cease to work.
8. Do not stack any heavy objects on the product.
9. Do not lock the fan forcibly during use or place the product in an unventilated or dusty area.
10. Please avoid impact, falls, or severe vibrations when using the product. In case of a severe external impact, turn off the power supply immediately and stop using the product. Ensure the product is well fastened during transportation to avoid vibrations and impacts.
11. If you accidentally drop the product into water during use, please place it in a safe open area, and stay away from it until it is completely dry. The dried product should not be used again, and should be properly disposed of according to the disposal guide in the user manual. If the product catches fire, we recommend that you use the fire extinguishers in the following order: water or water mist, sand, fire blanket, dry powder, and finally a carbon dioxide fire extinguisher.
12. Use a dry cloth to clean off dirt on the product ports.

13. Do Not put into the Microwave.

14. replacement of a battery with an incorrect type that can defeat a safeguard.

15. disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
16. leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
17. a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

FAQ

1. What battery does the product use?

It uses high-quality lithium-ion battery.

1. What devices can the product's AC output port power?

With 500W rated power and 1000W peak power, most consumer electronics. Before you use it, we recommend that you confirm the power of the appliances first and ensure the power sum of all loaded appliances is lower than the rated power.

1. How long can the product charge my devices?

The charging time is shown on the product's LCD Screen, which can be used to estimate the charging time of most appliances with stable power usage.

1. How can I know if the product is charging?

When it's charging, the remaining charging time will be shown on the LCD Screen. Meanwhile, the charging indicator icon begins to rotate with the remaining battery percentage and the input power shown on the right of the circle.

1. Can I bring the product on a plane?

No.

General Info

	Capacity	512Wh (20Ah 25.6V---)
mm^3	Net Weight	Approximately 13.4lbs
mm^3	Dimensions	10.6 x 10.2 x 7.7inches
mm^3	Model	EFR610

Output/Input Ports

	AC Input	220-240V~ 50Hz/60Hz, 10A Max
	DC Input	11-50V ≈ 13A, 220W Max
[2XWO]	USB-C Input/Output	5/9/12/15/20V ≈ 5A, 100W Max
[WC0Y]	USB-A Output	5V ≈ 2.4A 12W Max per port (total 24W)
[tw+0]	DC Output	12.6V ≈ 10A/3A/3A, 126W Max
t=4ed	AC Output	Pure Sine Wave, 500W total (surge 1000W), 230V ~ 50Hz/60Hz

Battery Info

	Cell Chemistry	LFP
[ZAKA]	Cycle Life	80%+ capacity after 3000 cycles

Environmental Operating Temperature

Discharge Temperature	-10°C to 45°C (14°F to 113°F)
Charge Temperature	0°C to 45°C (32°F to 113°F)
Optimal Operating Temperature	20°C to 30°C (68°F to 86°F)
Storage Temperature	-10°C to 45°C (20°C to 30°C is best)/14°F to 113°F (68°F to 86°F is best)

1. Please use or store the product in an environment temperature between 20^ C to 30^ C, away from water, heat, and other metal objects.
2. For long-term storage, please recharge it to 60% every three months; If the product is left idle for a long time with severely low battery, irreversible damages may be caused to the battery cell and the product service life will be shortened. The product will not be covered by the warranty if it is not charged or discharged for more than 6 months.
3. For safety, please do not store the product in an environment temperature higher than 45^ C or lower than -10^ C for a long time.
4. If the product has been idle for too long and the battery is severely low, it will enter a deep sleep protection mode. In such case, please charge the product before using it again.

WHAT'S IN THE BOX

RIVER 2 Max

AC Charging Cable

Car Charging Cable

DC5521 Connection Cable

Quick Start Guide

Users who use their universal solar panels with non-MC4 connector to power the equipment, please note: the solar panel should be in the voltage and current range (please find more information about the requirement in the User Guide). Connecting the wrong MC4 interface may damage the device. EcoFlow does not guarantee equipment failure caused by improper personal operation(For example, the open circuit voltage exceeds 60V).

We recommend that you use the EcoFlow solar panels.

Please confirm the positive and negative direction of your solar panel(as shown in the figure below).

Please connect the positive pole of your solar panel to the MC4 Male head and the negative pole to the MC4 Female head(as shown in the figure below).

1 MC4 Port

MC4 Male connector

MC4 Female connector

② Please connect the positive pole to the MC4 Male head and the negative pole to the MC4 Female head.

Pure electrical circuit lines without any symbols

Solar Panel positive pole +

Pure electrical circuit lines without any symbols

Solar Panel negative pole -

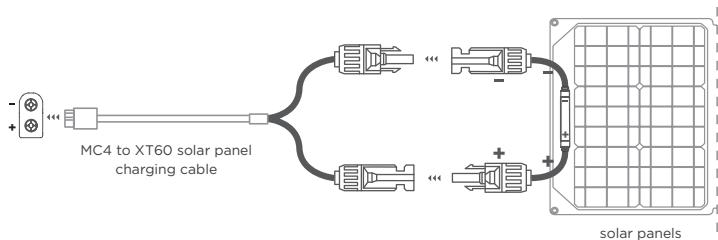

3 Connect your solar panel to the MC4 to XT60 solar panel charging cable

Before connecting the solar panel, please make sure the positive pole of the solar panel connects to the MC4 Male head and negative pole to the MC4 Female head (as demonstrate in the figure below).

MC4 to XT60 solar panel charging cable solar panels

EcoFlow RIVER 2 Max

Download unter: https://download.ecoflow.com/app.

1

QR code with central logo containing stylized 'E' and Chinese character 'F'

EcoFlow App

EF ↓

EcoFlow App

2

ECOFLOW +

1. Gerät hinzufügen

3

www.ecoflow.com/pages/download

Diagram of a device rear panel with labeled ports and connectors, numbered 11 and 12

Line drawing of a device rear panel with two outlets (no text or symbols)

Line drawing of a device rear panel with two labeled buttons (no text or symbols)

QR code with embedded logo in center, likely linking to a digital resource or website

EcoFlow App

EF ↓

EcoFlow App

GTE IT ON Google Play

Download on the App Store

2

ECOFLOW

www.ecoflow.com/pages/download

Diagram of a device rear panel with labeled ports and indicators

Line drawing of a device rear panel with two labeled buttons (no text or symbols)

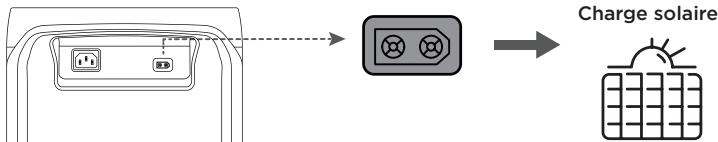

Charge solaire
