USER MANUAL PCF-HE15/PCF-HE18 WOOZOO
Preparation before use
Safety precautions. 2
Precautions for placing 5
Placing 6
Parts 6
Usage instructions
How to use 7
Cleaning method 8
Others
Troubleshooting 9
About long term usage 10
Specifications 11
Warranty and after-sales services ....11
Warranty card............Back cover

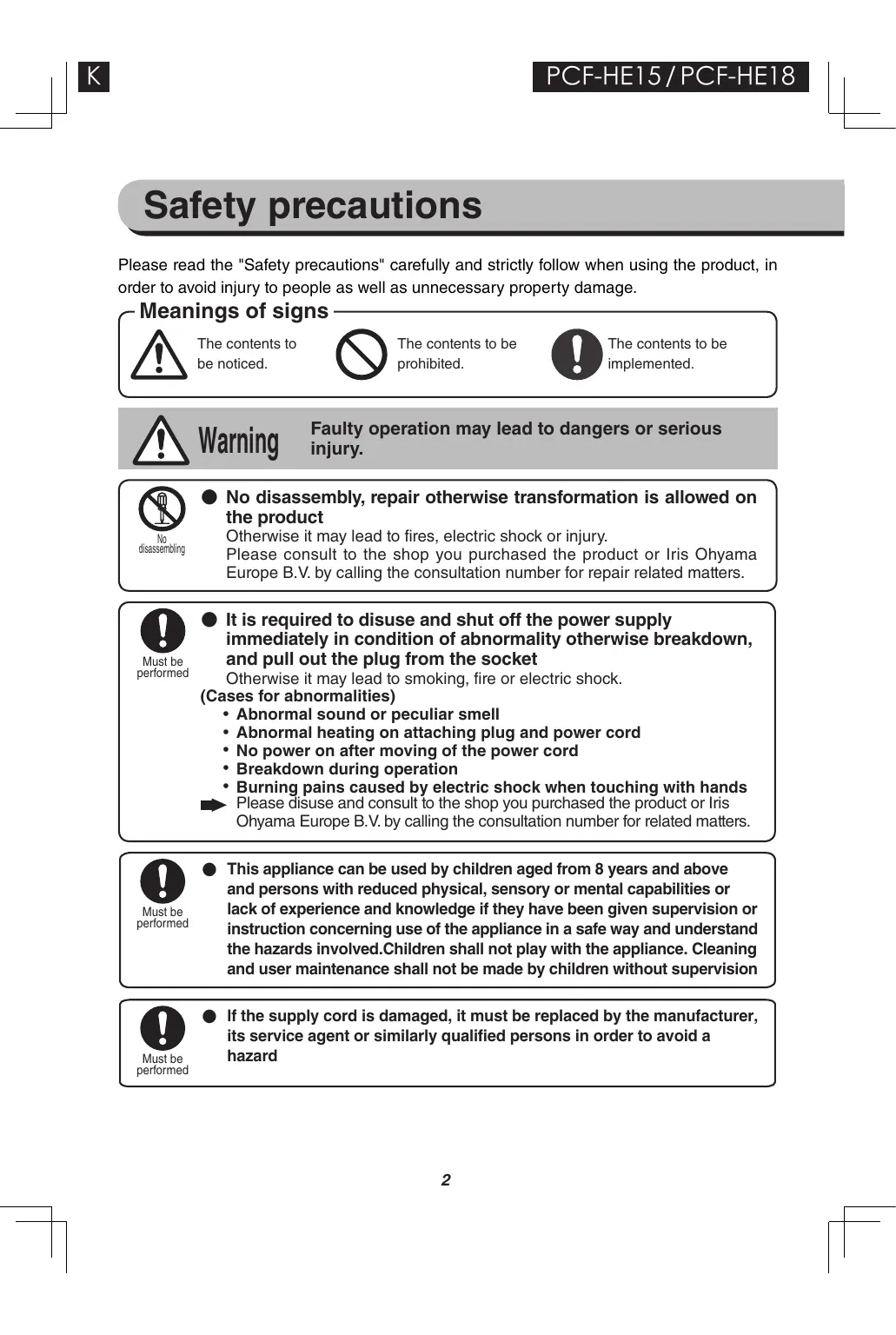

Safety precautions
Please read the "Safety precautions" carefully and strictly follow when using the product, in order to avoid injury to people as well as unnecessary property damage.
Meanings of signs
The contents to be noticed.
The contents to be prohibited.
The contents to be implemented.
Warning
Faulty operation may lead to dangers or serious injury.
No disassembling
- No disassembly, repair otherwise transformation is allowed on the product
Otherwise it may lead to fires, electric shock or injury.
Please consult to the shop you purchased the product or Iris Ohyama Europe B.V. by calling the consultation number for repair related matters.
Must be performed
- It is required to disuse and shut off the power supply immediately in condition of abnormality otherwise breakdown, and pull out the plug from the socket
Otherwise it may lead to smoking, fire or electric shock.
(Cases for abnormalities)
- Abnormal sound or peculiar smell
- Abnormal heating on attaching plug and power cord
- No power on after moving of the power cord
- Breakdown during operation
- Burning pains caused by electric shock when touching with hands
Must be performed
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision
Must be performed
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
Correct use of power plug and power cord
Must be performed
- Please remove the dust on the power plug regularly
Accumulation of dust will cause fires otherwise electric shock due to insulation fault.
- Please insert the power plug into the socket properly
Otherwise it may cause fires or electric shock due to short circuits.
Pull off the plug
- Make sure to unplug the power plug from the socket before repair, check and moving
Otherwise it may cause electric shock or injury.
No wet hand
- Do not insert otherwise unplug the power plug with wet hands
Otherwise it may cause electric shock or injury.
Prohibited
The product can be operated with 220-240V~ alternating current only
Otherwise it may cause fires or electric shock.
- Stop using the product with a damaged power cord or power plug, otherwise a loose socket
Otherwise it may cause fires or electric shock due to short circuits.
- Do not damage the power cord
Do not damage, process, bend forcefully, pull, twist or squeeze the power cord, or place weight on the power cord. Otherwise it may cause fires otherwise electric shock due to power cord damage.
- Please do not energize the product with bundled power cord
Otherwise it may cause fires.
- Do not stretch the power cord when moving otherwise storage
Otherwise it may cause fires or electric shock.
Prohibited
- Do not aim this product at heating equipment such as home heaters
Otherwise it may cause sparks, carbon monoxide poisoning, fires, etc. due to incomplete combustion of the heater.
Prohibited
- Please do not spray mist to the body (insecticide, hairdressing, mist spray, lubricating oil, etc.)
- Do not operate this product near flammable liquids (such as kerosene, gasoline, thinner, etc.), objects with spark, or flammable dust
Otherwise it may cause fires.
Safety precautions
Continued
Prohibited
The product is utilized indoors only
- Do not use the product in places that hinder ventilation, such as curtains around
- Do not cover the product with combustible articles such as clothes, paper or plastic bags before operating
- Do not use the product in a place with too much dust or powder
Otherwise it may lead to fires.
No contact with water
- Do not use the product in a damp place such as a bath otherwise near a stove
- Do not apply otherwise spray water to the body of the product. Otherwise it may cause fires or electric shock.
Must be performed
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision
Correct disposal of this product
- This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling
Notice
Improper operation may lead to dangers of minor wound or product damage.
Prohibited
- Do not sit otherwise lean on the product
Otherwise it may lead to injury or electric shock.
Prohibited
- Please do not drag during moving
Otherwise it may lead to scratches on tatami or floor.
Prohibited
- Do not strike the body of the product
Otherwise it may lead to electric shock, malfunction or damage.
Prohibited
- Do not blow the air directly to a human body
The product is not an electric fan and has much stronger wind power than an ordinary one. Please keep children and the aged away from the product. Otherwise it may lead to harm to health.
- Do not blow to any animal otherwise plant directly
Otherwise it may affect animal health and hinder plant growth.
Must be performed
Make sure to use it on level and stable surfaces
Otherwise it may lead to personnel injury otherwise damage to surrounding articles due to upside down.
Pull off the plug
- Make sure to hold the power plug when unplugging the plug. Do not drag the power cord
Otherwise it may cause electric shock, short circuit or fires due to power cord damage.
- Make sure to unplug the power plug from the socket in condition of no use
Otherwise it may cause fires or electric shock due to insulation aging.
Prohibited
- Please do not use in a place with surrounding barriers for wind flow
Otherwise it may lead to short circuit or fire due to breakdown.
Precautions for placing
- Please do not install the product in a place near direct sunshine, air conditioner or a warm current of home heater
Otherwise it may lead to deformation or discoloration of the product, which may result in malfunction.
- Do not operate the product around a radio or a television
Otherwise electromagnetic interference may affect normal operation.
Placing
Make sure to use it on level and firm floors.
Use the cooling equipment
Place the product back to the air conditioner to generate cold air from top to bottom.
Use the heating equipment
Blowing air downward toward the air conditioner or from high furniture to generate the upper warm air to circulate.
Circulation
Blow to the ceiling to make the air circulated.
Air exchange
Absorb the outdoor air and discharge the air in the room.
Circulation between two rooms
Make the air in two connected rooms circulated.
Parts

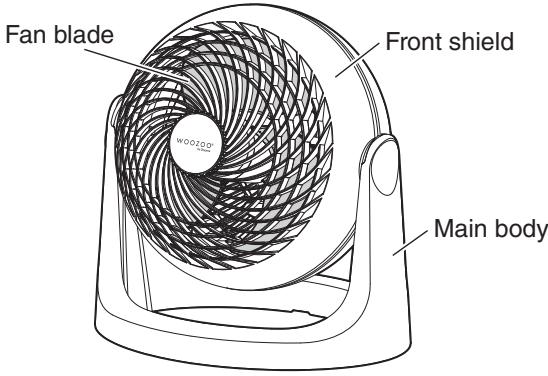

Front

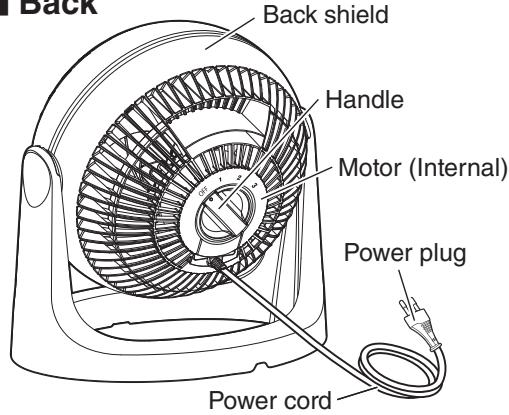

Back
How to use
Connecting the power cord
- Insert the power plug into the socket properly.
Operating
- Please rotate the power switch to select the required wind power.
Off
- Please turn the power switch to OFF.
Pivoting

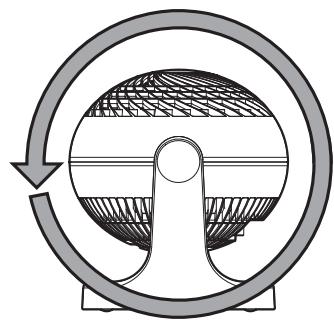

360 degree rotation (manual)
- Manual adjustment.
Cleaning method
Please remove the dust on the power plug at regular basis.
- Make sure to cut off the power supply and pull up the power cord before maintenance.
-
The motor keeps heating after operation. Make sure to maintain after the motor is cooling down.
-
Please do not use diluents, alcohol, volatile oil, alkaline detergent, decolorizer, etc. Otherwise it may lead to discoloration, transformation, deterioration, damage or breakdown.
Cleaning
- Wipe with a soft and dry cloth. If it is difficult to clean the dirt, wipe with a cloth with diluted neutral detergent, and then wipe off the detergent with a dry cloth.
Custody method
In condition of no use for a long term, cover the main body of the product with a plastic bag, and then store it in a dry and cool place with no direct sunshine.

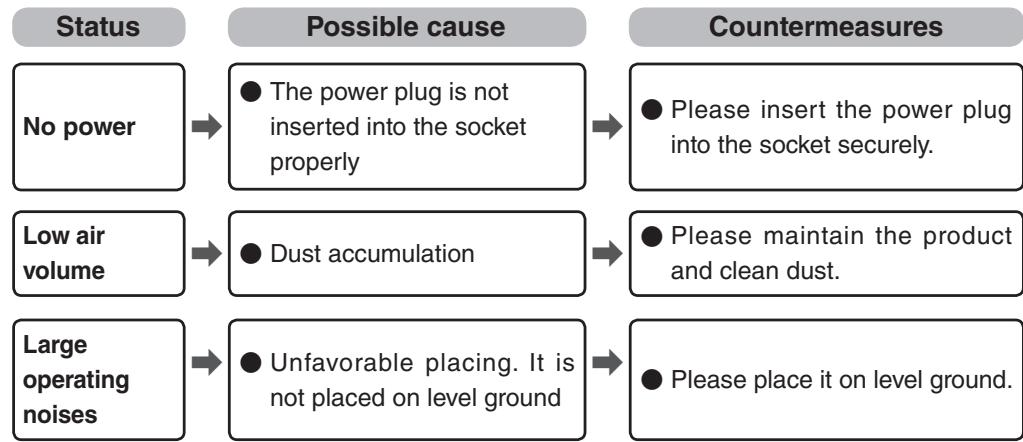

Troubleshooting
In condition that any abnormality is detected during usage, please confirm the following problems after reading the operation manual carefully before you entrust to repair it
If the problem is not solved with the above measures
Please consult to the shop or Iris Ohyama Europe B.V. by calling the consultation number.
Warning
- Do not disassemble, repair or transform the product without approval.
About long term usage
In any of the following phenomenon due to long term use, please cut off the power cord immediately and pull up the power plug from the socket. Then consult to the shop or Iris Ohyama Europe B.V. by calling the consultation number.
In any of the following phenomenon due to long term use
- No action after pressing down the power switch
- Abnormal sound is given out during fan blade revolving
- Irregular change is made on speed during fan blade revolving
Power cord is bended or damaged
The fan blade will suddenly rotate or stop rotating when the power cord is touched
The smell of burnt is giving out
Notice
Deterioration or breakdown may be caused due to multiple factors. In condition that any of the above abnormal phenomena appears before the recorded standard service life, please disuse immediately, and consult to the shop or Iris Ohyama Europe B.V. by calling the consultation number.
Specifications
| Product ID | PCF-HE15 | PCF-HE18 |
| Rated voltage | 220-240V~ | |
| Rated frequency | 50Hz | |
| Rated power | 30W | 31W |
| Protection against electric shock | Class II | |
| Length of cables(About) | 1.4m | |
| Product size(About) (No power cord is included) | W182xD252xH256 mm | W214xD278xH293 mm |
| Product weight(About) | 1.0kg | 1.4kg |
※ No other notification will be delivered in condition of changes on specifications of the product.
Warranty and after-sales services
Please make sure to carefully read the following contents.
Purchase Receipt
Be sure to request the Purchase Receipt from the sales shop when you purchase the product.
The repair fee needs to be paid if you cannot present the Purchase Receipt. Therefore, please keep the Purchase Receipt safely.
Within the warranty period
Warranty period: Time limit specified by warranty card (back cover).
The company will provide free repair as per the "Warranty Provisions" in condition of fault within the warranty period.
Over the warranty period
Please consult to the retail shop or the customer service center of Iris, and you need to pay for related repair expenses. It is available to maintain the functions of the product after repair, and certain repair charge is collected as per the requirements of the customers.
■ About the remaining period of spares parts
The remaining period of the important parts of the company is 2 years after the stop production of the product.
Performance spare parts mean the spare parts needed to maintain the functions of the product.
About the after-sales service
Please consult to the retail shop or the customer service center of Iris for other after-sales matters.
Air circulator PCF-HE15 / PCF-HE18
Warranty card
The purchase receipt is the certificate for you to enjoy free repair as per the following repair stipulations within the following period since the purchase day.
| Purchase date ※ Year Month Day | Warranty period 2 years since the purchase day Except for consumables | ||
| Customer | Name | ※ Retail shop | Shop name: Address: |
| Postal code: Address: | |||
| Telephone number ( ) - | Telephone number ( ) - | ||
※Notice to retail shops: Please fill in the items with ※and then deliver to customers.
Warranty Provisions
- The company will provide free repair or replacement in condition of fault or damage under normal operating conditions as per the matters needing attention on the labels pasted on the operation manual and the product.
- The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.
- The warranty contents are only limited to free repair on the product. No other warranty service is provided even within the warranty period. The warranty only covers defects in material or workmanship.
- If it is impossible to entrust the retail shop filled in the warranty card due to shop relocation or the product is given as a present, please consult to the customer service center of Iris.
- The warranty will not apply in cases of:
① Normal wear and tear
② Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
③ The faults and damages caused by falling down after purchase. Use of force, damage caused by external influences
The faults and damages caused by fire, earthquake or other natural disasters
⑤ Damage caused by non-observation of the user
manual, e.g. connection to an unsuitable mains supply or non-compliance with the installation instructions
The faults and damages during the handling and transportation process after purchase
⑦ Partially or completely dismantled appliances
⑧ Can not show the purchase receipt
The warranty card is not filled with purchase date, customer name, retail shop name or any of the above cortenes is modified
- The warranty card is only valid in Europe.
- The warranty card in original, and please keep it appropriately.
Memorandum for repair
The purchase receipt is the certificate for repair and exchange conditions clearly stipulated in the user's manual. But the warranty card restrains the customers to enjoy any legal right from the company (warranty responsible person) and other dealers. Please consult to the retail shop or the customer service center of Iris for repair matters after the warranty period.
※ Please consult "Warranty and After-sales Service" for repair after warranty period and retain period of spare parts.
Client : IRIS Ohyama Inc.,
Address : 2-12-1, Gokyo, Aoba-ku, Sendai-shi, Miyagi-ken, Japan
Manufacturer: IRIS HOME PRODUCTS (GUANGZHOU)CO.,LTD
Address : 1 DONGJI ROAD,HUANGPU DISTRICT,GUANGZHOU
GUANGDONG P.R.CHINA
Exclusive Distributer:
Iris Ohyama Europe B.V.
Address: Gesworenhoekseweg 1, Tilburg - The Netherlands Post code: 5047 TM TEL:+31-0)13-5780022
Website: www.irisohyama.co.jp (Japanese) www.iris Europe.com
