USER MANUAL DX254 DEXTER

Explanation of the symbols on the equipment Before commissioning, read and observe the operating instructions and safety instructions! © Wear safety goggles! © Wear ear-muffs! © 74 Wear breathing protection when generating dusk! Important! Risk of injury. Never reach into the running saw blade! Important! Laser radiation Protection Class Il (double insulated) A Observe warnings and safety instructions!

Do not dispose of electric tools together with household waste material! C € The product complies with the applicable European directives. GB121

Table of contents: Page: Introduction. Device description Scope of deliver Intended use... Safety information Technical data . Before starting the equipment. Attachment and operation.

13. Disposal and recycling

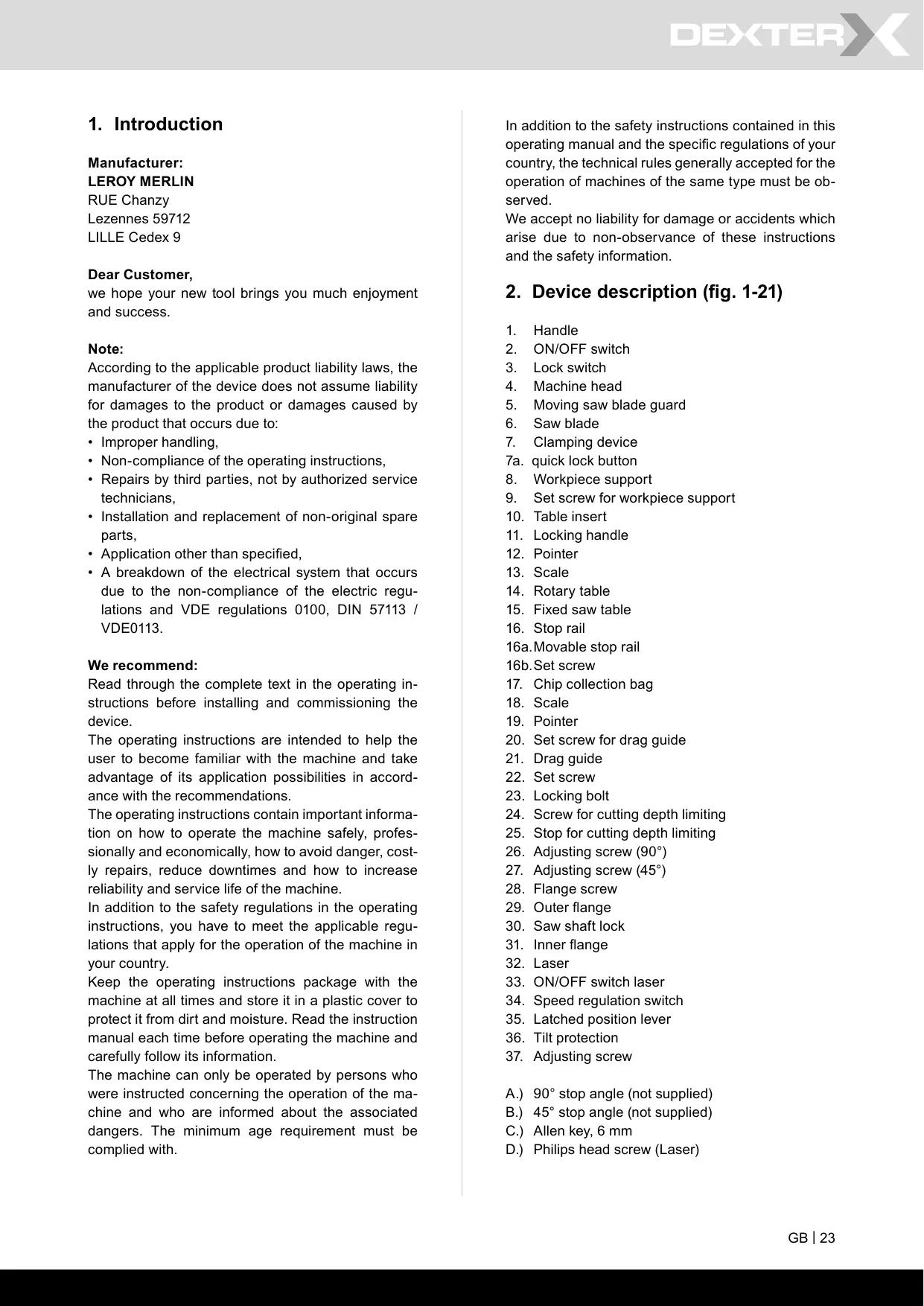

Manufacturer: LEROY MERLIN RUE Chanzy Lezennes 59712 LILLE Cedex 9 Dear Customer, we hope your new tool brings you much enjoyment and success. Note: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to: + Improper handling, + Non-compliance of the operating instructions, Repairs by third parties, not by authorized service technicians, Installation and replacement of non-original spare parts, Application other than specified, A breakdown of the electrical system that occurs due to the non-compliance of the electric regu- lations and VDE regulations 0100, DIN 57113 / VDEO0113. We recommend: Read through the complete text in the operating in- structions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accord- ance with the recommendations. The operating instructions contain important informa- tion on how to operate the machine safely, profes- sionally and economically, how to avoid danger, cost- ly repairs, reduce downtimes and how to increase reliability and service life of the machine. In addition to the safety regulations in the operating instructions, you have to meet the applicable regu- lations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the ma- chine and who are informed about the associated dangers. The minimum age requirement must be complied with. In addition to the safety instructions contained in this operating manual and the specific regulations of your country, the technical rules generally accepted for the operation of machines of the same type must be ob- served. We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

5. Moving saw blade guard

8. Workpiece support

9. Set screw for workpiece support

26. Adjusting screw (90°)

3. Scope of delivery

+ Sliding compound mitre saw + 1 x Clamping device (7) (preassembled) + 2 x Workpiece support (8) (preassembled) + Chip collection bag (17) + Allen key 6 mm (C) + Operating manual

The sliding compound mitre saw is designed to cross- cut wood and plastic respective of the machine's size. The sliding cross cut mitre saw is not designed for cutting firewood. Warning! Do not use the sliding cross cut mitre saw to cut materials other than those specified described in manual. Warning! The supplied saw blade is intended exclu- sively for sawing the following materials: wood, wood derived products (MDF, chipboard, ply- wood, blockboard, hardboard, etc.), wood with nails and 3 mm mild steel plates. Note: Wood containing non-galvanised nails or screws can also be safely cut when carefully handled. Note: Do not use the saw blade to cut galvanised ma- terials or wood containing galvanised nails. Do not use the saw blade to saw firewood! The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. The equipment is to be operated only with suitable saw blades. It is prohibited to use any type of cut- ting-off wheel. To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with this manual and must be in- formed about the equipment's potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of health and safety at work. The manufacturer will not be liable for any changes made to the equipment nor for any damage result- ing from such changes. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machines construc- tion and design: 241GB Contact with the saw blade in the uncovered saw zone. Reaching into the running saw blade (cut injuries). Kick-back of workpieces and parts of workpieces. Saw blade fracturing. Catapulting of faulty carbide tips from the saw blade. Damage to hearing if ear-muffs are not used as necessary. Harmful emissions of wood dust when used in closed rooms. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the equip- ment is used in commercial, trade or industrial busi- nesses or for equivalent purposes.

5. Safety information

General power tool safety warnings À WARNING! Read all safety warnings, instruc- tions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future ref- erence. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive at- mospheres, such as in the presence offlam- mable liquids, gases or dust. Power tools cre- ate sparks which may ignite the dustor fumes. c) Keep children and bystanders away while op- erating a power tool. Distractions cancause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Nev- er modify the plug in any way. Do not use any adapter plugs with earthed (grounded) pow- er tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or ground- ed.

Do not expose power tools to rain or wet conditions. Water entering a power tool will in- crease the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current de- vice (RCD) protected supply. Use of an RCD reduces the risk of electric shock. NOTE The term “residual current device (RCD)” can be replaced by the term “ground fault circuit interrupter (GFCI)” or “earth leakage circuit breaker (ELCB)”.

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or med- ication. À moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropri- ate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connect- ing to power source and/or battery pack, picking up or carrying the tool. Carrying pow- er tools with your finger on the switch or energis- ing power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. À wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct pow- er tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dan- gerous and must be repaired. Disconnect the plug from the power source and/or remove the battery pack, if detach- able, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safe- ty measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dan- gerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. |f dam- aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the pow- er tool for operations different from those intend- ed couldresult in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpect- ed situations.

Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. GB125

Warning! This electric tool generates an electromag- netic field during operation. This field can impair ac- tive or passive medical implants under certain condi- tions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manu- facturer of the medical implant prior to operating the electric tool. Safety instructions for mitre saws

Mitre saws are intended to cut wood or wood- like products, they cannot be used with abra- sive cut-off wheels for cutting ferrous materi- al such as bars, rods, studs, etc. Abrasive dust causes moving parts such as the lower guard to jam. Sparks from abrasive cutting will burn the lower guard, the kerf insert and other plastic parts. Use clamps to support the workpiece when- ever possible. If supporting the workpiece by hand, you must always keep your hand at least 100 mm from either side of the saw blade. Do not use this saw to cut pieces that are too small to be securely clamped or held by hand. If your hand is placed too close to the saw blade, there is an increased risk of injury from blade contact. The workpiece must be stationary and clamped or held against both the fence and the table. Do not feed the workpiece into the blade or cut “freehand” in any way. Unre- strained or moving workpieces could be thrown at high speeds, causing injury. Push the saw through the workpiece. Do not pull the saw through the workpiece. To make a cut, raise the saw head and pull it out over the workpiece without cutting, start the mo- tor, press the saw head down and push the saw through the workpiece. Cutting on the pull stroke is likely to cause the saw blade to climb on top of the workpiece and violently throw the blade assembly towards the operator. Never cross your hand over the intended line of cutting either in front or behind the saw blade. Supporting the workpiece “cross handed” i.e. holding the workpiece to the right of the saw blade with your left hand or vice versa is very dan- gerous. Do not reach behind the fence with either hand closer than 100 mm from either side of the saw blade, to remove wood scraps, or for any other reason while the blade is spinning. The proximity of the spinning saw blade to your hand may not be obvious and you may be seri- ously injured. 261GB g) Inspect your workpiece before cutting. If the workpiece is bowed or warped, clamp it with the outside bowed face toward the fence. Al- ways make certain that there is no gap be- tween the workpiece, fence and table along the line of the cut. Bent or warped workpieces can twist or shift and may cause binding on the Spinning saw blade while cutting. There should be no nails or foreign objects in the workpiece. Do not use the saw until the table is clear of all tools, wood scraps, etc., except for the work- piece. Small debris or loose pieces of wood or other objects that contact the revolving blade can be thrown with high speed.

i) Cut only one workpiece at a time. Stacked mul-

tiple workpieces cannot be adequately clamped or braced and may bind on the blade or shift dur- ing cutting. j) Ensure the mitre saw is mounted or placed on a level, firm work surface before use. A level and firm work surface reduces the risk of the mitre saw becoming unstable. Plan your work. Every time you change the bevel or mitre angle setting, make sure the ad- justable fence is set correctly to support the workpiece and will not interfere with the blade or the guarding system. Without turning the tool “ON” and with no workpiece on the table, move the saw blade through a complete simulated cut to assure there will be no interference or danger of cutting the fence.

1) Provide adequate support such as table ex-

tensions, saw horses, etc. for a workpiece that is wider or longer than the table top. Workpieces longer or wider than the mitre saw ta- ble can tip if not securely supported. If the cut-off piece or workpiece tips, it can lift the lower guard or be thrown by the spinning blade. m) Do not use another person as a substitute for a table extension or as additional support. Un- stable support for the workpiece can cause the blade to bind or the workpiece to shift during the cutting operation pulling you and the helper into the spinning blade. The cut-off piece must not be jammed or pressed by any means against the spinning saw blade. lf confined, i.e. using length stops, the cut-off piece could get wedged against the blade and thrown violently. Always use a clamp or a fixture designed to properly support round material such as rods or tubing. Rods have a tendency to roll while be- ing cut, causing the blade to “bite” and pull the work with your hand into the blade. Let the blade reach full speed before contact- ing the workpiece. This will reduce the risk of the workpiece being thrown.

If the workpiece or blade becomes jammed, turn the mitre saw off. Wait for all moving parts to stop and disconnect the plug from the power source and/or remove the battery pack. Then work to free the jammed material. Continued sawing with a jammed workpiece could cause loss of control or damage to the mitre saw. After finishing the cut, release the switch, hold the saw head down and wait for the blade to stop before removing the cut-off piece. Reaching with your hand near the coasting blade is dangerous. Hold the handle firmly when making an incom- plete cut or when releasing the switch before the saw head is completely in the down posi- tion. The braking action of the saw may cause the saw head to be suddenly pulled downward, causing a risk of injury. Safety Instructions for the handling of saw blades Do not use damaged or deformed saw blades. Do not use any insertion tools with cracks. Sort out cracked insertion tools. Repairs are not per- mitted. Do not use saw blades made of high speed steel. Check the condition of the saw blades before us- ing the sliding compound mitre saw. Make sure that a suitable saw blade for the ma- terial to be cut is selected. Only use saw blades recommended by the man- ufacturer. Saw blades designed to cut wood and similar materials must comply with EN 847-1. Do not use saw blades made of high-speed alloy steel (HSS steel). Only use saw blades for which the maximum per- missible speed is not lower than the maximum spindle speed of the sliding compound mitre saw and which are suitable for the material to be cut. Observe the saw blade direction of rotation. Only insertion the saw blade if you have mastered their use. Observe the maximum speed. The maximum speed specified on the insertion tool may not be exceeded. If specified, observe the speed range. Clean grease, oil and water off of the clamping surfaces. Do not use any loose reducing rings or bushes for the reducing of holes on saw blades. Make sure that fixed reducer rings for securing the insertion tool have the same diameter and have at least 1/3 of the cutting diameter. Make sure that fixed reducer rings are parallel to each other. 16 Handle insertion tool with caution. They are ide-

ally stored in the originally package or special containers. Wear protective gloves in order to im- prove grip and to further reduce the risk of injury. Prior to the use of insertion tools, make sure that all protective devices are properly fastened. 18 Prior to use, make sure that the insertion tool

meets the technical requirements of this electric tool and is properly fastened. Only use the supplied saw blade for cutting wood, never for the processing of metals. 20 Only use saw blade diameters in accordance with

the markings on the saw. Use additional workpiece supports, if required for workpiece stability. 22 Workpiece support extensions must always be

secured and used during work. Replace table inserts when worn! 24 Avoid overheating of the saw teeth. 25 When sawing plastic, avoid melting of the plastic. Use the appropriate saw blades for this purpose. Replace damaged or worn saw blades immedi- ately. When the saw blade overheats, stop the machine. Allow the saw blade to cool down before using the machine again. Attention: Laser radiation Do not stare into the beam Class 2 laser Achtung! - Laserstrahlung Nicht in den Strahl blicken! Laser Masse 2 Laserspezikation nach EN 60825-12014 a 60m Pos 1m Protect yourself and you environment from ac- cidents using suitable precautionary measures! Do not look directly into the laser beam with un- protected eyes. Never look into the path of the beam. Never point the laser beam towards reflecting sur- faces and persons or animals. Even a laser beam with a low output can cause damage to the eyes. Caution - methods other than those specified here can result in dangerous radiation exposure. Never open the laser module. Unexpected expo- sure to the beam can occur. If you do not use the device for a long time, the batteries should be removed. The laser may not be replaced with a different type of laser. Repairs of the laser may only be carried out by the laser manufacturer or an authorised representa- tive. GB127

Residual risks The machine has been built according to the state of the art and the recognised technical safety re- quirements. However, individual residual risks can arise during operation. Health hazard due to electrical power, with the use of improper electrical connection cables. Furthermore, despite all precautions having been met, some non-obvious residual risks may still re- main. Residual risks can be minimised if the ,safety in- structions“ and the ,Proper use“ are observed along with the whole of the operating instructions. Do not load the machine unnecessarily: excessive pressure when sawing will quickly damage the saw blade, which results in reduced output of the ma- chine in the processing and in cut precision. When cutting plastic material, please always use clamps: the parts which should be cut must always be fixed between the clamps. Avoid accidental starting of the machine: the oper- ating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommended in this manual. In doing so, your machine provides optimal perfor- mance. Hands may never enter the processing zone when the machine is in operation. Release the handle button and switch off the ma- chine prior to any operations.

• S1 operating mode, continuous duty The work piece must have a minimum height of 3 mm and a minimum width of 10 mm. 28|GB Make sure that the workpiece is always secured with the clamping device. Noise Total noise values determined in accordance with EN 62841-1. Sound pressure level L, Uncertainty K,,.….. Sound power level L,,, Uncertainty K,,,... Wear hearing protection. The effects of noise can cause a loss of hearing The above-mentioned noise emission values were measured in accordance with a standardised test procedure and can be used to compare one power tool with another. The above-mentioned noise emission values can also be used for the preliminary assessment of ex- posure.

The noise emissions during the actual use of the power tool may differ from the above-mentioned values depending on the power tool being used, in particular on the type of workpiece being pro- cessed. Try to keep emissions as low as possible, for ex- ample by limiting your working time. In this regard, all the operational cycle phases must be taken into consideration (such as the times when the tool is switched off or running idle).

7. Before starting the equipment

Open the packaging and remove the device care- fully. Remove the packaging material as well as the packaging and transport bracing (if available). Check that the delivery is complete. Check the device and accessory parts for trans- port damage. If possible, store the packaging until the warranty period has expired. ATTENTION The device and packaging materials are not toys! Children must not be allowed to play with plas- tic bags, film and small parts! There is a risk of swallowing and suffocation! + The equipment must be set up where it can stand securely. Secure the machine on a workbench or a base frame with 4 screws (not included in delivery) using the holes on the fixed saw table (15).

Pull out the pre-installed tilt protection (36) com- pletely and secure it with an Allen key. Adjust the adjusting screw (37) to the level of the tabletop to avoid wobbling of the machine. All covers and safety devices have to be properly fitted before the equipment is switched on. It must be possible for the blade to run freely. When working with wood that has been processed before, watch out for foreign bodies such as nails or screws, etc. Before you press the ON/OFF switch check that the saw blade is fitted correctly. Moving parts must run smoothly. Before you connect the equipment to the power supply make sure the data on the rating plate are dentical to the mains data. 71 Checking the moving saw blade guard safety device (5) The saw blade guard protects against accidental con- tact with the saw blade and from chips flying around. Check function To do so, fold the saw downwards: + The saw blade guard must provide free access to the saw blade without touching other parts. + When folding the saw upwards into the starting position, the saw blade guard must cover the saw blade automatically.

8. Attachment and operation

8. Attaching the sli

(fig, 2, 4,5) In order to adjust the rotary table (14), fold the lock- ing handle (11) upwards and pull up the latched po- sition lever (35) with your index finger. Turn the rotary table (14) and pointer (12) to the de- sired angle measurement of the scale (13). To fix the setting, fold the locking handle (11) downwards. Pressing the machine head (4) lightly downwards and removing the locking bolt (23) from the motor bracket at the same time disengages the saw from the lowest position. Swing the machine head (4) up. It is possible to secure the clamping devices (7) to the left or right on the fixed saw table (15). Insert the clamping devices (7) in the holes on the rear side of the stop rail (16) and secure it with the star grip screws (7a). For 0°-45° mitre cuts, the clamping device (7) must only be mounted on the right side (see fig. 11-12). Itis possible to tilt the machine head (4) a max. 45° to the left by loosening the set screw (22). Workpiece supports (8) must always be secured and used during work. Set the desired table size by loosening the set screw (9). Then tighten the set screw (9) again. ng compound mitre saw

8.2 Precision adjustment of the stop for crosscut

90° (fig. 1, 2, 5, 6) No stop angle included. Lower the machine head (4) and secure it using the locking boit (23). Loosen the set screw (22). Position the angle stop (A) between the saw blade (6) and the rotary table (14). Loosen the lock nut (26a). Adjust the adjusting screw (26) until the angle be- tween the saw blade (6) and rotary table (14) is 90°. Re-tighten the lock nut (26a). Subsequently check the position of the angle indi- cator. |f necessary loosen the pointer (19) using a Philips screwdriver, set to position 0° on the angle scale (18) and re-tighten the retaining screw.

8.3 Crosscut 90° and turntable 0° (fig. 1, 2, 7)

In the case of cutting widths up to approx. 100 mm it is possible to fix the traction function of the saw with the set screw (20) in the rear position. In this position the machine can be operated in cross cutting mode. If the cutting width is over 100 mm then it is necessary to ensure that the set screw (20) is loose and the ma- chine head (4) can move. Attention! For 90° crosscuts, the moveable stop rail (16a) must be fixed in the inner position. Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) in- wards. The moveable stop rail (16a) must be locked in a position far enough from the inner position that the distance between the stop rail (16a) and the saw blade (6) is no more than 8 mm.. Before making the cut, check that the stop rail (16a) and the saw blade (6) cannot collide. Re-tighten the set screw (16b). Move the machine head (4) to its upper position. Use the handle (1) to push back the machine head (4) and fix it in this position if required (dependent on the cutting width). Place the piece of wood to be cut at the stop rail (16) and on the turntable (14). Lock the material with the clamping devices (7) on the fixed saw table (15) to prevent the material from moving during the cutting operation. Release the lock switch (3) and press the ON/OFF switch (2) to start the motor. (Refer also to point

8.13 “Changing the speed” in this regard.)

With the drag guide (21) fixed in place (21): use the handle (1) to move the machine head (4) steadily and with light pressure downwards until the saw blade (6) has completely cut through the work piece. GB|29

+ With the drag guide (21) not fixed in place (21): pull the machine head (4) all the way to the front. Lower the handle (1) to the very bottom by applying steady and light downward pressure. Now push the machine head (4) slowly and steadily to the very back until the saw blade (6) has completely cut through the work piece. When the cutting operation is completed, move the machine head back to its upper (home) position and release the ON/OFF button (2). Attention! The machine executes an upward stroke automatically due to the return spring, i.e. do not release the handle (1) after completing the cut; instead allow the machine head to move upwards slowly whilst applying light counter pressure.

8.4 Crosscut 90° and turntable 0° - 45° (fig. 1, 7, 8)

The sliding compound mitre saw can be used to make crosscuts of 0° -45° to the left and 0° -45° to the right in relation to the stop rail. Important! For 90° crosscuts, the moveable stop rail (16a) must be fixed in the inner position. + Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) in- wards. The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a minimum of 8 mm. Before making the cut, check that the stop rail (16a) and the saw blade (6) cannot collide. Secure the set screw (16b) again. Loosen the locking handle (11) if tightened, pull up the latched position lever (35) with your index finger and use the locking handle (11) to set the rotary table (14) to the desired angle. The pointer (12) on the rotary table must match the desired angle on the scale (13) on the fixed saw table (15). Re-tighten the locking handle (11) to secure the ro- tary table (14). Cut as described under section 8.3.

8.5 Precision adjustment of the stop for mitre cut

45° (fig. 1, 2, 5, 9, 10) No stop angle included. Lower the machine head (4) and secure it using the locking boit (23). Fix the rotary table (14) in the 0° position. Attention! For mitre cuts (inclined saw head), the left side of the moveable stop rails (16a) must be fixed in the outer position. Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) out- wards. 301 GB The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a maximum of 8 mm. The right side of the moveable stop rails (16a) must be in the inner position. Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide. Loosen the set screw (22) and use the handle (1) to angle the machine head (4) 45° to the left. 45° - position angle stop (B) between the saw blade (6) and rotary table (14). Loosen the lock nut (27a) and adjust the adjustment screw (27) until the angle between the saw blade (6) and the rotary table (14) is precisely 45°. Re-tighten the lock nut (27a). Subsequently check the position of the angle indi- cator. |f necessary, loosen the pointer (19) using a Philips screwdriver, set to position 45° on the angle scale (18) and re-tighten the retaining screw.

8.6 Mitre cut 0°- 45° and turntable 0° (fig. 1, 2, 11)

The sliding compound mitre saw can be used to make mitre cuts of 0° - 45° in relation to the work face. Attention! For mitre cuts (inclined saw head), the left side of the moveable stop rails (16a) must be fixed in the outer position. Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) out- wards. The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a minimum of 8 mm. The right side of the moveable stop rails (16a) must be in the inner position. Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide. Secure the set screw (16b) again. Move the machine head (4) to the top position. Fix the rotary table (14) in the 0° position. Loosen the set screw (22) and use the handle (1) to angle the machine head (4) to the left, until the pointer (19) indicates the desired angle measure- ment on the scale (18). Re-tighten the set screw (22). Cut as described in section 8.3.

8.7 Mitre cut 0°- 45° and turntable 0°- 45°

fig. 2, 4, 12) The sliding compound mitre saw can be used to make mitre cuts to the left of 0°- 45° in relation to the work face and, at the same time, 0° - 45° to the left or 0° - 45° to the right in relation to the stop rail (double mitre cut).

Attention! For mitre cuts (inclined saw head), the left side of the moveable stop rails (16a) must be fixed in the outer position. Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) out- wards. The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a minimum of 8 mm. Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide. Re-tighten the set screw (16b). Move the machine head (4) to its upper position. Fold the locking handle (11) upwards to loosen the rotary table (14). Set the rotary table (14) to the desired angle (refer also to point 8.4 in this regard). Fold the locking handle (11) downwards to secure the rotary table (14). + Undo the set screw (22). + Use the handle (1) to tilt the machine head (4) to the left until it coincides with the required angle value (in this connection see also section 8.6). Re-tighten the set screw (22). + Cut as described under section 8.3.

8.8 Limiting the cutting depth (fig. 3, 13)

+ The cutting depth can be infinitely adjusted using the screw (24). To do this loosen the knurled nut (24a) on the screw (24). Turn the screw (24) in or out to set the required cutting depth. Then re-tight- en the knurled nut (24a) on the screw (24). Check the setting by completing a test cut.

8.9 Chip collection bag (fig. 1, 20)

The saw is equipped with a debris bag (17) for saw- dust and chips. Attention! The chip collection bag may only be used when cutting wood and wood-like materials! Squeeze together the metal ring on the dust bag and attach it to the outlet opening in the motor area. The debris bag (17) can be emptied by means of a Zipper at the bottom. Connection to an external dust extractor For dust extraction, a vacuum hose can also be con- nected to the dust extraction spout. + Connect the vacuum hose with the dust extraction spout. + The industrial vacuum cleaner must be suitable for the material being worked. + When vacuuming dust that is especially detrimen- tal to health or carcinogenic, use a special vacuum cleaner.

8.10 Changing the saw blade (fig. 1, 2, 14-16)

Remove the power plug! Important! À Always use the correct saw blade for the ma- terial to be sawn À Only use saw blades that comply with the ma- chine specifications regarding the bore diameter and the maximum kerf of the saw blade À Only use saw blades which marked with a speed equal or higher than the machine speci- fications. Wear safety gloves when changing the saw blade. Risk of injury! Swing the machine head (4) upwards and lock with the locking boit (23). Fold the saw blade guard (5) upwards. Use one hand to insert the Allen key (C) in the flange screw (28). Firmly press the saw shaft lock (30) and slowly ro- tate the flange screw (28) in clockwise direction. The saw shaft lock (30) engages after no more than one rotation. Now, using a little more force, slacken the flange screw (29) in the clockwise direction. Turn the flange screw (28) right out and remove the outer flange (29). Take the blade (6) off the inner flange (31) and pull out downwards. Carefully clean the flange screw (28), outer flange (29) and inner flange (31). Fit and fasten the new saw blade (6) in reverse or- der. Important! The cutting angle of the teeth, in other words the direction of rotation of the saw blade (6) must coincide with the direction of the arrow on the housing. Before continuing your work make sure that all safety devices are in good working condition. Important! Every time that you change the saw blade (6), check to see that it spins freely in the ta- ble insert (10) in both perpendicular and 45° angle settings. Important! The work to change and align the saw blade (6) must be carried out correctly.

8.11 Using the laser (fig. 17)

+ To switch on: Press the ON/OFF switch laser (33) 1x. A laser line is projected onto the material you wish to process, providing an exact guide for the cut. + To switch off: Press again the ON/OFF switch la- ser (33). GB|31

If the laser (32) ceases to indicate the correct cutting line, you can readjust the laser. Loosen the Philips head screws (D) and set the laser by moving side- ways until the laser beam strikes the teeth of the saw blade (6). Firmly secure both screws (D).

8.13 Changing the speed (fig. 17)

The mitre saw has 2 speed ranges: 3200 min* |_4500 min* + To operate the mitre saw at a speed of 3200 rpm (metal), set the speed regulation switch (34) to po- sition |. + To operate the saw at a speed of 5000 rpm (wood), set the speed regulation switch (34) to position II.

Tighten the locking handle (11) to lock the rotary table. Press the machine head (4) downwards and secure with the locking bolt (23). Fix the saw's drag function with the locking screw for drag guide (20) in rear position. Carry the equipment by the fixed saw table (15). When reassembling the equipment proceed as de- scribed under section 7. 10.Maintenance À Warning! Prior to any adjustment, maintenance or service work disconnect the mains power plug! General maintenance measures Wipe chips and dust off the machine from time to time using a cloth. In order to extend the service life of the tool, oil the rotary parts once monthly. Do not oil the motor. When cleaning the plastic do not use corrosive prod- ucts. Cleaning the moving saw blade guard safety de- vice (5) Always check the saw blade guard for debris before using the machine. Remove old sawdust and splinters using a brush or similar tool. Replacing the table insert Danger! With a damaged table insert (10) there is a risk of small parts getting stuck between table insert and saw blade, blocking the saw blade. 321GB Immediately replace damaged table inserts!

1. Remove screws at table insert. lf required, turn

rotary table and incline saw head to be able to reach the screws.

Brush inspection (fig. 19) Check the carbon brushes after the first 50 operat- ing hours with a new machine, or when new brushes have been fitted. After carrying out the first check, repeat the check every 10 operating hours. If the carbon is worn to a length of 6 mm, or if the spring or contact wire are burned or damaged, it is necessary to replace both brushes. lfthe brushes are found to be usable following removal, it is possible to reinstall them. When servicing the carbon brushes, open the two latches counterclockwise (as shown in figure 19). Then remove the carbon brushes. Replace the car- bon brushes in the reverse order.

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C. Store the electrical tool in its original packaging. Cover the electrical tool in order to protect it from dust and moisture. Store the operating manual with the electrical tool. 12.Electrical connection The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer‘s mains connection as well as the extension cable used must also comply with these regulations. The product meets the requirements of EN 61000- 3-11 and is subject to special connection condi- tions. This means that use of the product at any freely selectable connection point is not allowed. Given unfavourable conditions in the power supply the product can cause the voltage to fluctuate tem- porarily. The product is intended solely for use at connec- tion points that a) do not exceed a maximum permitted supply im- pedance “Z” (Zmax = 0.382 Q), or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.

As the user, you are required to ensure, in consulta- tion with your electric power company if necessary, that the connection point at which you wish to oper- ate the product meets one of the two requirements, a) or b), named above. Important information In the event of an overloading the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again. Damaged electrical connection cable. The insulation on electrical connection cables is of- ten damaged. This may have the following causes: Passage points, where connection cables are passed through windows or doors. Kinks where the connection cable has been im- properly fastened or routed. Places where the connection cables have been cut due to being driven over. Insulation damage due to being ripped out of the wall outlet. Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage. Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use con- nection cables with the marking ,HO5VV-F*. The printing of the type designation on the connec- tion cable is mandatory. AC motor: + The mains voltage must be 220 - 240 V-. + Extension cables up to 25 m long must have a cross-section of 1.5 mm°. Connections and repairs of electrical equipment may only be carried out by an electrician. Please provide the following information in the event of any enquiries: + Type of current for the motor + Machine data - type plate 13.Disposal and recycling The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equip- ment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre. Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical devices. Old devices must not be disposed of with house- hold wastel This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive M (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to poten- tially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, pub- lic waste disposal authority, an authorised body for the disposal of waste electrical and electronic equip- ment or your waste disposal company. GUARANTEE: Thank you for investing in a ADEO power tool. These products have been made to demanding, high-qual- ity standards and are guaranteed for domestic use against manufacturing faults for a period of 24 months from the date of purchase. This guarantee does not affect your statutory rights. In case of any malfunction of your tool (failure, miss- ing part, etc.), please contact service. Service address: ADEO's Service address: 135 RUE SADI CARNOT CS00001, 59790 RONCHIN, FRANCE Normal wear and tear, including accessory wear, is not covered under guarantee. The product is guar- anteed for 24 months if used for normal demostic use. Any guarantee is invalid if the product has been overloaded or subject to neglect, improper use or an attempted repair other than by an authorized agent. Heavy-duty, daily professional or hire usage are not guaranteed. Due to continuous product improve- ment, we reserve the right to change the product specification without prior notice. GB133

14.Troubleshooting Fault Motor does not work Possible cause Motor, cable or plug defective, the mains circuit breaker switched off Remedy Arrange for inspection of the machine by a specialist. Never repair the motor yourself. Danger! Check fuses and replace as necessary The motor starts up slowly and does not reach operating speed. Voltage too low, coils damaged, capacitor burnt Contact the utility provider to check the voltage. Arrange for inspection of the motor by a special- ist. Arrange for replacement of the capacitor by a specialist Motor makes exces- sive noise Coils damaged, motor defective Arrange for inspection of the motor by a special- ist The motor does not reach its full power. Circuits in the network are overloaded (lamps, other motors, etc.) Do not use any other equipment or motors on the same circuit Motor overheats easily. Overloading of the motor, insufficient cool- ing of the motor Avoid overloading the motor while cutting, remove dust from the motor in order to ensure optimal cooling of the motor Saw cut is rough or wavy Saw blade dull, tooth shape not appropriate for the material thickness Re-sharpen saw blade and/or use suitable saw blade Workpiece pulls away and/or splinters Excessive cutting pressure and/or saw blade not suitable for use Insert suitable saw blade GUARANTEE: Thank you for investing in a ADEO power tool. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 24 months from the date of purchase. This guarantee does not affect your statutory rights. In case of any malfunction of your tool (failure, missing part, etc..), please contact service. Service address: ADEO's Service address: 135 RUE SADI CARNOT CS00001, 59790 RONCHIN, FRANCE Normal wear and tear, including accessory wear, is not covered under guarantee. The product is guaranteed for 24 months if used for normal demostic use. Any guarantee is invalid if the product has been overloaded or subject to ne- glect, improper use or an attempted repair other than by an authorized agent. Heavy-duty, daily professional or hire usage are not guaranteed. Due to continuous product improvement, we reserve the right to change the product spec- ification without prior notice. 341GB
