Product type	Ultrasonic essential oil diffuser
Brand	STADLERFORM
Model	JASMINE TITANIUM
Power supply	12 V, 7.2 W mains adapter
Tank capacity	100 ml
Dimensions (L x H x D)	130 x 130 x 90 mm
Weight	0.4 kg
Noise level	< 26 dB(A)
Coverage area	Approx. 20-30 m² (domestic use)
Operating mode	Continuous and interval
Interval mode	10 min diffusion / 20 min pause
LED lighting	White, switchable via separate switch
Diffusion type	Ultrasonic (cold)
Housing material	Plastic (unspecified)
Maintenance	External cleaning with damp cloth; internal descaling with household product; do not immerse
Repairability	Repairs exclusively by qualified electrician
Spare parts	Mains adapter supplied
Compliance	CE, WEEE, RoHS
Warranty	2 years (manufacturing defects)
Usage	Indoor only; avoid proximity to bathtub, shower, swimming pool (distance >3 m)
Essential oil precautions	Use only alcohol-free oils

Frequently Asked Questions - JASMINE TITANIUM STADLERFORM

How to turn on the JASMINE TITANIUM diffuser?

Plug in the mains adapter, then press the on/off switch (5) located on the device. The white LED lamp lights up to confirm power on.

How to set the interval mode?

Press the interval mode switch (6). The diffuser will then run for 10 minutes, followed by a 20-minute pause, allowing prolonged diffusion (approx. 24h).

What type of essential oils to use?

Use only essential oils, fragrances or aromas without alcohol. Alcohol can damage the ultrasonic membrane and void the warranty.

How to fill the water tank?

Lift the lid (1), pour water into the lower part (2) up to the MAX mark (100 ml). Add 2-3 drops of essential oil directly into the water. Close the lid.

How to clean the diffuser?

Unplug the device. Clean the outside with a damp cloth. For the inside, use a household descaling agent to clean the ultrasonic membrane; never scrape with a hard object. Rinse and dry thoroughly.

Can I use the diffuser in a bathroom?

No, place the device at least 3 meters away from a bathtub, shower or swimming pool. The device is not protected against water splashes.

What to do if the LED lamp does not light up?

Check that the mains adapter is properly plugged in and that the socket works. Make sure there is enough water (above the minimum level) and that the lid is properly closed.

How to change perfume?

Empty the tank completely, clean it with a damp cloth, then refill with water and add the new perfume (2-3 drops).

Can the device run continuously all day?

Yes, in continuous mode, it runs as long as there is water. In interval mode, it can diffuse for approx. 24 hours without refilling.

Where to find a replacement mains adapter?

The supplied mains adapter is specific to the model. For a replacement, contact STADLERFORM after-sales service or an authorized dealer.

USER MANUAL JASMINE TITANIUM STADLERFORM

Operating instructions

Mode d'emploi

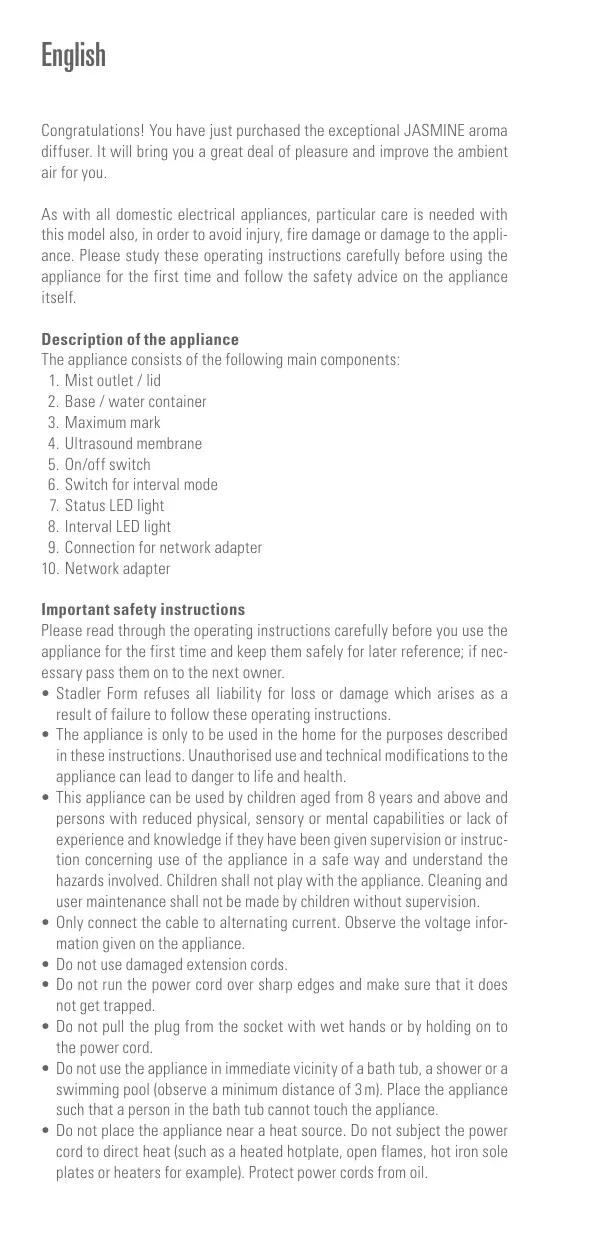

Congratulations! You have just purchased the exceptional JASMINE aroma diffuser. It will bring you a great deal of pleasure and improve the ambient air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components:

1. Mist outlet / lid
2. Base / water container
3. Maximum mark
4. Ultrasound membrane
5. On/off switch
6. Switch for interval mode
7. Status LED light
8. Interval LED light

9. Connection for network adapter

10. Network adapter

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorized use and technical modifications to the appliance can lead to danger to life and health.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance.
• Do not use damaged extension cords.
• Do not run the power cord over sharp edges and make sure that it does not get trapped.
• Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 3m ). Place the appliance such that a person in the bath tub cannot touch the appliance.

• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.

• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.

• The appliance is not splash-proof.
• For indoor use only.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the appliance).
• If the power cord is damaged, it must be replaced by the manufacturer or a repair shop authorized by the manufacturer or by similarly qualified persons in order to avoid a hazard.
• Only use fragrances, aromas or essential oils that do NOT contain alcohol. Alcohol can damage the appliance. Appliances that are damaged by such additives are not covered by the warranty.

Setting up / operation

1. Place Jasmine at the desired location on a flat surface. Connect the network adapter (10) to the device and plug the adapter into a suitable socket.
2. Remove the lid (1) to fill with water and fragrance.
3. Fill the water container (2) up to the maximum mark (MAX) with water. Important: please do not carry Jasmine around whilst it is filled with water. The water could run into the electronics.
4. Add 2-3 drops of your favourite liquid fragrance directly into the water. It is not necessary to mix them as the ultrasound membrane (4) does this for you. Only use fragrances, aromas or essential oils that do NOT contain alcohol.
5. Close the lid (1) again.
6. Then start operating Jasmine by pressing the on/off switch (5). After doing this the white LED at the front will come on. If this does not happen, check whether there is sufficient water in the device or if the adapter is connected to the electricity supply.
7. The interval mode makes it possible for you to operate the diffuser for a whole day (approx. 24 hours), without needing to re-fill it. Press the key for the interval mode (6), the white LED will then come on. Jasmine will now diffuse fragrance into the room for 10 minutes. The appliance will then switch off for 20 minutes. This mode means it is possible to diffuse the fragrances in pleasantly small doses into the air. The advantage: You don't become accustomed to the fragrances and can therefore still smell them all the time.
8. If you would like to top the water up, switch the device off and pull the network plug out. Remove the lid and fill the water up to the maximum mark.

Note: If you would like to change the fragrance, empty Jasmine completely and clean the water container with a damp cloth. Fill Jasmine once again and pour the drops into the device following the instructions.

Cleaning

Before maintenance and after every use, switch the device off and pull the network adapter out of the socket. Before you clean Jasmine, the network adapter must be unplugged.

Careful: Never immerse the device in water (danger of short circuit).

• To clean the outside, rub with a damp cloth and then dry thoroughly.
• Internal cleaning: You can clean the ultrasound membrane with a conventional household descaler. Please do not try to scratch off deposits from the membrane with a hard object. For stubborn deposits, we recommend that you descale the device several times in a row. After the descaling rinse the base and then dry thoroughly.

Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the

product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications

Rated voltage 12V

Power output 7.2W

Dimensions 130x90x130mm

(width x height x depth)

Weight 0.4kg

Tank capacity 100ml

Sound level < 26dB(A)

Complies with EU

regulations CE/WEEE/RoHS

All rights for any technical modifications are reserved

This warranty covers defects of construction, production and material. All abrasion parts are excluded and also inappropriate usage or maintenance.

Garantie 2 ans

Design by Fabian Zimmerli

Thanks to all people involved in this project: Del Xu for his organisation, John Ye for the development, engineering and CAD work, Claudia Fagagnini for the photos, Fabian Zimmerli for the beautiful design, Matti Walker for the graphic work.

Martin Stadler, CEO Stadler Form Aktiengesellschaft
