USER MANUAL SWIM 370 RIBIMEX RIBIMEX

Carefully read this instruction manual before operating this product.

Incorrect operation may cause injury and/or damages.

Please keep this manual for future reference.

AVVERTENZA:

VI. Maintenance and Storage

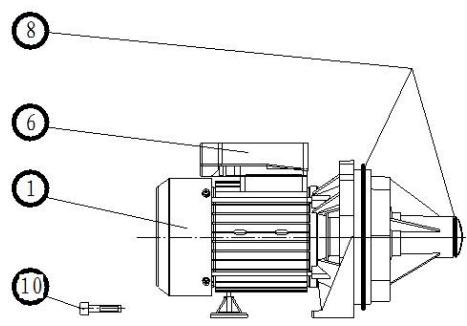

I-PartsList

1-Motor
2-Filter assembly
3-Cover nut
4- Strainer cover
5-O-ring gasket
6- Connection box
7- Drain screw
8- O-ring washer
9-Strainer
10-Screws

Fig.1

II-CHARACTERISTICS

2.1- Technical specifications

Description	Swimming Pool Pump
Reference	PRSWIM370/1 / 519466	PRSWIM550/1 / 519476	PRSWIM750/1 / 519486
Model / Type	SWIM370/1 / SPO55	SWIM550/1 / SPO65	SWIM750/1 / SPO85
Mains Voltage & Frequency	230V ~ 50Hz	230V ~ 50Hz	230V ~ 50Hz
Puissance sortie	650W	800W	1000W
Speed n0	2850min-1	2850min-1	2850min-1
Protection level	IPX5	IPX5	IPX5
Q max (water flow in litres)	160 l/min	175 l/min	195 l/min
H max (Suction height)	11.5 m	13.0 m	14.0 m
Drain pipe diameter	1.5"	1.5"	1.5"
Max liquid temperature	35°C	35°C	35°C

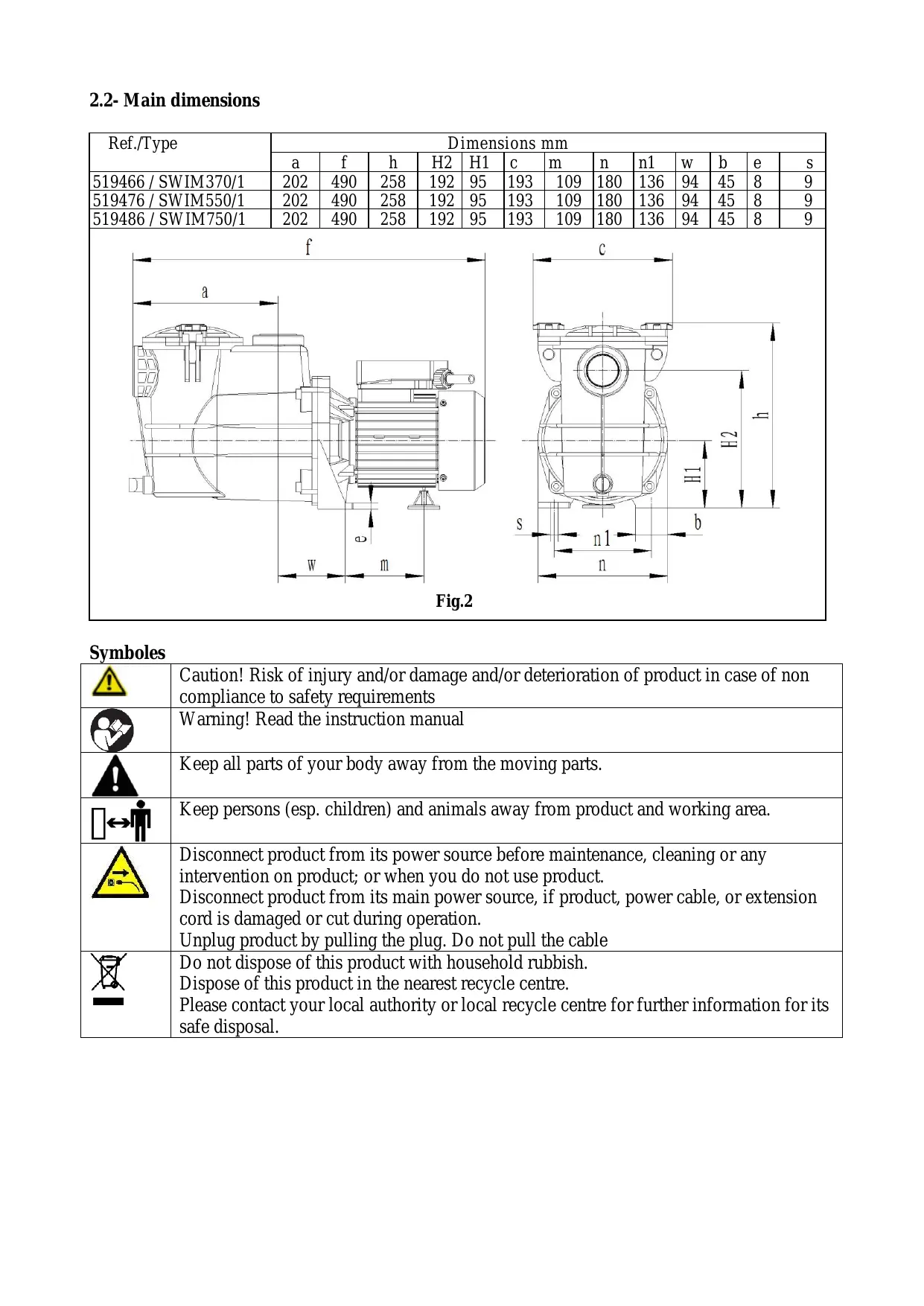

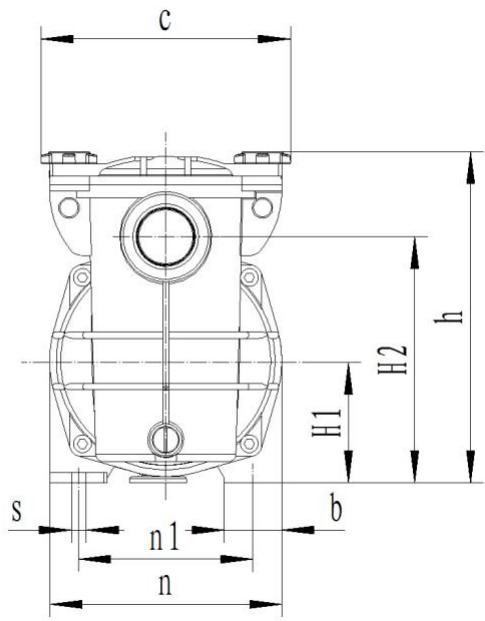

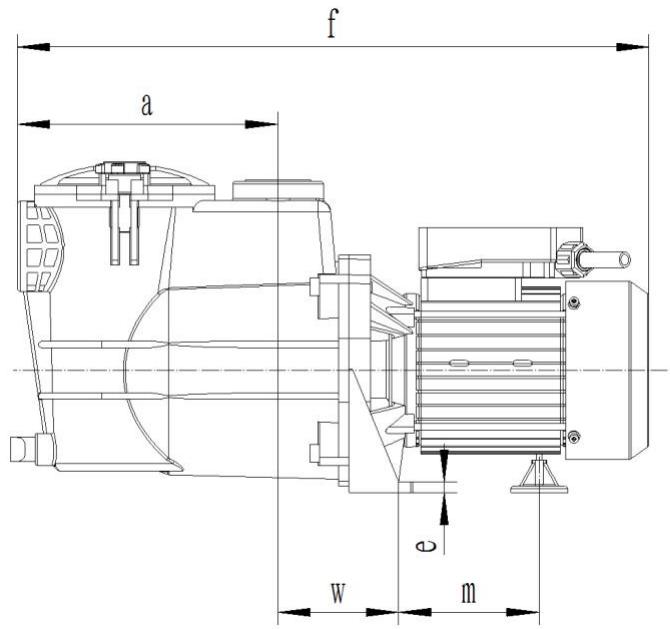

2.2- Main dimensions

Ref./Type	Dimensions mm
	a	f	h	H2	H1	c	m	n	n1	w	b	e	s
519466 / SWIM370/1	202	490	258	192	95	193	109	180	136	94	45	8	9
519476 / SWIM550/1	202	490	258	192	95	193	109	180	136	94	45	8	9
519486 / SWIM750/1	202	490	258	192	95	193	109	180	136	94	45	8	9

Fig.2

Symboles

!	Caution! Risk of injury and/or damage and/or deterioration of product in case of non compliance to safety requirements
	Warning! Read the instruction manual
	Keep all parts of your body away from the moving parts.
	Keep persons (esp. children) and animals away from product and working area.
	Disconnect product from its power source before maintenance, cleaning or any intervention on product; or when you do not use product. Disconnect product from its main power source, if product, power cable, or extension cord is damaged or cut during operation. Unplug product by pulling the plug. Do not pull the cable
	Do not dispose of this product with household rubbish. Disposition of this product in the nearest recycle centre. Please contact your local authority or local recycle centre for further information for its safe disposal.

III. SAFETY INSTRUCTIONS

Before using this product, read and understand all safety instructions.

Always follow the safety instructions to minimize risk of damage to property, and to minimize any risk of damages and injuries to persons and animals.

3.1- Read all the information before operating the product.

1. Keep work area clean

Cluttered areas invite accidents and injuries.

1. Consider work area environment

Keep work area well lit (natural light or sufficient artificial lighting).

Do not use product where there is risk to cause fire or explosion (in the presence of flammable liquids, solids or gas).

1. Guard against electric shock

Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).

1. Keep children away

Do not let bystanders touch the product or its power cable or extension cord.

All bystanders (esp. children) should be kept away from product and work area.

Keep the product away from children or from their environment. Never allow children to operate the appliance. Children should be supervised to ensure that they do not play with the appliance.

1. Store idle products

When not in use, product should be stored in a dry, high or locked up place, out of reach of children.

1. Do not force the product

It will do the job better and safer at the rate speed for which it is intended.

Do not use the product for purposes other than those for which it is intended. The product will do a better and safer job if it is used only for the purposes it was designed for.

1. Use the right product

Do not force small products or attachments to do the job of a heavy duty product.

1. Dress properly

When installing, do not wear loose clothing or jewellery; they can be caught in moving parts.

Wear protecting hair covering to contain long hair.

1. Do not abuse the power cable

Never carry the product by the cable or yank it to disconnect it from the socket.

Keep the cable away from heat, oil and sharp edges.

Inspect product cable periodically and if damaged have it repaired by an authorized service facility.

1. Do not overreach

When installing, keep proper footing and balance at all times.

1. Maintain product with care

Keep product clean for better and safer performance.

1. Disconnect product

When not in use, before servicing and when changing accessories.

1. Before any intervention disconnect pump from its main power supply.

2. Use of extension leads

When product is used with extension cord, ensure that extension cord withstands product ratings.

If used outdoors, use only extension cords intended for outdoor use.

Inspect extension cords periodically and replace, if damaged.

1. Stay alert

Watch what you are doing. Use common sense.

1. Check damaged parts

Before further use or reuse of the product, it should be carefully checked to determine that it will operate properly and perform its intended function.

1. Warning

The use of any accessory or attachment, other than those recommended in this instruction manual, may present a risk of injury to persons or animals and may cause damages.

The user and/or operator are responsible for any damages or injury caused to properties and/or persons.

1. Have your product repaired by a qualified person

Unless otherwise indicated in this instruction manual, repairs or replacement of any damaged part in an authorized service centre is recommended.

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

1. Remarks:

The safety precautions and instructions given in this manual are unable to cover in detail all the conditions and situations that may arise.

The operator and/or user must use common sense and caution when operating the product especially for any matters that are not referred in the above

3.2- Special warnings when using the pump

1. Become familiar with the controls and the proper use of the equipment.
2. The use of this product by children is forbidden.
3. Only well-instructed adults should operate the product. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
4. The supply voltage should correspond to that given on the description label (230 V-50Hz).

Do not use any other type of power supply.

1. The pump should be supplied by a circuit containing a residual current device (circuit breaker, RCD) with a sensitivity not exceeding 30mA .

Consult with a qualified electrician.

1. The supply cable should be checked periodically and before each use to see if there are any signs of ageing or damage.

If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or a person with similar qualification in order to avoid any danger.

If the power cable or extension cord is damaged or cut during operation, immediately disconnect plug from its main power source. Do not touch the cable or extension cord before unplugging from main power.

1. If the pump is not in good condition, do not use it. Have it repaired by an authorized centre.
2. If an extension is used, ensure that it is officially approved. Keep it well away from sharp edges, heat sources and combustibles.
3. The plug-in connector for the extension should be of the 2 pole + earth type of 10-16A/250V, in accordance with European standards. The wire section in the cable should be equal to or greater than

1mm^2 . The cable should not be lighter than cables of HO5 RN-F.

Reference	PRSWIM3710/1 / 519466	PRSWIM550/1 / 519476	PRSWIM750/1 / 519486
Model / Type	SWIM370/1 / SPO55	SWIM550/1 / SPO65	SWIM750/1 / SPO 85
Cable type	HO5RN-F	HO5RN-F	HO5RN-F
Cable Section	0.75 mm2	1.0 mm2	1.0 mm2

1. The pump should not be used when there are people in the pool.
2. The pump must not be immersed

IV. GETTING STARTED

Before any intervention on product, ensure that product is disconnected from its power source.

4.1- Unpacking

• Remove product from its packaging.
• Check that product and accessories are not damage

4.2- Scope of supply

• Pool circulating pump
• Installation and Operating Instructions.

4.3- Description of the pool circulating pump (Fig. 1)

The pump housing is constructed of fiberglass reinforced plastics for use near swimming pools.

The pump is of the canned-rotor type, self-priming and with single motor.

The inlet port is equipped with a lint strainer in order to prevent coarse impurities entering and jamming the pump.

Standard thermal overload contacts (WKS) prevent damage to the pump due to excess current draw.

The WSK is, however, only effective in conjunction with an appropriate switch-box.

The pump draws water from the pool, e.g. via a skimmer and pumps it back to the pool via the filter. The suction pump and the filter must be installed closed to each other.

Resistance to chemicals are limited by the following limits:

• Max. water temperature: +35^ C
• pH-value: min. 6; max. 7.8
• Free chlorine: 0.2 up to max. 2.0 mg / l (or ppm). Short term limit e.g. for reconditioning of pool water max. 20 ppm.
• Free chlorides: max. 250mg / l
• The pump is not suitable to handle sea or salted water.
• The pump must not be used to handle water conditioned by Sodium Hypochlorit (by electrolysis)
• Pump must not run dry.

4.4- Pump set-up

Remarks:

Only competent personnel should perform the assembly.

The user must contract a qualified and skilled person having read the contents of the manual.

Works on the filter pump should take place with the pump disconnected from its power source.

Take into account the data written on the nameplate.

The installation must be carried out in compliance with local and/or national laws by qualified personnel so as to avoid danger.

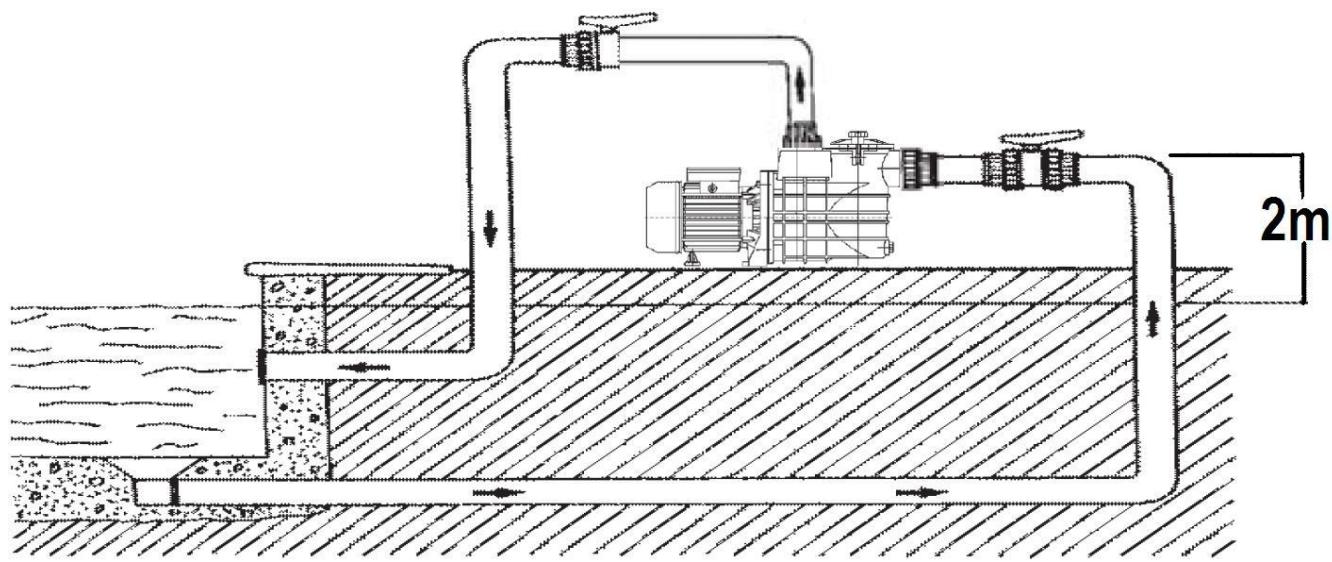

Fig.3

4.4.1- Installation

• Install the pool circulating pump on a horizontal and flat surface.
• Glue PVC suction and discharge pipes to pump union connections.
• Dimensions for installation and connections are given in Table 2.2
• Measured from suction inlet connection (Fig.3), the pump can be mounted up to 5 meters below pool water level and up to 2 meters above pool water level,
• The most suitable mounting level is below the pool water level. The pump then operates under flooded suction (without suction lift).
• On principle suction lines should be as short as possible.
• If it is necessary to mount the pump above pool water level, the suction pipe (from pool to the pump) should preferably be run full-length horizontally below water level and only rise directly at the pump. The suction line will then, on shut down of filter pump, only slightly be emptied.
• If the sand filter is placed above water level and with an additionally long suction run, the circulating pump should preferably be mounted separate from the filter close to the pool below water level.
• When operating with a suction lift, light-weight but positively sealing non-return valve should be fitted at the lowest point of the suction line. They will assist in maintaining the water level in the suction line during standstill of the filter plant.
• These check valves must, for the ease of cleaning, be easily accessible and removable.
• Total lengths of the circulating pipe work must not exceed 30 metres.

4.4.2- Electrical wiring

• As an effective protection against disastrous effects of earth fault currents it is required to install an earth fault circuit interrupter (Fl-switch) for the total electrical circuitry of the pool system. Trip current 30mA .

• An all-pole isolation switch (min. contact gap 3mm ) must be installed in the power supply cable. As a protection from excessively high shock voltage it is required to connect all metallic parts at pool bottom and walls with a potential compensation wiring. This copper wire, minimum size 10mm2 , should be connected to a specially set and earthed potential compensating bus bar, which is to be separately connected to the earth wire of the power supply.

• The earthing resistance of the potential compensating wire must be less than 800 ohms in order to restrict the shock voltage to less than 24V in case of a fault.
• A switchbox must be provided on site by others to ensure the thermal overload contacts (WSK) of the pump motor to be effective.

• Electrical work to be carried out by qualified and licensed electricians in strict conformity to

ruling national standards and local regulations.

• Check available power supply data
• Observe pump name plate data
• Power supply fuses: 10A, inert action
• Baseplate (on site by others) to be earthed
• Degree of protection: IPX5
• The pump motor is internally equipped with thermal overload contacts (WSK).

Ensure that respective terminals are available in the filter switch-box.

4.4.3- Terminals

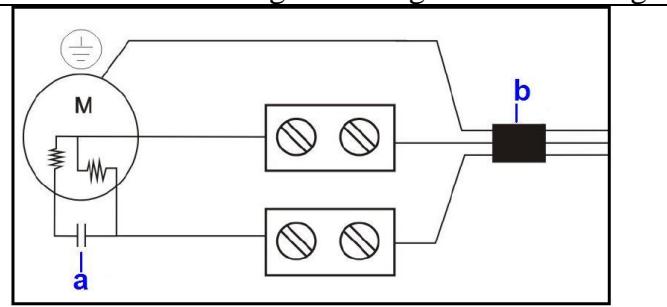

Effect on-site wiring according to the following wiring diagram.

Fig.4

• Pool and balance tank (if applicable) must be filled
• Close all insolating valves
• Undo cover nut (3) of the strainer assembly with the ring spanner and remove the strainer cover (4). ATTENTION! The line strainer must be filled with water after draining the pipe system. This ensures priming ability of the pump in case of filter plant installation above pool water level.
• Reposition of lint strainer cover (4) and secure by tightening with the ring spanner. ATTENTION! Pump must never be on without a lint strainer (9)!
• Open isolating valves.
• Switch on pump or switchbox respectively.
• If using switch gear with integral electronic overload control, it must be adjusted to the full load current value of the motor.
• Dry running for a short period will not damage the pump. However, dry running for a long time is not recommended.

V- OPERATION

5.1- Intended use

• Swimming pool pumps are pumps intended for domestic use, for private swimming pools.
• The product is intended for pumping swimming pools water.
• The pump is resistant to chemicals commonly used to treat swimming pools water. Nevertheless, it does not resist to sea water or salted water

5.2- Tips

1. The pump must be positioned horizontally, ensure that it is stable during operation.

Suction holes should never be blocked.

Warning! Never run dry the pump.
2. If the discharge stops while the pump continues to run, immediately cut the power.

Unplug from socket and check the cause of the problem.

Never try to clear the turbine while the pump is still connected to the mains power.

1. The pump is equipped with a motor protected by a thermal protection with auto_restart.

In case of overheating, the motor stops automatically. As soon as the temperature returns to normal, the engine restarts.

A Do not approach hands around the turbine during this phase.

If an intervention is necessary, remove the plug from mains power socket.

1. The pump must not be used to suck corrosive liquids or solids, combustible or explosive. Do not use to pump food liquids (e.g. water, fruit juices, alcohol beverages...)

The max temperature of water should not exceed 35^ .

Any other use different from that stated in these instructions may cause damage to the pump and pose a serious danger to the user

VI-Maintenance

Before any intervention on product, ensure that product is disconnected from its power source.

6.1- Cleaning

• Carry out regular pump rinsing with clear water.
• Avoid pumping liquid containing abrasive materials, sand ...
• Before re-starting; ensure the proper condition of each part.
• Filter cleaning: rinse regularly or when the first sign of malfunction appears
• If not located in a frost-free location (e.g. open-air pools), ensure that circulating pumps are drained during winter together with the filter plant.

This is done by undoing the drain plugs (7) at the pump with suitable tool.

The PVC screws are prone to damage. Drain plugs to be fastened hand-tight only.

• The lint strainer (9) must be checked and cleaned from time to time.

• The O-ring gasket (5) and its seat must be kept clean.

• The filter gasket (8) must be repositioned such that the groove at the top ring fits the locating knob in the seating of the strainer housing.

• Before re-starting; ensure that o-rings are in good condition and check proper assembly of connection to avoid any leakage.

• In the case of a pump failure, first switch-off the motor; the stator housing can then be separated from the pump housing by undoing and removing the eight holding -down screws (10). When re-assembling, ensure correct seating of the two O-ring washers (8).

Screws to be tightened cross- wise. Removal and re- assembly of the stator housing must only be done by qualified personnel.

• For repair or maintenance that requires disassembly of electrical parts, it is imperative to contact qualified personnel or a service centre (see your local reseller).

Do not use any other cleanser than water

Do not use aggressive cleansing agents (e.g. solvents, detergents) or an abrasive sponge or any sharp object.

6.2-Troubleshooting

Never attempt to disassemble the pump. If necessary, have your pump maintained and repaired by an authorized service centre.

6.3-Storage

it is recommended to store the product in a dry clean place, out of children's reach, either in height or locked up.

CAUTION The exterior of the filter pump must be protected from moisture!

6.4- Disposal

Do not dispose of the pump with household waste. Do not throw in the environment. Bring the product to a collection centre for waste of electrical and electronic equipment, or a waste collection centre, or inquire with your local authority.

I. Componenti
II. Caratteristiche
