USER MANUAL ATLANTIC 3V / LOIRE 3V PANADERO

Wood: an ecological fuel

Wood is a renewable source of energy which answers the energy and environmental demands of the 21st century.

Throughout its long life, a tree grows from sunlight, water, mineral salts and CO2. Following the general pattern of nature, it soaks up energy from the sun and supplies us with the oxygen essential for animal life.

The quantity of CO2 given off during the combustion of wood is no greater than that given off by its natural decomposition. This means we have a source of energy that respects the natural cycle of millions of years. Burning wood does not increase the CO2 in the atmosphere, making it an ecological source of energy which plays no part in the greenhouse effect.

In our wood-burning stoves logs are burnt cleanly without leaving any residue. Wood ash is a high quality fertilizer, rich in mineral salts.

In buying a wood-burning stove, you will help the environment, your heating will be very economical and you will be able to enjoy watching the flames, something no other form of heating can offer.

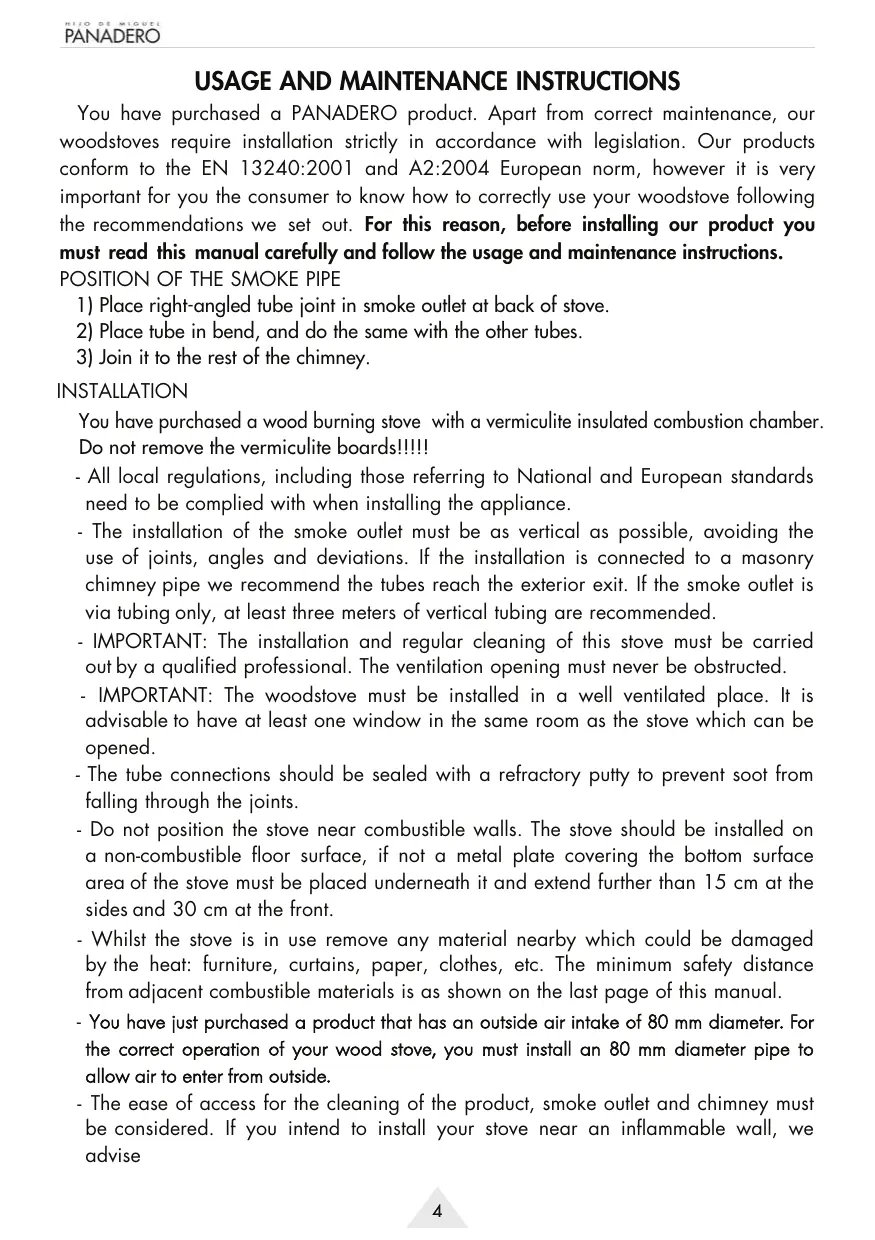

You have purchased a PANADERO product. Apart from correct maintenance, our woodstoves require installation strictly in accordance with legislation. Our products conform to the EN 13240:2001 and A2:2004 European norm, however it is very important for you the consumer to know how to correctly use your woodstove following the recommendations we set out. For this reason, before installing our product you must read this manual carefully and follow the usage and maintenance instructions.

POSITION OF THE SMOKE PIPE

1) Place right-angled tube joint in smoke outlet at back of stove.
2) Place tube in bend, and do the same with the other tubes.
3) Join it to the rest of the chimney.

INSTALLATION

You have purchased a wood burning stove with a vermiculite insulated combustion chamber. Do not remove the vermiculite boards!!!
- All local regulations, including those referring to National and European standards need to be complied with when installing the appliance.
- The installation of the smoke outlet must be as vertical as possible, avoiding the use of joints, angles and deviations. If the installation is connected to a masonry chimney pipe we recommend the tubes reach the exterior exit. If the smoke outlet is via tubing only, at least three meters of vertical tubing are recommended.
- IMPORTANT: The installation and regular cleaning of this stove must be carried out by a qualified professional. The ventilation opening must never be obstructed.
- IMPORTANT: The woodstove must be installed in a well ventilated place. It is advisable to have at least one window in the same room as the stove which can be opened.
- The tube connections should be sealed with a refractory putty to prevent soot from falling through the joints.
- Do not position the stove near combustible walls. The stove should be installed on a non-combustible floor surface, if not a metal plate covering the bottom surface area of the stove must be placed underneath it and extend further than 15cm at the sides and 30cm at the front.
- Whilst the stove is in use remove any material nearby which could be damaged by the heat: furniture, curtains, paper, clothes, etc. The minimum safety distance from adjacent combustible materials is as shown on the last page of this manual.
- You have just purchased a product that has an outside air intake of 80mm diameter. For the correct operation of your wood stove, you must install an 80mm diameter pipe to allow air to enter from outside.
- The ease of access for the cleaning of the product, smoke outlet and chimney must be considered. If you intend to install your stove near an inflammable wall, we advise

you to leave a minimum distance to facilitate cleaning.

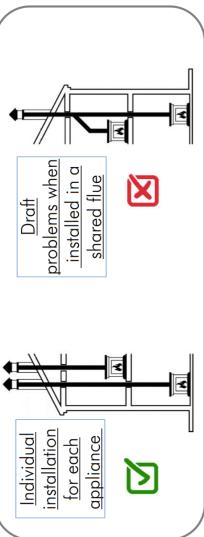

• This stove is not suitable for installation in any chimney system shared by other sources.
• The stove should be installed on flooring with adequate support. If your current floor does not comply with this criterion, it should be adapted with appropriate measures (for example, a weight distribution plate).

FUEL

• Use only dry wood with a maximum moisture content of 20% . Wood with a moisture content higher than 50 or 60% does not heat and combusts very badly, and creates a lot of tar, releases excessive amounts of vapour and deposits excess sediments onto the stove, glass and smoke outlet.
• The fire should be lit using special fire lighters, or paper and small pieces of wood. Never try to light the fire using alcohol or similar products.

• Do not burn domestic rubbish, plastic materials or greasy products that can pollute the environment and lead to risks of fire due to obstruction of the pipes.
  -Only use recommended fuels.

• In TRIVISION stoves, in order for the side windows to remain clean, the firewood to be used must be very very dry, with a humidity percentage of less than 12% .

FUNCTION

• It is normal for smoke to appear during the first few uses of the stove, as certain components of the heat-resistant paint burn whilst the pigment of the actual stove is fixed. Therefore the room should be aired until the smoke disappears.
• The woodstove is not designed to function with the door open under any circumstances.
• The stove is intended to function intermittently with intervals for recharging the fuel. - For the lighting process of the stove it is recommended you use paper, fire lighters or small sticks of wood. Once the fire starts to burn, add to it two logs of wood each weighing 2 to 2.5kg as a first initial charge. In this lighting process the air inlets of the stove must be kept completely open. If necessary the drawer for removing ashes can also be opened to begin with. Once the fire is more intense, close the drawer completely (if open) and regulate the intensity of the fire by closing and opening the air inlets.
• In order to achieve the stated nominal heat output of this stove a total quantity of 2.5kg of wood (roughly two logs weighing a little over 1kg each) must be placed inside at intervals of one hour. The logs should be positioned horizontally and separate from one another, to assure a correct combustion. In any instance a charge of fuel must not be added to the stove until the previous charge has been burnt, leaving only a basic fire bed which is enough to light the next charge but no stronger.
• To achieve a slow combustion you should regulate the fire with the air draughts, which must be kept permanently unblocked to allow the combustion air to be distributed.
• After the first initial lighting, the brass pieces of the stove may become a coppery colour.
• It is normal for the seal of the glass door panel to melt with use. Even though the stove can function without this seal, it is recommended that you replace it seasonally.
• The lower drawer can be removed in order to clear out ash. Empty it regularly without waiting for it to fill up too much, to avoid the grill becoming damaged. Take care with

the ash which may still be hot up to 24 hours after the stove has been used.

• Do not open the door abruptly in order to avoid smoke being released, and never open it without opening the air draught beforehand. Open the door only in order to put in the appropriate fuel.
• The glass, brass pieces and stove in general may reach very high temperatures. Do not expose yourself to risks of burns. When handling metal pieces, use the glove provided with the stove.
• Keep children away from the stove.
• If you have trouble lighting the stove (due to cold weather, etc.) it can be lit with folded or scrunched up paper which is easier to light.
• In case of the stove becoming too hot, close the air draughts to reduce the intensity of the fire.
• In case of malfunction, contact us the manufacturers.

MAINTENANCE

• It is advisable to clean the glass door panel periodically to avoid blackening by soot deposits. Professional cleaning products are available for this. Never use water. Never clean the stove while it is in use.
• It is also important to clean the smoke outlet tubing periodically and check there are no blockages before relighting fuel after a long period of non-use. At the start of each season a professional should carry out a revision of the installation.
• In the event of a fire in the smoke outlet, close all air draughts if possible and contact the authorities immediately.
• Any replacement part which you may need must be recommended by us.
• The fiberglass cord used for the oints may degrade over time. If this happens, you will have to replace it with a new fiberglass tape.

GUARANTEE

This is a high quality stove, manufactured with great care. Even so, if any defect is found please first contact your distributor. If they are unable to solve the problem they will contact us and send us the stove if necessary. Our company will replace any faulty parts free of charge up to five years from the date of purchase. We will not charge for repair work, however any transport costs must be paid by the client.

If any deformation occurs inside the combustion chamber, this is due to overheating of the device and therefore NOT covered by the warranty.

Since this apparatus has been tested by a homologated laboratory the following parts are NOT covered by warranty:

-Glass

-Vermiculite

-Internal grate

-Door handle, air-inlet knobs, etc.

In the interior of the packaging, you will find a quality control slip. We request that you send this to your distributor in case of any claim.

MEASUREMENTS AND CHARACTERISTICS

- Height	797 mm
- Width	639 mm
- Depth	400 mm
- Weight	97 Kg
- Firewood entrance	465 x 260 mm
- Smoke outlet	150-153 mm
- Iron sheet body of 4 mm.
- Cast iron grill
- Paint, resistant up to 800 °C
- Vitro-ceramic glass, 750 °C
- Firewood up to 50 cm long

- Nominal heat output	5,9 kW
- Energy efficiency	77,0 %
- CO emission	0.10 %
- Minimum flue draught for nominal heat output	12 Pa
- Flue gas mass flow	6.2 g/s
- Flue gas temperature	261 °C
- Distance to adjacent combustible materials...	Side 70 cm Back 50 cm Front 50 cm
- Heating volume (aprox.)	180 m³

CE EN 13240: 2001 & A2: 2004	HIJO DE MIGUEL P.I. CAMPOLLANO AVENIDA 5°, 13-15 02007 ALBACETE-SPAIN
WOODSTOVE/ POÉLE A BOIS/KAMINOFEN	19
FREESTANDING ROOMHEATER Fired BY SOLID FUEL/ POÉLE INDEPENDANT A COMBUSTIBLE SOLIDE UNABHANGIER OFEN FÜR FESTBRENNSTOFFE
CAPRI/TOSCANE/JAVA/JAVA WALL/ATLANTIC/OLAF/CANADA/LOIRE
CERTIFICATE/RAPPORT D'ESSAI	TD 4799; TD 4799P
DECLARATION OF PERFORMANCE/DEclaration DES PERFORMANCES LEISTUNGSEKERKLARUNG "18455/ 18456/ 18470/ 18472/ 18481/18482/18810/18480
NOTIFIED BODY/L'ORGANISME NOTIFIE /NOTIFIERTIEN STELE	1677
Thermal output/Puissance calorificie/Nenneleistung......5.9 kW
Energy efficiency/Rendement énergétique/Wirkungsgrad 77,0 %
Emission of CO in combustion products/ Emission de CO par les produits de combustion	0.10 %
Co-Emission der Verbrennungsprodukte
Flue gas temperature/Temperatures des produits de combustion.261 °C
Abgastemperatur
Distance to adjacent combustible materials/ Back 50 cm
Distance par rapport aux matériaux combustibles Side 70 cm
Mindeststand zu brennbaren Materialien Front 50 cm
Dust concentration at 13% O230 mg/Nm3
Concentration de poussières à 13% d'02
Feinstaub bei 13% O2
Fuel types Firewood and briquetted wood
Type de combustible Bois et briquettes
Brennstoffe Brennholz und Holzbriketts
Serial Number/Numéro de série/Seriennummer

INSTRUCTIONS D'UTILISATION ET D'ENTRETIEN

WOODSTOVE/POELEABOIS/KAMINOFEN 19

FREESTANDING ROOMHEATER FIRED BY SOLID FUEL/POILLE INDEPENDANT A COMBUSTIBLE SOLIDE

UNABHANGIGER OFEN FUR FESTBRENNSTOFFE

Emission of CO in combustion products/

Distance to adjacent combustible materials/ Back 50 cm

Dust concentration at 13% O2 30 mg/Nm³

Fuel types Firewood and briquetted wood

WOODSTOVE/POELEABOIS/KAMINOFEN 19

FREESTANDING ROOMHEATER FIRED BY SOLID FUEL/POILLE INDEPENDANT A COMBUSTIBLE SOLIDE

UNABHANGIGER OFEN FUR FESTBRENNSTOFFE

Emission of CO in combustion products/

Distance to adjacent combustible materials/ Back 50 cm

Dust concentration at 13% O2 30 mg/Nm³

Fuel types Firewood and briquetted wood

WOODSTOVE/POELEABOIS/KAMINOFEN 19

FREESTANDING ROOMHEATER FIRED BY SOLID FUEL/POILLE INDEPENDANT A COMBUSTIBLE SOLIDE

UNABHANGIGER OFEN FUR FESTBRENNSTOFFE

Emission of CO in combustion products/

Distance to adjacent combustible materials/ Back 50 cm

Dust concentration at 13% O2 30 mg/Nm³

Fuel types Firewood and briquetted wood

WOODSTOVE/POELEABOIS/KAMINOFEN 19

FREESTANDING ROOMHEATER FIED BY SUDI FUEL/POLE INDEPENDENT A COMBUSTIBLE SOLIDE UNABHANGIGER OPENF FOR FESTBRENINSTOFFE

Distance to adjacent combustible materials/ Back 50 cm

Fuel types Firewood and briquetted wood

WYMIARY I CHARACTERYSTYKA

-Wysokość 797 mm
- Szerokosc 639 mm
- Gflebokosc 400 mm
- Masa 97 Kg
- Drzewiczki 465 x 260 mm
-Wylot spalin tylem, srednica 150-153 mm
- Grubosć obudow 4 mm
-Ruszt zeliwny
- Farba zaroodporna do 800^
- Szyba szklanoceramiczna 750^
- Dlugosc polan do 50~cm

WOODSTOVE/POELEABOIS/KAMINOFEN 19

FREESTANDING ROOMHEATER FIRED BY SOLID FUEL/POILLE INDEPENDANT A COMBUSTIBLE SOLIDE

UNABHANGIGER OFEN FUR FESTBRENNSTOFFE

Emission of CO in combustion products/ 210.9%

Distance to adjacent combustible materials/ Back 50 cm

Dust concentration at 13% O2 30 mg/Nm³

Fuel types Firewood and briquetted wood

Technical documentation according to Regulation EU 2015/1185

Manufacturer	Panadero AB, S.L
Address	Avenida 5a 13-15, 02007 Albacete, Spain
E-Mail	[e-mail]
Website	www.panadero.com
Telephone	[phone]

THIS DECLARATION OF CONFORMITY IS ISSUED FOR THE FOLLOWING PRODUCT:
Model identifiers
Equivalent models
Notified body and test reports			N° 1677 TD 4799 / TD 4799 P CTIF
Harmonized technical specification			EN 13240:2001 & A2:2004; EN 16510-1
Other applied standards/technical specification			CEN/TS 15883:2010
Indirect heating functionality:			No
Indirect heat output			0 kW
Direct heat output			5,9 kW
Efficiency at nominal heat output			77,0 %
Energy Efficiency Index (EEI):			101,65
Seasonal space heating energy efficiency			67,0%
FUEL		PREFERRED FUEL	OTHER SUITABLE FUEL	ηS (%)	EMISSIONS AT NOMINAL HEAT OUTPUT
					PM OGC CO NOx mg/Nm3(13% Q)
Wood logs with moisture content ≤20%		Yes	No	77,0	30	70	1250	160
Compressed wood with moisture content ≤12%		No	Yes
					EMISSIONS AT NOMINAL HEAT OUTPUT
					PM OGC CO NOx mg/Nm3(13% O)
					N/A	N/A	N/A	N/A
CHARACTERISTICS WHEN OPERATING WITH THE PREFERRED FUEL
ITEM	SYMBOL		VALUE	UNI T	ITEM	SYMB OL	VALUE	UNIT
HEAT OUTPUT					USEFUL EFFICIENCY, BASED ON NET CALORIFIC VALUE (NCV)
Nominal heat output:	Pnom		5,9	kW	Useful efficiency at nominalheat output	η th,no m	77,0	%
Minimum heat output	Pmin		N/A.	kW	Useful efficiency at minimum heat output	η th,min	N/A	%
AUXILIARY ELECTRICITY CONSUMPTION					TYPE OF HEAT OUTPUT/ROOM TEMPERATURE CONTROL
At nominal heat output	elmax		N/A	kW	Single stage heat output, no room temperature control			Yes
At minimum heat output	elmin		N/A	kW	Two or more manual stages, no room temperature control			No
In standby mode	elsb		N/A	kW	With mechanic thermostat room temperature control			No
					With electronic room temperature control			No
					With electronic room temperature control plus day timer			No
					With electronic room temperature control plus week timer			No
POWER REQUIREMENT OF THE PILOT FLAME					OTHER CONTROL OPTIONS
Pilot flame power requirement	P pilot		N/A	kW	Room temperature control, with presence detection			No
					Room temperature control, with open window detection			No
					With distance control option			No
Specific precautions for assembly, installation, or maintenance.	Fire protection and safety distances to combustible building materials must be observed under all circumstances. A sufficient supply of combustion air must always be guaranteed. Air suction systems can interfere with the combustion air supply.

1^ - Chimney cap above the roof ridge
3^ .- Chimney cap installed at the end of the smoke outlet

4^ - Installation in mansony chimney, chimney flue up to the exterior.

6^ . - Joint in tube connection
5^ - Soot buildup because of an horizontal

7^ -External air intake installation

External air intake vents air into the combustion chamber. This is mandatory to use in buildings that are very airtight (buildings with non-closable vents). If externail air intake cannot be used then there must be an space of at least 10cm between the stove and the rear wall so the appliance functions correctly.
