English UN! Electric scooter User manual Thank you for choosing this product. For information, technical support and assistance, contact your reseller or visit www.vr46e-mobility.com

Index Safety instructions Quick guide Contents of the package Product overview Command information / Control panel Assembly and set-up Folding and carrying Removing and fitting the battery Battery charging Autonomy Storage and cleaning General warnings Learning to ride the scooter Battery (Warnings) Responsibility Daily maintenance and care Technical data sheet Troubleshooting Error code table

Please read the following instructions carefully before using the scooter. Keep this manual for future reference or new users. + The company will not assume any liability arising from misuse of the product or non-compliance both with regard to road regulations and the instructions in this manual. + This electric scooter is not a toy. Use it responsibly, with care and respect for others. + Check local current regulations on the use of these products before riding it, and comply with local traffic regulations. Ride responsibly and pay attention to persons and obstacles to avoid accidents. + Always use the recommended clothing: non-slip gloves, knee and elbow pads and wear a helmet. + When holding the handlebars at the correct height, the person riding this scooter must be able to place both feet on the ground easily. + When stopping or parking your vehicle, be sure to do so on a flat and safe surface + The maximum load capacity for the scooter is 100 kg. + This scooter may not be used by more than one person at a time. + Misuse of the scooter or non-compliance with the instructions provided in this manual may cause serious injury. + Should technical problems occur, contact the Technical Support Service at your dealer. + Do not attempt to disassemble or repair the scooter yourself. + Do not leave the battery near fire or heat sources. + Avoid using used, defective and/or non-original batteries. + Do not sit on the scooter both while riding it or when it is parked. + Ifthe user who is going to use the scooter is not familiar with this type of vehicle, they should be instructed on the basics of riding by an adult before using it for the first time. Training should cover the following topics: + Acceleration + Deceleration + Braking + Basic riding principles

+ Before using the scooter for the first time, fully charge the battery. + Press the power button for a few seconds to start it. + Check the tyre pressure (50PSI); if the scooter does not reach at least 60% of the declared Km or does not reach the maximum speed within the first 3 months of use, it is likely that the wheels have deflated again. In this case, restore the pressure as indicated. + Place the scooter on a flat surface + Place your hands on the handlebars. Step onto the footrest with one foot and use the other to give yourself a gentle push and accelerate. + After use, check the battery indicator. If the battery is out of power, recharge it before use. The electric Scooter is a device that requires periodic recharging. ZX IMPORTANT The accelerator is activated once the speed of travel exceeds 3 km/h. For safety reasons, the scooter is initially set up to avoid standing starts. + When the scooter begins to move, place both feet on the footrest and press the accelerator. + To steer the scooter, tilt your body in the direction of travel when turning and slowly turn the handlebar. + To stop the scooter, release the accelerator and press the electronic brake or lever on the left side of the handlebar. + To get off, stop the scooter completely first. Trying to get off a moving scooter may result in injuries. + To change the speed mode, press the function button (chapter 5). + When riding at night or in dark places, press the power button once to turn on the lights, wear a reflective vest. For your own safety, wear à helmet and knee pads to protect yourself against falls and injuries while learning to ride the electric scooter. The rider assumes all responsibility for any injury suffered when not wearing a helmet or other protective gear.

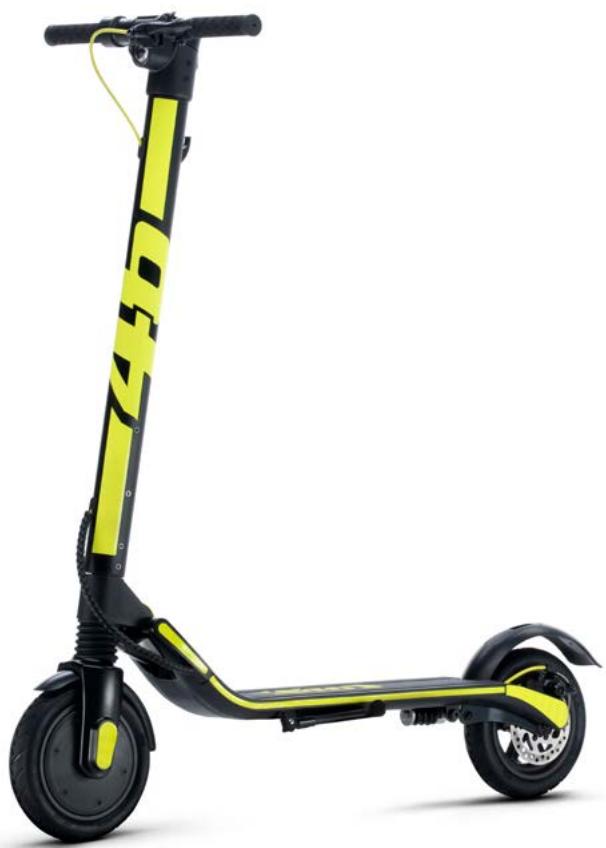

3. Contents of the package

Scooter assembled, only the grips will need to be installed. No.1 battery pack No.1 right handlebar grip No.1 left handlebar grip No.1 tube for tyre inflation

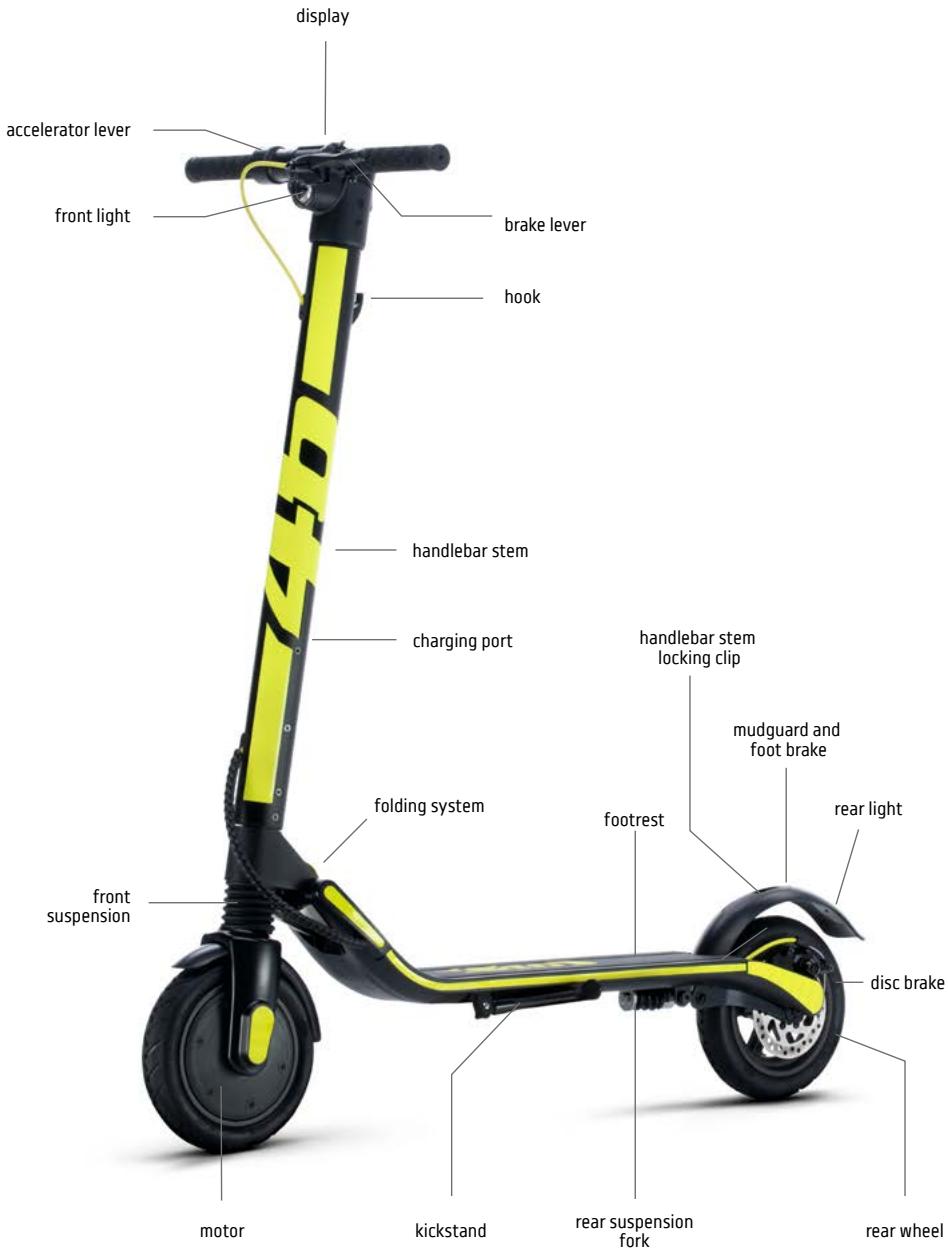

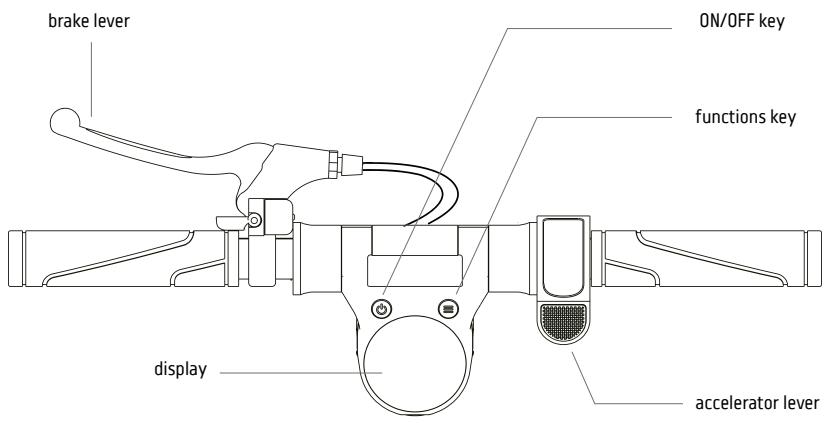

display accelerator lever — front light brake lever hook handlebar stem charging port erditar gen mudguard and foot brake folding system tootrest rear light front suspension disc brake rear suspension kickstand one rear wheel motor

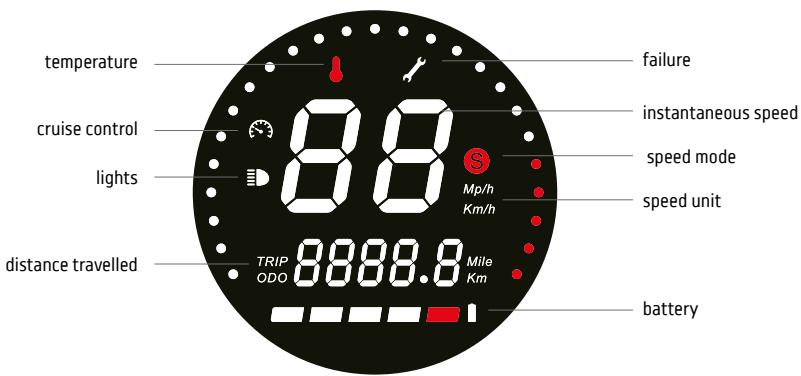

display a ] temperature failure instantaneous speed cruise control speed mode lights speed unit distance travelled battery

1. Switch: long press the power button to turn the power on/off. Press once to switch between ODO/TRIP display.

2. Acceleration: Press the right acceleration button to start and accelerate.

3. Brake: pull the brake lever to brake. Place one foot lightly on the rear mudguard to assist with braking.

4. Briefly press the function key to directly adjust the speed: Beginner mode: 6Km/h Normal mode: 20Km/h

5. Headlights: Long press the function button to turn the front and rear headlight on and off.

6. Cruise Control Mode: Maintain current speed for 6 seconds to enter Cruise Control Mode. To exit cruise speed

mode, press the accelerator or brake again.

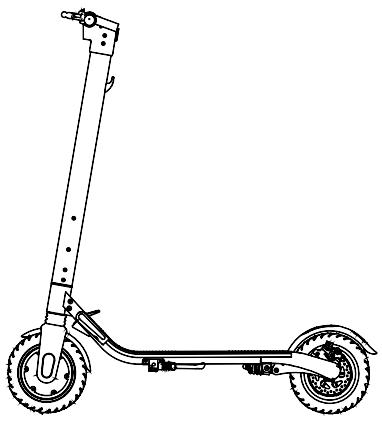

6. Assembly and set-up

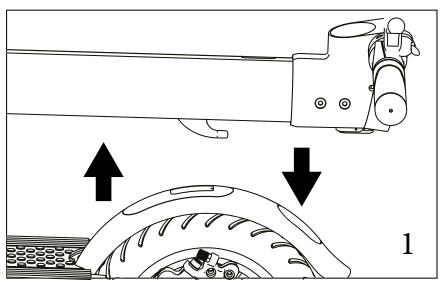

1. Lift the handlebar stem while simultaneously pressing down on the rear mudguard (pic. 1).

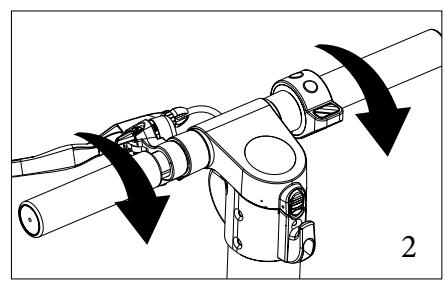

2. Fit the grips on the handlebar and tighten them correctly, paying attention to the direction of

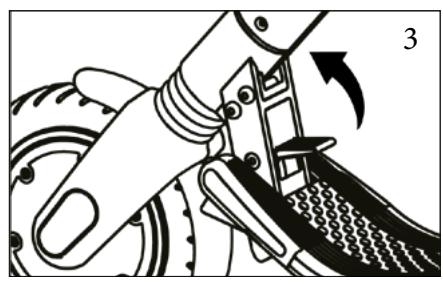

3. To lock the handlebar rod correctly, push the handlebar forward while keeping one foot on the

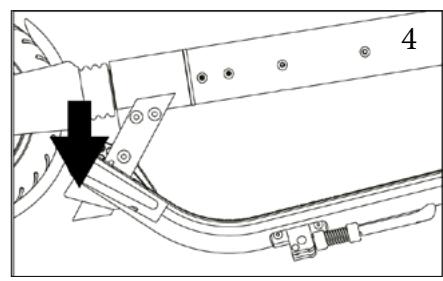

4. Make sure that the handlebar is locked correctly, if the handlebar tends to come back down repeat

the operation in point 3 (pic.4).

7. Folding and carrying

1. Stand behind the handlebar and hold it.

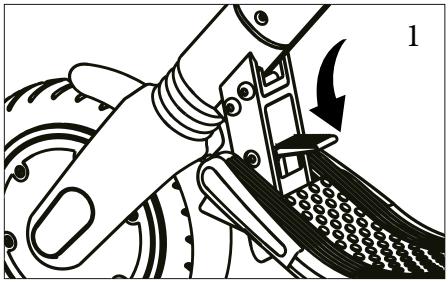

2. Operate the lever with your foot (pic. 1).

3. While keeping your foot on the lever, push the handlebar forward to unlock it, quickly pull the

handlebar towards your chest.

4. Stand beside the e-scooter and guide the handlebar downwards with one hand.

5. Align the hook of the handlebar with the hole on the rear fender.

6. Push the hook down on the rear fender (pic. 2).

7. Secure the hook to the rear fender by pulling up the handlebar.

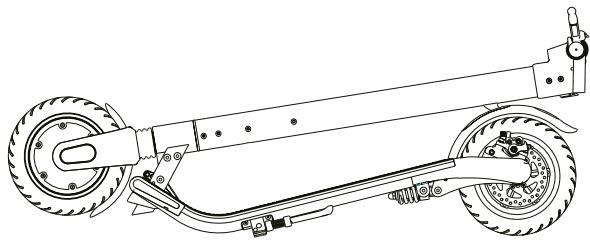

Transportation position After folding, hold the handlebar stem with one or both hands.

8. Removing and fitting the battery

1. Press the button 2. Unscrew the battery 3. Pullthe battery

located on the display compartment cover. upwards to remove it. cover lock to open it. Assembly

1. Open the display 2. Align the groove 3. Tighten the battery

cover and the battery of the battery with compartment cover, compartment cover. the groove in the push the display upright and slowly cover lock down insert the battery and complete the inside (pay attention installation. to the direction of the groove).

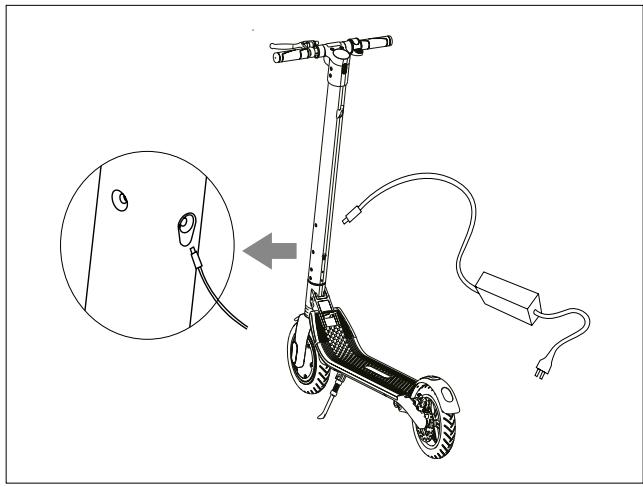

Charging method 1 + Open the charging port cover, make sure the charging port is clean and dry. + Connect one end of the charger to the battery and the other end to the power outlet (100 V-240 V: 50/60 Hz); make sure that the charging indicator is on. + The light on the charger indicates red when charging and green when charging is complete.

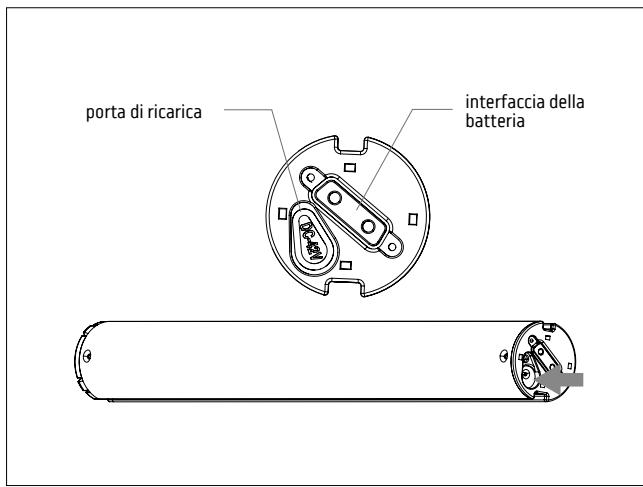

Charging method 2 interfaccia della porta di ricarica à batteria + Remove the battery to open the silicone charging port, connect the charger DC plug to the battery charging port; connect the power cable to the charger, then connect the other port to the outlet (100 V-240 V; 50/60 Hz) and check that the charger indicator is switched on normally. + Cover the charging port with the dust cap in case metal is likely to come into contact with the charging port and cause a short circuit at the end of the charging port. The device is usually delivered partially charged. However, we recommend AN IMPORTANT charging it for 6 to 8 hours before using it for the first time. We also recommend charging it after each use and before storing it. Do not allow the scooter to discharge completely as this may damage the battery.

The maximum autonomy depends on several variables: Terrain: riding on a smooth surface promotes a longer autonomy than riding on rough roads and slopes. User weight: the heavier the user, the shorter the autonomy. Temperature: riding the scooter in a very cold or hot environment affects its autonomy. Speed and riding style: riding smoothly and at constant speed extends the autonomy. Acceleration and manoeuvring aggressively reduce range. À lower speed extends the autonomy. Maintenance: timely recharging and correct maintenance increase the autonomy.

11. Storage and cleaning

Charge the scooter to 50% - 60% before storing it for extended periods of time. Recharge it to 50% - 60% every 2-3 months. If not used daily, the scooter should be stored at a temperature of 15-25°C. Do not expose the scooter to extreme temperatures (below 0°C or above 45°C). Avoid leaving it outdoors, as itis not water-resistant. When the scooter gets dirty, clean it with a damp cloth. Before cleaning it, make sure that it is turned off and cover the charging port to prevent damage to the electronic components. Do not use alcohol, petrol, kerosene or other corrosive and volatile chemical solvents. This may damage both the appearance and the internal structure of the electric scooter. Do not use pressurized water jets or running water to clean the scooter. The electric scooter is not waterproof. Do not expose it to rain or water or immerse it in water to washit.

+ Check the brakes, the pressure (50 PSI), the condition of the wheels and the accelerator before each use. |f you notice any unusual noises or anomalies, do not use the scooter, and contact your dealer's Technical Support Service. + Itis forbidden to modify the scooter in any way as this could alter its efficiency or damage its structure and cause damage. + Make sure the scooter is off before parking it. + Do not ride the vehicle in the rain, snow or fog. + Make sure the electrical components of the vehicle do not come into contact with water or other liquids. + Avoid riding near rivers or lakes. + Supervise children to make sure they do not play with the product. Strict supervision is required if the product is being used by or near children. + For information, technical support and help, contact your dealer. Instructions on riding behaviour + Do not use the phone or listen to music while riding the scooter. + Only ride if there is enough light to ride safely. When riding in unfavourable light conditions, remember to turn on the scooter lights and to wear a reflective jacket. + Always hold the handlebar with both hands when riding. + Always ride with both feet on the footrest in a safe and comfortable position. + Do not become distracted while riding and always look ahead. + Always ride at a speed that allows braking safely. + Start braking early enough to avoid obstacles, bends and areas that differ in terms of road type. Remember to release the accelerator before braking. + Do not race with other riders. + Keep a minimum safety distance of 5 m from other vehicles.

Follow the safety instructions before riding the scooter. Use approved equipment such as helmets and knee pads. Laye Do not use the electric scooter in the rain.

The electric scooter may not be used by more than one person at a time. Before using the product check the local legislation in force in relation to the use of this type of product and be sure to follow local regulations.

Minimum weight permitted on the electric scooter: 20 kg. Maximum weight permitted on the electric scooter: 100 kg. Do not ride the electric scooter if you have been drinking alcohol or if you are on medication. Do not use the phone or listen to music while riding the electric scooter. Take extra care if you are riding where there are bumps, sand, puddles, frost, snow, or steps, or in dark places, at night, or in wet conditions.

Do not use the electric scooter in dangerous areas, near flammable and/or explosive substances, liquids and/or dirt. This electric scooter is not designed to be ridden on roads and motorways. Consult the laws in force in your municipality on where the use of electric scooters is permitted. Do not hang heavy objects on the handlebar. Do not use the electric scooter to go up or down steps or stairs.

Always hold the handlebar with both hands. Do not ride the electric scooter with just one foot on the footrest. Do not press the accelerator when walking with the electric scooter. Do not ride the electric scooter through puddles and over wet surfaces.

Mind your head when passing under canopies, through doorways or similar places. When riding at the highest permitted speed, do not turn the handlebar abruptly. Start braking early enough to avoid obstacles, bends and areas that differ in terms of road type. Remember to release the accelerator before braking. Do not travel at speed over obstacles such as steps, curbs, or bumps.

Do not hit obstacles with the wheels.

Do not touch the motor immediately after riding as it may be extremely hot. Keep a minimum safety distance of 5 m from other vehicles.

14. Battery (Warnings)

Make sure the scooter, charger, and charging port are dry. When the scooter is fully charged, the LED light on the charger changes from red (charging) to green (charging completed). Use only the original charger. Other chargers may damage your device and expose users to other potential risks. The scooter must not be charged for long periods of time. Overcharging reduces battery life and may cause other damages. Recharge the scooter in a dry environment, away from flammable materials (such as materials that could burst into flames), preferably at an indoor temperature of 15-25°C, but never below 0°C or above 45°C. Do not charge in direct sunlight or near open flames. Do not recharge the scooter immediately after use. Allow the scooter to cool for an hour before recharging. Never leave the electric scooter unattended while charging. Fire hazard! Never touch the charging socket with metal objects. Read the charging and storage sections above to ensure that the battery is maintained and handled properly. Keep the scooter away from naked flames or other heat sources to prevent the battery from overheating. Do not leave the scooter exposed to freezing temperatures. Both excessive heat and cold temperatures may cause the battery to lose their charge. Avoid completely discharging the battery. Itis best to recharge the battery while there is still some charge left. This prolongs the life of the battery. When the charge is too low, it is not possible to ride normally. This may lead to the rider losing control or falling off. Make sure the battery is charged at regular intervals, even if you do not use the electric scooter for an extended period of time. This prevents damage to the battery caused by low voltage over an extended period. Battery precautions: The battery is made of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the scooter if it emits smells, substances or excessive heat. Do not dispose of the electric scooter or battery with household waste. The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.

Do not: Open the battery or take it apart. Do not strike, throw, or puncture the battery or stick objects in it. Touch anything leaking from the battery, as it contains hazardous substances. Let children or pets touch the battery. Over-charge, over-discharge or short-circuit the battery. Immerse in or expose the battery to water or other liquids. Expose the battery to excessive hot or cold weather conditions. Expose the battery to an environment containing explosive gases or flames. Leave the battery in the rain or under direct sunlight or in a hot car in direct sunlight. Reassemble or refit the battery. Carry or store the battery together with metal objects such as hairpins, necklaces, etc. Ride the electric scooter while it is charging. Use any battery charger other than the original.

The rider is obliged to use the electric scooter with the utmost diligence and in full compliance with the current legislation on the use, operation and riding of the electric scooter which, merely by way of example, is set out in Italian Legislative Decree no. 285/1992 (so-called Highway Code). The rider must also keep the electric scooter clean and in a perfect state of operation and maintenance and is responsible for carrying out all the safety checks, as described in the warnings and recommendations section, and must retain all the documentation regarding maintenance of the electric scooter. The rider must carefully evaluate any weather conditions that may make it dangerous to use the electric scooter. For this purpose, we recommend moderating your speed and maintaining an adequate braking distance if you are in adverse weather conditions and/or heavy traffic. The electric scooter can only be ridden by riders over the age of 14°. Riders under 18 years of age must wear a suitable protective helmet. It is recommended for riders under the age of 18 to use the electric scooter under the supervision of an adult. In case of product malfunction for reasons not attributable to incorrect behaviour of the rider, please contact the support centre on the websitewww.vr46e-mobility.com “In italy the matter is currentiy governed by Law L 27/12/2019 No.160 MT Distribution is not liable for damage caused and is in no way responsible for damage caused to property or persons in the cases in which: the product is used improperly or not in accordance with the contents of the instruction manual; - following purchase, all or some of the components of the product are altered or tampered with."

16. Daily maintenance and care

Cleaning and storage + Ifthere are stains on the body of the scooter, wipe them off with a damp cloth. If stains persist, apply some toothpaste, brush with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Note: do not clean the scooter with alcohol, petrol, kerosene or other corrosive and volatile chemical solvents, to avoid serious damage. Do not wash the scooter with high-pressure water jets. When cleaning the scooter, make sure that it is turned off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak may cause an electric shock or other serious problems. When the scooter is not in use, store it indoors in a cool, dry place. Do not store it outdoors for extended periods of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the scooter and the battery. + Check the brakes and make sure they are adjusted correctly. + Check the front tyre pressure keeping it at 50 PSI

1. Only use original batteries, as other models or brands may pose a safety risk.

2. Do not dismantle, crush, or puncture the product. Do not touch the battery contacts. Do not dismantle

or puncture the outer casing. Avoid bringing the scooter into contact with water or fire and do not expose it to temperatures exceeding 50 °C (including heat sources such as stoves, heaters, etc.). Avoid contact between metal objects and battery terminals to prevent short circuits, physical harm or death.

3. Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion.

Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.

4. Use only the original charger to avoid potential damage or fire.

5. Improper disposal of used batteries seriously pollutes the environment. Follow local regulations

regarding battery disposal. Follow battery disposal regulations to protect the environment.

6. After each use, fully recharge the battery to extend its useful life. Do not store the battery in an

environment where the temperature is above 50°C or below -20°C (for example, do not leave the scooter or battery in a car in direct sunlight for an extended period of time). Do not throw the battery into a fire as this could damage it, cause overheating or even a fire.

Note: once fully charged it will last 120-180 days. Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents).

Chassis Aluminium Speed Leu 1: <= 6km/h | Lev 2:<= 20km/h | Lev 3: <= 25km/h (max speed)" Suspension Front andrear Maximum slope 16% (subject to variations based on rider weight, road conditions and temperature) Brkes electronic front, rear disc and foot brake Hotar 350 Tres 85 ithinnertube Lou voltage protection HV+-05V Currentlimi La Hotor type Brushless Maximum los 1009 Recommended age / height from 14 years of age mith the use of a helmet and protections. Check the current legislation in your country Operating temperature 10C/40°C Protection level

Charging time Approx. 3/5 hours Autonomy. Up to 22km (subject t variations based on rider weight, roa conditions and temperature) “in Switzerland, according to current legislation, the permitted speed levels are 6-15-20 km/h Electrical system Motor 350 Brushiess Breke Front electronic Display 3-colour LED Battery LG 364,5 8Ah, 209Wh, removeble Lights Front and rear LEDs Charger EU Standard DC 2.1 Charger, 424, 2A Dimensions and weight Net eight 15 Gross neige 165 Dimensions of product en open 1070 x 480 x 1150mm Dimensions of product hen ose 1070 x 50 x430mm Dimensions of packaging 1110 x 180 x500mm

Tests to be carried out: + Following a fall, check that the accelerator lever works properly. To do this, accelerate and decelerate several times. Check from time to time that the brakes are working properly. To do this, move the vehicle by pushing it manually and brake suddenly to make sure that it responds to the commands. Check that all vehicle components are in place and securely fastened. Check the condition and pressure of the tyres. Check the wear of the brakes and cables. Error cause Satin Thebatery is depeted Charge the battery The mater int rumning Elctiaproben Request technical support fm our dealer enough iruming ar oaeatr Bec fr où After it has been charged, the vehicle turs The battery is damaged Request technical support from your dealer ilot After ithas been charged, the vehicle turs Power and control cables damaged Request technical support from your dealer iso Cemectin retiens Request technical support fm our dealer The bat des not charge orthe scate® | Damage batary Request technical support fm our dealer Problems th thebttery charger Rasa the battery charger

WARNING Over-discharge protection If the scooter is in the over-discharge protection condition, it must be reactivated by recharging it. If the scooter remains off after being recharged for half an hour, contact the dealer for assistance.

WARNING Check the battery charge level while the vehicle is stationary.

À WARNING Treatment of the electrical or electronic device at the end of its service life (applicable in all countries of the European Union and in other European systems with separate collection systems) This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken instead to a facility authorized to dispose of waste electrical and electronic equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. For more detailed information about the recycling and disposal of this product, you can contact the local waste disposal service or the point of sale where you purchased it. In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase. More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:

1) By taking it to municipal collection centres (also called eco-collection centres or recycling facilities),

directly or through the collection services of municipal companies, where these are available.

2) By taking it to shops selling new electrical and electronic equipment.

Here, very small items of the WEEE type (with the longest side less than 25 cm) can be left free of charge, while larger ones can be left on a 1-for-1 basis, i.e., you can leave the old item when you buy a new one having the same function. In the event of illegal disposal of electrical or electronic equipment, the fines provided for by current legislation on environmental protection may be applied (Italian regulation; check the regulations in force in the country of use/disposal of the vehicle). Ifthe WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.

À WARNING Treatment of spent batteries (applicable in all countries of the European Union and in other European systems with separate collection systems) This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring that the batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. Where for safety, performance or data protection reasons, products require a fixed connection to an internal battery, this must only be replaced by qualified service personnel. Deliver the product at the end of its service life to collection centres suitable for the disposal of electrical and electronic equipment: this ensures that the battery inside it is also treated correctly. For more detailed information about disposal of the dead battery, contact the local waste disposal service or the shop where it was purchased. In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

WARNINGS Read the manual and instructions below in full before using the scooter. Product name: VR46 UP! Type of product: Electric scooter Year of manufacture: 2021 Note: + To recharge this electric scooter use ONLY the supplied battery charger labelled XHK-800B-4220 with the following output voltage: 42V -2A. + Using another type of charger may damage the scooter or entail other potential risks. + Never leave the product unsupervised while it is charging. + Store the product at temperatures of between 0°C and 35°C (the ideal storage temperature is 25°C) + Do not recharge the product immediately after use. Allow the scooter to cool for an hour before recharging. + If you are away for a certain period of time, for example for holidays, and you entrust the device to a third party, leave it partially charged (20-50% battery charge). Not fully charged.

Declaration of conformity M.T. Distribution Sr. Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy This declaration of conformity is issued under the sole responsibility of the Manufacturer Product brand VR46 Product model UP! Product description Electric scooter It complies with the requirements of the Council Directives for the approximation of the laws of the Member States relating to: 2006/42/EC Machinery Directive RED 2014/53/EU Radio Equipment Directive 2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive Applicable harmonised standards: EN ISO 12100:2010 EN 60335-1:2012+A11:2014+A13:2017 EN 62233:2008 EN 55014-1:2017+A11:2020 EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019 RoHS: 2011/65/UE + 2015/863/UE Factory name: Shenzhen Cong Long Technology Co. LTD Factory address: ShanLing A building, room 01-D110, no.10 Chiwan 1 Road, NanShan, Shenzhen Date: 01/11/2020 Technical file available at EU headquarters Place of declaration: Bologna, Italy First name and surname: Alessandro Summa Position: CEO

This declaration af conformity is only applicable to electric scooters sold in countries that follou the CE à 2 marking directives. FMBRO ANERDALE

RE MToirintion THINK COMPLETE Produced and imported by MT. Distribution Calderara di Reno, Bologna wwwmtdistribution.it Under VRIL6 Racing Apparel rl. License Errors and omissions exceptes
