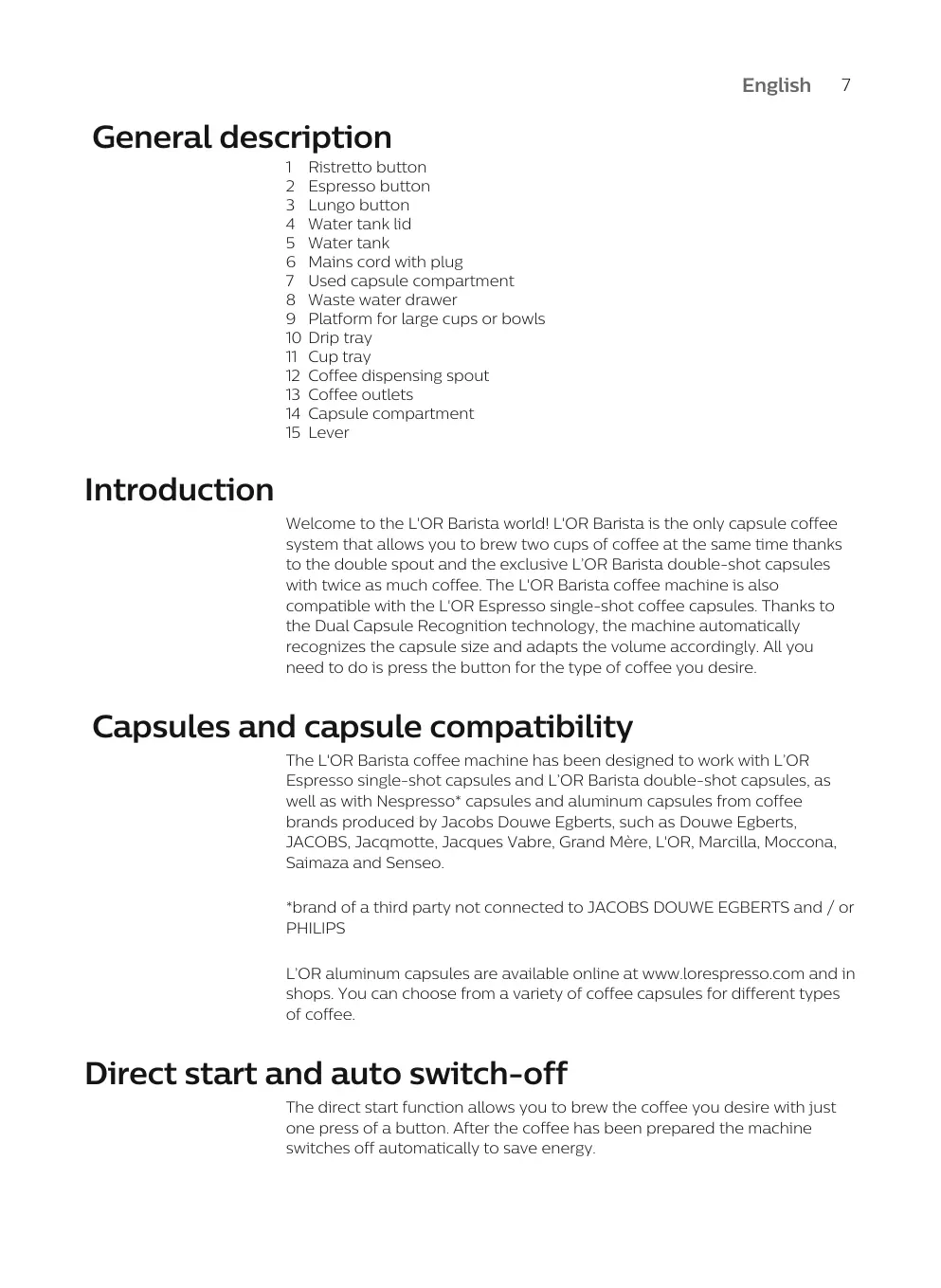

General description

1 Ristretto button
2 Espresso button
3 Lungo button
4 Water tank lid
5 Water tank
6 Mains cord with plug
7 Used capsule compartment
8 Waste water drawer
9 Platform for large cups or bowls
10 Drip tray
11 Cup tray
12 Coffee dispensing spout
13 Coffee outlets
14 Capsule compartment
15 Lever

Introduction

Welcome to the L'OR Barista world! L'OR Barista is the only capsule coffee system that allows you to brew two cups of coffee at the same time thanks to the double spout and the exclusive L'OR Barista double-shot capsules with twice as much coffee. The L'OR Barista coffee machine is also compatible with the L'OR Espresso single-shot coffee capsules. Thanks to the Dual Capsule Recognition technology, the machine automatically recognizes the capsule size and adapts the volume accordingly. All you need to do is press the button for the type of coffee you desire.

Capsules and capsule compatibility

The L'OR Barista coffee machine has been designed to work with L'OR Espresso single-shot capsules and L'OR Barista double-shot capsules, as well as with Nespresso* capsules and aluminum capsules from coffee brands produced by Jacobs Douwe Egberts, such as Douwe Egberts, JACOBS, Jacqmotte, Jacques Vabre, Grand Mère, L'OR, Marcilla, Moccona, Saimaza and Senseo.

*brand of a third party not connected to JACOBS DOUWE EGBERTS and / or PHILIPS

L'OR aluminum capsules are available online at www.lorespresso.com and in shops. You can choose from a variety of coffee capsules for different types of coffee.

Direct start and auto switch-off

The direct start function allows you to brew the coffee you desire with just one press of a button. After the coffee has been prepared the machine switches off automatically to save energy.

Preparing for use

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Before first use, remove all packaging materials from the machine.

When you use the machine for the first time or if you have not used it for 1 day or longer, perform the following steps:

1 Remove the water tank from the machine.

Illustration of a glass with blue liquid and a funnel inserted into it, no text or symbols present

2 Rinse and fill the water tank under the tap. Place the water tank back onto the machine.

Illustration showing a blender with a red 'X' symbol indicating a warning or rejection, and a bowl of milk being mixed.

3 Place a bowl under the coffee dispensing spout. Do not insert a capsule and make sure that the lever is closed.

Note: You can remove the drip tray to create enough space to place a bowl under the coffee dispensing spout.

Diagram illustrating a hand using a tool to lift a cup, with a control panel showing three buttons labeled 'Control', 'Adjust', and 'Hold'.

4 Press the lungo button.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

5 The machine heats up in about 25 seconds and starts rinsing. Water flows from the coffee dispensing spout into the bowl until the internal water circuit is empty.

Note: When the internal water circuit is empty, the machine produces a humming sound. When the machine dispenses water, it produces a less loud humming sound. This is normal.

6 Empty the drip tray and the waste water drawer.

The machine is now ready for use.

Brewing coffee

Beverages and capsules

Beverages

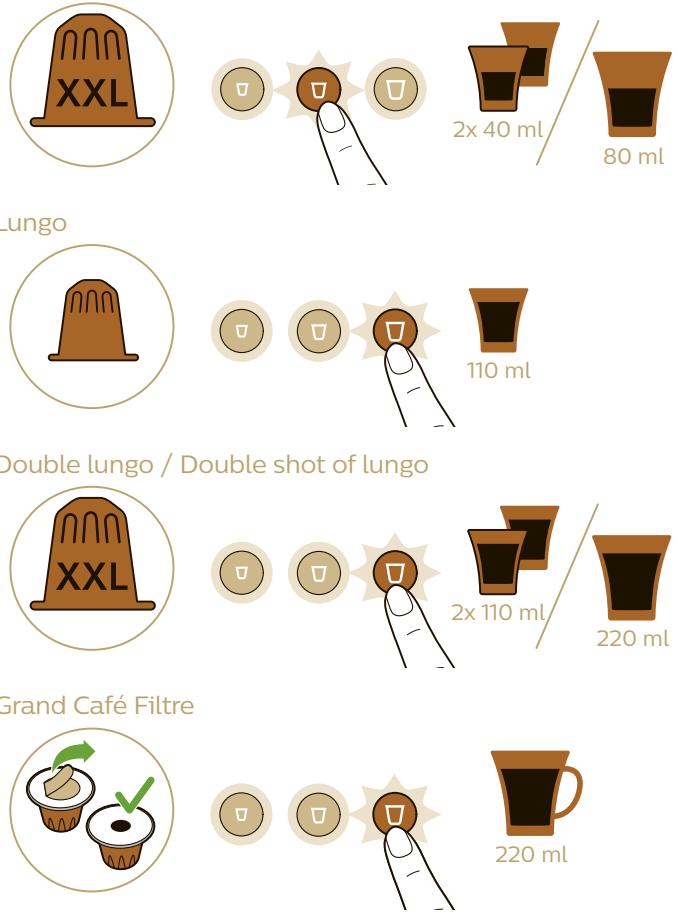

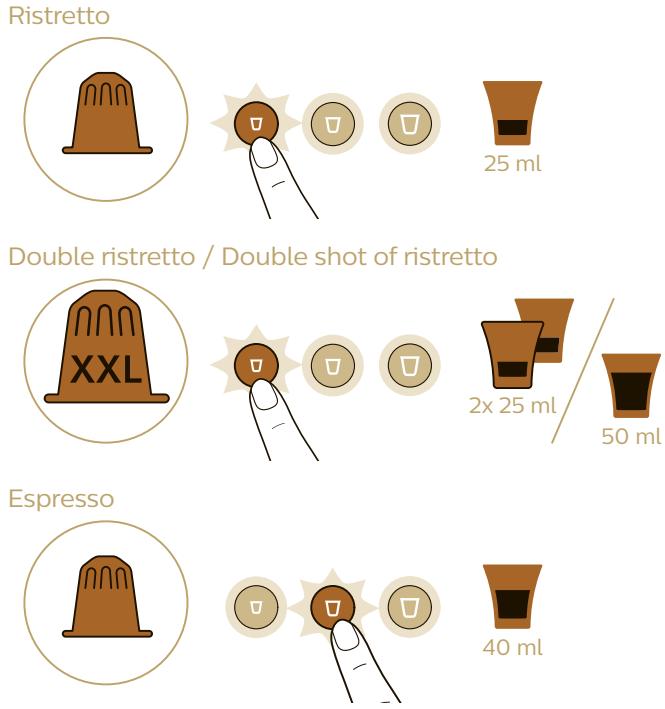

Thanks to the Dual Capsule Recognition technology, the machine automatically recognizes the capsule size and adapts the volume of your drink accordingly. All you need to do is press the button for the type of coffee you desire.

Double espresso / Double shot of espresso

Lungo

Preparing coffee

1 For one coffee, place one cup under the coffee dispensing spout.

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable coffee maker with two cups (no text or symbols)

2 For two coffees, place two cups under the coffee dispensing spout.

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

3 For a large coffee or Grand Café Filtre, remove the cup platform and the drip tray, place the cup platform on the lower drip tray and place a large cup or mug on the cup platform under the coffee dispensing spout.

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

4 Lift the lever.

Illustration of a mechanical device with a lever and a magnified view of a component (no text or symbols)

5 Insert a capsule.

- For a single cup of coffee, insert a L'OR Espresso single-shot capsule.

XXL

- For two cups of coffee or one large coffee, insert a L'OR Barista double-shot capsule.

Illustration showing two steps of a hand pouring liquid into a container, with a control panel below indicating three labeled buttons.

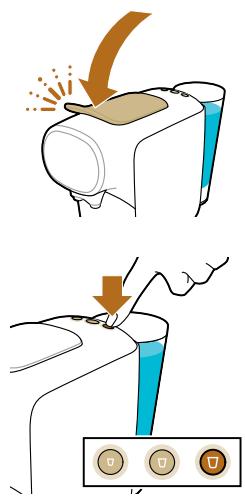

6 Close the lever by pushing it down.

Warning: Do not insert a finger into the brew chamber when closing the lever to avoid injury. There is an invisible sharp piercer on the inside of the lever.

7 Press the button for the type of coffee you desire. The button lights up and the machine starts heating up. When the heating-up process is finished, the machine starts brewing the desired coffee.

Caution: Do not lift the lever until the brewing process has finished. Brewing is finished when the lights stop flashing and no more coffee comes out of the coffee dispensing spout.

8 After the brewing process has finished, the machine switches off automatically to save energy.

Brewing Grand Café Filtre

Illustration of two cupcake cups with a green checkmark indicating a selection or confirmation (no text or symbols present)

1 Remove the seal completely from the capsule.

Illustration of a hand using a tool to lift a container with liquid, no text or symbols present

2 Lift the lever and insert the capsule.

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

3 Close the lever.

Illustration of a hand using a tool to cut a circular object with a mesh pattern (no text or symbols)

4 Remove the drip tray with the cup platform. Put the drip tray aside and place the cup platform on the lower drip tray.

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

5 Place a large cup or mug on the cup platform under the coffee dispensing spout.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular buttons below indicating action buttons.

6 Press the lungo button to start the brewing process.

Drink personalization: program your drink volume

Each coffee button has been programmed to brew coffee at its ideal setting. Nevertheless, you can personalize your drink volume to your wishes, within a range that ensures the best coffee quality.

	Standard padrão/estandar	Min.	Max.
Ristretto	25 ml	20 ml	40 ml
Espresso	40 ml	30 ml	50 ml
Lungo	110 ml	50 ml	135 ml

	Standard padrão/estandar	Min.	Max.
Ristretto	50 ml	40 ml	60 ml
Espresso	80 ml	60 ml	100 ml
Lungo	220 ml	100 ml	270 ml

The volumes for normal and XXL capsules are adjusted separately:

1 Fill the water tank.
2 Insert a capsule and close the lever.

• If you want to adjust the volume for normal capsules, insert a L'OR single-shot espresso capsule.
• If you want to adjust the volume for an XXL capsule, insert a L'OR Barista double-shot capsule.

3 Press and hold the button of the coffee whose volume you want to adjust for 4 seconds until the button flashes quickly. Then release the button. The machine starts brewing coffee.
4 Press the same button again when the cup contains the desired volume. The button shows a light burst to indicate the new volume is stored.

Note: If you press the coffee button too early, the machine programs the minimum volume shown in the table above. If you do not press the coffee button, the machine programs the maximum volume shown in the table.

Resetting the drink volume

Illustration of hands pressing down on a surface with three circular icons below (no text or symbols)

To reset the drink volumes to their factory settings:

1 Press and hold the ristretto, espresso and lungo buttons simultaneously until all buttons flash quickly to show that the machine has been reset to factory settings.

Cleaning and maintenance

Cleaning the used capsule drawer and waste water drawer

Check the used capsule compartment and waste water drawer regularly.

Note: For optimal hygiene, pull up the lever after use to ensure the last used capsule falls into used capsule compartment.

Illustration of a mechanical device with a gear and a circular base (no text or symbols)

1 Pull the waste water drawer and capsule compartment out of the machine.

Illustration of a toaster oven with a grater and a knife inserted into it (no text or symbols)

2 Remove the drip tray.

Illustration showing a hand pressing down on a toilet with a device icon and a checkmark indicating inspection or status.

3 Rinse the drip tray and the cup tray under the tap or clean them in the dishwasher.

Illustration of a food delivery box with lid removed, showing a tray and lid (no text or symbols)

4 Lift the used capsule compartment off the waste water drawer and empty it.

Caution: Be careful when you remove the used capsule compartment. Capsules are still hot immediately after brewing.

Diagram showing a device with a digital meter and a green checkmark indicating it is checked

5 Rinse the waste water drawer and used capsule container under a tap. You can also clean all these parts in the dishwasher.
6 After cleaning, place the used capsule compartment on the waste water drawer.
7 Slide the waste water drawer with the used capsule container into the machine.
8 Place the drip tray back onto the lower drip tray. Place the cup tray on the drip tray.

Cleaning other parts of the machine

Line drawing of a hand cleaning a mechanical component (no text or symbols)

1 Clean the outside of the machine with a soft damp cloth.

Caution: Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the machine.

Warning: Do not insert a finger into the capsule compartment to avoid injury. There is an invisible piercer on the inside of the lever.

Illustration of a pipe being compressed into a cylindrical container with liquid flowing out (no text or symbols)

2 Clean the water tank by rinsing it under a warm tap.

Note: The water tank is not dishwasher-proof.

Note: Rinse the water tank and fill it with fresh water every 24 hours.

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

3 Pull the coffee dispensing spout off the machine.

Illustration of a hand pouring liquid into a container (no text or symbols)

4 Rinse coffee dispensing spout under a warm tap.

Illustration of a mechanical clamp or bracket component (no text or symbols)

5 To clean the coffee dispensing spout thoroughly, open the cover.

Diagram illustrating hand washing with a water tap, showing a device icon and checkmark indicating inspection or status.

6 Rinse the coffee dispensing spout under a warm tap. You can also clean it in the dishwasher

Cleaning the coffee circuit

Illustration of a white coffee machine with a cup and side dish (no text or symbols)

Clean the coffee circuit every week to ensure you get coffee with an optimum quality and taste.

1 Place a cup under the coffee dispensing spout.
2 Lift the lever to ensure the last used capsule falls into the used capsule compartment.

Illustration of a medical procedure with an arrow pointing to a device and a magnified view showing a red X symbol (no text or labels present)

3 Do not insert a new capsule and close the lever.

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below.

4 Press the lungo button.
5 Empty the cup after the machine has finished dispensing water.
6 Open the lever and repeat steps 3 to 5 to ensure proper cleaning of the coffee circuit.

Illustration of a hand holding a device next to a mechanical component (no text or symbols visible)

7 Empty the waste water drawer.

The machine is now ready for use.

Descaling

When to descale

- Descale the machine when the ristretto and lungo button flash quickly a few times after brewing. The descaling procedure takes up to 40 minutes and consists of a descaling cycle and a rinsing cycle. Do not interrupt the descaling procedure.

Why to descale

Descaling is essential for the following reasons:

• It prolongs the life of your L'OR Barista coffee machine
• It ensures maximum cup volume
• It ensures maximum coffee temperature
• The machine produces less sound during brewing
• It prevents malfunctioning

If the descaling procedure is not performed correctly, scale residue remains behind in the machine. This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine.

Use the correct descaler

Only citric acid-based descalers are suitable for descaling the L'OR Barista machine. This type of descaler descales the machine without damaging it.

We advise you to use the dedicated L'OR Barista liquid descaler (CA6530). It is available in bottles that contain liquid descaler for two descaling procedures. You need half a bottle for one descaling procedure and can store the other half for the next descaling procedure.

Descaling procedure

Diagram illustrating the process of pouring liquid into a glass, showing two bottles labeled 'PHILIPS' with arrows indicating flow direction.

Note: If something goes wrong during the descaling procedure, e.g. because you accidentally interrupt the descaling cycle, you have to restart the descaling procedure from step 1.

1 Pour half a bottle of L'OR Barista liquid descaler (CA6530) into the water tank.

Illustration of a glass beaker with liquid and a tube inserted into it (no text or symbols)

2 Fill up the water tank with fresh tap water.

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

3 Make sure that there is no capsule in the capsule compartment.

Illustration of a hand washing machine with a brown handle and blue liquid, emitting sparkles (no text or symbols)

4 Close the lever.

1.5 L

3 sec.

30 min

Diagram of a device with three circular buttons labeled 'U' and two small circular icons, no readable text or symbols present.

Illustration of a hand washing a bowl with liquid, placed on a kitchen sink (no text or symbols)

5 Place a bowl with a minimum capacity of 1.5 liters on the lower drip tray under the coffee dispensing spout to collect the descaling solution.
6 Press and hold the ristretto and lungo button for 3 seconds at the same time. The ristretto button starts to flash and the lungo button is steady on
7 The machine dispenses the entire descaling solution at regular intervals. This takes up to 30 minutes.
- When the lungo button start to flash quickly and the ristretto button is on, the first phase of the descaling cycle has finished
8 Remove and empty the bowl. Place the bowl back onto the lower drip tray under the coffee dispensing spout.
9 Remove the water tank and rinse it under the tap. Fill the water tank with cold tap water and place it back onto the machine.

Illustration of a hand pressing down on a blue liquid in a container with control buttons below (no text or symbols)

10 Press the flashing button to start the flushing cycle. The ristretto button is on and the lungo button flashes during the flushing phase

Note: The water tank will be emptied without interruption. The flushing cycle lasts about 3 minutes.

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

11 When the flushing cycle has finished, the ristretto and lungo button flash a few times.

Note: It is normal that some water remains behind in the water tank after the descaling procedure.

The machine switches off. The descaling procedure is finished.

Meaning of light signals

• The selected coffee button flashes slowly: the machine is preparing your drink.
• The selected coffee button flashes quickly: the water tank is empty, fill the water tank with tap water.
• The selected coffee button flashes intermittently: The new coffee quantity is saved and programming is active.
• The ristretto and lungo button flash simultaneously after brewing coffee: you need to descale the machine.
• All three buttons flash simultaneously: the machine needs to cool down. Wait approx. 2 minutes before you start brewing a new drink.

Troubleshooting

This chapter summarizes the most common problems you could encounter with your machine. If you are unable to solve the problem with the information below, visit www.lorbarista.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem	Possible cause	Solution
The machine does not switch on.	The machine is not connected to the mains.	Put the plug in an earthed wall socket.
The coffee does not flow out of the machine immediately when I press the button.	The machine needs a few seconds to heat up before it starts brewing.	This is normal.
The brewing time is longer than before.	The machine is clogging up with scale.	Descale the machine.
The temperature of freshly brewed coffee gradually decreases.	The machine is clogging up with scale.	Descale the machine.
The pump makes a lot of noise.	There is not enough water in the water tank.	Fill the water tank with fresh tap water.
	The water tank is not placed correctly.	Place the water tank correctly and push it downwards.
The machine suddenly stops brewing coffee.	There is not enough water in the water tank.	Fill the water tank with fresh tap water. Press the button of the selected type of coffee again to continue brewing. When the cup is full, press the same button again to stop the brewing process.
The selected coffee button flashes quickly.	The water tank is empty.	Fill the water tank with fresh tap water. Press the button of the selected type of coffee again to continue brewing. When the cup is full, press the same button again to stop the brewing process.
I cannot close the capsule compartment lever completely.	Check if you use the recommended L'OR capsule. Other capsules may cause problems during use.
	The used capsule drawer is full.	Empty the used capsule drawer and insert the capsule again.
	The capsule is not inserted correctly.	Insert the capsule again and check if it is inserted correctly.
	The capsule is stuck.	Open and close the lever a few times with moderate force to remove the capsule.
The lever does not open completely.	The used capsule drawer is full.	Empty the used capsule drawer.
The machine does not dispense coffee or only dispenses drops of coffee.	You have not flushed the machine before first use.	Flush the machine before first use (see 'Preparing for use').
	There is not enough water in the water tank.	Fill the water tank with fresh tap water.
	Scale has built up inside the machine (see 'Descaling').	Descale the machine (see 'Descaling').
Coffee grounds end up in the cup of coffee.	A small amount of ground coffee will always end up on the bottom of the cup.	This is normal.
The coffee flow splits or is not straight.	The coffee dispensing spout cap is not placed correctly or it is missing.	Snap the coffee dispensing spout onto the coffee outlets.
The ristretto and lungo button lights are flashing after brewing.	This means it is time to descale the machine to prevent it from clogging with scale.	Descale the machine (see 'Descaling').
Why do I find water in the waste water drawer?	The used capsule drawer and waste water drawer catch the residual water released after brewing coffee.	This is normal. Empty the capsule and waste water drawer frequently
The coffee volume is not what I expected.	The coffee volume has been adjusted.	Readjust the coffee volume (see 'Drink personalization: program your drink volume') or reset the coffee volume (see 'Resetting the drink volume').
My coffee is less warm.	When you brew the first cup of the day or when it has been a while since your previous cup of coffee, the inside of the machine is still cold when you brew coffee.	You can pre-heat the machine and coffee cup by brewing a cup of coffee first without placing a coffee capsule.
	If you use a cold, thick-walled cup, the coffee will cool down immediately.	Use thin-walled cups, as thin-walled cups will absorb less heat from the coffee than thick-walled cups. Make sure the size of the cup matches the coffee quantity. Do not brew a small quantity of coffee in a large cup.
	The machine is clogged with scale.	Descale the machine when the ristretto and lungo button flash quickly a few times after brewing (see 'Descaling').
	You used cold milk.	If you drink coffee with cold, fresh milk, this will cool down your coffee. You can prevent this by preheating the milk.
The machine switches off after each brewing cycle.	This is the automatic shut-off function.	To save energy, the machine switches off automatically after each brewing cycle.

Generel beskrivelse

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a glass with liquid being poured into a container (no text or symbols)

Illustration showing a coffee maker with a red 'X' symbol indicating a food loss or rejection, and a bowl of milk being added.

Diagram illustrating a procedure with a hand holding a container and a control panel showing three circular icons labeled 'U', 'U', and 'U'.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

Line drawing of a laboratory water dispenser with a round top and side cup (no text or symbols)

Line drawing of a portable coffee maker with two cups (no text or symbols)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

3 For en stor kaffe eller Grand Café Filtre skal du fjerne kopplatformen og drypbakken, placere kopplatformen på den nederste drypbakke og placere en stor kop eller et krus på kopplatformen under kaffeudløbsrøret.

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

4 Løft håndtaget.

Illustration of a mechanical device with a lever and a magnified view of a component (no text or symbols)

5 Sæt en kapsel i.

Illustration showing two steps of a hand pouring liquid into a container, with a control panel indicating three labeled buttons.

Illustration of two cupcake cups with green arrows indicating a rotation or selection, one open and one filled with a green checkmark (no text or symbols)

Illustration of a hand using a tool to lift a container with liquid, no text or symbols present

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

3 Luk håndtaget.

Illustration of a hand using a tool to cut a circular object with a mesh pattern (no text or symbols)

4 Fjern drypbakken med kopplatformen. Læg drypbakken til side, og placer kopplatformen på den nederste drypbakke.

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular buttons below indicating action buttons.

Illustration of a hand pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a mechanical device with a gear and a circular base (no text or symbols)

Illustration of a toaster oven with a tray and lid, showing food being placed inside (no text or symbols)

2 Fjern drypbakken.

Illustration showing a hand pressing down on a toilet with a device icon and a checkmark indicating inspection or status.

3 Skyl drypbakken og kopristen under hanen, eller vask dem i opvaskemaskinen.

Illustration of a cardboard box with contents inside, placed on a slatted surface (no text or symbols)

Diagram showing a device with a digital meter and a green checkmark indicating it is checked

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a pipe being compressed into a cylindrical container with liquid flowing out (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram illustrating hand washing with a water tap, showing a device icon and checkmark indicating inspection or status.

Line drawing of a coffee maker with a cup and straw base (no text or symbols)

Diagram illustrating a medical procedure with an arrow pointing to a device and a red X symbol indicating failure or rejection.

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below.

Illustration of a hand holding a device next to a mechanical component with a strap (no text or symbols visible)

Illustration of a glass with blue liquid and a funnel inserted into it, no text or symbols present

Illustration of a medical device with an arrow pointing to a device and a red X symbol inside (no text or labels)

Illustration of a printer emitting powder with a curved arrow indicating motion (no text or symbols)

4 Luk håndtaget.

1.5 L

Line drawing of a mechanical component with three circular buttons labeled 'U' (no text or symbols on the main diagram)

Illustration of a hand washing a bowl into a sink with a water pipe (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container with control buttons below (no text or symbols)

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a glass with blue liquid being stirred by a pipette (no text or symbols)

Illustration of a blender with a red X symbol indicating a warning or rejection, showing a bowl and arrow inside the blender.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating different containers.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

Line drawing of a laboratory water dispenser with a round top and side cup (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a coffee maker with a cup and side tray (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a magnified inset showing a lid (no text or symbols)

Illustration showing two steps of a hand pouring liquid into a container, with a control panel below indicating three labeled buttons.

Illustration of two cupcake cups with green arrows indicating a step, one open and one checked (no text or symbols)

Illustration of a hand using a tool to lift a component, with a blue liquid in the background (no text or symbols)

Illustration of a hand washing machine with a blue liquid and orange spray arc (no text or symbols)

Illustration of a hand using a tool to cut a circular object with a mesh pattern (no text or symbols)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular buttons below indicating action buttons.

Illustration of hands pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a mechanical device with a gear and base, showing no text or symbols

Illustration of a toaster oven with a tray and lid, showing food being placed on top (no text or symbols)

Diagram illustrating a hand using a device to adjust a circular component, with a checkmark indicating the operation.

Illustration of a cardboard box with a bag emerging from its side, placed on a slatted surface (no text or symbols)

Diagram showing a hand operating a washing machine with a checkmark indicating the operation.

Line drawing of a hand holding a cloth over a mechanical device (no text or symbols)

Illustration of a pipe being compressed into a cylindrical container with liquid flowing out (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a faucet spraying water onto a wooden surface (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram illustrating hand washing with a water tap, showing a device icon and checkmark indicating inspection or status.

Illustration of a white coffee machine with a cup and lid, emitting blue liquid (no text or symbols)

Illustration of a medical procedure with an arrow pointing to a device and a red X symbol (no text or labels)

Diagram showing a hand pressing down on a blue liquid in a beaker with three circular icons below indicating different states or conditions.

Illustration of a hand pressing down on a mechanical component with a cable (no text or symbols visible)

Illustration of a laboratory glassware setup with a pipette and blue liquid (no text or symbols)

Diagram illustrating a medical procedure with an arrow pointing to a device and a red X symbol indicating absence or failure.

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

1.5 L

3 sec.

30 min

Line drawing of a mechanical component with three circular buttons labeled 'U' and starburst (no text or symbols on the main diagram)

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container with three circular icons below (no text or symbols)

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a glass with blue liquid being stirred by a pipette (no text or symbols)

Illustration of a blender with a red X symbol indicating a warning or rejection, showing a bowl and arrow inside the blender.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating different containers.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a coffee maker with a cup and side tray (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

4 Levante la palanca.

Illustration of a hand pouring liquid into a container with a magnified inset showing a lid (no text or symbols)

Illustration showing two steps of a hand pouring liquid into a container, with a control panel indicating three labeled buttons.

Illustration of two cupcake cups with green arrows indicating a step, one open and one checked (no text or symbols)

Illustration of a hand using a tool to lift a component, with a blue liquid in the background (no text or symbols)

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

3 Cierre la palanca.

Illustration of a hand pouring liquid into a perforated circular object on a surface (no text or symbols)

Simple line drawing of a coffee maker with a cup and lid (no text or symbols)

Diagram illustrating a hand using a tool to lift a cup, with three circular icons below indicating different components.

Illustration of a hand pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a hand operating a device with a circular component and orange elements (no text or symbols)

Illustration of a food preparation setup with a tray, bread, and steamer (no text or symbols)

Diagram illustrating a hand holding a toilet with a control panel and a checkmark indicating action

Illustration of a cardboard box with contents inside, placed on a slatted surface (no text or symbols)

Diagram showing a hand holding a valve connected to a device with a checkmark indicating inspection or status.

Line drawing of a hand holding a white object with a cloth, no text or symbols present

Illustration of a pipe being compressed into a cylindrical container with liquid splashing (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a faucet spraying water onto a wooden plank (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram showing hand washing machine with water flow and a control panel, accompanied by a green checkmark indicating inspection.

Line drawing of a coffee machine with a cup and side table (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below.

Illustration of a hand holding a device next to a mechanical component (no text or symbols visible)

Diagram illustrating a chemical process with two bottles labeled 'PHILIPS' and a water being poured into a glass, showing liquid transfer.

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol inside (no text or labels)

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

1.5 L

3 sec.

30 min

Line drawing of a mechanical component with three circular buttons labeled 'U' and starburst (no text or symbols on the main diagram)

4 Cierre la palanca.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below indicating action buttons.

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a blue glass with a water droplet inside, connected to a vertical tube (no text or symbols)

Illustration showing a blender with a red 'X' symbol indicating a warning or rejection, and a bowl of bread being mixed.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating different containers.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

Illustration of a mechanical device with a lever and a magnified view of a component (no text or symbols)

Illustration showing two steps of a hand pouring liquid into a container, with a control panel indicating three labeled buttons.

Illustration of two food cup cups with green arrows indicating a step, one open and one filled with a black dot (no text or symbols)

Illustration of a hand using a tool to lift a component, with a blue liquid in the background (no text or symbols)

Illustration of a toaster with a curved arrow indicating motion (no text or symbols)

3 Fermez le levier.

Illustration of a hand pressing down on a circular object with a downward arrow, no text or symbols present

Simple line drawing of a coffee maker with a cup and lid (no text or symbols)

Diagram illustrating a hand using a tool to lift a cup, with three circular icons below indicating different components.

Illustration of hands pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a hand operating a device with a circular component and orange elements (no text or symbols)

Illustration of a food preparation setup with a tray, bread, and steamer (no text or symbols)

Diagram illustrating a hand holding a toilet with a control panel and a checkmark indicating action

Illustration of a cardboard box with contents inside, placed on a slatted surface (no text or symbols)

Diagram showing a hand holding a valve connected to a device with a checkmark indicating inspection or status.

Line drawing of a hand holding a white object with a cloth, no text or symbols present

Illustration of a pipe being compressed into a cylindrical container with liquid splashing (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

3 Retirez la buse de distribution de café de la machine.

Illustration of a faucet spraying water onto a wooden plank (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram illustrating a hand washing a car with a water tap, accompanied by a digital meter showing a checkmark.

Line drawing of a coffee machine with a cup and side table (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below.

Illustration of a hand holding a device next to a mechanical component (no text or symbols visible)

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Illustration of a medical procedure with an arrow pointing to a device and a red X symbol (no text or labels)

Illustration of a printer emitting powder with a brown arrow indicating motion (no text or symbols)

4 Fermez le levier.

1.5 L

3 sec.

30 min

Diagram of a device with three circular buttons labeled 'U' and two orange buttons below, no readable text or symbols present.

Illustration of a hand washing a bowl with liquid, placed on a stainless steel sink (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container with control buttons below (no text or symbols)

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a blue glass with a pipette inserted into it, showing liquid level (no text or symbols)

Illustration showing a hand mixer with a red 'X' symbol indicating rejection or absence of the device.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular buttons below indicating action buttons.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a coffee maker with a cup and side tray (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

4 Alzate la leva.

Illustration of a hand pouring liquid into a container with a magnified inset showing a lid (no text or symbols)

5 Inserite una capsula.

Illustration showing two steps of a hand pouring liquid into a container, with a control panel indicating three labeled buttons.

Illustration of two cupcake cups with green arrows indicating a rotation or selection, one open and one filled with a checkmark (no text or symbols)

Illustration of a hand using a tool to lift a container with liquid, no text or symbols present

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

3 Chiudete la leva.

Illustration of a hand using a tool to interact with a circular device (no text or symbols visible)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Diagram showing a hand pressing down on a blue liquid in a beaker with a control panel below indicating three buttons.

Illustration of hands pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a person operating a portable device with a circular vent, no text or symbols present

Illustration of a toaster oven with a tray and lid, showing food being placed on top (no text or symbols)

Diagram showing a person using a device to clean or install a fan-shaped component, with a checkmark indicating the operation.

Illustration of a box with food inside and a griddle on the side (no text or symbols)

Diagram showing a hand holding a valve connected to a device with a checkmark indicating inspection or status.

Line drawing of a hand holding a white object with a cloth, no text or symbols present

Illustration of a pipe being compressed into a cylindrical container with liquid splashing (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a faucet spraying water onto a wooden plank (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram illustrating hand washing with a water tap, showing a device icon and checkmark indicating inspection or status.

Line drawing of a coffee machine with a cup and side table (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

Diagram showing a hand pressing down on a blue liquid in a beaker, with three circular buttons below indicating action buttons.

Illustration of a hand holding a device next to a mechanical component with a curved cable (no text or symbols visible)

Diagram illustrating a chemical process with two bottles labeled 'PHILIPS' and a water being poured into a glass, showing liquid transfer.

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol inside (no text or labels)

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

1.5 L

3 sec.

30 min

Line drawing of a mechanical component with three circular buttons labeled 'U' and starburst (no text or symbols on the main diagram)

4 Chiudete la leva.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container with three circular icons below (no text or symbols)

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a glass with blue liquid being stirred by a pipette (no text or symbols)

Illustration of a blender with a red X symbol indicating a warning or rejection, showing a bowl and arrow inside the blender.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating different containers.

Diagram illustrating a temperature measurement setup with labeled components and a thermometer indicator.

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a coffee maker with a cup and side tray (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

4 Trek de hendel omhoog.

Illustration of a hand pouring liquid into a container with a magnified inset showing a lid (no text or symbols)

Illustration showing two steps of a hand pouring liquid into a container, with a control panel indicating three labeled buttons.

6 Duw de hendel omlaag.

Illustration of two cupcake cups with green arrows indicating rotation and a checkmark (no text or symbols)

Illustration of a hand using a tool to lift a container with liquid, no text or symbols present

Illustration of a hand washing machine with a blue liquid and orange spray arc (no text or symbols)

3 Duw de hendel omlaag.

Illustration of a hand using a tool to interact with a circular device (no text or symbols visible)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating action buttons.

Illustration of hands pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a person using a portable device to clean or operate (no text or symbols visible)

Illustration of a food preparation setup with a plate and tray, no text or symbols present

Diagram illustrating a hand holding a toilet with a control panel and a checkmark indicating action

3 Spoel de lekbak en het plateau af onder de kraan of reinig ze in de vaatwasser.

Illustration of a cardboard box with food inside, partially open and placed on a slatted tray (no text or symbols)

Diagram showing a hand holding a valve connected to a device with a checkmark indicating inspection or status.

Line drawing of a hand cleaning a white mechanical device (no text or symbols)

Illustration of a funnel pouring liquid into a cylindrical container (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols present)

Diagram of a mechanical component with fluid flowing from a pipe (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

5 Open de kap om de koffie-uitloop grondig te reinigen.

Diagram illustrating a hand washing a car with a water tap, accompanied by a digital meter showing a checkmark.

Line drawing of a coffee machine with a cup and side table (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

Diagram showing a hand pressing down on a blue liquid in a beaker, with three circular buttons labeled 'OK', 'Cancel', and 'Delete' below.

Illustration of a medical device with tubing and a hand holding a tool (no text or symbols)

7 Leeg de restwaterbak.

Diagram illustrating a chemical process with two bottles labeled 'PHILIPS' and a water being poured into a glass, showing liquid transfer.

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol inside (no text or labels)

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

1.5 L

3 sec.

30 min

Line drawing of a mechanical component with three circular buttons labeled 'U' and starburst (no text or symbols on the main diagram)

4 Duw de hendel omlaag.

Illustration of a hand washing a bowl into a sink with a water pipe (no text or symbols)

Diagram showing a hand pressing down on a blue liquid container with three circular icons below indicating action buttons.

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a glass with liquid being poured into a container (no text or symbols)

Illustration showing a coffee maker with a red 'X' symbol indicating a food loss or rejection, and a bowl of milk being added.

Diagram illustrating a procedure with a hand holding a blue container and a control panel showing three icons labeled 'U', 'U', and 'U'.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

4 Løft hendelen.

Illustration of a mechanical device with a lever and a magnified view of a component (no text or symbols)

5 Sett inn en kapsel.

Illustration showing two steps of a hand pouring liquid into a container, with a control panel below indicating three labeled buttons.

Illustration of two cupcake cups with a green checkmark indicating a selection or confirmation (no text or symbols present)

Illustration of a hand using a tool to lift a container with liquid, no text or symbols present

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

3 Lukk hendelen.

Illustration of a hand using a tool to interact with a circular object (no text or symbols present)

4 Fjern dryppbrettet sammen med koppeplattformen. Sett til side dryppbrettet og plasser koppeplattformen på nedre dryppbrett.

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

5 Sett en stor kopp eller et krus under kaffetuten på koppeplattformen.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating action buttons.

Illustration of hands pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a mechanical device with a gear and base, showing no text or symbols

Illustration of a toaster oven with a tray and lid, showing food being placed on top (no text or symbols)

Diagram illustrating a hand operating a toilet with a control panel and a checkmark indicating action.

Illustration of a cardboard box with contents inside, placed on a slatted surface (no text or symbols)

Diagram showing a hand holding a valve connected to a device with a checkmark indicating inspection or status.

Line drawing of a hand cleaning a white mechanical device (no text or symbols)

Illustration of a pipe being compressed into a cylindrical container with liquid splashing (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

3 Trekk kaffetuten av maskinen.

Illustration of a faucet spraying water onto a wooden plank (no text or symbols)

4 Skyll kaffetuten under varmt vann.

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram illustrating a hand washing a car with a water tap, accompanied by a digital meter showing 2.0 units.

Line drawing of a coffee machine with a cup and side table (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

3 Lukk hendelen uten å sette inn en ny kapsel.

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below.

Illustration of a hand holding a device next to a mechanical component (no text or symbols visible)

Illustration of a glass with blue liquid being stirred by a pipette (no text or symbols)

2 Fyll vannbeholderen med friskt vann fra springen.

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

4 Lukk hendelen.

1.5 L

3 sec.

30 min

Diagram of a device with three circular buttons labeled 'U' and two small circular icons, no readable text or symbols present.

Illustration of a hand washing a bowl with liquid, placed on a stainless steel sink (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container with control buttons below (no text or symbols)

Illustration showing a hand mixer with a green checkmark indicating the water level, alongside control buttons labeled 'U', 'O', and 'U'.

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a glass with blue liquid being stirred by a pipette (no text or symbols)

Illustration of a blender with a red X symbol indicating a warning or rejection, showing a bowl and arrow inside the blender.

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating different containers.

Diagram illustrating a temperature measurement setup with labeled control buttons and a thermometer indicator.

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a coffee maker with a cup and lid (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

Illustration of a mechanical device with a lever and a magnified view of a component (no text or symbols)

Illustration showing two steps of a hand pouring liquid into a container, with a control panel indicating three labeled buttons.

6 Baixe o manípulo para o fechar.

Illustration of two cupcake cups with green arrows indicating rotation and a checkmark on the side (no text or symbols)

1 Retire o selo da cápsula por completo.

Illustration of a hand using a tool to lift a container with liquid, no text or symbols present

2 Levante o manípulo e insira a cápsula.

Illustration of a hand washing machine with a blue liquid and orange spray arc (no text or symbols)

3 Feche o manípulo.

Illustration of a hand using a tool to cut a circular object with a mesh pattern (no text or symbols)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating action buttons.

Illustration of a hand pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a hand operating a device with a circular component and orange elements (no text or symbols)

Illustration of a food preparation setup with a tray, bread, and steamer (no text or symbols)

Diagram illustrating a hand using a device to adjust a seatbelt, with a checkmark indicating the function.

Illustration of a cardboard box with contents inside, placed on a slatted surface (no text or symbols)

Diagram showing a hand holding a device with a checkmark indicating a confirmation or status, alongside an electrical meter icon.

Line drawing of a hand cleaning a white object with a cloth (no text or symbols)

Illustration of a pipe being compressed into a cylindrical container with liquid flowing out (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a mechanical component with fluid flowing from a pipe (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram illustrating hand washing with a water tap, showing a device icon and checkmark indicating inspection or status.

Line drawing of a coffee maker with a cup and straw base (no text or symbols)

Diagram illustrating a medical procedure with an arrow pointing to a device and a cross symbol indicating failure or rejection.

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below.

Illustration of a hand holding a device next to a mechanical component (no text or symbols visible)

Diagram illustrating a glass being poured into a bottle, showing liquid transfer from left to right.

Illustration of a blue glass with a pipette inserted into it, showing liquid level (no text or symbols)

Illustration of a medical or surgical procedure with an arrow indicating direction and a red X symbol (no text or labels)

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

1.5 L

3 sec.

30 min

Line drawing of a mechanical component with three circular buttons labeled 'U' and starburst (no text or symbols on the main diagram)

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Illustration of a hand using a sewing machine to lift a blue cup, with control buttons below (no text or symbols)

Diagram showing a hand mixer with a green checkmark indicating the process, and control buttons below.

Illustration of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present.

Illustration of a glass with liquid being poured into a container (no text or symbols)

Illustration showing a blender with a red 'X' symbol indicating a warning or rejection, and a bowl of milk being mixed.

Diagram illustrating a hand using a tool to lift a cup, with control buttons labeled 'Control', 'Adjust', and 'Exposure'.

Diagram illustrating temperature measurement with labeled indicators and a thermometer symbol

Simple line drawing of a water dispenser with a side panel (no text or symbols)

Line drawing of a portable blender with two cups (no text or symbols)

Simple line drawing of a coffee maker with a cup and lid (no text or symbols)

Illustration of a toilet with a lid and water-filled cup, showing airflow direction (no text or symbols)

4 Lyft spaken.

Illustration of a mechanical device with a lever and a magnified view of a component (no text or symbols)

5 Sätt i en kapsel.

Illustration showing two steps of a hand pouring liquid into a container, with a control panel indicating three labeled buttons.

Illustration of two cupcake cups with green arrows indicating rotation and a checkmark (no text or symbols)

Illustration of a hand using a tool to lift a container with liquid, no text or symbols present

Illustration of a hand washing machine with a curved arrow indicating motion (no text or symbols)

3 Stäng spaken.

Illustration of a hand using a tool to interact with a circular object (no text or symbols present)

Simple line drawing of a water dispenser with a round top and cup (no text or symbols)

Diagram illustrating a hand pressing down on a blue liquid in a container with three circular icons below indicating action buttons.

Illustration of hands pressing down on a surface with three circular icons below (no text or symbols)

Illustration of a person using a portable device to clean or operate (no text or symbols visible)

Illustration of a food preparation setup with a plate and tray, no text or symbols present

2 Ta bort droppbrickan.

Illustration showing a hand pressing down on a toilet with a device icon and checkmark indicating inspection or status.

Illustration of a cardboard box with food inside, partially open and placed on a slatted tray (no text or symbols)

Diagram showing a device with a digital meter and a green checkmark indicating it is checked

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a pipe being compressed into a cylindrical container with liquid splashing (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a pipe outlet (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

Diagram illustrating hand washing with a water tap, showing a device icon and checkmark indicating inspection or status.

Line drawing of a coffee maker with a cup and straw base (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

Diagram showing a hand pressing down on a blue liquid in a container with three control buttons below.

Illustration of a medical device with tubing and a hand holding a tool (no text or symbols)

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Illustration of a medical device with an arrow pointing to a device and a red X symbol (no text or labels)

Illustration of a printer emitting liquid with a brown arrow indicating motion (no text or symbols)

4 Stäng spaken.

1.5 L

3 sec.

30 min

Diagram of a device with three circular buttons labeled 'U' and two orange buttons below, no readable text or symbols present.

Illustration of a hand washing a bowl with liquid, placed on a stainless steel sink (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container with control buttons below (no text or symbols)

Illustration showing a hand mixer with a green checkmark indicating the process, alongside a control panel with three buttons.

Abstract digital artwork with flowing, translucent, and dark tones, resembling a stylized human figure or abstract form against a black background (no text or symbols)
