USER MANUAL CLIM-A7 VALBERG
Local air conditioner
Airconditioner
Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down. We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.
Table of Contents
A Product overview
Parts Product sheet and technical characteristics
B Product usage
Installation Use
Cleaning and maintenance
Cleaning and maintenance Troubleshooting guide
A Product overview
Box contents
1 mobile local air conditioner
1 hot air exhaust duct
1 outlet adaptor
1 input adaptor
1 window kit
1 drain hose
1 remote control (works with 2 x AAA 1.5 V batteries)
1 user manual
Parts
A Touch control panel
① Timer programming button
(2) Fan speed button
3 +key
4 -key
⑤ Sleep mode button
Mode button
7 On/off button
8 Power-on / water full indicator light
Mode light symbol:
FAN:ventilation
- DEHUM: dehumidification
COOL: air-conditioning
10 Sleep mode indicator light
11 Display
12 Fan speed light indicators
⑬ Timer light indicator
B Handle (both sides)
Air ventilation hatch
D Multi-directional casters
Upper air intake grill
F Intermediate drain port
6 Down air intake grill
H Condensation pan drain plug
Exhaust air outlet grill
J Input adapter
K Exhaust tube
Output adapter
M Window kit
N Drain pipe
Remote control with battery included
(1) Ventilation button
(2) + increase button
③ Sleep mode button
- decrease button
5 Mode button
6 Timer button
7 On/Off button
NOTE: The illustrations used in this manual are provided for guidance purposes only. Your appliance may differ slightly from these illustrations.
Product sheet and technical characteristics
| Description | Value | Unit |
| Model: | 985829 - CLIM-A7 |
| Cooling capacity: | 2.06 | kW |
| 7,000 | BTU |
| Cooling power: | 0.785 | kW |
| Nominal energy efficiency rating (EER): | 2.6 | - |
| Maximum air flow: | 300 | m³/h |
| Dehumidification: | 1.5 | L/h |
| Energy class: | A |
| Refrigerant / Charge: | R290 / 0.14 kg |
| Noise level: | 65 | dB |
| Fan speeds: | 2 |
| For surface areas up to: | 15-18 | m² |
| Cool
Fan
Dehumidification |
| Modes: | Fan |
| Night mode: | Yes |
| Oscillation: | No |
| Programming: | 24 hours |
| Symbol | Value | Unit |
| Rated cooling capacity: | P rated cooling | 2.06 | kW |
| Rated heating capacity: | P rated heating | -- | kW |
| Rated cooling power input: | PEER | 0.785 | kW |
| Rated heating power input: | PCOP | -- | kW |
| Rated energy efficiency coefficient: | EER A CLASS | 2.6 | — |
| Rated coefficient of performance: | COPd | -- | — |
| Power consumption with the "thermostat off": | PTO | -- | W |
| Power consumption in "standby" mode: | PSR | 1 | W |
| An hourly power consumption of "0.785" kWh, determined according to the results obtained under standard test conditions. The actual power consumption depends on the conditions of use and the location of the unit. | Q | 0.785 kWh/60 min. |
| Sound power level: | LWA | 65 | dB(A) |
| Global warming potential: | PRP | 3 | Kg/Eq. CO2 |
| Contact details for further information: | ELECTRO DEPOT1 route de Vendeille59155 FACHES-THUMESNIL - FRANCE |
Installation
- For installation or maintenance, the unit must be unplugged from the power outlet.
WARNING: before using the air conditioner for the first time, it must be kept in an upright position for at least 2 hours.
Location
- The unit should be placed on a stable floor to minimise noise and vibration. Place on a flat, level floor that is sturdy enough to support the weight of the unit, in a location where it can operate safely.
The unit must be positioned at a distance of 50 cm from any wall or other object.
- Avoid damp environments such as bathrooms.
- The unit is fitted with castors to be able to move it easily over smooth, flat surfaces. Be careful when moving it on carpet. If moving the unit over a wooden floor, take care to protect the flooring before moving the unit. Do not attempt to roll the unit over objects.
The unit must be plugged into an earthed socket.
- Never place obstacles around the unit's air inlets or outlets.
- The hose can be unfolded, but it is recommended that you keep its length as short as possible.
- Make sure that the hose has no sharp bends and is not sagging.
Installation
You can easily move the air conditioner from one room to another.
- The unit should be placed near a window or opening so that the hot air can be vented outside. Follow the instructions below:
- Select a suitable installation location near an electrical outlet.
- Slightly extend one end of the duct (Fig. 1), then screw it into the inlet adapter (Fig. 2). Make sure that the duct is screwed into the adapter as far as it will go.
- Extend the other end of the hose slightly, then screw it into the outlet adapter (Fig. 3). Make sure that the duct is screwed into the sleeve as far as it will go.
B Product usage
- Insert the pipe inlet adapter into the outlet grille of the unit.
- Extend the expandable duct to the required length without stretching it out fully to avoid any risk of damaging it.
- The air must be able to flow freely. Make sure that the duct is not twisted and does not form a bend, as this could cause overheating!

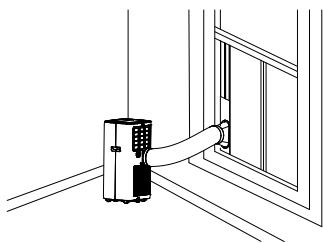

- For traditional windows: open the window slightly, then lay the duct on the window sill and wedge it in place with the window pane.
For patio doors: adjust the opening space to match the width of the kit (adjustable), then insert the expandable duct into the plate of the window kit as shown in the figures below.
B Product usage
Your sliding window kit is designed to be fitted on most vertical and horizontal windows. However, it may be necessary to modify the installation procedure for certain types of windows.
NOTE: If the window opening is smaller than the minimum length of the sliding window kit, cut the part outside the hole to match the size of the window. Never cut the part with the hole.
Use
In order to optimise the efficiency of your air conditioner, we recommend that you do not expose it to direct sunlight during operation (if possible, draw the curtains or close the shutters).
Using the remote control
- Point it at the receiver on the unit.
- Stand within 7m of the unit, and make sure that there are no obstacles between the remote control and the unit.
- Handle the mixing blades with care: do not drop it or expose it to sunlight or heat sources.
- The remote control works with 2 × AAA 1.5 V batteries (included). Please install them before use by removing the cover on the back.
B Product usage
Switching on the unit
- Plug the unit into an earthed wall socket. A beep sounds, and the unit goes into standby mode.
- Press the button on the control panel or remote control.
- To turn off the unit, press the button on the control panel or on the remote control.
Selecting the operating mode
Press the button on the remote control or on the control panel to select the required operating mode by toggling through the different modes in the following order: air-conditioning, ventilation, dehumidification.
The indicator light corresponding to the selected mode lights up on the control panel.
O※
O
O
COOL mode
In air conditioning mode, the hot air must be vented outside (see «Installation» section).
- Press the button on the remote control or on the control panel several times to select the cool mode. The corresponding indicator light comes on.
O
- Adjust the air outlet temperature of the unit according to the ambient temperature you want to obtain. The temperature can be adjusted from 16°C to 31°C (61-88°F) using the + and - buttons on the control panel or remote control. The temperature increases/ decreases by 1°C and appears on the screen.
- Select the fan speed by pressing the button on the remote control or on the control panel several times until the display shows the required speed: HIGH (fast) or LOW (slow). The indicator for the selected speed will light up on the control panel.
The air is then cooled and the hot air is vented to the outside through the expandable exhaust duct.
NOTE: the cooling function turns off when the room temperature is lower than the set temperature. However, the fan continues to run at the set level. The cooling function starts up again as soon as the ambient temperature exceeds the set temperature (with a delay of 3 minutes in order to protect the compressor). During the day, for optimal comfort, the difference between the temperature setting on the air conditioner and the outside temperature should not exceed 8°C . What's more, you will save energy.
B Product usage
DEHUMIDIFICATION mode
In dehumidification mode, the unit reduces the level of humidity in the air. The water contained in the ambient air, that enters the unit, condenses and is recovered inside the unit.
- Make sure that the windows and doors of the room, where the unit is located, are closed.
- Press on the button on the remote control or on the control panel several times to select the dehumidification mode. The corresponding indicator light comes on.
The air is dehumidified as it passes through the unit, but is not completely cooled.
水
O
O
NOTE:
- In dehumidification mode, it is not possible to adjust the temperature and the fan speed, which is set to the slow position by default.
FAN mode
In fan mode, the air circulates in the room without being cooled.
- Press on the button on the remote control or on the control panel several times to select the fan mode. The corresponding indicator light comes on.
- Select the fan speed by pressing the button on the remote control or on the control panel several times until the display shows the required speed: HIGH (fast) or LOW (slow). The indicator for the selected speed will light up on the control panel.
The air circulates in the room at room temperature.
O
O
NOTE:
In fan mode, it is not possible to adjust the temperature.
Timer function
Program the unit to stop automatically
- When the unit is running, press the button on the remote control or on the control panel to activate the timer. The numbers flash on the screen.
- Press the + and - buttons on the control panel or the remote control to set the running time of the unit before it switches off (from 1 to 24 hours).
- The corresponding indicator light comes on. The unit will automatically stop when this time has elapsed.
B Product usage
Programming a delayed start
- When the unit is plugged in and on standby, press the button on the remote control or on the control panel to activate the timer. The number «01» will flash on the display.
- Press the + and - buttons on the control panel or the remote control to set the waiting time before the unit switches on (from 1 to 24 hours).
- Once the time has been chosen, the unit will return to standby mode and display the ambient temperature. The corresponding indicator light remains lit on the control panel, and the unit starts automatically at the end of this period of time.
NOTE:
- When a delayed start has been programmed, the unit automatically starts up in the last previously selected mode.
Cancelling a program
You can cancel an automatic stop or a delayed start in two ways:
- Press twice on the button on the remote control or on the control panel. Press once to check the synchronisation range that you set and then press it again to cancel the timer function. The TIMER indicator light will switch off.
Or:
- Press once on the button on the remote control or of the control panel, then press several times on the - button until the screen displays the temperature or DH / FA , depending on the operating mode selected. The TIMER indicator light goes out and the programming is cancelled.
SLEEP function (in COOL mode only)
When the sleep function is activated in cool mode, the ventilation is automatically set to low speed. The temperature increases by 1°C the first hour, then by 2°C during the second hour. The temperature is then maintained for a period of 6 hours. The unit switches off automatically once this time has elapsed.
- Press several times on the button on the remote control or on the control panel to select the sleep mode.
- Adjust the air outlet temperature of the unit according to the ambient temperature you want to obtain. The temperature can be adjusted from 16°C to 31°C using the + and - buttons on the control panel or remote control. The temperature is displayed on the screen as you make the selection.
The sleep function will run for 6 hours, after which the unit will switch off automatically.
- To deactivate this function, press the button on the remote control or on the control panel.
During the night, for optimal comfort, the difference between the temperature setting on the air conditioner and the outside temperature should not exceed 5°C .
Safety system
- In cool, dehumidification or sleep mode, the unit switches off automatically if the ambient temperature is too low. The unit starts up again as soon as the ambient temperature rises above the set temperature (with a delay of 3 minutes in order to protect the compressor).
- In dehumidification mode, the unit notifies you when the water collected in the tank has exceeded the acceptable level. An audible signal sounds, the «FULL» indicator lights up and the unit switches off. You must then drain it: go to Cleaning and maintenance > Emptying the water tank.
Cleaning and maintenance
IMPORTANT: Always unplug the power cord from the socket before cleaning or servicing the unit.
Cleaning the body of the unit
- You can clean the body of the unit with a sponge slightly moistened with warm water and a mild detergent (such as washing-up liquid). Rinse with clean water and thoroughly dry using a soft, dry cloth.
- Be careful to not let water get inside the unit.
- Do not use chemicals or abrasive detergents for cleaning as they could easily damage or deform your unit. Also avoid the use of aerosols.

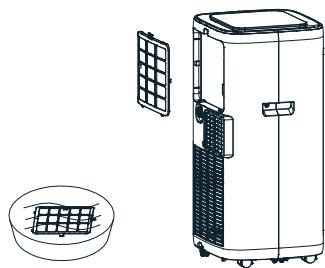

Cleaning the filters
The filter should be cleaned approximately once a month if the unit is used regularly. If you use the air conditioner in an extremely dusty environment, clean the filter more frequently (every 2 weeks). A clogged filter reduces the performance of the unit.
- Unscrew the EVA filter and take it out of its compartment.
- The dust and dirt on the filters can be removed with a vacuum cleaner. If the filter is very dirty, wash it in warm water (40°C) with some mild detergent (e.g. washing-up liquid). You can rub it gently with a soft-bristled brush. Rinse the filter with clean water and leave it to dry completely.
- Put the filter back in its compartment.
Emptying the water tank
The unit has a water tank and two drain holes at the rear of the unit. When the tank is full, there is an audible signal, the «FULL» indicator lights up and the unit switches off. You must then empty this tank.
There are two ways of doing this:
MANUAL EMPTYING
Water should be drained from areas with high moisture content.
- Unplug the unit from the power source.
- Place a suitable container (not supplied) under the drain hole at the bottom of the unit.
- Unscrew the cover and remove the drain plug.
- The water will drain out into the container.
- Once the water has been drained, replace the plug and the cover.
- Turn on the unit.
CONTINUOUS EMPTYING
Continuous drainage is recommended when using the air-conditioner in dehumidification mode.
- Unplug the unit from the power source.
- Unscrew the cover and remove the drain plug located halfway up. During this stage, some water may drain out. So, have a suitable container ready to collect the water that might come out of the drain hole.
- Connect the drain hose (supplied).
- The water can be continuously drained through the hose to a drain, bucket or sink.
- Turn on the unit.
NOTE:
- Whichever drainage method you choose, make sure that the drain hose is below drain hole, to ensure that the water tank is drained properly.
Installation on the lower drain hole
Installation on the intermediate drain hole
Always empty the water tank:
- If you need to transport your air conditioner from one place to another.
- If the unit is not going to be used for a prolonged period.
In the event of prolonged non-use
If you are planning not to use the unit for an extended period of time:
- Empty the water tank as described in the previous section.
- Run the unit in ventilation-only mode for at least 2 hours: this will dry out the inside of the unit in order to prevent any risk of mould growing.
- Turn off and unplug the unit.
- Clean the filter and the body of the unit as indicated in the previous sections.
- Put the filter back in its compartment.
- Remove the batteries from the remote control and store them together with the air conditioner in a clean, dry place.
- Store the unit in a dry, dust-free environment away from children.
Troubleshooting guide
Before contacting your after sales service, perform the following basic checks. If you are unable to solve your problem, do not perform any repairs yourself on the unit. Contact your store's after-sales service department.
| Problems | Possible causes |
| The air conditioner no longer works. | ·The power cable is unplugged or not working. Plug the unit into a suitable wall socket.
·The unit is switched off. Press the按钮 on the control panel or remote control.
·There's a power outage.
·The fuse is blown, or the circuit-breaker has tripped. Replace the fuse or reset the circuit breaker.
·The water tank is full. Empty the water tank.
·The batteries of the remote control are flat. Replace them.
·The ambient temperature is too low and the unit has gone into safety mode. The unit will restart as soon as the temperature rises. |
| The air conditioner runs for just a few moments. | ·If the set temperature is similar to the room temperature, you can lower the set temperature.
·Something is blocking the air outlet. Remove the obstacle. |
| The unit does not cool down enough. | ·The air inlet or outlet is blocked.
·A door or window is open.
·The unit is exposed to direct sunlight.
·There is a heat source operating nearby (heating, lamp, etc.) Move the heat source to another room.
·The filter is dirty. Clean it.
·The set temperature is too extreme. Select a suitable temperature.
·The fan speed is not high enough. Select a higher fan speed. |
| The unit is noisy or vibrating. | ·The air conditioner is not located on a flat surface. Always place the unit on a flat and stable surface. |
| The unit makes a "gurgling" noise. | ·This is normal. This is the sound of the refrigerant gas flowing inside the unit. |
| The compressor is not working. | ·The overheat protection system has tripped. Wait 3 minutes while the unit cools down, and restart it. |
| The remote control is not working. | ·Make sure that the remote control is not too far from the unit.
·Be sure to point the remote control at the infrared sensor on the control panel.
·Make sure that there are no obstacles between the remote control and the infrared sensor.
·The batteries of the remote control are flat. Replace them. |
| The safety system has activated and the unit has stopped working. | ·In cool mode, check that the ambient temperature is not too low or too high.
·In dehumidification mode, check that the ambient temperature is not too low.
·Turn off and unplug the unit, then wait at least 3 minutes before using it again. |
| The error code "E1" appears on the display. | ·The room temperature sensor is damaged. Contact your retailer's after-sales department. |
| The error code "E2" appears on the display. | ·The pipe temperature sensor is damaged. Contact your retailer's after-sales department. |
Merci!
The air is dehumidified as it passes through the unit, but is not completely cooled.
O
0
Opmerking:
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required.
CONDITION DE GARANTIE
FR
