USER MANUAL CL-TC5X2 COSYLIFE

CONDITION DE GARANTIE

FR

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required

GARANTIEVOORWAARDEN

NL

Thank you for choosing this COSYLIFE product. COSYLIFE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

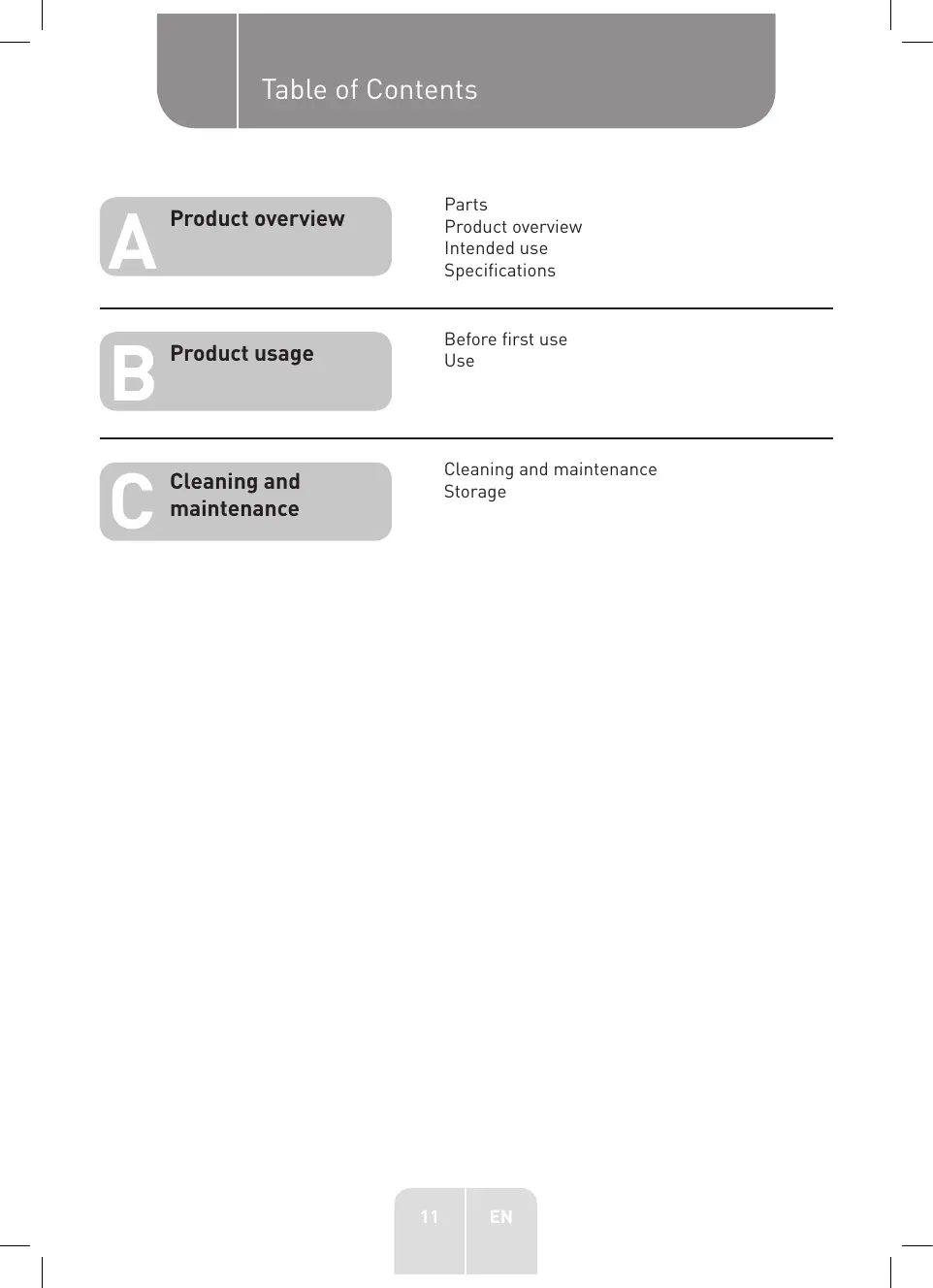

Table of Contents

Parts

Product overview

Intended use

Specifications

Before first use

Use

Cleaning and maintenance

Storage

Parts

A Toasting slots
B Crumb tray
C Power cable storage compartment
D Power cable with plug
E Browning control (1 - 7)

Cancel button with indicator light

Reheat button with indicator light

Defrost button with indicator light

Toasting control lever (start)

Product overview

• Unpack the product. Remove all the labels from the product. Check that it is complete and in a good condition. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This unit has been designed exclusively for toasting bread. Do not use it for any other purpose.
Any other use may damage the unit or cause injury.

Specifications

Model: 984018 - CL-TL02X2 984017 - CL-TC5X2

Operating voltage: 220-240 V~ 50/60 Hz 220-240 V~ 50/60 Hz

Power consumption: 1250-1500 W 720-850 W

Protection class: Class I Class I

Before first use

• Clean the unit ( Cleaning and maintenance).
• Perform a few dry runs until the unit no longer emits any odour or smoke. When the toaster is in use, make sure the room is properly ventilated.
• Due to the manufacturing process, the unit may emit a faint burning smell when first turned on. This is completely normal and does not indicate a manufacturing defect or risk.

Use

1 Completely unwind the power cable from its storage compartment.
2 Insert the crumb tray.
3 Insert regular-sized slices of bread into the toasting slots.

Select the desired toasting level via the browning control. Choose from levels 1 to 7 according to your preference.

Settings	Browning level
1 to 3	Light brown
4 to 6	Golden brown
7	Dark brown

Please note :

Use a lower setting when toasting a single slice of bread.
We recommend using browning level 4 to brown the bread (this saves energy).
- The ideal browning level depends on the type of bread, thickness of the slices and theasting time. It will be a matter of trial and error to determine your preferred setting.

B Product usage

Connect the power plug to a suitable mains socket.

Press the toasting control lever until it locks into place. The cancel indicator will light up. The toasting process will start.

Note : The toasting control lever will not lock into place if the unit is not connected to a mains socket.

When the set toasting level has been reached, the toasting control lever will raise and the unit will automatically switch off. The cancel button indicator will go off.
To manually stop the toasting process, press the cancel button .

Defrosting

To toast frozen bread,press the defrost button after pushing down the toasting control lever.The defrost indicator will light up.

Reheating

Insert the cold toast into thetoasting slots.

Press the toasting control lever until it clicks into place.

Press the reheat button. The reheat indicator will light up.

In reheating mode, the toasting time is fixed. Once heated, the toasting control lever will lift up automatically.

After use: unplug the unit.

Removing jammed toast

WARNING

The slices of bread and unit's components heat up considerably and will remain hot for some time after use. Do not use conductive utensils (e.g. a fork) to remove toast from the unit, as this may damage the heating elements.

After toasting, use non-conductive items (e.g. oven gloves) to remove the hot toast from the unit or wait until it has cooled down slightly.
- Do not use a fork or other metal instruments to remove toast. This could result in a risk of electric shock or fire.

Removing jammed toast

CAUTION

Should toastgetstuckintheunit,pressthecancelbutton andthenunplug thepower plug fromthemainssocket.

Wait until the unit has cooled down completely.
- Carefully remove the toast, taking care not to damage the heating elements.

Cleaning and maintenance

WARNING

• Before cleaning or maintaining the unit, make sure that it has been switched off and unplugged from the mains socket. Then let it cool completely.

• Never immerse the unit in water or any other liquid.

• Clean the unit with a soft, slightly damp cloth. Make sure that no moisture gets inside the unit while cleaning it.

• Never use corrosive cleaners, wire brushes, abrasive scouring pads or metal/sharp tools to clean your unit.
• Thoroughly dry the unit after cleaning it.

Emptying the crumb tray

Remove the crumb tray from the toaster.

• Throw away the crumbs.
• Rinse with clean water mixed with a small amount of washing-up liquid.
• Allow it to dry thoroughly before inserting it back into the unit.

WARNING

Regularly clean the crumb tray. Do not let crumbs accumulate at the bottom of the toaster.

Storage

WARNING

Before putting your unit away, ensure that it has been switched off, unplugged from the mains socket and left to completely cool.

Wind the power cable around the storage compartment located underneath the unit.

• Store the unit in a fresh, dry and clean place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.

Bedankt!
