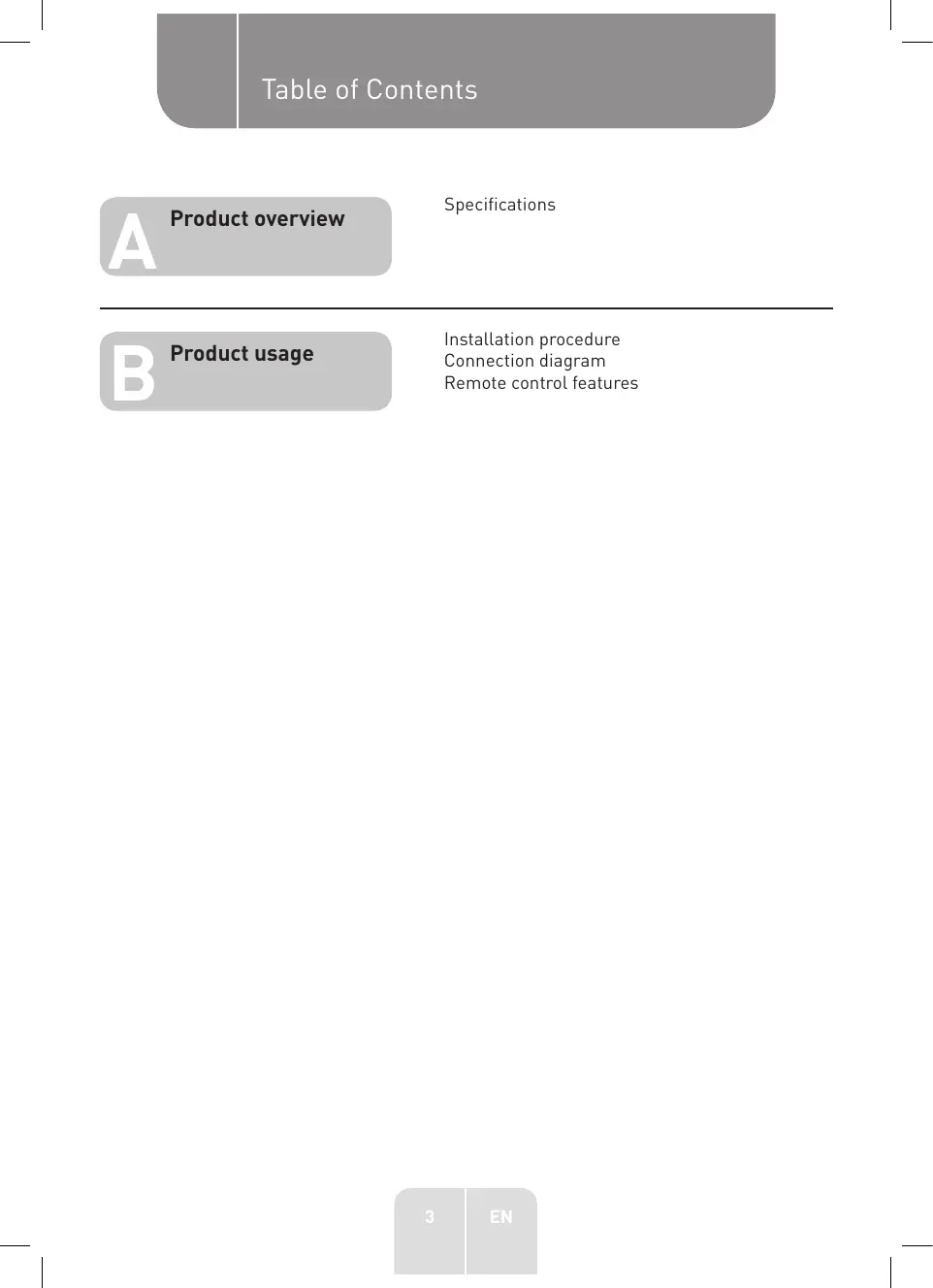

Installation procedure Connection diagram Remote control features

Thank you for your purchase. We hope that this product will bring you complete satisfaction. Please read this user ‘s manual carefully before using the product to make a correct use of the functions and know well about the system connection and usage. Please keep this manual in a safe place for future reference.

Please make sure that the following items are in the packaging when you open it for the first time:

About IP44 waterproof resistance

The light strip is resistant to water splashes with IP44 standard. lt cannot be submerged in water. The AC power adapter is classified 1P20, it cannot be in contact at all with water or other liquids. This product is for interior use only.

LED strip specifications

3 meter strip: 90 SMD 5050 LED (30 LED per meter] 5 meter strip: 150 SMD 5050 LED (30 LED per meter] RGB Angle: 120°

Input: 12.0V == 1.5A Consumption:

LED lifetime: Not dimmable

3M quality adhesive:

Resin protective coating:

Apply to a smooth, clean and degreased surface

For safe use, splash protection and easy cleaning

To select colors and intensity and different light modes

Installation procedure

The light source of this Luminaire is not replaceable. When the light source reaches its end of life, the whole Luminaire shall be replaced.

To reduce the risk of strangulation, the flexible wiring connected to this luminaire shall be effectively fixed to the walL if the wiring is within arm's reach.

Do not connect the Light strip to the supply while it is in the packing.

Please follow the below steps to install your Light strip properly.

Select a clean and flat surface for the installation of the strip. Make sure the surface is perfectly clean. lt must be free of any dirt, dust or grease, otherwise the tape may come off after some time.

Remove the 3M protection paper band from the strip and stick the strip carefully on the flat surface.

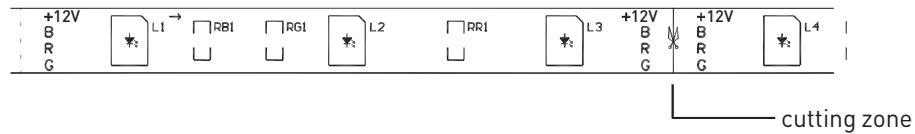

If necessary, cut the part of the strip you may not need. Attention, cut the strip only on specific sections marked by a scissor Logo on the strip. Such logo will appear between each series of 3 LED. Never cut the strip on any other Location otherwise the strip will be unusable and the warranty will be void. See below the correct Location to cut the strip.

ë! D Pre Trot D re Le} #2 | A Di 1

& a) ae Ü & ê 1 Ling zone

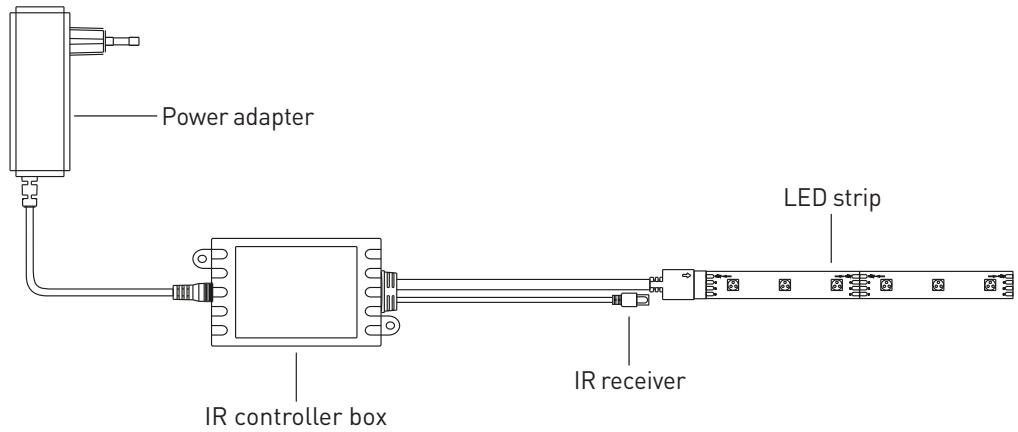

Connect carefully the LED strip to the infrared [IR] controller box by respecting the polarity and then connect the IR controller box to the power adaptor.

Connect the power adaptor to a power source of your house (wall socket).

Press the ON button on the remote controller to power ON the light strip.

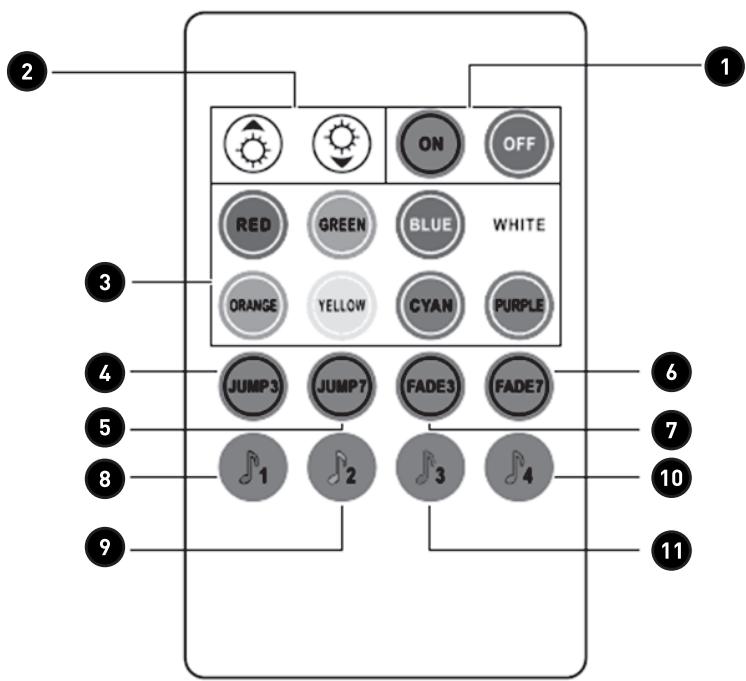

Remote control features

Turn on/off the controller

When in static mode [default]: to adjust the brightness (16 grades)

When in jump 3, jump?, fade7 mode: to adjust the flashing rate (8 grades)

To select corresponding static color

3 colors jump changing

7 colors jump changing

7 colors jump gradual changing

3 colors jump gradual changing

Sound-control mode {general music], all colors will gradual or jump change following the music/sound rhythm. If no music/sound input or sensed, all colors will gradual change Sound-control mode [tenderness music), all colors will slow breathing or jump change following the music/sound rhythm. lf no music/sound input or sensed all colors will slow breathing change

.. Sound-control mode (DJ music], all colors will change following the music/sound rhythm.

If no music/sound input or sensed, all colors are off

. Sound-control mode (active music], all colors will jump change following the music/sound

rhythm, ifno music/sound input or sensed, current colors keep Lighting
