USER MANUAL FIRE LIGHT EDENWOOD

Thank you for choosing this EDENWOOD product. EDENWOOD products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

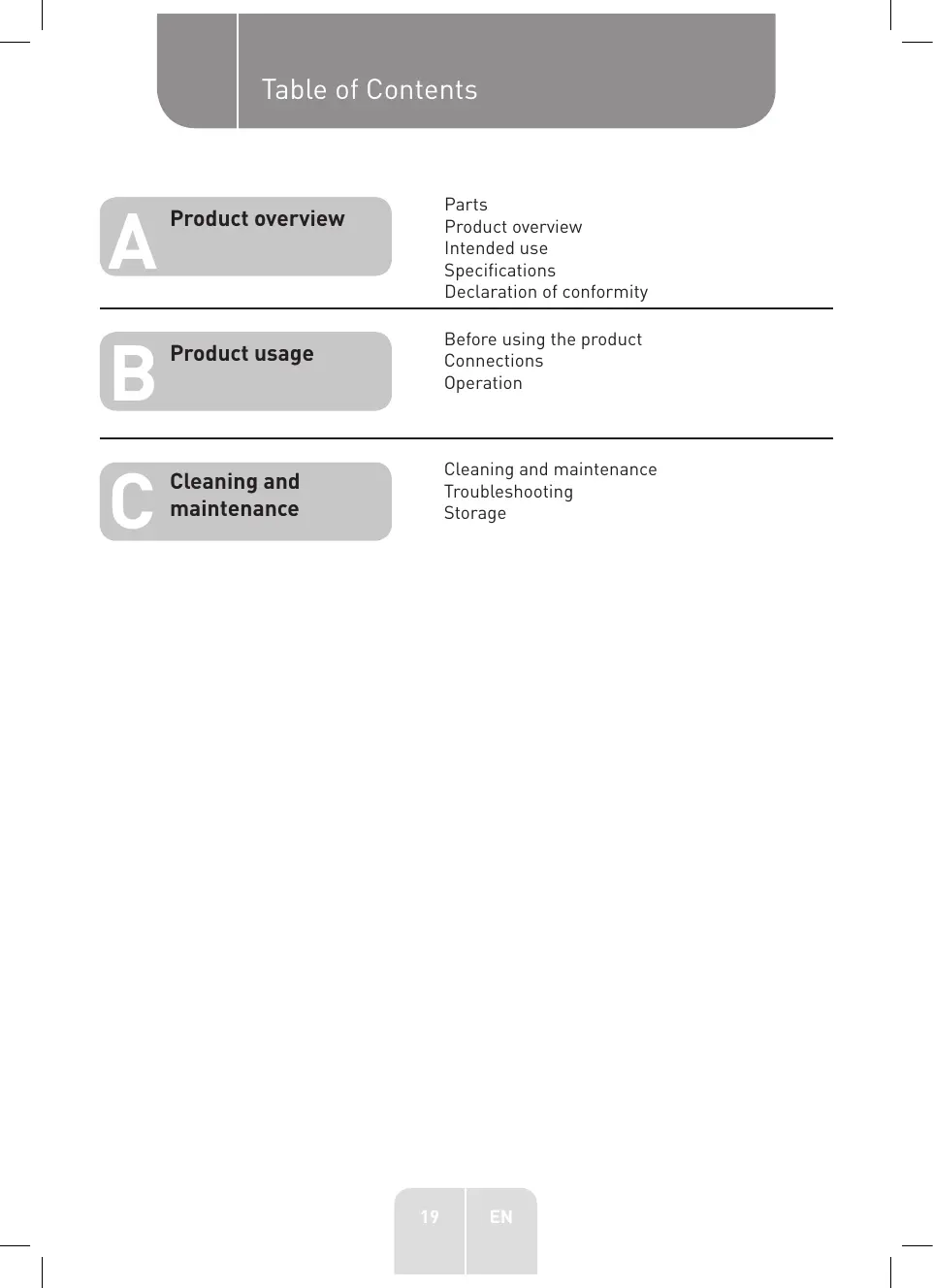

Table of Contents

Parts
Product overview
Intended use
Specifications
Declaration of conformity

Before using the product Connections Operation

Cleaning and maintenance Troubleshooting Storage

Parts

Description
A	Control panel
B	Display
C	Speaker front panel - emits sound and coloured lights
D	Base with non-slip rubber feet
E	Handle
F	AUX IN	Connection socket for an AUX IN cable (not provided) with a 3.5 mm jack
G	LINE OUT	Output socket to connect another speaker
H	MIC	Microphone input jack
I	GUITAR	Guitar input jack
J	TF	Slot for a TransFlash (TF) card or Micro SD card
K	USB	USB port for a memory stick
L	LED	Battery indicator light
M	DC IN	10 V/1 A charging socket
N	- ECHO +	Adjust the echo level
O	- GUITAR VOL +	Increase or decrease the guitar volume
P	- TREBLE +	Adjust the treble level
Q	- BASS +	Adjust the bass level
R	- MIC VOL +	Increase or decrease the microphone volume
S	M	Press to select the mode: BT, USB, TF, FM RADIO or AUX
T	I&I	In BT/USB/TF mode: • Press to go back to the previous track or file In USB/TF mode: • Press and hold to rewind In FM RADIO mode: • Press to go to the previous station
U	HII	In BT/USB/TF mode: • Press this button to play or pause music. In AUX mode: • Press to play or mute music
		In BT mode: • Press and hold to reconnect to a device with which the speaker has previously been paired. In FM RADIO mode: • Press and hold to search all stations and save them automatically
V	H1	In BT/USB/TF mode: • Press to skip to the next track or file In USB/TF mode: • Press and hold to fast-forward In BT mode: • Press and hold to connect/disconnect TWS In FM RADIO mode: • Press to skip to the next station
		In USB/TF mode: • Press repeatedly to choose one of the following options: ONE - To continuously repeat a single track FOLD - To repeat a folder RAN - To play the tracks in a random order ALL - To play all the tracks
W	C	Press repeatedly to turn the LED disco light function on/off or choose 1 of the 3 light modes.
X	- MASTER VOL +	• Switch the speaker on / off • Increase or decrease speaker volume
Y		AC adapter - charging cable with plug
Z

Product overview

• Unpack and remove all labels from the unit. Please check that all of the unit's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This product is for domestic use only. It has not been designed for industrial or professional use.
Any other use may damage the unit or cause injury.

Specifications

Model:	972468 - FIRE LIGHT
Company name or registered trademark, business registration number and manufacturer's address:	ELECTRO DEPOT /R.C.S. 433 744 539 1 route de Vendeville, 59155 Faches Thumesnil, FRANCE
Speaker power output:	30 W (15 W + 15 W)
Operating voltage:	10 V DC, — — 1.0 A max.
Operating frequency:	90 Hz - 20 kHz
Rechargeable Li-ion battery:	7.4 V, 4,400 mAh
Charging time:	Approx. 6 hours
Playback time:	5 hours at two-thirds of the max. volume 4 hours at maximum volume
Signal-to-noise ratio:	60 dB
Bluetooth® version:	4.2
Bluetooth (BT) name:	edenwood FIRE LIGHT
BT range:	10 metres
BT frequency:	2402 MHz - 2480 MHz

A Product overview

Maximum power transmitted via BT:	2 dBm
FM radio frequency range:	87.5 - 108 MHz
LINE IN (RCA jack) input:	3.5 mm jack
Microphone input:	6.35 mm jack
USB compatibility:	Up to 32GB
Compatible file formats:	MP3/WMA/WAV/FLAC
Speaker size:	2 speakers: 16.5 cm (diameter), 4 Ohms
Dimensions (W x H x D):	27.0 x 66.1 x 26.9 cm
Weight:	7.62 kg
Operating temperature:	-5 °C to 40 °C
Relative humidity range:	5 - 90%
Protection class:	Class III

AC Adapter

Published information	Value and precision	Unit
Company name or registered trademark, business registration number and manufacturer's address:	ELECTRO DEPOT /R.C.S. 433 744 539 1 route de Vendeville, 59155 Faches Thumesnil, FRANCE	-
Model reference:	AK12WG-1000100VW	-
Input voltage:	AC100-240V	V
Input current frequency:	50/60	Hz
Output voltage:	10.0	V
Output current:	1.0	A
Output power:	10.0	W
Average efficiency in active mode:	82.2	%
Low load efficiency (10%):	81.43	%
No-load power consumption:	0.054	W

Due to constant developments and improvements in the design of our products, changes to the specifications below are likely to occur without notice.

A Product overview

Compatibility disclaimer

Wireless performance is dependent on your device's Bluetooth wireless technology. Please check with the manufacturer. ELECTRO DÉPÔT cannot be held responsible for any data loss or leaks resulting from the use of these devices.

Bluetooth®

Declaration of conformity

In this document, ELECTRO DÉPÔT declares that this unit complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be viewed on the following website: http://www.electrodepot.fr/sav/ notices/

Before using the product

IMPORTANT!

This speaker contains a non-replaceable battery.
- Before plugging in and switching on the speaker, make sure that all the controls are turned off or set to the minimum level.
- If the speaker is not working properly, this may be because the battery is too low and needs to be recharged.

Charging the speaker

1. Plug the AC adapter plug into the mains power socket.
2. Insert the other end of the AC adapter cable into the 10V DC socket on the top of the speaker.
3. The battery indicator light turns red when the speaker is charging and goes off when the battery is fully charged.
4. Before first use, fully charge the battery and for at least 6 hours. It takes approximately 6 hours to fully charge the battery, and a full battery provides around 2 hours of playback at full volume.
5. The battery icon is displayed to indicate the battery level. A battery low sound will alert you when the battery is low. When the battery is low, the volume drops to 70% .

NOTE: Please charge the battery at least once a month, even if you are not using the unit, to ensure its longevity.

Connections

Connect your device to the speaker using the cables and sockets/slots detailed below:

Device	Connection	Speaker socket/slot
Microphone/Guitar	Use a microphone/guitar cable with a 6.35 mm plug (not provided).	MIC / GUITAR
Phone, iPad or tablet	Use an AUX IN cable with a 3.5 mm plug (not provided). The other end of the cable must be connected to your audio device.	AUX IN
CD/DVD player
MP3 player
Record player
TV
USB memory stick	Plug in your USB memory stick to play MP3, WMA, WAV or FLAC files.	USB
TF card or Micro SD card	Insert your card into the speaker's TF slot to play MP3, WMA, WAV or FLAC files.	TF
Line out	Connect the speaker to another speaker. Use a line out/in cable with a 3.5 mm plug to connect to the speaker, then insert the other end of the cable into the AUX IN jack of another speaker.	LINE OUT

NOTE:

• For optimum playback, make sure only compatible audio files (MP3, WMA, WAV or FLAC) are saved on the USB device or TF card.
• Whenever a USB stick, TF card or Micro SD card has been inserted, any saved files will automatically begin to play.

Pairing with a Bluetooth (BT) device

To connect this speaker to a Bluetooth device, you must first pair the speaker with the device.

1. Switch on the Bluetooth device (such as your phone or tablet):

2. Go to your device's settings.

3. Enable the Bluetooth function.

NOTE: If your Bluetooth device was previously connected to another device, remove that connection before attempting to connect the device to the speaker. A sound will play to confirm that the devices have been disconnected.

1. To turn on the speaker, turn the - MASTER VOL + knob clockwise until you hear a click, and the speaker screen and lights come on. The ON sound will play and bBLUE will flash on the screen. If the speaker is already turned on and/or another mode is active, press the button to select the BT mode. bBLUE will then flash on the screen and the pairing sound will play. The speaker will automatically enter pairing mode to search for the Bluetooth device.
2. When the Bluetooth device displays the speaker's Bluetooth name, edenwood FIRE LIGHT, select the name and confirm the pairing process.
3. bBLUE will then stop flashing and a sound will play to confirm that the devices have been paired successfully.

B Product usage

NOTE:

• If the speaker's Bluetooth name does not appear on your Bluetooth device, move the two devices closer together. If that doesn't work, turn the devices off and back on again before restarting the pairing process.
• When pairing the devices, make sure they are less than 10 metres apart and there are no physical obstructions between them.
• Once two devices have been paired, these devices should remember the connection. To connect to a previously paired device, press and hold the button whilst BLUE is flashing.

Connecting two speakers (TWS)

You can connect two FIRE LIGHT speakers to an external audio device. This function only works in Bluetooth mode.

1. Make sure that both speakers are not connected to any other Bluetooth devices.
2. Place the speakers within 10 metres (with no obstructions) of each other.
3. Turn on both speakers and the ON sound will play, and bLUE will flash on the display.
4. In Bluetooth mode, press and hold the button on one of the speakers (this will be the master speaker). A sound will play on both speakers to confirm they are connected in TWS mode.
5. Connect the external Bluetooth device through its Bluetooth settings to the speakers. Choose the pairing name of the master speaker. When connected, BLUE will stop flashing and a sound will play to confirm that the devices have paired.
6. Press and hold the button on either speaker to stop using the TWS mode. A sound will play to confirm the units are disconnected.

NOTE:

• You can only connect the two speakers when you are in Bluetooth mode. Once the two speakers have been connected in TWS mode, if they are turned off and then later turned on again, they will automatically reconnect with each other.
• You can only connect a FIRE LIGHT speaker with another FIRE LIGHT speaker. You cannot pair the FIRE LIGHT speaker with other models or brands of speakers that have TWS capability.
  If you want to make a TWS connection with a different speaker, remove previous connections before attempting to connect with the new speaker.
  If you cannot successfully connect two speakers, turn off both speakers and start the connection process again.

Operation

WARNING! Before plugging in and switching on the speaker, make sure that all the controls are turned off or set to the minimum level.

NOTE:

• The speaker can be used while it is charging but if the battery is too low, the speaker performance might be poor. Lowering the volume may help improve the sound.
• To ensure excellent sound quality, we recommend disconnecting the charging cable from the speaker as soon as it has finished charging.

Music playback

1. Turn the - MASTER VOL + knob clockwise to turn on the speaker. When the speaker is turned on, an ON prompt will sound, the speaker indicators will light up and the word HI will be displayed on the screen.

NOTE: If the unit is not used within 15 minutes, it will turn off. Switch the - MASTER VOL + button off then back on again to switch on the speaker again.

1. Connect your audio source as described in the Connections section.
2. To choose one of the following modes: BT, USB, TF, FM RADIO or AUX, repeatedly press the button. To play the contents of a USB stick or TF/Micro SD card, simply insert the stick/card in the unit's corresponding port; the unit will automatically start playing any saved tracks or files. The screen will alternately display the track/file number and the playing time.

NOTE:

• Make sure the volumes on both the speaker and the connected external device are turned on.
  If you stop playback and/or unplug an audio device and then restart playback or plug the device in again, playback will resume from where it was last stopped.

• To control the audio playback, you can either use your external device's controls (if available) or the following buttons on the speaker itself:

Button	Mode	Action
- MASTER VOL +	All modes	Turn the knob clockwise to increase the volume and anticlockwise to decrease the volume.
	BT/USB/TF	Press to play or pause (PAUS) the track or file.
	AUX only	Press to play or mute the track or file.

USB/TF/FM RADIO	Press to go to the previous track, file or station.
USB/TF	Press and hold to rewind the track or file.
USB/TF/FM RADIO	Press to skip to the next track, file or station.
USB/TF	Press and hold to fast-forward through the track or file.
ECHO / BASS / TREBLE (-/+)	BT/USB/TF/AUX
USB/TF	Turn the knob clockwise to increase the appropriate sound effect and anticlockwise to decrease the same.
USB/TF	Press repeatedly to select one of the following sound settings:ONE - To continuously repeat a single trackFOLD - To repeat a folderRAN - To play the tracks in a random orderALL - To play all the tracks

NOTE: In AUX mode, use the external device's controls unless the playback function is specified in the table above.

1. Turn the - MASTER VOL + knob anticlockwise to turn off the speaker. When the speaker is turned off, the indicator lights on the speaker turn off.

FM Radio

• Press the button several times until the Radio mode appears. The frequency will be displayed on the screen: 90.3, for example.
• Press and hold the button to start the automatic radio station scan. The number of the saved station will be displayed on the screen: e.g. P01
• Once the stations have been saved in radio mode, press ⑥ or ⑦ to go to the next or previous station.

NOTE: Up to 40 radio stations can be saved. The actual number of registered stations depends on the reception in your area. Once saved, the stations will be retained, even if you turn off the speaker.

B Product usage

Disco light function

This unit boasts 7 disco light modes comprising 7 colours: Purple, pink, red, yellow, green, turquoise and blue.

• Repeatedly press the button to turn on the disco lights and select 1 of the 7 disco light modes.
• To turn off the disco light function, press the button until the lights turn off.

Using the microphone

1. Connect the microphone (not provided) to the speaker via a microphone cable.
2. Turn the speaker on. MIC is displayed on the screen whenever the microphone is connected.
3. Turn the -MIC VOL + knob clockwise to increase the microphone's volume and anticlockwise to decrease the volume.
4. Turn the - MASTER VOL + knob clockwise to increase the music's volume and anticlockwise to decrease the volume.
5. If you can hear an echo, turn the - ECHO + knob anticlockwise until the echo is reduced or disappears completely.
6. When you have finished using the microphone, unplug the cable from the speaker.

NOTE: You can use the microphone in all modes.

Use a guitar

1. Connect the guitar to the speaker via a suitable cable (not supplied).
2. Turn the speaker on. MIC is displayed on the screen whenever the guitar is connected.
3. Turn the - GUITAR + knob clockwise to increase the guitar's volume and anticlockwise to decrease the volume.
4. Turn the - MASTER VOL + knob clockwise to increase the music's volume and anticlockwise to decrease the volume.
5. When you have finished using the guitar, unplug the cable from the speaker.

Cleaning and maintenance

WARNING!

• Always turn off and unplug the unit from the power supply before cleaning.
• Never immerse the unit in water or any other liquid.

• When cleaning the unit, never use abrasive products, metal brushes, scourers, wire sponges or sharp utensils.

• Regularly clean your unit and keep it dust free to reduce the need for repairs and ensure product longevity.

• Clean the unit with a soft, dry cloth. Make sure that no liquid enters the inside of the unit.
• If you do not plan on using the unit for a long period of time, we recommend storing it in its original packaging in a cool, dry place, away from direct sunlight, dust and excessive dirt.

Troubleshooting

Problem	Possible Cause	Solution
The unit does not work.	·The unit is not charged. ·The battery indicator light is not lit while charging.	·Fully charge the battery. ·Make sure the external device being used to charge the unit is connected to the mains and/or turned on. ·Check the speaker is turned on. ·If the unit is still not working, get it checked by a qualified technician.
The operating time is too short after charging.	·It has not been charged for enough time. ·The battery is old.	·Fully charge the battery as indicated in the charging section. ·Ask a qualified technician to install a new battery.
There is no sound.	·The volume is too low. ·The devices are not correctly connected. ·The distance between the speaker and external device (BT mode) or secondary speaker (TWS mode) is too far or there is an obstruction in between.	·Turn up the volume (on your external device or speaker). ·In AUX mode, check that the cable is securely connected and the external device is working properly. ·When using the microphone, check the cable, then make sure the microphone is switched on and its volume is enabled on the speaker. ·In USB or TF mode, check that there are some compatible files on the stick or card and that they are not corrupted. Try reloading the files onto the media device or use another USB stick or TF card. ·In BT/TWS mode, make sure the external device/speakers are placed within 10 metres with no obstructions. Check the Bluetooth function on the external device is on and pair (BT)/connect (TWS) the speaker(s) again if necessary.

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.

Bedankt!

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.
