USER MANUAL CURVE SYSTEM 18P EDENWOOD

Diagram showing three labeled steps of a battery or device with downward arrows indicating movement or change.

MP3 ① ② ③ ④ ⑤ ⑥ ⑦ K L M N J I O P Q R S T U V W X A B C D E F E G H I J K L M N

Technical diagram showing electrical wiring and component connections with numbered parts and labeled components

Technical diagram showing connections between a multimeter, measurement instruments, and sensors mounted on a stand with labeled parts.

Merci !

Thank you for choosing this EDENWOOD product. EDENWOOD products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

A Product overview	PartsProduct overviewIntended useSpecificationsDeclaration of conformity
B Product usage	InstallationConnectionsMains power supply and fuseOperationRemote control
C Cleaning and maintenance	Cleaning and maintenanceTroubleshootingStorage

Parts

Main parts

A 8 x speakers – the line arrays are arranged as 2 sets of 4 speakers

① 2 x line array mounts

② 18 x screws - 2 of which are spare.

③ 2 x Allen keys

2 x metal mounting brackets - for the line arrays. NOTE: The knob for the metal mounting bracket is packed with the screws.

2 x speaker tripods

7 x line array cables – connects the speakers to one another (each cable is a 335 cm-long 14 " TRS cable)

2 x line array cables – connects the 2 line arrays to the subwoofer/amplifier (each cable is a 6 m-long 14 " TRS cable).

F Mains power cable

Subwoofer with a built-in amplifier. The speaker control system is found on the back of the unit.

H Handle

Rear view of subwoofer/amplifier

1 UNBALANCED RCA INPUT Connects the unit to a computer, mobile device, etc.

J MULTIMEDIA VOLUME CONTROL Adjusts the input volume when using the USB, Bluetooth.

K MEDIA PLAYER Control panel for audio files played via USB, Bluetooth or LINE IN. (The LINE IN input is connected via the UNBALANCED RCA INPUT or AUX INPUT connectors).

1	USB port Plays MP3 files from a USB device.
2	LCD screen	Displays the modes and playback information. If no source is connected (e.g. USB or Bluetooth),NOwill be displayed.
3	MODE BUTTON	Press to switch between USB, Bluetooth and LINE IN modes.
4		In USB, Bluetooth or LINE IN mode:Press to skip to the previous track or file.Press and hold to decrease the volume, which ranges fromV00to V30.
5		In USB, Bluetooth or LINE IN mode:Press to skip to the next track or file.Press and hold to increase the volume, which ranges fromV00to V30.
6		In USB, Bluetooth or LINE IN mode, press repeatedly to select:One- repeats a single file or trackRand- randomly plays the files or tracksAll- plays all files or tracks in the order they are storedFold- plays a specific file of track
7		In USB, Bluetooth or LINE IN mode:Plays or pauses the file/track.
L	SUBWOOFER FREQUENCY CONTROL KNOB	Sets the subwoofer cutoff frequency. Signals above the set cutoff frequency are gradually removed to prevent them from interfering with the speaker line arrays. (Frequency range: 80 Hz - 1 kHz)
M	POWER LED INDICATOR	Lights up green when the subwoofer/amplifier is connected to a power source and the main power switch is in the ON position.
N	PHASE BUTTON	Synchronises the subwoofer to obtain a more precise bass frequency response (press to select 0 or 180°).
O	LIMIT LED INDICATOR	Lights up red and flashes when the amplifier detects any subwoofer-affecting distortion. Reduce the volume when the indicator is lit.
P	SUB VOLUME CONTROL	Adjusts the volume of the subwoofer and any additional subwoofers.
Q	MASTER VOLUME CONTROL	Controls the volume of the subwoofer and line arrays.

R AUX INPUT	Connects the unit to a computer, mobile device, etc., via a 3.5 mm unbalanced stereo input.
S BALANCED XLR/TRS INPUT	Connects the unit to an audio interface or mixer via a 1/4" XLR-TRS jack combo socket.WARNING! Only connect one input source at a time.
T BALANCED XLR OUTPUT	Connects additional speakers or subwoofers.NOTE: This connection is only enabled if you use XLR or 1/4" TRS balanced inputs.
U SPEAKER OUTER (LEFT CH/RIGHT CH)	Connects the left and right line arrays to the subwoofer via the 2 x 6-metre 1/4" TRS cables (supplied).
V MAIN POWER SWITCH	Switches the power ON (I) or OFF (O).NOTE: Turn the switch OFF (O) when you are not using the unit for a prolonged period of time.
W AC SOCKET AND FUSE	Connects the unit to the main power source. The fuse protects the subwoofer/amplifier from a power surge/overload.
X Remote control	Controls playback functions in USB and Bluetooth mode only.
1 MODE	Press to switch between USB and Bluetooth modes.
2 📋 📋	Selects the previous or next file.
3 VOL-/VOL+	Decreases (-) or increases (+) the volume from V 00 to V 30.
4 0 - 9	Selects the file or track number.NOTE: For numbers over 10, press--or -and then use the numeric keypad to enter the desired number.
5 EQ	Selects the pre-set equalisation: Pop, Rock, Jazz, Classic and Country.
6 🖱 / ⬇	Selects the previous or next file/track.
7 ⬇	Plays or pauses the file or track.
8 -- / ---	Press to select a double-digit track number (10+).Press to select a triple-digit track number (100+).(Use the numeric keypad to enter the number.)

Product overview

• Unpack and remove all labels from the unit. Please check that all the product's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

• This product is intended for domestic or commercial indoor use.
• Any other use may damage the product or cause injury.

Specifications

Model: 974908 - CURVE SYSTEM 18P
Company name or registered trademark, business registration number and manufacturer's address:	ELECTRO DEPOT /R.C.S. 433 744 5391 route de Vendeville, 59155 Faches Thumesnil, FRANCE
Speakers - 2 sets of 4 speakers: (H x W x D)	760 x 400 x 295 mm
Subwoofer: (H x W x D)	615 x 595 x 715 mm
Subwoofer speaker: 18"
Steel tripod (height adjustable): 1,100-1,870 mm
Protection class:	Class I

Speaker

Audio gain: 6-12 dB
Operating frequency: Bass: 30 - 500 Hz	Treble & Alto: 65 Hz - 20 kHz

Line array elements: Provide a mixture of sounds:

Treble (high)

Alto (medium)

Subwoofer (low)

A

Product overview

Input connectors: • USB for MP3 files

• Bluetooth
• Unbalanced RCA input
• Unbalanced AUX input
• Balanced XLR input
  • Balanced 14 " TRS input

Output connectors: • Balanced XLR input

• Balanced 14 " TRS input (for the line arrays)
• Speakon (for an additional passive subwoofer)

Fuse: Cylindrical time-delay fuse - ∅ 5 x 20 mm, type

L5T, T3.15 AL/250 V AC

Amplifier power output: 500 W (RMS) per line array (1000 W in total) -

2800 W MAX

USB

USB compatibility: Up to 32GB

Supported USB file formats: MP3, SBC, AAC, WAV, FLAC, APE, WMA, F1A

Subwoofer

Power supply: 230 V \~, 50 Hz

Subwoofer crossover frequency: 160 Hz \~ 1K Hz

Maximum transmission power: 500 W

Bluetooth

Bluetooth® version: 5.0

Maximum power transmitted via BT: 4.39 dBm

Bluetooth name: EDENWOOD CURVE SYSTEM 18P

BT frequency: 2402 MHz\~2480 MHz

Remote control

Batteries: 2 x 1.5 V AAA batteries (not supplied)

Operating range: 5 metres

Compatibility disclaimer

Wireless performance is dependent on your device's Bluetooth wireless technology.

Please check with the manufacturer. ELECTRO DÉPÔT cannot be held responsible for any data loss or leaks resulting from the use of these devices.

Bluetooth®

Declaration of conformity

In this document, ELECTRO DÉPÔT declares that this unit complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be viewed on the following website: http://www.electrodepot.fr/sav/notices/

B

Product usage

Installation

Before installing the product, please take the following factors into consideration when choosing a location for the speaker system.

• Where do you want the sound to be projected for the best audio experience?
• Where is the best place for the sound technician to check the speaker system?
• Where will the subwoofer/amplifier be located for easy access to the control panel?
• Make sure the speaker system is placed in a dry, well-ventilated location on a stable surface that can support the weight of the system.

IMPORTANT!

- Before plugging in and switching on the speaker system, make sure that all the controls are turned off or set to the minimum level.

Assembling the speaker tripod

1. Unscrew the knob located just above the 3 legs of the tripod until it is loose.
2. Pull the 3 legs outwards, then tighten the knob to secure the legs into place.

NOTE: Extend the tripod legs as wide as possible as this will ensure that the speaker tripod is as stable as possible.

1. Loosen the knob at the top of the speaker tripod until the telescopic pole extends from the base tube.
2. Pull the telescopic pole upwards to extend it to the desired height.
3. Secure the telescopic pole in place by inserting the metal pin through 1 pair of holes located on the telescopic pole. Then position the telescopic pole so that the metal pin rests on the same base in which the telescopic tube was stored.
4. Tighten the knob to secure the telescopic pole in place.

WARNING! Take care when assembling the speakers as they are heavy. At least two people are required to mount the speakers onto the tripod.

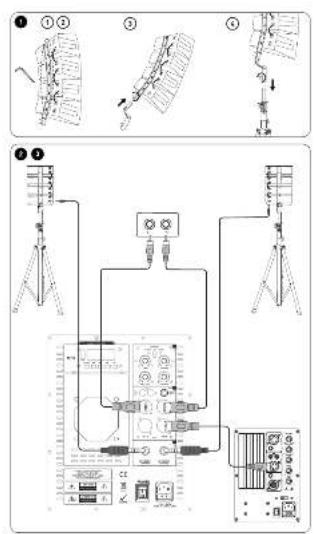

Assembling the speakers

2 speaker line arrays are provided. Each set comprises 4 speakers that need to be assembled prior to being mounted on the tripod.

B | Product usage

1 Place the 4 speakers on the ground with the back of the speakers facing upwards. Align the line array mount with the screw holes on the back of each speaker. Insert the 8 screws and tighten them with the Allen key.

② Once assembled, connect the 3 line array cables in the indicated configuration.

③ Unscrew and remove the knob on the line array mount. Align the hole in the metal mounting bracket with the hole on the line array bracket. Insert and tighten the knob to secure the metal mounting bracket in place.

NOTE: Please insert the metal mounting bracket as shown in the diagram.

④ Unscrew the metal mounting bracket's knob anticlockwise and mount the line array onto the tripod. Turn the knob clockwise to secure it firmly in place.

Repeat the process to assemble the second line array.

Connections

IMPORTANT!

- Before adding or changing connections, make sure that all parts of the speaker system have been disconnected from the power supply and all the controls are off or set to the minimum level.

Connecting an audio source to the line arrays and adding a speaker

2 To increase the performance of your audio source unit (i.e. any 350-500 mV stereo device), connect the source unit with the subwoofer (equipped with a built-in amplifier) and the line arrays, in addition to an additional speaker (if desired).

1. Connect the audio source unit to the BALANCED XLR/TRS INPUT connectors via an XLR or 14 " TRS input (cables not provided).

2. Connect the speaker line arrays to the SPEAKER OUTPUT (LEFT CH) and SPEAKER OUTPUT (RIGHT CH) connectors using the two 6 m 1/4" TRS cables provided.

3. Connect an additional speaker to the BALANCED XLR OUTPUT connector.

NOTE: The XLR output connectors are only active when the XLR/TRS inputs are in use.

Connecting a mixer

3 To fine-tune the sound settings, connect a mixer to the speaker system.

1. Connect the mixer to the BALANCED XLR/TRS INPUT connectors via a 14 " XLR/TRS cable.
2. As described above, connect the line arrays and an additional speaker, if desired.

NOTE: The XLR output connectors are only active when the XLR/TRS inputs are in use.

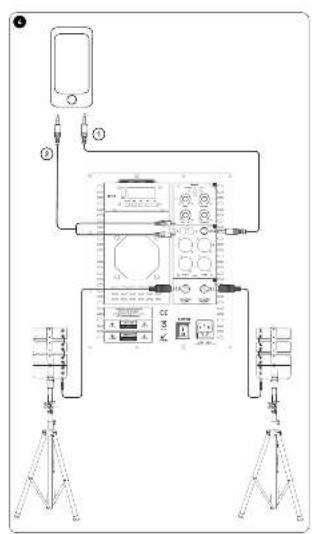

Option 1 – Connecting a phone, tablet, or iPod via an AUX INPUT connector

Any audio device with a 3.5 mm socket, such as a phone, tablet, or iPod, can be connected to the speaker system.

1. Connect the device to the speaker system by plugging a 3.5 mm jack cable into the AUX INPUT connector. Plug the other end of the cable into the device (e.g. phone, tablet etc.).
2. As described above, connect the line arrays and an additional speaker, if desired.

Option 2 – Connecting a phone, tablet, or iPod via an UNBALANCED RCA INPUT

1. Connect the device to the speaker system by plugging 2 x 3.5 mm jack cables into the UNBALANCED RCA INPUT connectors. Plug the other end of the cable into the device (e.g. phone, tablet etc.).
2. As described above, connect the line arrays and an additional speaker, if desired.

Connecting a USB device for MP3 file playback

1. Save your MP3 files onto a USB stick and then insert the USB stick into the speaker system. USB will automatically be displayed on the LCD screen and the unit will start to play any saved music.
2. As described above, connect the line arrays and an additional speaker, if desired.

Pairing with a Bluetooth device

To connect this speaker system to a Bluetooth device, you must first pair the speaker system with the device.

1. Turn on the Bluetooth device:

2. Go to the device's settings.

3. Enable the Bluetooth function.

NOTE: If your Bluetooth device was previously connected to another device, disconnect it before attempting to connect the device to the speaker system.

1. Turn on the subwoofer/amplifier by putting the MAIN POWER SWITCH in the ON position I. BLUE will flash on the screen to indicate that the speaker system has automatically entered pairing mode and is searching for a Bluetooth device. If the subwoofer/amplifier is already turned on and BLUE does not flash on the screen, press the MODE button until it does.

B

Product usage

1. When the Bluetooth device displays the speaker system's Bluetooth name - EDENWOOD CURVE SYSTEM 18P - select this name and confirm the pairing process.
2. BLUE will stop flashing when the devices have paired.

NOTE:

• Before connecting a Bluetooth device to this system, make sure you are familiar with the device's functions.
• If the system's Bluetooth name does not appear on your Bluetooth device, move the devices closer together. If that doesn't work, turn the devices off and back on again before restarting the pairing process.
• When pairing the devices, make sure they are less than 15 metres apart and there are no physical obstructions between them.
• Once paired, the devices should remember the connection and you shouldn't need to pair them again.
• Compatibility with all Bluetooth devices is not guaranteed.
• If the signal strength is weak, your Bluetooth receiver may disconnect. If no USB stick is connected, the system will automatically re-enter pairing mode. If a USB stick is connected, it will automatically start playing tracks from the USB. In this instance, remove the USB stick from the system to continue using the Bluetooth function.

Mains power supply and fuse

Warning!

• Select the correct voltage that corresponds to the power source (and fuse rating) before connecting the system to the power source.
• Only use the correct voltage, otherwise you risk damaging the system and/or injuring yourself and voiding the warranty.
• Before plugging in and switching on the speaker system, make sure that all the controls are turned off or set to the minimum level.

Connecting the speaker system to a power source

Once all your speaker system's connections have been set up, you can connect the subwoofer/amplifier to the mains power supply.

1. Connect one end of the power cable to the system's AC socket and the other end to the mains socket.
2. Slide the MAIN POWER SWITCH to the I position. The POWER LED INIDCATOR will turn on.

B

Product usage

Disconnecting the speaker system from a power source

1. Slide the MAIN POWER SWITCH to the O position. The POWER LED INIDCATOR will turn off.
2. Unplug the power cable from the system's AC socket and the mains socket.

NOTE: Always unplug the speaker system from the power supply when you are not planning to use it for a long period of time.

Replacing the fuse

Should your amplifier's output power exceed the speaker's load capacity, the fuse will blow and need to be replaced.

Warning!

- When replacing the fuse, you must use the exact same type: a cylindrical time-delay fuse - ∅ 5 x 20 mm, type L5T, T3.15 AL/250 V AC.

1. The fuse is located beneath the subwoofer/amplifier's AC socket.
2. Unplug the power cable from the subwoofer/amplifier.
3. Insert a flathead screwdriver into the small notch and lift up the fuse cover.
4. Insert the new fuse and close the cover.

Operation

Once you have set up the speaker system, you can either use the external audio source's controls (if available) or the MEDIA PLAYER panel and the system's sound settings on the back of the subwoofer/amplifier to play music and achieve an optimal sound. The remote control is a flexible way to remotely control music playback. To learn more about the various functions and how to use these commands, please refer to the table in the Product overview – Parts section of this manual.

Remote control

Inserting the battery

① Push the release clip on the battery compartment downwards and lift to remove the cover.
② Insert 2 x 1.5 V AAA batteries (not supplied) the correct way around, by observing the polarity (+ and -) indicated on the battery compartment.
③ Place the furthest end of the cover in position on top of the battery compartment. Then press the nearest end of the cover until you hear it click firmly into place.

B

Product usage

Operating the remote control

Point the remote control at the sensor from up to 5 metres away from the unit. The amplifier/subwoofer's remote control sensor is located at the front of the system. The range may vary depending on the brightness of the room.

Warning!

• Make sure there are no obstacles between the remote control and the unit's infrared sensor.
• Do not expose the remote's infrared sensor to direct sunlight or any other strong lighting, such as a fluorescent light.

Cleaning and maintenance

WARNING! Always unplug the system before carrying out any cleaning operations.

• Clean the exterior with a soft, dry cloth.
• Do not use flammable or abrasive detergents (e.g. benzene or white spirit) to clean the unit.
• Never immerse the speakers, subwoofer or cables in water and do not allow any liquid to enter any part of the unit.
• Clean the tripods and metal mounting brackets with a slightly damp, soft cloth. Dry them thoroughly.

Troubleshooting

Problem Possible Cause Solution

The subwoofer/amplifier is not working.	· The plug is not properly inserted or plugged in.· Check that the main power source fuse has not blown.	· Check the power cable and make sure it is securely plugged into the mains socket.· Check that the main power switch on the back of the unit is turned on and working properly.· Replace the fuse. If it is still not working, try plugging the system into another mains socket. If the problem persists, take the unit to your nearest service centre.
There is no sound.	· The speaker system connections are loose or not connected.· The volume is too low.	· Check all the connections are correct and firmly in place.· Increase the speaker system's volume and check that the audio source is not set to mute or a low volume.

C

Cleaning and maintenance

Problem Possible Cause Solution

The remote control doesn’t work	· The batteries are dead.· You are too far away from the speaker system.· The speaker system is set to another mode.	· Change the remote control batteries, making sure the polarities (+/-) are correct.· Move the remote control within 5 metres of the speaker system and point it at the sensor on the front of the subwoofer/amplifier.· Press the MODE BUTTON several times to select the appropriate source.
The Bluetooth name cannot be found.	· The Bluetooth function may not be enabled on the Bluetooth device.· You are too far away from the speaker system.· Another Bluetooth pairing is preventing you from pairing your Bluetooth device with the speaker system.	· Make sure the Bluetooth function is enabled on your Bluetooth device.· Move the Bluetooth device within 15 metres of the speaker system.· Remove any existing Bluetooth pairing and try pairing the devices again.

Storage

• Always unplug the unit from the mains before storing it.
- If you do not plan on using the unit for a long period of time, we recommend storing it in its original packaging in a cool, dry place, away from direct sunlight, dust and excessive dirt. Should you choose to store the product fully assembled, we recommend covering it to protect it from dust.
- Store the unit in a place out of the reach of children and pets.
- Use the original packaging, should you ever need to transport the product.

Bedankt!

Solid gray rounded rectangle shape with no text or symbols

¡Muchas gracias!

Solid gray rounded rectangle shape with no text or symbols

_

| _

一

1
