Ref.: SPLBOX200

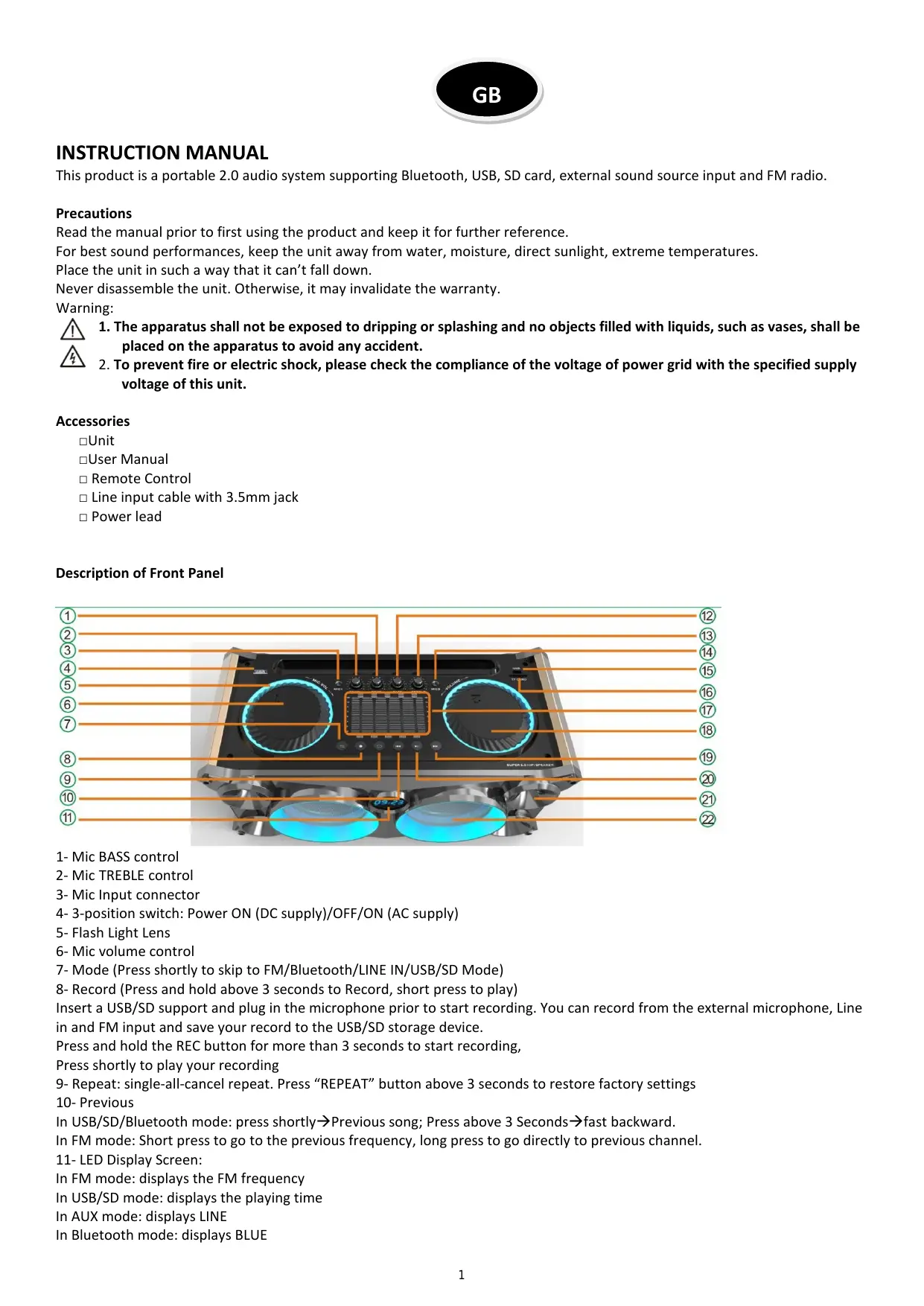

GB – Instruction Manual

This product is a portable 2.0 audio system supporting Bluetooth, USB, SD card, external sound source input and FM radio.

Precautions

Read the manual prior to first using the product and keep it for further reference.

For best sound performances, keep the unit away from water, moisture, direct sunlight, extreme temperatures.

Place the unit in such a way that it can't fall down.

Never disassemble the unit. Otherwise, it may invalidate the warranty.

Warning:

1. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus to avoid any accident.
2. To prevent fire or electric shock, please check the compliance of the voltage of power grid with the specified supply voltage of this unit.

Accessories

□Unit
□User Manual
□ Remote Control
☐ Line input cable with 3.5mm jack
□ Power lead

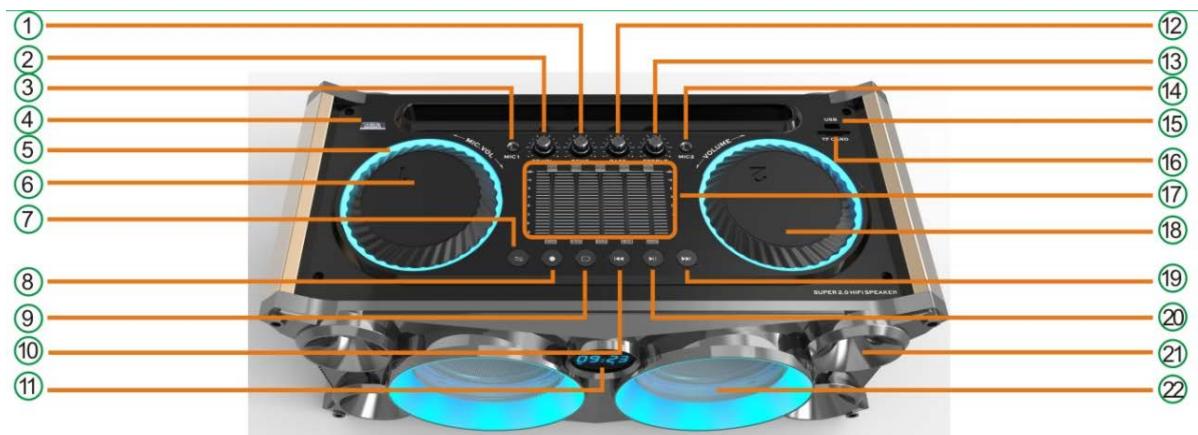

Description of Front Panel

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 VOLUME MCC FOL MC1 VOUT SUPER 2.0 HIFI SPEAKER

1- Mic BASS control
2- Mic TREBLE control
3- Mic Input connector
4- 3-position switch: Power ON (DC supply)/OFF/ON (AC supply)
5- Flash Light Lens
6- Mic volume control
7- Mode (Press shortly to skip to FM/Bluetooth/LINE IN/USB/SD Mode)
8- Record (Press and hold above 3 seconds to Record, short press to play)

Insert a USB/SD support and plug in the microphone prior to start recording. You can record from the external microphone, Line in and FM input and save your record to the USB/SD storage device.

Press and hold the REC button for more than 3 seconds to start recording,

Press shortly to play your recording

9- Repeat: single-all-cancel repeat. Press "REPEAT" button above 3 seconds to restore factory settings

10- Previous

In USB/SD/Bluetooth mode: press shortly→Previous song; Press above 3 Seconds→fast backward.

In FM mode: Short press to go to the previous frequency, long press to go directly to previous channel.

11- LED Display Screen:

In FM mode: displays the FM frequency

In USB/SD mode: displays the playing time

In AUX mode: displays LINE

In Bluetooth mode: displays BLUE

Otherwise it displays the current time

12- Echo Control

13- Guitar Volume Control

14- Guitar Input

15- USB Input

16- SD/MMC Input

17-EQ Control

18-Main Volume rotary Knob

19- Next

In USB/SD/Bluetooth mode: press shortly→Next song; Press above 3 Seconds→fast forward.

In FM mode: Short press to go to the next frequency, long press to go directly to next channel.

In FM mode, the first time you use this speaker, press and hold PLAY/PAUSE button for 2-3 seconds to search FM channels automatically

In LINE IN mode, this button is not working.

20- Play/ Pause

In USB/SD/Bluetooth mode this button has the Play/Pause function

In FM mode: press 2-3 seconds to scan automatically the FM radio channels. Press again to stop auto-searching

In LINE mode, this button has no function

21-Treble/Tweeter Speaker

22-BASS & Mid range Speaker

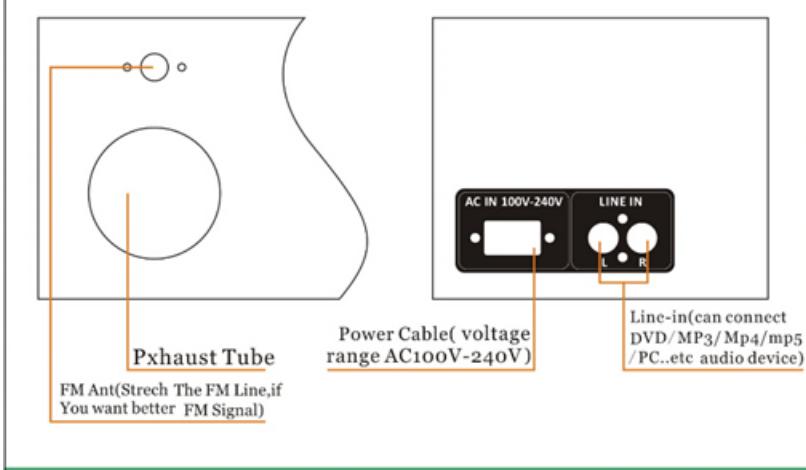

Description of Rear & side Panel

The back and sides

P Exhaust Tube FM Ant(Strech The FM Line,if You want better FM Signal) Power Cable( voltage range AC100V-240V) AC IN 100V-240V LINE IN Line-in(can connect DVD/MP3/MP4/mp5/ /PC...etc audio device)

Bass reflex port

FM Ant: Stretch the FM wire antenna to improve FM signal reception

Power input connector (Voltage range AC100V-240V)

Line input: to connect a DVD/MP3/Mp4/mp5/PC..etc. audio device

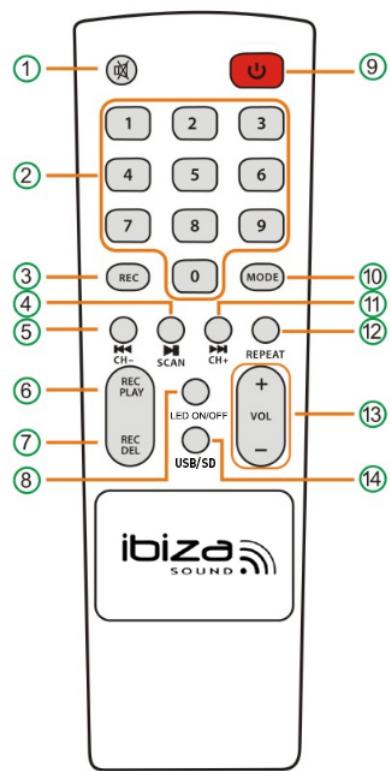

Description of Remote Control

1. MUTE: Stops the sound. Press again to switch the sound on again.

2. Number buttons

In USB/SD mode: press to access directly the track

In FM mode: press to select directly a stored radio station

In all other modes, these buttons have no function.

1. Record function

2. Pause/Play

In USB/SD/Bluetooth mode this button has the Play/Pause function

In FM mode: press to scan automatically the FM radio channels. Press again to stop auto-searching

In LINE mode, this button has no function

1. Previous

In USB/SD/Bluetooth mode: press shortly→Previous song; Press above 3 Seconds→fast backward.

In FM mode: Short press to go to the previous frequency, long press to go directly to previous channel.

1 2 3 4 5 6 7 8 9 10 11 12 3 4 5 6 7 8 REC 0 MODE REPEAT +VOL - i b i z a S O U N D 1 2 3 4 5 6 7 8 REC PLAY RECEL SCAN CH+ USB/SD LED ON/OFF - 14

In LINE mode: no function

1. Play recorded files on the USB/SD media

2. Delete recorded files on the SD/USB storage device

3. Switches the LEDs on the front panel ON and OFF.

4. Standby button

5. Mode: Short press to cycle through FM/Bluetooth/LINE IN/USB/SD Mode

6. Next

In USB/SD/Bluetooth mode: press shortly→Next song; Press above 3 seconds→fast forward.

In FM mode: Short press to go to the next frequency, long press to go directly to next channel.

In LINE mode: no function

1. Repeat: single-all-cancel repeat

2. Volume adjustment

3. Press to switch into USB/SD mode. In USB/SD mode: Plays the track on the USD/SD.

Operating Instructions

● Bluetooth Pairing Mode:

Press MODE button on the unit or the remote control until BLUETOOTH is selected.

1). Put the cell phone within 3 meters;
2). Activate the Bluetooth features on your cell phone so that the cell phone starts to search for the Bluetooth device. Please refer to the users' manual for details
3). Select "SPLBOX200" from the device found by the cell phone;
4). For some cell phones, the users have to key in the identification code "0000" and press ENTER key to pair the unit and cell phone.
5). Press RETURN key on the cell phone to exit from the cell phone menu and play music with the unit when there is no barrier between two cell phones within 10 meters. At this time, you can play music with the unit.
6). Shortly press PLAY/PAUSE button to play or pause music. Short press “◀◀” or “▶▶” key to select the previous or next track.

- FM (radio) Mode:

Press MODE button shortly after startup to switch over to "FM" status.

Auto radio station search and storage: Long press on the PLAY/PAUSE button and the unit will automatically search for radio stations in the radio frequency range between 87.5 and 108.0 MHz. 20 radio stations may be stored. Press a number button on the remote to access directly a stored radio station.

●LINE IN MODE:

Press MODE button on the unit or the remote control until LINE is selected. Play the music of the device connected to the LINE input on the rear panel.

- USB Mode:

1. After startup, press MODE to select "USB" and insert the USB device. The unit will automatically read and play the music in the USB device.
2. Press "▶II" key shortly to pause or play the track.
3. Shortly press "◀◀" key to skip to the previous track.
4. Shortly press “▶▶” key to skip to the next track.

- SD Mode:

1. After startup, press MODE to select "SD" and insert the SD card. The unit will automatically read and play the music in the SD card.
2. Press "▶II" key shortly to pause or play the music.
3. Shortly press "◀◀" key to skip to the previous track.
4. Shortly press “▶▶” key to skip to the next track.

Specifications

Max. output power: (AC power) 120W (DC power) 50W

Woofer-mid-range....2 x 5.5"/14cm

Tweeter 2 x 1.5" /3cm

Speaker impedance: 4Ω (woofer) + 8Ω (tweeter)

Frequency response....40-18kHz

Signal to noise ratio ....>70dB

Input voltage....100-240Vac 50/60Hz & 12Vdc

Built-in battery 4.5A lead-acid

Dimensions: 50 x 22.5 x 21.5cm

Weight: 6.8kg

Troubleshooting

Problem	Possible cause	Solution
No sound output when power on	1: No input sound source2: Volume knob in the lowest position3: USB/SD no plug	1:Connect a Line signal2: Adjust volume3: Insert a USB/SD Card
Distortion of sound	1:Volume too loud2: Audio file error	1:Turn volume lower2:Check and change the audio file3: Adjust Bass/Treble by “MENU” and “Main volume”
No sound from the Microphone	1:Microphone socket not fully plugged in2: Microphone switch is not on3: Microphone volume in lowest	1:Completely plug in the microphone socket2:Power on microphone3:Adjust microphone volume
No sound from the USB/SD card	1:incompatible song format2: Illegal operation causes failures3:USB/SD Card not inserted properly	1:songs format should be MP3/WMA2: Power off, then power on3:Insert USB/SD card properly
FM Radio problems	1:Can’t search radio channels2:FM no sound3:FM Channels too little4:FM sound not clear	1: The FM ANT is not expanded2: Switch to next Channel and try3: Try and position the FM ANT to a different angle4: Twist FM ANT to other side or try “Auto scan”
Speaker has big noise	1:Wired Microphone too close to the speaker2:Wired Microphone switch on but no use3: Microphone volume too loud4:Mobile phone too close to the speaker5:Too close to the equipment which interfere the speaker	1:Do not let wired Microphones head point at the speaker2:Turn off wired microphone if not in use3:Reduce microphone volume4: Keep mobile away from the speaker during calls5:Keep the speaker away from other sources of interference
Blue-connectFailure	1: Blue-connect Disconnected2: Blue-connect Connected but no voice3: Blue-connect effective distance too short	1: Find the right device Name “ SPLBOX200-BK” or “SPLBOX200-WH”. Or press "REPEAT" Button to Restore Factory Settings.2: Confirm if you connected the right device Name “SPLBOX200-BK” or “SPLBOX200-WH”3: Try to keep away from barriers, such as walls, glasses...etc

Remarks: If the problem persists, please contact your dealer.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

MANUEL D'UTILISATION

P Exhaust Tube FM Ant(Strech The FM Line,if You want better FM Signal) Power Cable( voltage range AC100V-240V) AC IN 100V-240V LINE IN L R Line-in(can connect DVD/MP3/MP4/mp5/ PC...etc audio device)

Port bass-reflex

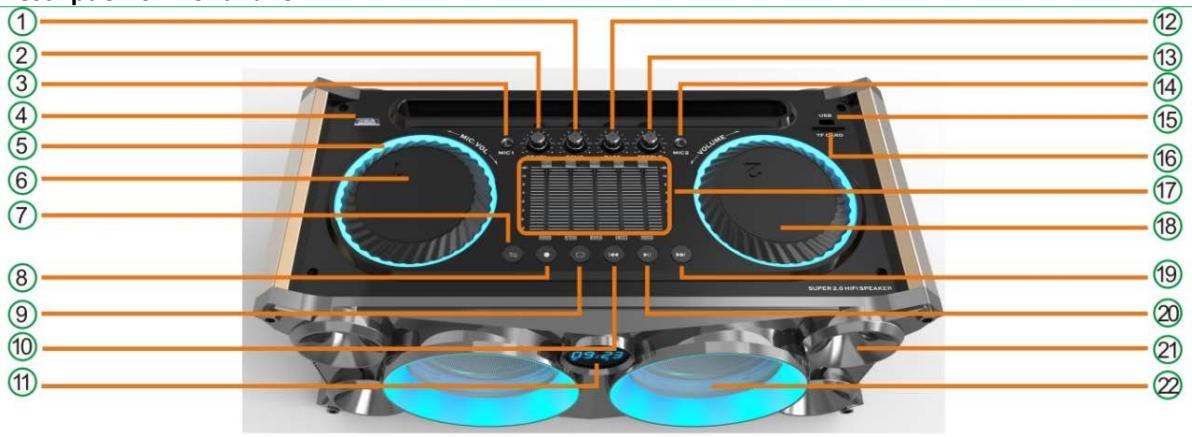

Description of Front Panel
