USER MANUAL THVC93220DBR THOMSON

Stick vacuum cleaner

THVC93220DBR

User manual

IMPORTANT WARNINGS AND SAFETY ADVICE

We encourage you to read this user guide carefully and completely before installing and using your device.

• It is important that this user guide is kept with the device for any new consultation. If this unit is to be transferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit.
• In this user guide, the following symbols are used:

Important information about your personal safety and how to avoid damage to the device
i	General information and advice
4	Risk of electric shock

Use and Precautions:

• Do not use the device until the accessories are properly adjusted.
• Do not use the appliance for sucking water or other liquid.
• Do not use this device if the on/off setting does not work.
• Do not force the working capacity of the unit.
• Unplug the appliance from the electrical system if you are not using it and before cleaning.
• This device is intended solely for household use and not professional or industrial.
• This device may be used by children 8 years of age or older,

and those with reduced physical, sensory or mental capacity or lack of experience or knowledge, if they are properly supervised or.

• If instructions for the safe use of the device have been given to them and the risks involved have been apprehended.
• Children should not carry out the cleaning and maintenance operations of the appliance unless under the supervision of an adult.
• This device is not a toy. Children should be supervised to ensure they do not play with the device.
• Leave the unit out of reach of children and/or disabled.
• Check this device the air vents are not blocked by dust,

dirt or any other object.

• Do not aspire to areas containing metal objects such as nails and (or) screws.
• Never pick incandescent or sharp objects (cigarette butts, ashes, nails ...)
• Do not open the battery in any case.
• Storing the battery in a location where the temperature does not exceed 40^ C .
• Recharge battery with the charger supplied by the manufacturer only.

• To Re-Charge the device, use the supplied adapter only. Specifications of the adapter: Input current: 100-240 V ~ 50/60 Hz Output Current: 500mA DC 26.5V

• A charger that is suitable for a certain type of batteries may cause explosion or fire when used with other batteries.

• Use the device only with supplied battery. Misuse other kind of batteries may cause a risk of explosion or fire.
• All improper use or not in accordance with instructions will void the warranty and product liability.
• Only use Li-ion batteries supplied.
• Warning: the plug must be removed from the socket-outlet before cleaning or maintenance the appliance.
• Please dispose the battery in your local recycle center.

• The battery must be removed from the appliance before it is scrapped;

• The appliance must be disconnected from the supply mains when removing the battery.

• The supply cord of charger cannot be replaced. If the cord is damaged the charger should be scrapped.

Tips and safety measures

Carefully read these instructions before operating the appliance, and keep it for future reference. Non observation and application of these instructions may cause an accident.

Electrical safety:

• Before connecting the battery charger to the main unit, check that the voltage on the rating label matches the device.
• The outlet of the machine must

coincide with the base of the socket. Never modify the socket. Do not use an outlet adapter.

• Please use the appliance only with the power adapter, which will be supplied with the appliance.
• Connect the device only to very low voltage, as indicated on the device.
• Do not expose the device to rain or in a humid environment. The water entering the device increases the risk of electric shock.
• If any part of the appliance casing breaks, immediately disconnect the appliance from the mains, to avoid possible electric shock.

• Do not use the appliance if it has dropped, if it shows visible signs of damage or if there is a leak.

• Do not force the electrical connection cable. Never use the power cord to lift, carry or disconnect the battery charger.

• Check the condition of the power supply cable. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the connection plug with wet hands.

Personal safety:

• Avoid contact with the battery fluid. In case of accidental contact with the eyes, wash them and consult a doctor. Battery fluid can cause rashes or burns.
• The unit contains accessories with pivoting parts. Hanging clothes, jewelry / pendants or long hair can be caught by moving parts. Dress appropriately for the

activity. Do not wear loose clothing or any pendant. Keep hair, clothing and gloves away from moving parts.

Installation

Make sure you have removed all packaging material from the product.

IMPORTANT

It is strictly forbidden to replace you even the power cable. If it is damaged it must be replaced by the after- sales your dealer store, the manufacturer, its customer service person or similar qualification to avoid a hazard.

If the appliance is dropped, please ask professional qualified person to check before using it again. Internal damage may cause accidents.

For any problem or repair, please contact the customer service store, your dealer, the manufacturer, its customer service person or similar qualification to avoid a hazard.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the User's Guide.

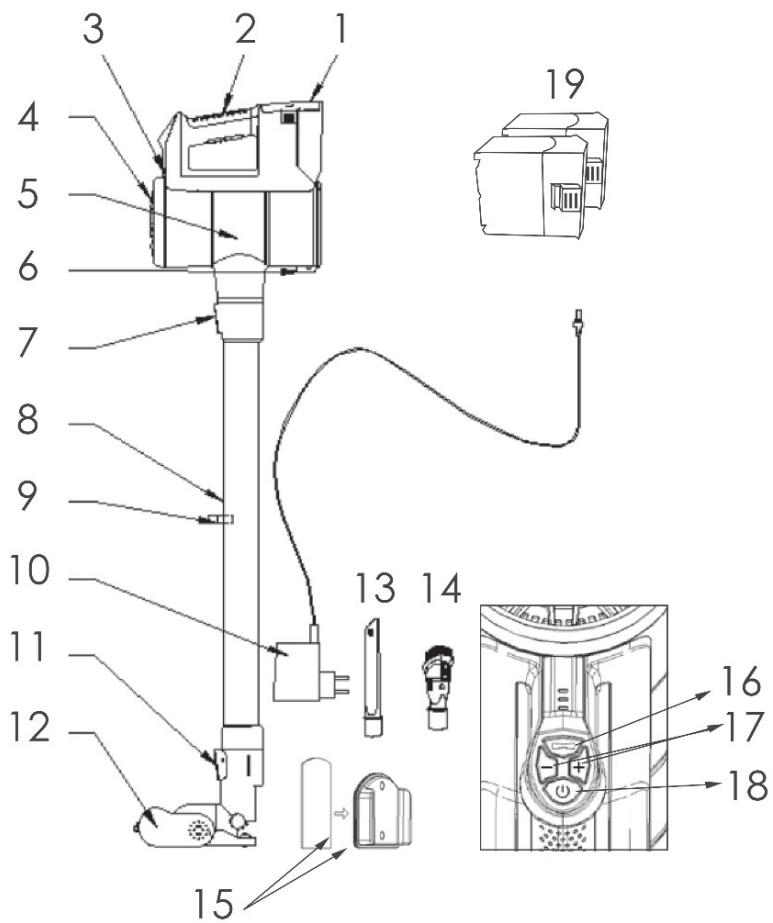

1. Detachable battery pack
2. Ergonomic handle
3. Indicator lights
4. Outlet filter cover
5. Dust tank
6. Dust tank release button
7. Metal tube release button
8. Metal tube
9. Accessory support

10. Adapter

11. Motorized floor brush release button

12. Motorized fluffy roller brush
13. Crevice tool
    14.2 in 1 brush tool
14. Wall mount with removable sticker
15. Floor brush switch(on/off)
16. Adjust power level
17. On/Off switch
    19.2 batteries pack set

Metal Tube

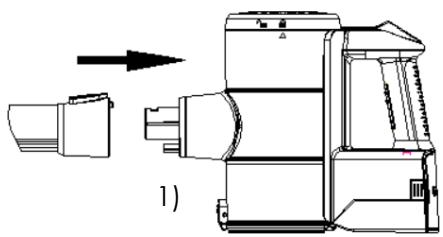

1) Insert the metal tube to the main body until a click sound is heard.

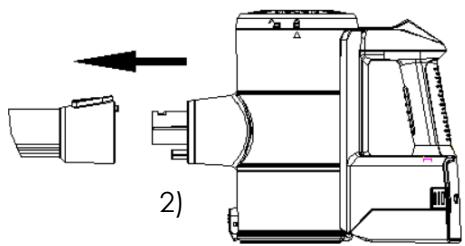

2) Press the metal tube release button and remove the tube.

Floor Brush Installation

1) Insert the motorized brush on the end of the tube until a click is heard.
2) Press the motorized floor brush release button to remove the motorized floor brush.

Note: The floor brush, crevice nozzle, and 2 in 1 brush can be directly connected to the main body or tube.

Installation of the dust container

1) Put the dust cup to the main body and twist counter-clockwise until it clicks.
2) Hold the opening part connected to the tube and twist clockwise to remove it.

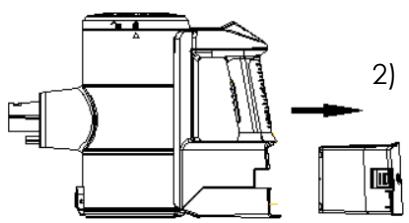

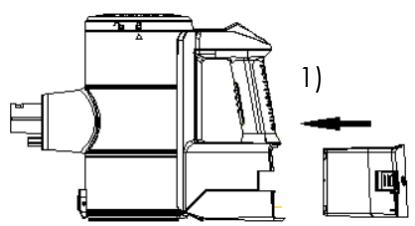

1) Install the battery into the bottom of the main body until it clicks.
2) Press the battery release button and pull it out.

BEFORE FIRST USE

UNPACKING THE APPLIANCE AND DISPOSING OF THE EMBALLAGIC ELEMENTS

• Remove all packing material around the appliance and the protective elements inside the appliance compartments.

• Carton board and sheets of paper are recyclable. They must be thrown in the collection bins provided for this purpose.

• Materials bearing the symbol are recyclable: >PE<=polyethylene;>PS<=polystyrene;>PP<=polypropylene

This means that they can be recycled by depositing them into appropriate collection containers.

• Other packaging elements (adhesive, fasteners, etc.) must be disposed of with household waste.

PRODUCT OPERATION

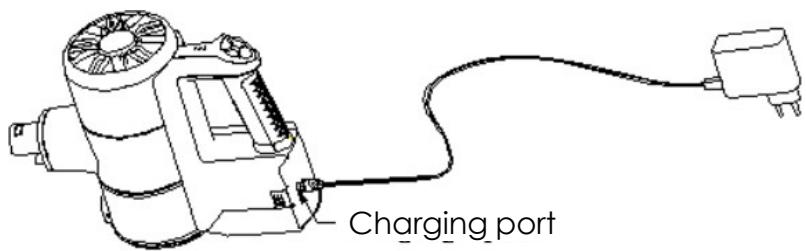

Charging

Plug adapter into charging port and then plug the other side of the adapter into the power outlet.

Note:

Charge the battery before the first use.
√ It is better to charge the battery fully in the first 3 times.
- Do not charge the battery for extended periods, as this may damage the battery.

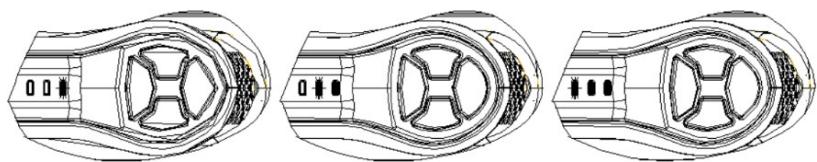

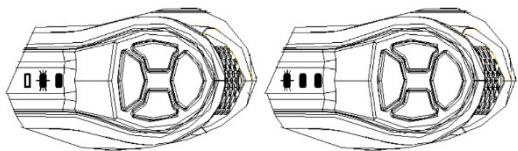

Indicator Lights

(A) During charging

Charging from low: lights flashing in turn:

Charging, 1/3 charged:

Charging, 2/3 charged:

Fully charged:

Fault: lights flashing at the same time. please contact us:

(B) During use

Full power:

Medium power:

Low power:

Out of power, please charge:

Cleaning Accessories

• Motorized floor brush: Suitable for rugs and hard floors. Turn it on/off by pressing the floor brush switch.

• Long crevice tool: for cleaning the trash in the corners, gaps, baseboard edges, and other hard-to-reach places.

• 2 in 1 brush tool: Use the brush to clean upholstered surfaces, keyboards, lamps, curtain, blinds, vents, etc. Perfect for cleaning hair and dust inserted on the fabric. Use the crevice portion to do the ordinary cleaning task. To switch between brush and crevice portion, press the button on the accessory and slide brush up or down.

Start to Work

1. Select the appropriate accessory to use according to different cleaning task.
2. Press the ON/OFF switch, the machine will start to work. Press it again to stop.
3. Press the +^ or - button to adjust 3 suction power levels.

Emptying

• Press the dust empty release button to empty the dust when clean task is finished.
  √ Close the cover of dust cup when it is empty.

Magnetic wall mount: no need to screw the bracket to the wall!

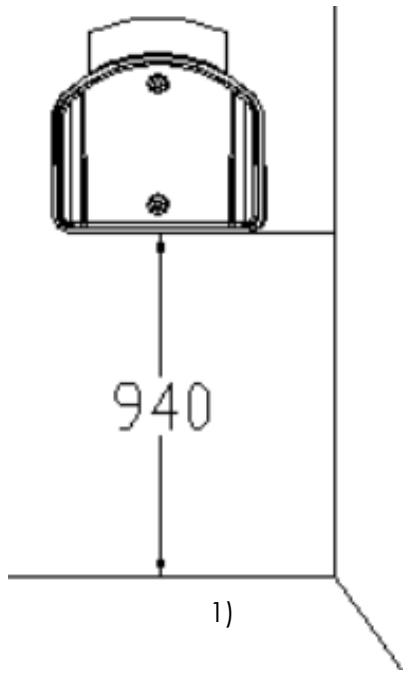

1) Keep the bottom line of removable sticker 940 ~mm to the floor, stick it to wooden, ceramics surfaces, etc. (removable gel sticker is washable)
2) Stick the magnetic holder to the gel sticker.
3) Stand the unit on the floor, keep it in the magnetic holder.

Dust Container and Filters Cleaning

Note: Clean the dust container and filters monthly to maintain the

performance.

1. Twist clockwise the dust container and then pull it out.

1. Lift out the filter mask and remove. Then separate the HEPA filter from the filter mask by twisting count clockwise and pulling out.

1. Clean the dust cup and filters under running water.

1. COMPLETELY dry the filters before reassembling.

Note:
Clockwise to lock

Counter-clockwise to unlock

Post-Motor Filter Cleaning

Note: Clean the post-motor filter every 6 months.

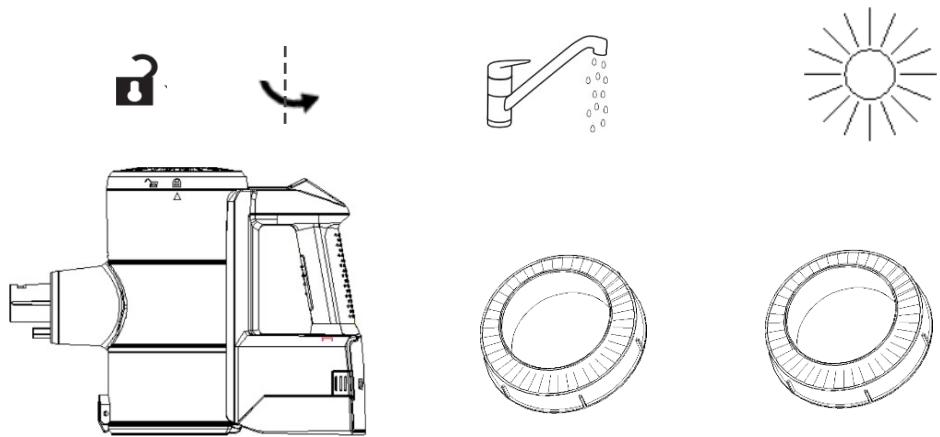

1. Turn the filter cover counterclockwise to remove it.
2. Lift out post-motor HEPA filter.
3. Shake to remove dust. Wash the filter under running cold water.
4. Completely dry the filter before reassembling.

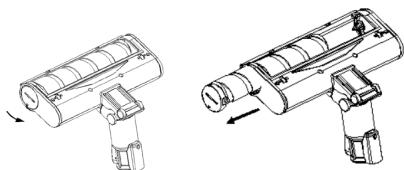

Floor Brush Cleaning

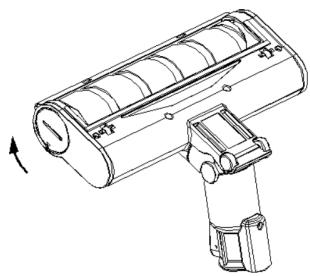

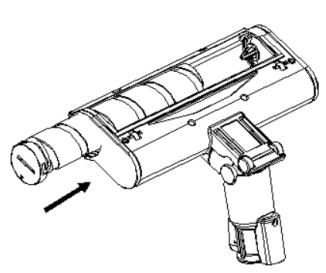

1. Use a coin press down by hand to turn the fastener counter-clockwise to unlock.

1. Remove the hair and debris around the brush roller by fingers or knife.

1. Wash the brush roller under running water.

1. COMPLETELY dry the brush roller before assembling.

1. To reassemble, install the brush roller inside the original place. Use a coin or press down to twist the fastener to lock.

If you encounter a problem with your device or if you suspect the device is not working properly, you can make a few simple checks before calling a technician.

Problem	Solution
No power	Before using the appliance, check that it is fully charged, empty the dust container and clean the filter.
Loss of aspiration	Check to see if the openings are clogged. Unplug and clean if necessary. Make sure the filter is correctly installed. Empty the dust container and clean the filter.
The motorized brush does not turn	Unplug the unit, check for clogged hair or dirt. If necessary, remove the rotating shaft from the power brush by unlocking the latch, clean and reposition the shaft by performing the reverse procedure. Make sure that the axle has been properly inserted into the power brush and the latch is in the locked position. The device may need to be recharged. Connect the device to the charger. The battery indicator will turn GREEN when charging is complete.
The battery indicator lights red while in use	The motorized brush is blocked. Turn off the vacuum and remove any object blocking the brush.

For any other problems occurring in your device: contact Customer Service.

CAUTION: The power brush contains electrical connections, do not immerse in water for cleaning.

TECHNICAL CHARACTERISTICS

• Power supply: Rechargeable battery
• Motor max. power: 220W
• Battery: Li-ion DC 22.2V 2000mAh
• Charging time: 4-5 hours Max
• Capacity of the dust bin: 0.6 L
• Speed levels: 3 speeds
• Product Dimensions: 240 × 220 × 1100 mm
  -Net weight:2.8kg

DISPOSAL

If that logo appears on the device, this means that it must be discarded in accordance with Directive 2012/19 / EU on electrical and electronic equipment (WEEE). All hazardous substances in electrical and electronic equipment can have deleterious effects on the environment and human health during treatment. Therefore, at the end of its useful life, this product should not be disposed of with unsorted municipal waste. As a consumer

Ultimately, your role is essential for reuse, recycling or any other form of value creation for this device. There are several systems of collection and recovery implemented by your local authority (recycling center) and distributors. You have an obligation to use those systems.

EXCLUSION OF WARRANTY

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) Deterioration of the surface due to the normal wear and tear;
(2) Defects or damage due to contact with liquid and corrosion caused by rust or the presence of insects;
(3) Any incident, abuse, misuse, alteration, removal or unauthorized repair;
(4) Improper maintenance, improper use about the product or connection to improper voltage;
(5) Any use of accessories not supplied or approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP

This product is imported by SCHNEIDER CONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON

WERKING VAN HET PRODUCT

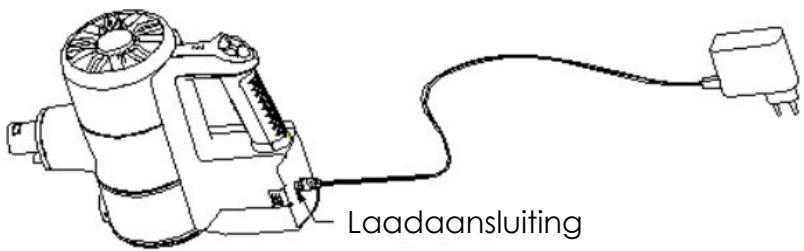

Opladen
