USER MANUAL HI5914/30 PHILIPS

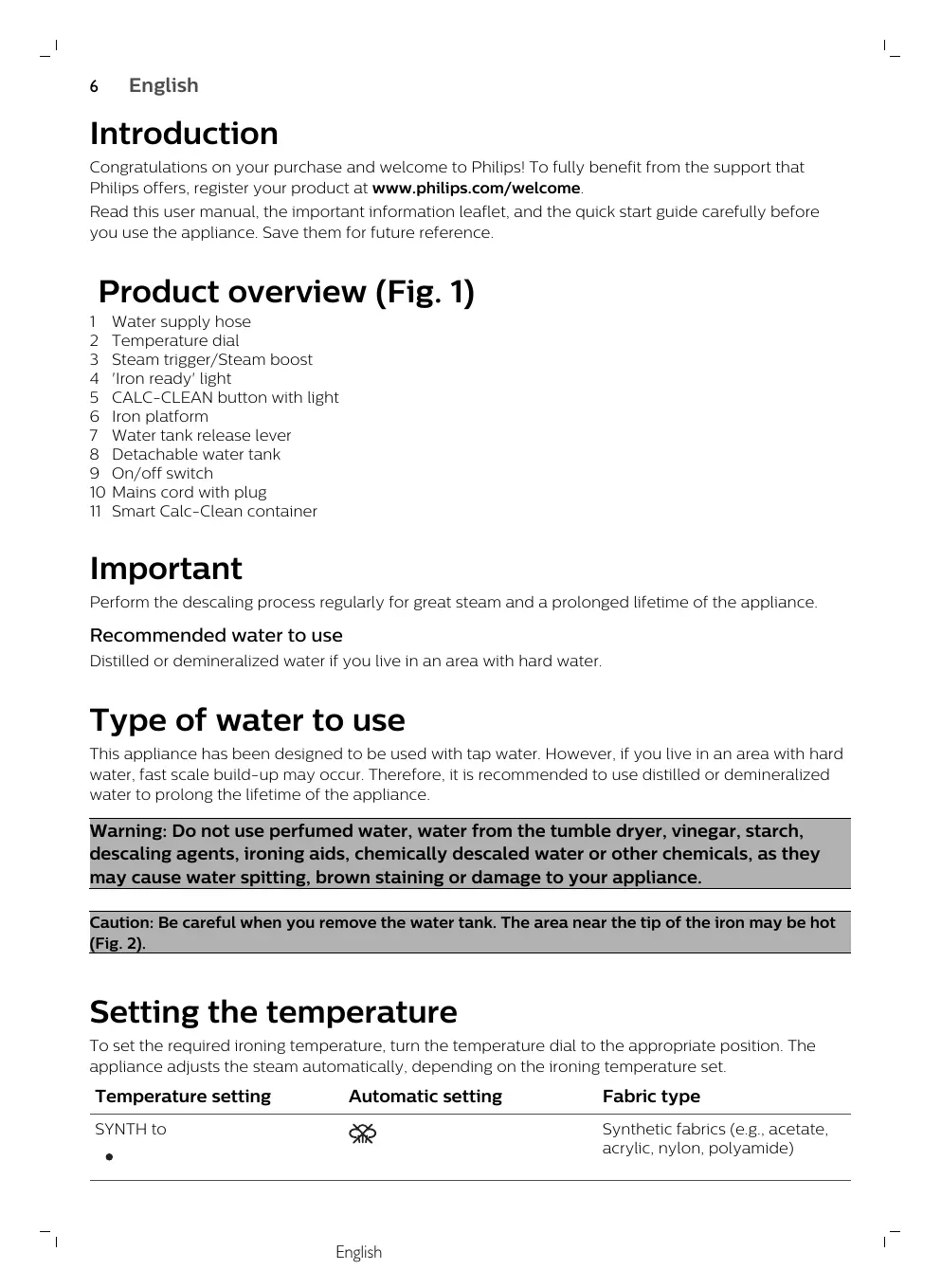

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

Product overview (Fig. 1)

Water supply hose Temperature dial

Steam trigger/Steam boost ‘lron ready" light

CALC-CLEAN button with light Iron platform

Water tank release lever Detachable water tank

10 Mains cord with plug

11 Smart Calc-Clean container

Important Perform the descaling process regularly for great steam and a prolonged lifetime of the appliance.

Recommended water to use Distilled or demineralized water if you live in an area with hard water.

Type of water to use

This appliance has been designed to be used with tap water. However. if you live in an area with hard water, fast scale build-up may occur. Therefore. it is recommended to use distilled or demineralized water to prolong the lifetime of the appliance

Warning: Do not use perfumed water, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Caution: Be careful when you remove the water tank. The area near the tip of the iron may be hot (Fig. 2).

Setting the temperature

To set the required ironing temperature, turn the temperature dial to the appropriate position. The appliance adijusts the steam automatically, depending on the ironing temperature set

Temperature setting Automatic setting Fabric type

SYNTH to æ Synthetic fabrics (e.g.. acetate.

. acrylic, nylon, polyamide)

Temperature setting Automatic setting Fabric type

. (he Woo, viscose, polyester and silk to LINEN & Cotton, li

Press and hold the steam trigger to start ironing. For best ironing results, after ironing with steam: perform the last strokes without steam

Safety auto-off mode

Specific models in this series have the safety auto-off mode.

—_ To save energy. the appliance switches off automatically when it has not been used for 5 minutes. The ‘iron ready" light flashes.

—_ To activate the appliance again, set the on/off switch to ‘off position and then to ‘on' position. The appliance then starts to heat up again

Cleaning and maintenance

Smart Calc-Clean System

Your appliance has been designed with a Smart Calc-Clean system to ensure that descaling and cleaning is done regularly. This helps to maintain a strong steam performance and prevents dirt and stains coming out of the soleplate over time. To ensure that the cleaning process is performed, the steam generator gives regular reminders.

Sound and light Calc-Clean reminder

After 1 to 3 months of use, the Calc-Clean light starts flashing and the appliance starts beeping to indicate that you have to perform the Calc-Clean process (Fig. 3)

Tip: You can continue to dry iron by not pressing the steam trigger.

Besides that, a second defense step to protect the steam generator from scale is integrated: the steam function gets disabled if descaling is not done. After descaling is done, the steam function will be restored. This takes place regardless of the type of water used

Note: The Calc-Clean process can be performed at any time, even when the sound and light reminder is not activated yet.

Performing the Calc-Clean process with the Calc-Clean container

Warning: Do not leave the appliance unattended during the Calc-Clean process.

Caution: Do not interrupt the process by lifting the iron up from the Calc-Clean container, as hot water and steam will come out of the soleplate.

1 Fillup the water tank halfway (Fig. 4) Note: Make sure that the appliance is plugged in and switched ON during the Calc-Clean process. 2 Tu the temperature dial to CALC-CLEAN (Fi. 5)

3 Place the Calc-Clean container on the ironing board or any other even, stable surface.

4 Place the iron stably on the Calc-Clean container (Fig. 6)

Note: The Calc-Clean container has been designed to collect scale particles and hot water during the Calc-Clean process. Itis perfectly safe to rest the iron on this container during the entire process.

5 Press and hold the Calc-Clean button for 2 seconds until you hear short beeps (Fig. 7)

6 During the Calc-Clean process, you hear short beeps and a pumping sound (Fig. 8).

7 When the Calc-Clean process is completed, the iron stops beeping and the CALC-CLEAN light stops flashing (Fig. 2)

8 Wipe the iron with a piece of cloth and put it back on the base station (Fig. 10).

9 As the Calc-Clean container becomes hot during the Calc-Clean process, wait approx. 5 minutes before you touch it. Then carry the Calc-Clean container to the sink, empty it and store it for future use (Fig. 11)

10 If necessary, you can repeat steps 1 to 8. Make sure that you empty the Calc-Clean container before you start the Calc-Clean process.

Note: During the Calc-Clean process, clean water may come out of the soleplate if no scale has accumulated inside the iron. This is normal

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country

Problem Possible cause Solution The iron does not You have set the Turn the temperature dial to + - or higher. produce any steam temperature dial to SYNTH to- The steam function has Perform the Calc-Clean process to restore been disabled until you the steam function. (see chapter ‘ Cleaning have performed the Calc- and maintenance’)

Atthe start of yourironing Press and hold the steam trigger until session, the steam trigger steam comes out. It may take up to 30 has not been pressed long seconds until steam comes out

enough The Calc-Clean light You have not done or have … Perform the Calc-Clean process to enable flashes. No steam comes not completed the Calc- the steam function again (see chapter

out of the soleplate Clean process "Cleaning and maintenance’)

and/or the appliance

The appliance has The safety auto-off function To activate the appliance again, set the switched off is activated automatically on/off switch to ‘off ’ position and then to

when the appliance has not _ ‘on’ position. The appliance then starts to been used for more than 5 heat up again minutes.

The appliance produces a loud pumping sound

The water tank is empty

FilL the water tank with water and press the steam tigger until the pumping sound becomes softer and steam comes out of the soleplate

Water droplets comes out of the soleplate

After the Calc-Clean process remaining water may drip out of the soleplate

Wipe the soleplate dry with a piece of cloth. If the Calc-Clean light still flashes and the appliance still beeps, perform the Calc-Clean process (see chapter ‘Cleaning and maintenance’)

Dirty water and impurities (brown stains, white flakes, etc.) come out of the soleplate

Impurities or chemicals present in the water have deposited in the steam vents and/or soleplate

Performs the Calc-Clean process regularly (see chapter ‘Cleaning and maintenance’)

Water flushes out of the soleplate

You have accidentally started the Calc-Clean process (see chapter “Cleaning and maintenance’)

Switch off the appliance. Then switch it back on again. Let the iron heat up until the ‘iron ready" light lights up steadily.

Al rights reserved 4239.001.0302.4 (12/2016)
