USER MANUAL BLC5X TELEFUNKEN

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IT CONTAINS IMPORTANT INFORMATION. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.
• THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS:

○ STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS;
○ FARM HOUSES;
O BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE ENVIRONMENTS;
BED AND BREAKFAST TYPE ENVIRONMENTS.

• THIS APPLIANCE SHALL NOT BE USED BY CHILDREN. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN.
• THIS APPLIANCE CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN.
• ALWAYS DISCONNECT THE APPLIANCE FROM THE SUPPLY IF IT IS LEFT UNATTENDED AND BEFORE ASSEMBLING, DISASSEMBLING OR CLEANING.
• WARNING: POTENTIAL INJURY FROM MISUSE.
• WARNING: AVOID SPILLAGE ON THE CONNECTOR.
• EXTRA CARE SHALL BE TAKEN WHEN HANDLING THE SHARP

CUTTING BLADES, EMPTYING THE BOWL AND DURING CLEANING.

• BE CAREFUL IF HOT LIQUID IS POURED INTO THE FOOD PROCESSOR OR BLENDER AS IT CAN BE EJECTED OUT OF THE APPLIANCE DUE TO A SUDDEN STEAMING.
• SWITCH OFF THE APPLIANCE AND DISCONNECT FROM SUPPLY BEFORE CHANGING ACCESSORIES OR APPROACHING PARTS THAT MOVE IN USE.
• THIS APPLIANCE CAN ONLY BE USED WITH ITS PROVIDED STAND.

SURFACES ARE LIABLE TO GET HOT DURING USE.

DURING USE, THIS APPLIANCE MAY REACH VERY HIGH TEMPERATURE AND CAUSE BURNS.
- SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.
- THE APPLIANCE MUST NOT BE IMMERSED.
- IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
- REGARDING THE INFORMATION FOR OPERATING TIMES AND ACCESSORIES SETTING, THANKS TO REFER TO THE BELOW PARAGRAPH OF THE MANUAL.

SAFETY INSTRUCTIONS FOR CLEANING AND MAINTENANCE

• ALWAYS UNPLUG THE APPLIANCE AND LET IT COOL DOWN COMPLETELY BEFORE ANY CLEANING OPERATION.

• NEVER IMMERSE IN WATER OR ANY OTHER LIQUID THIS APPLIANCE, ITS ELECTRIC PLUG AND CORD.

• THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.
  FOR THE DETAILS ON HOW TO CLEAN SURFACES IN CONTACT WITH FOOD, PLEASE SEE SECTION “CLEANING AND MAINTENANCE”.

SAFETY CAUTIONS

• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN.
• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER MAY CAUSE INJURIES.
• THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF IT HAS ANY VISIBLE DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY.
• ALWAYS UNPLUG THE APPLIANCE IF NOT USING IT FOR A PERIOD OF TIME.
• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.
• AFTER UNPACKING YOUR APPLIANCE, MAKE SURE YOU HAVE PUT IT ON A FLAT, STABLE AND HEAT-RESISTANT SURFACE. CHECK YOU HAD LEAVE ENOUGH SPACE BETWEEN YOUR APPLIANCE AND SURROUNDING WALL TO LET THE AIR CIRCULATE AROUND. THERE SHOULD BE AT LEAST 50CM ON THE TOP AND 20CM ON SIDES APART FROM THE APPLIANCE.
• THIS APPLIANCE MUST BE EARTHED.
• CHECK THAT YOUR ELECTRICAL INSTALLATION IS SUFFICIENT

FOR SUPPLYING THIS APPLIANCE.

• TAKE ALL NECESSARY MEASURE WITH CORDS AND EXTENSIONS TO AVOID ANY INJURIES WHILE IN USE.
• FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.
• DO NOT PUT THIS APPLIANCE ON TOP OF OTHERS.
• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE.
• NEVER MOVE THE APPLIANCE WHEN IN USE.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS. NEVER USE THE APPLIANCE WITH BARE OR WET FEET.
• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE. ALWAYS UNPLUG THE APPLIANCE FROM THE MAIN SOCKET.

STANDARDS

THIS APPLIANCE IS CONFORMED TO CURRENT DIRECTIVES AND STANDARDS.

SAFETY INSTRUCTIONS ON RECYCLING

The European Directive on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted

municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

TABLE OF CONTENTS

DESCRIPTION 1
SET UP AND USE 2
Before first use. 2
Assembling and disassembling the appliance. 3
Description of the control panel and the automatic program.. 4
Using your appliance. 6
TROUBLESHOOTING 8
CLEANING AND MAINTENANCE 9
TECHNICAL INFORMATION 10

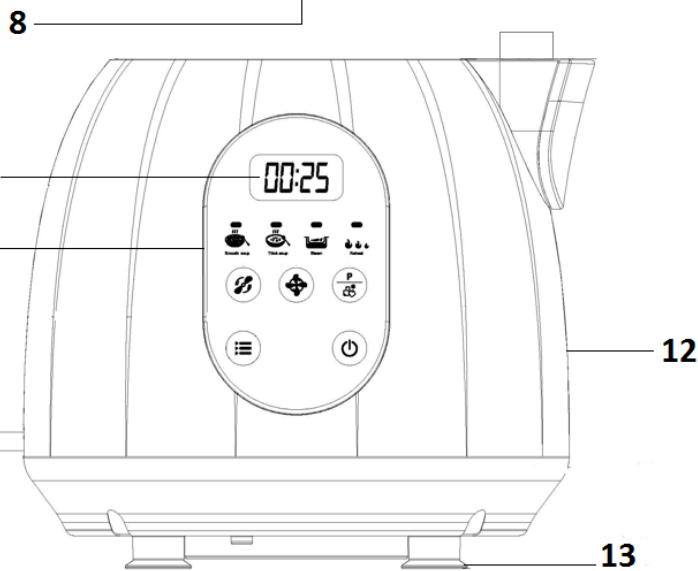

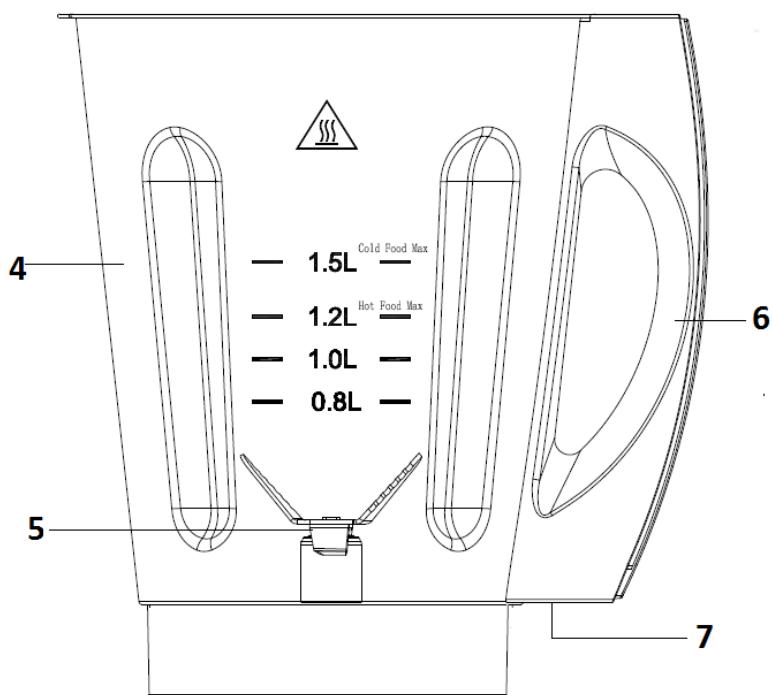

DESCRIPTION

1. Measuring cup

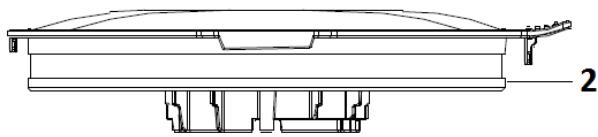

2. Cover lid

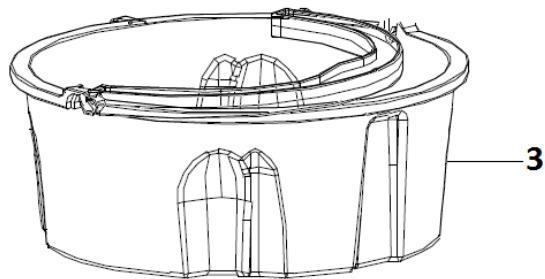

3. Steam basket
4. Stainless steel jar
5. Stainless steel blades
6. Jar handle
7. Electric connector on handle
8. Electric connector on jar base
9. Timer display
10. Electronic control panel
11. Power cord
12. Main body
13. Anti-slip feet

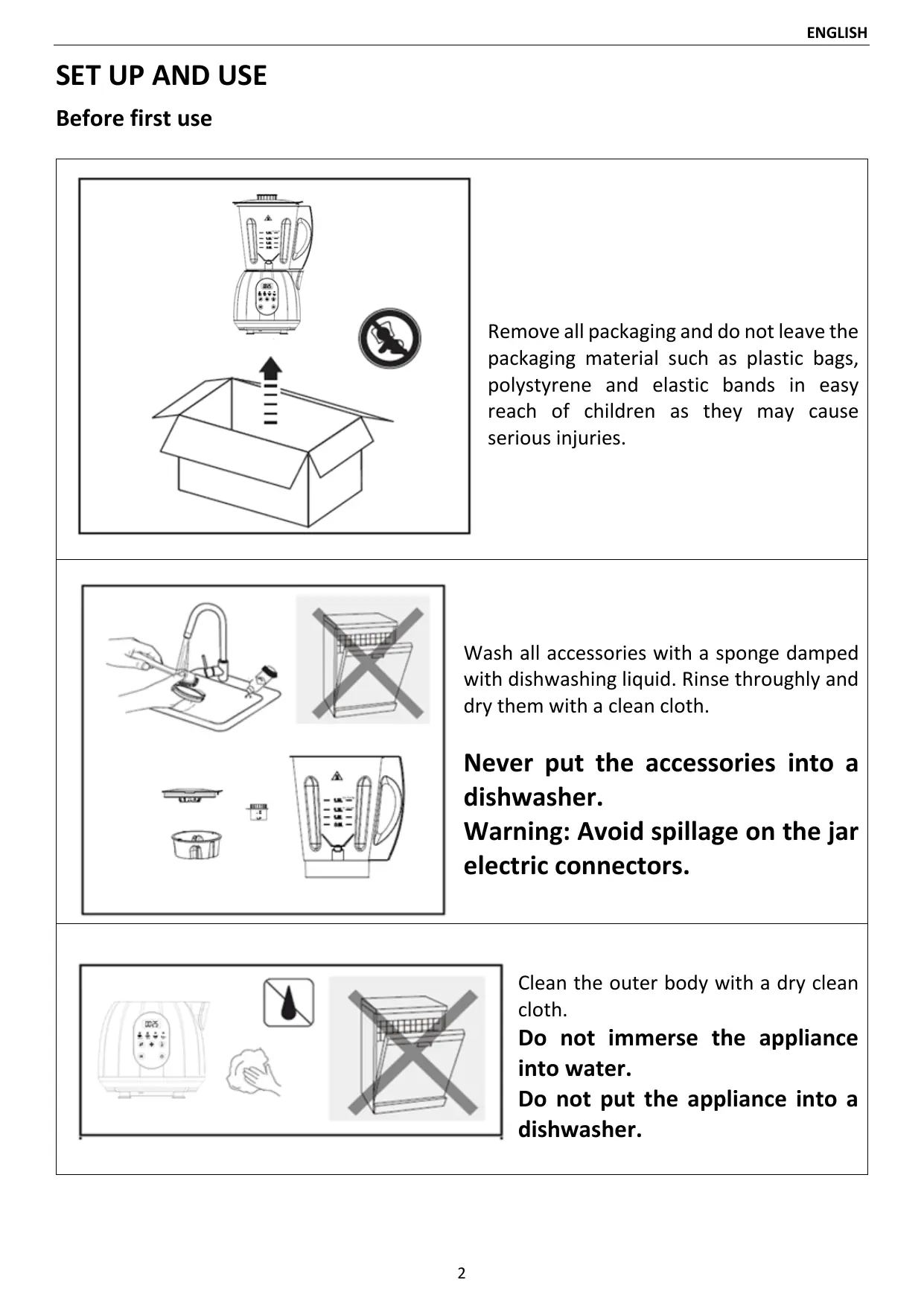

SET UP AND USE

Before first use

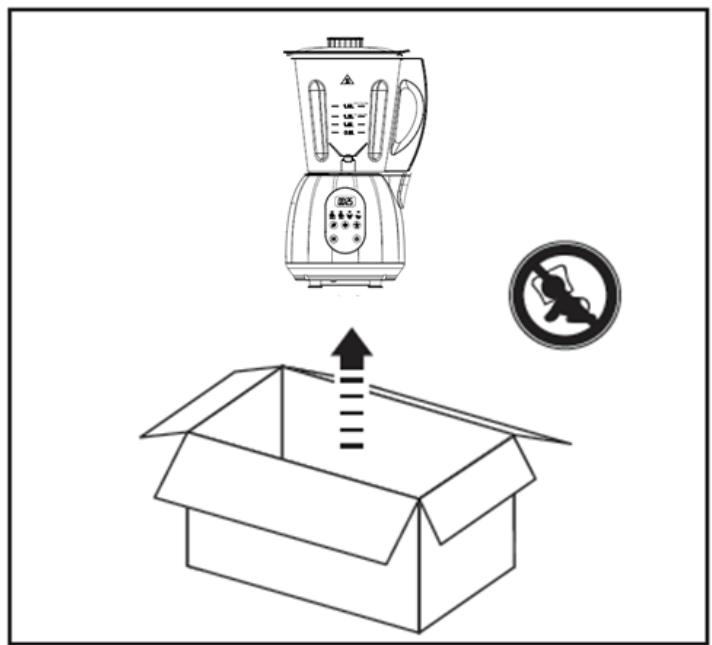

Remove all packaging and do not leave the packaging material such as plastic bags, polystyrene and elastic bands in easy reach of children as they may cause serious injuries.

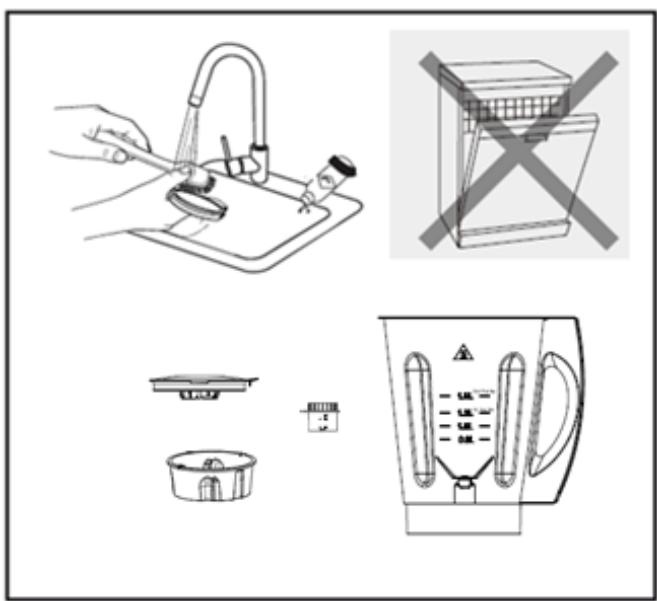

Wash all accessories with a sponge damped with dishwashing liquid. Rinse thoroughly and dry them with a clean cloth.

Never put the accessories into a dishwasher.

Warning: Avoid spillage on the jar electric connectors.

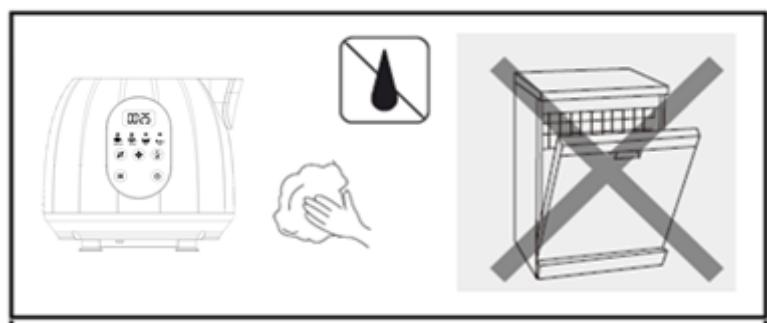

Clean the outer body with a dry clean cloth.

Do not immerse the appliance into water.

Do not put the appliance into a dishwasher.

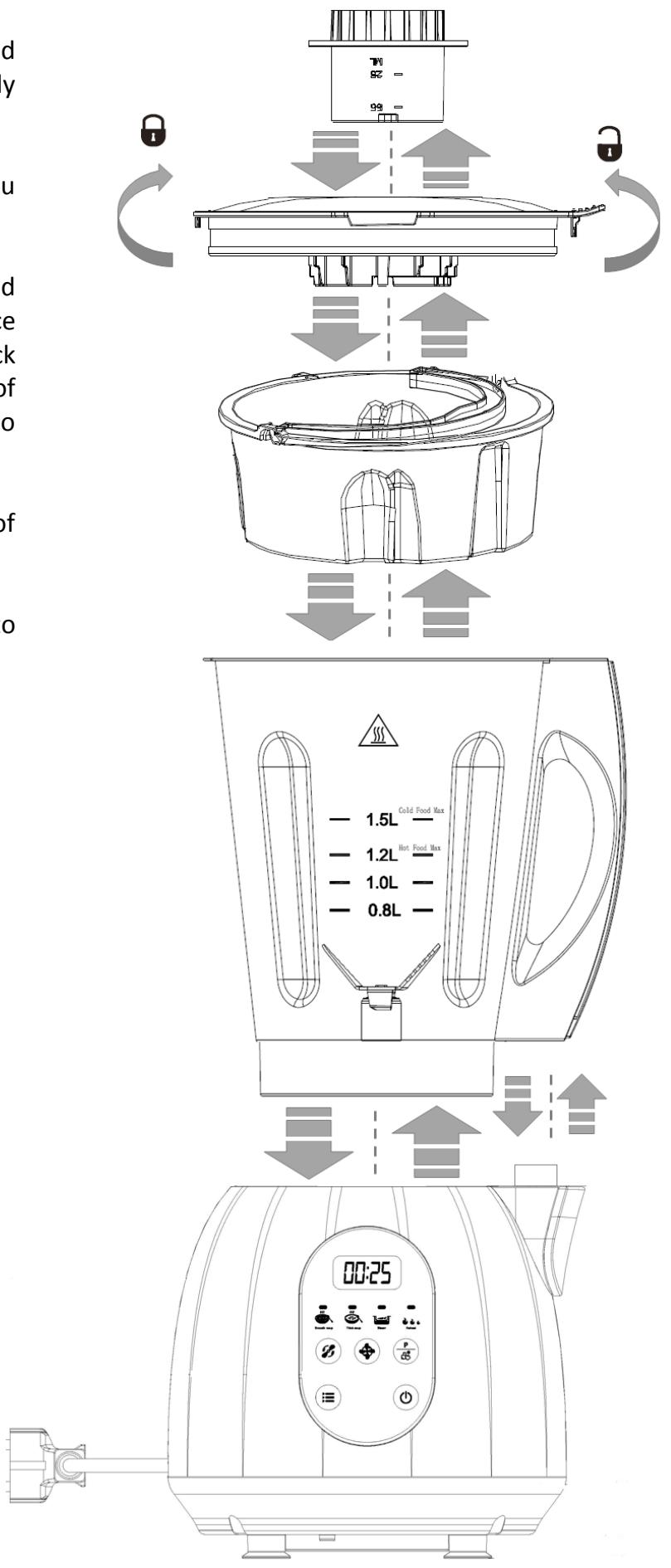

Assembling and disassembling the appliance

1. Lower the jar on to the motor unit, and press down till it clicks into place (it will only fit one way).
2. Insert the steam basket into the jar if you decide to use the steam function.
3. To fit the lid, turn clockwise the cover lid and slide the tip of the spout into the space at the front of the lid. Then push the back rear of the cover towards the notch on top of the handle till you hear the lid lock click into place.
4. Insert the measuring cup into the hole of the cover lid.

To disassemble the appliance, proceed to reverse steps.

Warning:

Never plug in the appliance before assembling the accessories. Always plug out when disassembling the appliance.

Ensure that all accessories are well assembled before switching on the appliance. If not the case, the appliance will not work.

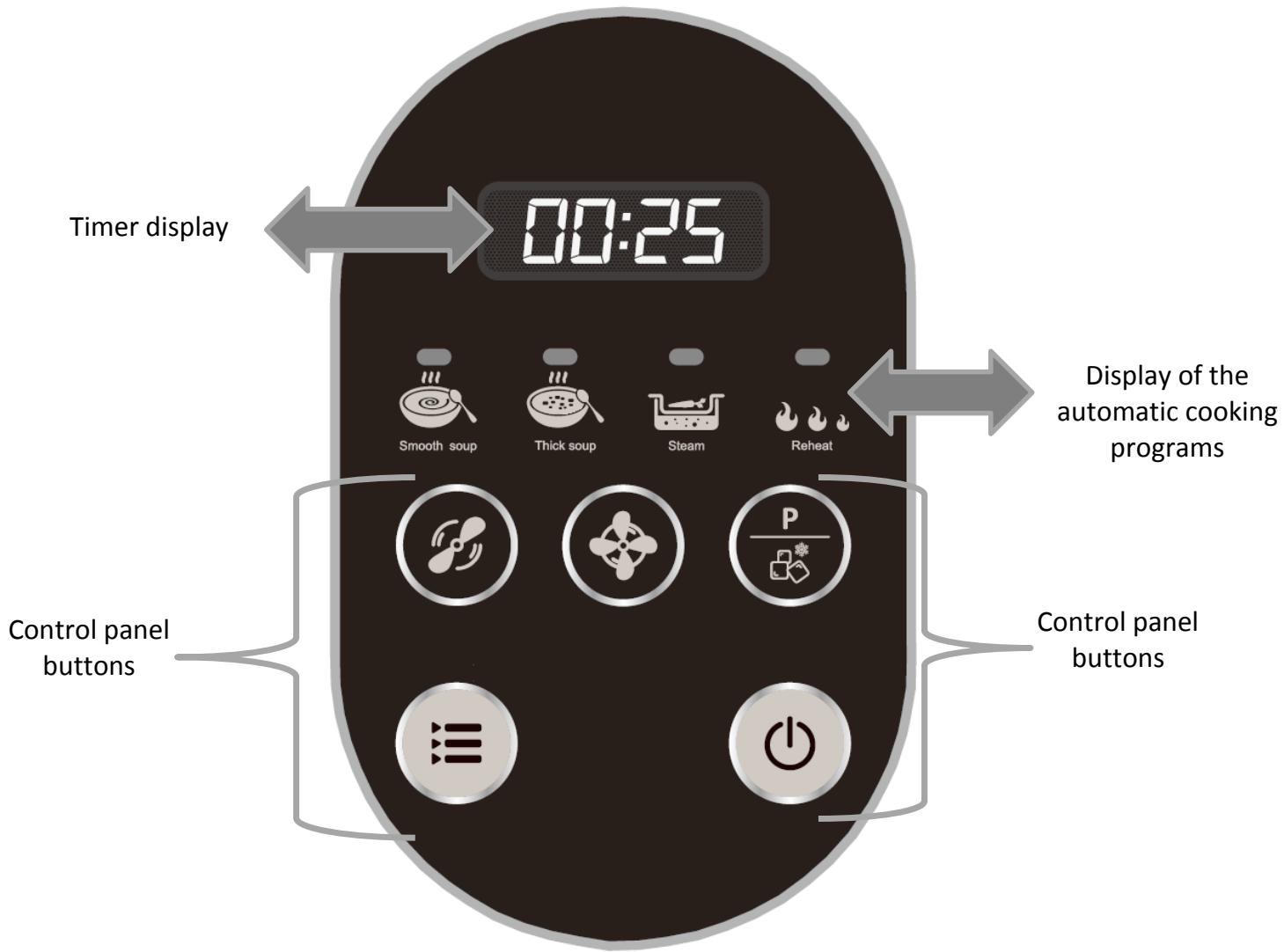

Description of the control panel and the automatic program

Control panel buttons description

	« ON/OFF » button: after the appliance is plugged in, the buzzer will beep and the power lamp will flash to enter into standby status. After selecting your program, press on the « ON/OFF » button to start the blending and/or cooking of your dish. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode (motor off, heating element off).
	« Menu » button: this button allow you to select one of the 4 automatic cooking programs. Press this button until you have selected your program. Note: the auto program selected will flash on the panel and remain light on during functioning.
	«Blending at low speed» button: press this button one time to select the blending at low speed then press on the « ON/OFF » button to start the blending. Press again the « ON/OFF » button to stop the blending. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode. Note: the program selected will flash on the panel and remain light on during functioning. Operating mode: blending for 3 minutes up to 7000rpm.
	«Blending at high speed» button: press this button one time to select the blending at high speed then press on the « ON/OFF » button to start the blending. Press again the « ON/OFF » button to stop the blending. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode. Note: the program selected will flash on the panel and remain light on during functioning. Operating mode: blending for 3 minutes up to 15000rpm.
P	«Pulse/Ice crush» button: press this button one time to select the Pulse/Ice crush program, the program will start automatically. Press again the « ON/OFF » button to stop the blending. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode. Note: the program selected will light on the panel and remain light on during functioning. Operating mode: blending for 10 seconds up to 15000rpm.

Description of the 4 automatic cooking programs

Smooth soup	« Smooth soup » program: automatic cooking program for smooth soup. Select this program by pressing on the « Menu » button then press on the « ON/OFF » button to start the blending and/or cooking of your dish. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode (motor off, heating element off). Operating mode: total working time of 30 minutes alternating between heating phase (max. 100°C) and blending phase.
Thick soup	« Thick soup » program: automatic cooking program for chunky soup. Select this program by pressing on the « Menu » button then press on the « ON/OFF » button to start the cooking of your dish. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode (motor off, heating element off). Operating mode: total working time of 30 minutes with only heating phase (max. 100°C).
Steam	« Steam » program: automatic program for steam cooking. Select this program by pressing on the « Menu » button then press on the « ON/OFF » button to start the cooking of your dish. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode (motor off, heating element off). Operating mode: total working time of 30 minutes with only heating phase (max. 10C).
Reheat	« Reheat » program: automatic program for reheat. Select this program by pressing on the « Menu » button then press on the « ON/OFF » button to start the cooking of your dish. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode (motor off, heating element off). Operating mode: total working time of 40 minutes with only heating phase (75°C - 85°C).

Using your appliance

1. Place your appliance on a flat and stable surface.
2. Place all the ingredients inside the blender jar and/or steam basket.
3. Ensure that all accessories are well assembled before switching on the appliance.

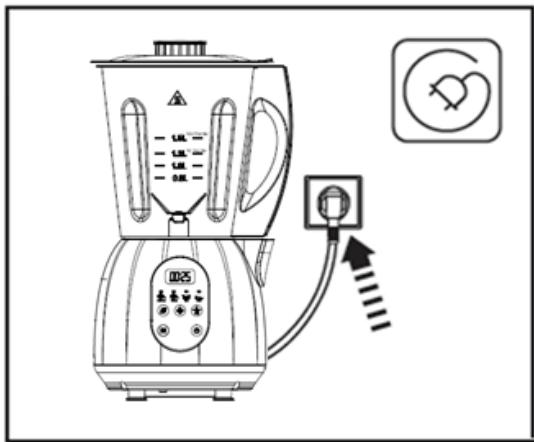

4. Plug the appliance to a power socket.

After the appliance is plugged in, the buzzer will beep and the power lamp will flash to enter into standby status.

Cooking with the 4 automatic cooking programs:

1. After adding your ingredients into the blender and finish assembling the appliance. Ensure that your appliance is plugged in and is on standby mode.
2. Press one time on the « Menu » button to select one of the 4 auto cooking program then press on the « ON/OFF » button to start the program.
3. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode.

Blending with the 2 blending programs:

1. After adding your ingredients into the blender and finish assembling the appliance. Ensure that your appliance is plugged in and is on standby mode.
2. Select one of the 2 blending programs by pressing one time on it then press on the « ON/OFF » button to start the program.
3. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode.

Blending with the Pulse/Ice crush program:

1. After adding your ingredients into the blender and finish assembling the appliance. Ensure that your appliance is plugged in and is on standby mode.
2. Press one time the Pulse/Ice crush button, the program will start automatically. Press again the « ON/OFF » button to stop the blending if necessary.
3. At the end of your program, the blender will produce 3 bips sound and the timer display will show “OFF”. Press one time on the button « ON/OFF » to enter standby mode.

Warning:

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Warning: avoid spillage on the electric connector.
• Never exceed the maximal level marked on the jar to avoid any injuries:

1.5L MAX. for cold dishes.
1.2L MAX. for hot dishes.

• Never insert your hands or any objects into the hole of the cover.
• Do not open the cover lid and measuring cup during use.

• Do not let the appliance work for more than 30 seconds without any food or water.
  Always ensure all the accessories are well assembled.

• Never use the appliance with wet hands.

• Do not move the appliance when in use.

Recipes:

Recipes	Programs	Ingredients	Preparation
Moroccan vegetables soup	Thick soup	1 red onion peeled and chopped 1 leek washed and chopped 1 red pepper deseeded and chopped 1 stick celeri chopped 1 green pepper deseeded and chopped 2 garlics peeled and chopped 1 coffee spoon of ras el hanout spices 400 g chopped tomatoes 1 tablespoon of tomato purée 1 stock cube (vegetables) 250ml water Salt and pepper	Put all ingredients into the jar blender. Close the jar blender with its lid. Select the « Thick soup » programm and press on the « ON/OFF » button to start the program.
Creamy pumpkin soup	Smooth soup	500g pumpkin deseeded and chopped 2 small potatoes peeled and chopped 1 onion peeled and chopped 60cl water 1 chicken stock cube 20cl fresh cream Salt and pepper	Put all ingredients into the jar blender. Close the jar blender with its lid. Select the « Smooth soup » program and press on the « ON/OFF » button to start the program.
Gaspacho	+ P	1 onion peeled and chopped 1/2 red pepper peeled and chopped 1/2 green pepper deseeded and chopped 1/2 cucumber chopped 1 garlic peeled and chopped 500 g chopped tomatoes 1 tablespoon of vinegar 1 slice of sandwich loaf Basil leaves 2 tablespoon of olive oil Salt and pepper	Place the vegetables, garlic and onion into the blender. Select the program « Blending at high speed ». At the end of the program, add the chopped sandwich load and press Pulse. Season, add the olive oil, basil leaves and vinegar. Press again on Pulse button. Let the preparation rest inside the fridge for 2 hours.
Crushed ice	P	200g ice cubes	Put the ice cubes into the blender, close it. Press on the « Pulse/Ice crush » button.
Mash potatoes	Steam +	800g potatoes peeled and cut in cubes 1 onion peeled and chopped 1 garlic peeled and chopped 25cl water 25cl fresh cream 1 pinch a nutmeg Salt and pepper	Put the cut potatoes into the steam basket. Pour water into the blender up to 1.0L marking, put the steam basket inside the blender and close it. Select the steam auto cooking program. At the end of the steaming, take out the steam basket, pour out the remaining water and place the cooked potatoes inside the blender. Add the remaining ingredients into the blender, close the lid and press on « Blending at high speed » button.
Reheat	Reheat	Cold dishes	Put all ingredients into the jar blender. Close the jar blender with its lid. Select the auto program « Reheat » press on the « ON/OFF » button to start the program
Anti-stress milkshake		4 peeled bananas125ml milk3 tablespoon of fresh cream1 scoop of vanilla ice cream	Add the ingredients into the blender, close the lid and press on « Blending at high speed » button.
Mango lassi		1 mango peeled, stoned and chopped20cl milk20cl yoghurt2 coffee spoons honey	Add the ingredients into the blender, close the lid and press on « Blending at low speed » button.
Mollets eggs	Steam	4 eggs	Put the eggs into the steam basket. Pour water into the blender up to 1.0L marking, put the steam basket inside the blender and close it. Select the steam auto cooking program, let the eggs cook for 6 minutes after the start of water boiling.Press on the « ON/OFF » button to stop the program.

TROUBLESHOOTING

Problems	Causes	Solutions
The appliance is not working after plugged in.	1. Wrong assembling of accessories. 2. The cover is not well assembled.	1. Disassemble and assemble again all accessories. 2. Switch off the appliance and replace correctly the cover.
Noise during operation.	1. Squeaking/cracking noises. 2. Vibration of motor/accessories.	This is normal: these noises indicate your machine is extracting the juice.
Abnormal noises or vibrations.	1. Accessories are not well assembled. 2. The appliance is not placed on a flat and stable surface.	1. Switch off the appliance, disassemble and assemble again the accessories 2. Switch off the appliance and place the appliance on a flat and stable surface.
Ingredients are burned and sticked at the bottom of the jar.	1. The ingredients have high volume of stash and/or sugar. 2. Too much ingredients and not enough water.	1. Change your recipe for next time. 2. Add liquids to your preparation.
Ingredients are not cooked enough at the end of the program.	1. Ingredients are too big. 2. Too much water or ingredients. 3. Some ingredients need longer cooking time.	1. Repeat the cooking program. Ensure to cut your ingredients smaller (2-3cm). 2. Take out the excess of water or ingredients. 3. Repeat the cooking program.

CLEANING AND MAINTENANCE

1. At the end of the program, switch off your appliance by pressing the button "ON/OFF".
2. Unplug your appliance from the power socket.
3. Ensure to always unplug your appliance before any cleaning operation. Never put the motor unit into the dishwashing or under the water.

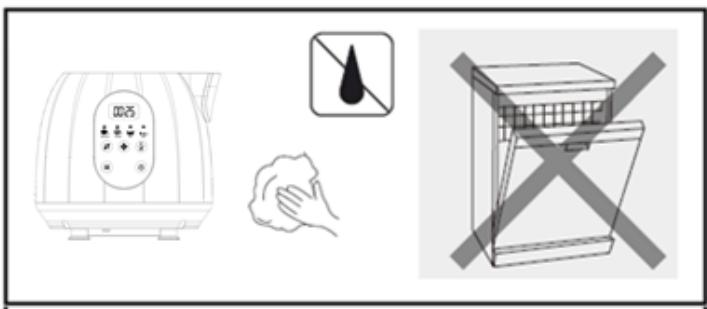

Cleaning the body motor unit:

Clean the outer surface with a soft cloth (or sponge) on the surfaces of the appliance.

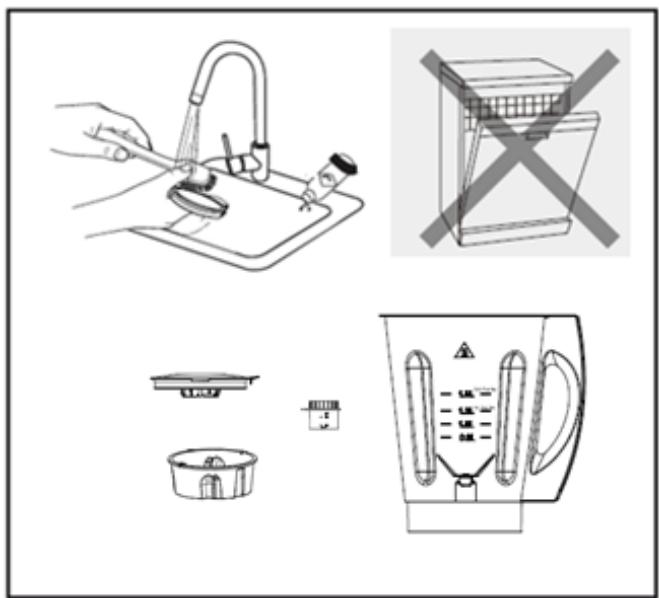

Cleaning the accessories:

Wash the accessories with a sponge and dishwashing liquid and rinse them.

Do not put the appliance into a dishwasher.

Warning: avoid spillage on the electric connectors of the blender.

Do not use a hard brush or any others cleaners to avoid scratching or damaging the appliance. Never immerse the appliance.

TECHNICAL INFORMATION

Model	BLC5X
Voltage	220-240V ~ 50Hz
Motor power	350W
Heating power	700-900W
Max. Capacity for cold dishes	1.5L MAX.
Max. Capacity for hot dishes	1.2L MAX.

TELEFUNKEN

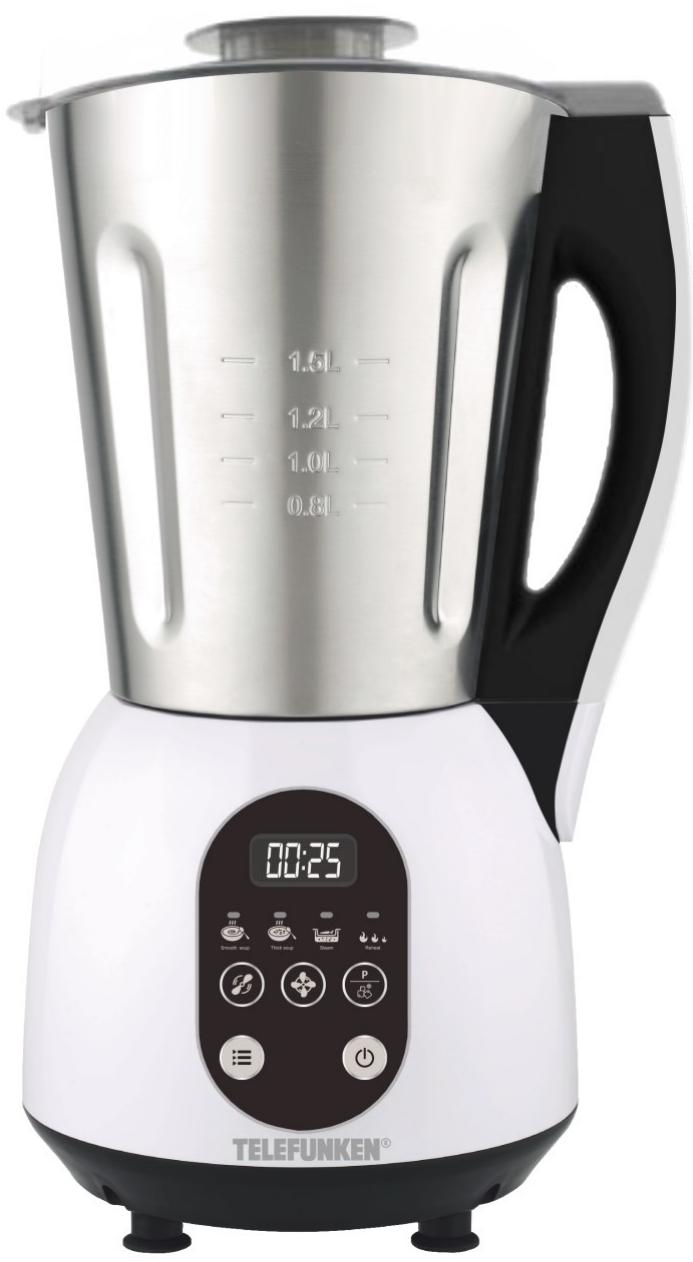

CLIMATIZADA BLENDER

BLC5X

This manual instruction is also available on the following website: http://pieces-detachees.sogedis.fr/
