HCBL33R - Blender TELEFUNKEN - Free user manual and instructions

Product type	Blender
Brand	TELEFUNKEN
Model	HCBL33R
Bowl capacity	1.5 L
Bowl material	Glass
Lid material	Plastic
Power	500 W
Voltage	220-240 V ~
Frequency	50/60 Hz
Number of speeds	5
Pulse function	Yes
Power cord length	Approx. 1 m
Net weight	Approx. 1.5 kg
Dimensions (L x W x H)	Approx. 20 x 20 x 40 cm
Care	Bowl and lid dishwasher safe (max temperature 90 °C)
Safety device	Automatic shut-off in case of overload, safety lock
Included accessories	Measuring cup, locking ring, sealing gasket, blade unit
Repairability	Spare parts available at pieces-detachees.sogedis.fr
Warranty	See manual
Environment	Do not dispose with household waste, recycle according to WEEE

Frequently Asked Questions - HCBL33R TELEFUNKEN

How to prevent the appliance from overheating?

Use the appliance for a maximum of 60 seconds, then let it cool down for 60 seconds before reusing. This prevents overheating and damage.

Can I blend hot liquids?

Yes, but with caution. Never remove the measuring cup while blending hot liquids to avoid burns. Use speed 1 or Pulse only.

How to clean the blades?

The blades are very sharp. Clean them with a plastic brush after unplugging the appliance and letting it cool. You can also wash the bowl in the dishwasher.

What to do if the appliance stops while in use?

This may be due to overload. Turn off the appliance, remove the bowl, reduce the amount of ingredients, then wait 10 minutes for the motor to cool before reusing.

Can I put the bowl in the dishwasher?

Yes, the glass bowl and lid are dishwasher safe at a maximum temperature of 90 °C. The motor unit must never be immersed.

Can the blender crush ice?

Yes, use the Pulse function (position P) to crush ice. Press and hold the selector in short bursts.

How to assemble the bowl correctly?

Place the gasket on the blade unit, insert it into the bowl, screw on the locking ring. Mount the bowl on the motor unit by turning clockwise until it locks.

What is the power of the appliance?

The power is 500 W, with a voltage of 220-240 V ~ and a frequency of 50/60 Hz.

Can I use accessories from other brands?

No, use only the accessories provided by the manufacturer. Using non-conforming accessories voids the warranty and may pose a hazard.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any hazard.

USER MANUAL HCBL33R TELEFUNKEN

SAFETY ADVICES AND WARNINGS 3

Warning 3
Danger of serious cung injuries 5
Danger of electrocuon 6
Conformity 7

DESCRIPTION 8

SET-UP AND USE 9

Before rst use 9
√ Installaon 9
√ Using your blender 9
✓ Troubleshoong 10

CLEANING AND MAINTENANCE 10

TECHNICAL INFORMATION 11

ENVIRONMENT AND RECYCLING 11

SAFETY ADVICES AND WARNINGS

WARNING!

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.

• THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS:

STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS;
FARM HOUSES;
BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE OF ENVIRONMENTS;
BED AND BREAKFAST TYPE ENVIRONMENTS.

• IT SHOULD NOT BE USED FOR ANY OTHER PURPOSE OR IN ANY OTHER APPLICATION, SUCH AS FOR NON-DOMESTIC USE OR IN A COMMERCIAL ENVIRONMENT. ANY COMMERCIAL USE, INAPPROPRIATE USE OR FAILURE TO COMPLY WITH THE INSTRUCTIONS, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY AND THE GUARANTEE WILL NOT APPLY.

• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF THERE IS VISIBLE SIGNS OF DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN OR THE NEAREST AUTHORIZED SERVICE CENTER FOR

EXAMINATION, REPAIR OR ELECTRICAL OR MECHANICAL ADJUSTMENT.

• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.
• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED OR SOLD BY THE MANUFACTURER MAY CAUSE INJURIES. THE APPLIANCE IS ONLY TO BE USED WITH THE BASE PROVIDED.
• THE APPLIANCE MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED TO THE MAIN SUPPLY.
• THE APPLIANCE MUST BE USED AND RESTED ON A STABLE SURFACE.
• ENSURE TO PLACE THE COVER LID SECURELY LOCKED ONTO THE BOWL BEFORE OPERATING THE APPLIANCE.
• POTENTIAL INJURY TO PERSONS MAY OCCUR DUE TO MISUSE.
• THIS APPLIANCE SHALL NOT BE USED BY CHILDREN. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN. APPLIANCES CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED.
• CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.
  DO NOT IMMERSE THE PRODUCT UNDER WATER.

• ENSURE THE BOWL AND THE LID COVER ARE SECURELY LOCKED BEFORE OPERATING THE APPLIANCE.

• DO NOT OPERATE YOUR APPLIANCE WHEN EMPTY.

• SWITCH OFF THE APPLIANCE AND DISCONNECT FROM SUPPLY BEFORE CHANGING ACCESSORIES OR APPROACHING PARTS THAT MOVE IN USE.
  FOR THE DETAILS ON HOW TO CLEAN SURFACES IN CONTACT WITH FOOD, PLEASE SEE SECTION "CLEANING AND MAINTENANCE".
• REGARDING THE INFORMATION FOR OPERATING ACCESSORIES AND SPEED SETTING, THANKS TO REFER TO THE BELOW PARAGRAPH OF THE MANUAL.

DANGER OF SERIOUS CUTTING INJURIES!

• NEVER PUT YOUR HANDS INSIDE THE BOWL WHILE THE APPLIANCE IS PLUGGED IN. AVOID AT ALL COST TOUCHING THE SHARP BLADES WHEN THE APPLIANCE IS PLUGGED IN AND OPERATING.
• ALWAYS UNPLUG THE APPLIANCE FROM THE OUTLET WHEN NOT IN USE.
• ALWAYS UNPLUG THE APPLIANCE BEFORE REACHING INTO THE BOWL WITH YOUR FINGERS OR AN OBJECT SUCH AS THE SPATULA.
• ALWAYS UNPLUG THE APPLIANCE BEFORE PUTTING ON OR TAKING OFF ACCESSORIES.
• ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING.
• IF THE BLADES GET STUCKED, ALWAYS UNPLUG THE APPLIANCE BEFORE REMOving THE INGREDIENTS THAT BLOCKING THE BLADES.
• KEEP HANDS, LONG HAIR, CLOTHING, SCARF, TIES AS WELL AS SPATULA AND OTHER USTENSILS AWAY FROM THE TOP

OF THE APPLIANCE DURING THE OPERATION TO REDUCE THE RISK OF INJURY AND/OR DAMAGE TO THE APPLIANCE.

• EXTRA CARE SHALL BE TAKEN WHEN HANDLING THE SHARP CUTTING BLADES, EMPTYING THE BOWL, AND DURING THE CLEANING PROCESS.

DANGER OF ELECTROCUTION!

• THIS APPLIANCE MUST BE EARTHED. IF YOU NEED TO USE AN EXTENSION LEAD, IT IS IMPORTANT THAT YOU USE A MODEL FITTED WITH AN EARTH PLUG.
• ENSURE TO CHECK THAT THE VOLTAGE MARKED ON THE RATING PLATE MATCHES TO YOUR LOCAL SUPPLY. IF NOT THE CASE, DO NOT USE THE APPLIANCE AND SEEK FOR EXPERT ADVICE.
• DO NOT LET THE SUPPLY CORD HANG OVER EDGE OF TABLE OR COUNTER.
• NEVER IMMERSE THIS APPLIANCE IN WATER.
  FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER USE THE APPLIANCE OUTDOOR AND NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.
• NEVER USE APPLIANCE AS AN ADDITIONAL HEATING SOURCE.
• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE. THE APPLIANCE MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED TO THE MAIN SUPPLY.
• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED TECHNICIANS IN ORDER TO AVOID A HAZARD. THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR

SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.

• THE APPLIANCE IS NOT INTENDED TO BE OPERATED BY MEANS OF AN EXTERNAL TIMER OR SEPARATE REMOTE-CONTROL SYSTEM.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS.
• NEVER USE THE APPLIANCE WITH BARE OR WET FEET.
• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE OR THE APPLIANCE ITSELF.
• THE PLUG MUST BE REMOVED FROM THE SOCKET-OUTLET BEFORE THE BOWL IS FILLED WITH WATER OR LIQUID PREPARATIONS. TO ADD WATER, TURN THE APPLIANCE OFF USING THE SWITCH. NEVER FILL THE APPLIANCE UNDER RUNNING WATER.
• ALWAYS UNPLUG THE APPLIANCE BEFORE ANY CLEANING OPERATION.
• DO NOT LIFT AND NEVER MOVE THE APPLIANCE WHEN IN USE.

CONFORMITY

THIS APPLIANCE HAS BEEN PRODUCED, CONTROLLED AND IN COMPLIANCE WITH THE FOLLOWING EUROPEAN DIRECTIVES LVD 2006/95/EC, EMC 2004/108/EC, ERP 1275/2008/EC, EMF 2013/35/EU, REACH 1907/2006/EC, WEEE 2012/19/EC, ROHS 2002/95/EC + 2011/65/EU.

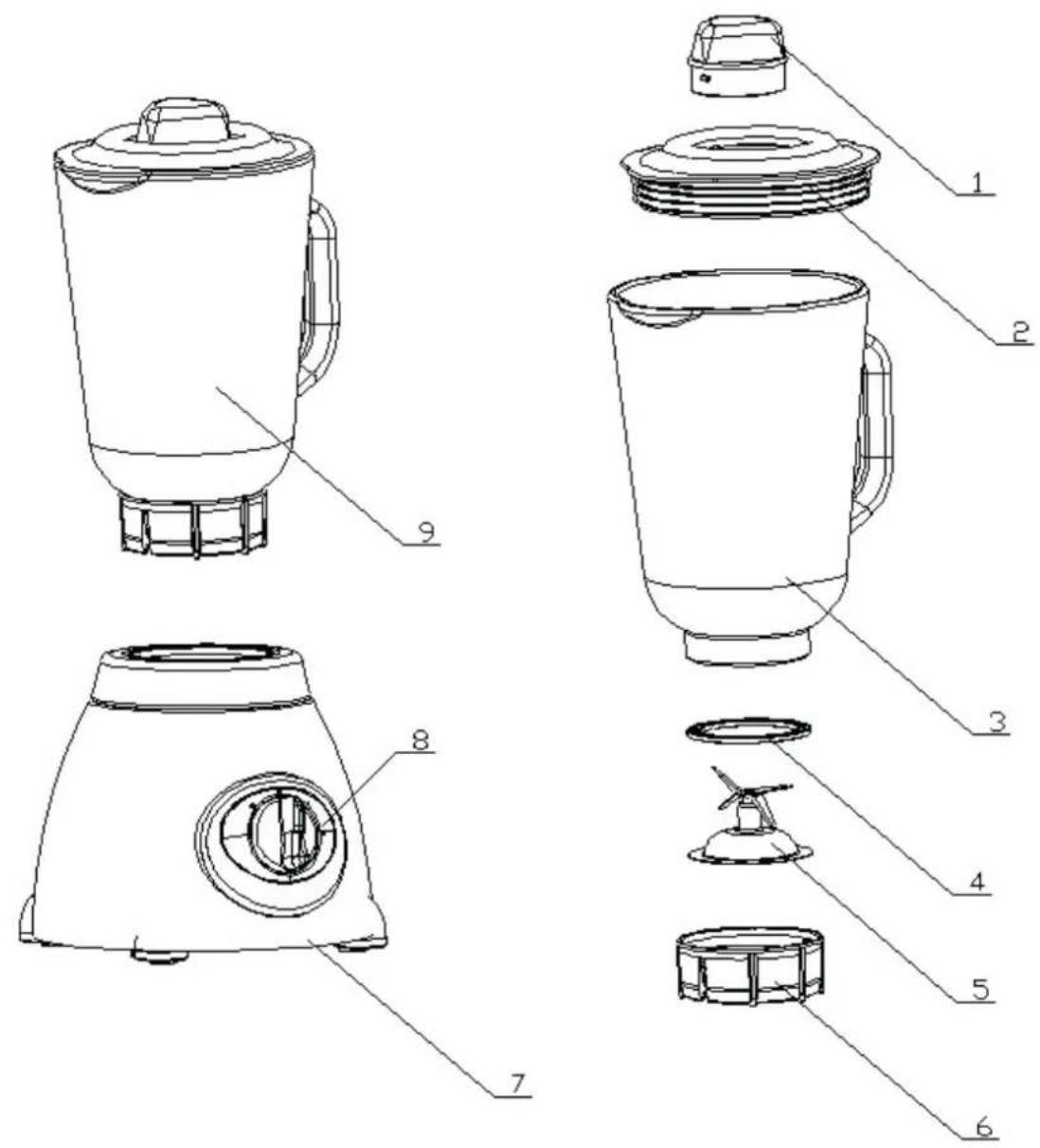

DESCRIPTION

1. Measuring Cup 6. Cup base
   2.Lid 7.Motor Base
2. Glass Jar 8. Rotary switch
3. Sealing ring 9. Jar Assembly
4. Cung blade

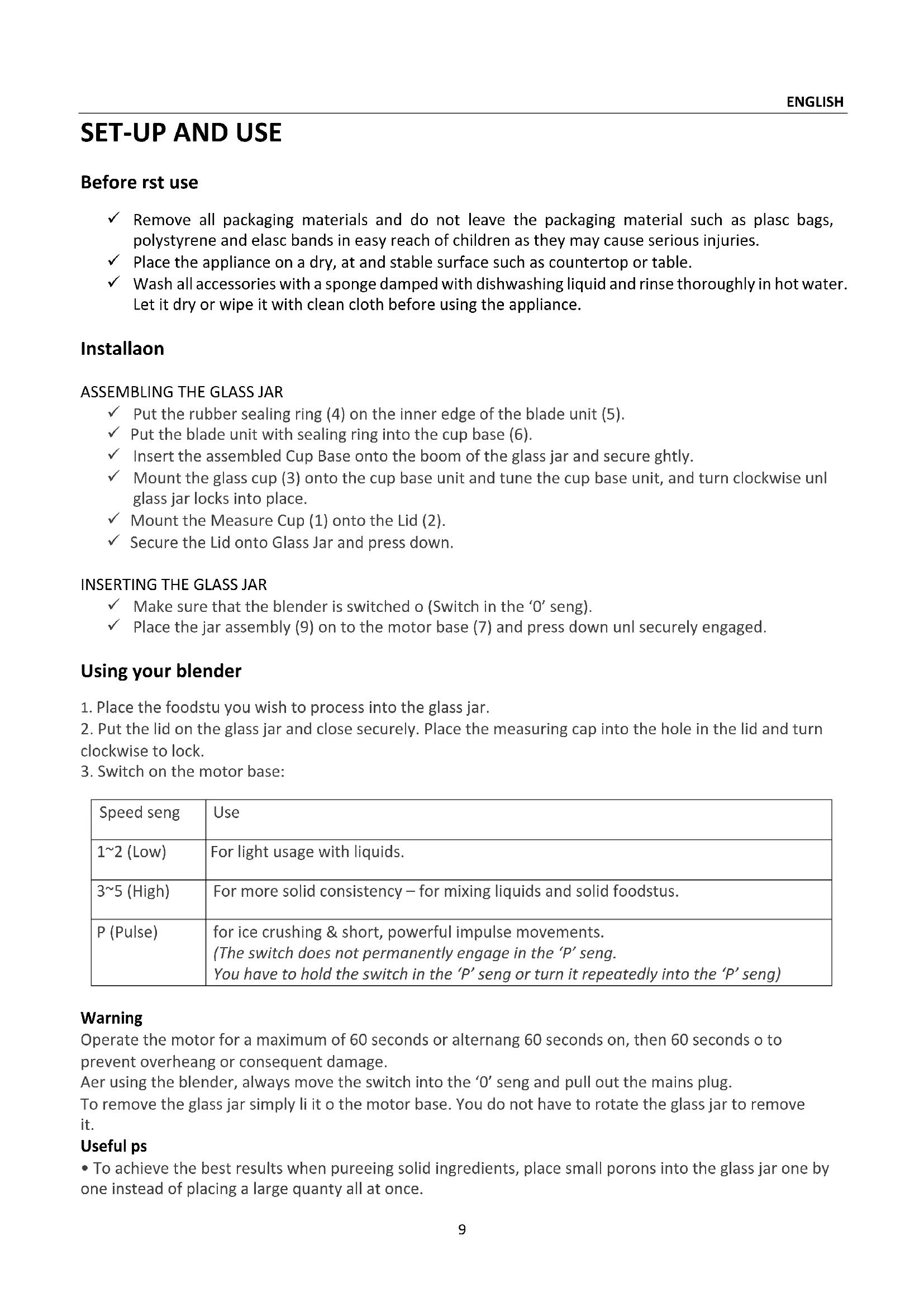

SET-UP AND USE

Before rst use

Remove all packaging materials and do not leave the packaging material such as plasc bags, polystyrene and elasc bands in easy reach of children as they may cause serious injuries.
Place the appliance on a dry, at and stable surface such as countertop or table.
Wash all accessories with a sponge damped with dishwashing liquid and rinse thoroughly in hot water. Let it dry or wipe it with clean cloth before using the appliance.

Installaon

ASSEMBLING THE GLASS JAR

Put the rubber sealing ring (4) on the inner edge of the blade unit (5).
Put the blade unit with sealing ring into the cup base (6).
Insert the assembled Cup Base onto the boom of the glass jar and secure ghtly.
Mount the glass cup (3) onto the cup base unit and tune the cup base unit, and turn clockwise until glass jar locks into place.
Mount the Measure Cup (1) onto the Lid (2).
Secure the Lid onto Glass Jar and press down.

INSERTING THE GLASS JAR

Make sure that the blender is switched o (Switch in the '0' seng).
√ Place the jar assembly (9) on to the motor base (7) and press down unl securely engaged.

Using your blender

1. Place the foodstu you wish to process into the glass jar.
2. Put the lid on the glass jar and close securely. Place the measuring cap into the hole in the lid and turn clockwise to lock.
3. Switch on the motor base:

Speed seng	Use
1~2 (Low)	For light usage with liquids.
3~5 (High)	For more solid consistency – for mixing liquids and solid foodstus.
P (Pulse)	for ice crushing & short, powerful impulse movements. (The switch does not permanently engage in the ‘P’ seng. You have to hold the switch in the ‘P’ seng or turn it repeatedly into the ‘P’ seng)

Warning

Operate the motor for a maximum of 60 seconds or alternang 60 seconds on, then 60 seconds o to prevent overheang or consequent damage.

Aer using the blender, always move the switch into the '0' seng and pull out the mains plug.

To remove the glass jar simply li it o the motor base. You do not have to rotate the glass jar to remove it.

Useful ps

• To achieve the best results when pureeing solid ingredients, place small porons into the glass jar one by one instead of placing a large quantity all at once.

• If you are processing solid ingredients, cut them into small pieces (2-3cm) rst.

• When mixing solid ingredients start or st with a small amount of liquid. Gradually add more and more liquid through the opening in the lid.
  Always place your hand on top of the blender when you are operang the device.
• Be careful when processing hot liquids.
• For siring solid or very thick liquid ingredients we recommend that you use the blender in impulse mode to prevent the blades from becoming stuck.

WARNING: Do not touch the blades during operaon! Extra care shall be taken when handling the cup cung blades, emptying the bowl and during the cleaning process! During operaon the cup only be remove when the speed level is set in 1.

NEVER remove the cup when using the Turbo mode and when seng the speed over level 2 to avoid hot food and liquid splashing! Only use the measuring cup provided from the manufacturer to avoid any hazards! Never exceed the maximum lling mark to avoid geng burned by hot food splashing!

Troubleshooting

Issues	Acon
The appliance cannot be switched on.	Check that the electric cable has been properly plugged into the appliance and into the main socket.
The appliance stops during operon.	It may due to overloading, we recommend you switch o the appliance, take out the bowl to reduce the preparaon volume, wait 10 minutes for the motor to cool down before placing back the bowl into its base and start again the operon.

WARNING: In any case, do not try to repair by yourself the appliance, ensure to contact the manufacturer, its service agent or an authorized repair center in order to avoid a hazard.

CLEANING AND MAINTENANCE

1. At the end of your cooking and / or mixing prepacons, check you have turn o all the buons.
2. Switch o the appliance by selecng 0.
3. Unplug the appliance from the main supply socket.
4. Always let the appliance to cool down for at least one hour before starng any cleaning operaon. do not immerse the main body and the bowl under water or place in a dishwasher.

How to clean the main body:

• Use a non-abrasive damp cloth with a gentle cleaning product then dry the appliance with a clean cloth. Do not use abrasive cleaners or metal scouring pads. They could scratch the surface and damage the appliance.

How to clean the accessories:

✓ The accessories can be washed in a dishwasher with temperature seng less than 90^
Or you can wash them manually rinse it with hot water, pour out the dirty water, wipe the inside with a sponge damped with neutral dishwashing liquid then rinse thoroughly the inside with hot water. Wipe out with a clean damp cloth before placing it on a clean surface to dry.

To remove tough cooked-on food, Il the bowl with hot soapy water, let it soaked for 30 minutes before starng the cleaning operaon with a plasc brush.
- Do not use abrasive cleaners or metal scouring pads. They could scratch the surface and damage the appliance.

WARNING: Do not touch the blades during operaon! Extra care shall be taken when handling the p cung blades, emptying the bowl and during the cleaning process!

Always let your appliance unplugged and cool down for at least one hour before any cleaning operaon! Do not use any toxic, solvent, industrial, harsh cleaning products, pointed and sharpened objects for cleaning as it may damage functional parts or act the safety of the appliance.

TECHNICAL INFORMATION

Product	Blender
Model reference	HCBL-33-R / HCBL-33-B
Capacity	1.5L
Rated voltage	220V-240V ~ 50Hz/60Hz
Rated power maximal	500W
Speed seng	5 speeds + 1 Pulse funcon

ENVIRONMENT AND RECYCLING

For EU product versions and/or in case that it is requested in your country:

• The materials of which the packaging of this appliance consists are included in a collecon, classicaon and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of materials.

The product does not contain concentrates of substances that could be considered harmful to the environment

• The following informaon concerns the energy labeling and the ecological design:

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selecve collecon of waste electrical and electronic equipment (WEEE) This appliance complies with Direcve 2012/19/EC on Low Voltage and Direcve 2004/108/EC on Electromagnec Compatibility.

Imported by Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX
