USER MANUAL DJM150 USB Bluetooth IBIZA

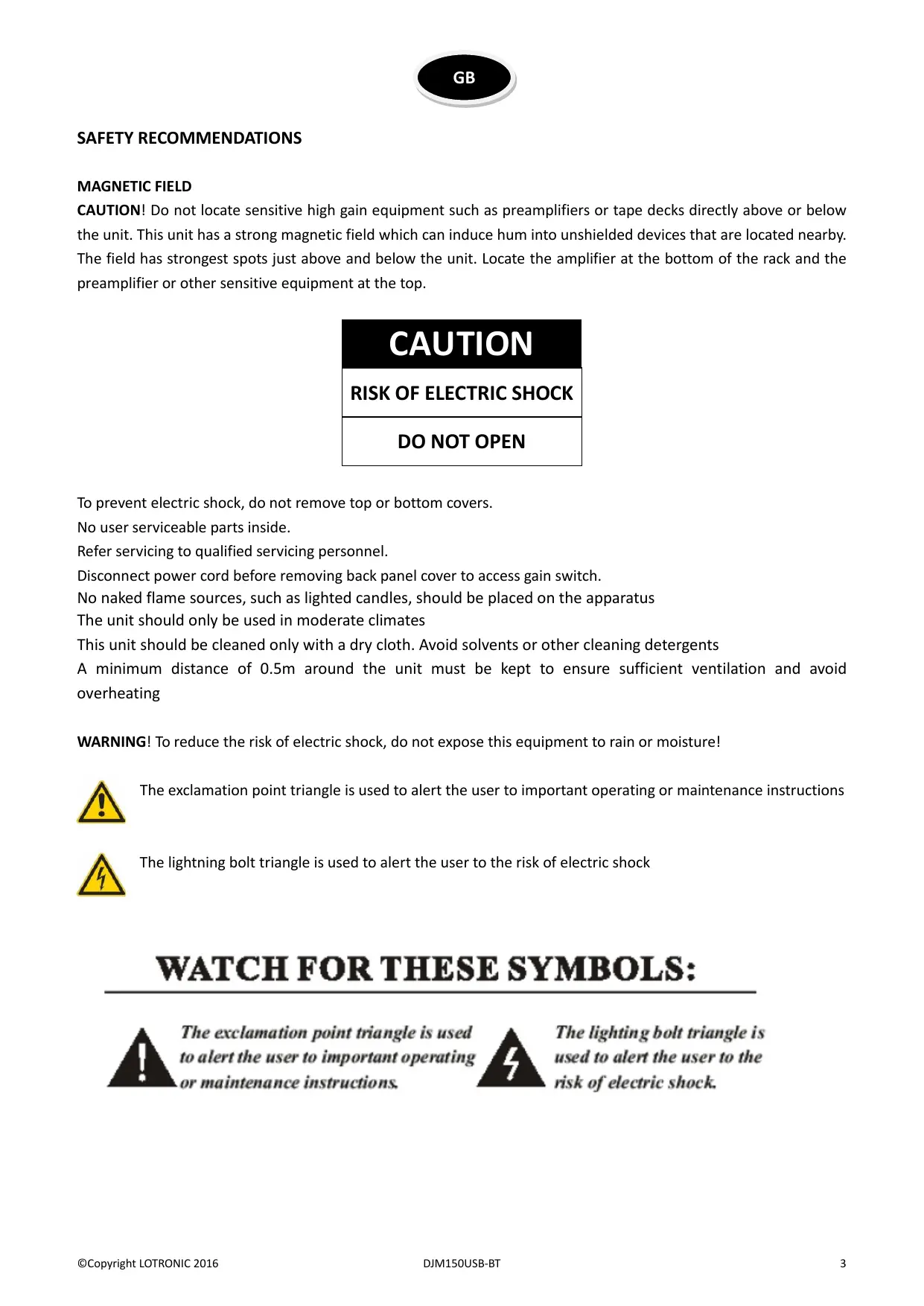

CAUTION! Do not locate sensitive high gain equipment such as preamplifiers or tape decks directly above or below the unit. This unit has a strong magnetic field which can induce hum into unshielded devices that are located nearby. The field has strongest spots just above and below the unit. Locate the amplifier at the bottom of the rack and the preamplifier or other sensitive equipment at the top.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

To prevent electric shock, do not remove top or bottom covers.

No user serviceable parts inside.

Refer servicing to qualified servicing personnel.

Disconnect power cord before removing back panel cover to access gain switch.

No naked flame sources, such as lighted candles, should be placed on the apparatus

The unit should only be used in moderate climates

This unit should be cleaned only with a dry cloth. Avoid solvents or other cleaning detergents

A minimum distance of 0.5m around the unit must be kept to ensure sufficient ventilation and avoid overheating

WARNING! To reduce the risk of electric shock, do not expose this equipment to rain or moisture!

The exclamation point triangle is used to alert the user to important operating or maintenance instructions

The lightning bolt triangle is used to alert the user to the risk of electric shock

WATCH FOR THESE SYMBOLS:

The exclamation point triangle is used to alert the user to important operating

or maintenance instructions.

The lighting bolt triangle is used to alert the user to the

risk of electric shock.

Controls

1. Mic 1 Socket

Connect your microphone with 1 / 4" jack plug here.

2. MIC Level Control

With this knob, you can adjust the microphone volume.

3. MIC Treble

Used to increase or lower the microphone's higher frequencies.

4. MIC Bass

Used to increase or lower the microphone's lower frequencies.

5. Talkover Button

Press this button if you want to use your microphone. When the button is pressed, all other signal sources will be attenuated by 14dB, so that the microphone can be clearly heard. In the OFF position, all signals return to their original level.

6. Phono/Line Switch

Use this switch to select the input to be sent to the individual channel.

7. Gain Control

Use this knob to set the level of input channel.

8. Treble Control

Used to increase or lower the HIGHS of the input channel.

9. Middle Control

Used to increase or lower the MIDS of the input channel.

10. Bass Control

Used to increase or lower the LOWS of the input channel

11. Channel Fader

Used to adjust the level of each channel.

12. Crossfader

Mixes the signals of one channel with another. If the crossfader is in the center position. Both channels can be heard.

13. Headphone Socket

Connect your headphone with impedance between 8 and 600 Ohms to this connector.

14. Cue Button

Use this button in order to select the channel(s) to be monitored by headphones.

15. PHONE/MON OUT Button

Press this button to select phones out or monitor out.

16. Master Control

Adjust the level of the master-output.

17. Master Level Display

The LED display shows the level of the left and right master output

18. USB STICK SOCKET

USB stick input.

19. USB CONTROLS

USB player transport controls

a: |<< : Use this button to re-start the track or to select the previous track.

b: Play/Pause: Each time you press this button, the operation changes from play to pause or from pause to play.

c: >>|: Use this button to select the next track.

d: VOL-: Use this button to control level down.
e: VOL+(28): Use this button to control level UP.
f: EQ(29):Allow you to select the effect.
g: LED DISPLAY(30): Display to MP3's information.

1. BLUETOOTH LED: It displays the Bluetooth operating status. When you turn on the power, the Bluetooth LED is flashing slowly which means that it is ready to connect to a Bluetooth device. If no connection is found after 1 minute, le LED goes out and enters into standby mode. If the Bluetooth connection is made with a player, the light flashes slowly, about 2-3 seconds flicker once. At this point you can use the bluetooth player playing music can hear the music of the corresponding channel.

BLUETOOTH PAIRING PROCEDURE

Set the selector switch of channel 1 to BT (center position). Set your Bluetooth device (e.g. mobile phone) to Bluetooth connection mode. Switch the mixer on. The BLUETOOTH LED will flash slowly. Select "BLUETOOTH" among the found devices on your mobile phone. You can now play music via CHANNEL1 of the mixer.

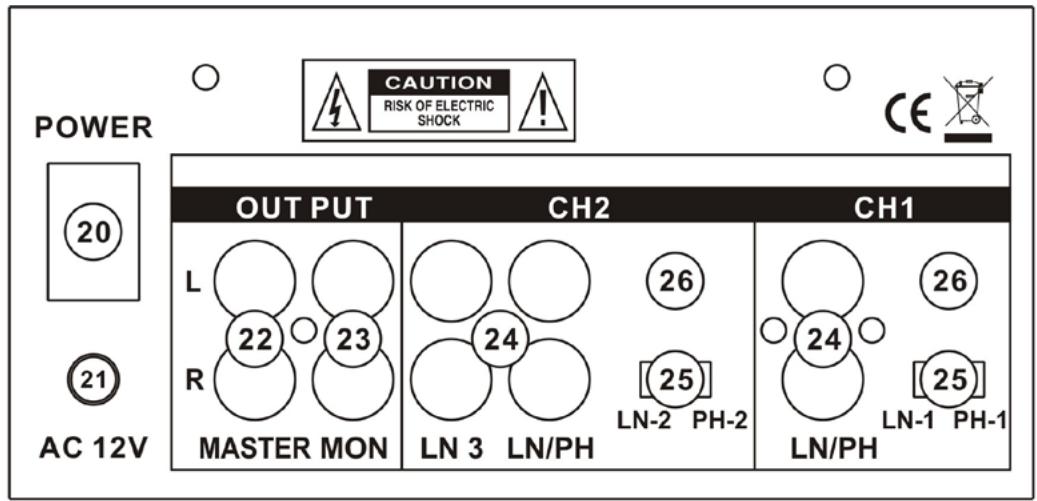

BACK PANEL DESCRIPTION

20. Power Switch

Press down the button to turn on this unit. The LED will illuminate when the power is on.

21. AC Connection

This unit comes with a 12V AC adapter. Plug into the 12V AC jack before plugging it into a proper power source.

22. Master Output

Master output connects to the main amplifier (DJ final mix after crossfader section), accepts RCA jacks.

23. MON Output

To connect your AUX unit. These jacks are RCA types. Which are suitable for connection of a recording device. Its level is not influenced by the master/channel control.

24. Phono/Line Inputs Sockets

These inputs, for ch1-ch2 and accept RCA-plug connectors. Use phono input socket for phonograph turntables. Use line socket for CD/MP3 players. Line level musical instruments with stereo outputs such as rhythm machines or samplers should also be connected with the line input socket.

25. Inputs Switch

Set these switches based on what is plugged into Phono/ Line input jacks

26. GND

Connect the earth cable from the turntables. This helps to reduce humming and pop noise.

SPECIFICATIONS

INPUTS:

Microphone. 3mV / 2.2 kΩ

Phono 3.2mV/47kΩ

Line . 150mV / 47 kΩ

OUTPUTS:

Main 0 dB / 1V 600Ω

MON 0 dB / 1V 600Ω

PHONE 300mW/16-32Ω

Tone Control

Treble. +12dB / - 12dB

Middle . +12dB / - 12dB

Bass +12dB/-12dB

GENERAL:

Frequency response 20Hz~20 kHz ±2dB

Distortion .<0.02%

S/N Ratio better than 70 dB

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.
