DDJ-FLX2 - Audio Controller PIONEER DJ - Free user manual and instructions

Product type	DJ audio controller
Brand	Pioneer DJ
Model	DDJ-FLX2
Dimensions (W x D x H)	383.2 x 208 x 48.2 mm
Weight	1.2 kg
Power supply	5 V DC, 500 mA (via USB or power adapter)
Connectivity	USB Type-C, Bluetooth Low Energy, headphone output (3.5 mm mini-jack), main output (3.5 mm mini-jack)
Compatible software	rekordbox (iOS/Android/Mac/Windows), djay (iOS/Android/Mac/Windows), Serato DJ Lite/Pro
System requirements	PC/Mac with USB port, iOS/Android with USB-C or Bluetooth
Jog wheel	Top rotation for scratching, outer for pitch bend
Performance Pads	8 pads per deck for Hot Cue, Pad FX, Beat Loop, Sampler
Mixer section	2 channels, EQ (HI/MID/LOW), CFX filter, channel faders, crossfader, Smart Fader
Advanced functions	Beat Sync, Fader Start, Smart CFX, Smart Fader, Utilities mode
Audio output	Main: 1 Vrms into 10 kΩ, Headphones: 1 Vrms into 32 Ω minimum
Care and cleaning	Unplug before cleaning, use a soft dry cloth, avoid solvents
Safety	Use only the recommended USB adapter, do not expose to moisture, follow safety instructions
Spare parts and repairability	Contact an authorized AlphaTheta service center, parts not available directly
Warranty	Depending on region, see provided document

Frequently Asked Questions - DDJ-FLX2 PIONEER DJ

How to connect the DDJ-FLX2 to a smartphone via Bluetooth?

Connect a USB power adapter to the USB port of the device to power it. Launch rekordbox or djay, turn the screen to landscape mode, tap the connection icon at the top, then select DDJ-FLX2 from the Bluetooth list.

Why is there no sound from the headphone jack?

Check that the headphones are plugged into the PHONES jack (3.5 mm mini-jack) and not into the main output. Ensure the headphone impedance is at least 32 Ω. Turn the PHONES LEVEL knob to increase volume. If using Bluetooth, headphone sound is not available on the device itself, but via a separate cable.

How to use the Smart Fader function?

Press the SMART FADER button to activate it. The channel faders and crossfader automatically adjust BPM, low EQ (LOW), and add an echo effect for smooth transitions. To deactivate, press SMART FADER again.

What to do if the device is not recognized by my PC?

Use the supplied USB cable. Plug directly into a PC USB port, avoid hubs. Check in Device Manager (Windows) or Audio/MIDI setup (Mac) that DDJ-FLX2 appears. Restart the computer and reinstall drivers if necessary.

How to set and recall a Hot Cue?

Enter Hot Cue mode by holding SHIFT and pressing BEAT SYNC, then select a pad (1-8). While playing or paused, press a pad to set a Hot Cue. To recall, press the same pad. To clear, hold SHIFT and press the corresponding pad.

Can I use the DDJ-FLX2 with Serato DJ Pro?

Yes, the DDJ-FLX2 is compatible with Serato DJ Pro, but a paid license is required. Uninstall Serato DJ Lite if you want to use the Pro version. Connect the device via USB, and it will be automatically recognized.

How to troubleshoot Bluetooth connection issues?

Keep away devices emitting 2.4 GHz waves (microwaves, WiFi). Make sure the DJ software on the PC is not running if the device is powered by the PC. Bring the mobile closer. If the problem persists, reset the connection by holding both BEAT SYNC buttons for 1 second.

How to update the firmware of the DDJ-FLX2?

The firmware is updated via rekordbox or Serato software. Connect the device to a PC, open the software, and follow the update instructions. Check the AlphaTheta website for the latest version.

The crossfader is not working, what to do?

In Serato DJ Lite, check that the Disable option is not enabled for the crossfader. For rekordbox, make sure the crossfader is not locked in preferences. Restart the software and the device.

What is the power consumption of the DDJ-FLX2?

The device operates at 5 V DC and consumes a nominal current of 500 mA. It can be powered by a computer's USB port, a USB power adapter (not included), or a mobile battery with a capacity of at least 500 mA.

USER MANUAL DDJ-FLX2 PIONEER DJ

rekordbox Introduction, Instruction Manual

[SHIFT] + pression :

[SHIFT] + pression :

Active la selection du mode Pad.

rekordbox iOS/Android

[SHIFT] + pression :

[SHIFT] + pression :

[SHIFT] + pression :

2 Boutons EQ (HI, MID, LOW)

[SHIFT] + pression :

Installation (iOS/iPadOS)

https://apps.apple.com/app/id1487048203

2 InstallézrekordboxpouriOS.

Installation (iOS/iPadOS)

https://www.algoriddim.com/store/djay-ios

Réglage [SMART FADER]

To continue installing the software you must agree to the terms of the software license agreement.

Click Agree to continue or click Disagree to cancel the installation and quit the Installer.

Read License

Disagree

Agree

Demo mode

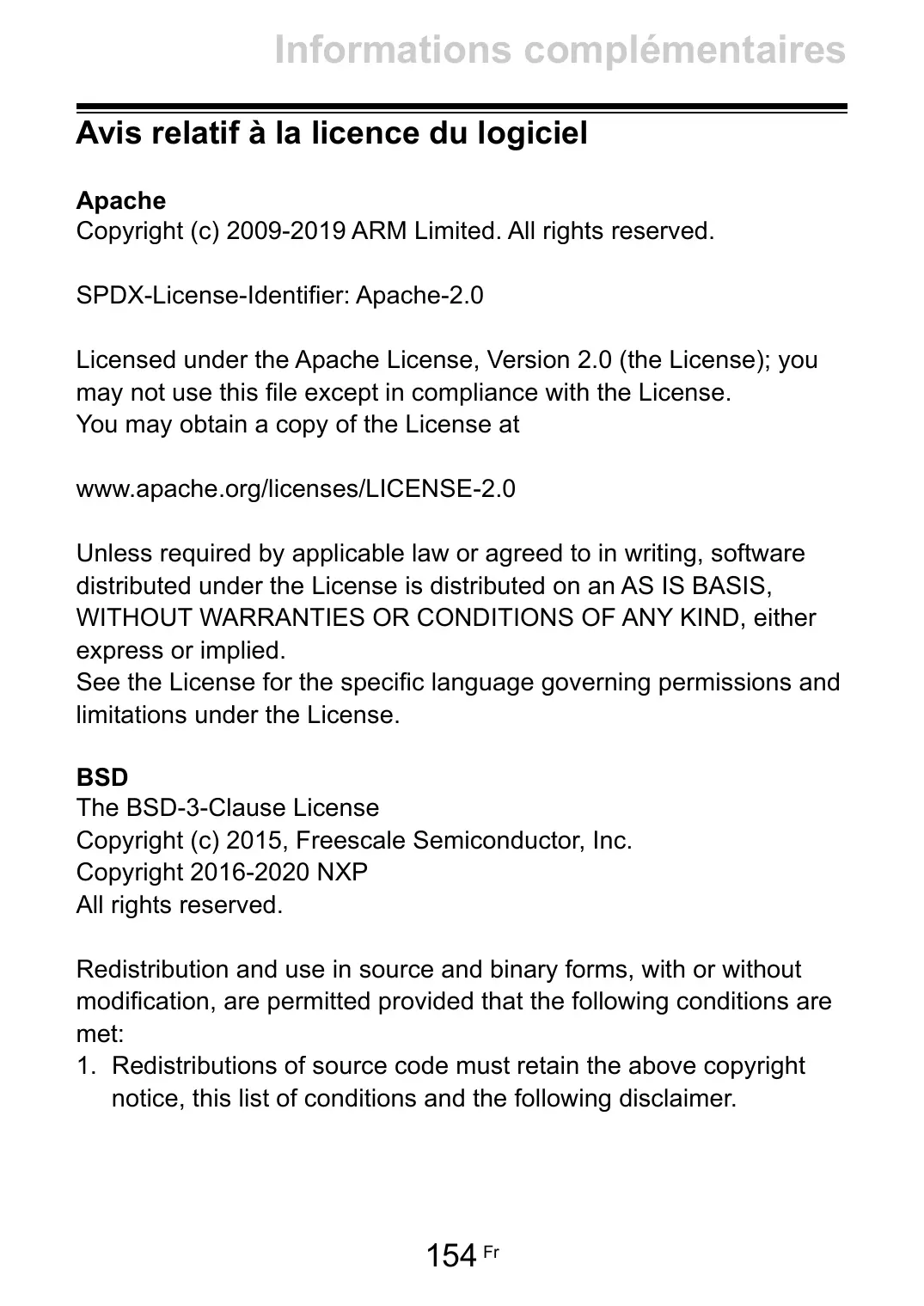

Copyright (c) 2009-2019 ARM Limited. All rights reserved.

SPDX-License-Identifier: Apache-2.0

Licensed under the Apache License, Version 2.0 (the License); you may not use this file except in compliance with the License.

You may obtain a copy of the License at

www.apache.org/licenses/License-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an AS IS BASIS, WITHOUT WARRANTY OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

BSD

The BSD-3-Clause License

Copyright (c) 2015, Freescale Semiconductor, Inc.

Copyright 2016-2020 NXP

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND Contributors "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR Contributors BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTIAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

© 2024 AlphaTheta Corporation
