USER MANUAL CT-910 CARE FITNESS
Important: Read these instructions before using the equipment!
Safety
- Read this user manual and keep it in a safe place. Use this product exclusively in the manner indicated.
- This equipment must be assembled and used by adults.
- The equipment complies with the EN-957 standard, classification HB for use in the home. It must not be used in a sports center or any other public, associative or rented space.
- For totally safe use, a stable, level surface is required. Protect your floor covering with a mat. Do not use the equipment in damp areas (swimming pool, sauna, etc.).
- Do not allow children to play with this equipment. CARE declines all responsibility for any injuries they may incur. Do not allow children close to this equipment when you are training.
- CARE declines all responsibility if technical modifications are made to any of its products by the user.
Maximum weight of user: 110kg - Before you start training, it is essential that you consult your doctor to determine the intensity level of the program you use.
- Excessive or badly programmed training can damage your health.
- Keep your back straight when exercising.
- It is strongly recommended that your wear suitable clothing and footwear.
- For adjustable parts, bear the maximum positions in mind.
Maintenance
- Regularly check that elements fastened with nuts and bolts are correctly tightened.
- To maintain the level of safety, the equipment must be regularly checked. It is vital that any faulty parts are replaced and that it is not used until completely repaired. Remember regularly to grease moving parts.
- As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after training. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products should be avoided.
Guarantee: the chassis is guaranteed for 5 years. Moving parts are guaranteed for 2 years. The guarantee applies to normal use by a private individual in his home. Validate your product warranty on line www.carefitness.com
Recycling : The « crossed out dustbin » sign means that this product and its batteries cannot be thrown out whit domestic waste. They should be treated apart. When you have finished with them, drop them at an authorised collection point so they can be recycled. This gesture will go towards protecting the environment and your health.
https://www.carefitness.com/sav

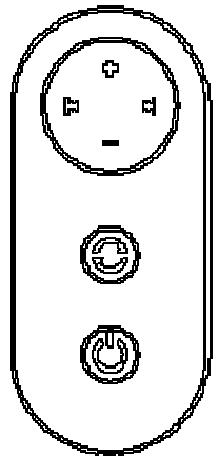

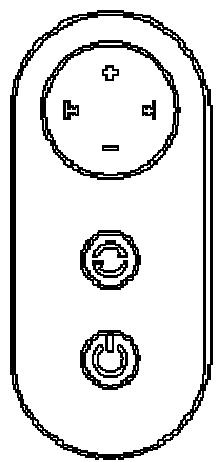

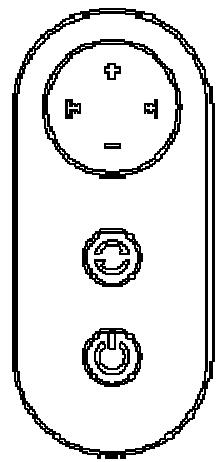

Remote control
Function keys
Press the "+" keys up and down to increase or decrease the speed by 0.1 mph/time.
Press the left and right " N N " arrows to increase or decrease the volume, and long presses to go up or down.
Switch button
When the treadmill is running, press this key to switch between the display modes. The unit will automatically change display modes every 5 seconds.
Start/stop button
Start button: When the treadmill is stopped, press the start/stop button and the speed display "0.6" will start the treadmill.
Stop button: When the treadmill is running, press the start/stop button.

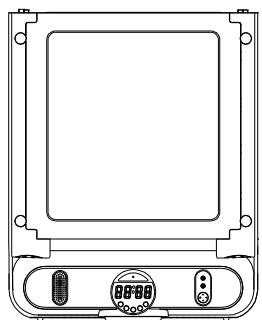

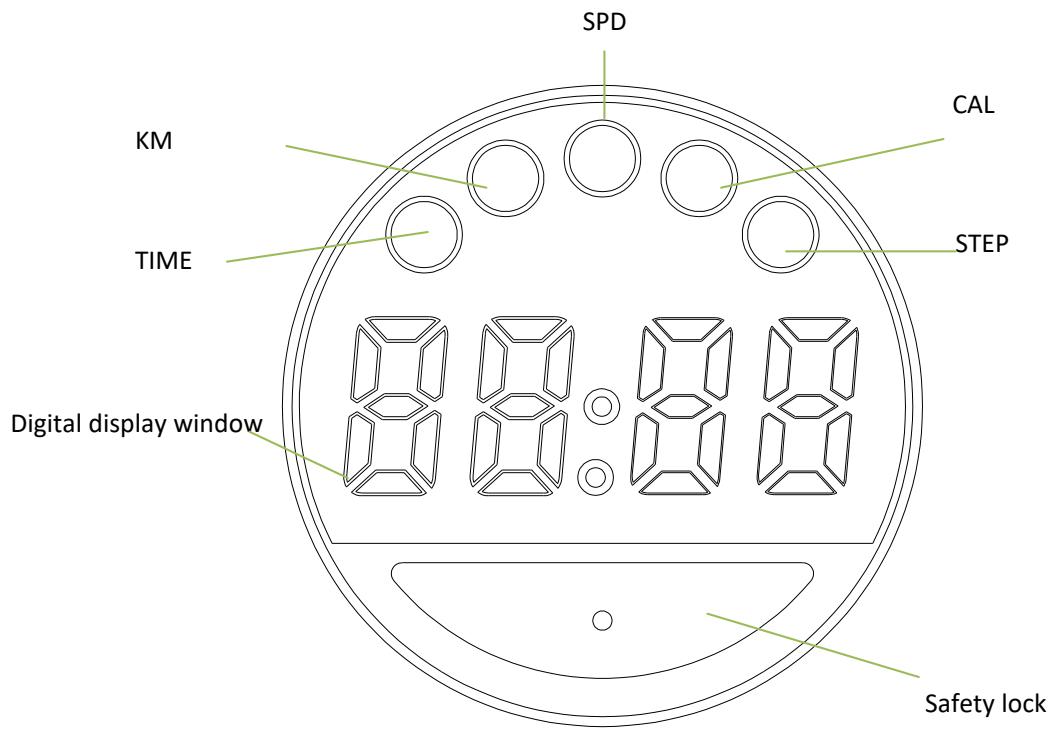

Computer
TIME、KM、SPD、CAL、STEP, which rotate in turn.
The emergency stop can be realized after removing the safety key.
Music via Bluetooth
Turn on the mat, manually search for the Bluetooth device (JF-BTMP3) with your phone, find the Bluetooth device and click Connect.
Once the connection is successful, the music on the phone can be played and transferred to the power amplifier on the mat via Bluetooth.
| Fault code | Fault description | Troubleshooting |
| E01 | Abnormal communication: the communication between the lower control and the electronic meter is abnormal after power on. | Down control shutdown enters into fault state. The machine cannot be started. The electronic watch displays the fault code and the buzzer sounds 3 times.Possible cause: The communication between the electronic control and the electronic watch is blocked. Check each connection between the electronic watch and the lower control communication line to ensure that each core is fully plugged. Check whether the connecting wire between the electronic watch and the controller is damaged, and replace the connecting wire. |
| E02 | Indicates that the controller does not detect the voltage on the motor | Check whether the terminal connection of the motor wire on the control is firm |
| E03 | No speed sensor signal: there is voltage output to the DC motor under control, and the motor speed feedback is not received continuously for more than 3 seconds. | 1. When the machine stops and enters into the fault state, the buzzer of the electronic watch rings 9 times, and the fault code is displayed at the same time, while no content is displayed in other areas. After maintaining the fault state for about 10 seconds, it will enter the standby state and can be restarted.Possible cause: The speed sensor signal is not detected for 3 seconds. Check whether the sensor plug is plugged or damaged. Plug it or replace the sensor.2. When the machine stops and enters into the fault state, the buzzer of the electronic watch rings 9 times, and the fault code is displayed at the same time, while no content is displayed in other areas. If it returns to normal after shutdown, it can enter the standby mode and start up normally.Possible cause: Check whether the motor wire is connected properly and reconnect the motor wire. Check whether the controller has peculiar smell, and replace the controller; |
| E5 | Explosion proof impulse protection: drive motor circuit is damaged due to abnormal power supply voltage or motor. | Possible cause: Check whether the power supply voltage is lower than 50% of the normal voltage. Please retest with the correct voltage specification; Check whether the controller has peculiar smell, and replace the controller; Check whether the motor wire is connected properly and reconnect the motor wire. |
| E6 | Overcurrent protection: under operation, the lower control continuously detects that the DC motor current is greater than the rated current for more than 5 seconds. | When the machine stops and enters the fault state, the buzzer of the electronic watch rings 9 times, and the fault code is displayed at the same time, while no content is displayed in other areas. After maintaining the fault state for about 10 seconds, it will enter the standby state and can be restarted.Possible causes: the current is too high due to exceeding the rated load, and the system is self protected, or a part of the treadmill is stuck, which causes the motor to not rotate, the load is too heavy, and the current is too high, and the system is self protected; Adjust the treadmill and restart it. Also, check whether there is over-current sound or burning smell when the motor is running, and replace the motor; Or check whether the controller smells of burning, and replace the controller; Or check whether the power supply voltage specification is inconsistent or low, and retest with the correct voltage specification. |
| E07 | Indicates that the electronic watch does not detect the safety lock signal | The magnetron is damaged, whether the installation position of the magnetron is correct, and whether the magnet is placed properly. |
Never use the treadmill upside down or on its side.
The elderly, children and pregnant women should use it with caution.
The space behind the treadmill should be less than 2000mm . In an emergency, you can use the handrail with both hands, support your head and jump off the treadmill.
The space between two sides of the mat.
and be greater than 500
Please wear sports shoes and exercise according own conditions. If you feel portable while exercising, stopately and consult a doctor, see you may be injured.
Please attach the other end of the y to your clothing when in use. In casedent, remove the safety key to stop mill in an emergency.
It is strictly forbidden to use it on uneven ground.
Unplug the power cord when not
in use.
Do not walk on the mat.
In it is folded
It is strictly forbidden animals on the carpet.
Be careful not to our hands.
Do not fold the
appliance when it is not switched off.
Please use the foot caps, to keep the mat in an upright position. Keep out of reach of children.
RUNNING BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/deck friction may play a major role in the function and life of your treadmill, thus requiring periodic lubrication. We recommend a periodic inspection of the deck. You need contact with our service center if you find the damage of the deck.
We recommend lubrication of the deck according to the following timetable:
Light user (less than 3 hours/ week) - Annually
Medium user (3-5 hours/ week) - Every six months
Heavy user (more than 5 hours/ week) - every three months
We recommend that you buy the lubrication from our distributor or directly to our company.
Attention: Any repair needs the professional technician.
- We suggest that you should cut off the power for 10Mints after keep running 2HS, so that it's good for maintain the treadmill.

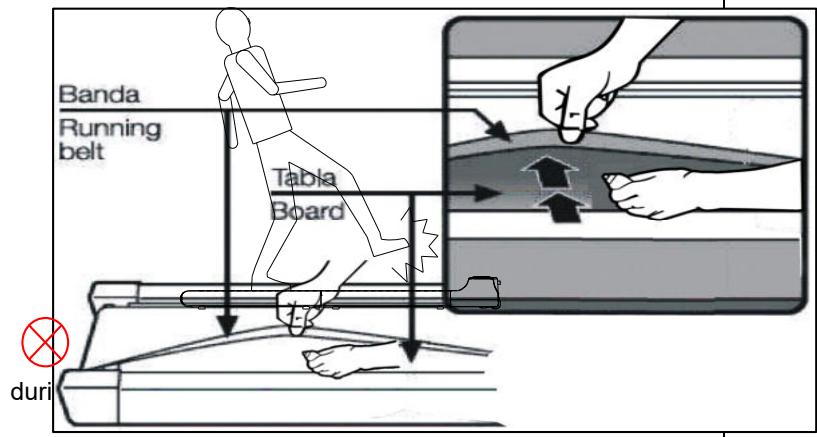

- The belt would slip if too loose during using; if the belt is too tight, it would affect the performance of motor and increase the abrasion of roller and belt. The belt can be lift away from the deck for around 50 — 75mm if the degree of tightness is just well.
Maintenance and Malfunction Treatment
1) The surface of the treadmill should be kept clean, pull out the power line before cleaning. You can clean the running belt and the surface of the treadmill with a soft and wet cloth.

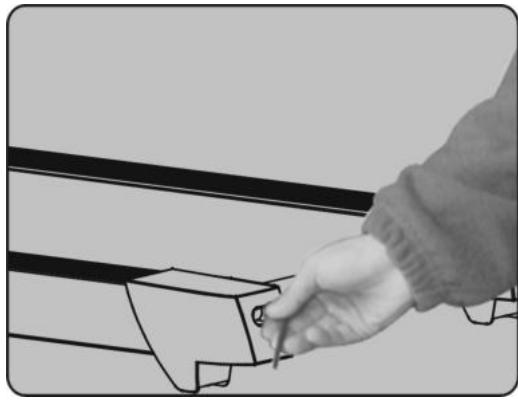

2) The running belt is adjusted at factory; it may runs defectively after transportation and use. Turn off the treadmill before adjusting, pull the belt in the center, and then adjust the left and right bolts in rear roller with hex spanner (See figure ) it is better to adjust 1/2 circle once. Then turn on the switch, check if the belt
10 runs defectively when the running speed is 4 5km / h
To order spare parts
To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service:
The name or reference of the product.
The manufacturing number shown on the main chassis and on the packing box.
The number of the missing or faulty part shown on the exploded view of the product described in this manual.
After Sales Service
Email: service-uk@carefitness.com
Fernbedienung
Funktionstaten
E mail : service-de@carefitness.com
E
Telemando
E mail : service-it@carefitness.com

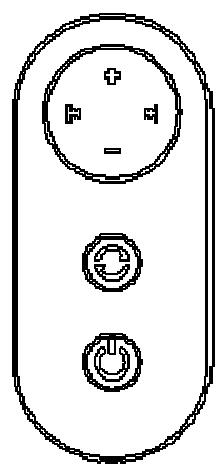

Afstandsbediening
