Product Type	Digital SLR camera
Brand	NIKON
Model	D610
Sensor	CMOS 24.3 megapixels (FX format)
ISO Sensitivity	100 – 6400 (expandable to 25600)
Shutter Speed	1/4000 s to 30 s, Bulb
Exposure Metering	Matrix, center-weighted, spot
Autofocus	39 AF points
Built-in Flash	Yes, guide number 12
Screen	3.2 inches (approx. 8 cm), 921,000 dots
Power Supply	Li-ion battery EN-EL15
Dimensions (W x H x D)	Approx. 141 x 113 x 82 mm
Weight	Approx. 760 g (with battery and memory card)
Memory Cards	2 SD/SDHC/SDXC slots
Connections	USB, HDMI, external microphone, headphone
Shooting Modes	Auto, scene, P, S, A, M, U1/U2
Video	Full HD (1920 x 1080) up to 30 fps
Main Features	HDR, bracketing, Active D-Lighting, multiple exposure, interval timer
Maintenance	Image sensor cleaning, manual cleaning
Safety	Instructions: do not look at the sun through the viewfinder, use flash at more than 1 meter, etc.
Spare Parts	Battery EN-EL15, charger MH-25, strap AN-DC10, USB cable UC-E15
Repairability	Recommended check every 1-2 years; repairs by Nikon authorized center

Frequently Asked Questions - D610 NIKON

How to set the date and time on the Nikon D610?

Turn on the camera, the first power-on displays the date and time setting dialog. You can also access it via the Setup menu > Time zone and date. Select your time zone, date format, enable or disable daylight saving time, then set the exact time.

How to format a memory card?

Go to the Setup menu > Format memory card. Select the slot (1 or 2) and confirm. Note: formatting erases all data. It is recommended to format cards in the camera rather than on a computer.

How to use the self-timer?

Turn the release mode dial to Self-timer (clock symbol). Press the shutter button: the photo is taken after an adjustable delay (default 10 s). You can change the delay in the Custom Settings menu > c3 Self-timer.

How to clean the image sensor?

Use the Clean image sensor function in the Setup menu. You have two options: Clean now (vibrates the sensor) or Clean at startup/shutdown (automatically cleans each time the camera is turned on/off). For manual cleaning, use Mirror lock-up/cleaning and follow the instructions in the manual.

How to activate the HDR function?

In the Shooting menu, select HDR (high dynamic range). Choose the mode (Auto, Series, etc.), exposure difference (1, 2, 3 EV), and smoothing. The camera combines two shots to increase dynamic range.

How to focus manually?

Set the focus mode selector on the lens to M (manual). Turn the focus ring until you get a sharp image in the viewfinder. You can use the electronic range finder (focus indicator in the viewfinder) to assist.

How to transfer photos to a computer?

Connect the camera to the computer using the supplied USB cable UC-E15. Turn on the camera. The computer detects the camera as a removable disk. You can copy image files. For simplified use, install the ViewNX 2 software provided on the CD.

What to do if an error message appears?

Refer to the Error messages section in the manual (page 322). For example, a 'Memory card locked' message means the card's write-protect switch is in the Lock position. 'System error' may require turning the camera off and on or removing the battery.

How to use the built-in flash?

The built-in flash pops up automatically in Auto and Scene modes if needed. In P, S, A, M modes, press the Flash button (lightning bolt) to pop it up. You can adjust the flash mode (TTL, manual, etc.) using the same button and the main command dial.

How to choose the autofocus mode?

Press the AF mode button (near the lens mount) and turn the main command dial to choose between AF-S (single autofocus), AF-C (continuous), or AF-A (auto). Turn the sub-command dial to choose the AF area mode (39 points, 11 points, dynamic area, etc.).

USER MANUAL D610 NIKON

b: Mesure/exposition 224

Federal Communications Commission (FCC) Radio Frequency Interference Statement

Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.

Tel.: [phone]

2 Retirer le cache-contacts.

(Modes P, S, A et M uniquement)

(Modes P, S, A et M uniquement)

(Modes P, S, A et M uniquement)

(Modes P, S, A et M uniquement)

(Modes P, S, A et M uniquement)

Mode de flash		Flash	SB-80DX, SB-28DX, SB-28, SB-26, SB-25, SB-24	SB-50DX1	SB-30, SB-272, SB-22S, SB-22, SB-20, SB-16B, SB-15	SB-23, SB-293, SB-21B3, SB-29S3
A	Auto non TTL	✓	—	✓	—	—
M	Manuel	✓	✓	✓	✓	✓
[55]	Flash stroboscopique	✓	—	—	—	—
REAR	Synchro sur le second rideau4	✓	✓	✓	✓	✓

Bulb (pose B) 78, 79

c

Horizon virtue1 55,62,243,258

Horloge 27, 253

1

Impression (DPOF) 199

Imprimer la selection. 199

MB-D14.....232,233,247,255,297

Mémoire tampon 38, 84

Mode autofocus 51,97

Mode contrôleur 237

Point AF..38,52,99,101,103,222 223

Tailledimage/cadence. 65

Télécommande....6,83,85,298

Telecommandefilaire...79,88,298

User's Manual Pg. 12

Verre Appareil

A

B

C

E

EC-B EC-E

G1 G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

—

◎

◎

F5+DP-30

◎

◎

○

◎

◎

○

◎

◎

F5+DA-30

◎ (+0.5)

◎

◎

◎

◎

◎ (+0.5)

Shooting distance			Depth of field			Reproduction ratio
	f/4	f/5.6	f/8	f/11	f/16	f/22
[f=24mm]
2	1 ft 9-15/16 in.	1 ft 9-4/16 in.	1 ft 8-4/16 in.	1 ft 7-1/16 in.	1 ft 5-12/16 in.	1 ft 4-3/16 in.	1/20.6
	2 ft 2-10/16 in.	2 ft 3-15/16 in.	2 ft 6-2/16 in.	2 ft 10-1/16 in.	3 ft 6-4/16 in.	5 ft 6-12/16 in.
3	2 ft 7-1/16 in.	2 ft 5-6/16 in.	2 ft 3-8/16 in.	2 ft 1-3/16 in.	1 ft 10-9/16 in.	1 ft 7-15/16 in.	1/33.0
	3 ft 7-3/16 in.	3 ft 11-6/16 in.	4 ft 6-13/16 in.	5 ft 11-10/16 in.	11 ft	∞
5	3 ft 10-9/16 in.	3 ft 6-12/16 in.	3 ft 2-6/16 in.	2 ft 9-12/16 in.	2 ft 4-15/16 in.	2 ft 6/16 in.	1/57.7
	7 ft 2-3/16 in.	8 ft 10-3/16 in.	13 ft 3-13/16 in.	51 ft 9-2/16 in.	∞	∞
10	6 ft 2-6/16 in.	5 ft 4-9/16 in.	4 ft 6-12/16 in.	3 ft 9-4/16 in.	3 ft 10/16 in.	2 ft 5-4/16 in.	1/119.4
	28 ft 2-10/16 in.	131 ft 6 in.	∞	∞	∞	∞
∞	15 ft 5-1/16 in.	11 ft 4/16 in.	7 ft 10-15/16 in.	5 ft 8-8/16 in.	4 ft 1-15/16 in.	3 ft 12/16 in.	1/∞
	∞	∞	∞	∞	∞	∞
[f=28mm]
2	1 ft 10-5/16 in.	1 ft 9-12/16 in.	1 ft 8-14/16 in.	1 ft 7-15/16 in.	1 ft 6-10/16 in.	1 ft 5-3/16 in.	1/18.4
	2 ft 2-1/16 in.	2 ft 3 in.	2 ft 4-11/16 in.	2 ft 7-5/16 in.	3 ft 4/16 in.	3 ft 11-6/16 in.
3	2 ft 7-15/16 in.	2 ft 6-10/16 in.	2 ft 4-13/16 in.	2 ft 2-12/16 in.	2 ft 6/16 in.	1 ft 9-12/16 in.	1/29.3
	3 ft 5-8/16 in.	3 ft 8-4/16 in.	4 ft 1-3/16 in.	4 ft 10-11/16 in.	6 ft 10-1/16 in.	17 ft 4/16 in.
5	4 ft 13/16 in.	3 ft 9-8/16 in.	3 ft 5-8/16 in.	3 ft 15/16 in.	2 ft 8-4/16 in.	2 ft 3-8/16 in.	1/51.1
	6 ft 6-12/16 in.	7 ft 6-12/16 in.	9 ft 8-6/16 in.	16 ft 6-6/16 in.	∞	∞
10	6 ft 9 in.	5 ft 11-10/16 in.	5 ft 1-11/16 in.	4 ft 3-13/16 in.	3 ft 6-10/16 in.	2 ft 10-5/16 in.	1/105.5
	20 ft 13/16 in.	35 ft 2-12/16 in.	∞	∞	∞	∞
∞	19 ft 8-6/16 in.	14 ft 8/16 in.	10 ft 10/16 in.	7 ft 2-10/16 in.	5 ft 2-10/16 in.	3 ft 9-12/16 in.	1/∞
	∞	∞	∞	∞	∞	∞
	f/4	f/5.6	f/8	f/11	f/16	f/22

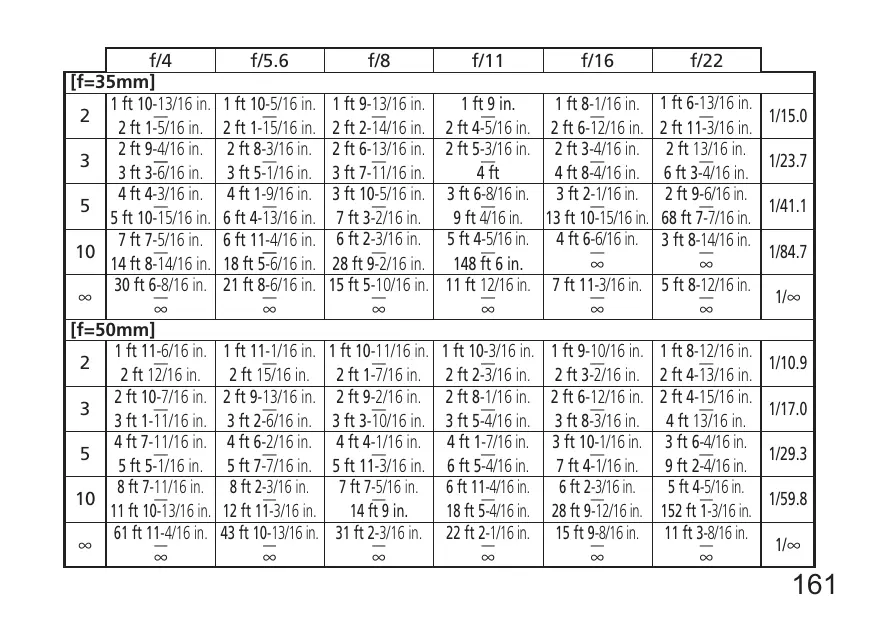

[f=35mm]
2	1 ft 10-13/16 in.	1 ft 10-5/16 in.	1 ft 9-13/16 in.	1 ft 9 in.	1 ft 8-1/16 in.	1 ft 6-13/16 in.	1/15.0
	2 ft 1-5/16 in.	2 ft 1-15/16 in.	2 ft 2-14/16 in.	2 ft 4-5/16 in.	2 ft 6-12/16 in.	2 ft 11-3/16 in.
3	2 ft 9-4/16 in.	2 ft 8-3/16 in.	2 ft 6-13/16 in.	2 ft 5-3/16 in.	2 ft 3-4/16 in.	2 ft 13/16 in.	1/23.7
	3 ft 3-6/16 in.	3 ft 5-1/16 in.	3 ft 7-11/16 in.	4 ft	4 ft 8-4/16 in.	6 ft 3-4/16 in.
5	4 ft 4-3/16 in.	4 ft 1-9/16 in.	3 ft 10-5/16 in.	3 ft 6-8/16 in.	3 ft 2-1/16 in.	2 ft 9-6/16 in.	1/41.1
	5 ft 10-15/16 in.	6 ft 4-13/16 in.	7 ft 3-2/16 in.	9 ft 4/16 in.	13 ft 10-15/16 in.	68 ft 7-7/16 in.
10	7 ft 7-5/16 in.	6 ft 11-4/16 in.	6 ft 2-3/16 in.	5 ft 4-5/16 in.	4 ft 6-6/16 in.	3 ft 8-14/16 in.	1/84.7
	14 ft 8-14/16 in.	18 ft 5-6/16 in.	28 ft 9-2/16 in.	148 ft 6 in.	∞	∞
∞	30 ft 6-8/16 in.	21 ft 8-6/16 in.	15 ft 5-10/16 in.	11 ft 12/16 in.	7 ft 11-3/16 in.	5 ft 8-12/16 in.	1/∞
	∞	∞	∞	∞	∞	∞
[f=50mm]
2	1 ft 11-6/16 in.	1 ft 11-1/16 in.	1 ft 10-11/16 in.	1 ft 10-3/16 in.	1 ft 9-10/16 in.	1 ft 8-12/16 in.	1/10.9
	2 ft 12/16 in.	2 ft 15/16 in.	2 ft 1-7/16 in.	2 ft 2-3/16 in.	2 ft 3-2/16 in.	2 ft 4-13/16 in.
3	2 ft 10-7/16 in.	2 ft 9-13/16 in.	2 ft 9-2/16 in.	2 ft 8-1/16 in.	2 ft 6-12/16 in.	2 ft 4-15/16 in.	1/17.0
	3 ft 1-11/16 in.	3 ft 2-6/16 in.	3 ft 3-10/16 in.	3 ft 5-4/16 in.	3 ft 8-3/16 in.	4 ft 13/16 in.
5	4 ft 7-11/16 in.	4 ft 6-2/16 in.	4 ft 4-1/16 in.	4 ft 1-7/16 in.	3 ft 10-1/16 in.	3 ft 6-4/16 in.	1/29.3
	5 ft 5-1/16 in.	5 ft 7-7/16 in.	5 ft 11-3/16 in.	6 ft 5-4/16 in.	7 ft 4-1/16 in.	9 ft 2-4/16 in.
10	8 ft 7-11/16 in.	8 ft 2-3/16 in.	7 ft 7-5/16 in.	6 ft 11-4/16 in.	6 ft 2-3/16 in.	5 ft 4-5/16 in.	1/59.8
	11 ft 10-13/16 in.	12 ft 11-3/16 in.	14 ft 9 in.	18 ft 5-4/16 in.	28 ft 9-12/16 in.	152 ft 1-3/16 in.
∞	61 ft 11-4/16 in.	43 ft 10-13/16 in.	31 ft 2-3/16 in.	22 ft 2-1/16 in.	15 ft 9-8/16 in.	11 ft 3-8/16 in.	1/∞
	∞	∞	∞	∞	∞	∞
[f=70mm]
2	1 ft 11-10/16 in.	1 ft 11-6/16 in.	1 ft 11-3/16 in.	1 ft 10-15/16 in.	1 ft 10-7/16 in.	1 ft 9-15/16 in.	1/8.3
	2 ft 6/16 in.	2 ft 10/16 in.	2 ft 13/16 in.	2 ft 1-3/16 in.	2 ft 1-13/16 in.	2 ft 2-10/16 in.
3	2 ft 11-3/16 in.	2 ft 10-13/16 in.	2 ft 10-5/16 in.	2 ft 9-10/16 in.	2 ft 8-12/16 in.	2 ft 7-9/16 in.	1/12.8
	3 ft 15/16 in.	3 ft 1-5/16 in.	3 ft 1-15/16 in.	3 ft 2-14/16 in.	3 ft 4-3/16 in.	3 ft 6-4/16 in.
5	4 ft 9-10/16 in.	4 ft 8-10/16 in.	4 ft 7-5/16 in.	4 ft 5-10/16 in.	4 ft 3-6/16 in.	4 ft 10/16 in.	1/21.5
	5 ft 2-10/16 in.	5 ft 3-13/16 in.	5 ft 5-10/16 in.	5 ft 8-4/16 in.	6 ft 8/16 in.	6 ft 7-7/16 in.
10	9 ft 2-12/16 in.	8 ft 11-4/16 in.	8 ft 6-13/16 in.	8 ft 1-3/16 in.	7 ft 6-2/16 in.	6 ft 9-13/16 in.	1/43.3
	10 ft 11-1/16 in.	11 ft 4-5/16 in.	12 ft 8/16 in.	13 ft 1-15/16 in.	15 ft 2-3/16 in.	19 ft 5-6/16 in.
∞	121 ft	85 ft 7-15/16 in.	60 ft 8-12/16 in.	43 ft 15/16 in.	30 ft 6-15/16 in.	21 ft 9 in.	1/∞
	∞	∞	∞	∞	∞	∞
[f=85mm]
2	1 ft 11-10/16 in.	1 ft 11-8/16 in.	1 ft 11-6/16 in.	1 ft 11-3/16 in.	1 ft 10-13/16 in.	1 ft 10-7/16 in.	1/7.2
	2 ft 6/16 in.	2 ft 8/16 in.	2 ft 10/16 in.	2 ft 15/16 in.	2 ft 1-5/16 in.	2 ft 1-15/16 in.
3	2 ft 11-4/16 in.	2 ft 11-1/16 in.	2 ft 10-11/16 in.	2 ft 10-3/16 in.	2 ft 9-8/16 in.	2 ft 8-10/16 in.	1/10.9
	3 ft 12/16 in.	3 ft 15/16 in.	3 ft 1-7/16 in.	3 ft 2-1/16 in.	3 ft 3 in.	3 ft 4-5/16 in.
5	4 ft 10-3/16 in.	4 ft 9-10/16 in.	4 ft 8-10/16 in.	4 ft 7-5/16 in.	4 ft 5-10/16 in.	4 ft 3-6/16 in.	1/18.1
	5 ft 1-15/16 in.	5 ft 2-10/16 in.	5 ft 3-13/16 in.	5 ft 5-10/16 in.	5 ft 8-6/16 in.	6 ft 12/16 in.
10	9 ft 5-6/16 in.	9 ft 2-14/16 in.	8 ft 11-8/16 in.	8 ft 7-1/16 in.	8 ft 1-7/16 in.	7 ft 6-8/16 in.	1/36.1
	10 ft 7-7/16 in.	10 ft 10-15/16 in.	11 ft 4-1/16 in.	12 ft 2/16 in.	13 ft 1-5/16 in.	15 ft 15/16 in.
∞	178 ft 3-10/16 in.	126 ft 1-3/16 in.	89 ft 4-9/16 in.	63 ft 4-5/16 in.	44 ft 11-1/16 in.	31 ft 10-13/16 in.	1/∞
	∞	∞	∞	∞	∞	∞
[f=120mm]
2	1 ft 11-12/16 in.	1 ft 11-12/16 in.	1 ft 11-10/16 in.	1 ft 11-6/16 in.	1 ft 11-4/16 in.	1 ft 10-15/16 in.	1/5.7
	2 ft 4/16 in.	2 ft 4/16 in.	2 ft 6/16 in.	2 ft 10/16 in.	2 ft 13/16 in.	2 ft 1-3/16 in.
3	2 ft 11-10/16 in.	2 ft 11-6/16 in.	2 ft 11-3/16 in.	2 ft 10-15/16 in.	2 ft 10-7/16 in.	2 ft 9-13/16 in.	1/8.4
	3 ft 6/16 in.	3 ft 10/16 in.	3 ft 13/16 in.	3 ft 1-3/16 in.	3 ft 1-13/16 in.	3 ft 2-8/16 in.
5	4 ft 10-15/16 in.	4 ft 10-9/16 in.	4 ft 9-15/16 in.	4 ft 9-2/16 in.	4 ft 8-1/16 in.	4 ft 6-10/16 in.	1/13.8
	5 ft 1-1/16 in.	5 ft 1-9/16 in.	5 ft 2-3/16 in.	5 ft 3-4/16 in.	5 ft 4-11/16 in.	5 ft 6-13/16 in.
10	9 ft 8-3/16 in.	9 ft 6-12/16 in.	9 ft 4-9/16 in.	9 ft 1-13/16 in.	8 ft 10-1/16 in.	8 ft 5-4/16 in.	1/26.9
	10 ft 4-1/16 in.	10 ft 5-14/16 in.	10 ft 8-8/16 in.	11 ft 6/16 in.	11 ft 6-6/16 in.	12 ft 3-13/16 in.
∞	334 ft	236 ft 2-6/16 in.	167 ft 3-10/16 in.	118 ft 6 in.	83 ft 11-8/16 in.	59 ft 6-8/16 in.	1/∞
	∞	∞	∞	∞	∞	∞

• With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.
