Product type	Pedestal fan
Brand	STADLERFORM
Model	Charly Stand K
Dimensions (W x H x D)	450 x 1300 x 400 mm
Weight	9.4 kg
Power supply	230 V / 50 Hz
Rated power	36 – 60 W
Noise level	< 56 dB(A)
Number of speeds	3 (breeze, medium, strong wind)
Oscillation	Yes, by push button
Height adjustment	Yes, by nut on telescopic pole
Airflow directions	4 positions (manual adjustment of motor unit)
Blade material	Plastic
Grille material	Lacquered metal
Splash protection	No (indoor use only)
Power cord type	Extension cord with plug
Cord length	Approximately 1.5 m (estimate)
Assembly	Requires assembly (pole, base, grilles, blades)
Cleaning	Damp cloth, removable grille for blade cleaning
Maintenance	No special maintenance, store dry
Repairability	By qualified electrician only
Warranty	2 years
Certifications	CE / WEEE / RoHS / EAC
Included accessories	Base, pole, front and rear grilles, blades, fixing nuts, fasteners

Frequently Asked Questions - Charly Stand K STADLERFORM

How to assemble the Charly Stand K fan?

Follow the steps in the manual: attach the main pole to the base with the nut, adjust the height, install the motor unit, then attach the rear grille, the blades, and finally the front grille. Tighten all nuts and fasteners securely.

How to clean the fan blades?

First unplug the appliance. Remove the front grille fixing nut, open the fasteners, then lift off the grille. Clean the blades with a damp cloth and dry them. Reassemble in reverse order.

Can the fan oscillate?

Yes, it has an oscillation function. Press the oscillation button to activate it or lift it to stop.

What speeds are available?

The fan offers 3 speeds: low (1), medium (2), and high (3), adjustable via the rotary control.

How to adjust the fan height?

Loosen the height adjustment nut on the upper pole, adjust the pole height, then tighten the nut securely.

Is the fan noisy?

The noise level is below 56 dB(A), which corresponds to quiet operation for a fan of this size.

What is the power consumption?

The rated power is between 36 and 60 W, depending on the selected speed.

Can I use the fan in a bathroom?

No, the appliance is not protected against water splashes. It must be used only indoors, at a distance of at least 3 meters from a bathtub, shower, or swimming pool.

What to do in case of failure or damage?

Never use the appliance if the cord or plug is damaged, or after a fall. Have it repaired by a qualified electrician. The warranty does not cover damage due to misuse.

How to dispose of the fan at the end of its life?

Do not dispose of it with household waste. Take it to a recycling center or WEEE collection point in accordance with Directive 2012/19/EU.

USER MANUAL Charly Stand K STADLERFORM

Operating instructions

Gebrauchsanweisung

Mode d'emploi

Modern office desk fan with a metallic grid-patterned spherical body and three blades, mounted on a stand (no text or symbols visible)

Technical diagram of a fan assembly with numbered components and directional arrows indicating motion or movement.

Article Number: Charly stand C-060

Congratulations! You have just purchased the exceptional CHARLY fan. He will give you great pleasure and improve the indoor air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components:

1. Main pillar
2. Foot
3. Fixing nut for foot and pillar
4. Upper pillar (height-adjustable)
5. Screw for height adjusting
6. Motor housing
7. Fixing screw for motor housing and pillar
8. Securing nut for grille

9. Protection grille rear

10. Fan blades

11. Fixing screw for fan blades and motor housing

12. Protection grille front

13. Positioning clip

14. Fixing clips (8 pieces)

15. Securing screw

16. Controller for switching on/off and setting the three fan speeds (off, high, medium, low)

17. Oscillating knob on/off

18. Power cord

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never leave any parts of the packing within the reach of children.

• Check the condition of the appliance after removing it from the packaging. Ensure that all component parts of the appliance are within the packaging and have not been damaged (see description of the appliance).

• Assemble the appliance in accordance with the instructions for Assembly. Follow the instructions for assembly exactly and ensure that all screws are firmly tightened so as to avoid damage and hazards.

• Never insert objects into the grille of the fan. Do not cover the appliance during operation.
• Always disconnect the power cord from the socket before removing the protection grille.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance.
• Do not use damaged extension cords.
• Do not run the power cord over sharp edges and make sure that it does not get trapped.
• Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 3 m). Place the appliance such that a person in the bath tub cannot touch the appliance.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.
• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.
• The appliance is not splash-proof.
• For indoor use only.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the appliance).
• If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard.
• Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable from the socket.
• Repairs to electrical appliances must only be carried out by a qualified electrical technician.

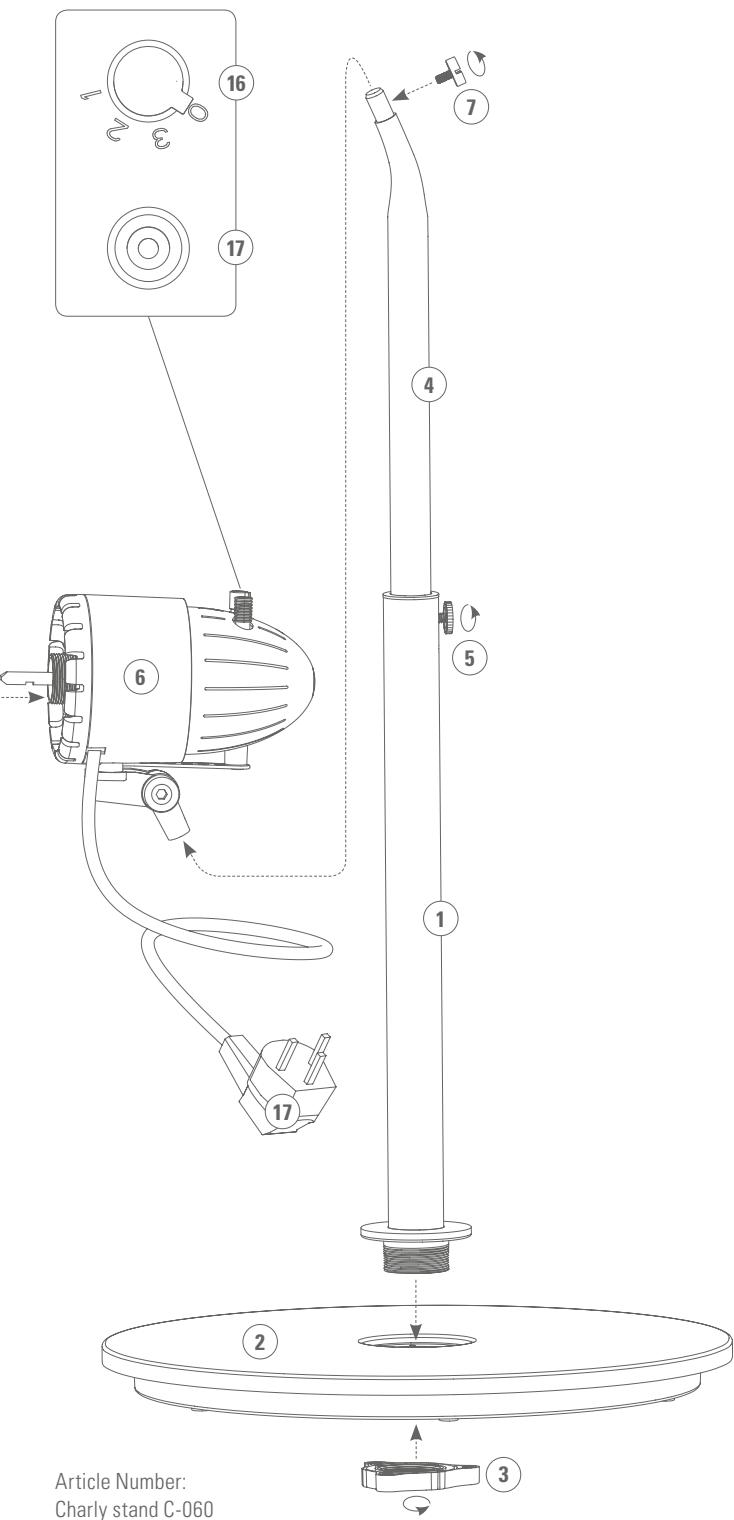

Assembly (see page 2 and 3)

Attention: The protection grille must be properly closed prior to switching on the appliance so as to avoid any damage or hazards. Ensure that all screws and securing nuts are firmly tightened. Only connect the power cable to the socket once assembly has been completed.

A. Remove fixing nut (3) on the underside of main pillar (1). Insert main pillar (1) into foot (2) and fix in position with fixing nut for foot and pillar (3).
B. The screw for height adjusting (5) for the main pillar is located on the upper pillar (4). By undoing this screw the height of the pillar can be adjusted. Retighten the screw firmly once the pillar is the desired height.
C. Undo fixing screw for motor housing and pillar (7) on upper pillar (4). Locate motor housing (6) on upper pillar (4) and secure with fixing screw for motor housing and pillar (7).

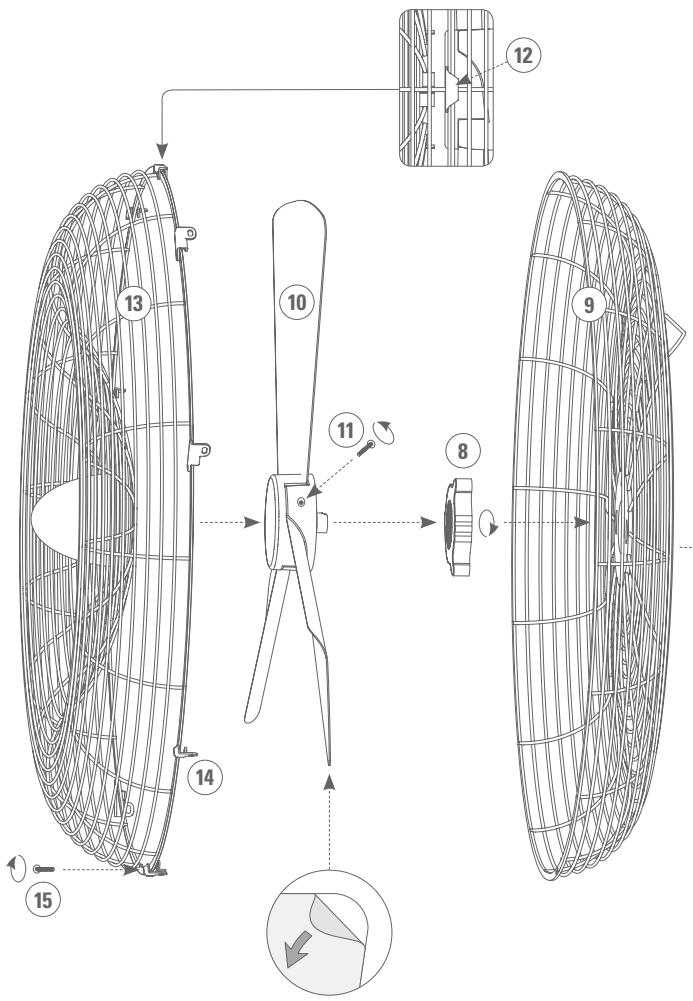

D. Remove securing nut for grille (8) from motor housing (6) and locate protection grille rear (9) on motor housing (6). When locating, ensure that the handle on protection grille rear (9) is on the top. Now screw securing nut for grille (8) back on to motor housing (6) so as to fix protection grille rear (9) in position.

E. Attach fan blades (10) to motor housing (6) and secure in position with fixing screw for fan blades and motor housing (11) (loosely attached to fan blade). Tighten screw to secure fan blades (10).

F. Locate protection grille front (12) on protection grille rear (9). In doing so, take care to ensure that positioning clip (13) on protection grille front is fitted on protection grille rear as shown in illustration on page 2-3. Close the two grilles by fastening the 8 fixing clips (14). Ensure that all fixing clips (14) are fastened.

G. Secure the two grilles (9 and 12) with securing screw (15).

Setting up / operation

1. Place Charly at the desired position on a flat surface. Connect the mains cable (18) to a suitable plug socket.

2. Switch on the Charly fan at the controller (16) and set the desired speed (Positions 1-3, from gentle breeze to powerful circulation).

3. Push the oscillating knob (17) down to switch on the oscillation and pull the oscillating knob up to switch off the oscillation.

4. The direction of airflow can be set in 4 positions. By carefully moving the motor housing (6) up and down, the direction can be adjusted (clicking noise).

Cleaning

Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable (18) from the socket.

Attention: Never submerge the appliance in water (danger of short-circuit).

- For external cleaning, rub with a damp cloth and then dry thoroughly.

- To clean the fan blades, remove securing screw (15), undo all fixing clips (14) and carefully lift off protection grille front (12). Now you can wipe the fan blades (10) with a damp cloth and dry well afterwards. After cleaning, replace protection grille front (12) on appliance (fit top positioning clip: 13), fasten all fixing clips (14) and fasten securing screw (15) tightly.

Repairs

- Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.

- Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).

- Do not push any object into the appliance.

- If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out wheeled bin symbol on the product reminds you of your obligation, that when you dispose of the appli-

ance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications

Rated voltage	230 V / 50 Hz
Rated power	36 – 60 W
Dimensions	450 x 1'300 x 400 mm(width x height x depth)
Weight	9.4 kg
Sound level	< 56 dB(A)
Complies with EU regulations	CE / WEEE / RoHS / EAC

All rights for any technical modifications are reserved
