USER MANUAL CH1802S PROLINE

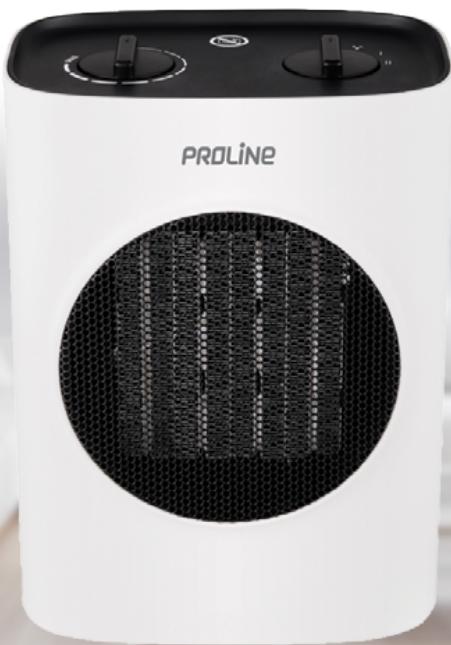

CHAUFFAGE CERAMIQUE KERAMISCHE VERWARMING
CH1802S
This product is only suitable for well insulated spaces or occasional use.
MANUEL D'UTILISATION
HANDLEIDING
FR
NL
ES
PT
EN
TABLE DES MATIÈRES
MISES EN GARDE IMPORTANTES. p.02
DESCRIPTION DU PRODUIT. p.05
FONCTIONNEMENT. p.06
NETTOYAGE ET ENTRETIEN. p.08
SPÉCIFICATIONS. p.08
MISE AU REBUT. p.10
MISES EN GARDE IMPORTANTES
MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SECURITE ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET CONSERVER POUR REFERENCE ULTÉRIEURE.
Attention
Hotline Darty France
Beveiling against overhitting

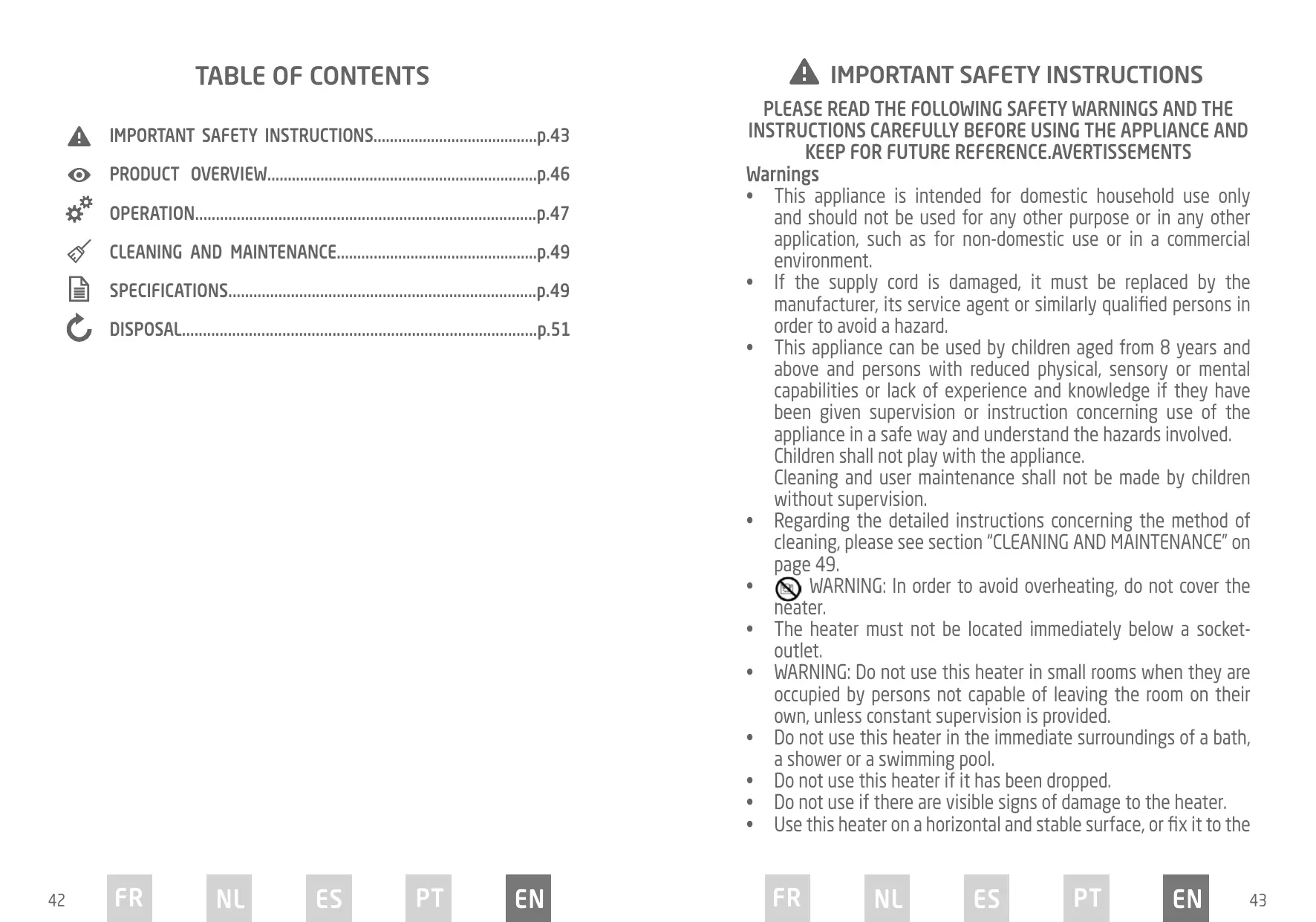

IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.AVERTISSEMENTS
Warnings
- This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
- Regarding the detailed instructions concerning the method of cleaning, please see section "CLEANING AND MAINTENANCE" on page 49.
WARNING: In order to avoid overheating, do not cover the heater. - The heater must not be located immediately below a socket-outlet.
WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. - Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface, or fix it to the
wall, as applicable.
- WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1m from the air outlet.
Children of less than 3 years should be kept away unless continuously supervised. - Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
Safety Precautions
- Turn off and unplug the appliance from the mains socket when it is not in use and before cleaning.
- To disconnect the power cord, pull it out by plug. Do not drag the cord itself.
- Do not leave the appliance unattended when it is in use.
- Do not use outdoors.
- Do not use the appliance for any other than its intended use.
- Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.
- Do not handle the power cord and plug by wet hands.
- Do not put heavy objects onto the power cord.
- Do not place the heater on or near any source of heat.
- A fire may occur if the heater is covered with or touches flammable material, including curtains, drapes, bedding etc. When in operation. KEEP THE HEATER AWAY FROM SUCH MATERIALS.
- Do not attempt to repair, disassemble or modify the appliance.
There are no user-serviceable parts inside.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage the appliance.

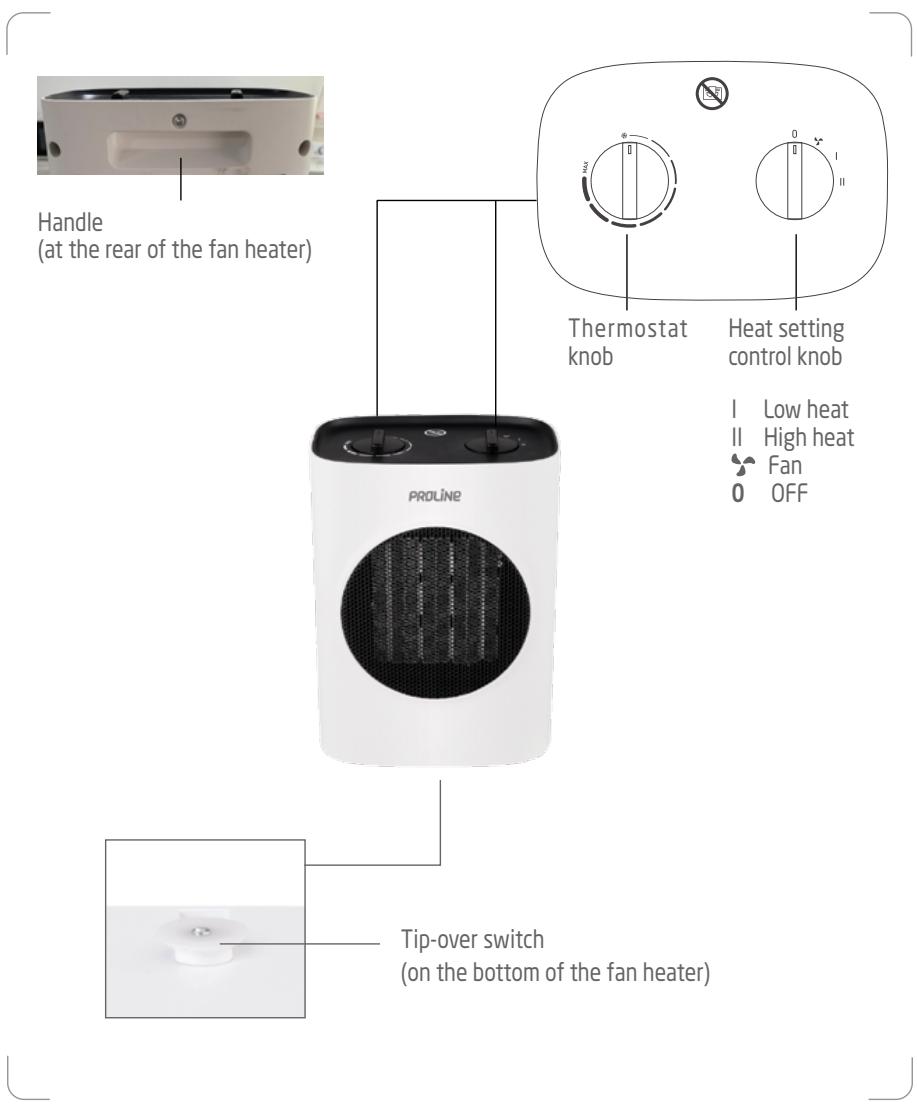

PRODUCT OVERVIEW
OPERATION
The heater carries a symbol 'NO NOT COVER' to alert the user to the risk of overheating that exists if the heater is accidentally covered.
When using your heater for the first time, it is normal for the heater to emit a 'new heater' smell, which will disappear after a while.
Ensure good ventilation.
- Place the heater on a flat, dry and clean floor. Do not to put appliance on a rug or carpet.
- Position the heater upright on the floor, at least 1m away from the wall, away from curtains, furniture or wall coverings.
- Turn the thermostat knob to the minimum position, and then turn the heat setting control knob to the '0' position.
- Plug in the heater.
- Turn the thermostat knob fully clockwise to the maximum position, and then turn the heat setting control knob the desired heat setting.
The fan heater has four modes:
| 0 | Turn off the fan heater. |
| ♀ | For fan only operation with no output of heat |
| I | Set the fan heater to low heat mode (900w). |
| II | Set the fan heater to high heat mode (1800w). Please also turn the thermostat knob to the ‘MAX’ position. |
-
To set the temperature, turn the thermostat knob to the desired position.
-
The thermostat control can be used to maintain your desired room temperature.
-
Once the room temperature feels comfortable, turn the thermostat knob slowly towards the minimal position.
-
To turn the fan heater off, turn the heat setting control knob to the '0' position, and turn the thermostat control knob to the minimum position. Unplug the fan heater from the mains socket.
Overheat safety protection
Your heater is fitted with a safety device to switches off the heater in the event of overheating.
Should the overheat protection be triggered, switch off and unplug the heater from the mains socket. Let the heater completely cool and inspect for blocakge of air inlet or outlet. Then plug in and press the power switch again and operate as normal.
If the heater fails to operate or the safety device switches the heater off again, return heater to your nearest service center for examination or repair.
Safety Tip-over switch
The heater is fitted with a safety tip-over switch. If the heater is knocked over, the power to the heater will shut off automatically.
CLEANING AND MAINTENANCE
It is recommended to regularly clean the heater to ensure trouble-free operation.
- Before cleaning the heater, switch off and unplug it from the mains socket. Allow it to completely cool.
- Wipe the exterior of the heater with a slightly damp cloth. Allow it to dry before reconnecting it to the power supply.
- Do not use abrasive or chemical cleaning agents.
- Do not immerse the heater in water or any other liquid. Do not allow water to enter the heater.
- If necessary, remove dust and fluff accumulated inside the heater by running a vacuum cleaner nozzle over the guards.
SPECIFICATIONS
Ratings: 220-240 V~ 50-60 Hz
1800 W
Information requirements for electric local space heaters
Model identifier(s): CH1802S
| Item | Symbol | Value | Unit | Item | Unit |
| Heat output | Type of heat input, for electric storage local space heaters only (select one) | ||||
| Nominal heat output | Pnom | 1,8 | kW | manual heat charge control, with integrated thermostat | no |
| Minimum heat output (indicative) | Pmin | 1,0 | kW | manual heat charge control with room and/or outdoor temperature feedback | no |
| Maximum continuous heat output | Pmax,c | 1,8 | kW | electronic heat charge control with room and/or outdoor temperature feedback | no |
| Auxiliary electricity consumption | fan assisted heat output | no | |||
| At nominal heat output | elmax | 0,000 | kW | Type of heat output/room temperature control (select one) | |
| At minimum heat output | elmin | 0,000 | kW | single stage heat output and no room temperature control | no |
| In standby mode | eLSB | 0,000 | kW | Two or more manual stages, no room temperature control | no |
| with mechanic thermostat room temperature control | yes | ||||
| with electronic room temperature control | no | ||||
| electronic room temperature control plus day timer | no | ||||
| electronic room temperature control plus week timer | no | ||||
| Other control options (multiple selections possible) | |||||
| room temperature control, with presence detection | no | ||||
| room temperature control, with open window detection | no | ||||
| with distance control option | no | ||||
| with adaptive start control | no | ||||
| with working time limitation | no | ||||
| with black bulb sensor | no | ||||
| Contact details | Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France www.darty.com | ||||
urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.
You must dispose of this appliance and its packaging according to local laws and regulations.
Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.
Contact your local authority to learn about disposal and recycling.
The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.
We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
EU Declaration of Conformity
Product Description:
The object of the declaration described above is in conformity with the relevant Union
harmonisation legislation:
Low Voltage Directive (LVD)
Eco design requirements for energy-related products (ErP)
RoHS
EMC:
EN 55014-1:2017+A11:2020
EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
LVD:
EN 60335-2-30:2009+A11:2012+A1:2020+A12:2020
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019 +A2:2019+A15:2021
EN 62233:2008
ErP:
(EC) No 1275/2008
(EU) No 801/2013
(EU) 2015/1188
(EU) 2016/2282
EN 50564:2011
EN 60675:1995+A1:1998+A2:2018+A11:2019
This declaration of conformity is drawn up under the sole responsibility of the manufacturer.
The person responsible for this declaration is:
Place, Date / Lieu :
