DP7108 - Food Processor MOULINEX - Free user manual and instructions

Product type	Food processor
Brand	Moulinex
Model	DP7108
Dimensions (L x W x H)	Approximately 30 x 25 x 40 cm
Weight	Approximately 4.5 kg
Power supply	220-240 V, 50/60 Hz
Power	800 W
Bowl capacity	3 liters
Main functions	Mix, chop, grate, cut, whisk, knead
Included accessories	Bowl, knife, grating discs, whisk, dough hook
Speeds	Multiple variable speeds
Safety	Overheating protection, bowl locking, sharp blade guard
Cleaning and maintenance	Do not immerse the motor unit, clean accessories with soapy water
Spare parts	Available from the manufacturer and authorized centers
Repairability	Repairable by an authorized Moulinex service center
Usage	Domestic only, indoors, altitude < 2000 m
Maximum usage time	2 minutes for grating/cutting, 40 seconds for whisk, 14 minutes for chopper
Warranty	2 years (according to applicable legislation)

Frequently Asked Questions - DP7108 MOULINEX

How to use the Moulinex DP7108 food processor for the first time?

Before first use, read the instructions carefully. Wash the accessories with soapy water, rinse and dry. Assemble the appliance following the instructions. Plug in and use at moderate speed.

What to do if the appliance stops during use?

It is likely the overheating protection has activated. Unplug the appliance, let it cool for about 20 minutes, then plug it back in. Resume use.

How to clean the Moulinex DP7108 food processor?

Always unplug the appliance before cleaning. Never immerse the motor unit in water. Clean the bowl and accessories with a soft sponge and dish soap. Dry thoroughly.

What are the important safety precautions?

Never touch moving blades. Always use the provided accessories. Do not pour hot liquid into the bowl while operating. Keep the appliance out of reach of children under 8 years old.

Can I chop nuts with the Moulinex DP7108 food processor?

Yes, use the metal knife or the chopping disc depending on the model. Chop in pulses to avoid turning into powder. Do not exceed the indicated maximum capacity.

How to use the grating disc?

Assemble the grating disc on the bowl shaft. Select a moderate speed. Introduce food through the feed tube using the pusher. Beware of sharp blades during cleaning.

Can the food processor knead bread dough?

Yes, use the included dough hook. Do not exceed 400 g of flour to avoid overload. Knead at low speed for a maximum of 2 minutes.

Where to find spare parts for the Moulinex DP7108?

Spare parts are available from Moulinex after-sales service or authorized centers. Check the official website or contact customer service.

Can I blend hot soups?

It is not recommended because sudden boiling can spray hot liquid. Let it cool to room temperature before blending. Use the lid to avoid splashes.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a municipal collection point or recycling center. Help protect the environment.

USER MANUAL DP7108 MOULINEX

Your appliance is equipped with a device to protect against overheating. If your appliance overheats, it will switch itself off. Unplug the appliance and leave it to cool down for about 20 minutes, then plug it back in and start using it again.

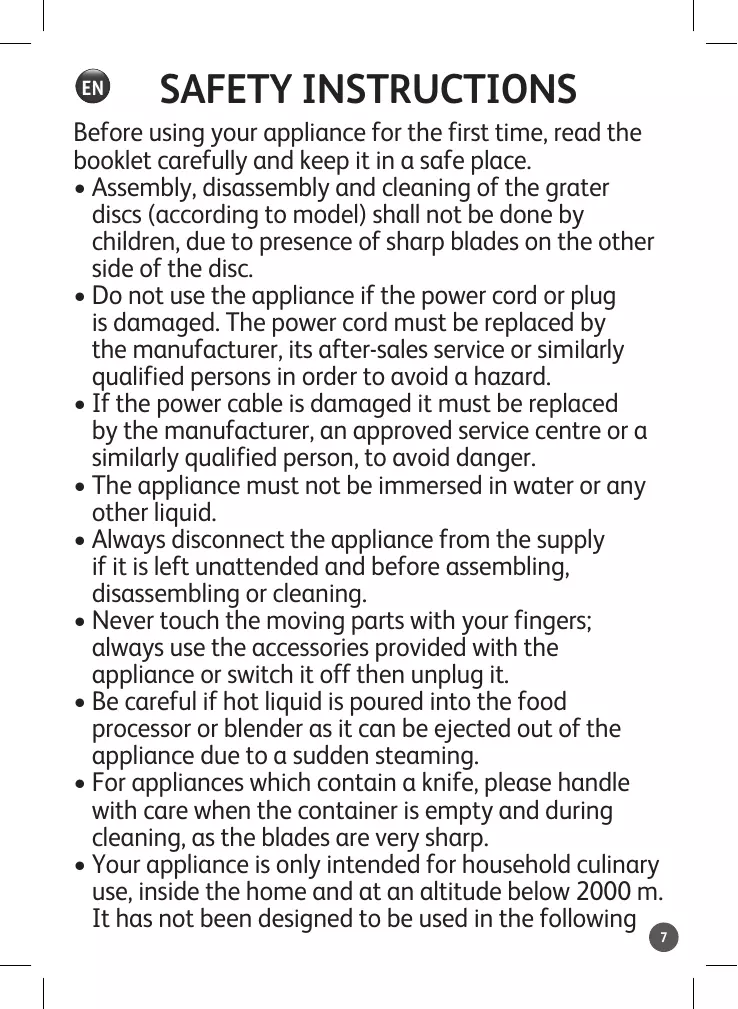

Before using your appliance for the first time, read the booklet carefully and keep it in a safe place.

Assembly, disassembly and cleaning of the grater discs (according to model) shall not be done by children, due to presence of sharp blades on the other side of the disc.
- Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.
- If the power cable is damaged it must be replaced by the manufacturer, an approved service centre or a similarly qualified person, to avoid danger.
- The appliance must not be immersed in water or any other liquid.
- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Never touch the moving parts with your fingers; always use the accessories provided with the appliance or switch it off then unplug it.
- Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
- For appliances which contain a knife, please handle with care when the container is empty and during cleaning, as the blades are very sharp.
- Your appliance is only intended for household culinary use, inside the home and at an altitude below 2000 ~m . It has not been designed to be used in the following

circumstances, which are not cover by the warranty: in kitchen areas reserved for staff in shops, offices and other professional environments, on farms, by clients of hotels, motels and other residential environments and in guest rooms or similar accommodation.

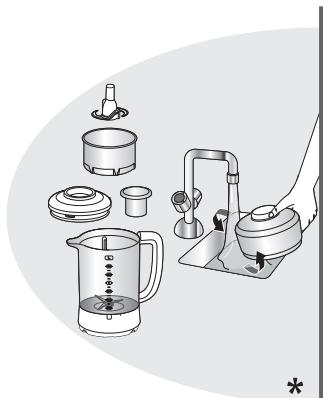

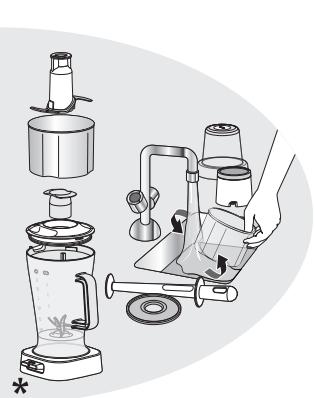

• Refer to the instructions for initial and regular cleaning of surfaces in contact with foodstuff, and for cleaning and maintenance of your appliance.
• Refer to the user manual for recipes, speed settings, and for safe usage.
• For maximum usage time, please refer to the user's manual and if no instructions are indicated therein, observe the following instructions: presses, berry juice extractors or mincers must not be used for more than 14 minutes; culinary processors, egg or cream whisks must not be used for more than 40 seconds; citrus juicers, graters and vegetable slicers must not be used for more than 2 minutes.

European markets

• Children shall not play with the appliance.
• The press, berry juice extractor, food processor or mincer must not be used by children. Keep the appliance and its cable out of the reach of children.

• Egg and cream whisks, graters and citrus juicers may be used by children who are at least 8 years old, as long as they are supervised or have been instructed about using the appliance safely and are fully aware of the dangers involved. Cleaning and maintenance must not be carried out by children, unless they are 8 or older and they are supervised by an adult. Keep the appliance and its cable out of reach of children under 8 years of age.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.

Non European markets

• Children should be supervised to ensure they do not play with the appliance and do not use it as a toy.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

RECYCLING

End-of-life electrical and electronic products:

Your appliance is designed to operate for many years. However, the day you plan to replace it, do not throw it away with normal household rubbish or in a landfill but take it to a suitable collection point provided by your local authority (or to a recycling centre if applicable).

Environmental protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

HEFT-

SICHERHEITSHINWEISE

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

.

j 1

j 1 j 1

.

bljnl, jn l jwlae 1d

i j 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1

J 1

.

1.

2.1

OFF

OFF

	*		*
	20 g	3 x 2 s	30 g	4 x 2 s
	250 g	6 x 2 s	300 g	7 x 2 s
	150 g	4 x 2 s	250 g	7 x 2 s
	140 g	5 x 2 s	200 g	6 x 2 s
	50 g	2 x 2 s	85 g	7 x 2 s
	250 g	4 x 2 s	300 g	7 x 2 s
	200 g	5 x 2 s	300 g	7 x 2 s
	150 g	6 x 2 s	250 g	6 x 2 s
	100 g	6 x 2 s	100 g	5 x 2 s
	100 g	2 s	350 g	6 x 2 s
			260 g	12 s
			230 g	15 s

2.2

YES

NO

NO

2.2

2.3
