USER MANUAL Silk Epil 5 SE 5-060 BRAUN

Stapled booklet, 120 x 170 mm, 64 pages (incl. 8 pages cover), 1/1c = black

only with models 5580/5380

only with model 5580

PROVED Effective Date 20Dec2013 GMT - Printed 13Mar2014 Pag

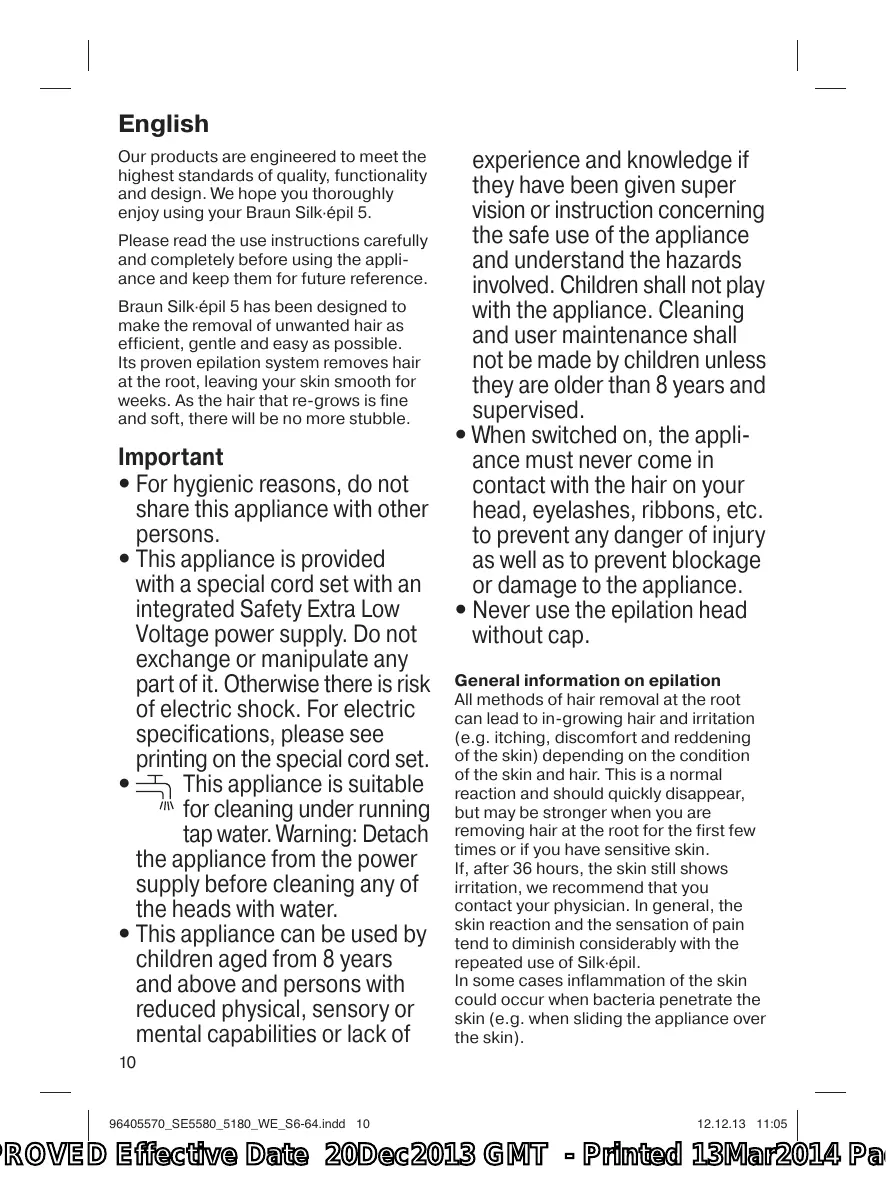

English Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk·épil 5. Please read the use instructions carefully and completely before using the appliance and keep them for future reference. Braun Silk·épil 5 has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible. Its proven epilation system removes hair at the root, leaving your skin smooth for weeks. As the hair that re-grows is fine and soft, there will be no more stubble.

Important • For hygienic reasons, do not share this appliance with other persons. • This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. For electric specifications, please see printing on the special cord set. • This appliance is suitable for cleaning under running tap water. Warning: Detach the appliance from the power supply before cleaning any of the heads with water. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given super vision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. • When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance. • Never use the epilation head without cap. General information on epilation All methods of hair removal at the root can lead to in-growing hair and irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk·épil. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin).

PROVED Effective Date 20Dec2013 GMT - Printed 13Mar2014 Pag

Thorough cleaning of the epilation head before each use will minimise the risk of infection. If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: – eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins, – around moles, – reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud’s disease, haemophilia, candida or immune deficiency. Some useful tips If you have not used an epilator before, or if you have not epilated for a longer period of time, it may take a short time for your skin to adapt to epilation. The discomfort experienced in the beginning will decrease considerably with repeated use as the skin adapts to the process. Epilation is easier and more comfortable when the hair is at the optimum length of 2-5 mm. If hairs are longer, we recommend that you first shave and epilate the shorter, re-growing hairs a week later. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation. Fine hair which re-grows might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent in-growing hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface.

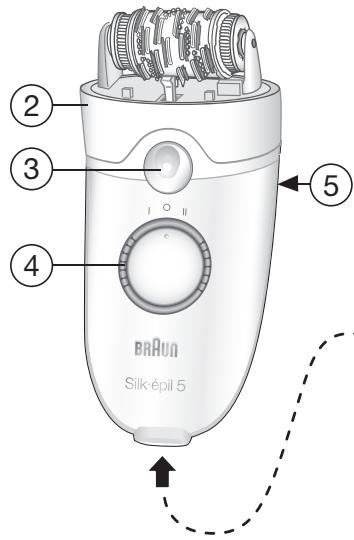

Description 1a High-frequency massaging rollers 1b Efficiency cap (not with all models) 2 Epilation head with tweezer element

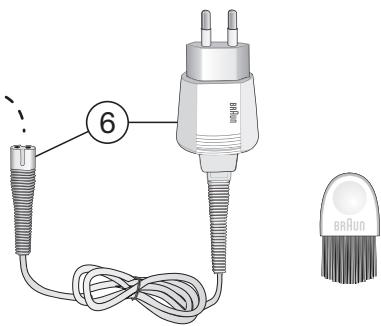

Light On/off switch Release button Special cord set Sensitive area cap (only with model 5580/5380) Facial head (only with model 5580) Cooling glove/Gel pack

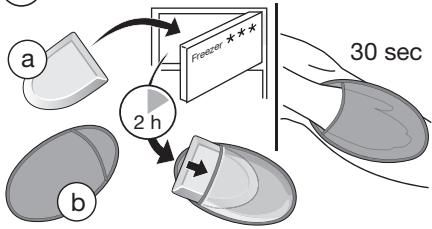

Preparing for use • Your skin must be dry and free from grease or cream. • Before use, always make sure that the epilation head (2) is clean and provided with a cap (1). • To change caps, press their lateral ribs and pull off. • To change heads, press the release button (5). Cooling glove for optional skin cooling For the first few epilations or if you have sensitive skin, you can use the cooling glove (9), recommended by dermatologists to help reduce possible skin irritation. • Ensure that the gel pack has been in the deep freezer (***) for at least 2 hours (for convenience you can store the gel packs in the freezer). • Insert the gel pack underneath the cooling glove’s transparent foil. Use only with glove. • Put transparent (cool) side of the glove on your leg. • Start cooling for approximately 30 seconds, longer if needed. • Epilate the cooled skin area immediately as described below. • Repeat cooling and epilating until completion. • While epilating, please ensure your skin is dry. Important: Apply cooling glove to the same area for no longer than 2 minutes. Keep away from sunlight. Do not use 11

96405570_SE5580_5180_WE_S6-64.indd 11

ROVED Effective Date 20Dec2013 GMT - Printed 13Mar2014 Pag

gel pack when damaged. Dispose of in household waste. Do not use if you are hypersensitive, allergic to the cold, or if your skin suffers from sensory disturbances, when suffering from cardiac diseases or arterial circulatory disorders.

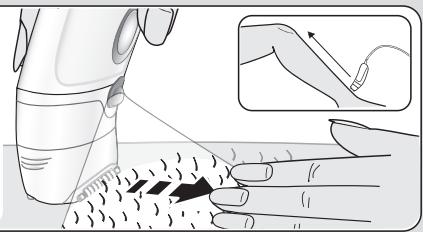

How to epilate The epilation head (2) features CloseGrip Technology to ensure extra efficiency especially with short hairs: The 40 tweezers always keep close contact to the skin to remove hairs as short as grain of sand (0.5 mm). The pivoting head perfectly adapts to the body contours for maximum thoroughness. The high-frequency massaging rollers (1a) stimulate your skin effectively for an extra gentle epilation. The efficiency cap (1b) for fast epilation ensures maximum skin contact, positioning the tweezers at the optimal position at all times. 1 How to operate the appliance Turn the on/off switch (4) to operate the appliance: Turn to position «I» = extra gentle Turn to position «II» = extra efficient As long as the appliance is switched on, the light (3) illuminates the area to be epilated. This gives you a better control for improved epilation efficiency. 2 How to guide the appliance • Always stretch your skin when epilating. • Always make sure that the epilation area is in close contact with your skin. • The pivoting head automatically adapts to the contours of your skin. • Guide the appliance in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the appliance in different directions to

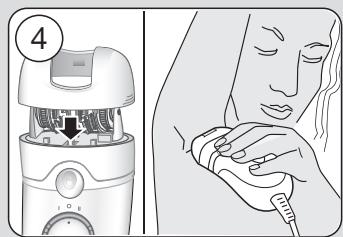

achieve optimal results. The pulsating movements of the massaging rollers stimulate and relax the skin for a gentler epilation. • If you are used to the sensation of epilation and prefer a faster way of removing hair, attach the efficiency cap (1b) replacing the massaging rollers (1a). 3 Leg epilation Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight. 4 Underarm and bikini line epilation For this specific application, the sensitive area cap (7) has been developed as an optional attachment to be placed on the epilation head (2). Please be aware that especially at the beginning, these areas are particularly sensitive to pain. Therefore, we recommend you start with switch setting «I». With repeated usage the pain sensation will diminish. Before epilating, thoroughly clean the respective area to remove residues (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol. 5 Facial epilation With the facial head (8) attached, your Silk·épil is perfectly suited for conveniently removing any unwanted hair from the face or other sensitive areas. Prior to epilation, we recommend cleaning the skin with alcohol to promote good hygiene. When epilating the face, stretch the skin with one hand and slowly guide the epilator with your other hand in the direction of the switch.

ROVED Effective Date 20Dec2013 GMT - Printed 13Mar2014 Pag

6 Cleaning the epilation head Before cleaning, unplug the appliance. Regular cleaning ensures better performance. a Brush cleaning: Remove the cap (1) and brush it out. Thoroughly clean the tweezers from the rear side of the epilator head with the brush dipped into alcohol. While doing so, turn the tweezer element manually. This cleaning method ensures best hygienic conditions for the epilation head. b Cleaning under running water: Remove the cap. Hold the appliance with the epilation head under running water. Then press the release button (5) to remove the epilation head (2). Thoroughly shake both, the epilation head and the appliance to make sure that remaining water can drip out. Leave both parts to dry. Before reattaching, make sure that they are completely dry. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Subject to change without notice

Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in

materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only: This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only: Warranty In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given by this warranty are in addition to other rights and remedies of the consumer law. 13

96405570_SE5580_5180_WE_S6-64.indd 13

ROVED Effective Date 20Dec2013 GMT - Printed 13Mar2014 Pag

For Claims in Australia please contact: Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park NSW 2113 Telephone: +612 8864 5000 Facsimile: +612 8864 5574 Email: gillette@au.pgconsumers.com For claims in New Zealand please contact: Procter & Gamble Distributing New Zealand Limited Unit 3, Building I, 5 Orbit Drive Rosedale, North Shore City 0632 Auckland, New Zealand Telephone: +649 477 6400 Facsimile: +649 477 6399 Email: gillette@nz.pgconsumers.com Our Warranty This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty). Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase. Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty,

Our Warranty ends on the expiry of the warranty period that applied to the original appliance. Our Warranty does not cover: A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture. To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute. Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers). If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under

Our Warranty. You will bear the cost of returning your product to us. Repairs and service If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details. Australian Consumer Service (free call): 1 800 641 820 New Zealand Consumer Service (free call): 0 800 108 909 N2820 Australian & New Zealand Service Agents VICTORIA & TASMANIA Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. (03) 8371 9100 Fax. (03) 9355 8644 Email: jaappliances@statewideservices. com.au QUEENSLAND Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. (07) 3277 0360 Fax. (07) 3274 2909 Email: basc@waltersimport.com.au
