USER MANUAL CCV5543BX/1 CANDY

Thank you for choosing one of our products. To get the most out of your cooker we recommend that you:
- Read the notes in this manual carefully: they contain important instructions on how to install, use and service this cooker in safety. Keep this booklet in a safe place for easy, future reference.
- In the case of the sale or transfer of the appliance, this manual should be given together with the appliance in order to guarantee the proper transfer of the information on installation/usage of the appliance and the relative warnings.
- All accessible parts are hot when the appliance is in operation, take care to not touch these elements. When the cooker is first switched on it may give off acrid smelling fumes—this smoke is harmless we suggest to operate the cookers for 2 hours while empty.

1.1. SYMBOLS USED IN THIS USER MANUAL

For easier comprehension, the symbols below are used in this user manual.

Safety Information

Information for Environment Protection

This appliance complies with the EU E.E.C directives.

1.2. DECLARATION OF COMPLIANCE

All parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109. The appliance complies with European Directives 2006/95/EC and 2004/108/EC, and subsequent amendments. The appliance also complies with 93/68 General Directives and subsequent amendments.

1.3. SAFETY HINTS

• The cooker must be used only for the purpose for which it was designed: it must only be used for cooking food. Any other use, e.g. as a form of heating, is improper use of the cooker and is therefore dangerous.

• The manufacturers cannot be held responsible for any damage caused by improper, incorrect or unreasonable use.

• When using any electrical appliance you must follow a few basic rules. If the appliance breaks down or develops a fault switch it off, disconnect it from mains, do not touch it, call the authorised Service.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• An oven by its very nature becomes very hot. Especially the glass of the oven door. Do not allow children to go near the oven when it is hot, especially when the grill is on.

Always use gloves to remove food from the oven.

• Always keep your appliance clean, for safety and health reasons. Fat and food residues may cause fire.

• Do not insert your hand between oven hinges. Keep children away.

• Make sure that all the knobs are in the OFF position when the appliance is not in use.

• The oven drawer is to store empty trays or to keep food warm.

• Do not put flammable, explosive or cleaning materials like nylon bags, paper, cloths, etc, into the drawer.

• Use only heat resistant pots and pans. Do not use flammable materials.

• It is dangerous to modify or to attempt to modify the properties of the appliance.

• Particular attention is necessary when you are frying: do not leave the appliance unattended.

The appliance is heavy. Take care when moving.

• The emission of hot air is normal while the appliance is working.
  Do not close the vents on the oven.

• Some spillage on the appliance may occur, when placing food on or into the appliance or when removing food with excess fat or water. Clean such residues immediately after cooking, in order to prevent unpleasant smells and possible fires.

• When using any electrical appliance you must follow a few basic rules:

*It is not generally a good idea to use adapters, multiple

sockets for several plugs and cable extension.

*Do not pull the power cable to remove the plug from the socket.

*Do not touch the oven with wet or damp hands or feet.

*If the main cable is damaged it must be replaced promptly:

*When replacing the cable, follow the instructions given below:

*Cable replacement must be carried out by qualified technicians. Use only an approved service centre for repairs end ensure that only original parts are used.

*When necessary, remove the power cable and replace it with one of the H05RR-F, H05VVF, and H05V2V2-F type. The cable have the capacity for the electrical current required by the product.

• Do not leave the appliance unattended before it has cooled down.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance.

• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do not store items on the cooking surfaces.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

-WARNING: Accessible parts may become hot during use. Young children must be kept away.

• Only use the temperature probe recommended for this oven.

• If present, do not to stare into halogen lamp hob elements.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• CAUTION: Accessible parts may be hot when the grill is in use. Young children must be kept away.

If the above instructions are not adhered to, the manufacturer cannot guarantee the safety of the cooker

1.4. USEFUL TIPS

• Do not use deformed or unbalanced pans.
• Clean the grill and the fat collecting tray carefully before initial usage.
• When using cleaning sprays, do not spray on heaters or on the thermostat.

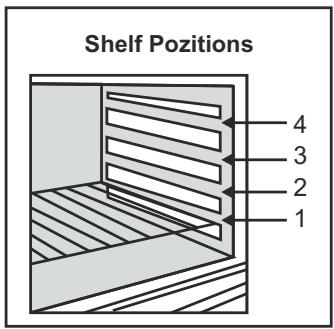

• Make sure that oven shelves are correctly placed.
• Do not cover oven parts with aluminium foil.

1.5. TECHNICAL DATA

FEATURES	TOTAL ELECTRIC POWER
60 x 60 4 Hilight Heater and Electrical Oven	8.4 kW
50 x 60 4 Hilight Heater and Electrical Oven	6.6- 6.8 kW

Rating plate (located at the rear of the cooker)

2. INSTALLATION

Installation have to be made by qualified personnel. The manufacturer have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee.

The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

WARNING! Care must be taken regarding where the appliance is placed! It can only be installed in a continuously ventilated room.

Electrical connections must always be disconnected before any repair, installation or modification.

• Before positioning your appliance, check the properties of the energy supply and make sure that your appliance is regulated accordingly.
• The appliance must not be installed near flammable materials (e.g. furniture, curtains, etc.)
• If the range is placed on a base, measures must to be taken to prevent the appliance slipping off the base.

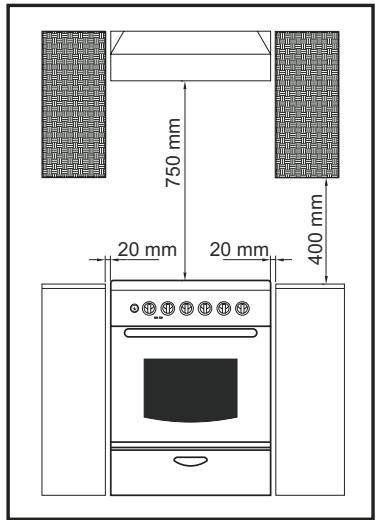

2.1. POSITIONING

This appliance is of the "X" type and it has been designed on the presumption that the adjacent work tops will be no higher than the cook top surface.

2.2.FEET ADJUSTMENT

Your appliance has adjustable feet at the lower corners of its chassis.
- The feet can be adjusted individually with the aid of a wrench to guarantee that the oven is perfectly balanced and levelled, so that any liquids in the pans is horizontal.

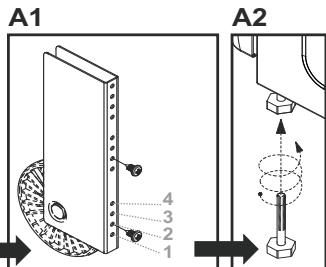

Adjustable feet and wheels.

A

B

C

• The maximum height of cooker will be 868mm by fixing the adjustable front feet and rear wheels to the 4th hole.
• Rear wheels should be fixed to the 2nd hole (picture A1), standard height. Thus, standard height will be 850 ~mm .

Adjustable feet.

2.3. DIMENSIONS OF THE APPLIANCE

	60 x 60	50 x 60
Height (mm)	850	850
Width (mm)	598	510
Depth (mm)	600	600

2.4. GENERAL APPEARANCE AND DEFINITION OF THE APPLIANCE

This User Manual has been drawn up as a guide for several models. Some of the properties mentioned in this manual may not exist in your appliance.

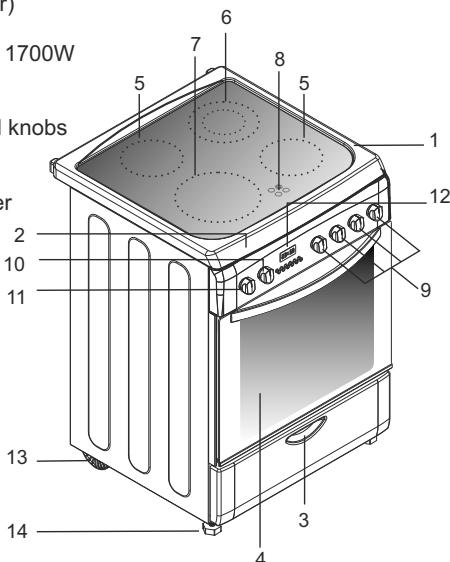

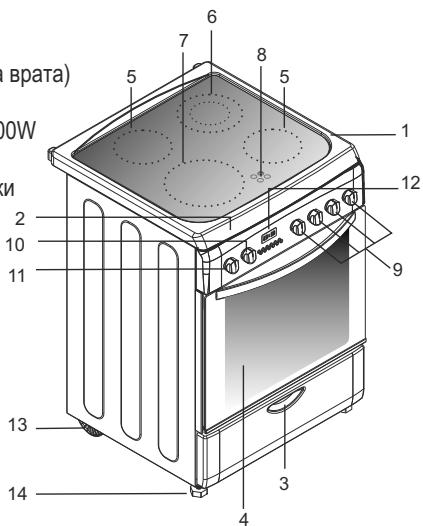

60 × 60 COOKER

1-Cook top
2- Control panel
3-Drawer
4-Oven door (Front door)
5-Hilght Heater 1200W
6- Double Hilight Heater 1700W
7-Hilight Heater 2300W
8- Warning Lamps
9-Hilght heaters control knobs
10-Oven knob
11- Thermostat knob

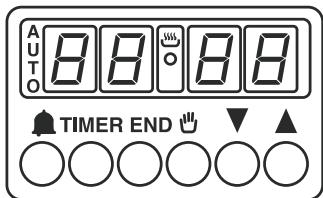

12- Electronic programmer
13-Moving Foot
14-Bolt Foot

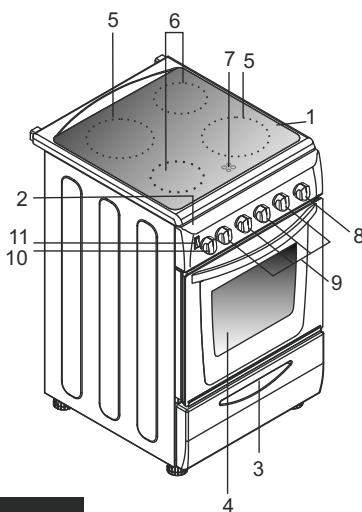

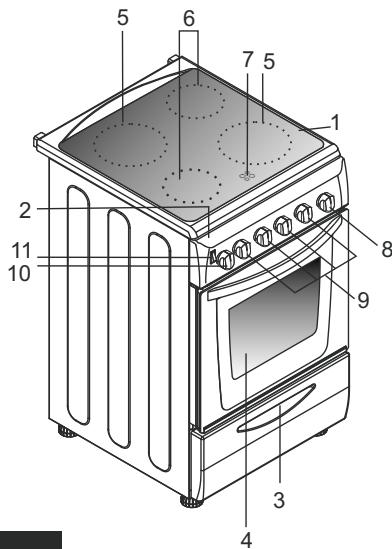

50 × 60 COOKER

1-Cook top
2- Control panel
3-Drawer
4-Oven door (Front door)
5-Hilight Heater 1800W
6-Hilght Heater 1200W
7- Warning Lamp
8-Timer knob
9-Hilight heaters control knobs
10-Oven knob
11-Fan knob

2.5. COOKERS WITHOUT ENERGY CABLE

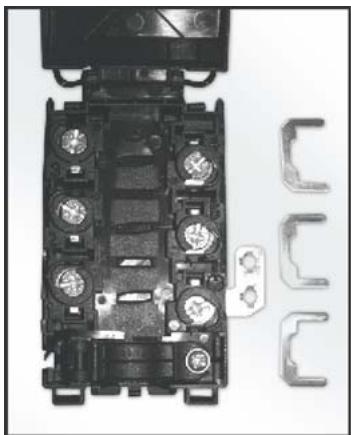

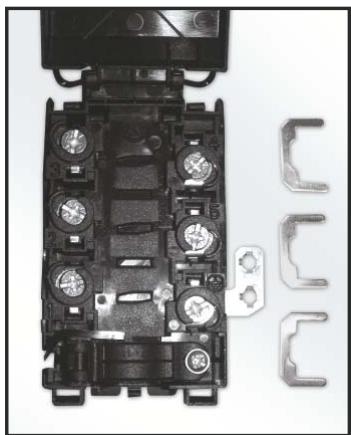

Cable box connection types

1- Monophase connection

2- Three-phase connection
Attention: A poor clamping can draw away risks dangerous heating at the level of the cable feeding

Monophase 220-240 V~

Three-phase 380-415V3N~

Fuse	25 A	3 x 16 A
Cable - Section	3 G 2.5 mm²	5 G 1.5 mm²
Cable - Type	H05VV-F ou H05RR-F	H05VV-F ou H05RR-F

2.6. ELECTRICAL CONNECTION

Cookers can be presented with or without energy cable. Cable connection should be done by Autorited service according to following instructions.

The electrical connection must be made according to the standards and regulations in force. Before making the electrical connection, check the following:

• Is the capacity of the electrical connections and safety fuses in the building sufficient to cope with the load of the appliance? (Check with the adhesive info label)

• Does the electricity supply line have an earth connection conforming with the standards in force? A proper earth connection must exist in your home. If there is not a proper earth connection at your home, please apply to an authorized technician to deal with this problem.

• Is the socket or the multi-pole switch at a easily reachable point after the installation of the appliance?

• A plug conforming to standards should be connected to the mains cable and the cable should be inserted into a safe socket.

• A multi-pole switch must be used between the appliance and the electricity line if a direct electrical connection to the appliance is required. (It must comply with standards and be appropriate for the load)

The green-yellow ground cable must not be interrupted by a switch. The brown phase cable (from the "L" coded connector of the oven) must always be connected to the phase line of the mains.

• The power line must be positioned so that it is not exposed to temperatures higher than 50^ C .

• When the power cable must be changed, a cable with a cross section appropriate to the indicated power must be used. The green-yellow ground cable should be approximately 2 cm longer than phase and neutral cables.

• Check the heaters by switching them on for 3 minutes, after having completed the connection.

• The manufacturer will not accept responsibility for damages arising due to non-compliance with the safety standards.

If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

3.1.DESCRIPTION OF COOKING ZONES

Highlight zone

A metallic conductor strip is spread uniformly over the whole surface unit. It is effective within 3 seconds and is suitable for steady, even and also lengthy cooking.

The glass-ceramic cook top benefits from greater heat output which is generated by the highlight cooking zones thereby accelerating the cooking process. Modifications to the design of the hob have not affected the capacity of the glass to withstand high temperatures, but they have improved controllability.

With the "Sprinter" facility, reduced cooking times of up to 15% can be achieved, depending on the method of cooking and the type of saucepans used.

• Multi-circuit heating elements offer the advantage that several cooking zone sizes can be used with one heating element.

3.2. COOKTOP COOKWARE ADVICE

Efficient cooking

The extra large highlight zone, will depending on the dimensions of the cook ware and/or the quantity of food being cooked, provide even higher performance levels.

Using good quality cookware is critical for obtaining the best performance from your hob.

Use pans with a large enough diameter to completely

cover the surface unit the size of the pan should be no smaller than the heated area. If it is slightly wider the energy will be used at maximum efficiency.

3.3. THE CHOICE OF COOKWARE

The following information will help you to choose cookware which will give good performance.

Stainless Steel

Highly recommended. Especially good with a sandwich clad base. The sandwich base combines the benefits of stainless steel (appearance, durability and stability) with the advantages of aluminium or copper (heat conduction, even heat distribution).

Aluminium

Heavy weight recommended. Good conductivity.

Aluminium residues sometimes appear as scratches on the cook top but can be removed if cleaned immediately. Because of its low melting point, thin aluminium should not be used.

Cast Iron

Usable, but not recommended. Poor performance. May scratch the surface.

Copper Bottom/stoneware

Heavy weight recommended. Good performance, but copper may leave residues which can appear as scratches. The residues can be removed, as long as the hob is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass hobs. An over heated copper pot will leave a residue that will permanently stain the cook top.

Ensure that the base of the pot or pan is dry

when filling pans with liquid or using one that has been stored in the refrigerator, ensure that the base of the pan is completely dry before placing it on the hob. This will help to avoid staining the cook top.

Always use good quality cookware with perfectly flat and thick bases

Using this type of cookware will prevent hot spots that cause food to stick. Thick metal pots and pans will provide even distribution of heat.

Porcelain/enamel

Good performance only if the base is thin, smooth and flat.

Glass-ceramic

Not recommended. Poor performance. May scratch the surface.

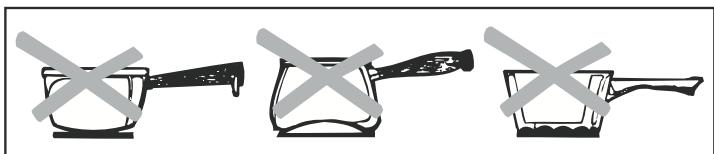

Suitability of Cooking Pans

Keep in mind that larger pans have larger heating surfaces.

This will help them to cook the food faster than pans with smaller heating surfaces.

Always use pan sizes proportionate to the amount of the food to be cooked. In order to prevent splashing, do not use very small pans, especially for foods with excess liquid. If you use excessively large pans for quick cooked foods, sausages and liquids will stick and residues will remain attached to the pan after being emptied.

Closed pans and baking trays or moulds are suggested for cooking sweets. Splashed sugar and juices from an open pan may stick to the cooker surface and will be difficult to remove. This is especially important for pans used for roasting or pressurized cooking at high temperature.

Do not leave burners unattended without a pan or with an empty pan on top.

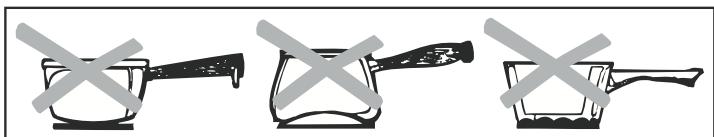

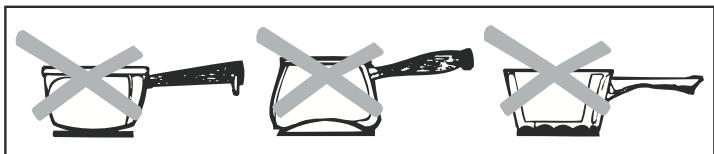

Check the suitability of cooking pans with respect to the following criteria;

They should be heavy.

They should completely cover the burner surface; they may be a little bigger but no smaller.

Base surfaces should be completely flat and fit well on the cooking surface.

• Some parts of the food may be heated while others remain cold due to the uneven distribution of heat under the pan. Therefore, continuous stirring of the food being cooked is necessary in the case of thin-bottomed pans. Heat is more effectively and evenly distributed with thick-based pans.
• Use of very small pans is not recommended. Wider, low-sided pans are more suitable for more effective and quicker cooking than small, deep pans.
• You cannot shorten cooking time by using a small pan over a large burner. You will only waste gas in this way. However, a pan with a lid will save energy.

3.4. CONTROL KNOBS OF THE VITROCERAMIC COOKTOP

HOW TO OPERATE THE COOKTOP

Locate the sign corresponding to the cooking zone that you need.

Turn the control knob to the required cooking setting.

Initially we recommend that the heat zone be set at the highest position until the contents of the saucepan have reached the required temperature; the heat can then be reduced to the required cooking setting.

The residual heat indicator light will come on when the cook top surface temperature reaches 60 degrees or above.

It will remain on even if the cook top is switched off and will only go out when the cook top surface has cooled down.

Position			Some Tips
1	1-2	Very Low	To keep a dish hot, melt butter and chocolate...
2	3-4	Low	Slow cooking, sauces, stews, rice pudding poached eggs...
3	5-6	Moderate	Beans, frozen foods, fruit, boiling water...
4	7-8	Medium	Steamed apples, fresh vegetables, pasta, crepes, fish...
5	9-10	High	More intense cooking, omelettes, steaks...
6	11-12	Very High	Steaks,chops, frying...

To switch off the cook top, turn the knob to "O".

• The oval heating zone consists of two heating areas: a circular area and an oval shaped section. Turn the control knob from 1 to 12 to regulate the circular area. To operate the oval section, simply turn the control knob to position12 and then select a position from 1 to 12.
• The heating area consists of two concentric zones. The inner circle is activated when the knob is turned to any of the positions from 1 to 12. The outer ring will only be activated when the control is turned beyond 12 up to a maximum power.

4. USE OF THE OVEN

4.1. GRILLING

• Grilling gives food a rich brown colour quickly. Depending on the quantity of the food, you can switch the grill on to different positions. Almost all food can be cooked under the grill except for very lean game and meat rolls.
• Meat and fish that is going to be grilled should first be lightly doused with oil.
• Place a fat collecting tray beneath during grilling. Put some water into the tray to prevent unpleasant smells and to prevent the fat catching fire.
• Grilling is usually preferred for cooking pieces of meat, for example steaks, which are not too thick, different sized meat parts, cleaved hunted birds, fish, some vegetables (e.g. courgettes, aubergines, tomatoes, etc.) together with meat and fish products on spits.

Oil the fish lightly before putting it directly under the grill.

Add salt on meat after cooking, salt fish into the cleavage before cooking.

• The distance from the grill will depend on the thickness of the meat or fish. If the distance is correctly judged, the outer parts will not be burnt and the inside will not remain raw.
• Prevent unpleasant odours and smoke caused by dripping fats and sauces by pouring 1-2 glass of water into the fat-collecting tray.
• You can also use the grill for toasting, toasted bread or sandwiches, for example, and also to cook certain fruits (bananas, grapefruit or pineapple slices, apples etc.). However, fruit must not come into contact with the heating elements.

Never cover oven inner walls or the bottom with aluminium foil. Accumulated heat can damage the oven enamel and your meal.

4.2. SUGGESTIONS FOR COOKING

Traditional Cooking

Heat is generated from the upper and lower heaters. Generally, the middle shelf position is preferable for cooking. However, if the top or bottom surface of the food must be cooked more, place it on the upper or lower shelf.

Convection Cooking (with Fan)

• The food is cooked by evenly distributed preheated air blown into the oven by the help of the fan located on the inside back wall of the oven.
  It is possible to cook several dishes simultaneously on different shelves thanks to the evenly distributed heat inside the oven.
• This type of oven is also very useful for defrosting frozen food. It can also be used for sterilizing canned food, preparing fruit syrups, and dehydrating fruits and mushrooms.

4.3. COOKING CAKES

• Unless otherwise suggested, preheat the oven for at least 10 minutes before use. Do not open the oven door when cooking cakes otherwise they will not rise (cakes or dishes with yeast and soufflés). The blast of cold air which will enter the oven will prevent rising. You can check whether cakes are properly cooked by inserting a rod into the dough. If the rod comes out dry when you pull it out, it means that the cake is properly cooked. Do not check in this way until at least three quarters of the cooking time has elapsed.

Please keep in mind the following tips

• If the surface of the food is cooked well but it is still raw or partly raw inside, it must be cooked longer at a lower temperature.
• On the other hand, if the surface of the food is too dry, it should be cooked at a higher temperature for a shorter time.

4.4. COOKING PIZZA

• Thermostat setting at maximum
• Preheating time 15 min (20 min if possible)
• Position of the tray in either one of the two lowest position
  Cooking time 20 min.

4.5. COOKING FISH

Small fish can be cooked at the maximum temperature from start to finish. Medium sized fish must be cooked at the maximum temperature at the beginning and then the temperature must be slowly reduced. Larger fish must be cooked at lower temperatures from start to finish. Check the cut at the bottom of fish to understand whether it is cooked properly. In order to understand whether the fish properly grilled or not, check the cleavage at the bottom of the fish. The colour (for grilled fish) should be an even matt white. This is not the case for salmon and trout.

4.6. COOKING MEATS

• The minimum quantity of meat to be cooked in the oven is 1kg . Otherwise, the meat will be too dry.
  If you require well done meat, use less fat. If meat has a little fat, there is no need to use oil. If one side of the meat is fatty, place this side up. The melted fat will sufficiently grease the part below. Red meats should be taken out of the fridge at least 1 hour before the cooking.
• Otherwise the meat may become tough due to the temperature difference. Do not use salt before cooking, especially when grilling meat. Salt will draw the blood and juices out of the meat which will consequently prevent the roasting of the upper surface of the meat.
• Add salt to roast meat only after half of the cooking time has elapsed.
• Place the meat to be roasted in a wide, shallow pan.
• Deep sided containers / pans act as a shield against the heat. Meat can be placed in the oven in a heat resistant pan or directly onto the grill. Insert a fat / gravy collecting tray beneath the grill. Sauces must be added at the beginning if the food is cooked for a short time, while it would be better to add sauces in the last half hour if the food is cooked for a longer time.

4.7. COOKING TURN SPIT

• The cooker is equipped with a metal turnspit, two forks and a hook used to support the spit.
  -Instruction for use:
• Remove all accessories from the oven;
• Put the deep pan on the bottom of the oven or on the lowest bench;
• Stick the turnspit through the meat, centered between the two forks;
• Fix the turnspit into the drive hole located in the bottom wall, then hang the support hook in the drive located at the top front of the oven cavity and around the edge of the turnspit.
• Preheating is not necessary with the turnspit.
• Cooking Time Recommended In Turnspit Position;

Cooking time (min)	Electric Oven
Beef (1kg)	20/30
Lamb, sheep (1kg)	30/40
Veal, Poultry (1kg)	60/70
Pork (1 kg)	65/75

4.8. USING THE END OF COOKING TIMER

This control enables to set the desired cooking time (max. 90 min.) the oven will automatically switch off at the end of the set time.

The timer will count down from the set time return to the O position and switch off automatically.

For normal use of oven set the timer to the position.

To set the oven ensure the timer is not on the O position.

4.9. USING THE MINUTE TIMER

To set the cooking time, turn dial one complete revulsion and then position the index to the required time. When the times has lapsed, the signal will ring for a few seconds.

4.11. ELECTRIC OVEN

Position	Oven Function
F	Function
°C	Temperature
℃	Cooking time
○	Not in function
←→	Turn spit and grill heater
◇	Lamp
◇	Grill heater
×	Grill heater and fan
×	Fan
×	Upper heating element and fan
×	Lower heating element and fan
×	Upper heating element, lower heating element and fan
◇	Lower and upper heating element
◇	Upper heating element
◇	Lower heating element
◇	Manual
PIZZA	Pizza

4.10. USE OF THE ELECTRONIC PROGRAMMER

FUNCTION	HOW TO ACTIVA	HOW TO SWITCH IT OFF	WHAT IT DOES	WHAT IT IS FOR
MINUTE MINDER	•Press and hold the button▲ •Press the buttons▼or▲to set the required time •Release all the buttons	•When the set time as elapsed an audible alarm is activated (this alarm will stop on its own, however it can be stopped immediately by pressing the button) □	•Sounds an alarm at the end of the set time. •To check how long is left to run press the button▲	•Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operating the oven)
MANUAL FUNCTION	•Press the button □ •Set the cooking function with the oven function selector	•Turn the oven function selector to position“○”	•Enables you to operate the oven.	•For cooking the desired recipes
COOKING TIME	•Press and hold the TIMER button •Press the buttons▼or▲to set the lenght of cooking required •Release all buttons •Set the cooking function with the oven function selector	•When the time is elapsed the oven will switch off automatically. Should you wish to stop cooking earlier either turn the function selector to 0, or set time to 0:00(TIMER and▼▲buttons)	•It allows to preset the cooking time required for the recipe chosen. •To check how long is left to run press the TIMER button. •To alter/change the preset time press TIMER and▼▲buttons	•At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring.
END OF COOKING	•Press and hold the END button •Press the buttons▼▲to set the time at which you wish the oven to switch off •Release the buttons •Set the cooking function with the oven function selector	•At the time set, the oven will switch off. To switch off manually, turn the oven function selector to position“○”.	•Enables you to set the end of cooking time •To check the preset time press the END button •To modify the preset time press buttons END+▼▲	•This function is typically used with “cooking time” function. For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to 12:30. •Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the preset end of cooking time, when the oven will switch itself off automatically WARNING! If the END of cooking is Selected without setting the length of cooking time, the oven will start cooking Immediately and it will Stop at the END of cooking time set.

Setting the correct time:

WARNING : the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing )

• Press and hold the TIMER and END buttons (▶ and ↓)
• Set time with buttons
• Release all buttons

ATTENTION the oven only operates if set on manual function or preset time.

N.B.: on some models the symbols are replaced by + and - .

In the programming of a timer with 5 buttons, for manual function, press "TIMER" and "END" buttons simultaneously

TIMER END

Traditional and Hot Air Circulation Cooking Methods; Weights (Gr)

TYPE OF THE FOOD Traditional Cooking Method

Weight (Gr)	TYPE OF THE FOOD	Traditional Cooking Method		Hot Air Circulation Method		Cooking times (Minutes)	NOTES
	CAKES AND DESSERTS	Shelf Position	Tempera-ture(℃)	Shelf Position	Tempera-ture(℃)
	Dough with stirred egg	2	180	2 (1 and 3)	160	45 - 60
	Dough	1	180	2 (1 and 3)	160	20 - 35
	Small Cakes	2	180	2 (1 and 3)	160	20 - 30
	Cheese Cake	1	175	2	150	60 - 80
	Apple Pie	1	180	2 (1 and 3)	160	40 - 60
	Strudel	2	175	2 (1 and 3)	150	60 - 80
	Jam tart	2	180	2 (1 and 3)	160	45 - 60
	Small cakes	2	180	2 (1 and 3)	160	15 - 25
	Biscuits	2	180	2 (1 and 3)	160	10 - 20
	Cream cakes	2	100	2 (1 and 3)	100	90 - 120
1000	BREAD
	White Bread	1	200	2	175	45 - 60
500	Rye Bread	1	200	2	175	30 - 45
500	Sandwich	2	200	2 (1 and 3)	175	20 - 35	Inside the closed oven on dishes 8 pieces on a tray Under the grill
	PASTRY
	Macaroni	2	200	2 (1 and 3)	175	40 - 50
	With vegetable	2	200	2 (1 and 3)	175	45 - 60
	Small pastries	2	200	2 (1 and 3)	175	35 - 45
	Lasagne	2	200	2	175	45 - 60
	MEATS
	Roast beef	2	200	2	175	50 - 70	Cook on grill
1000	Roast pork	2	200	2	175	100 - 130	Cook on grill
1000	Roast veal	2	200	2	175	90 - 120	Cook on grill
1500	British style roast beef	2	220	2	200	50 - 70	Cook on grill
1200	Lamb	2	200	2	175	110 - 130	Leg
1000	Chicken	2	200	2	175	60 - 80	Full size
4000	Turkey	2	200	2	175	210 - 240	Full size
1500	Duck	2	175	2	160	120 - 150	Full size
3000	Goose	2	175	2	160	150 - 200	Full size
1200	Rabbit	2	200	2	175	60 - 80	In parts
	FISH
	Whole fish	2	200	2 (1 and 3)	175	40 - 60	2 Fishes
800	Fillet	2	200	2 (1 and 3)	175	30 - 40	4 Fillets

NOTE :
1) Cooking times do not include pre heating. Preheating the oven for about 10 minutes is advisable especially for cakes, pizzas and breads.
2) Indicates tray positions for cooking several dishes simultaneously.
3) All cooking operations must be carried out with oven door closed.

FOOD TYPES	QUANTITY		COOKING ON GRILL		COOKING TIMES (Minutes)
	N. OF PARTS	WEIGHT	SHELF POSITION	TEMPERATURE (℃)	UPPER SECTION	LOWER SECTION
Beefsteak	4	800	4	max	10	8
Grilled cutlet	4	600	4	max	12	8
Sausage	8	500	4	max	10	6
Chicken parts	6	800	3	max	30	20
Mixed grill	4	700	4	max	12	10
Milky desserts	4	400	4	max	13	10
Tomato slices	8	500	4	max	12	--
Fish fillets	4	400	4	max	8	6
Scallops	6	---	4	max	12	--
Toast	4	---	4	max	8	--
Bread slices	4	—	4	max	2-3	1

5. CLEANING AND MAINTENANCE

Before all cleaning and maintenance :
- Disconnect mains voltage.
- If the oven is hot, wait till it has cooled down.
- Never use a steam or high pressure spray to clean the appliance.
- Never use abrasive cleaners, wire wool or sharp objects to clean the glass oven door.
- Clean enamelled surfaces with warm, soapy water or with suitable brand products. On no account use abrasive powders that may damage surfaces and ruin the appearance of the cooker.
It is very important to clean the oven each time it is used.
- Use detergents and abrasive metal pads for the stainless steel grills.
- The glass surfaces such as the top, the oven door and the warming compartment door must be cleaned when they are cold.
- Damage caused by failure to respect this rule is not covered by the guarantee.
- Do not use abrasive products, metal cleaning pads, sharp objects, rough cloths, or chemical products and detergents that can permanently damage the catalytic lining.
- It is a good idea to use deep roasting trays for fatty foods such as joints of meat etc. and to put a tray underneath the grill to catch surplus fat.
- Cleaning and user maintenance shall not be made by children without supervision.
- Do not use a steam cleaner for cleaning operations

Cleaning of Oven Door

For thorough cleaning of the oven door, it is advisable to remove the same, as shown in below.

Open the door completely, turn the two feet on the hinge arms 180^ . Close the door partly by a 30^ . Remove the door by slightly lifting the it at this position.

For replacing the door, follow the steps above in the reverse order. Before carrying out any maintenance work on the hob, allow it to cool down.

Only products, (creams and scrapers) specifically designed for glass ceramic surfaces should be used. They are obtainable from hardware stores.

Avoid spillages, as anything which falls on to the hob surface will quickly burn and will make cleaning more difficult.

It is advisable to keep away from the hob all substances which are liable to melt, such as plastic items, sugar, or sugar-based products.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

MAINTENANCE

• Place a few drops of the specialised cleaning product on the hob surface.
• Rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.
• Wipe with a soft cloth or dry kitchen paper until the surface is clean.

If there are still some stubborn stains

• Place a few more drops of specialised cleaning fluid on the surface.

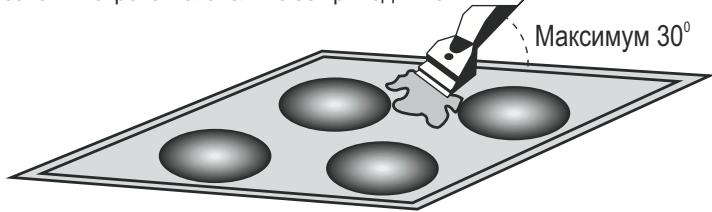

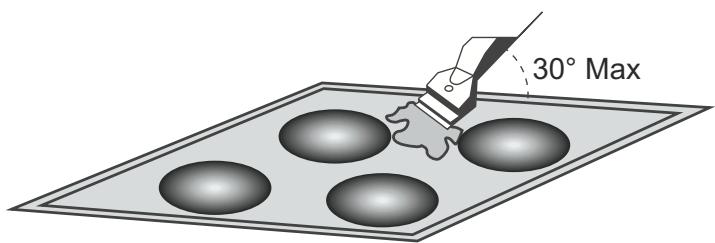

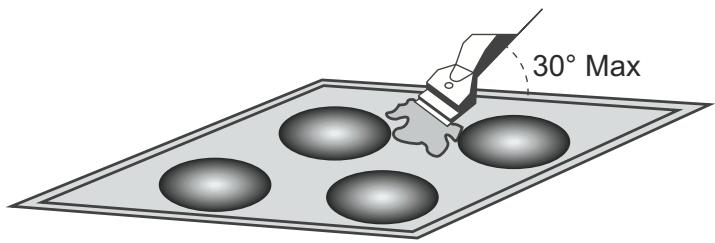

• Scrape with a scraper, holding it at an angle of 30 to the hob, until the stains disappear.
  Wipe with a soft cloth or dry kitchen paper until the surface is clean.
  -Repeat the operation if necessary.

AFEWHINTS

Frequent cleaning leaves a protective layer which is essential to prevent scratches and wear. Make sure that the surface is clean before using the hob again. To remove marks left by water, use a few drops of white vinegar or lemon juice.

Then wipe with absorbent paper and a few drops of specialised cleaning fluid.

The control knobs can be removed for a complete cleaning.

However, you must care not to let any liquid go into the open zones, and then to push the knobs fully on fitting back.

The glass ceramic surface will withstand scraping from flatbottomed cooking vessels, however, it is always better to lift them when moving them from one zone to another

Do not use a sponge which is too wet.

Never use a knife or a screwdriver.

A scraper with a razor blade will not damage the surface, as long as it is kept at an angle of 30^ .

Never leave a scraper with a razor blade within the reach of children.

Never use abrasive products or scouring powders.

The metal surround

to safely clean the metal surround wash with soap and water, rinse, then dry with a soft cloth.

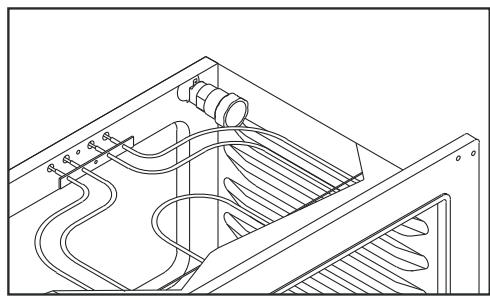

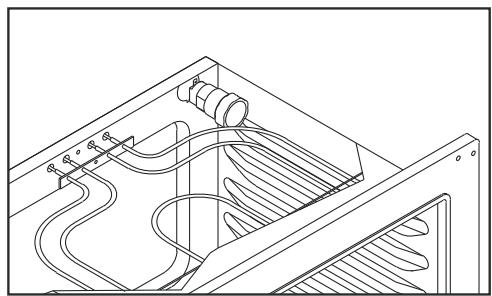

To Replace the inside light

• Switch off the mains power supply and unscrew bulb.
  Replace with an identical bulb that can withstand very high temperatures.
• Never use steam or a vaporizer for cleaning.
• WARNING: Avoid possibility of electric shock - ensure the appliance is switched off before replacing the lamp.

5.1. CATALYTIC SELF - CLEANING OVEN

• Special self-cleaning panels covered in a micro-porous coating are available on some of our models. If they are fitted, the oven no longer needs to be cleaned by hand.
• The lining must be porous for self-cleaning to be effective.
• Excessive splattering of fat may block the pores and therefore hinder self-cleaning. This self-cleaning capacity may be restored by switching on the empty oven to maximum for about 10-20 minutes.
• If the walls of the oven are so thickly coated in grease that the catalytic lining is no longer effective, remove surplus grease with a soft cloth or sponge soaked in hot water. All catalytic linings currently on the market have a working life about 300 hours. They should therefore be replaced after about 300 hours.

6. SERVICE CENTRE & TROUBLESHOOTING

• If the oven is not working, before calling the service centre we recommended that:
• You should check that the oven is properly plugged into the power supply.

The oven does not heat up

Are the oven control knobs at the correct position?

The cooking time is too long

Has the correct temperature been selected?

Smoke comes from the oven

It is advisable to clean the oven after each use. If fat which splashes during the cooking of meat is not cleaned, it will cause an unpleasant smell and smoke the next time you use the oven. (See the Cleaning and Maintenance chapter)

The oven light does not come on

• The light might be faulty. To change the bulb, please see the relative page.
• If you have checked the above and the oven still does not work properly, contact the nearest authorized service for assistance
• Model and Production Number (PNC or ENR).

The cooking zones do not simmer or only fry gently

Only use flat-bottomed pans. If light is visible between the pan and the hob, the zone is not transmitting heat correctly.

The pan bottom should fully cover the diameter of the selected zone.

The cooking is too slow

Unsuitable pans are being used. Only use flat bottomed utensils, that are heavy and have a diameter at least the same as the cooking zone.

Small scratches or abrasions on the hob's glass surface

Incorrect cleaning or rough-bottomed pans are used; particles like grains of sand or salt get between the hob and the bottom of the pan. Refer to the "CLEANING" section; make sure that pan bottoms are clean before use and only use smooth bottomed pans. Scratches can be lessened only the cleaning is done correctly.

Metal marks

Do not slide aluminium pans on the hob. Refer to the cleaning recommendations.

You use the correct materials, but the stains persist.

Use a razor blade and follow the "CLEANING" section.

Dark stains

Use a razor blade and follow the "CLEANING" section.

Light surfaces on the hob

Marks from an aluminium or copper pan, but also mineral, water or food deposits; they can be removed using the cream cleaner.

Caramelisation or melted plastic on the hob.

Refer to the "CLEANING" section.

The hob does not operate or certain zones don't work

The shunts are not positioned correctly on the terminal board.

Have a check made that the connection is done in compliance with the recommendations.

The control panel is locked.

Unlock the hob.

Frequency of on/off operations for cooking zones

The on-off cycles vary according to the required heat level:

• low level: short operating time,
  high level: long operating time.

"H" display, residual heat indicator, blinking

The electronic temperature is too high. A technician should verify the fitting in compliance with the recommendations.

7. PROTECTION OF THE ENVIRONMENT

• After positioning the appliance, packaging materials must be correctly disposed of for safety and environmental purposes.
• Before disposing of old equipment, cut the power cable in order to render the equipment unusable.
• This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment
• Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. AVISO GENERAL

1.3. MEPbI IPEIOCTOPOXHOCTN

-ПлNTа Долнka Исплььбатсг TOЛько NOе epпямOMу HAЗHAчEHиTO,TO eCTb,TOЛькОДпriГOTOBHENNY ПИИ.ЛЮБьcle Дургme римЕнHЯ ППИТы, HANpIMeR Исплььбанeve ee nIЯ obOrpeBa NOMEseHry, 3aPpeaIoTcR, TAK KAK OHN ABJYOTcOnAChbIMN.
· PpOIN3BODIHTeNB He Hecet OTBETCTBEHHOCt b 3a KaKHe-JNIOOBpeJXDEHnA, BbI3BaHNHbE HePpABInbHbIM NcONJIb3OBAHnEM NNITbI NmN He6peKhbIM o6paUeHem c HeN.
-Пи ИСПОЛБЗOBAHИ 3ЛЕКТРОПИБОВСLEДУЕТ COБПЮДАТ HeCKОЛБКО OCHOHBHx INPABIN. B CNYAe BByXODa I3 CTPOI HAPUSEHIN HOPMaJbHON pa6OtI 3ЛЕКТРОПИБОРBA, BYKIIIOHITe EOR, OTOCoEINHITE Ka6eB NITANHOr OT 3ЛЕKТРOCETN, He PnKacAITeC K HeUNCPaBOMY 3ЛЕКТРОПИБOPY, n 6obpatNTeCb B YTBepXJDeHHbI CepBcHbI CEHTP.
JaHbI 3eKtpponp6Op He npEHa3HaueH IINI NCIOB3OBAHnI DeTbMn IN JIObMbN CfIMcHECKMM INN PCNXIMC KHM HeNOCTaTKAMn, a TAKKe JIObMbN, HE OblaAioUmm MIOCTAOHbIM ONbITOM N3HAHmM, ECINI NTINuIa He NOUYuINN HCHTPyKPNOTOHOCNTBHO EKCNPLATAUM 3JIEKTOPPOB4o, INI He NCIOB3yOT 3eKTPponp6Op NOI pncmToPOM Nlua, OTBeauOuero 3a ux 6e0NaohocTb.
-He pa3peuaiTe DeTm Upratb CJIeKtponpnpoPOM.
DyXOBka HarpBeBaetc DO OeHb BbICOKO TemNepaTybl,OCo6EHHO CTekIO DeBpcI dyXOBKn. He paapeWaiTe Detm npBnKAtbc K pInTe, KOrda HarPeTa DxyOBKa,OCo6EHNO,ecbn BKNJouHr pInb.
-ПрииИЗВLEЧЕНИМ ПИСД ИЗ ДУХОВКИ分解3aTeЛьноЛьзуТecьперчakам.
-Пдджрьдгп ПИТУ B YСHOTM COCTORHIMN. 3TO He6xOДМО ДЯ бобоченя БЗол�сэн'tи И схаразеня Здоров. NaIIyIe Ha ПИЛTe КИра и OCTATKOB ПИДС мОКЕТ пИВСТС K ПОЖAPY.
CneIte 3a TeM, YTO6bI He npuIeMnTb naIbUbI neTne DBePcbl DyXOBKn. Hepa3pe7aIte Detam npi6bnKATbsc K PInTE.
-EcInPiHTa He IcIOJIb3yETcR, y6eIITecB TOM, YTO BCE pyKu ynpabNeHn HaxoJrTcB NpOKeHH BblkI.
-BydBnKHOJrAUNKIIINbIbIcNIOb3yETcIJaXpaHeHnYcTbIXpOITNBHeI INI DnIcoxpaHHeHnPiUINBpa3oRptomCocToHHN.
-He xpaHnite B BbIbVIXKOM RaUmke PIMITbI ropUChne I B3pblBOONaCHbIe MaTePnAJIbI, a TAOKe YICTaUHcpeCpeDCTBA, PIIaCTMkoBbIe NaKeTbI, OymarY, TkaHNI, n.T.I.
-Пользунтесь толькх ожаросточимma Кастюлmaи n CSKOBOPoДам. He нользунтесь горочимma Mateрnaлиам.
-He BHOCHTe B KOHCTpyKLIIO 3JIeKTpOpi6opa HnKaIX N3MeHeHNI. 3TO MOKeT npINBeCTN K CHIXKeHIO erO 6e3OnaCHOCTN.
-BoBpemJxapKnPiuNHeOTXoDnTeOTPiNTbI.
-Даннь слкрпорбор IMeet 6oIbIyIO Maccy. Co6IIOdaIte octopoxKHOCTb npri erO nepemeHIN.
-BoBpeMpa6bI pIITbI n3 Hee BbIXOaNT ropAun Bozdyx. 3To HopMaIbHoe IyBnHe.I He 3aoropaxmbaTe BEHTINIAUONHHbe OTBepCTna, paCIOIOXeHNbHa KOpNcE peTbI.
-Пи установке на пліntу піши, соредріашій 6оьлшоe колічесв ожра піпьовы, и пі рсіній takій пішис n піntы мочет п\'о\'cxODn'tb pa3linbaHne

JIKDKOCTN. B 3TOM cnyae cpasy kxe nocIe nprrTOBNEHn IINs Heo6xODIMO ydaNTb C pInLTb OCTaTK NINs, YTO6bI npedOTbPaTb NOBHeHne HENPnYTHbX 3aNaXB OBa3ROpAHn IINs.
-При Испонтьзовани сеелкторпборов сеелует собл�аь сеелушке OCHOВные правILA:
He noIb3yItecb nepexoHnKamu, TpoHnKamu n/nn ydHHTeBhIMn UHypAMi.
PnI n3BneHEnn BnKn Ka6eJI NaTahn I3 3NeKtpuecko po3eTKn CJeDyET dEpaKaTbCra 3a BnKy, a He 3a shHyp.
He npikacaiTecb K pnte MokpbIMn nBnaJhbIMn pykamn HOrAMN.
B cnyuae noBpeJeHnKa6eI PiTaHn erO HeoXoDmO 3aMeHnTb DOJxHbIM O6pa30M.
Pn 3aMeHe Ka6eI npb3yTeCb npBBeHbIMn HxKe INHCTpyKUmaMn.
3aMeHa Ka6eIa DOnXHb BbInnHrTbcKbAinuNpUPOBaHHbIM CneuaJIACCTOM. IaBnIOHHeNPeMOHTa NOp3yITcB yCnyramm TOnbKO yTBepxJdeHOrO cepBNCHOrO ueTPa, uPocneDnte 3a TeM, yTObbl NC0Nb3OBaNcB ToNkOΦiPMEHhBe 3aIaChbIe qACTn.
B cnuyae Heo6xOIMMCTOn OTcoeJHInTe cTeBoN Ka6eJb N 3aMeHInTe eRHObblk6aHemTnA H05RR-F,H05VVF,unH05V2V2-F.Ka6eB JdOJIKeH IMeTb DocTaOHyU HaPry3OHyU CnOc6HoCTb,YTo6bl npOnyckaTb TOK, NOTpe6IbEmbl pNIToI.
He octabTay Te Pnity 6e3 npncmOTpa, noka OHa He octbIHet.
-IPDEUYPEXJEHNE: BbTOBO3 3eKTPoPn6Op n erO OTKpbTbE qactN BO BvpeBaTbM OryeBaTbCn DO BcICOKo TEMepaTpyb. CoBnDaIte OCTOPOXHOCTb, HEOTpArnBaITecb Do HIX.
-Дети моложе 8 Лет He Должны пиблжаться K Битову пибopy 6e3 noctогногандара.
JaHHbIM bIbTObIM 3NIEKTPoPnB6OpOM MoryT nOJIb3ObaTbCer DetH CTapIe 8 let, ta TaKHe JIOJc HApUeHHbIMn Fm3NHeCKmIMn IINy UMCTBeHHbIMn CNOcO6OBCTaMn INCOTCYTbEM HApNTKaUeO BtOB T B TOM CNYae,ecNJ OHn HaxODaTcN oD HApNJoDeHMe N pOnHCTpyKTIpOBAhBt OTHocHTeBHO 6E30NaChORo NCpONBJBaHmN bIbTOBO rNo6pa, a TaKke, ecNJ OHcOBdomeJIbO bImeOuXxCr OAnCHOTx.
-He pa3pe7aIe TeIeTAM INrpaTb C 6bITOBbIM pIn6Opom.
- PIDEYIPEXKDEHNE: Ппг�овьнше Пици на варочи поверхонс с Истлбозанем Кара на малca Бздп ecу prncmOTpa может 6ытб onаСБИМ 和Может ривс'tк KПОКАР.
- HNKOgA He nbTaTecb Noracntb PnAmy BOdo. BbIKHOHTe 6bIbOBo 3JIeKToPnpu6o, nHaKpOte PnAmy KpbUkO, nINOrHeCTOnKO TKAHbO.
-ПЕДУРЕЖДEHИЕ：Опасноctь ВОЗropанЯ：He ИспользуTe Bapочню Поверхноctь ДдяХраения на Нeй п徴metOB.
-ПЕДУПЕЖDEHИЕ:В сичай поавлиеля на Варочи поверхно.Tршшилы Вьлкунштесы рпсбов.YTOБы п dedOTВразнТь поражениЗЛКТРИЧЕСКIM TOKOM...
BtOBoI np6Op BO BpeMa pa60bI HapReBaHOTc DO BbcOKo TEMnepaTpybl. Co1IOaJIte OTOPOXHOCTb, He DoTpaMBAHTec DO 3eKTPoHaRpeBATEbHbIX 3JIeMeHToB, paCNOJoxEHbX BHyTPO NeH.
- PIDEYIPEXJEHNE: OTKpbTbIe cactn 6bIbTOBOrO 3NEKtponpnbopa BO BpEMe erao b60TbMOTN HaeBaTbc DO BbICOKo TEMpepaTpyb. He pa3peuaiTe POXODHTK HEMy MAJIeHbSKIM DETAM.
-ICNoJIb3yIe ToJIbKO TAKOJ DaTcIK TempeaTypbl, KOTOpbl peKOMHeOBaH dIJI 3ToI Neu.
-He cmOTpIte Ha raIIOReHHbIe IaMbI HarpeBaTeIbHbIX 3JIeMeHTOB BapOHyONOBepxHOCTn (ecJIN OHN eCTb).
BHIMAHHE:UTo6bI n36ExaTb OAnachOCTn, C8Ba3aHHO Co CnyaHbIM c6pocOM yctpoiCTBa TennIOB 3aunTbI, daHbI 6bITOB anekTPOPNbOp He doJxhen 3aHTbBaTcyepe3 HApXhIe nepeKJIuOHaOUIne yCTpoiCTBa, HapNImep, TaMep, INI pyroye yCTpoiCTBO, KOTOPoe peYJrAHPo BKNIOuaET N BIKIOHauET anekTPOPNbOp.
-BHIMAHHE: Pnp nCnObl3oBaHm npn HApyKhIe DeTaN MoYr HArpeBaTcBdo BbICOKoT ETMepaTpyI. He paapeuainTe TETM IOxOuNTb K neu.

Ecni npedctabHne Bbiue HNCTpyKcHn He BblIOJIHOITc, npOu3BOIDTeB He MOKeT rapaHTnpOBaT 6eONaCHOCT NIIITbI.

1.4. NOJE3HbIE COBETbl

-He noJIb3yIteCb DeOpMnPOBaHHo N HeycToHbOINocyDoI.
-ПepeДпервIM ИСпОЛьЗOBaHиЕТцаTeЛьВИ ВБIMоTE ГИль И NOTOK ДЯссборжURA.
-При ИСПОЛБЗОВАнИЧСТЯДNX CpeДСТВ В a3ро3ОЛБНОУ nakOBKe He pa3брьI3гИBAнTe UCHSTЯДСЕ СpeДСТВОHa HArpeBaTeNи NHa TepMOCTaT.
-Пюверът,чTO NOДКДУХОВКИ павиьноу сТановпьи.
-He nokpbbAaTe deTaIyXOBKn aIIOHMnHneBOJ FOJIbRoJ.

1.5. TEXHnueCKne XAPAKTEPNCNTIKN

JIINHnA 3NeKtpOnItaHnI DOJXHa 6bITb npOJoxeHa TaK, YTO6bI OHa He NODBepraIacb BO3dEiCTBnIO TEMpepaTpybl, PpeBbIuaUoSei 50^

• Ecni Tpe6yETc 3aMeHntb Ka6eNb NiTuHnI, To CneDuYETNCIOJIb3OBAtB Ka6eNb C IOCTaTOUHbIM CeueHHeM NPOBOHNKOB.KeJIo-3eJIeHbI NPOBOd 3a3EMLeHnI DoJKeH 6blTbpNp6JIu3NTeHbHO Ha 2 CM DInHHee NPOBOoD fAsbI NeHTpanI.

Послne подкноченя пntы K ольктprocetnpobepte pa60ty HarpeBaTeJeB, BKHOnuB INx Ha 3 MInHyTbI.

-ПОНЗВODИТЕЛБ He HeceT OTBETCTBEHHOCTN 3a NOBpeXdEHnA, BO3NHKUWe n3-3a TORO, yTO yCTaHOBKa 3NeKTPoPnp6opa He 6blna BblONHeHa B COOTBETCTBnC npabuIamn 3NeKTPo6e3OnachOCTn.

3.1.ОПИСАНUE 3OH HAFPEBA

3oha Haapeea Highlight

Metanlnecka 3eKtponpOoJaAa PnEHa paBHOmeHo paCpeJeHa no Bcei NobepXHocTn 30Hb HarpeBa. HxHna TEmnpaTpa HarpeBa ycTaHaBnBaETcY cep3 3 c nocNe BKnUoyen. 3Ta 30Ha HarpeBa XopoIo NOxOAnT dIra npDoJnxIeIbHorO, paBHOmeHOrO npriTOBJIeHn IuIpn NoctoHHo TEMpePaType.

CTeKIOkepAMnuecka BapOuHna NOBepxHoCTb OBeCneuBaET BbICOKyIO MOUHOCTb HArpeBa B 3OHe HArpeBa Higlight, YTO cnooc6ctByet 6bICTpOMy PnIROTOBLeHIO NsIu. BHeceHne n3MeHEnB KOHCTpyKUIO 3NeKTPnuecCKoI KOHOpKn He CHN3INo cNooc6HOCTb CTeKIOkepAMnKn BbIDepKnBaT BbICOKne TEMnpaTpbl, HO No3BOJNLO yNyUHNTb BO3MOXHOCTn peryInnpoBAHN TMnpaTpbl. IcNoJIb3ObaHne FyHKcnn "CpnInTeP" PO3BOJnEeT COKpatNTb BpEMr PnIROTOBHeHn NsIu npi6IIIN3nTEbHO Ha 15% B 3aBNCmOCTn OT MeToJa PnIROTOBHeHn NsIu N TnA NCNoJIb3EyMoK KxOHHO INocSybl.

IpeMMyuectBOMpacuHnpuTeNbHyx30HraJIaTcRBO3MOXHOCTb 13MeHrTaPiUoAdbHarpeBaBpaMKaX OndH KOHOpKN.

3.2. COBETbI OTHOCHTeJIbHO BbIbOPA IocydbI DJI BAPOUHOI NOBEPXHOCTN

3aefkmuue npuzomoeJeHue nuu

3ΦΦeKTHBHOCTb IcNoIb3OBAHn60JIbSIO 3OHbI HArpeBa 3ABNCNT OT Nocybl, B KOTOpO PnIroTAbNtBaETCnIuCa, INOT KOINHeCTBa PnIroTAbNtBaEMOn NiuCi.

3HauHTbHO CTeEHN 3aBNCIT OT KaueCTBa IcNoIb3yEmo KxOHHO Nocybl.

HcnoIb3yUme kxyoHnyo nocydy c docmamoyho 60bnuum duamempom dno mzo, ymoBbl Dno nocyduo nnHocmbIO npkpbIaNO noeepxHocmb 3ObHaHapeea.

Дно Кастюл Ипс КСОВОРды ДОЛХО ПОНOCТБИ NOКPBыВТь 30уH HarpeBa.Есп NOCYDA IMeET HEMHOrO 6OBbшиДиamETp, ЧЕМЗHAнHarpe,TObyet OБсЕЧИВaBcT MAKCMaMbHaЯофКTeMHOBCTb.

3.3. BbIBOP KXYOHHOI NOCybl

PpeCTabHnHa HnKe HnOpMaunn NmOxket Bam BbIpaTb nocydy, oecneHBAUoSyIO 0fKcKTHBHOe pnrTOBHeHne nui.

Nocyda u3 Hepkaeoue cmaIu

OueHpeKOMeHNyETc. OcoBENHO peKOMeHNyETc KxOHnA NOcyda c TpexcNoHbIM dHOM. TpexcNoHoe dHO obBeINHReT B c6e npEmuIeCTBa HepXaBeUoSei CTaII (PnBJIeKeATJIbHbI BHeUHm BVd, BBICOKA pOCHOBt, N CTOIKoCTb K BHEUHM BO3DeICTBnM) C npEmuIeCTBaAMI ANUMHNI IJI MEn (BICOKA TeNlONpOBODHOCTb, paBHomePHO pacPeJeHne TemNepaTypbl).

AJIUMHueea nocyda

PekomeHnyetcNcONb3OBAtB Nocydy C TOIcTbIMN CTeHKamN. AniOMHH IMeET BbICOKYIO TENIOnpOBoDHOCTb.

POnce aIIOHMHeBOM NocyBa HA BAPOHO NOBEXHOCTM INHGOra OCTaTcN CneDb, KOTOpbIE BByIaYdK AqUapAnHb. OndaHo 3TN CneDb MOXHOb YdaJIaNTb, ECJN 3TO CSeNATb HEMeDJIeHNO NOCie IIX NPOBIIeHn.

UzuyHna nocyda

Moxet INCNOJIb3OBAtbcra, HO INCNOJIb3OBAtbc He peKOMeHdyetc. Hn3ka 3ofoektubHOCTb. MoXET OCTaBnTb capaanHbHa NOBepxHOCTn.

Kepamuecka nocyda c Medhim dHOM

PekomeHdyetc Tjxenaj Nocya. BbICOKne 3KcnIpyatauOnHHbIe KaueCTBa, HO MeIb MoXeT OCTaBnIb TcIebl Ha BapOCHo NOBepxHOCTN, KOTOpIe BbIJIaIyT KAc IpaAINHbI. 3TN cIebl MoXHO ydaIITb, ecIIb bIOJInHt YmCTky BapOCHo NOBepxHOCTN HEmEJIeHNHO NOCJe IN NOBLeHnI. Ondako TakyU Nocuy DeHJIe3Y ocTaBnIb Ta BapOCHo NOBepxHOCTN NocJe ONHOrO BbIKnAHaNl HHe JxNkOcTn. IpePerpTebl MetaJIb MOXe TnpBapITbcr K CTekJIaHHo BAPOCHo NOBepxHOCTN. MeIb, Harpeta Do OueHb BcICOKoi TEMpeaTypbl, OCTaBnIe Ta BapOCHo NOBepxHOCTN Ctebl, KOTOpBI HeBO3MOXHO ydaIITb.

Pnoepbme, ymo dHO KacmpjUu Uu cKoeopobI Jaemc cyxum

Ipeid Tem kak yctaHOBnTb Ha BapOHyo NOBExPOCTb Nocydy, B KOTpyo 6bIla 3aIITa XNJKOCTb, INI KOTOPAR TOJIbKO YTO 6blA BbHYta Ix XOJIoINbHnka, PNOBpTe, YTO Ha DHe NOcSybl He BtANr. 3TO npedOTBPaTNT ObpaOBAHne Ha BapOCHN IOBExPOCTn PATeH.

NcnoB3yume bICOKoKauecmeeHnyo kXOHNyIO nocydy, Umeouyio coepweHHo po8hoe u moncmoe dHO

Icnojbl30baHne Tako nocdybl npedotbpatNT o6pa3oBaHne neperpetbIX uactKOB, HA KOTobX MOxET npriopatb PnUa. ToJIctoe dHO KAcTpOJIN NII KIOBOpOdbI OBeCneuHaBt paBHomepHoe pacnpedene H BEM TEJIa.

Φapφopobəu 3MaIupoeaHna nocyda

BbICOKne 3KcNpyatauHnHbIe KaueCTBa, HO TOnbKO B Tom Cnyuae, ecnI dHO YBJIeTcA TOHKIM, POBbIM I NIOCKM.

Iocyda u3 cmeKnokepaMuku

He pekomeHnyetc. Hn3Kne 3KnpyatauOnHHbIe KaueCTBa. MoKet octabTb Ha BapouHoi NOBepxHOCTU capanHbl.

Kakay Kuxonna nocyda lyuwe 0cezo noxdum dny npuzomoblenu nuuHa bapouho nobepxocmu?

POMHNTe O TOM, YTO YEM 60JIbSe DnAmETp KxOHHoN NocSybl, TEM 60JIbSe IIOUaIb e HArpeBa. POToTomy B NOcSyde 60JIbWoRr DnAmETpa IINuIa 6BdET RotOBuTbc 6bICTpey, YEM B NOcSyde Manoro DnAmETpa.

Pa3mep nocydbI DOJKeH COOTBETCTBOBaTb KOJnuecTBy nprirotabInBaemOB HnePiu. YTObIb HA BapOHyIOBepXHOCTb He pa36pb3rInBaJacb Niua, He NOJIb3yITecb CNIuKOM MaJeNbKOI nocydoi,OCo6eHHo DnpiRTOBOTHeN Nsiu, CoePkaSeI 60bnOoe KOJnuecTBo JxIDKoCTn. EcnBbI hCNoJIb3yTe CNIuKOM 60bnWU Oncydy IaI nprirotobNeHra Nsiu 6blCTpOro pniRTOBHeHnaHnpimep,CocSCKn I KxIDKaI Nsiua 6byT npriInNaTb K dHy nocydbI, IN oocne OnopoxHeNnocydbHa ee dHe 6byT OCTaBaTbc OctaTKn Piu.

ДлгпригOTOBLEHнсадкнхбнod pekomehdyetcИSCNoIb3OBAtB 3akpbityKyxOHHyIO NocdyиnpOTNBnДлгБыINEcKN，aTaOKeФoPmbl 对nnydnHg.БpI3rN KdKOCTn，CoePkaue Caxap，INI6pI3rN COKaMOrTprinOpTeHaBaOpHOn NOBepXHOCTn，INB3OMCnyae INx6ydet OeHb TpydHOn YdaJIntb.3TOOCobEHBO BaxHo DnI Nocdybl，KOTopar IcNoIb3yeTcДЯOBkAPIBAHNII NiIuN INI DnI Nocdybl，B KOTopoI NiUa nprirotabINBaETcNOI NOBVIIeHHbIM DaBNEHnEM.

He BKHouaTe KOHOpKn, KOrJa Ha HNX Het NocydbI INN KOrDa Ha HNX yCTaHOBJeHa NyCTaI Nocya.

Pn BbIbope KxohHNoNocyblcNeDyET pyKOBoCTBOBaTbcr CneJeUoUIMn npaBnlaMn:

Iocya donkha 6bItb TaKeJoI.

Nocya doJnKha noHOCbTo NOKpbIbATb NOBEPXHOCTb KOHOpKn; DnaMetp dHa nocdybl MoKet 6bTb HEMHO 6oJIbSe dNaMeTp a KOHOpKn, HO He DoJNKeH 6bTb MeHbSe dNaMeTp a KOHOpKn.

HNO nocybldoJXHO 6bIb COBepeHHO NIOCKM IN OJNXHO IIOTHO npJIeratb K BapouHOB NOBepxHOCTN.

-HeKOTOpbIe Yactn Niun Moryt HarpeBaTbC8 B To BpEma, Kaq Dpyrme.
yactn Niun Moryt octabatbcs XoNDhIMN. 3To npOcXoDIT N3-3a
HepaBHomePHorO pAcnpedeneHn TEnla B Dne Nocdybl. P03TOMy pni
NCIOB3OBAHIN Nocdybl C TOHKIM DNOM Heo6xODIMNOCTOHHO
NepemuHBaB pnirotabInBaemyo Niuy. B KxohHO nocye c
TOJcTbM DHOM TENlO paCnpedelaTeC Boonee paBHomePHO, Yem B
NOCyDE C TOHKIM DNOM.

-He peKomeHdyETcnoJIb3ObaTc8 OeHb MaJIeHbKOJ nocydo. BoJee ⅢPOKaJ nocyaC Hn3KIMN CTeHKAMN ObecneuBaet BoJee 3ΦΦeKTUBHOE n BOe ee bIcTpoe npiroTOBLeHne NIIu, Yem BoJee y3KaN n BvICOKa nocyda.

HeIb3a COKpaTnB BpeM npriroTOBJIeHn NmUc NOMOuBoN McNoIb3OBaHN MaJIeHbKoN IocSybl Ha 60nbUoi KOHOpKe. 3To pIbnBeTeT ToBko K YBEnueHnIO paXOda 3Heprn. NcPOnb3OBaHne KyxOHHO NocSybl K PblIKoPiO3BOINTC3KOHOMNT 3HeprnIO.

3.4.PUCHKN UYPABJIENH CTEKJIOKEPAMNUECKOBAPOUHOI NOBEPXHOCTN

YNPABJEHNE PABOTOI BAPOUHOI NOBEPXHOCTN

Haudume pyky, ynpaenenu HxhoBam 30Hb H a2peBa c POMO u, bIO MapKUPo6OuHO2O3Haka.

YcmaHoEumpeykyynpaeJeHua HxKHOeNoJKeHeu HaapeBa.

Chayana pekOMeHdyETcR yCTaHOBNb pyKUy B NOJIOKeHHe MAcKmAlNbHOro HArpeBa n OCTaBNb Ee B 3TOM NOJIOKeHn, NOKa COdePkmOe KAcTpONI He HArpeETcDn DO HxKHO TemNepaTpybl; Nocne 3TOrO MOuHOCbT HarpeBa MoXHO UMeHbWNbTdo HxKHO 3NaueHn.

Iocne mozo kaK meMnepamypa sapouHoi noeBxHOCMu nOoHUMemcra do 60 ^ C, 3aOpumc uHDukamopnHa mNoUKa Haapeea.

3Ta HNIMKATOPHNa JAMNOHc Ka BydET PNOIDONKaTb RopeTb Daxe Nocne BbIKJIIOHENa BApOCHoN NOBEXHOCTn INORaCHet TOnbKO TOrDa, KOrDa BApOHaH NaOBEXHOCTb OCTbIHeT.

MeNkyo pbl6y moKHO rOTOBnB npu maKcImaJIbHOI TEMpePAType oT hauJaNo KOHca ee npiroTOBHeHry. Pb6y cpeHNx pa3MepOB CJeDyET rOTOBnB ChauJa npu MaKcImaJIbHOI TEMpePAType, a 3aTeM TempePAtypa DOJXHa NOCTeNEHNO CHNXaTbC.R KpyNHyo pbl6y CJeDyET rOBoNT bpN MmHMaJIbHOI TEMpePAType OT hauJaNo KOHca ee npiroTOBHeHry. LBeT pa3Pe3a Ha 6pUoKe npabINbHO npiroTOBHeHno Ha rpIne pbl6bI DOJXeH 6bITb MaTOBO-6eNbIM. 3To He OTHOCITcK JIOCOsO HΦopeHn.

Ucmska deepu dyxoxku

Ipeed Tem KaK npictyntb K uNCTke BapouHoi NOBepxHocTn, daTe en OCTbIHytb.

Ecnu He ydaemcya daumb cce pmaHa

-HahecnTe Ha BapOHyIO NobepXHocTb eue HeckoIbKO kaneIb cneuaIbHorO uNCTaIe OcpeCTBa.
OuHCTIte Bapouhyo NOBepxHOCTb C NOMOJIbIO CKpe6Ka, DEpka erO IOyrIOM 30 rpaIycob K NOBepxHOCTn. YHCTIte Do TEX nOp, noka nTHa HeNCHe3HyT.
-Пютupaай Te Mягков TkaHbHи Ип ВlaЖноу Кухоннбуmarи, noka nobepxHocTh He CTaHET YnCTOi.
Bcnyae Heo6xOIMOCTN NOBTopnTe 3Ty onepaunio.

HECKOJIbKO IONE3HbIX COBETOB

YacTbIe YnCTKn ObecneuBaIOT NOnUyehne 3aunTHoro CNoR, KOToPbI npeoTBPauaet Oba3oBAHne UapannH Nn3HOC BAPOHOI NOBepxHOCTN. IpeE NOBtBHyM INCNOJb3OBAHMe MBOPOHOI NOBEPXHOCTN PNOBepbTe, OTO Na ABJRAETc YnCTOJ. INd ydaJIeHNJIpTeH, OCTABNeHHbIX BODoI, HAHeCITe HECKONbKO KAnEnb YKCyca INN JIMMOHHOIN KICNOTbI.
3aTeM npoTnPe npomokatelbHoi 6yMarOi HaHeCnTe HeckoJIbKO KaIeB CneuaJIbHOuNCTraUe KJNDKoCTN.
Дя Вылонпеня чісткі рүчек уралпеня рүчін уралпеня можно ChЯть.

He donyckaume nonadahnua kudkocmu oomeepcmu, komopbte omkpbeiaomc nocne cnmaury puek ynpaeeHna, nocne yucmku puek ynpaeeHna ecmaebme ux do ynopa.

CTeKIOkepAMHcECKA NOBepXHOCTb He cIapanaeTcKyXOHNo NocyDoC pIOCKIM dHOM. OJHAp NoPn nepeMeUeHN KxOHOH NO CocYbI MeKdy 3OHAMn HArpeBa JekalTeBHo eE pINPONDHMAtb.

He nOJIb3yI TeCb CINJIbHO CMOUeHNO rY6KoI.

HnKoIa He nOJIb3yITeCb HOXOM IJIN OTBePTKoI.

Ckpe6ok C 6pntBHeHHbIM Je3BnEM HnKOrda He NOBpeiNT NOBepxHocTb, ecnn OH pacnonaraetcnoyrrnom 30 K nobepxHocTn.
XpaHnTe cKpe6ok C 6pntBHeHbIM JIe3BnEm B HeNoctyHOM dJIa DeTei MeCTe.
HnkOrda He noIb3yITeCb a6pa3nBbIMu YnCTaUIMn CpeDCTBaMn Nskypkam.

MemaJIuuecka pamka

BbIMoHTeMetaJIINueckyIOpaMKyMbIbHOIBOO,3aTEMcHCTOBoO, a 3aTEM BbICyUHTE C NOMOuBMOrKOITKaHn.

3aMeHaJaMnOuKu BHympu dyxOeKu

Pnuma He HaapeBaemcra

HIO nocybl DOJXHO NnHOCTbIO NOKpbIBaTb Bbl6paHHyo 3OHy HarpeBa.

Iuza zomobumc cnwkom MeJeHHO

IcnoIb3yETcHnOxOJaKxOHHaNocuJa. IOnb3yITeCb TOIbKO TjKeJIoK KyXOHHO NocUoC nIOCKIM dHOM, DnaMeTp KOTOpO He MeHSe DnAmEtPa 30HbI HarpEba.

He6oIbIwe zapanunblu nol nomepmocmu Ha cmeKJHHOI cepouHou noeepxHocmu

YnCTKa 6bIa BbIOnJIHeHa HEnpaBnJIbHO, INI INCNoJIb3OBAJIacb Nocyda C HEPOBHbIM IHom (MeKJy BapOuHoi NOBepXHO U INOM NocydbI nonaII 3epHa INI YactuIcBoCoIN). CM. pa3dien "YnCTKA".

Провьп,чTOДно nocудыяВЛЯETСЧИСТБМ,ИчTOИСПОЛБ3YEETСТToЛбКО nocуда c ПLOСКIM ДHom.ОбразOBAHNE zuapANH MOKHONpeДOTВРATNTB TOЛьКО C NOMOЦьЮ правильHoNчNTKN.

CnebI Memannla

He nepeaBraTe aJIOMHnEByIO nocdy IO BapOCHoN NOBepXHOCTN. Cm. peKomeHdaUIN OTHCInTeIbHO BbINOJHeHna YNCKn.

BbI noJIb3yeTeScb IoJXoJyIzIMN YIcTЯIzIMN CpeICTBaMn, HO IYTAHe ydaJIaIOTc.

IcnoJIb3yIe cKepe6ok c 6pntBHeHHbIM Je3BnEM, cm. pa3dJI "YICTKA".

Temhble nmaHa

IcnoJIb3yIte cKepe6ok c 6pntBHeHHbIM Je3BnEm, cm. pa3dJe "YICTKA".

Tyskblte yuactkn Ha Bapouhnoi noBepxhoCTn.

Cnebl, octablenhhe aIINOMHHeBOu IIN MeHOn NocyDo, a TaKKe MNHepaJIbHbIe OTIOXKeHnI, PTHa, OCTabLeHHbIe BOOn I INUeMORy 6bITb ydaIeHbI c NOMOChIO uNCTraUe Kpema. PniropanHe paCNIJIaBHeHHo NNactMacCbHa BApoCHOH NOBepxHOCTN.

Bapouhna noeepxHocmb uIu HekomopbIe u3 ee 3OH HaapeBa HaapeBaIomcra

HenpaBnIbHo yctahOBHeHb 3akopauHbaIOUne nepembyKn Ha KJIeMMHO KOIOJKe. PpOBepbTe, YTO COeINHeHn BblONHeHb I npaBnIbHO.

PanaJIb ynpaIeJHua 3a6nokupoeHa

Pa3boknyteBapouhyIO nobepxhoctb

InumelbHocmb uKJa 8KnJIOueHua/8bIKJIOueHua 30H HaapeBa

Динтелбовсьцлпа Вклочен�/Выклоченя 30н harpeBa 3aBUCNT OTИСПЛБ3уEMOурВнHaPReBa

·Hn3kyn ypoBehb HarpBa: MaNoe Bpemr Znkna BKJIIOUcEHn/ByIKIIOUcEHn
- BbCOKn ypoBHeH HArpeBa: 6oNbIooe BpeMzKna BKJIIOUHeHr/BlKJIIOUHeHn

Ha duclnlee muzaem uhdukamop ocmmouhozo hazpeba "H"

CnIshKOM BbICOKa TeMnepaTpa 6noka 3NeKtpoHnKu. TexHKn DOnJKeH nPoBepNTb, YTO HAcTpOuKn BblIOJIHeHbI B COOTBeTCTBUN C peKOMeHdaQunMn.

7. OXPAHA OKPYKAKIOUEN CPEIbI

-Дя toro, yto6bI He 3aqr3H8b OkpykaOu7y O cpey, nocne yctahOBkn PnNTbI npabNlbHo yTnIn3npyTe ynaKOBouhble MaTePnAbl.
-Пелед Tem КАнзбавиься OT OТраво СВОИСРК 3лЕкгрпббора, сржьтс Hero Kaбьп ПИТань ДЯТУTORO, YTOБИ 3лЕкгрпббор Ньья 6ьлно 6ьлше ИСпONь3OBaTь.
-Данньй элкгпорпбор помаркірован B COOTBEТВИС Tpe6obAHЯМи, ИЗЛожЕНыМи В ДирЕКтNBe 2002/96/EC OTHOCINTELьно утллзациэлкгпчecKOrO n элкгронного obopydOBaHЯ (WEEE).
-Праиьно ВыллпяуТиЛиЗациДаHHOrO n3ДeелЯ，ВыI NOMOXTe PpeДOTВpaTITb 3aRpy3HHeHne OkpyXaIOSeI CpeDbI HaHeCEHnE BPeDA 3ДОРOBbI NOJDeI.
-3TOT CmB0J yka3bIbaeT Ha To, YTO daHHOe N3dJIne He DoJXHO Bbl6paCbIbATcR, KAK O6bUHb 6blTOBoM MyCop. BMeCTO 3TORo OHO DOnJXHO 6blb OTnpaBNeHO Ha NyKKT c6Opa OTClyKuBWeO CBOi CpOK 3NeKtpnueCKOrO n 3NeKtPOnHOrO 6OpyIDOBaHnI DnBa BblONJIHeHnEero NocJeDyUoSeYtINlN3aCnN I NOBtOPHOrO INCNoIb3OBaHnMaTepeNaIOB.
-Утллзаця Данноюзделяdoлжнвьлпнгьсь COOTBETCTBnC MeCTHbIMN 3akOHAMN NO OxpaHe OkpykaIoошe Cpebl.
-Пя получениьолгпсдрбноги Информачи OTHOCHTeьног 6образКи, BOCCTAHOBЛЕNGИ NOBTOPHorO ICSNoJIb3OBaHnIg MATEPINAIOB DAHHORO N3DEJINIA, CBXKITcB C opraHamI MeCTHOI BnactN, cnyk60B BBIO3a 6bITOBbIX OTXODOB, INIIN TOPROBOI OPRAHn3aUnei, B KOTopoR Bbl PrnoOppeNi daHHOE N3DEJIne.

1. TENIKEΣ ΠΛHPOΦΟPIΕΣ

1.5. TEXHnueCKn DAHHN

XAPAKTEPNUCTNIKNI	CINLA HATOKA
50 x 60 4 Cbeteши KOTLOHи eJeKtpnueckni peychi	6.8 kW
60 x 60 4 Cbeteши KOTLOHи eJeKtpnueckni peychi	8.4 kW

Tabela xapaekmuku (Ha 3aDama cmpaHa Ha nekama)

2. MOHTAX

MONTAXA Tp6Ba Da ce HnnpaBn OT KbaIuΦnucpaHO Jnue. Ipon3BOUnteJn Hma 3aDbJnxHe 3a TOBa.AKO nOmoa OT npOn3BOUnteJn e 3a OTcpaHraBe Ha DepeKtn npn HnnpaBnJIeH MOHTAX TOBa He E BKNIOUcHo B rapaHcNtTa.

2.3. PA3MEPN HA YPEDA

	50 x 60	60 x 60
Височина(mm)	863	863
ШирINA (mm)	510	600
Дълбочина(mm)	600	600

2.4.ObuXAPAKTEPNCTIKA HA YPEDA

Toba ynbTbaHe 3a pa6oTa e HanpaBeHo KaTOpbKOBoIDCTBO 3a HЯКоЛko MoJena. HяКоI OT xapaKTePncTnKe TcNoMeHaTи B yNbTbaHETO MoKe i Da He Ce OTHacrT 3a BaUInr TypeI

60x60EJEKTPNUECKANEUKA

1-ⅡnoT
2-KoHTponHa Ta6ena
3- Yekmeidenke
4-BpataHaΦyphata（npedhaBpata）
5-CBeTeU KOTJIOH 1200W
6-ДбоинCBeTeuKOTJOH 1700W
7-CbeteuKOTJIOH 2300W
8- npdeynpeinteHn J lamnnuKn
9-KoHTpOJIHn6bYToHn3a KOTJIOHNTe

10-ByToH 3a cyphHaTa

11- BytoH 3a TepMoCTat
12- EJIeKToPOnH npOrpMaTOp
13-Повдьжн Крачета
14-KpaetaHa BnHT

50×60 LUNOPET

1-ПлOT ha neukkata
2-KoHT poJH oTa6 nO
3- Yekmendze
4- Bpata Ha phpyhata (npedha Bpata)
5-CBeTeU KOJIOn 1800W
6-CBeTeU KOJIOn 1200W
7-ламма 3a синданзранe
8- Byton 3a TaMepa
9-KoHTpOJIHH 6yToHn 3a KOTNoHInTe
10- Byt OH 3 a
11-Бнтуэтнэза ВerteilntaTOp

2.5. ПECHК BE3 ELEKTPNUECKN KABEJI

Tn Ha Cbþr3BaHe Ha Ka6eJa

1- eɪnhoΦa3Ho Cbþp3BaHe

2-Tpna3Ho Cbvp3BaHe

BhimaHne: Po-cna6a ck06a moKe Ja npeDn3Bvka onaCHOCT OTOKap nopadi nperepaBaHe Ha Ka6ena

	Еднофазен 220-240 V~	Трифazен 380-415V3N~
Предаител	25 A	3 x 16 A
Кабел - нарево Кабел - Тип	3 G 2.5 mm² H05VV-F ou H05RR-F	5 G 1.5 mm² H05VV-F ou H05RR-F

3	N	4
2	5	1/- PE
1	L	1/- PE
L1:Фаза Бхов 1-2и Бхов 2-3 N:Нуla Бхов4-5 T-3a3eЯВанe		1-Фаза 2-Фаза 3-Фаза 5-Нуla Бхов 4-5 T-3a3eяВанe

2.6.EJEKTPNUECKO Cbbp3BAHE

IeKInTe 3a roTBeHe MoRat Da ce npOn3BexdA T c nnn 6e3 eNeKtpnueckn Ka6en.

Cbbp3BaHeTo Ha Ka6eNa Tp6Ba Da ce HnpaBn OT OToPn3npaH cepBn3.

CneBaiKcIeHNTe HNcTpkyuN:

Cbpb3BaHeTo KbM eJ. Mpekata Tp86Ba da e B cbflnacHocT c DeiCTBaunTe Hape6n n perynaTIN. PpeJn da CbpbKte KbM Mpekata npOBepe:

-Дали калцnteta Ha elektpruecka tа NHctanaця Ип dedna3nteJIte Ha crpaIaT a OTROBaprHa KOHCymaIraHa hypeda?
-Дали селковпсетацьая тазема?Вашяг дом Трябва на за павлино замявае. рп лпca на takobakонсултіпайтоpe ссыхнк и отстаре поблесma.
JaIN KOHTaTcNeIMoHTaKaHa NeuKaTa eJeCHOIOCTbneH?
-3a da cBbpxe Te ypea KbM en. MpekaTa n3noJ3BaIte Ka6eJn 1eencen.
-He npenopbUbame n3noJI3BaHeto Ha pa3KnOHTeIN. 3eJeHOxblntkab6en He Tp86Ba Da 6bde 6noknapB uenceJa. KaFBAIg Ka6e e 0a3a (KoDInpaH c "L" Ha neykata)u BnHaTn Tp86Ba Da 6bde Cbbp3aH c 0a3aTa Ha uencela.
-Ka6ena Tpr6Ba Da 6bJe nocTabeH Taka, Ye da He ce n3nara Ha Tempepatya HAd 50^
-Korato en. Ka6ena Tpr6Ba da ce CMeHn, Tpr6Ba da ce N3PON3Ba cboDbTeH Ka6eJ CbIJaCHO CINaTa Ha TOka.
3eeneHO-ksbTna Ka6en Tpe6a da 6nde no-dbIbI npn6n3ntHo 2cmOTxuata3aΦa3aHyna.
-Пюверете награвателто кATO ВКПЮчпураза за 3а минут.
-ПОНЗВОДТЕЯ He HOCI OTROBOPHOC 3a NOBpeДи ВьзИКHAJI BCJEДСВЕ Na HeCпа3BaHe Na 6e3ОпаСн Мерки ИНСТPyKДNTe.
-ПОНЗВОДИТЕЯ He NOEMA OTROBOPHOCT 3a NOBpeNi B CLEДСТВиЕ Ha Hecna3BaHe Ha ИНСТPyКцИNTe 3a 6e3onachOCT.

Ako daen ypeednee o60pyBaHcbc

3axpaHbAaKa6eIiueIeIcIeJIINcIpyrncpeICTBa3aI3KIIIOVAHeOT 3axpaHbAaTa eIeKtpnuecka Mpeka, BbB BCNUKn IIOUcN, KOINTO OCNtpyraBbAT nbJHOTOn3KIIIOVABe OT CBpBXHaNPexEHe KaTeOpnI III, INCTpykTOpNTeNoC0uBAt, ye CpeIcCTBaTa3aI3KJIIOUChBaHeTpraBa Da 6bDaT BKNIOUeH N BbB fIKcnpaHOToOKa6eJIraBaHeB

CbOTBeTCTBnEcnPpaBnlaTa3aOKa6eJyBaHe.

3.1.ОПИСАНЕ HA 3OHATA 3A ГOTBEHE

CeemJUHHa 3OHa

MetaHnHa HaraBateIeNoctaBeHNO zIaNaT a NobbpxOCT. EΦek TnBHa e 3a 3 cek yHd n e IpoIroTBeHa n 3a Dblro roTBeHe.

CTbKIO-KepaHnna PLO TbnarOdapeHne Ha no-tolmaT aOBbpxHOCT n reHepnpaHa TOJIIna yckopraBa rTOBeHeTo. IpomnA B Dn3 aHn HnE BoOn dNo H amJaB aHn A T ePMOn3DpbXKnB OCT Ta H NoNdo6PBA KONT pona.

C "Sprinter" ypeja hamajra Ba BpeMeTo 3a rotBeHe c 15% B 3aBnCnMoCT OT MeToJa Ha rotBeHe nIIN I3NoJI3BaHIne CbDoBE.

3oHa Ha cEBmIuHa

ToBa e KOM6HaCaIg OTe XaIoreHn (1/3) n lamna (2/3). Tempepatypata Ce noBuaMHO 6b3o. YdoHa e 3a nbpxeHe Ha MeCO, 6bp30 roTBeHe, KbTeTo e HuxHo Bucoka Tempepatypata 3a KpaTKO BpeMe.

3oHa Ha monnluHa

Ipeplara do6pa dnoy3na Ha tonnHa KOrato e HxKHO 13KJIIOUHTeJHa npeun3HocT.

3.2. COBETN 3A FOTBEHBE HA IJOTHATA

EpeKTHBHOCTTa Ha rotBeHTo 3aBnCn OT BnDa n KOJIyEcTBOTO XpaHa KOrTo npn RotBtTe.

3a no-Do6bp pe3yntat n3no13BaIte npDxOJaUcBDOBe u npu6opn.

TolmaTNOBbpxHOCT Ha NIOTa CbI0 NOO6pBa eEeKTHBHOCTTa HA rotBeHTo.

H3noJ3eBaUme cBdooe c 2oJMa duamembp2oUmo 3aema

LJnata NOBbpxHOCT roJIemHATA Ha cJa He TpI6Ba da 6bJe MoMaIka OT rOpeuata 30Ha. EHeprnaTa ige ce n3PON3Ba MAKcIMaHNO eFekTINBHO aKO cbda e MaNko IOnpOK.

3.3.N3BOP HA CbIOBE

CneBaata HΦopMaζη Μe BV nOMOrHe da n36peTe NOxOaIcBDOBe.

Cmomaha

Ochoobata OCTOMaHa KOMbHnpa NO3nte O TcOMaHa n CaHbNCTeHN, pni KoEToTO3n CbD Ce XapaKTEpH3npa C, (BbHsEHN BnID, N3DbPjXJINBOCT N bJnroTpaHOCCT) IpeDmCTBO IpeI aJyMnHeBNTe CbDOBe (3aqrBaHe, No-Do6pa DnCTpn6yUma Ha TOJIHHaTa.

AnymuHuym

TeKnte cboBe ca 3a npednoHTAHn nopadn dopaTa TOnIIOpOBOIMoCT AnymHneBte cboBE moat da Odpackat KepamuHnna Pnot. Tp6Ba Da ce nouchtn nIOTA cneD BCAKO NOJ3BaHe Ha TaKbBTINCboDE

MeDhuochoBu Hacbdoseme

Ipenopbvat ce Tekkn. DoobponpeidctabraHHe, Ho Moke daoctabaTcneBbB Nd HndpackotnH. Moke da CeOTcpanHrpanABHnTEaKOBedHarace NouchtmOeNa.KakTo n da e, He octabTepa3Hc bDoBeHa IJToA, KOtO Morat da octabTcneDn, KOnTOHe MORaT Da ce NouchTAT BeHara.

Ybepeme ce, yeochoeama hacbdosemeecyxa

Korato 3apekdaTeCbDoBe CteuHoc NnNn3NoN3BaTecbDoBe, KOnToCa 6nInBxIaDnHnk,yBepete ce, YEB OCHOBata Hacbdaecyxa.Toba 7eNOMORHe dahe ce octabTcneiOTTX.

BuHau u3non3eaume kauecmeeHu cboe cudeaJHo aJadku m bHKU OCHOBU.

I3noJI3BaHTo Ha TaKbTIN CbIOBe IpeIoTbpaTЯBa NOIeNBAHeTo Ha XpHa. TbHKIne OCHOBn Ha CbIOBeTe N03BOJRAb TIO6pa TOIIONPBOIDMOCT.

IopueJaan

Iobpi pe3yntatn caMo aKO OCHOBaTe e TbHka n IpaKa.

CmkbKno-kepaMuka

He ce npenopbUva. MoKe da HapaHn IIOta.

Cbomemcmauucbdoeu3a2ombehe

BnHaHn n3noJ3BaIte CbIOBe C NOUTH eNHaKBN pa3Mepu C KOITNOHa. N3noJ3BaHTo H aNo-MaIKN CbIOBe Ha No-ROJMA mOBbpxHOCT HRAMa da yCKOpn rOToBeHTo, HAnpoTINB Ue NCyUn XpaHATA u Ze n3xa6n Nobeue eHeprna. Zn3noJ3BaIte CbIOBe c KanaK. Cocoe n 3axap Morat Da noJeHNAT NO DbHOTo Ha CbIOBeTe. IIO BpeMe Ha rotBeHe He octaBaIte CbIOBeTe 6e Na3Op.

I3non3BaIte cIbOBe cIopeD cIeHNITE KpItePn I:

Tp6Ba da ca TeKKn.

Tp6Ba n3qJIo da NOKPnBAt KOTNoHa,MOKe Da ca NO-ROEmn Ho He n IIO-maKn. OChOBata Ha cbDa Tp6Ba Da e rJaKa.

-някои часу ON xpaHaTа могат Да He ьдот правино рпигтveни 3a TOBa поверяВай Te xpaHATA nepinoДИУHO.

3.4.KOHTPOLHIN BUTOHN CTbKJIOKEPAMUHENILOT

KAKDA PABOTM C PJIOTA

Iproeepeme kou om 6ymohume om2o6apra 3a u36paHua om 8ac KOMJON.

Bknqueme konmponnua 6ymoh na npaunna no3uua.

B hauanoto npenopbUbaMe da n36peTe Ha-NBcOKaTa CteHen DOKbTO cbDbPkaHneTo Ha cBdoBeTe DOCTnHAT Heo 6xOdImata TemnepaTypa; cNeT TOBa MOKe Da HamaJInte TemnepaTypa.

Cemnunu undukamop ue ce kluoyu koamo zophama noBbpxHocm Ha memnepamypama docmuhe 60 apadyca uIu noeue.

Ie octane BkIIOUeH nCneI n3KIOUbaHe Ha nnOta, n Ie cnpe da CBETn CNEI 3aTbapAne Ha nnOta.

Позиця			Съвети
1	1-2	Много Н stock	Даце пьърва temпература(Tолени масло,шоколад)
2	3-4	H stock	Сосове, ориг, пунг ...
3	5-6	Средно	Боб, замръзених ра на ,плodeв, варен boда
4	7-8	Медиим	Ясылkin, сөжөдөлөнгөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөс ...
5	9-10	Виско	По-иnteнзИВно Готveне, омлет, съкови ...
6	11-12	Много Виско	Съкови, Пъ相关信息 ...

3a da u3kIIOUme ILOma 3aEBpMe me 6ymoHa Ha "O".

• Obañhata 30ha ce c bcton ot 2 30HN ha rpeene: Kpbxha 30ha n OBañha yac. 3aBbptete KOHTPOHn8 6ytoN ot 1 do 12 3a perylnpae Hk pxbxhata 30ha. 3a onepaunC oBaJHaTa yact, 3aBbptete 6ytoHa Ha I03uqna 12 n CneD TOBa n36epeTe I03uqna ot 1do 12.

-Harpaata 30ha ce cBcTOn OT 2 KOHcHTpUHN 3OHN.

Bbtpeunn Kpbr Ce aKTHINpa Korato 6yToHa ce 3aBbptn Ha Bcra Ka OT nO3nnte O T 1 Do 12. BbHnna Kpbr Ce aKTHINpa cAmo KOrato KOHTpONn H ByTOH Ce 3aBbptn CneI nO3nUg 12 Harope DO MAKCmAJHaTcTeNeH.

4.1. CKAPATA

C neuehe Ha ckapa Mecoto Do6pe ce 3aInuHa. B 3aBnCmOcT OT. KOJINUeCTBOTO XpaHa, MoKe Da BklnOHTe CkapaTa Ha
Pa3nUHa CTeneH. POnTn BCnUKN XpaHn MOKe Da ce rotBrt HaCKapa OCBeH MeCHO pyNo.
-Mecoto n pnbata konto ige ce nekat Tpr6Ba npde DabapteHNO da ce hamaxkat c onno. IocTabete Tabata 3a Ma3nHa noxD xpaHata npede Da 3anOchete n CInTe BOda 3a da npedeoBpATnte HnnpraTHaTMApN3Ma n 3aIropBAhe.
-Сkapае e noДхояша 3a NeчЕн Ha napЧета MECO KОТо He ca MHOro Tьнки, MECO co pa3ПУHn pa3Мери, ПИЛeТa, рI6a, 3eJIeHupyu (np.DOMATи, Лук Идр.)
HamaXeTe p6aTa C Ma3nHa IpeDn Da J noCTaBtE Ha cKaPaTa. CNoXeTe coI cJeI roTBeHe Ha MecOTO, p6aTa IpeDbapuTeHNO JnoCoJte.
pactoHneTo OT ckapata 3abnO IT De6eHHaTa Ha MeCOT nI np6ata. Ako pactoHneTo e npabuJHo NOp6paHO BbHUnTe NOBbpxHOCTN HMa Da 3aropT N BbTpEshOCTa Ie 6bJe n3neUeHa.
CnpueeTe HnprTHMmNIMOTMa3HnHaTkoTcE n3TuKaKTo CNOKeIte 1-2 uaw NBOd a BC bda 3a cb6bpaHe Ha Ma3HnHa.
-MOxE Da n3nO13BaTe cKapata 3a TocTo Be, CaHDbuH, pPmepHO 3a roTbeHe Ha nIIOObE (6aHaHN, rpeiNppyT, aHaHac, y6bIKN.) BbB BCEkn CnyaH nIOOBete He Tp8Ba Da ca B KOHTaKT CHarpeBaTeIIne.

Hnkora He noctabaIte anymnHeBO fOJIO no BbTpewHaTaNobpxHOCT Ha yphata.AkomynpaHaT a TOnJIHa MoKe Da HABpeDi Ha yphata NIn Ha xpaHaTa.

Ako taHmepa He Bn e HuxeH n He NCKaTe nporpama 3a rTO TBeHe 3abpbTeTe 6yToHa Ha No3uZra " U".

HЯkon Neukn 3a roTbeHe mMaT TaMep KOnTo TpIbBa Da ce Harglacn 3a

BpeMeTo KOraTo NCKaTe roTBeHeTo Da npNKNoHn. Ta3n OyHKUma I03BOJRA Ba BpeMeTo Ha roTBeHe Da ce KOHTpOInpa. Neykata Ue Ce n3KJIOnuHa KpaHa n36paHTo BpeMe. BpeMeTo ce ot6pOraBa BbPsaKn Ce Ha No3uZna "O", n ABTomAtuHNo Ue cnpe. 3a HopMaIHo n3NON3BaHe Ha OpyHata, HarnaceTe TaImepa Ha No3uZna "O" n ABTomAtuHNo Ue Ce n3KJIOnu. TorBa MoKe da ynpabJIbRaTe PbUHO.

4.9.N3N0JI3BAHE HA TAIIMEPA 3A MHHYTA

3a IPOΓPAMNPAHE HA BPEMETO 3A ΓOTBEHE HA ΦΥPHATA HA ΓA3, 3aBbptTe ΠbIeH KpbI Ι CJIeD TOBa NOCTaBeTe Ha NCKaHOTo BpeMe.

Korato BpemeTo n3teYe CnHana 3e 3aNoUHe Da 3BbHn 3a HrKOJko CekyHn.

4.11. EJEKTPNUECKA ПECHKA 3A ГOTBEHE

TpaIuHnHaJIeH MeToI N MeToI 3a roTbeHe C ToIbI Bb3duX; TerIIO (Gr)

TINXPAHA TpaDnuznoHaJIeH MeToD Ha rOTBeHe

Терло (Gr)	ТПЛ XPАHA	Травлишален Метем на говende		Метем на говende с一步一步 на Товл вдух		Вреши ног趟е (Mинут)	БЕLEЖКИ
	TOPTN И DECEPTN	ПOTIMУ над разковete	Tempepa тура (℃)	ПOTIMY над разковete	Tempepa тура (℃)
	TopTa cяиca	2	180	2 (1 n 3)	160	45 - 60
	Малka topTa	1	180	2 (1 n 3)	160	20 - 35
	TopTa	2	180	2 (1 n 3)	160	20 - 30
	TopTa сирени	1	175	2	150	60 - 80
	Пида яблka	1	180	2 (1 n 3)	160	40 - 60
	Шрдан	2	175	2 (1 n 3)	150	60 - 80
	TopTa c mapmaлд	2	180	2 (1 n 3)	160	45 - 60
	Малka topTa	2	180	2 (1 n 3)	160	15 - 25
	Бисквитера	2	180	2 (1 n 3)	160	10 - 20
	TopTa	2	100	2 (1 n 3)	100	90 - 120
	XЛЯБ И ПИЗА
1000	Бял xляб	1	200	2	175	45 - 60	Вътpe в засторения ерна 8 парочьа на тава Ha скаа
500	Ръжен xляб	1	200	2	175	30 - 45
500	Сандун	2	200	2 (1 n 3)	175	20 - 35
250	Пида	1	220	2 (1 n 3)	200	20 - 35
	ПACTA
	Мakapони	2	200	2 (1 n 3)	175	40 - 50
	Със зеленчuk	2	200	2 (1 n 3)	175	45 - 60
	Малки тесенни	2	200	2 (1 n 3)	175	35 - 45
	Лазаня	2	200	2	175	45 - 60
	MECO
1000	Пech的效果 gove do	2	200	2	175	50 - 70	Говени на скаа
1200	Пech的效果 сва) Свигко	2	200	2	175	100 - 130	Говени на скаа
1000	Пech的效果 по сва Телегуko	2	200	2	175	90 - 120	Говени на скаа
1500	Говеди по аглелскп начин	2	220	2	200	50 - 70	Говени на скаа
1200	Агөшко	2	200	2	175	110 - 130	Бут
1000	Плешко	2	200	2	175	60 - 80	Цени
4000	Мисрka	2	200	2	175	210 - 240	Цени
1500	Патиа	2	175	2	160	120 - 150	Цени
3000	Гъcka	2	175	2	160	150 - 200	Цени
1200	Зашко	2	200	2	175	60 - 80	На части
	РИБА
1000	Цая риба	2	200	2 (1 n 3)	175	40 - 60	2 Риби
800	Фиile	2	200	2 (1 n 3)	175	30 - 40	4 Филета

3A6EJIeIKA：

1) BbB BpemTo 3a roTbeHe He e BKJIoueHo 3aqrpaBaHeto.3aqrpaBaHeto Ha φypHaTa OKOJIO 10 MmN. ce npenopbUba ocOBeHo 3a TopTN, nIua n XnA6.
2)Показва позицята на tabитЕ кORAТО ROTВITE NOВЕЧЕ рсг endHOBpeMeHHO.
3) BcnuKn Oepaun Ha roTbeHe Tp8Ba da ce npabT cbc 3aTbpeHa ypHa.

ТIN П ХАHA	КОЛИЧECTBO		ГOTBEHE HA CKAPA		ВРЕМЕ HA GOTBEHE (МИнун)
	ПAPЧETA	TEГЛО	ПОЗИЦЯ HA RAФTOBE	STEMПЕРATYPA (°C)	ГорHAчАCT	ДOLHAчАСT
Говекда пьржOLA	4	800	4	Мakсимальна	10	8
Котлети на скара	4	600	4	Мakсимальна	12	8
Колбасi	8	500	4	Мakсимальна	10	6
Пишики части	6	800	3	Мakсимальна	30	20
Смесena скара	4	700	4	Мakсимальна	12	10
Млесни.DeсятNi	4	400	4	Мakсимальна	13	10
Парчета домат	8	500	4	Мakсимальна	12	--
Рибно сипe	4	400	4	Мakсимальна	8	6
Миди	6	---	4	Мakсимальна	12	--
Тостови	4	---	4	Мakсимальна	8	--
Прapчета xяб	4	-	4	Мakсимальна	2-3	1

5. NOUHCTBAHE IN IODIaPbXKA

PpeiBcRAKO nouchTbaHe nnoDpBxka:
-ИЗклоче тахсанвальkaбен.
-Ako neukatae ropeuca u3yakaiTe dokaTo ce oxlaani
- Hikora He n3non3BaIe npa nIi cnpe C Bucoko HaIrahe 3a ЧИСТЕну урEDA.
- Hnkora He n3non3BaIte a6pa3nBHN cpeIcTBA, XuCa nnOCTpn IpeMTe 3a YnCTeHe Ha CTbKlOTO Ha BpaTaTa.
-EmaiiipaHaTnOBpXHOCTcTONlaBoa nCanynnBn CbC cOoBETHO CpeCDTO 3a YNC TEHe.He n3PON3BaNTe a6pa3NB KOnTO MoKe Da HApacka NobpXHOCTTa N BnDa. BaxHo e da YNCTnte yphata CneD BCaKO pON3BaHe
-ИЗползваширахи Гба 3а поочтванe
-CTbKJIeHaTnOBbpxHOCt Ha BpaTaTa TpI6Ba Da ce NoUncTn camo KOrato e XnaDHa.
BpeDnte npdei3BkAHH OT HeCnA3BaHe Ha npaBnJaTa He Ce BKJIIOUeHn B rapaHcNata.
-He n3noI3BaIte abpa3nBn, MeTaN H YeTKN, OCTpN IpeDMeTN, rpy6n MaTePnaJI NJIN XUMKajN IN PpeNaPaTNI KOnTO MoKe TpaHNObPeDN KaTaJIa3Atopa.
KenateJIHo e da n3noJI3BaTe nbI6oka Taba 3a rotBeHe Ha Ma3HO MecO I NOCTaBeTe CbD IOd ckapaTa 3a cb6npaHe Ha Ma3HHaTA.
-Почиствано и подрьжкata He Тразбва дa ce octabrt Ha deza be3 Na6nIoJeHne.
- He n3noI3BaIte napoUncTaUka 3a noUncTbaHe.

Ioucmeane Ha epaama Ha cyphama

3aIIOCTHOYICTeHeHaBpTaTaHaΦypHata,ceIpeOpbUba DaCeN3Kapa,KaKTOePOKa3aHOHaCHIMKaTAt.
OTbopete BpaTata n3zJIO, 3aBbPteTe DBeTe Kpaeta Ha 180^ 3TbOpete YactnHO BpaTata Ha 30^ .DpbnHeTe BpaTata CBHmATEJIHO NOBnIraHe OT Ta3N N03nZIa 3a BpbIaHe Ha BpaTata, CbIeTe CTbIKn IO O6paTHnpeJ.PpeJIN BCaKO IOuNCtBaHe Ha IInota, Tpr6Ba PpeBapITeJIHO da e OXlaJeHa.
I3nol3BaIte camo npenapatn (KpeMoBe n CtpbraJkn) CneuaJIHO cb3daJeHn 3a CTbKJIeHn I KepaMmHn IOBbpxHOCTN KOINTo HE MoRAT da Tn NOBpeJaT.
I368raBte I3JIa XpHa Ha IIPOTa 6b3O Da 3aROPn Ipr KoETo YIcTeHETo CTaba NO-TPyDHO. INePOpbYBaMe Da OTcpaHInTE BCNUKIMATEPHN OT IIPOTA KOnTO MORa Da ce pa3TONaT KaTO INaCTMaCa, 3axap N 3axapHN I3deJIN

IIOIDPbJxKA

-Изuinete HЯколко кankи OT npenapata 3a NOUcTbaHe Ha nIToTa.
-ИЗтьржete BCички 3aCbхналпет ha C Meka Kbpna.
-ИЗбьшete NOВьрхHOCta ДOKATO CE NOUCHТВa C MeKa KuxHeHcKa KbPna.

Ako ce oue ca ocmahaJIy npOpmu nemHa

-ИЗСИПЕТООSUHЯКОЛКOKANKOTnpENAPATA3aNouchTBAHeHa nIPOTA.
-ИЗТБРЖЕТСБССТРБГАЛКа,ΚΑΤΟΥДБΡЖNTe NOД bгьN30 c nnota,ДOKATO NOΥΝΥNTe netHATA.
-ИЗбьршete c KBpna Илп КухнECHka xaptnя ДOKATO NOYICTBaTe.
-ПОВТОРЕТеakoeHужноTHOBO

HЯКОЛКОСьВETA

No-yeCTOTO NOUcTBaHe He N03BOJyBa Da ce HaIpaCka NIOTa NOBbpxHOCTa Tp86Ba Da e YnCTa IpeDi NOBTOPOHOTo IN3NOJ3BaHe. 3a Da OTCpaHHTe NeTHa IN3CuInTe HAKOJIKO KAnKn OcET NJIIMMOHOB COK.

CneT TOBA n36bpeTe C xapTnI N cpeCTBO 3a NOUcTBAHe. KOHTPOJHIne 6yTOHN MOrat Da CE n3Kapat np INoUcTBAHe.

He cnaaume meuocm Ha ozolheme Mecma

Icneo ma oocmaeeme 6ymohme no mecmama u M.

3a da npedeotbpaTte HaDpackBaHe Ha IIOta, pnpnpemecTbaHe Ha cBIOBe C TnAko DbHO XeNaTeHNO e npedBapNTenHO da rN NOBdInrHete a He Da rN BnauHt.

He n3no3BaIe TbbpIe HAMokpeHaTb6a.

He n3noJ3BaIte HOK XInet HЯMa da NOBpeiN NOBbpxHocTa, Bce dokaTo IbpxKeTe noD bIbI 30^

Hnkora He octabaIte KIneta Ha DMaCTo IOCTbNHO Ha Deca Hnkora He n3PON3BaIte a6pa3NBnNn KInua 3a NOuNCtBaHe.

Memlana noBbpxHocm

3a 6e3oNaCHO NOuNCTBaHe Ha MeTaIHaT a NOBbpxHOcT I3NoJI3BaIte CaIyH I NcPnAKeHTe, CNeI TOBa IOnCyUWeTe Cbc CyXa KbPna.

3a cMaHa Ha bMpewHama JAmPa

-ИЗклочete 3axpanBaциKa6eJи OTBnHTeTe JAmnata.Поdmehete CиdeHTuHa TepmoyctOnuBa JAmna.
- Hikora He n3non3BaIte npa 3a nouchTbaHe.
BHIMAHHE:3a da n36eHHeTe Bb3MOxKeH TOKOB ynap -n3KJIouYe yCTpOCTBOTO npEi Da CMeHrTe JAmnata.

5.1. NOUÇICTBAHE HA ΦΥPHATA

CneuaHn cAmOnOuHCTBaUcN Ce nAHeN C MmKporpaHyHa oBnoKca Ca Ha pa3NoJoxKeHne npn HkON MoJeN.
-Ппекално Пьрсан Ma3HOTи MoKe Да 3aNYuAT NOpTe n camOnOuNCTBaHETo Да He e epeKtNBHO. ToBa camOnOuNCTBaHe nMa Bb3MOxHOCTa Да ce NOdHOBn CJIeD BCЯKO n3NoJ3BaHe, C BkJIIOUHaHe Na pRa3Ha Фурha 3a MaKcIMyM 10-20 MInHyTn.
-Ako cTeHnTE Ha cypHaTa ca NtBTHO NOKPHTN C Ma3HNHa KaTaN3aTopa He e epeKTHBeH,OTCTpaHeTe rC MeKa KbpNa IINrB6a HanoEHa C B0da. BcUckn KaTaN3aTopu Ha nazapa IMat JxBOT ot OKoNo 300 yaca.CJeDobateJHo Tpr6Ba da ce npDMeHrT cIeD 300 yaca.

6. CEPBUN3EH UENTbP & PNOBJIEMN

-Ako neukata He pa6otn npedn da n3BnuKate cepBn3 PnpopbYBaMe:
PpOBepeTe daJIneNeKaTa e npabUNHO BKNIOeHa B KOHTaKTa

Фурнама He 3a2p8a

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

ES
