USER MANUAL SC3 EASY Fix JAUNE KARCHER

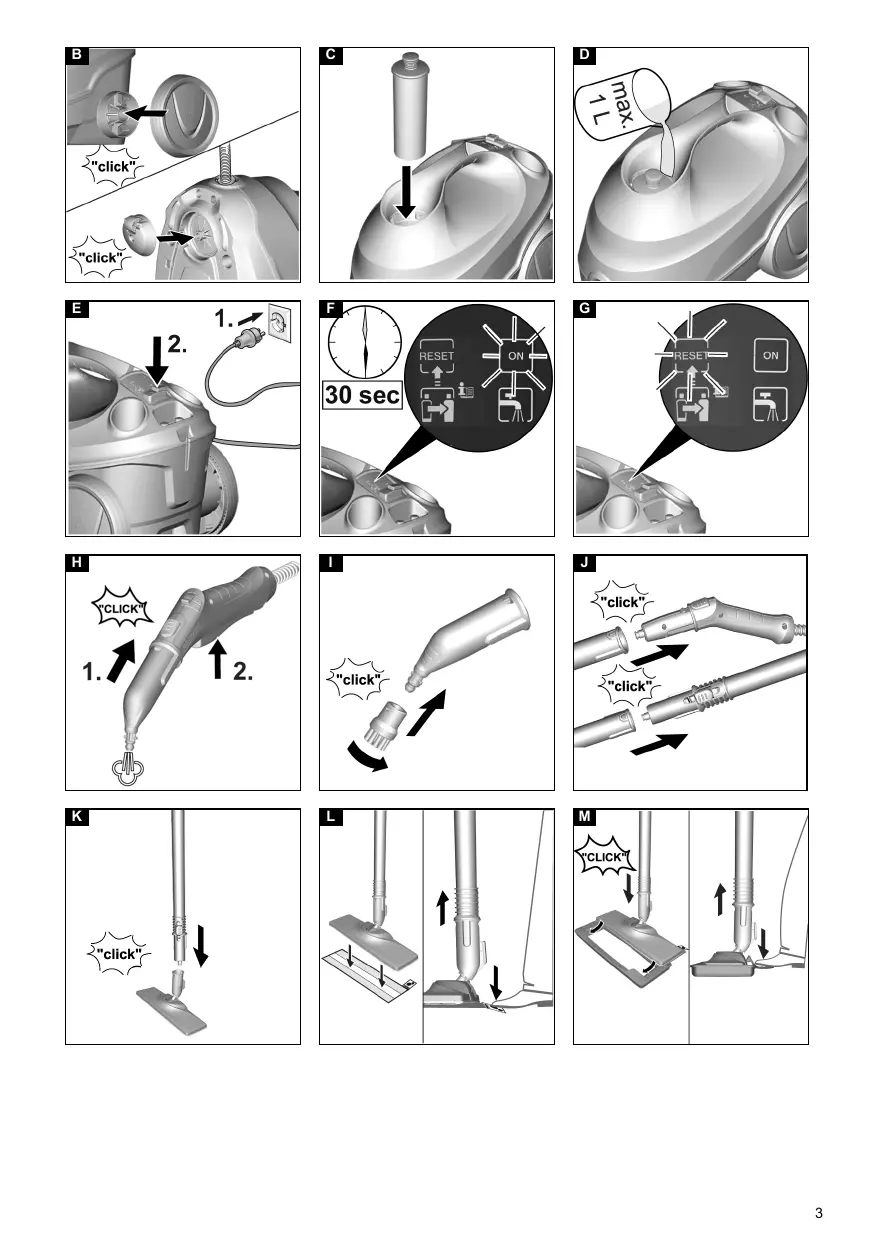

B C D E F G H I J K L M

Note When the RESET key is pressed, the flash pulse for the water hardness level is not indicated. 5. Release the RESET key. The flash pulse for the set water hardness is indicated. 6. Repeat the process as necessary until the desired water hardness level has been achieved. 7. Press and hold the RESET key for 3 seconds to save the setting for the water hardness level. The indicator light for the water hardness lights up.

Care of accessories (Accessories - depending on scope of delivery)

Note The floor cleaning cloth and the cover for the manual nozzle have been washed beforehand and can be used immediately for working with the appliance. The micro fibre cloths are not suitable for dryer. Note When washing the cloths, observe the instructions on the washing tag. Do not use any liquid softeners as this will affect the ability of the cloths to pick up dirt. 1. Wash the floor cleaning cloths and covers at a max. temperature of 60 °C in the washing machine.

Red indicator light "replace descaling cartridge" lights up / flashes Run time of the decalcification cartridge ends soon.  Insert the new decalcification cartridge and reset the maintenance indicator, see chapter Replacing the decalcification cartridge. The RESET key was not pressed after replacement of the decalcification cartridge.  Press and hold the RESET key for 4 seconds after inserting the decalcification cartridge, see chapter Replacing the decalcification cartridge. Device switches off automatically Run time for the decalcification cartridge has expired  Insert the new decalcification cartridge and reset the maintenance indicator, see chapter Replacing the decalcification cartridge. The RESET key was not pressed after replacement of the decalcification cartridge.  Press and hold the RESET key for 4 seconds after inserting the decalcification cartridge, see chapter Replacing the decalcification cartridge.

Technical data Electrical connection

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. 몇 WARNING Risk of electric shock and burns Trying to eliminate faults while the appliance is connected to the mains or has not yet cooled down is always dangerous. Remove the mains plug. Allow the appliance to cool down. The water shortage indicator light lights up constantly in red No water in the water reservoir. 1. Top up the water reservoir, see chapter Topping up the water. The water shortage indicator light flashes red The dry-run protection for the pump is deactivated. 1. Switch the device off and back on again. 2. Make sure that the decalcification cartridge has been inserted correctly and there is sufficient water in the reservoir. The steam lever cannot be pressed The steam lever is locked with the child lock.  Set the child lock (selector switch for steam volume) to the front. The steam lever is released. No / little steam although there is water in the reservoir The decalcification cartridge has not been inserted or has been inserted incorrectly.  Insert the decalcification cartridge or insert it correctly. The decalcification cartridge has been removed while topping up the water.  Leave the decalcification cartridge in the device when topping up. New decalcification cartridge has been inserted.  Press and hold the steam lever constantly. The full steam output is reached after approximately 30 seconds.

I Performance data Heating capacity

Maximum operating pressure

Filling quantity Water reservoir Dimensions and weights Weight (without accessories)

Subject to technical modifications.
