USER MANUAL ESP967 ELECTROLUX

Hotline Darty France

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

• This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;
farm houses;
by clients in hotels, motels and other residential type environments;
bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Regarding the operating times and speed setting, refer to the section "OPERATION".
  WARNING: Risks of injuries if you don't use this appliance correctly.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• The blender is only to be used with the stand provided.
• Regarding the instructions for cleaning surfaces in contact with food, refer to the section "CLEANING AND MAINTENANCE" on pages 8-9 of the manual.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

WARNING: THE BLADE IS VERY SHARP, TAKE GREAT CARE WHEN HANDLING THIS BLENDER AND ALWAYS UNPLUG FROM THE MAINS SUPPLY BEFORE CLEANING.
The appliance must not be immersed.

Caution, hot surface. The surfaces are liable to get hot during use.

WARNING: Avoid spillage on the connector.
WARNING: Risks of injuries if you don't use this appliance correctly.
- The heating element surface is subject to residual heat after use.
- The temperature of accessible surfaces may be high when the appliance is operating.
- The appliance is not intended to be operated by means of an external timer or separate remote control system.

Safety Information

• Turn off and unplug the appliance from the mains socket when not in use and before cleaning.
• Do not use outdoors.
• Do not let power cord hang over the edge of a table or counter, touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Never leave the appliance unattended during use.
• Avoid contact with moving parts.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
• The appliance should only be used at altitudes below 2,000m , otherwise may cause problems such as undercooked food, spillage and bottom scorch.
• Before powering on, make sure that the blending jar, cover and steam lid are in place and that the soft rubber coasters on the bottom of motor base are flattened before use.
• After powering on the appliance, it is strictly forbidden to put hands or sharp hard objects into the blending jar to avoid injury or damage to the appliance.
• Do not run the appliance with the jar empty. Always add water or liquid with solid ingredients in the jar before operation.
• Do not use fingers, rice spoons, chopsticks or other foreign objects to push fruits and

vegetables into the feeding port, which may lead to personal injury and damage to product.

• When this appliance is continuously stirring fruits and vegetables, the working time should not exceed 3 minutes each time, and the cumulative time should not exceed two times. If you need to continue to use it, use it after an interval of 20 minutes. During operation, if the motor base is overheated, shut down the appliance for about 20 minutes, and the operation can be continued after the motor base cools down.
• This appliance is equipped with an overheat protection device. When it is used abnormally or the motor is seriously overloaded, the appliance will automatically shut down for protection. If it still cannot be started after 30 minutes of protection, please send the appliance to company service center for maintenance. Do not disassemble the appliance by yourself.
• Please keep this appliance at least 30~cm away from other kitchen appliances during use.
• If the appliance is stuck during use, turn off and unplug it immediately, remove the jar and then remove the jar cover, and take out the material stuck to the blade. Wait for the motor to cool down before continuing to use it.

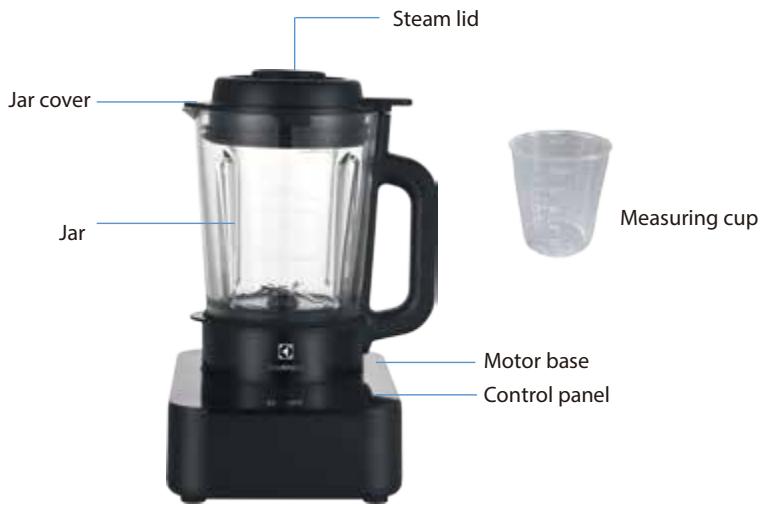

PRODUCT OVERVIEW

BEFORE FIRST USE

Remove and safely discard any packaging material.

Wipe the outer surface of motor base with a soft damp cloth.

Before first use, clean each part thoroughly (see CLEANING AND MAINTENANCE).

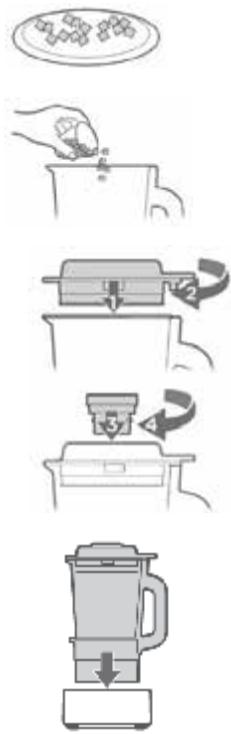

OPERATION

1. Cut the ingredients into pieces about 1.5cm in size.

2. Tip: Cut the meat into strips to remove the tendons.

3. Measure the ingredients according to the recipe using a measuring cup, pour into a blending jar and add the appropriate amount of water.

4. Tip: This can be increased or decreased at your discretion according to the recipe.

5. Press the cover into the jar and then turn it clockwise until it locks in place.

6. A beep will be heard.

Fit the steam lid into the hole in the cover.

Turn the steam lid clockwise until it locks in place.

NOTES:

The jar cover seal must be attached.

The blending jar has a cover opening protection device, the appliance will not work if the cover is not rotated into place.

The text "OPEN" will flash on the display.

1. Position the jar assembly on the motor base.

Ensure that the arrow on the jar collar aligns with the arrow on the motor base.

1. Plug in the appliance.

The appliance will beep once and then the light will flash.

1. Touch and repeatedly touch to select the desired function.

Heating functions:		Operating instructions
	Multigrain Porridge	Add the ingredients, select the function and then touch to enter the working state. The process requires boiling, then stirring and long-time cooking.
	Chunky	The food will not be broken up in Chunky mode, but slight stirring during the process will form a small amount of chopped food.
	Compote	If foods contain dry and hard ingredients such as dried corn, red beans, green beans and barley, it is recommended to soak them in hot water for 4 hours before cooking.

Timer control (only available for heating functions)

When you select the heating function, you can set the timer.

Touch and then repeatedly touch + or - to set the cooking time. Touch to start.

Non-heating functions:		Operating instructions
	Smoothie	Add the ingredients, select the function and then touch to enter the working state. When preparing fruit and vegetable drinks, peel them and remove cores.
	Ice Crush
	Juice

Keep Warm

Select this function and then touch to bring product into operation. Holding temperature : approx. 55°C Holding time : approx. 6 hours

7. Touch to start operation.

To stop operation during operation, touch

Tips:

It is normal for the motor to run quickly and slowly or intermittently during operation. There's a waiting period after the heating functions are activated, and counting down is started after the water reaches a certain temperature.

1. When the operation is finished, the appliance will beep. Unplug the appliance and remove the jar and the jar cover.

Caution: Be aware of the steam coming out of the jar when using the cover to prevent burns.

1. Pour out the liquid and add the seasoning according to your taste.

Caution: Do not pour too quickly to prevent spilling of liquid.

Blending Cold Ingredients

1. Add all necessary ingredients into the jar and replace the jar cover.

2. You may add more ingredients during blending by removing the steam lid in the jar cover and dropping ingredients through the opening in the jar cover, then replace the steam lid.
   NOTE: The maximum fill for cold ingredients is 1500ml

3. Position the jar assembly on the base and plug in the appliance.

4. Touch and the light will stop flashing.

5. Touch

6. Repeatedly touch or to select the desired speed from 1 to 8.

7. Touch to start blending.

8. The blending time is 2 minutes and the display will show a countdown.

9. When the countdown is finished, the appliance will beep.

Instructions for measuring cup

To make rice paste, congee and soya milk, add the appropriate amount of water according to the scale line.

1 flat cup of soybeans (approx. 70g ) and 1 flat cup of rice (approx. 100g ) may require about 1,000ml of water. The consistence may be adjusted according to personal taste by increasing or decreasing the amount of water.

Intelligent altitude recognition

• The appliance automatically adapts to the temperature of the water and the altitude and voltage of the region in real time, and adjusts the function to the best state to ensure the full release of nutrients from the ingredients, and to prevent undercooked ingredients, spillage and bottom scorch caused by changes in altitude and voltage.
• There's a large amount of water steam during the boiling process, so please take care to prevent scalding.
• Once the intelligent altitude recognition has been completed, the appliance has been adjusted to the optimum program under the local environment and remains in this state.

Hints & Tips

• Stirring or grinding of dried and hard herbs (e.g. Spirifer, black lotus seeds, stone magnets, etc.) is strictly prohibited.

• Never fill the blender jar with ingredients or liquids hotter than 80^ C .

• The ingredients in the recipe should be proportioned according to the standard water level. When using, the user should adjust the total amount of ingredients based on the amount of water and the type of food, which should not exceed 1,200mL for the heating functions and 1,500mL for the cold drink function, otherwise it will easily cause overflow or bottom scorch.

• Never use the appliance to heat viscous liquids such as milk, soya milk and cold rice paste directly, as this may cause scorching of the bottom and produce an unpleasant smell.

• The corresponding function button must be selected for making congee, pastes and soups, otherwise the drink prepared will have a bad taste, be undercooked, and in serious cases will cause overflow or bottom scorch.

• Never add condiments such as granulated sugar or brown sugar to the jar during cooking to avoid them sticking to the bottom of the jar when heated.

• Never put any external objects such as rags or hoods on the cover of the jar when preparing the heated dishes as this may prevent steam from escaping and spillage; once the liquid in the blending jar has boiled, be careful of the steam and hot water.

• Do not terminate the programme when the food is boiled (countdown starts). If you terminate by mistake, please do not select the heating function to continue to avoid repeated boiling of hot food causing spillage or bottom scorch. Please change the ingredients and then re-select the function, or use a cooker to continue cooking and then break up the food.

• When preparing porridge/paste at low water levels (below 800~mL ), it is recommended to use no more than 1/10th of the weight of the water for the ingredients, otherwise it is easy to cause a bottom scorch.

RECIPES

Multigrain Porridge

Ingredients:

60g millet, 50g pumpkins (chopped, 2 × 2 ~cm ), 30g rice.

Method:

Wash all the ingredients and put them in a hot jar and add water to the 1,000 ml mark (increase or

decrease according to taste). Select the "multigrain porridge" function, touch and wait until it is cooked.

Pork Rib Bisque

Ingredients:

100g corn, 100g pork ribs, 100g carrots, 3 slices of ginger, and add salt according to personal preference.

Method:

Clean and chop pork ribs, cut the corn into 6 pieces and dice the carrots, and put them into a hot jar, add 600ml of water (increased or decreased according to taste). Select the "Chunky" function and touch and wait until it is cooked.

Watermelon Juice

Ingredients: 600g watermelon (peeled and seeded and cut into pieces)

Method:

Wash all the ingredients and put them in the jar and add 200 ml of cold boiled water (increased or

decreased according to taste). Select the "Juice" function and touch , and blend till smooth.

Carrot Juice

Ingredients: 600g carrot

Method:

Wash the carrot, cut it into pieces of about 1.5cm, put it in the jar, and add 900g water. Select the "Blender" function and select the highest speed 8, and then touch , until it is completely prepared.

Smoothie

Ingredients: Mango 400g, ice 200g, yogurt 250ml

Method:

Remove the core and peel the mango, cut it into two pieces, put ice and yogurt into the jar. Select the "smoothie" function, touch and wait for the production to be completed.

Ice crush

Ingredients: Mango 300g, 6 ice cubes, fresh milk 60ml

Method:

Remove the core and peel the mango, cut it into two pieces, put ice and fresh milk into the jar. Select the "ice crush" function, touch and wait for the production to be completed.

Vegetable soup

Ingredients: carrot 190g, potato 190g, onion 180g, parsley 5g, water 635g

Method:

Cut carrots, potatoes and onions into 2cm pieces, Remove Parsley stalks and put ingredients into the jar, and then pour 635g of water into the jar. Select the "compote" function, touch and wait for the production to be completed.

CLEANING AND MAINTENANCE

Turn off and unplug the appliance from the mains socket before carrying out maintenance or cleaning.

• Allow the appliance to cool down completely.
• Clean the outer surface of the motor base with a soft damp cloth. Dry thoroughly.
• Do not immerse the motor base, jar, power cord and plug in water or any other liquid.
• Never use chemical or abrasive cleaning agents.

Cleaning the jar

After each use, you can use "High Temperature Clean" function to clean the jar. This function is used to assist in cleaning the hot jar. After adding 800 ml of water (adjustable), select the "High Temperature Cleaning" function by touching + . Touch to enter the working state. Work is finished after countdown ends.

Remove the jar from the motor base and rinse the inside of the blending jar with cold water.

• The cleaning brush may be used with warm water and liquid detergent to remove stubborn residues.
• CAUTION: The blades inside the jar are very sharp. Take care when cleaning.
• Never rinse the bottom of the blending jar.

Remove the steam lid from the jar cover. Remove the jar cover. Clean the steam lid, jar cover, seal and measuring cup in warm soapy water. Rinse them thoroughly.

Dry all parts thoroughly before storing in a clean, dry, secure place.

TROUBLESHOOTING

Problem	Possible cause(s)	Solution(s)
No indicators illuminate.	No power to appliance	Check the appliance is plugged into mains and socket is switched on.
Indicators illuminate but the appliance will not run.	The button is not touched after selecting function.	Touch after choosing a function.
Alarms occur during operation.	Food battering	Clean the inside of the jar before using.
	Insufficient water in the jar	Add water to at least the MINIMUM mark.
Heating does not stop.	Product failure	Send to local service center for repair.
No response after touching a button.	Short power failure time, and system does not reset.	Power off for 3 minutes and then power on again for use.
	Product is already in the execution process.	This is normal.
The ingredients are not cooked or mixed well.	Add too much or not enough water.	Add water to the correct water level.
	Low power supply voltage	Use the domestic voltage regulator
	Add too many or too few ingredients.	Please follow the recipe.
Bottom scorch	The inside of jar is not cleaned properly.	Clean the inside of the jar before using.
	Add too many ingredients.	Please follow the recipe.
	Touch the wrong function buton.	Select the correct function button.
Abnormal noise	Product is in break-in state.	Occasional noises are normal.
88is displayed and the buzzer sounds 10 times.	Heating plate in open circuit, and product fails (damaged sensor).	Send to local service center for repair.
88is displayed and the buzzer sounds 10 times.	Circuit board damage	Send to local service center for repair.
8888appears	Jar cover does not close properly.	Please screw the jar cover in place before using the jar.
and flashes.
appears and buzzer sounds a long beep.	Short circuit in the bottom temperature sensor	Send to local service center for repair.

SPECIFICATIONS

Ratings: 220-240V~ 50-60Hz

1200W (Heating rated power) 400W (Blender rated power)

DISPOSAL

As a responsible company we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

ELECTROLUX 06/06/2022

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019

LVD:

EN 60335-2-15:2016+ A11:2018

EN 60335-2-14:2006+ A1:2008+ A11:2012+ A12:2016

EN 60335-1:2012+ A11:2014+ A13:2017+ A1:2019+ A14:2019+ A2:2019+ A15:2021

EN 62233: 2008

ErP:

(EC) No. 1275/2008

(EU) No. 801/2013

EN 50564:2011

IEC 62301:2011

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Share more of our thinking at www.electrolux.com

electrolux.com/shop

Electrolux Appliances AB

S-t Goransgatan 143

S-105 45 Stockholm

Sweden
