USER MANUAL EXP12HN1WI ELECTROLUX

EN AIR CONDITIONER USER MANUAL

FR CLIMATISEUR MANUEL D'UTILISATION

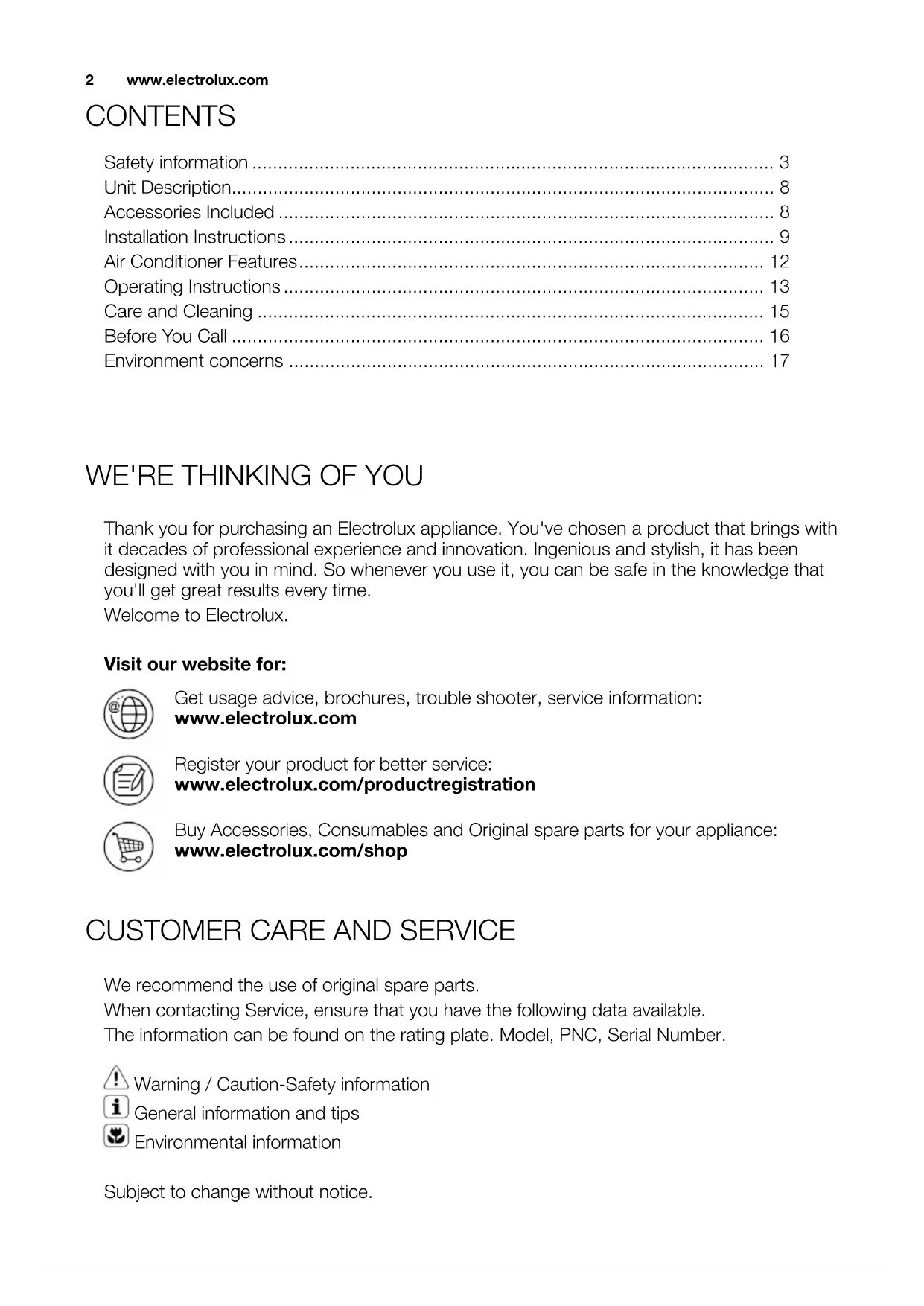

Accessories Included 8

Installation Instructions 9

Air Conditioner Features 12

Operating Instructions 13

Care and Cleaning 15

Before You Call 16

Environment concerns 17

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

SAFETY INFORMATION

Warning! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Warning! Children should be supervised to ensure that they do not play with the appliance.

This manual explains the proper use of your new air conditioner. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference.

Caution! Contact authorised service technician for repair or maintenance of this unit.

Caution! Contact the installer for installation of this unit.

Caution! The air conditioner is not intended for use by young children or infirmed persons without supervision.

Caution! Young children should be supervised to ensure that they do not play with the air conditioner.

Caution! There are local council rules regarding maximum allowable noise levels emitted by air conditioners.

Caution! If the power cord is to be replaced, replacement work shall be performed by authorised personnel only.

Caution! Installation work must be performed in accordance with the national wiring standards by authorised personnel only (if

applicable). Incorrect connection can cause overheating and fire.

Caution! Take care not to catch fingers on fan when adjusting horizontal louvres.

Important notes

1. Do not operate unit without the air filter.
2. Do not operate unit near any heat source or open fire.
3. Do not expose the unit to direct sunlight.
4. Always store or move the unit in an upright position.
5. Do not cover the appliance when in operation or immediately after use.
6. Always ensure that when the water pump drain hose is fitted that the hose is run to an effective drain point.
7. Always drain condensate before storing unit.

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage.

The seriousness is classified by the following indications:

Warning! The seriousness is classified by the following indications:

Caution! This symbol indicates the possibility of injuity or damage to property

Meanings of symbols used in this manual are shown below:

This symbol indicates never to do this

This symbol indicates always do this

Warning!

warning meaning
Plug in power plug properly Otherwise, it may cause electric shock or fire due to excess heat generation
Do not operate or stop the unit by Inserting or pulling out Die power plug	It may cause electric shock or fire due to heat generation
Do not damage or use an unspecified power cord	It may cause electric shook or fire If the power cord is damaged, it must be replaced by the manufacturer or an authorised service centre or a similarly qualified person in order to avoid a hazard
Do not modify power cord length or share the outlet with other appliances	It may cause electric shock or fire due to heat generation
Do not operate with wet hands or in damp environment	It may cause electric shock
Do not direct airflow at room occupants This could harm your health
Always ensure effective earthing Incorrect earthing may cause electric shock
Do not allow water to run into electric parts	It may cause failure of unit or electric shock
Always install circuit breaker and a dedicated power circuit	incorrect installation may cause Are and electric shock
Unplug the unit if strange sounds, smell, or smoke comes from it	It may cause fire and electric shock
Do not use the socket if it is loose or damaged	It may cause fire and electric shock
Do not open the unit during operation It may cause fire and electric shock
Keep firearms away It may cause fire
Do not use the power cord close to heating appliances	It may cause fire and electric shock
Do not use the power cord near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.	It may cause an explosion or fire
Ventilate room before operating air conditioner if there is a gas leakage from another appliance	It may cause explosion, fire and burns
Do not disassemble or modify unit It may cause failure and electric shock

Caution!

caution meaning
When the air filter is to be removed, do not touch the metal parts of the unit	It may cause an injury
Do not clean the air conditioner with water	Water may enter the unit and degrade the insulation. It may cause an electric shock
Ventilate the room well when used together with a stove, etc.	An oxygen shortage may occur
When the unit is to be cleaned, switch off, and turn off the circuit breaker	Do not clean unit when power is on as it may cause fire and electric shock, it may cause an injury
Do not place a pet or house plant where it will be exposed to direct air flow	This could injure the pet or plant
Do not use for special purposes Do not use this air conditioner to preserve precision devices, food, pets, plants, and art objects. It may cause deterioration of quality, etc.
Stop operation and close the window in storm or cyclone	Operation with windows opened may cause wetting of indoor and soaking of household furniture
Hold the plug by the head of the power plug when taking it out	It may cause electric shock and damage
Turn off the main power switch when not using the unit for a long time	It may cause failure of product or fire
Do not place obstacles around air-inlets or inside of air-outlet	It may cause failure of appliance or accident
Always insert the filters securely. Clean filter once every two weeks	Operation without filters may cause failure
Do not use strong detergent such as wax or thinner – use a soft cloth	Appearance may be deteriorated due to change of product colour or scratching of its surface
Do not place heavy object on the power cord and ensure that the cord is not compressed	There is danger of fire or electric shock
Do not drink water drained from air conditioner	It contains contaminants and could make you sick
Use caution when unpacking and installing	Sharp edges could cause injury
If water enters the unit, turn the unit off at the power outlet and switch off the circuit breaker. Isolate supply by taking the power-plug out and contact a qualified service technician	It could cause electric shock and damage

Points to keep in mind when using your air conditioner

Caution!

Warnings for use

• Do not modify any part of this product.
• Do not insert anything into any part of the unit.
• Ensure the power supply used has an appropriate voltage rating. Only use a 220V - 240V, 50Hz, 10A mains electricity supply. Use of a power supply with an improper voltage rating can result in damage to the unit and possibly fire.
  Always use a circuit breaker or fuse with the proper amp rating. Do not, under any circumstances, use wire, pins or other objects in place of a proper fuse.
• In the event of any abnormality with the air conditioner (eg. a burning smell), turn it off immediately and disconnect the power supply.

Caution!

Warning for power supply cord

• This power plug must only be plugged into an appropriate wall socket. Do not use in conjunction with any extension cords.
• Push the power plug securely into the socket and make sure it is not loose.
• Do not pull, deform, or modify the power supply cord, or immerse it in water. Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Use only the manufacturer specified power cord for replacement.
• This appliance must be earthed. This appliance is equipped with a cord having an earth wire. The plug must be

plugged into an outlet that is properly installed and earthed.

Grounding tab

(only for UK)

• This appliance is equipped with a cord that has a earthed wire connected to an earthed pin. The plug must be plugged into a socket that is properly installed and earthed. Do not under any circumstances cut or remove the square earthed pin from this plug.

square earthed pin

Plug

Usage cautions

• Ventilate the room periodically during use, especially if using gas appliances in conjunction with the air conditioner.
• Be sure to turn the unit off and disconnect the power supply cord before performing any maintenance or cleaning.
• Do not splash or pour water directly onto the unit. Water can cause electrical shock or equipment damage.
• Drainage should be performed whenever moving the air conditioner (see page 19). If any water remains in the tank, it may spill out while being moved.
• To ensure proper drainage, the drainage hose must have no kinks and must not be elevated during dehumidification mode. If not, the drained water may spill out into the room.

C

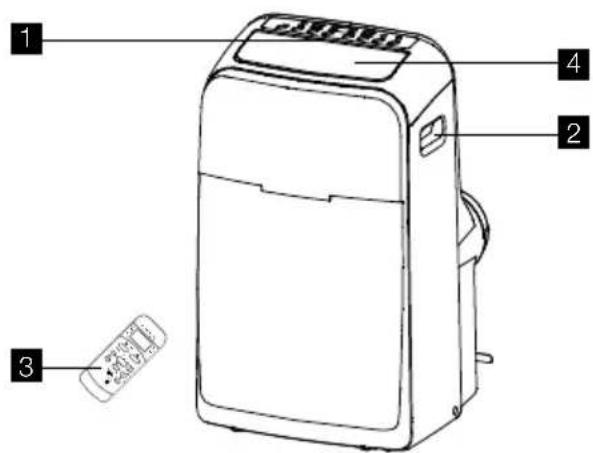

UNIT DESCRIPTION

1 CONTROL PANEL
2 CARRYING HANDLE (BOTH SIDES)
3 REMOTE CONTROL
4 ROOM AIR DISCHARGE
CASTOR

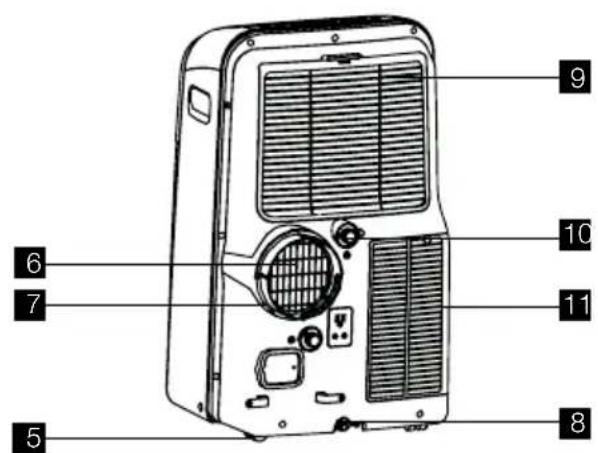

6 EXHAUST AIR OUTLET

Fig. 2

7 EXHAUST ADAPTOR A
8 BOTTOM TRAY DRAIN OUTLET
9 AIR INTAKE
10 DEHUMIDIFYING DRAIN OUTLET
AIR INTAKE

Fig. 1

ACCESSIONS INCLUDED

PARTS PARTS NAME: QUANTITY:
	Exhaust hose 1 pc
	Unit/ Exhaust Adaptor A 1 pc
	Window/ Exhaust Adaptor B 1 pc
	Window Sliding Kit 1 set
	Foam J teal 3 pc
	Remote Control 1 pc
	Battery(For remote control) 2 pc
	WALL ADAPTOR (FOR PERMANENT DUCT MOUNTING) 1 pc
	WALL PLUG 4 pc
	SCREWS 4 pc
	1/2" Screw 4 pcs
	3/4" Screw 2 pcs
	1/2" Hex Head Cap Screw 2 pcs
	Safety Lock 1 pc
	Storage cover (Optional for some model) 1 pc

• Check all the accessories are included in the package and please refer to the installation instructions for their usage.

INSTALLATION INSTRUCTIONS

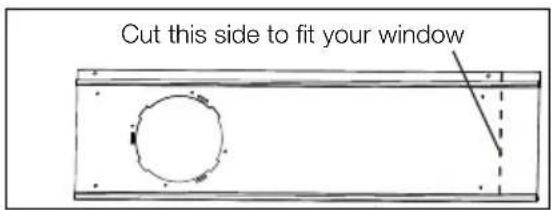

Exhausting hot air window discharge

In the COOLING Mode the appliance must be placed close to a window or opening so that the warm exhaust air can be ducted outside.

First position unit on a flat floor and make sure there's a minimum of 30.5cm clearance around the unit, and is within the vicinity of a single circuit outlet power source.

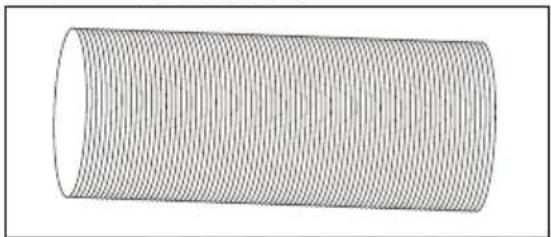

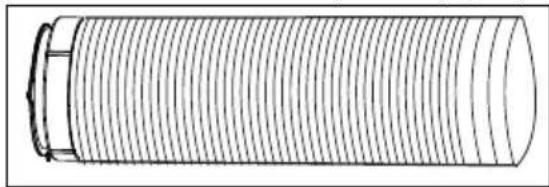

1. Take the hose out from the packaging. (Fig.3).

Fig. 3

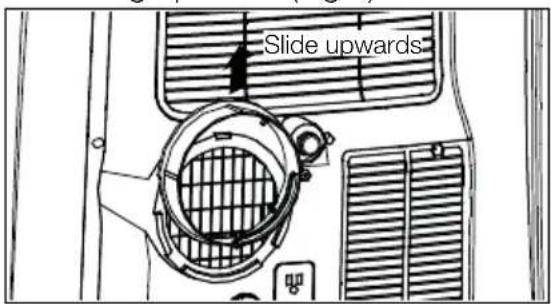

1. Remove adaptor A from unit by sliding upwards (Fig.4).

Fig. 4

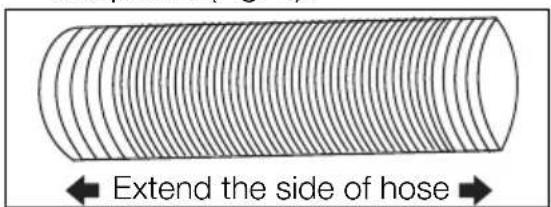

1. Extend either side of the hose (Fig. 5) and screw the hose to adaptor A (Fig. 6).

Fig. 5
Fig. 6

1. Extend the other side of the hose and screw it to adaptor B (Fig. 7).

Fig. 7

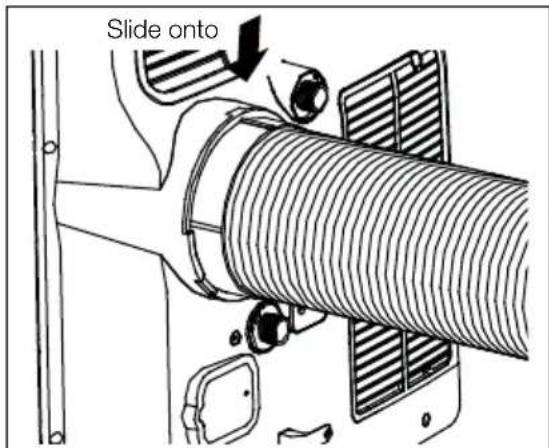

1. Slide the assembly onto unit (Fig. 8).

Fig. 8

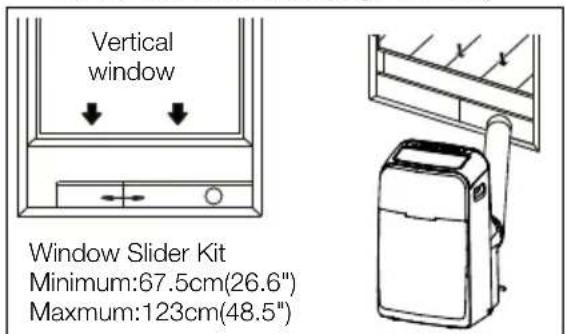

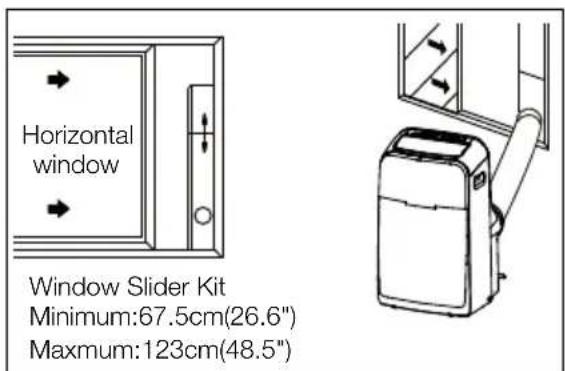

1. Affix the adaptor B into the window slider kit and seal. (Fig. 9a&9b)

Fig. 9a

Fig. 9b

WALL DISCHARGE

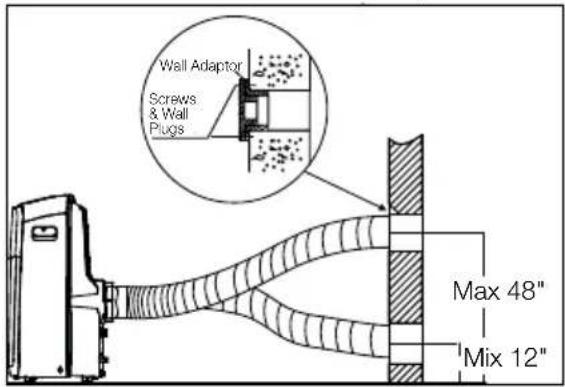

Mount wall adaptor directly over correctly installed duct to outside. (This usually includes aluminum wall ducting & an outside cover. See your hardware specialist for correct installation.) Use wall plugs & screws to secure. (Fig. 10) Attach hose duct to wall adaptor.

Fig. 10

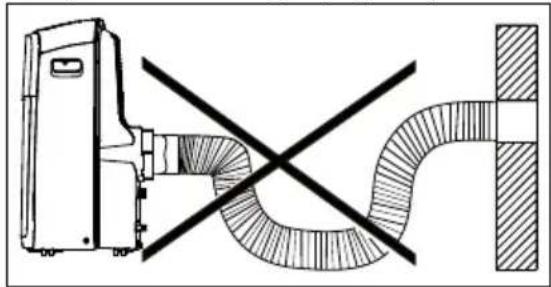

The hose can be extended from its original length of 38.1cm up to 139.7cm, but it is the best to keep the length to minimum required. Also make sure that the hose does not have any sharp bends or sags. (Fig. 11)

Fig. 11

Installation in a double-hung sash window

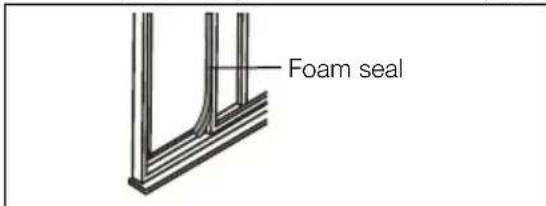

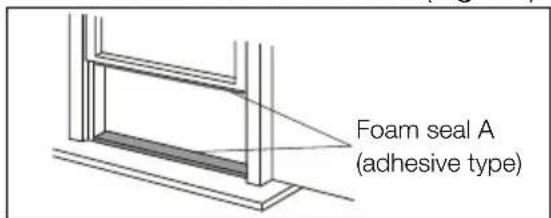

1. Cut the foam seals(adhesive type) to the proper lengths and attach them to the window and stool. (Fig. 12)

Fig. 12

1. Open the window sash and place the window slider kit on the window stool (Fig. 13). Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window. Screw down the two screws on the window slider kit. See Fig.13. Cut the adjustable window slider kit if the width of window is less than 26.6 inches (Fig. 14).

Fig. 13

Fig. 14

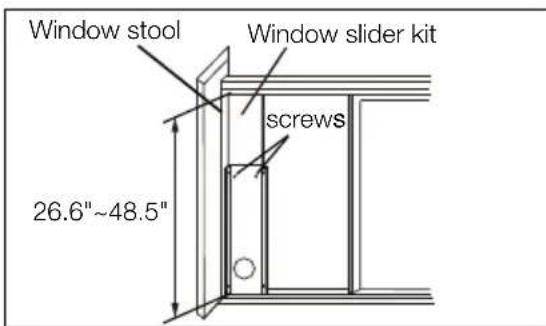

1. Close the window sash securely against the window slider kit. (Fig. 15)

2. Drive two 1/2" screws to secure the window slider kit to the window sash. (FIG. 15)

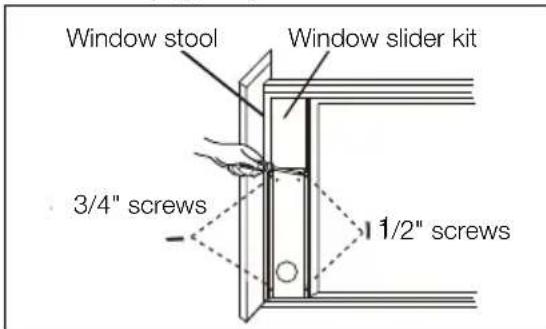

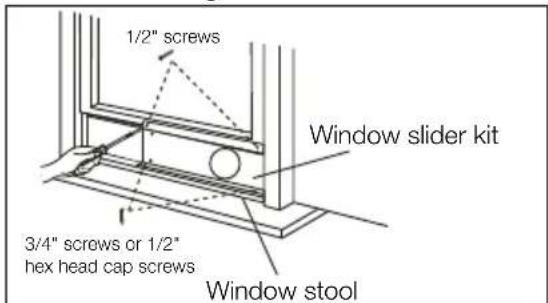

3. Secure the window slider kit to the window stool (FIG. 15):

A: For wooden windows: Use 3/4" screws for securing.
B: For Vinyl-Clad windows: Use 1/2" hex head cap screws for securing.

Fig. 15

1. To secure lower sash in place, attach right angle sash lock with 1/2" (12.7mm) screw as shown (FIG. 16).
   NOTE: It is difficult to lock the windows with the sash lock for VinylClad windows, so you can use lock by window itself.

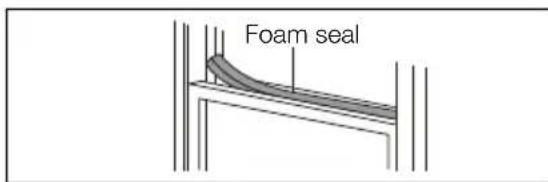

2. Cut the foam seal to an appropriate length and seal the open gap between the top window sash and outer window sash, as shown in Fig.17.

Fig. 16

Fig. 17

Installation in a sliding sash window

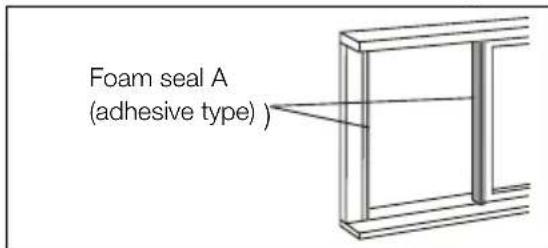

1. Cut the foam seals(adhesive type) to the proper lengths and attach them to the window frame. See Fig.18.

Fig. 18

1. Open the window sash and place the window slider kit on the window stool. See Fig.19. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the height of window. Screw down the two screws on the window slider kit. See Fig.19. Cut the adjustable window slider kit if the height of window is less than 26.6 inches (Fig. 14).

Fig. 19

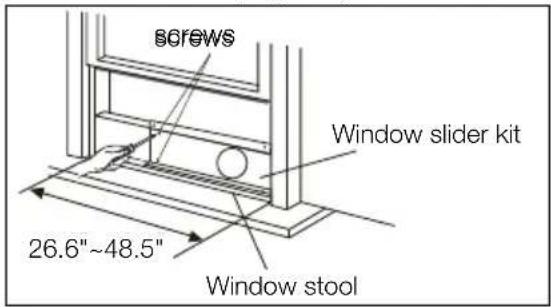

1. Close the sliding sash securely against the window slider kit. (Fig. 20)

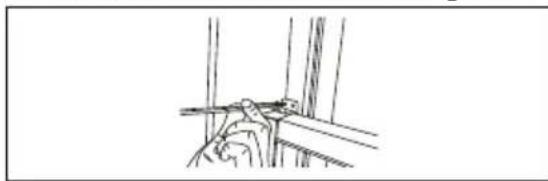

2. Drive two 1/2 screws to secure the window slider kit to the window sash. (Fig. 20)

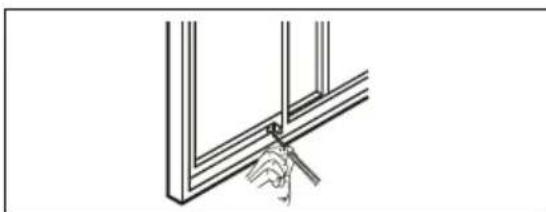

3. Drive two 3/4" screws to secure the window slider kit to the window stool. (Fig. 20)

Fig. 20

1. Cut the foam seal to an appropriate length and seal the open gap between the sliding sash and outer window sash, as shown in Fig.21.
2. To secure the sliding sash in place, attach right angle sash lock with 1/2"(12.7mm) screw as shown.(Fig.22)

Fig. 21

Fig. 22

AIR CONDITIONER FEATURES

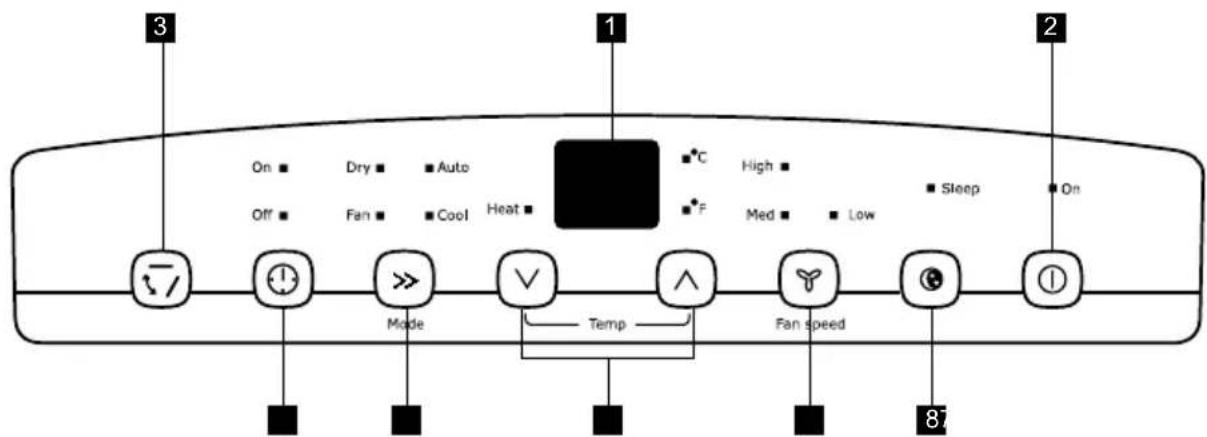

CONTROL PANEL
Fig. 23

1 DISPLAYS TEMPERATURE/TIME
2 TURNS UNIT ON OR OFF
3 SWING BUTTON
4 ACTIVATES TIMER
5 SETS MODE
6 ADJUSTS TEMPERATURE OR TIME
7 SETS FAN SPEED
8 SLEEP MODE

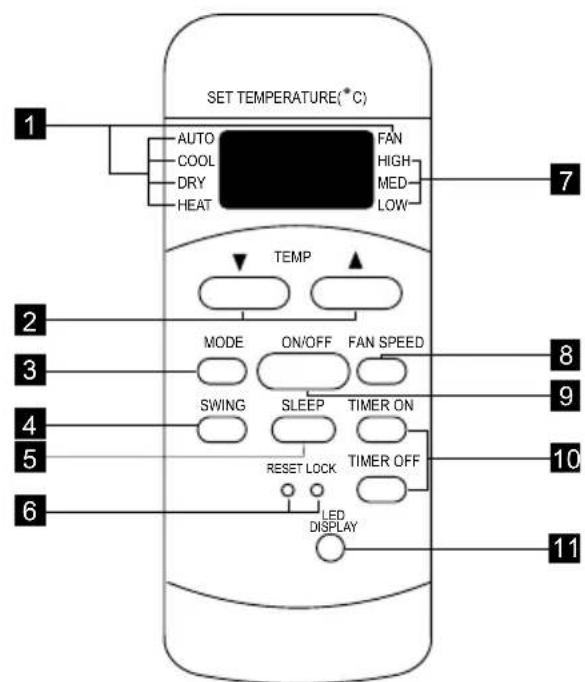

REMOTE CONTROL
Fig. 24

1 MODE INDICATION
2 TEMPERATURE/TIMER CONTROL BUTTONS
3 MODE SELECTOR
4 SWING BUTTON
5 SLEEP BUTTON
6 RESET + LOCK PIN BUTTONS
7 FAN SPEED SELECTION
8 FAN SPEED SELECTOR
9 ON/OFF BUTTON
10 TIMER BUTTONS
11 LED DISPLAY BUTTON

Battery Size: AAA

Warning: Do not mix old and new batteries. Do not mixalkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

NOTE

The RESET button is depressed when you want to return to the initial factory settings. The LOCK button is depressed to lock the keypad so the settings cannot be changed. The key symbol will appear in the display of the remote control, depress the LOCK button again to release. Use a small pin to depress these buttons.

OPERATING INSTRUCTIONS

NOTE

The following instructions represent the Control Panel, the same instructions can be used for the Remote Control.

COOLING MODE:

In this mode the exhaust adaptor hose MUST be used.

1. Press the MODE button until the "Cool" indicator lights.
2. Press the "V A" Temp buttons for desired setting.
3. Press the FAN button for desired fan speed.

HEATING MODE: (on some models) In this mode the exhaust adaptor hose MUST be used.

1. Press the MODE button until the "Heat" indicator lights.
2. Press the "V" Temp buttons for the desired heat setting.
3. Press the FAN button for desired fan speed.

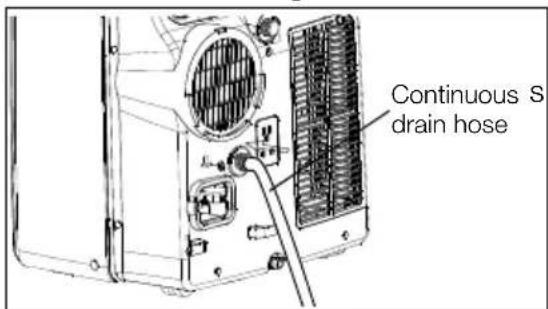

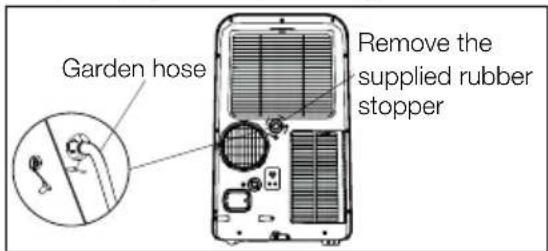

4. Connected drain hose. See drainage section.

DRY MODE:

In this mode you do not need to use the exhaust adaptor hose, BUT the water collected must be discharged. See Drainage Section.

1. Press the MODE button until the "Dry" indicator lights.
2. The fan will run at low speed and the display will show the room temperature.
3. Keep doors & windows closed for best effect.

AUTO MODE:

Always have the exhaust hose attached in this mode.

When you set the air conditioner in AUTO mode, it will automatically select cooling, heating (inapplicable for cooling only models), or fan only operation depending on what temperature you have selected and the room temperature. The air conditioner will control room temperature automatically round the temperature point set by you.

Under AUTO mode, you can not select the fan speed.

FAN MODE:

In this mode there is no need to use the exhaust hose or drainage hose. However, if you require stale or smokey air to be removed from the room, hook up the duct accessories as described in the "EXHAUSTING HOT AIR" section.

1. Press the MODE button until the "Fan" indicator lights.
2. Press the FAN button to choose the desired fan speed.
3. The fan will run at the selected speed and the display will show the room temperature.

TIMER OPERATION:

You can set both delay stop and delay start while unit is in ON position or OFF position. When unit is in ON position, first press TIMER button to go to delay stop setting, then "timer off" light will illuminate, tap or hold the UP arrow (V) or the DOWN arrow (A) to change delay stop timer at 0.5 hour increments up to 10 hours, then at 1 hour increments up to 24 hours. Then press the TIMER button to confirm the setting (the control will confirm the setting automatically after 5 seconds) and go to delay start setting. Use the same way as above to set the delay start timing. If you don't need to set delay start, press the TIMER button again to exit. After 5 seconds, the control will automatically change the display back to previous temperature display. If you want to check remaining time, press the TIMER button. The delay start operation automatically selects mode, temperature and fan speed the same as last operation you set.

To activate the Timer function when the unit is in Off mode, press TIMER button to first enter delay start and secondly enter delay stop in the same way as above.

To cancel the timer setting, simply tap (V) or (A) button to change the timing to 0.0.

SLEEP OPERATION:

In this mode the selected temperature will increase by 1^30 minutes after the mode is selected. The temperature will then increase by another 1^ after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the "Sleep" mode and the unit will continue to operate as originally programmed. The "Sleep" mode program can be cancelled at any time during operation by again pressing the "Sleep" button.

Note: This feature is unavailable under FAN or DRY modes.

SWING OPERATION:

When you turn on the unit, the louver will swing and stop at a certain angle. You can press the SWING button to let the louver swing automatically. Press the SWING button again while you want the louver stop at desired angle.

FAULT CODE:

If the display reads "E1", the room temperature sensor has failed. Call for service.

temp/timer setting

If the display reads "E2", the evaporator temperature sensor has failed. Call for service.

temp/timer setting

If the display reads "E3", the condenser temperature sensor has failed. Call for Service.

temp/timer setting

If the display reads "E4", the display panel communication has failed. Call for service.

temp/timer setting

If the display reads "P1", bottom tray is full. Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Restart the machine until the "P1" symbol disappears. If error repeats, call for service.

temp/timer setting

DRAINAGE:

1. During the dehumidifying mode, you will need a garden hose (sold separately) to drain the condensate from the unit. Remove the rubber stopper from the hose connector, then screw on a garden hose to the connector as shown on fig 25.

The hose may then:

A. Discharge into a drain that is lower than the unit.
B. Be connected to a condensate pump (sold separately).

1. During the Heating mode, you will need to connect a drain hose to the rear of unit as Fig.26

Additional things you should know Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.

• The "Cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time.

The control will maintain the set temperature within 1^ between 17^ and 30^ (62 F and 86 F).
- The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other and back, press and hold the "TEMP" Up (A) and Down (V) buttons together for 3 seconds.
After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.

CARE & CLEANING

Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards.

Air Filter Cleaning

• This unit has two filters, they are filter A and B. Grasp the upper panel tab and take off the filter A which behind the grill of the back panel (Fig. 27). Remove the lower filter B by loosening the screw. Take down the air inlet grille, then remove the air filter as shown in Fig.28.

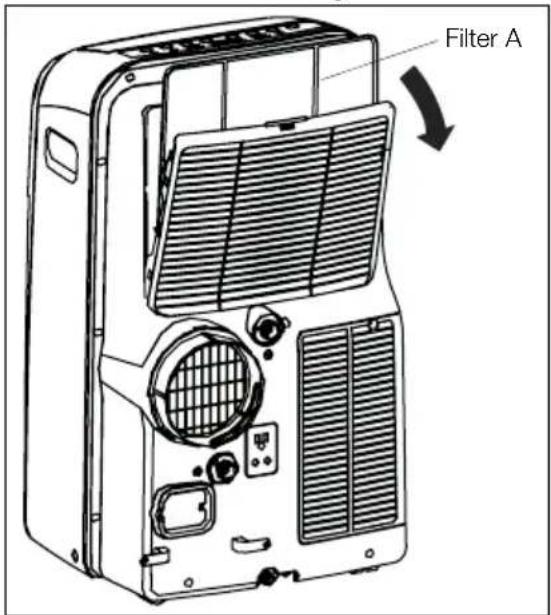

Fig. 27

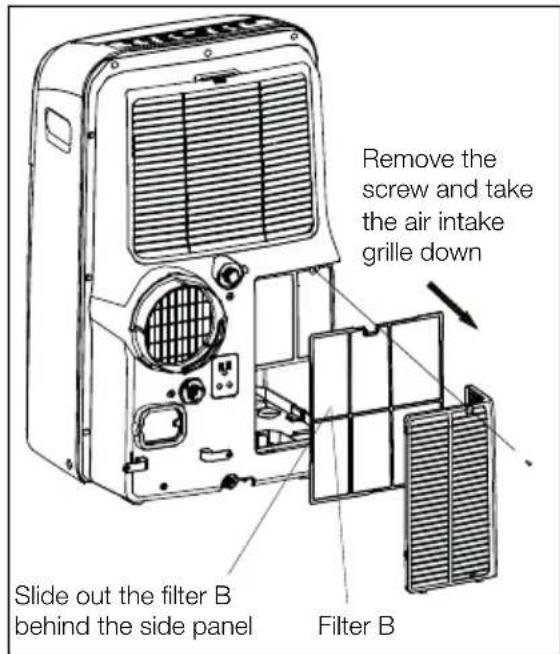

Fig. 28

• Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly. Gently shake excess water from the filter. Be sure filter is thoroughly dry before replacing.
• Or, instead of washing you may vacuum the filter clean.

Cabinet Cleaning

• Be sure to unplug the air conditioner to prevent shock or fire hazard.

The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.

• Never use harsh cleaners, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the air conditioner.

BEFORE YOU CALL

Air conditioner will not operate.

• Wall plug disconnected. Push plug firmly into wall outlet.
• Plug Current Device Tripped. Press the RESET button.
• House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
  Control is OFF. Turn Control ON and set to desired setting.
• P1 appears in the display window. Drain water as described in Drainage Section.
• Shut off in Heat mode. When the air outlet exceeds 70^ (158°F), the automatic heat protection engages. Remove any blockages and let appliance cool down.
• Room Temperature lower than the set temperature (Cool Mode). Reset the temperature.
• Room Temperature higher than the set temperature (Heat Mode). Reset the temperature.

Air from unit does not feel cold enough.

• Room temperature below 16^ (60^) . Cooling may not occur until room temperature rises above 16^ (60^) .
• Reset to a lower temperature.

Winter Storage

If you plan to store the appliance during the winter, cover it with plastic or return it to its carton.
- For the model which with accessory of storage cover, use it directly for the appliance storage.

• Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart when set in the COOL mode.

Air conditioner cooling, but room is too warm - NO ice forming on cooling coil behind decorative front.

• Outdoor temperature below 16^ (60^) . To defrost the coil, set FAN ONLY mode.
  Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode.
• Temperature is set too low for nighttime cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a higher setting.
• Exhaust duct not connected or blocked. See EXHAUSTING HOT AIR Section.

Air conditioner cooling, but room is too warm - ice forming on cooling coil behind decorative front

• Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section.

• Temperature is set too high. Set temperature to a lower setting.
  Air directional louvers positioned improperly. Position louvers for better air distribution.

• Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.

• Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc.
• Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture.

Air conditioner turns on and off rapidly.

• Dirty air filter - air restricted. Clean air filter.

• Outside temperature extremely hot. Set FAN speed to a faster setting to bring air through cooling coils more frequently.

Noise when unit is cooling.

Air movement sound. This is normal. If too loud, set to lower FAN setting.
Vibracion from uneven floor. Move or support appliance correctly on even surface.

Room too cold.

• Set temperature too low. Increase set temperature.

Room Too Hot.

• Set temperature too high. Lower setting.

ENVIRONMENT CONCERNS

Information on disposal for users

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.
- This air conditioner uses R41 OA refrigerant.

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries:

Please contact your local authority for correct method of disposal of the used battery.

• Battery, including those which is heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environmentally sound manner. Find out about the legal regulations which apply in your area.

SOMMAIRE

FONCTIONNEMENT SWING (basculement) :
