USER MANUAL EHH9967FSG ELECTROLUX

9. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it

decades of professional experience and innovation. Ingenious and stylish, it has been designed

with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

Register your product for better service:

www.RegisterElectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

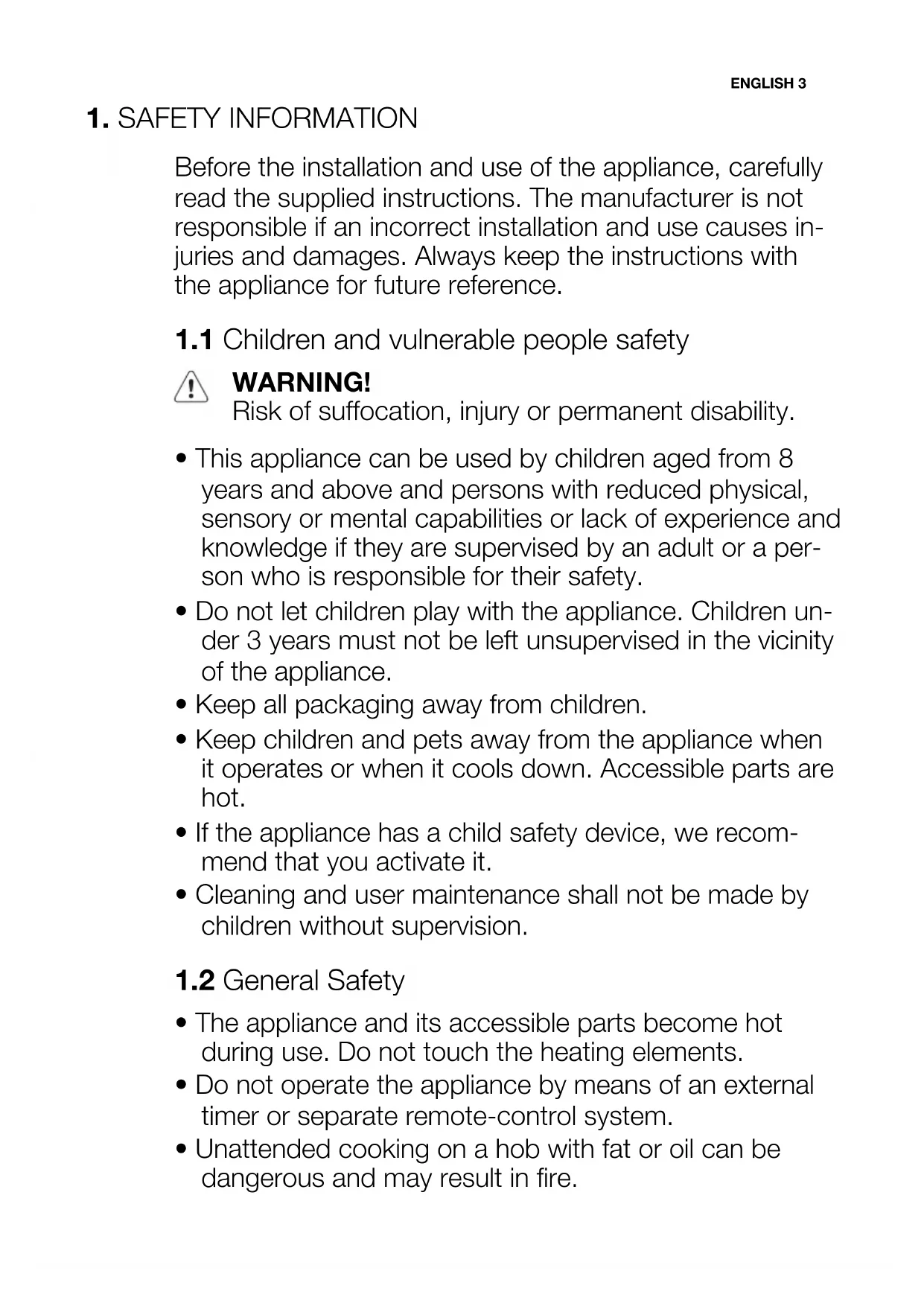

www.electrolux.com1. SAFETY INFORMATION Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes in-

juries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they are supervised by an adult or a per-

son who is responsible for their safety.

• Do not let children play with the appliance. Children un-

der 3 years must not be left unsupervised in the vicinity

• Keep all packaging away from children.

• Keep children and pets away from the appliance when

it operates or when it cools down. Accessible parts are

• If the appliance has a child safety device, we recom-

mend that you activate it.

• Cleaning and user maintenance shall not be made by

children without supervision.

• The appliance and its accessible parts become hot

during use. Do not touch the heating elements.

• Do not operate the appliance by means of an external

timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be

dangerous and may result in fire.

ENGLISH 3• Never try to extinguish a fire with water, but switch off

the appliance and then cover flame e.g. with a lid or a

• Do not store items on the cooking surfaces.

• Do not use a steam cleaner to clean the appliance.

• Metallic objects such as knives, forks, spoons and lids

should not be placed on the hob surface since they

• If the glass ceramic surface is cracked, switch off the

appliance to avoid the possibility of electric shock.

• After use, switch off the hob element by its control and

do not rely on the pan detector.

• If the supply cord is damaged, it must be replaced by

the manufacturer, an authorized Service or similarly

qualified persons in order to avoid a hazard.

Only a qualified person must in-

stall this appliance.

• Remove all the packaging.

• Do not install or use a damaged appli-

• Obey the installation instruction sup-

plied with the appliance.

• Keep the minimum distance from the

other appliances and units.

• Always be careful when you move the

appliance because it is heavy. Always

• Seal the cut surfaces with a sealant to

prevent moisture to cause swelling.

• Protect the bottom of the appliance

from steam and moisture.

• Do not install the appliance adjacent to

a door or under a window. This pre-

vents hot cookware to fall from the ap-

pliance when the door or the window is

• If the appliance is installed above draw-

ers make sure that the space, between

the bottom of the appliance and the up-

per drawer, is sufficient for air circula-

• Make sure that the ventilation space of

2 mm, between the worktop and the

front of the below unit, is free. The war-

ranty does not cover damages caused

by the lack of an adequate ventilation

• The bottom of the appliance can get

hot. We recommend to install a non-

combustile separation panel under the

appliance to prevent access to the bot-

Electrical connection

Risk of fire and electrical shock.

• All electrical connections must be made

by a qualified electrician.

• The appliance must be earthed.

www.electrolux.com• Before carrying out any operation make

sure that the appliance is disconnected

from the power supply.

• Use the correct electricity mains cable.

applicable) does not touch the hot ap-

pliance or hot cookware, when you

connect the appliance to the near sock-

• Make sure the appliance is installed

correctly. Loose and incorrect electricity

mains cable or plug (if applicable) can

make the terminal become too hot.

• Make sure that a shock protection is in-

• Use the strain relief clamp on cable.

• Make sure not to cause damage to the

mains plug (if applicable) or to the

mains cable. Contact the Service or an

electrician to change a damaged mains

• The electrical installation must have an

isolation device which lets you discon-

nect the appliance from the mains at all

poles. The isolation device must have a

contact opening width of minimum 3

• Use only correct isolation devices: line

protecting cut-outs, fuses (screw type

fuses removed from the holder), earth

leakage trips and contactors.

Risk of injury, burns or electric

• Remove all the packaging, labelling and

protective film (if applicable) before first

• Use this appliance in a household envi-

• Do not change the specification of this

• Do not let the appliance stay unatten-

ded during operation.

• Do not operate the appliance with wet

hands or when it has contact with wa-

• Do not put cutlery or saucepan lids on

the cooking zones. They can become

• Set the cooking zone to “off” after each

use. Do not rely on the pan detector.

• Do not use the appliance as a work

surface or as a storage surface.

• If the surface of the appliance is

cracked, disconnect immediately the

appliance from the power supply. This

to prevent an electrical shock.

• Users with a pacemaker must keep a

distance of minimum 30 cm from the

induction cooking zones when the ap-

pliance is in operation.

• When you place food into hot oil, it may

Risk of fire or explosion.

• Fats and oil when heated can release

flammable vapours. Keep flames or

heated objects away from fats and oils

when you cook with them.

• The vapours that very hot oil releases

can cause spontaneous combustion.

• Used oil, that can contain food rem-

nants, can cause fire at a lower temper-

ature than oil used for the first time.

• Do not put flammable products or items

that are wet with flammable products

in, near or on the appliance.

Risk of damage to the appliance.

• Do not keep hot cookware on the con-

• Do not let cookware to boil dry.

• Be careful not let objects or cookware

fall on the appliance. The surface can

• Do not activate the cooking zones with

empty cookware or without cookware.

• Do not put aluminium foil on the appli-

• Cookware made of cast iron, aluminium

or with a damaged bottom can cause

scratches on the glass or glass ceram-

ic. Always lift these objects up when

you have to move them on the cooking

ENGLISH 52.3 Care and Cleaning

Risk of damage to the appliance.

• Clean regularly the appliance to prevent

the deterioration of the surface material.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal ob-

Risk of injury or suffocation.

• Contact your municipal authority for in-

formation on how to discard the appli-

• Disconnect the appliance from the

• Cut off the mains cable and discard it.

Induction cooking zone

Induction cooking zone

Induction cooking zone

Induction cooking zone

Induction cooking zone

Induction cooking zone

3.1 Control panel layout 7 8 1110 1252 3 4141517 1316961 Use the sensor fields to operate the appliance. The displays, indicators and

sounds tell which functions operate.

sensor field function

To activate and deactivate the appliance.

To lock and unlock the control panel.

6 www.electrolux.comsensor field function

To activate and deactivate the STOP+GO

Timer indicators of cooking

To show for which of the cooking zones

To show that the Count Up operates (1

To show that the Count Down Timer op-

erates (1 to 99 minutes) or the Minute

To show for which of the cooking zones

you set the heat setting.

To show that the cookware is incorrect,

the diameter of the bottom of the cook-

ware is to small or there is no cookware

on the cooking zone.

To activate and deactivate the Bridge

To activate and deactivate the Power

To increase or decrease the time.

To set the cooking zone for the Timer

To set the Timer functions.

Control bar To set the heat setting.

3.2 Heat setting displays

The cooking zone is deactivated.

The cooking zone operates.

There is a malfunction.

OptiHeat Control (3 step Residual heat indicator) : contin-

ue cook / stay warm / residual heat.

Lock / The Child Safety Device operates.

ENGLISH 7Display Description

Not correct cookware or too small or no cookware on the

\ \ The risk of burns

OptiHeat Control shows the level of the

residual heat. The induction cooking

zones make the heat necessary for cook-

ing directly in the bottom of the cookware.

The glass ceramic is hot from the heat of

4.1 Activation and deactivation

Touch for 1 second to activate or de-

activate the appliance.

4.2 Automatic Switch Off

All cooking zones are deactivated (

• You do not set the heat setting after

you activate the appliance.

• You spill something or put something

on the control panel for more than 10

seconds, (a pan, a cloth, etc.). An

acoustic signal sounds some time and

the appliance deactivates. Remove the

object or clean the control panel.

• The appliance becomes too hot (e.g.

when, a saucepan boils dry). Before

you use the appliance again, wait for

the cooking zone to cool down.

• You use incorrect cookware. The sym-

comes on and the cooking zone

deactivates automatically after 2 mi-

• You do not deactivate a cooking zone

or change the heat setting. After some

comes on and the appliance

deactivates. See below.

• The relation between heat setting and

times of the Automatic Switch Off func-

4.3 The heat setting

Touch the control bar at the heat setting.

Move your finger along the control bar to

change the setting. Do not release before

you have a correct heat setting. The dis-

play shows the heat setting.

0 3 5 8 10 14 P When you use cookware larger than 180

mm the manufacturer recommends that

you put it on the rear cooking zones.

The Bridge function connects two cook-

ing zones and they operate as one. You

can use this function for cookware larger

First set the heat setting for one of the

To activate the Bridge function touch

and the indicator comes on. To set or

change the heat setting, touch one of the

To deactivate the Bridge function touch

and the indicator goes off. The cooking

zones operate independently.

8 www.electrolux.com4.5 Automatic Heat Up

You can get a necessary heat setting in a

shorter time if you activate the Automatic

Heat Up function. This function sets the

highest heat setting for some time (see

the diagram), and then decreases to the

necessary heat setting.

To start the Automatic Heat Up function

Touch ( comes on in the dis-

Immediately touch the necessary heat

setting. After 3 seconds

The Power function makes more power

available to the induction cooking zones.

The Power function can be activated for a

limited period of time ( see Technical In-

formation chapter). After that, the induc-

tion cooking zone automatically sets back

to highest heat setting. To activate, touch

, comes on. To deactivate, change

4.7 Power management

The power management divides the pow-

er between two cooking zones in a pair

(see the illustration). The power function

increases the power to the maximum level

for one cooking zone in the pair. The

power in the second cooking zone auto-

matically decreases. The heat setting dis-

play for the reduced zone changes be-

zones and automatically activates the

Bridge function for all of the zones. This

function sets the same heat setting as the

one you set the last time.

For the first activation the heat setting of

the left pair of zones is set to

middle pair is set to

To activate this function:

, and the indicator comes on.

All cooking zones operate for 9 mi-

nutes. If the cooking zones stay empty,

comes on. After 9 mi-

nutes an acoustic signal sounds and

the empty cooking zones are set to

To resume this function:

to put or move cookware on

the deactivated pair of cooking zones.

To deactivate this function:

to deactivate the Chef func-

tion for the cooking zones you chose

and keep the last heat setting of the

cooking zones for this pair. The indica-

Set the heat setting to

Count Down Timer deactivate the

cooking zones. The indicator goes off.

When the Chef function is off, the pot de-

tection time is 2 minutes.

ENGLISH 94.9 The Timer

The Count Down Timer.

Use the Count Down Timer to set how

long the cooking zone operates for only

Set the Count Down Timer after the

selection of the cooking zone.

The selection of the Timer function

is possible for cooking zones that

are active and after the heat set-

To set the cooking zone: touch

again and again until the indicator of the

necessary cooking zone comes on.

When this function is activated,

• To activate the Count Down Timer:

of the timer to set the time (

minutes). When the indicator

of the cooking zone starts to flash slow-

ly, the time counts down.

• To see the remaining time: set the

the cooking zone starts to flash quickly.

The display shows the remaining time.

To change the Count Down Timer:

set the cooking zone with

To deactivate the Count Down

Time: set the cooking zone with

and touch . The remaining time

the cooking zone goes out.

When the timer countdown comes to an

end, the sound operates and

es. The cooking zone deactivates.

To deactivate the sound: touch

Use the Count Up timer to monitor how

long the cooking zone operates.

The selection of the cooking zone

(if more than 1 cooking zone oper-

again and again until

the indicator of the necessary cooking

When this function is activated,

• To activate the Count Up timer:

To see how long the cooking zone

operates: set the cooking zone with

. The indicator of the cooking zone

starts to flash quickly. The display

shows how long the zone has operat-

ed. During the first minute the display

shows the time in seconds, and after

the first minute the display shows the

time in minutes. The display shows the

length of time of the cooking zone

which has operated for the longer peri-

• To deactivate the Count Up timer:

set the cooking zone with

or to deactivate the timer. The

goes out and comes on.

When the two Timer functions op-

erate at the same time, the display

shows the Count Up Timer first.

You can use the timer as the minute

minder when the cooking zones are not

or of the timer to set the

time. When the time comes to an end, the

To stop the sound: touch

4.10 STOP+GO The function sets all cooking zones

that operate to the lowest heat setting (

operates, you cannot change

function does not stop the timer

The heat setting that you set before

www.electrolux.com4.11 Lock

When the cooking zones operate, you

can lock the control panel, but not

prevents an accidental change of the heat

First set the heat setting.

comes on for 4 seconds.

To stop this function touch

setting that you set before comes on.

When you stop the appliance, you also

4.12 The Child Safety Device

This function prevents an accidental oper-

ation of the appliance.

To activate The Child Safety Device

Activate the appliance with

set the heat settings.

for 4 seconds. The symbol

Deactivate the appliance with .

To deactivate The Child Safety Device

Activate the appliance with

set the heat settings. Touch

Deactivate the appliance with

To override The Child Safety Device

for only one cooking time

Activate the appliance with

for 4 seconds. Set the heat

setting in 10 seconds. You can oper-

• When you deactivate the appliance with

, The Child Safety Device operates

4.13 OffSound Control

(Deactivation and activation of

Deactivation of the sounds

Deactivate the appliance.

for 3 seconds. The displays

come on and go out. Touch

comes on, the sound is on.

, comes on, the sound is off.

When this function operates, you can hear

the sounds only when:

• the Minute Minder comes down

• the Count Down Timer comes down

• you put something on the control panel.

Activation of the sounds

Deactivate the appliance.

for 3 seconds. The displays

come on and go out. Touch

comes on, because the sound

5. HELPFUL HINTS AND TIPS INDUCTION COOKING ZONES For induction cooking zones a strong

electro-magnetic field creates the heat in

the cookware very quickly.

5.1 Cookware for induction

Use the induction cooking zones

with correct cookware.

• correct: cast iron, steel, enamelled

steel, stainless steel, the bottom made

of multi-layer (with correct mark from a

• not correct: aluminium, copper, brass,

glass, ceramic, porcelain.

Cookware is correct for an induction

• ... some water boils very quickly on a

zone set to the highest heat setting..

ENGLISH 11• ... a magnet pulls on to the bottom of

The bottom of the cookware

must be as thick and flat as possi-

5.2 Use of the cooking zones

IMPORTANT Put the cookware on the cross which is

on the surface that you cook. Cover the

cross fully. The magnetic part of the bot-

tom of the cookware must be 125 mm

minimum. Induction cooking zones adapt

to the dimension of the bottom of the

cookware automatically. You can cook

with the large cookware on two cooking

zones at the same time.

5.3 The noises during operation

• crack noise: cookware is made of dif-

ferent materials (Sandwich construc-

• whistle sound: you use one or more

cooking zones with high power levels

and the cookware is made of different

materials (Sandwich construction).

• humming: you use high power levels.

• clicking: electric switching occurs.

• hissing, buzzing: the fan operates.

The noises are normal and do not re-

• If it is possible, always put the lids on

• Put cookware on a cooking zone be-

• Use the residual heat to keep the food

The cooking zone efficiency

The cooking zone efficiency is related to

the diameter of the cookware. The cook-

ware with a smaller diameter than the

minimum receives only a part of the pow-

er generated by the cooking zone. For the

minimum diameters see the Technical In-

5.5 Öko Timer (Eco Timer)

To save energy, the heater of the

cooking zone deactivates before

the count down timer sounds. The

difference in the operation time

depends on the heat setting level

and the length of the cooking op-

5.6 The Examples of cooking

The relation between the heat setting and

the cooking zone consumption of power

When you increase the heat setting it is

not proportional to the increase of the

cooking zone consumption of power.

It means that the cooking zone with the

medium heat setting uses less than a half

The data in the table is for guid-

Use to: Time Hints Nominal

as required Put a lid on a cook-

5 - 25 min Mix from time to time 3 – 8 %

Use to: Time Hints Nominal

Simmer rice and milk-

based dishes, heating

twice as much liquid

Steam vegetables, fish,

for 750 g of potatoes

Cook larger quantities

Up to 3 l liquid plus

veal cordon bleu, cut-

lets, rissoles, saus-

ages, liver, roux, eggs,

Turn halfway through 25 – 45 %

5 - 15 min Turn halfway through 45 – 64 %

14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-

Boil large quantities of water. Power function is activated.

6. CARE AND CLEANING Clean the appliance after each use.

Always use cookware with clean bottom.

Scratches or dark stains on the

glass-ceramic cause no effect on

how the appliance operates.

•–Remove immediately: melted plas-

tic, plastic foil, and food with sugar. If

not, the dirt can cause damage to

– Remove after the appliance is

sufficiently cool: limescale rings ,

water rings, fat stains, shiny metallic

discolorations. Use a special cleaning

agent for glass ceramic.

• The surface of the hob has horizontal

grooves. Clean the appliance with a

moist cloth and some detergent with a

smooth movement from left to right.

• At the end rub the appliance dry with

ENGLISH 137. TROUBLESHOOTING Problem Possible Remedy

You cannot activate the

appliance or operate it.

Activate the appliance

again and set the heat

setting in less than 10

You touched 2 or more

sensor fields at the same

Touch only one sensor

The STOP+GO function

Refer to the chapter “Dai-

There is water or fat

stains on the control pan-

Clean the control panel.

sounds and the appliance

sounds when the appli-

ance is deactivated.

You put something on

one or more sensor fields.

Remove the object from

The appliance deacti-

You put something on the

Remove the object from

The residual heat indica-

tor does not come on.

The cooking zone is not

hot because it operated

only for a short time.

If the cooking zone oper-

ated sufficiently long to

be hot, speak to the serv-

The Automatic Heat Up

function does not oper-

The cooking zone is hot. Let the cooking zone be-

come sufficiently cool.

The highest heat setting

The highest heat setting

has the same power as

the Automatic Heat Up

The heat setting changes

The Power management

Refer to “Power manage-

The sensor fields become

The cookware is too large

or you put it too near to

Put large cookware on

the rear cooking zones if

There is no signal when

you touch the panel sen-

The signals are deactiva-

Activate the signals (refer

to “OffSound control”).

and activate it again.

The Child Safety Device

or the Lock function op-

Refer to the chapter “Dai-

No cookware is on the

The cookware is incor-

Use correct cookware.

The diameter of the bot-

tom of the cookware is

too small for the cooking

Use cookware with cor-

The cookware does not

Cover the cross / square

There is an error in the

Disconnect the appliance

from the electrical supply

for some time. Discon-

nect the fuse from the

electrical system of the

house. Connect it again.

speak to the service cen-

The electrical connection

is incorrect. The supply

voltage is out of range.

Speak to a qualified elec-

trician to check the instal-

There is an error in the

cookware boils dry. The

overheating protection for

the cooking zones and

the Automatic Switch Off

Deactivate the appliance.

Remove the hot cook-

ware. After approximately

30 seconds, activate the

cooking zone again. If the

cookware was the prob-

lem, the error message

goes out of the display,

but the residual heat indi-

cator can stay. Let the

cookware become suffi-

ciently cool and refer to

“Cookware for the induc-

tion cooking zone” to see

if your cookware is com-

patible with the appli-

again, speak to the serv-

ENGLISH 15Problem Possible Remedy

The electrical connection

is incorrect. One or more

Have a qualified electri-

cian check if the installa-

tion is correct with the

connection illustration. If

speak to the service cen-

If you tried the above solutions and can-

not repair the problem, speak to your

dealer or the customer service. Give the

data from the rating plate, three digit letter

code for the glass ceramic (it is in the cor-

ner of the glass surface) and an error

message that comes on.

Make sure, you operated the appliance

correctly. If not the servicing by a custom-

er service technician or dealer will not be

free of charge, also during the warranty

period. The instructions about the cus-

tomer service and conditions of guarantee

are in the guarantee booklet.

8. INSTALLATION WARNING!

Refer to the Safety chapters.

Before the installation

Before the installation of the appliance, re-

cord the information below from the rating

plate. The rating plate is on the bottom of

the appliance casing.

8.1 Built-in appliances

• Only use the built-in appliances after

you assemble the appliance into correct

built-in units and work surfaces that

align to the standards.

8.2 Connection cable

• The appliance is supplied with the con-

• Replace the damaged mains cable with

a special cable (type H05BB-F Tmax

90°C; or higher). Speak to your local

8.3 To attach the seal.

• Clean the worktop in the area of the cut

• Bond the seal stripe supplied on the

lower edge of the appliance along the

outer edge of the glass ceramic. Do not

extend it. Let stay the cut ends in the

middle of one side. When, you cut it to

length (add some mm), push the two

ENGLISH 17If you use a protection box (an additional

), the front airflow space of 2

mm and protective floor directly below the

appliance are not necessary.

You can not use the protection box if you

install the appliance above an oven.

The protection box accessory may not be available in some countries. Please contact your

9. TECHNICAL INFORMATION Modell EHH9967FSG Prod.Nr. 949 596 295 00

Induction 11.1 kW Made in Germany

www.electrolux.comThe power of the cooking zones can be

different in some small range from the da-

ta in the table. It changes with the material

and dimensions of the cookware.

10. ENVIRONMENT CONCERNS Recycle the materials with the symbol

. Put the packaging in applicable

containers to recycle it.

Help protect the environment and human

health and to recycle waste of electrical

and electronic appliances. Do not dispose

appliances marked with the symbol

with the household waste. Return the

product to your local recycling facility or

contact your municipal office.

protection anti-surchauffe

Induction 11.1 kW Made in Germany

Induction 11.1 kW Made in Germany
