USER MANUAL LT-32FV140 JVC

Digital Video Broadcasting

Diagram of a device with labeled components and directional arrows indicating movement or force

Diagram of a server rack with labeled components and connection points, showing ports, connectors, and ventilation slots.

6m 30° 30° JVC

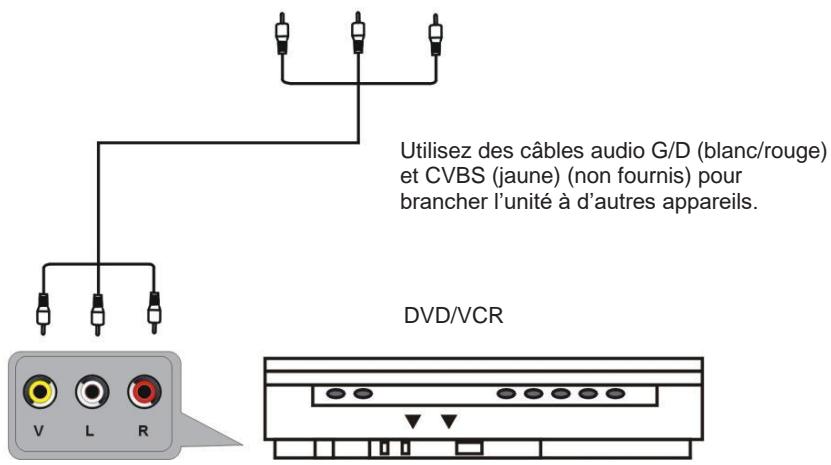

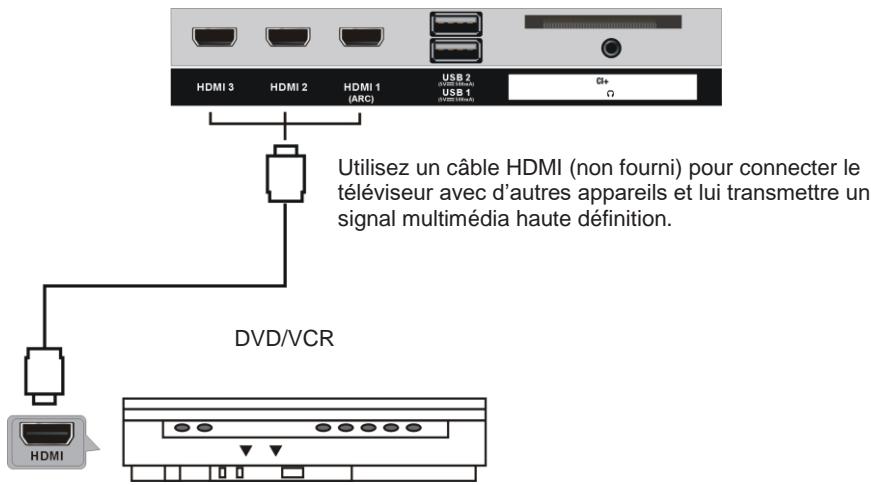

BRANCHEMENTS

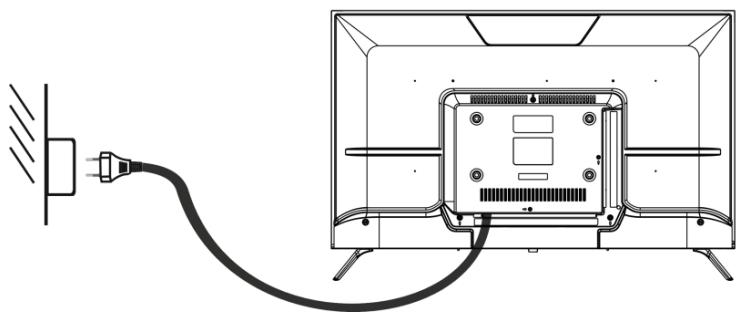

Line drawing of a cable inserted into a flat-screen TV unit, showing internal components and wiring (no text or symbols)

Branchement HDMI

Line drawing of a rectangular electronic device with ports and buttons (no text or symbols)

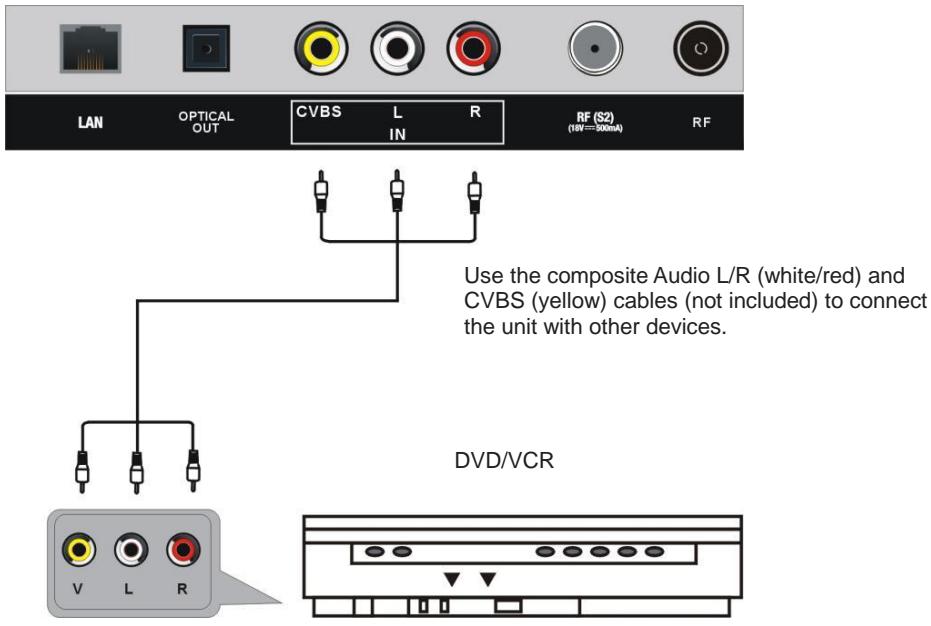

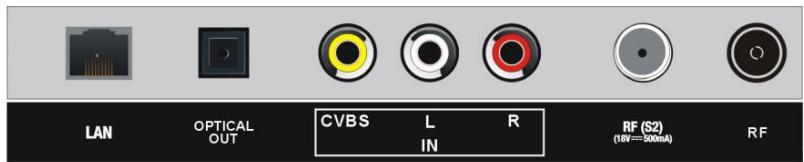

LAN OPTICAL OUT CVBS L R IN RF (S2) (16V=300mA) RF

Simple line drawing of a curved object with a lightning bolt, no text or symbols present

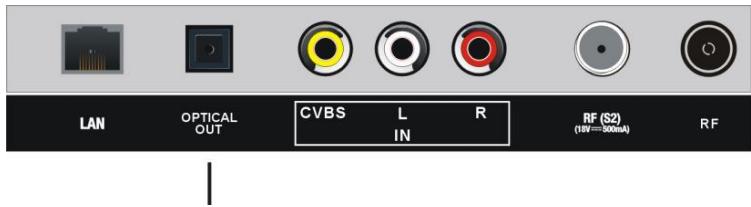

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V=500mA) RF

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V==500mA) RF

LAN OPTICAL OUT CVBS L R IN RF (2) RF RF-Output

4. Chaîne

(Go to Picture > Picture Mode Setting > Expert Settings)

My Favourite Apps NETFLIX YouTube Disney+ prime video CANAL+ | MY TFI | molatv Rakuten TV PLEX Free Music & TV RMC SPART pluto FIFA+ deezer Haystack News DAZN Red Bull TV VIDAA free app store iTFC Home Revvite Profile

Service vocal :

INPUT Try searching for something... Press & Hold to Speak

A B C D E F G E

26 kWh/1000h

2019/2013

Hotline Darty France

PRODUCTBESCHRIJVING....5

MONTAGE 7

AFSTANDSBEDIENING....8

AANSLUITINGEN.... 10

BASISWERKING.... 14

DE MENU'S GEBRUIKEN.... 16

PROBLEEMOPLOSSING....31

VERWIJDERING.... 32

Disney+ subscription required, see terms at https://www.disneyplus.com. ©2023 Disney and its related entities.

NETFLIX

Streaming-abonnement van Netflix vereist.

©2023 Amazon.com, Inc. or its affiliates. Amazon, Prime Video, and all related marks are trademarks of Amazon.com, Inc. or its affiliates. Amazon Prime membership or Prime Video fees apply. See primevideo.com/terms for details.

WAARSCHUWINGEN

alcohol, verdunner of benzine.

AC 103.260V- 50-484 LAN OPTICAL OUT CVBS L R IN SQ (52) CONTROL RF 1 2 3 4 5 6 7 8 9 10

Diagram of a device with labeled components and directional arrows indicating movement or force

②

6m 30° 30° JVC

AANSLUITINGEN

Line drawing of a cable inserted into a flat-screen TV unit, showing internal components and wiring (no text or symbols)

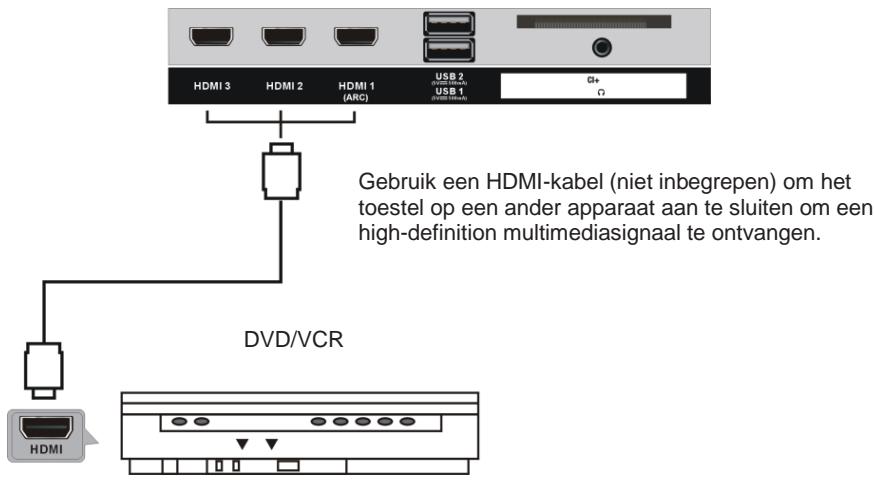

HDMI-aansluiting

Line drawing of a rectangular electronic device with ports and buttons (no text or symbols)

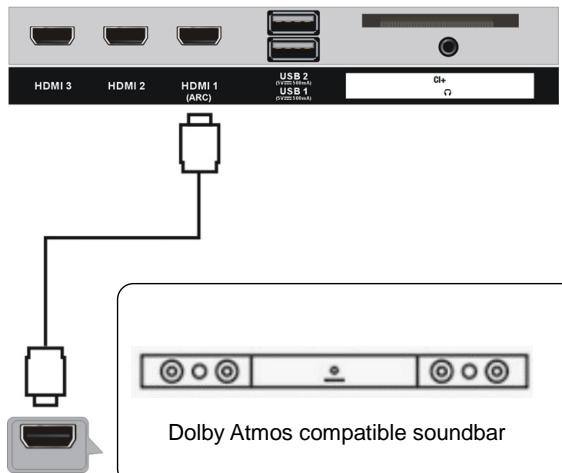

Dolby Atmos compatibele A/V receiver

Speakers Audio Output ARC Digital Audio Output Auto

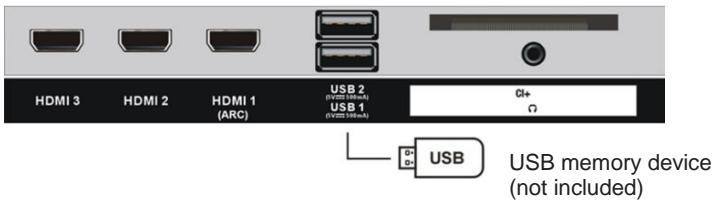

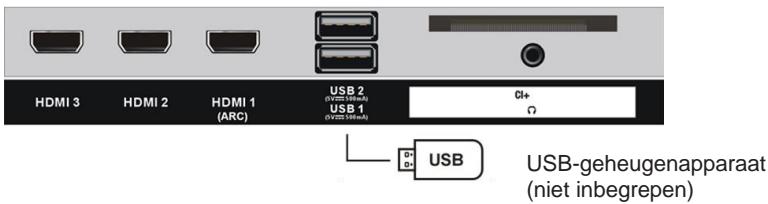

USB-aansluiting

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (USB/USB/USB) USB 1 (USB/USB/USB) CI+ Ω USB USB-geheugenapparaat (niet inbegrepen)

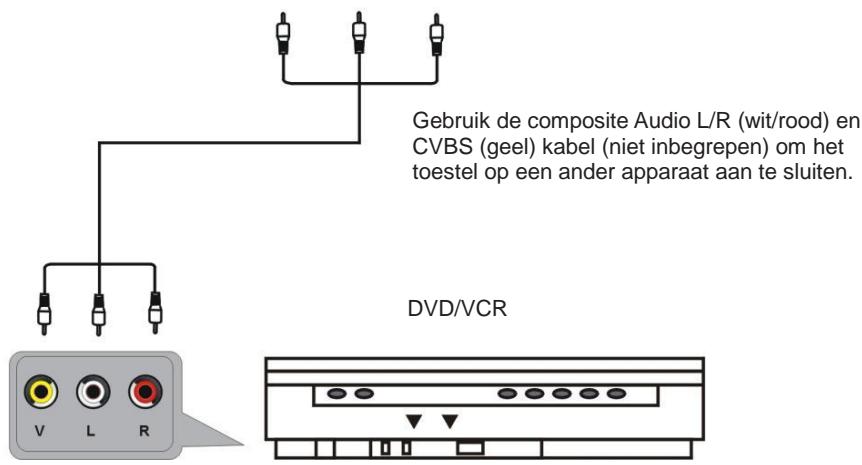

LAN OPTICAL OUT CVBS L R IN RF (S2) (16V=300mA) RF

Simple line drawing of a curved object with a lightning bolt, no text or symbols present

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V=500mA) RF

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V=500mA) RF

Select Location Greece Hungary Ireland Italy Kazakhstan Latvia Lithuania

FRANSAT Auto Channel Scan Skip Channel Scan Select Channel Scan Setup to tune satellite, cable or antenna services. If you do not use these services, select skip to continue TV setup.

Connect to the Internet Get access to all of your favourite Movies and TV shows

Data Sharing, Privacy and EULA How We Use and May Share Your Data VIDAA offers an Enhanced Viewing Service EV Service that, where available, adjusts your TV's picture and sound based on the Type of program you are watching. EV Service also shares your viewing data with third-parties to provide you with more relevant advertising. This is an optional service that you can disable or enable at any time from the Settings menu. To learn more about EV Service, and for a complete description of personal data collection on this Smart Device, please see our Privacy Policy at https://www.vidaa.com/ privacy or by editing the Settings menu. Please called how "Privacy Service" has to acknowledge Select All I Acknowledge the Privacy Policy Agree to End User License Agreement Agree to VIDAA Account Agree to Voice Service Agree to Enhanced Viewing Service

Create your VIDAA account With a VIDAA Account, you can manage Content Preferences, Subscriptions and more. Email Password Password may contain letters, numbers and basic symbols. Passwords must be between 8 and 30 characters and include both letters and numbers. Create an Account Sign in Skip Sign in or create an account from your mobile device by scanning the QR code.

Name TV Give your TV a unique name to help identify it when casting or connecting to it from other devices. Living Room TV Bedroom TV Guest Room TV Game Room TV Create Custom Name

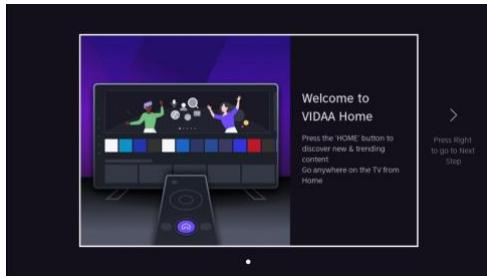

Welcome to VIDAA Home Press the 'HOME' button to discover new & trending content Go anywhere on the TV from home Press Right to go to Next Stop

DE MENU'S GEBRUIKEN

INPUT Try searching for something... Press & Hold to Speak

Mogelijk

Oplossing

probleem

CÓMO USAR LOS MENÚS....16

ESPECIFICACIONES....29

Digital Video Broadcasting

Diagram of a device rear panel with labeled components and directional arrows indicating movement or force directions.

②

Diagram of a dual-chamber electronic device with four connectors and a central hub, no text or symbols present

6m 30° 30° JVC

CONEXIONES

Diagram of a cable inserted into a flat-screen TV unit, showing internal components and wiring (no text or symbols)

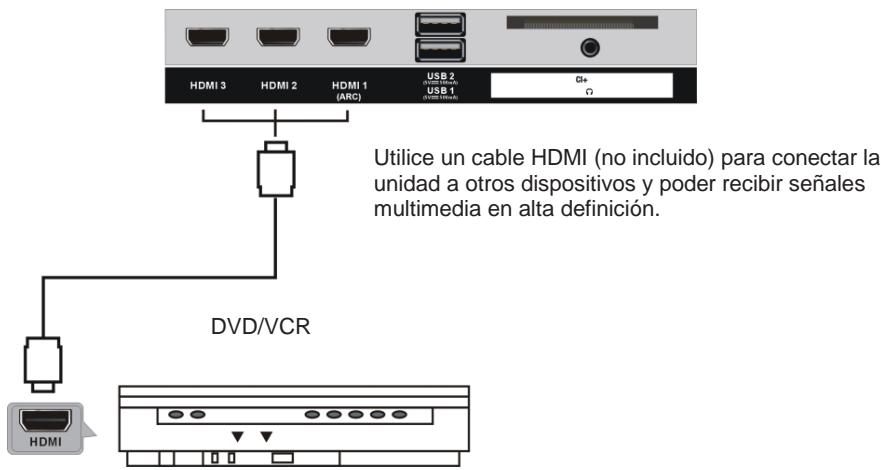

Conexión HDMI

Speakers Audio Output ARC Digital Audio Output Auto

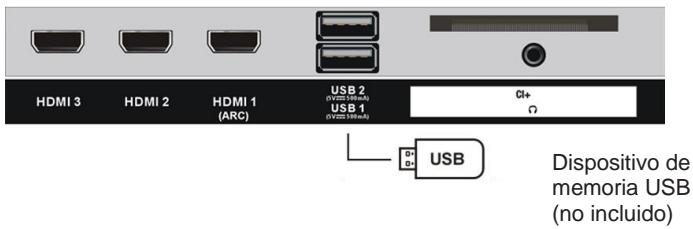

Conexión USB

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (USB 2) (HDMI) USB 1 (USB 1) (HDMI) CI+ Ω USB Dispositivo de memoria USB (no incluido)

LAN OPTICAL OUT CVBS L R IN RF (S2) (16V=300mA) RF

Simple line drawing of a curved object with a lightning bolt, no text or symbols present

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V=500mA) RF

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V=500mA) RF

Select Location Greece Hungary Ireland Italy Kazakhstan Latvia Eulgaria

Channel Scan Select Channel Scan Setup to tune satellite, cable or antenna services. If you do not use these services, select skip to continue TV setup. FRANSAT Auto Channel Scan Skip

Connect to the Internet Get access to all of your favourite Movies and TV shows

Data Sharing, Privacy and EULA How We Use and May Share Your Data VIDAA offers an Enhanced Viewing Service (EV Service that, where available, adjusts your TV's picture and sound based on the type of program you are watching. EV Service also shares your viewing data with third-parties to provide you with more relevant advertising. This is an optional service that you can disable or enable at any time from the Settings menu. To learn more about EV Service, and for a complete description of personal data collection on this Smart Device, please see our Privacy Policy at https://www.vidaa.com/ privacy or by selling the Settings menu. Please called how "Privacy Policy" has to acknowledge OK & Go Next Select All I Acknowledge the Privacy Policy Agree to End User License Agreement Agree to VIDAA Account Agree to Voice Service Agree to Enhanced Viewing Service

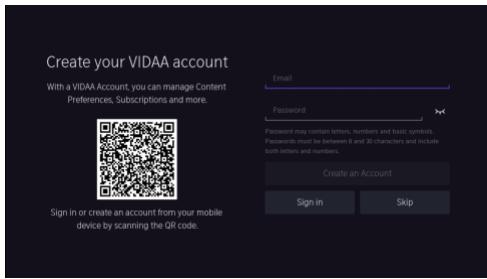

Create your VIDAA account With a VIDAA Account, you can manage Content Preferences, Subscriptions and more. Email Password Password may contain letters, numbers and basic symbols Passwords must be between 8 and 30 characters and include both letters and numbers. Create an Account Sign in Skip Sign in or create an account from your mobile device by scanning the QR code.

Name TV Give your TV a unique name to help identify it when casting or connecting to it from other devices. Living Room TV Bedroom TV Guest Room TV Game Room TV Create Custom Name

Welcome to VIDAA Home Press the HOME button to discover new & trending content Go anywhere on the TV from home Press Right to go to Next Stop

CÓMO USAR LOS MENÚS

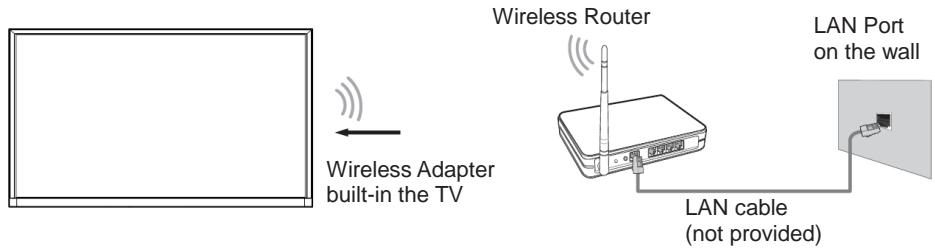

Wake on Wireless Network

Illustration of a wireless router with a signal line and cable connector (no text or symbols on the device itself)

Cable de LAN
(no suministrado)

LAN OPTICAL OUT CVBS L R RF RF IN RF RF

4. Canal

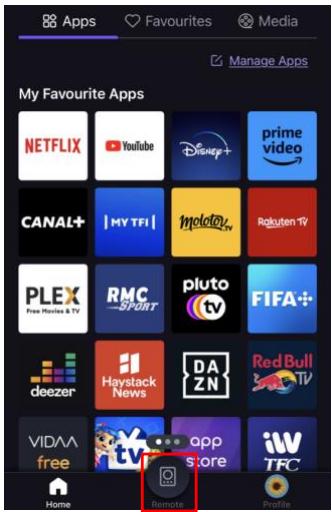

My Favourite Apps NETFLIX YouTube Disney+ prime video CANAL+ |MY TFI| molatex Rakuten TV PLEX Free Files & TV RMC SPORT pluto FIFA+ deezer Haystack News DAZN Red Bull TV VIDAA free app store iTFC Home Manage Apps

Servicio de voz:

INPUT Try searching for something... Press & Hold to Speak

Possible

Solución

problema

Disney+ subscription required, see terms at https://www.disneyplus.com. ©2023 Disney and its related entities.

NETFLIX

©2023 Amazon.com, Inc. or its affiliates. Amazon, Prime Video, and all related marks are trademarks of Amazon.com, Inc. or its affiliates. Amazon Prime membership or Prime Video fees apply. See primevideo.com/terms for details.

AVISOS

Diagram of a device rear panel with labeled components and directional arrows indicating movement or force

Diagram of a device with labeled components and wiring, showing connections to a panel or enclosure.

6m 30° 30° JVC

LIGAÇÕES

Line drawing of a cable inserted into a flat-screen TV unit, showing internal components and wiring (no text or symbols)

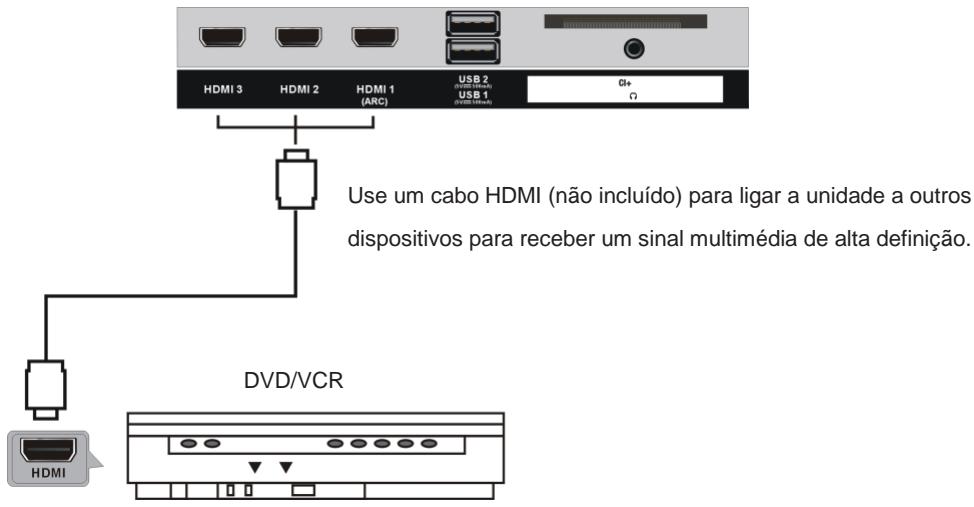

Ligação HDMI

Speakers Audio Output ARC Digital Audio Output Auto

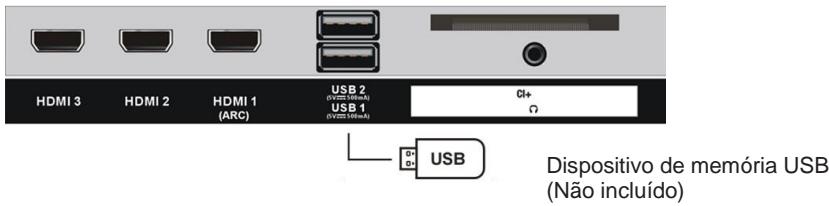

Ligação USB

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (VI/2023 USB) USB 1 (VI/2023 USB) CI+ Ω USB Dispositivo de memória USB (Não incluído)

LAN OPTICAL OUT CVBS L R IN RF (S2) (16V=500mA) RF

Simple line drawing of a curved object with wavy base and rectangular top (no text or symbols)

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V=500mA) RF

Select Location Greece Hungary Ireland Italy Kazakhstan Latvia Lithuania

Channel Scan Select Channel Scan Setup to tune satellite, cable or antenna services. If you do not use these services, select skip to continue TV setup. FRANSAT Auto Channel Scan Skip

Connect to the Internet Get access to all of your favourite Movies and TV shows

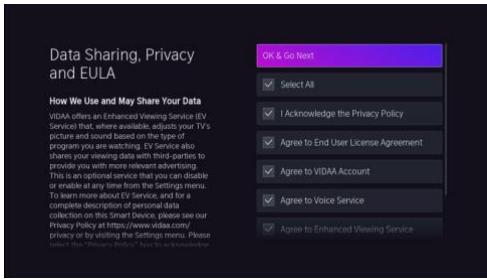

Data Sharing, Privacy and EULA How We Use and May Share Your Data VIDAA offers an Enhanced Viewing Service (EV Service that, where available, adjusts your TV's picture and sound based on the type of program you are watching. EV Service also shares your viewing data with third-parties to provide you with more relevant advertising. This is an optional service that you can disable or enable at any time from the Settings menu. To learn more about EV Service, and for a complete description of personal data collection on this Smart Device, please see our Privacy Policy at https://www.vidaa.com/ privacy or by selling the Settings menu. Please called how "Privacy Policy" has to acknowledge OK & Go Next Select All I Acknowledge the Privacy Policy Agree to End User License Agreement Agree to VIDAA Account Agree to Voice Service Agree to Enhanced Viewing Service

Create your VIDAA account With a VIDAA Account, you can manage Content Preferences, Subscriptions and more. Email Password Password may contain letters, numbers and basic symbols Passwords must be between 8 and 30 characters and include both letters and numbers. Create an Account Sign in Skip Sign in or create an account from your mobile device by scanning the QR code.

Name TV Give your TV a unique name to help identify it when casting or connecting to it from other devices. Living Room TV Bedroom TV Guest Room TV Game Room TV Create Custom Name

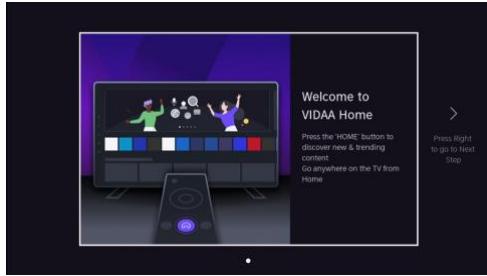

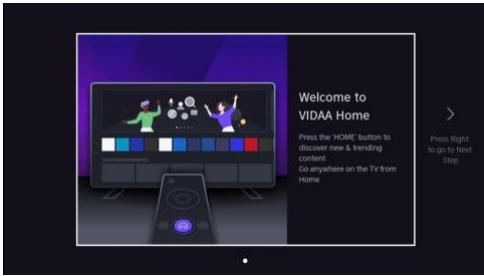

Welcome to VIDAA Home Press the HOME button to discover new & trending content Go anywhere on the TV from home Press Right to go to Next Stop

UTILIZAR OS MENUS

LAN OPTICAL OUT CVBS L R RF (SD) IN RF

4. Canal

Apps Favourites Media Manage Apps My Favourite Apps NETFLIX YouTube Disney+ prime video CANAL+ |MY TFI| molatovv Rokuten TV PLEX Free Review & TV RMC SPART pluto TV FIFA+ deezer Haystack News DAZN Red Bull TV VIDAA free app store iV TFC Home Remote Profile

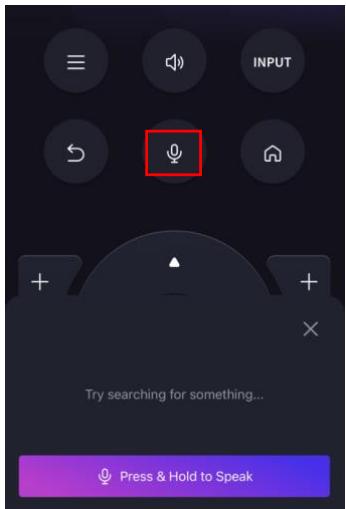

Serviço de voz:

INPUT Try searching for something... Press & Hold to Speak

Possível Solução

problema

Não

encontro o

nome da TV.

A B C D E F G E

26 kWh/1000h

2019/2013

LICENSE INFORMATION ......2

WARNINGS....3

PRODUCT DESCRIPTION....5

ASSEMBLING 7

REMOTE CONTROL....8

CONNECTIONS....10

BASIC OPERATION....14

USING THE MENUS....16

SPECIFICATIONS....29

TROUBLESHOOTING....31

DISPOSAL.... 32

This product is manufactured, distributed, serviced and warranted exclusively by Etablissements DARTY et Fils.

"JVC" is the trademark of JVCKENWOOD Corporation, used by Etablissements DARTY et Fils under license.

[European Union]

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

DVB and the DVB logo are trademarks of the DVB project.

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby Audio

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Disney+ subscription required, see terms at https://www.disneyplus.com. ©2023 Disney and its related entities.

NETFLIX

Netflix streaming membership required.

prime video

©2023 Amazon.com, Inc. or its affiliates. Amazon, Prime Video, and all related marks are trademarks of Amazon.com, Inc. or its affiliates. Amazon Prime membership or Prime Video fees apply. See primevideo.com/terms for details.

WARNINGS

- This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment.

- Ventilation

Allow at least a 10 cm gap all around the product.

- The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

- No naked flame sources, such as lighted candles, should be placed on the apparatus.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- This apparatus is intended for use in a tropical climate.

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- To protect the environment, use local recycling facilities for battery disposal.

- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

- CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery or expose to excessive heat such as sunshine, fire or the like that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected in extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance.
• The supply terminal are not to be short-circuited.

• To prevent possible high sound pressure and hearing damage risk, do not listen at high volume levels for long periods.

Never place a television set in an unstable location.

A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

IMPORTANT SAFETY INSTRUCTIONS

WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

CE This marking indicates that the unit complies with the European radio equipment directive.

This symbol indicates that the unit has double insulation.

This symbol indicates that there are

• Read these instructions and keep them for further reference. Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals

such as alcohol, thinners or benzine.

• Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover

important operating and maintenance instructions in the documentation accompanying this unit.

This symbol indicates that dangerous

voltage constituting a risk of electric shock is present within this unit.

the product with cloth or other materials while plugged. Do not install in excessively dusty places.

• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil or pen, or make a scratch on it.
• Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen.

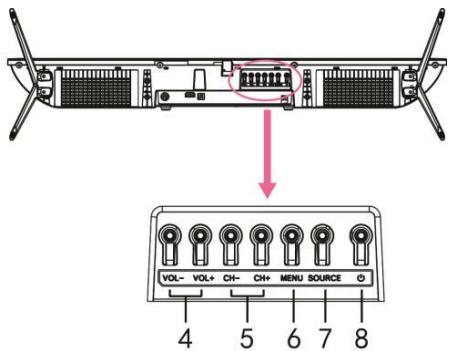

PRODUCT DESCRIPTION

Front and Side Views

1 2 3

VOL- VOL+ CH- CH+ MENU SOURCE 4 5 6 7 8

1. Screen
2. Remote control sensor / Power indicator
3. Stand
4. VOL+/- button: Adjust the volume level.
5. CH+/- button: Select previous/next channel or move up/down.
6. MENU button: Access the main menu.
7. SOURCE button: Change the input source.
8. ⏻ (STANDBY) button: Turn the power on or off.

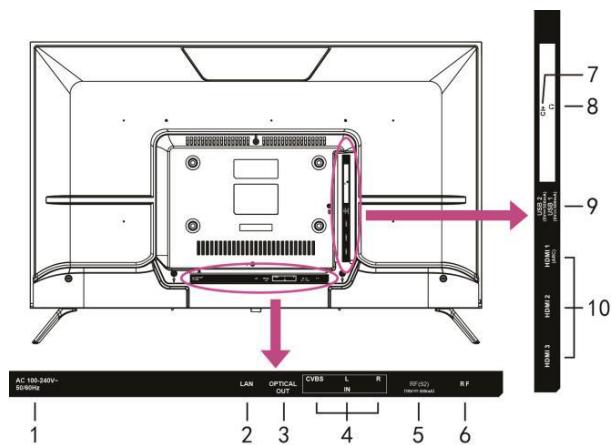

Back View

AC 100-280V- 55400X LAN OPTICAL CVBS L R RF (52) RF OUT IN R/W/100 7 8 9 10 1 2 3 4 5 6

1. Power input
2. LAN input
3. OPTICAL output port
4. AV port
5. RF(S2) port
6. RF port

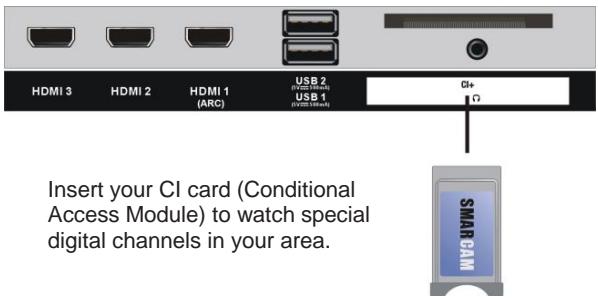

7. Cl+ port

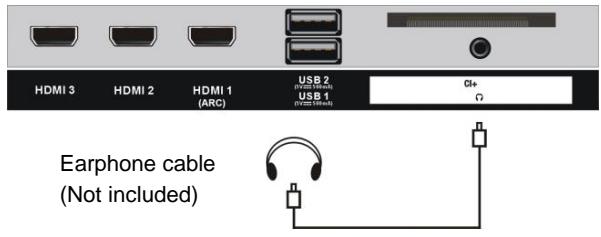

8. EARPHONE jack
9. USB ports
10. HDMI ports

ASSEMBLING

Attaching the Stand

Diagram of a device rear panel with labeled components and directional arrows indicating movement or force

②

CAUTION: When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

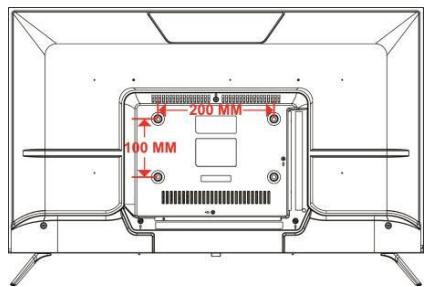

Mounting on a Wall

200 MM 100 MM

CAUTION:

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• The distance between the holes is 200 x 100 mm in width and height.
• Tighten the screws (M6x10mm) firmly to prevent the TV from tilting forward. Do not over tighten.

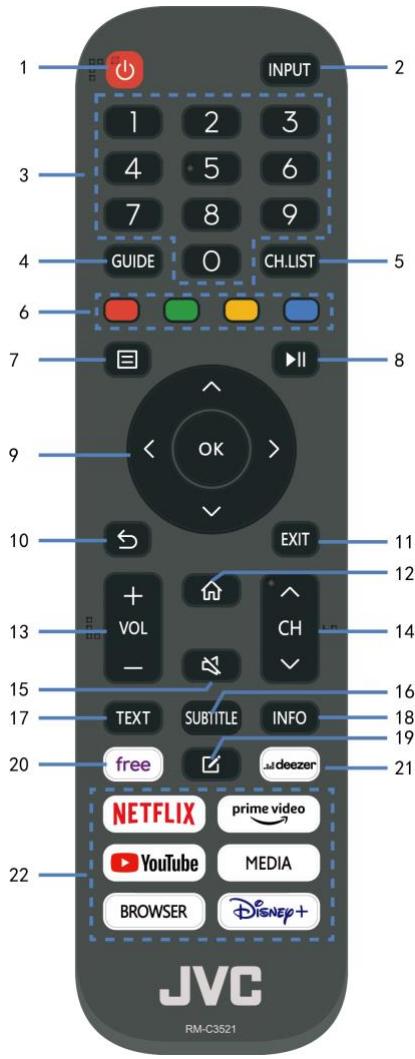

REMOTE CONTROL

Buttons

1 STANDBY(POWER)

Set the unit in standby mode; press it again to switch it on.

2 INPUT

Select desired input source.

3 Number buttons (0-9)

Input the number information, such as channel number and so on.

4 GUIDE

Display the Electronic Programmes Guide (DTV mode).

5 CH.LIST

Press to show channel list.

6 Red/Green/Yellow/Blue button

Color buttons for direct selection of options.

7 ☐ (MENU)

Call out the main menu or return to previous menu.

8 ▶||

Press to operate start/pause playing; Move fast forward; Move fast backward.

9 DIRECTION/OK

Move up, down, left, right/Confirm.

10

Return to the previous interface or menu.

11 EXIT

Exit the current interface or menu.

12 (HOME)

Press to enter home page.

13 VOL +/-

Increase/decrease the volume level.

14 CH ∧/V

Play the next/previous program.

15

Mute or restore the TV sound.

INPUT 1 2 3 4 5 6 7 8 9 GUIDE O CH.LIST 6 7 ▶ II 9 < OK > 10 EXIT 11 12 + VOL CH - 13 14 TEXT SUBTITLE INFO 15 16 17 18 20 free √ deezer 21 22 NETFLIX prime video YouTube MEDIA BROWSER Disney+ JVC RM-C3521

16 SUBTITLE

Select available subtitles.

17 TEXT

Turn on/off the Teletext.

18 INFO

Display the available program information.

19

Set up APP shortcut key.

20 Free

Enter to the deezer.

22 Content area

Six buttons for direct access to Apps.

Remote control operation

1. Open the battery cover.
2. Insert two AAA size batteries (not included), observing the proper polarity markings inside the battery compartment.
3. Close the battery cover.

- CAUTION: Do not mix old and new batteries, as this may damage the remote control.

Be sure to point the remote control at the remote control sensor on the TV.

This logo means "positioning of cell".

6m 30° 30° JVC

CONNECTIONS

Connecting to AC power source

Line drawing of a cable inserted into a flat-screen TV unit, showing internal components and wiring (no text or symbols)

HDMI connection

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (USB2 (HDMI)) USB 1 (USB2 (HDMI)) Use an HDMI cable (not included) to connect the unit with other devices to receive high-definition multimedia signal. DVD/VCR HDMI

HDMI connection

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (VI/225 100mA) USB 1 (VI/225 100mA) Ω+ Ω- The HDMI ARC (Audio Return Channel) send audio from your ARC-compliant devices (e.g. home theatre) through a With the HDMI ARC connection, you do extra audio cable that sends the sound ARC-compliant audio devices. The HDI combines both signals. HDMI port with ARC function Use an HDMI cable ARC function to connect devices with your ARC Ensure HDMI ARC is menu (refer to page HDMI-ARC compliant device

The HDMI ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to ARC-compliant audio devices (e.g. home theatre) through a single HDMI connection.

With the HDMI ARC connection, you do not need to connect the extra audio cable that sends the sound of the TV picture to the ARC-compliant audio devices. The HDMI ARC connection combines both signals.

Use an HDMI cable (not included) that supports the ARC function to connect your ARC-compliant audio devices with your ARC-compliant TV.

Ensure HDMI ARC is turned on in the SOUND menu (refer to page EN-19).

Listening to Dolby Atmos

To play Dolby Atmos content, you can connect your A/V receiver or soundbar that supports Dolby Atmos audio to your TV's HDMI ARC input.

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (HDMI/MS) USB 1 (HDMI/MS) G+ Ω Dolby Atmos compatible soundbar

Line drawing of a rectangular electronic device with buttons and a circular button (no text or symbols)

Dolby Atmos compatible A/V receiver

HDMI port with

ARC function

The Digital Audio Output is recommended to be set to “Auto” in order to send Dolby Atmos content via HDMI ARC to the AVR or Soundbar in the optimal Dolby format.

To set Digital Audio Output on your TV :

• Press ☐ MENU button to select Setting and press OK button to enter the OSD menu.
• Go to Sound → Speakers → Digital Audio Output
• Select "Auto".

Speakers Audio Output ARC Digital Audio Output Auto

USB connection

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (USB2 HDM) USB 1 (HDMI HDM) CI+ Ω USB USB memory device (not included)

Insert a CI card

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (FREECE CARD) USB 1 (FREECE CARD) CI+ Insert your CI card (Conditional Access Module) to watch special digital channels in your area. SMAR CAM

EARPHONE CONNECTION

HDMI 3 HDMI 2 HDMI 1 (ARC) USB 2 (PROM/MS) USB 1 (PROM/MS) CI+ Ω Earphone cable (Not included)

LAN (Local Area Network) Connection

LAN OPTICAL OUT CVBS L R IN RF (S2) (16V=300mA) RF

Simple line drawing of a curved object with a lightning bolt, no text or symbols present

Use a LAN cable (not included) to connect this TV with available network.

OPTICAL CONNECTION

LAN OPTICAL OUT CVBS L R IN RF (S2) (10V=500mA) RF

Use OPTICAL cable (not included) to connect the TV with amplifier or other audio decoding devices for coaxial audio signal output.

AV (Composite video) connection

LAN OPTICAL OUT CVBS L R RF (S2) (10Ω=300mA) RF Use the composite Audio L/R (white/red) and CVBS (yellow) cables (not included) to connect the unit with other devices. DVD/VCR

BASIC OPERATION

Make sure all necessary connections are correctly made before connecting the unit to the wall socket and turning on the power.

Watching TV

1. Press the STANDBY button to power on the unit.
2. Press the INPUT button to select TV as input source.

Choose the channel by pressing CH+ or CH- or by pressing the numeric buttons to input the channel number directly.

Electronic Program Guide (EPG)

EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and offers information about the programs to be broadcast. This guide function is only available for digital channels.

You can access it by pressing GUIDE button directly or pressing the MENU button, highlight Guide item and press OK button to enter the Electronic Program Guide.

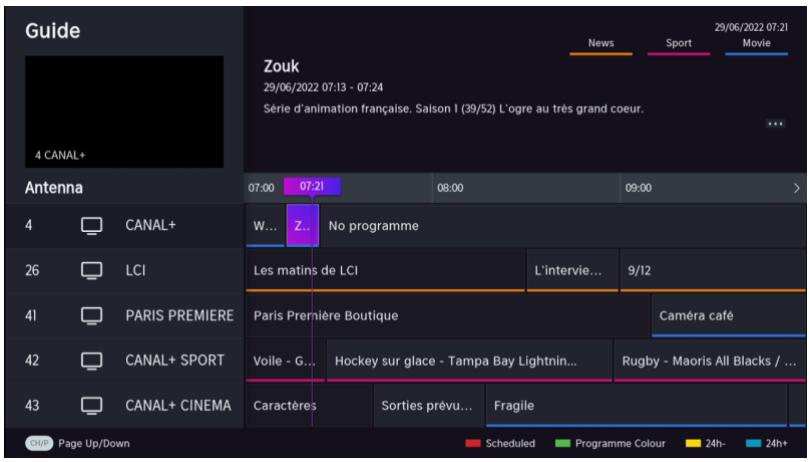

The menu will appear on the screen, as below:

• Press ▲/▼navigation button to select preferred channel.
• Press ◀/▶ navigation button to select preferred programme of some channel.
• Press the RED button to display a list of scheduled reminders.
• Press the GREEN button to display the colour menu and select GREEN, use the colours to indicate different genres in the GUIDE(EPG) for quick and easy viewing.
• Press the YELLOW button to display the program guide of the previous day.
• Press the BLUE button to display the program guide of the following day.

First time installation

When turning on the TV for the first time, it will go straight into the installation menus.

Press the UP/DOWN/LEFT/RIGHT buttons to navigate the menu and change the settings.

Press the OK button to confirm.

Select Language: select the on-screen menu language.

Select Location: select the related country.

Channel Scan: Auto Channel Scan, need to input 4 digits as password.

(Note: 0000 is invalid.)

Connect to the internet: select the available internet to connect.

Data Sharing, Privacy and EULA: Tick "Select All", then the cursor automatically jumps to OK &

Go Next, and press OK to the next step.

Create your VIDAA account: Create am Account or Skip to the next step.

Name TV: select a unique name for your TV.

Welcome to VIDAA Home: Press Right button to enjoy you TV.

Select Language Press @ Menu to enter Store Mode. To use Accessibility Shortcuts, press and hold the ⬆ Mute button. Dansk Deutsch Eesti English Español Français Hrvatski

Select Location Greece Hungary Ireland Italy Kazakhstan Latvia Lithuania

FRANSAT Auto Channel Scan Skip Channel Scan Setup to tune satellite, cable or antenna services. If you do not use these services, select skip to continue TV setup.

Connect to the Internet Get access to all of your favourite Movies and TV shows

Data Sharing, Privacy and EULA How We Use and May Share Your Data VIDAA offers an Enhanced Viewing Service EV Service that, where available, adjust your TV's picture and sound based on the type of program you are watching. EV Service also shares your viewing data with third-parties to provide you with more relevant advertising. This is an optional service that you can disable or enable at any time from the Settings menu. To learn more about EV Service, and for a complete description of personal data collection on this Smart Device, please see our Privacy Policy at https://www.vidaa.com/ privacy or by adding the Settings menu. Please rated on "Privacy Policy" but the following: OK & Go Next Select All I Acknowledge the Privacy Policy Agree to End User License Agreement Agree to VIDAA Account Agree to Voice Service Agree to Enhanced Viewing Service

Create your VIDAA account With a VIDAA Account, you can manage Content Preferences, Subscriptions and more. Email Password Password may contain letters, numbers and basic symbols. Passwords must be between 8 and 30 characters and include both letters and numbers. Create an Account Sign in Skip Sign in or create an account from your mobile device by scanning the QR code.

Name TV Give your TV a unique name to help identify it when casting or connecting to it from other devices. Living Room TV Bedroom TV Guest Room TV Game Room TV Create Custom Name

Welcome to VIDAA Home Press the HOME button to discover new & trending content Go anywhere on the TV from Home Press Right to go to Next Stop

USING THE MENUS

Press MENU button to select Setting and press OK button to enter the OSD menu.

1. Picture

Press UP/DOWN button to select Picture item.

Picture Mode

You can select the Picture Mode that provides the best viewing experience.

- Press RIGHT navigation button to enter the sub-page.

- Press UP/DOWN button to select Picture Mode and press OK button to confirm your selection.

Available options:

Standard	Suitable for watching normal content e.g. News, Drama or Documentary.
Cinema Day	Suitable for watching movies in a bright environment.
Cinema Night	Suitable for watching movies in dark environment.
Dynamic	Suitable for the content that requires vivid picture quality.
Sports	Suitable for sports and fast-moving content. This setting may provide a brighter picture with faster motion response.

Aspect Ratio

You can change the size of the picture displayed on the TV screen.

Press UP/DOWN button to select Picture Mode and press OK button to confirm your selection.

Available options:

Auto	Automatically switch Aspect Ratio between 16:9 and 4:3 based on the signal information.
16:9	Suitable for 16:9 Widescreen content. This will also stretch 4:3 content to Widescreen.
4:3	Suitable for 4:3 content.
Movie Zoom	Provides a full screen image by zooming in on the movie.

Smart Scene

Recognise the current scene and enhance the picture quality.

Game Mode

Optimised for PC or Games consoles. Reduces Input Lag and improves responsiveness.

Picture Mode Settings

Adjust display setting for each Picture Mode.

Apply Picture Settings: Adjust current picture mode to apply to all source or just current source.

Backlight: Off/Low/High.

Brightness / Contrast / Colour Saturation: Adjustable value: 0-100.

Sharpness: Adjustable value: 0-50.

Adaptive Contrast: Automatically adjust dark areas and light areas of the image to see more details. Press navigation buttons to select Off/Low/Medium/High.

Noise Reduction: Improve the picture quality by reducing noise. (Options: Off/Low/Medium/High)

MPEG Noise Reduction: Reduces MPEG block noise to provide clearer edge transitions.

(Options: Off/Low/Medium/High)

Colour Temperature: Adjust the overall color of the image.

(Options: Warm1/Warm2/Standard/Cool).

Expert Settings: Adjust the colour space and Gamma to best suit the content you're viewing.

Overscan: Change the video size setting to crop the edges of the displayed image.

Reset Current Mode: Restore all the picture settings in the current picture mode to the factory default values.

2. Sound

Press UP/DOWN button to select Sound item.

Sound Mode

You can select a favorite sound mode suitable for the content type or the listening environment.

Available options:

Standard	In this mode, the TV delivers a flat frequency response, which preserves the natural characteristics of the original sound.
Theater	This mode increases the surround sound effect and provides a more prominent subwoofer response.
Music	In this mode, low and high frequencies are emphasized to enhance musical instrument reproduction.
Speech	In this mode, low and high frequencies are attenuated to improve the reproduction and clarity of the human voice.
Late Night	In this mode, the TV will improve the reproduction and clarity of the human voice with a low volume level.
Sport	In this mode, sound is optimized for watching sports/football game.

Sound Mode Settings

Adjust the audio settings of the TV: Apply Audio Settings / Equalizer / Wall Mount Setup / Auto Volume Control / Reset Current Mode.

Speakers

Select the speaker you want to use.

(ARC: Speakers > Audio Output > ARC)

3. Network

Press UP/DOWN button to select Network item.

Network Configuration

You set the TV network by selecting Configuration and press OK button to enter the sub-page.

Connection Type: Choose a wireless network connection to access the Internet.

Refresh: Refresh wireless network.

Advanced Settings: Configure the advanced wireless network settings of the TV.

ADD: You can add wireless network.

Internet Connection

Check Internet connection.

Connection Test: Start a network connection test.

Network Information: View information about your network connection.

Wake on Wireless Network

Using WLAN, turn on your TV with your mobile device.

Using Ethernet, turn on your TV with your mobile device.

Connecting to a Wireless Network

You can connect your TV to an available wireless network.

If no wireless router is found, select Add and enter the network name in the SSID.

If no wireless router is found, select Refresh.

Wireless Adapter built-in the TV Wireless Router LAN Port on the wall LAN cable (not provided)

Connecting to a Wired (Ethernet) Network

It is recommended to connect your TV to a router that supports Dynamic Host Configuration Protocol(DHCP).

The router that support DHCP automatically provides the IP address, subnet mask, gateway, and DNS, so you don't have to enter them manually.

LAN OFFICIAL OUT CVBS L R IN RF (0) RF+0.5V Power RF

4. Channel

Press UP/DOWN button to select Channel item.

Auto Scan

Automatically scan for channels to view programmes from your TV source.

• Press RIGHT button to select Rescan or Change Setup.
  – Highlight Change Setup and press OK button to select Satellite, Antenna, Cable.
• Highlight "Next" and press OK button to enter the Mode setup.

Channel: All Channel, Free Channel.

Scan Mode: ATV, DTV, ATV+DTV.

LCN: Off/On

- Highlight "Start Scanning" and press OK button to start scanning.

Channel Edit

Manually edit the channel list to your preference.

Advanced Settings

Adjust advanced settings for Channel.

Manual Scan: Perform manual channel scan for ATV and DTV.

- DTV Manual Scan: Manually scan for DTV services.

When the DTV Manual Scan screen appears, press ◀ / ▶ button to select Antenna, Cable or Satellite and then press Start to commence the search of that channel. When the signal has been tuned, signal strength will be displayed on the screen.

- ATV Manual Scan: Manually scan for ATV services.

Channel List Auto Update: Allows your TV to auto-update the channel list from the content provider.

Programme Guide Auto Update: TV will automatically update the Programme Guide data overnight while in standby mode.

CI+ Module Settings: Review the Advanced Settings menu.-Common interface -CI card and PIN-CAM Profile search.

Some key functions under Live TV mode:

• Press OK button to call up the channel list in TV source.
• Press Up key to call out the information bar in current TV channel.
• Press Down key to call up the search function in current TV channel.

5. Accessibility

Press UP/DOWN button to select Accessibility item.

High Contrast Menu

Turn High Contrast Menu On or Off.

Menu Transparency

Set the transparency of menu.

Available options: Off, Medium, High

Audio Type

Accessibility audio settings.

Enable or disable dialogue enhancement.

Subtitle Settings

Adjust Subtitle Settings for digital broadcast content.

Screen Magnification

Allow visually impaired/partially sighted viewers to magnify an area of the screen.

Voice Guide

Voice guide setup..

6. System

Press UP/DOWN button to select System item.

Time

Set the current time based on your location.

Timer Settings

Adjust the timer settings to suit your preference.

System PIN

Change the PIN that you use to access Parental Control, Auto Channel Scan and Reset To Factory Defaults.

Parental Control

Turn on Parental Controls to prevent children from being able to view certain content.

Language and Location

Choose the language of TV and your location.

Voice Service

Use your voice to control the TV, other smart home devices and more.

Application Settings

Set settings for apps on your TV.

Mobile Device Connection

Connection management of a mobile device, smartphone, or personal computer.

HDMI & CEC

Configure how to control CEC - enabled devices with your TV remote.

You can use your TV remote to control the external devices that are connected to the TV with an HDMI cable. The external devices need to support HDMI & CEC Function (HDMI-CEC).

1. Set CEC Control to On.
2. Connect an HDMI-CEC-compliant device to the TV.
3. Turn on the connected external device.
4. The HDMI CEC feature of the connected device must be turned on.
5. The device is automatically connected to the TV. After connection is finished, you can access the menu of the connected device on your TV screen using your TV remote and control the device.

Advanced Settings

Access the Advanced Settings menu.

7. Support

Press UP/DOWN button to select Support item.

System Info

View System information.

Self Diagnosis

Perform self diagnosis to test sound, picture and connections.

E-Manual

Launch the E-Manual and get to know more about your TV.

System Upgrade

Set your TV to receive the latest firmware.

Disclaimer and Privacy

Click to read the Disclaimer details.

Mobile App Download

Install mobile app on your smart phone to control your TV. This app is available on both Android and iOS.

Reset to Factory Default

Restore your TV to the factory default.

□ HOME

Getting familiar with the Home screen

Run the TV more conveniently by selecting the corresponding sections.

Press 📋 button to enter the HOME screen.

- Manage apps

Select the item you want to move, long press OK button to manage.

VIDAA Account

Sign in your VIDAA account.

A VIDAA account gives you all the best feature of your smart TV and always keeps it up to date.

Search

Search the app you want.

Notifications

Allow pop-up notifications to appear for useful information and events that occur with your TV.

- Select Notifications on the Home screen, and select Settings then display Advertising, New Arrivals, Warnings And Legal Statements, System Message, from which you can choose the types of notifications you would like to receive.

Inputs

Select the input you want.

Settings

Display the Settings menu.

□ USB OPERATION

Plug in your USB device. Press the INPUT button on remote control to open SOURCE list. Then press LEFT/RIGHT/UP/DOWN navigation button to select USB (or Media) and press OK button to enter it.

USB Search File Grid Name All Media Android LR MKV movie MovieSa... mp3 USB Video DR+ _MSTPVR 4K VP9 O... nobody... -12 dBFS... TEST/ Press to create list 5

1. Input the content name you want to play.
2. Arrange the content list by Grid, List.
3. Arrange the content list by Name, Date Modified, Size.
4. Filter the content list by All Media, Photo, Video, Music.
5. Create a photo, music, or video playlist.

Your TV may support the following file formats :

Medium	Supported File Format
Video	.MP4, .MOV, .MPG, .MPEG, .FLV
Photo	.jpg, .BMP, .PNG, .GIF
Music	.MP3, .AAC, .wav

□ Screen Mirroring

Mirror content from your Android device to the TV.

Inputs > Screen Mirroring

1. Turn on the casting function of your Android device.
2. Find the TV name in the searching list of your device and select it.
3. Wait for the connection progress to complete and the content on your device will be displayed on the TV.

NOTE: Some Android devices may not support casting.

□ Hotel Mode

Settings > Sound > Speakers > Balance

1. Highlight Balance item, and press 0548 on remote control to enter hotel mode.
2. Press OK button to set the Hotel Mode On.
3. Press OK button again to set the Hotel Mode Off

□ Using Your TV as a Second Monitor

You can use your TV as a computer monitor for playing computer games, watching videos or sharing photos.

Connect your TV to a computer using an HDMI cable.

NOTE: If your computer has a DVI port (no HDMI port), please use an HDMI-to-DVI cable to make connection.

When the picture is not displayed properly, please follow below steps which may help resolve the problem.

- Check that the Black Level is set to Auto.

(Go to Picture > Picture Mode Setting > Expert Settings)

When connecting your TV to a computer using an HDMI-to-DVI cable, please ensure that the

Black Level is set to Boost.

- Check that the Contrast Level and/or Colour Saturation are set to 50 or higher.

Content Sharing

Share media content, like videos, music or photos, from your Android / iOS device to the TV screen.

> Settings > System > Application Settings > Content Sharing

1. Make sure your device and the TV are connected to the same network.
2. Turn on the content sharing function of your Android / iOS device.
3. Find the TV name in the searching list of your device and select it.

□ VIDAA APP

☐ > Settings > Support > Mobile App Download.

Scan the QR code to download VIDAA APP. Open the VIDAA APP on your mobile:

1. Find your TV device and tap it.
   2.There will be 4 numbers on your TV
   3.Input the numbers as TV showing on your mobile.
2. Enter to the APP service.

Mobile phone remote:

Tap “Remote” icon to enter mobile phone remote, then you can use your phone as a remote control to operate the TV.

My Favourite Apps NETFLIX YouTube Disney+ prime video CANAL+ |MY TFI| molatv Rokuten TV PLEX Free News & TV RMC SPART pluto FIFA deezer Haystack News DAZN Red Bull VITDA free app store iV TFC Home Remote Profile

Voice service:

1. Tap the "microphone" icon.
2. Press and hold to speak, for example, speak "YouTube", then the TV will enter to YouTube directly.

INPUT Try searching for something... Press & Hold to Speak

Possible problem	Solution
Cannot detect TV name	Restart your device's Wi-Fi and see if the TV name is detected.If you use Ethernet and switch to use Wi-Fi, disconnect the Ethernet cable, turn off the TV and remove its power cord from the socket. Then plug in TV and turn it back on.Some devices may not support content sharing function. If your device doesn't support content sharing, you can download an app that supports the function.

Wait for the connection progress to complete, and select the content you want to share.

When using VIDAA app and TV goes into standby mode, after more than 5 minutes the Wake-on-LAN and Wake-on-WLAN will be disabled. This will help save power consumption. If you want to continue using VIDAA app to enable network, you can simply restart TV by pressing the STANDBY button on the remote control or the bottom of TV.

SPECIFICATIONS

TV Broadcasting	PAL, B/G, D/K, I, SECAM
Receiving Channels	ATV (48.25MHz ~ 863.25MHz)
Number of Preset Channels	100 (ATV)
Channel Indicator	On Screen Display
RF Aerial Input	75 Ohm (unbalanced)
Operating Voltage	AC 100-240V~50/60Hz(~ means alternating current)
USB Output	5V --- 500mA(--- means direct current)
Audio Output Power (WRMS.) (10% THD)	8 W
Dimensions DxLxH (with foot)	215 x 716 x 479 mm
Weight (with foot)	3.57 kg
Dimensions DxLxH (without foot)	84 x 716 x 423 mm
Weight (without foot)	3.435 kg
Surrounding temperature	Operation: 0°C ~ 35°CStorage: 5°C ~ 30°C
Operating Humidity	Less than 80 % RH
Standby Mode	After 3\4\5 hours

Technical Specifications of 2.4G Wi-Fi
Operating frequency	2412-2472MHz (802.11b/g, 802.11n-HT20)2422-2462MHz (802.11n-HT40)
Maximum output power	18,9 dBm (EIRP)

Digital reception

Reception range		474MHz – 858MHz
Input impedance		75 Ω
Channel bandwidth		8 MHz
Modulation	DVB-T	COFDM 2K/8K, QPSK, 16QAM, 64QAM
	DVB-C	16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Video system		MPEG-2 MP@ML, MPEG-2 MP@HL, H.265
Sound system		MPEG-1 layer 1⁄2, MPEG-2 layer
Basic functions		EPG, Subtitle, LCN
Max storage channels		1000CH (DVB-T + DVB-C, dynamic)

Indoor Use only

Product Information Sheet

Parameter	Parameter value and precision			Unit
Supplier's name or trade mark	JVC
Supplier's address	Etablissements Darty & fils ©,9 Rue des Bateaux-Lavoirs,94200 Ivry-sur-Seine, France
Model identifier	LT-32FV140
Energy efficiency class for standard Dynamic Range (SDR)	E
On mode power demand for Standard Dynamic Range (SDR)	26			W
Energy efficiency class (HDR)	n.a.
On mode power demand in High Dynamic Range (HDR), if implemented	n.a.			W
Off mode, power demand, if applicable	n.a.			W
Standby mode power demand, if applicable	0,5			W
Networked standby mode power demand, if applicable	2,0			W
Electronic display category	television
Size ratio	16	:	9	integer
Screen resolution (pixels) Horizontal and vertical pixels	1366	x	768	pixels
Screen diagonal	80			cm
Screen diagonal	32			inches
Visible screen area	27,4			dm^2
Panel technology used	LED LCD
Automatic Brightness Control (ABC) available	NO
Voice recognition sensor available	NO
Room presence sensor available	NO
Image refresh frequency rate (default)	60			Hz
Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8			Years
Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7			Years
Minimum guaranteed product support	7			Years
Minimum duration of the general guarantee offered by the supplier	2			Years
Power supply type	Internal

JVC A B C D E F G LT-32FV140 E ENERG7

26 kWh/1000h

2019/2013

TROUBLESHOOTING

Problem	Possible Solution
The screen does not appear/illuminate.	1. Check that the power plug is securely into the mains socket.2. Check the power is on.
The screen appears, but there is no sound.	1. Press the MUTE button.2. Increase the sound level by pressing the volume adjustment buttons.3. Check that the sound terminal of your external input is connected properly.4. Check that the audio cables are connected properly.5. Select and check any other input.
Noise or poor picture	Stop using wireless telephones, hair dryers or other electrical appliances near the TV.
The remote control does not work.	1. Check if the TV is not switched on.2. Check that the batteries of the remote control are inserted properly.3. Check for any obstacles between the TV remote sensor and the remote control. Remove them if necessary.4. If the batteries have no power, replace them with two new batteries off the same type.

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Plain gray flat-screen television with no visible content, text, or symbols

Marque - Brand / Merk/ Marca: JVC

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Regulamento (UE) N. 2019/2013, N. 2019/2021, N. 2021/340, N. 2021/341

Software version : V0116.07.00U.N1214

EN 55032: 2015+A11:2020+A1:2020

EN 61000-3-3: 2013+ A1:2019+A2:2021

EN IEC 61000-3-2: 2019+A1:2021

EN 55035: 2017+A11:2020

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 300 328 V2.2.2

EN 303 340 V1.2.1

EN 303 372-2 V1.2.1

EN IEC 62311:2020

EN IEC 62368-1:2020+A11:2020

CE

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

ASSURANCE SERVICE FNAC DARTY QUALITY

JVC
