THTD9SHPCCSSECHE-LINGE - Heat pump THOMSON - Free user manual and instructions

Brand	THOMSON
Model	THTD9HPCCS
Product type	Heat pump dryer
Rated capacity	9 kg
Energy efficiency class	A+++
Weighted annual energy consumption	193 kWh/year
Rated voltage / frequency	220-240 V ~ 50 Hz
Rated power	750 W
Refrigerant	R290 / 130 g
Weight	48 kg
Sound power level	65 dB(A)
Programs	Cotton, Synthetics, Sports, Mix, Outdoor, Quick 30', Bed sheets, ECO, Wool, Timed drying
Functions	Drying level (iron dry, cupboard dry, extra dry), Hygiene, Anti-crease, Silent, Delayed finish, Child lock, Interior light
Maintenance	Clean lint filter after each cycle, drain water tank, clean heat exchanger every 3 months
Installation	Free-standing, min. 20 mm above, 15 mm sides, 30 mm rear
Warranty	2 years
Repairability	Spare parts available within 15 working days via FNAC DARTY after-sales service

Frequently Asked Questions - THTD9SHPCCSSECHE-LINGE THOMSON

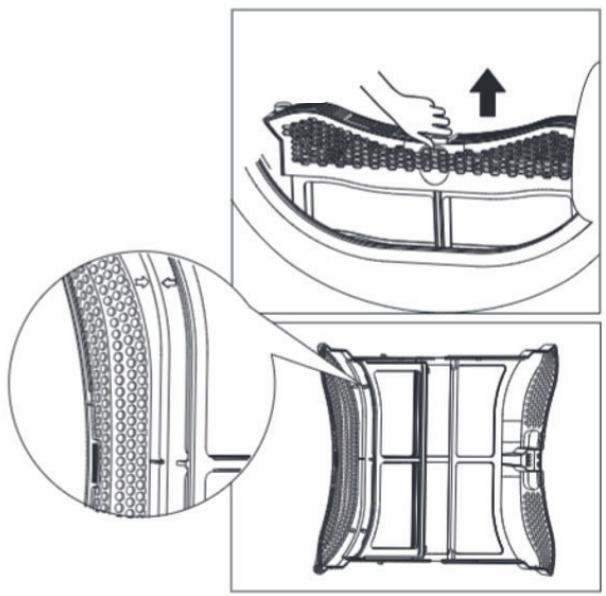

How to clean the lint filter?

Pull the filter upwards, open it, remove lint by hand or under running water, then dry it completely before reinstalling. The indicator light reminds you to do this after each cycle.

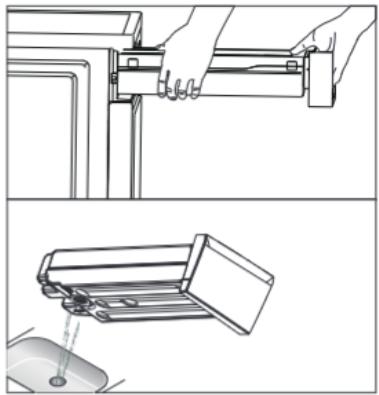

What to do if the water tank is full?

Empty the water tank after each cycle. If the appliance stops and the indicator lights up, empty the tank and press Start/Pause to resume the cycle.

How to use the Delayed finish function?

Select a program, press Delayed finish repeatedly to choose the end time (1 to 24h), then press Start. The program will finish at the chosen time.

What programs are available?

The programs include: Cotton, Synthetics, Sports, Mix, Outdoor, Quick 30', Bed sheets, ECO, Wool, Timed drying. Each program has specific capacity and duration.

How to activate the child lock?

Press and hold the Child lock button for about 3 seconds. The indicator lights up and the display shows 'CL' alternating with remaining time. To deactivate, repeat the same action.

What is the maximum dry laundry capacity?

The maximum capacity is 9 kg of dry laundry. Do not overload the drum to ensure effective drying.

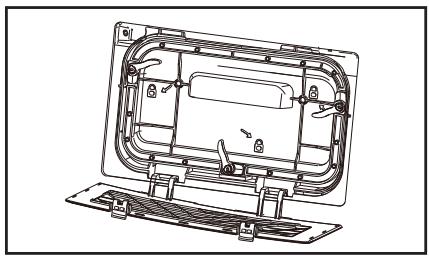

How to clean the heat exchanger?

Open the external hatch, unlock the 3 locks, remove the inner cover, clean it under running water, then use a vacuum cleaner with a brush to remove lint from the exchanger. Do not touch the exchanger with your hands.

What to do if the dryer does not start?

Check that the door is properly closed, a program is selected, the Start/Pause button is pressed, and the power supply is active.

Can I dry wool garments?

Yes, the Wool program is approved by The Woolmark Company for machine-washable wool items. Use the specific cycle and follow care instructions.

How to save energy with this dryer?

Use the ECO program (most efficient), ensure laundry is well spun, load at the recommended capacity, clean the filter regularly, and maintain good room ventilation.

USER MANUAL THTD9SHPCCSSECHE-LINGE THOMSON

This product has been manufactured and sold under the responsibility of

THOMSON, and the THOMSON logo are trademarks used under license by

Etablissements Rally et Fils (S.A.S) – further information at www.thomson-brand.com

All other products, services, companies, trademarks, trade or product names and logos referenced herein

are the property of their respective owners.

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

Read the instructions.

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• The maximum mass of dry textile material in kilograms to be used in the appliance is 9 ~kg .
• Regarding the instructions for the method of cleaning, refer to the section "CLEANING AND MAINTENANCE" in pages 84-85.

- For disposal of the appliance :

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points.

- For installation, servicing :

The appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

For handling :

Always handle the appliance to avoid any damage.

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

• The lint trap has to be cleaned frequently.

• Lint must not be allowed to accumulate around the tumble dryer.

• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

• Do not dry unwashed items in the tumble-dryer.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

• Remove all objects from pockets such as lighters and matches.

• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

• WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

• Children of less than 3 years should be kept away unless continuously supervised.

A carpet must not obstruct the openings.

• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

• This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

• The plug must be remained easily accessible after installation of the appliance.

The surfaces are liable to get hot during use.

Warning; Risk of fire/Flammable materials

• WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

Safety Precautions

• Do not use outdoors.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not operate the appliance if the lint filter is not in position or is damaged.
• Always remove the plug from the mains socket before cleaning the appliance.
• Do not continue to operate this appliance if it appears to be faulty.

ENERGY SAVING TIPS

To avoid unnecessarily long drying time and high consumption of energy:

• Make sure that your laundry is thoroughly spun before drying.
• Load according to the optimum amount of laundry recommended for the program being used (see Program Chart).
• Make sure the room in which the dryer is located is well ventilated.
• Make sure the filter is clean before using the dryer.

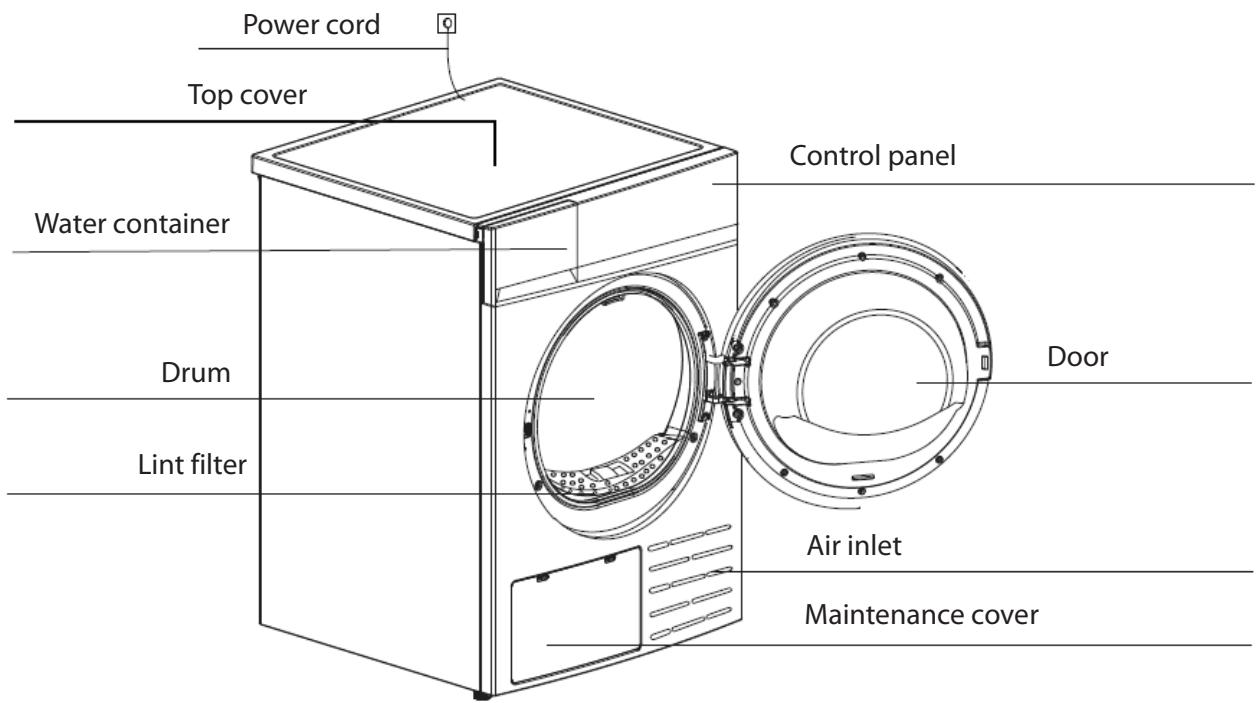

UNPACKING THE APPLIANCE

• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Center.
• All packaging must be removed before use.

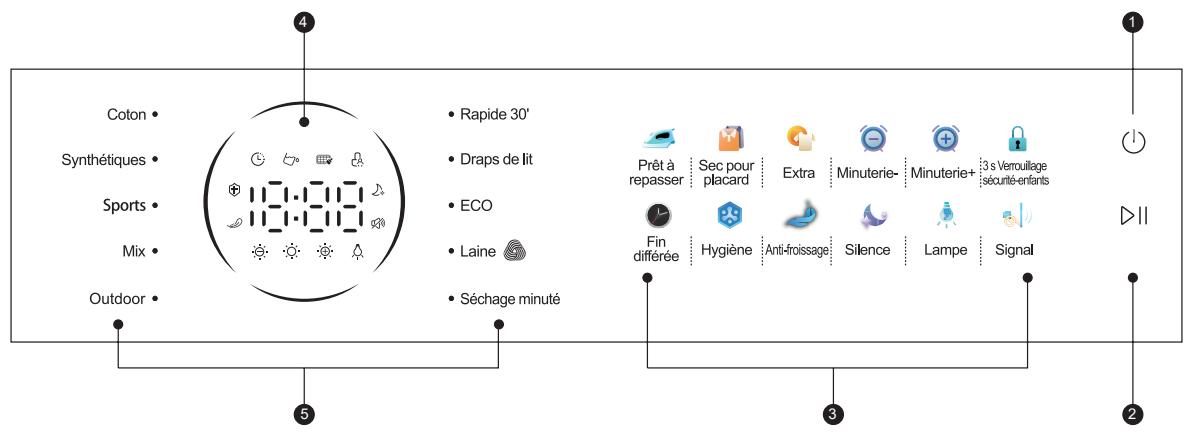

Control Panel

1 On/Off button
2 II Start/Pause button
3 Function buttons

Dry level

4 Display

The display shows the settings, estimated remaining time, functions, and status messages for your dryer.

Indicator lights

Child lock	Clean filters (reminder)	Empty water container (warning)	Delay end	Hygiene	Anti-crease

○○○	○	○	○
Dry level (Iron dry, cupboard dry, extra dry)	Lamp	Signal	Silence dry

Remaining time / error message

5 Programme buttons

BEFORE INSTALLING THE APPLIANCE

Before connecting your dryer to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

• It is recommended that, for your convenience, the appliance is positioned close to your washing machine.
• The appliance must be installed in a clean place, where dirt does not build up.
• The appliance should not be located near a gas hob, cooker, heater or grill, as flames from the burners could damage it.
• When installing the appliance, make sure that the power cord is not trapped or twisted.
• Do not install the tumble dryer in a room where there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses. The tumble dryer works best in the ambient temperature between 5^ and 35^ .

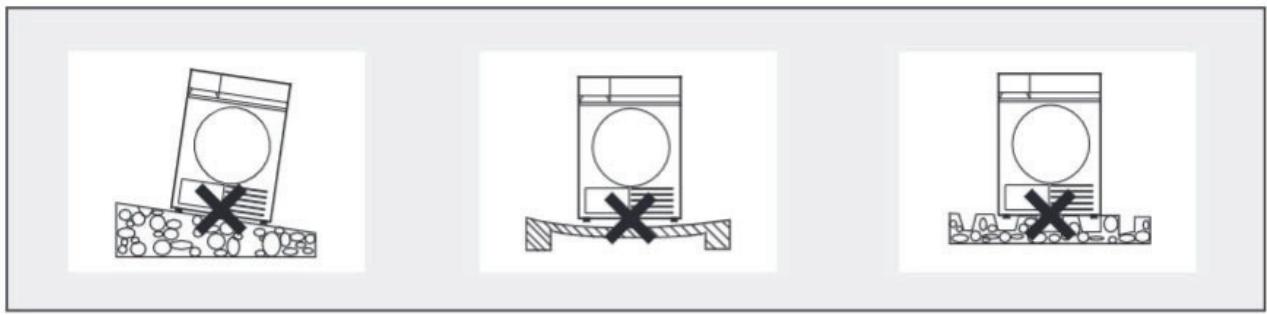

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

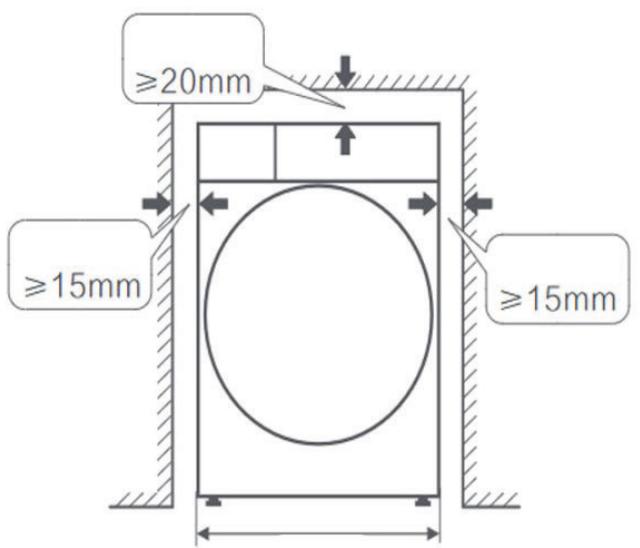

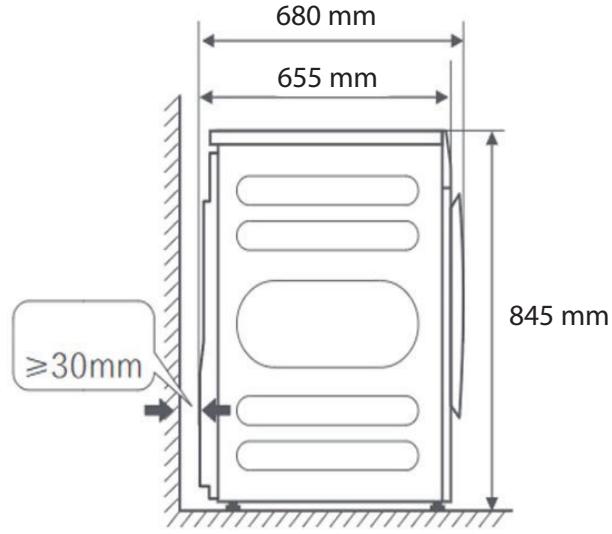

If the dryer is installed below a worktop, ensure that there are at least 20mm between the upper panel of the dryer and any objects above it, and at least 15mm between the sides of the dryer and furniture units adjacent to it, and at least 30mm between the rear of the dryer and the walls or furniture units adjacent to it.

595 mm

Levelling the appliance

The dryer must be perfectly level to ensure safe and proper operation.

If the dryer is not properly level, adjust the levelling feet as necessary.

DO NOT insert pieces of wood of any other object under the feet.

If the appliance is installed on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.

Do not remove the feet. Do not decrease the floor clearance through thick carpets, pieces of wood or equivalent. This can increase the heat which can affect the operation of the appliance.

Level the appliance by raising or lowering the feet.

Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

Accurate levelling prevents vibration, noise and displacement of the appliance during operation.

Installing accessories

If you dryer has following parts, please wear gloves and install them as per the instruction below.

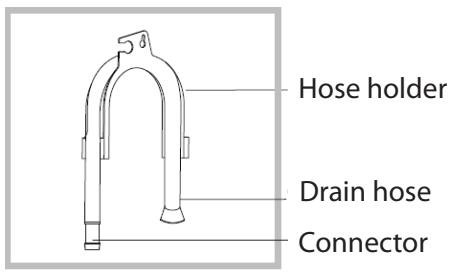

Drain hose

Pull out the upper drain hose.

Put the external drain hose into the floor drain (be careful not to kink the external drain hose).

Put the hose holder in the washing basin or any other sink.

ELECTRICAL CONNECTION

Danger:

To make the electrical connection to your appliance :

• The installation to the mains supply must conform to the local standards and regulations.
• Do not use an extension cord, an adapter or the like.
• The plug must be easily accessible after installing the appliance.
• If there is any doubt about the condition of your connection, consult a qualified electrician.

Warning! The manufacturer declines any responsibility for damage or injury through failure to comply with the electrical connection precautions above.

NOTES ON LAUNDRY CARE

Before placing laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying.

Care labels you may find on your laundry

Suitable for tumble drying

Normal drying process: Drying in the tumble dryer is possible under normal load and temperature is 80°C.

Mild drying process: Caution is needed when tumble drying. Select mild process with reduced thermal action.

Do not tumble dry: Articles unsuitable for drying in the tumble dryer

Do not overload the tumble dryer.

Here is a list of the approximate weight of some common laundry items:

Sweater (mixed 800g)		Jacket (cotton 800g)		Jeans (800g)
Single bedsheet (cotton 600g)	Work cloths (1120g)	Pyjamas (200g)
T-shirt (cotton 180g)	Underwear (cotton 70g)	Socks (mixed-weave 50g)
Bath towel (cotton 900g)	Long sleeve shirt (cotton 300g)

• Always load well-spun laundry. The higher the spin speed the lower the power consumption and the shorter the drying time.
• Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.
• Sort the laundry. Separate synthetics from cottons/linens, and dry separately.
• Remove the laundry immediately after the program has finished.
• When drying items such as sheets, it is recommended you periodically stop the dryer to redistribute the load.
  DO NOT load dripping wet laundry into the dryer. Roll the article in a towel or spin to remove excess water.
• DO NOT dry the articles containing rubber or similar elastic materials.

BEFORE FIRST USE

In order to remove any residues which may have been left during production, wipe the dryer drum with a damp cloth or carry out a brief drying cycle with damp clothes in the dryer.

OPERATING THE DRYER

1 Open the door.

2 Check the filter and drum are clean.

• If not, clean them referring to the section Cleaning and Maintenance.

3 Place laundry loosely into the drum after sorting.

• The clothes should be sorted according to the types of fibres and the drying level required. All the strings and belts of clothes should be well tied and fixed before being put into the drum.
• Do not overload the drum (see the "Program Chart" for recommended loads for each program).

CAUTION:

Do not dry unwashed clothes in the tumble dryer.

4 Close the door.

• Before you close the door, check the laundry is right insides the drum so that it cannot get trapped or damaged.

5 Press to turn on the tumble dryer.

6 Select a program by pressing the corresponding program button.

• The display will show the remaining time for the program you have selected.

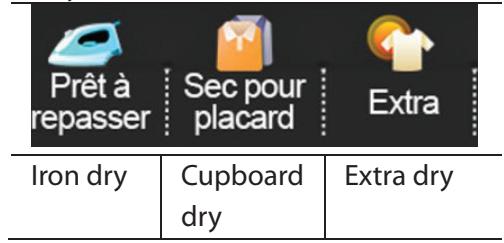

7 You can adjust the dryness level of the laundry by pressing

Prét à repasser

Sec pour placard

Extra

• The drying time can change depending on the selection.
• This function is not available for the Rapid 30^ , ECO, Wool and Time dry programs.

8 When you select the Time dry program, you can adjust the drying time.

Repeatedly press Minuterie- or Minuterie+ to adjust the drying time in 10-minute steps.

9 You can choose the Hygiene function to help remove allergens from laundry.

To activate this function, press Hygiene and the indicator light will illuminate. To deactivate this function, press Hygiene again and the indicator light will go

• Use this function with caution for light, thin or delicate laundry.
• When this function is activated, the dryness level iron dry or extra dry cannot be selected.
• This function is not available for the Rapid 30^ , ECO, Wool and Time dry programs.

10 Select the anti-crease function when needed.

• You can use this function to prevent laundry from creasing if you will not take the laundry out after the program has come to an end.
• To activate this function, press Anti-froissage and the indicator light will illuminate.
  To deactivate this function, press Anti-froissage again and the indicator light will go out.
• At the end of the drying cycle, the default anti-crease time is 30 minutes.
• This function is not available for the Wool program.

11 Select the silence dry function when needed.

To activate this function, press Silence and the indicator light will illuminate.
To deactivate this function, press Silence again and the indicator light will go out.
- When you activate this function, the drum rotation speed will drop down to reduce the noise from the dryer, but the drying time will extend.

• This function is not available for the Rapid 30^ , ECO and Wool programs.

12 Press and the appliance will begin the cycle.

To pause, press again.

13 After the cycle is finished, you can hear beeps and the display will show "End".

14 Open the door and remove the laundry.

Careful! The drum inside could still be hot.

Check that all items have been removed from the drum. If items are left in the dryer, they could be damaged by over drying when the dryer is next used.

15 Clean the filters as described in the section Cleaning and Maintenance.

• To prevent unpleasant odours and better maintain the door seal, keep the appliance door slightly open until the next drying cycle.
  The indicator lights and will illuminate to remind you to clean the filter and empty the water tank.

16 Disconnect the appliance from the mains socket if it is not in use for long periods.

Program chart

Please follow the recommended laundry load when you use the assigned program. The values in the table below are for information purpose only.

Program	Load (kg)	Display time (hours:minutes)	Application/Properties
Coton Cotton	9,0	3:40	For single or multi-layer cotton laundry to be dried completely for direct storage
Synthétiques Synthetic	3,5	1:30	To dry thin synthetic textiles, which are not ironed, such as easy-care shirts, baby clothes or socks
Sports	3,0	1:30	To dry sportswear and thin fabrics from polyester, which are not ironed
Mix	3,5	2:00	For mixed fabrics from cotton and synthetics
Outdoor	3,0	1:30	To dry outdoor clothing, waterproof and breathable laundry items which are suitable for drying in tumble dryer
Rapid 30' Rapid 30'	0,5	0:30	To dry 1 to 3 pieces of lightweight clothing with low moisture content
Draps de lit Bed linen	4,5	2:50	To dry bed linen, bed sheets or other large items
ECO	9,0	2:20	For single or multi-layer cotton laundry to be dried completely for direct wear
Laine Wool	1,0	3:00	Gentle drying for machine washable wool items. The final moisture content will depend on the load size and the moisture content after spinning.
• Sécchage minuté Time dry	3,0	0:10	To dry individual items or complete the drying process of multi-layer fabrics with different drying behavior, such as jackets, pillows or voluminous items. Min 10 min. to max. 150 minutes (in 10-min steps). It is recommended that the drying time of 3kg cotton and linen load is about 90 minutes.

The wool drying cycle of this machine has been tested and approved by The Woolmark Company. The cycle is suitable to dry wool garments which are labelled "hand wash" provided that the garments are washed in a Woolmark endorsed hand washing cycle and dried according to the instructions issued by the manufacturer of this machine.M2206.

Note!

• ECO programme in accordance with Regulation (EU)2023/2534 for energy labelling, measured in accordance with EN 61121 and suitable for drying normal cotton load at rated load capacity
• Thick or multi-layered fabrics, e.g. bed linen, jeans, etc, are not easy to dry. It is recommended to choose Cotton program.
• As the uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying program to completely dry them if some parts of the clothes still are damp after the program is finished.

Delay End Function

You can use this function to set the programme to finish at a later time. The delay end time can be chosen between 1 and 24 hours in 1-hour increments.

1. Select a programme.

2. Repeatedly press diffère to select the desired end time.

3. The hours displayed indicates the time the programme will finish.

4. The display will show the symbol

5. Press II to start the programme.

6. The machine will then countdown.

For example, if the programme duration is longer than 1 hours, the minimum delay end function must start from 2 hours.

If the programme duration of your selected programme is 3:40 hours and you set the "Delay End" time to 6 hours, this means your programme will finish in 6 hours.

Press

2:20

Countdown

Programme starts.

3:40

Programme cycle

End of cycle

"Delay End" Time : 6 hours

If you want to cancel this function before starting the programme, repeatedly press until the display shows "0H".

If the programme has already started, press to pause and the symbol

will flash. Repeatedly

FIn press differee until the display shows "0H".

Child lock

You can use this function to prevent children from playing your dryer.

3s Verrouillage

sécurities-enfants

To activate this function, press and hold sécurité-enfants for about 3 seconds. The child lock indicator light will illuminate. The remaining time and "CL" will flash alternately on the display.

• When the child lock is set, all buttons are locked except the On/Off button and Child lock button.

3s Verrouillage

sécurities-enfants

To deactivate this function, press and hold sécurité-enfants for about 3 seconds again. The child lock indicator light will go out.

Lamp

Press Lampe to turn on the lamp inside the drum. The indicator light will illuminate. The drum light will be on for about 1 minute.

To turn off the lamp, press Lampe again. The indicator light will go out.

Signal

You can use this function to turn on or off signal when pressing the buttons or the drying cycle is finished.

To turn off signal, press Signal and the indicator light will illuminate.
To turn on signal, press Signal again and the indicator light will go out.

Turn off and unplug the appliance from the mains socket before carrying out any maintenance or cleaning.

Never use any abrasive or chemical cleaning agent.

External Cleaning

Regularly wipe the outside of the appliance with a slightly soft damp cloth. Dry thoroughly.

Cleaning the Door Inner Surface

Always clean the door inner surface after each drying process. Wipe the interior part of the door and door gasket with a soft damp cloth to remove any fluff.

Cleaning the Lint Filter

The filter collects fluff which accumulates during drying and it must be removed and cleaned after each drying process.

The warning indicator light will illuminate to remind you of cleaning the lint filter.

1. Pull the lint filter upwards and away from the appliance.
2. Open the lint filter and remove any threads or fluff by hand or with a soft brush.

When cleaning the filters, the lint should be thrown in the garbage bin and not washed through the drain in order to avoid spreading microplastics in the used water system.

1. Clean the lint filter under running water and then dry completely.
2. Close the lint filter and place it back into position.

Note!

To ensure the double-layer filter can be closed smoothly, the arrows at both ends need to be aligned, and the middle slot and the rib need to be aligned.

Draining the Water Container

Drain the water container after each drying process. To drain the water container:

1. Pull the water container and remove it carefully.
2. Drain the water in the container.
3. Place the water container back into position.

Condensed water is not drinkable!

Never remove the water container when the appliance is hung!

If you forget to drain the water container, the appliance will stop during drying when the water container is full and the warning indicator light will illuminate. In this case, drain the water container and press to resume the drying cycle.

Cleaning the Heat Exchanger

1. Open the outer maintenance cover.
2. Unlock the 3 locks. Pull out the inner cover.

1. Clean the inner cover under running water. Dry thoroughly.
2. Clean the heat exchanger once every 3 months.

Do not touch the heat exchanger with your hand!

Remove the fluff from the heat exchanger using a vacuum cleaner with a dusting brush attached. Clean the heat exchanger without applying any pressure.

1. Place the inner cover back into position. Fasten the 3 locks and make sure that they are secured.
2. Close the outer cover until a click is heard.

TROUBLESHOOTING

Problems	Possible Solutions
Dryer does not start.	Check the door has closed properly.
	Check the program has set.
	Check the start button ▷II is pressed.
Display is not on.	Check if the power supply works.
	Check if the mains plug is inserted.
	Check the program has set.
	Check the power button ⊙ is pressed.
Degree of dryness is not reached.	Clean lint filter and heat exchanger.
	Empty container.
	Check drain hose.
	Dryer installation place is too restricted.
	Use higher drying level program.

If you cannot deal with problems by yourself and need help,

• press to turn off the appliance and unplug it.
• Contact the after-sales service.

Error Codes

Display	Cause	Solution
	Container is full.	Empty water container.
	Water pump failure or water level sensor failure	Turn off and unplug the appliance from the mains socket. Please contact your local after-sales service if the error occurs.
E33	Temperature sensor error
E64	BLDC motor communication error
E82	PCB Communication error

PRODUCT FICHE

This tumble dryer's product fiche has been setup in conformity with EU Regulation No 392/2012.

Brand		THOMSON
Model		THTD9HPCCS
Rated capacity of cotton laundry for the standard cotton programme at full load		9 kg
Dry type		Condenser
Energy efficiency class ①		A+++
Weighted annual energy consumption (AEc) ②		193 kWh/annum
Drying process		Automatic tumble dryer
Energy consumption of the standard cotton programme	at full load (Edry)	1,59 kWh
	at partial load (Edry1/2)	0,88 kWh
Power consumption for the standard cotton programme at full load	off-mode (Po)	0,5 W
	left-on mode (Pl)	0,8 W
Duration of the left-on mode		10 minutes
Standard drying programme ③		Coton
Weighted programme time (Tt) of the standard cotton programme at full and partial load		174 minutes
Programme time of the standard cotton programme	at full load (Tdry)	220 minutes
	at partial load (Tdry1/2)	140 minutes
Condensation efficiency class ④		B
Average condensation efficiency of the standard cotton programme	at full load (Cdry)	81%
	at partial load (Cdry1/2)	81%
Weighted condensation efficiency (Ct) for the standard cotton programme at full and partial load		81%
Sound power level (weighted average value -LwA) for the standard cotton programme at full load		65 dB
Built-in appliance Y/N		No

1 From A^+++ (most efficient) to D (least efficient)
Energy consumption 193 kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
The 'standard cotton programme' used at full and partial load is the standard drying programme to which the information in the label and fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.
4 From A (most efficient) to G (least efficient)

Specifications

Rated voltage /frequency	220-240V~ 50Hz
Rated power	750W
Grade of waterproof	IPX4
Refrigerant	R290 / 130 g GWP: 3 CO2 - eq: 0 T
Weight	48kg

Hermetically sealed

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2023/2534 with regard to energy labelling of household tumble dryers
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: THTD9HPCCS
Technology of tumble dryer	electric condenser
General product parameters:
Parameter	Value		Parameter	Value
Rated capacity (a) (kg)	9,0		Dimensions in cm	Height	85
				Width	60
				Depth	68
Energy Efficiency Index (EEI) (a)	57,2		Energy efficiency class (a)		C
Condensation efficiency (%) (a) (if applicable)	82		Condensation efficiency class (if applicable) (a)		C
Weighted energy consumption in kWh per drying cycle. Actual energy consumption will depend on how the appliance is used.	1,05
Programme duration (a) (hours:minutes)	Rated capacity	3:40	Type		free-standing
	Half	2:20
Acoustic airborne noise emission (a) (dB(A) re 1 pW)	65		Acoustic airborne noise emission class (a)		C
Off-mode (if applicable) (W)	0,50		Standby mode (if applicable) (W)		-
Delay start (W) (if applicable)	4,00		Networked standby (W) (if applicable)		-
For household tumble dryers equipped with a heat pump, the chemical name or the accepted industry designation of the refrigerant gas used, without prejudice to Regulation (EU) No 517/2014 on fluorinated greenhouse gases					R290
Weblink to information on spare parts availability for professional repairers and end user
Weblink to repair instructions for end-users
Weblink to indicative pre-tax prices
Minimum duration of the guarantee offered by the supplier				24 months
Additional information:
Link to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2023/2533 is found: www.darty.com

(a) For the eco programme.
- The eco programme is suitable to dry wet cotton laundry, and this programme is used to assess the compliance with the EU ecodesign legislation.
- The eco programme is the most efficient programme in terms of energy consumption for drying wet cotton laundry.
- Loading the household tumble dryer up to the maximum capacity indicated by the manufacturer for the respective programmes will contribute to energy savings.

• The values given for programmes other than the eco programme are indicative only.

To find the model information in the product database:

Click the link

The eco programme at full load
(a) rated capacity in kg		9,0kg
(b) programme duration, expressed in hours and minutes		3:40
(c) electricity consumption, expressed in kWh/drying cycle		1,59 kWh/drying cycle
(d) final moisture content after the drying cycle		0%

The eco programme at partial load
(a) rated capacity in kg		4,5kg
(b) programme duration, expressed in hours and minutes		2:20
(c) electricity consumption, expressed in kWh/drying cycle		0,88 kWh/drying cycle
(d) final moisture content after the drying cycle		0%

Synthetics dry at full load
(a) rated capacity in kg		3,5kg
(b) programme duration, expressed in hours and minutes		1:30
(c) electricity consumption, expressed in kWh/drying cycle		0,70 kWh/drying cycle
(d) final moisture content after the drying cycle		2%

Delicates/wool drying at full load
(a) rated capacity in kg		1,0kg
(b) programme duration, expressed in hours and minutes		3:00
(c) electricity consumption, expressed in kWh/drying cycle		1,80 kWh/drying cycle
(d) final moisture content after the drying cycle		6%

Cotton extra/very dry at full load
(a) rated capacity in kg		9,0kg
(b) programme duration, expressed in hours and minutes		4:10
(c) electricity consumption, expressed in kWh/drying cycle		1,90 kWh/drying cycle
(d) final moisture content after the drying cycle		-3%

Cotton extra/very dry at partial load
(a) rated capacity in kg		4,5kg
(b) programme duration, expressed in hours and minutes		2:40
(c) electricity consumption, expressed in kWh/drying cycle		1,90 kWh/drying cycle
(d) final moisture content after the drying cycle		-3%

Cotton iron dry at full load
(a) rated capacity in kg		9,0kg
(b) programme duration, expressed in hours and minutes		3:10
(c) electricity consumption, expressed in kWh/drying cycle		1,40 kWh/drying cycle
(d) final moisture content after the drying cycle		12%
Cotton iron dry at partial load
(a) rated capacity in kg		4,5kg
(b) programme duration, expressed in hours and minutes		1:50
(c) electricity consumption, expressed in kWh/drying cycle		0,85 kWh/drying cycle
(d) final moisture content after the drying cycle		12%

Synthetics extra/very dry at full load
(a) rated capacity in kg		3,5kg
(b) programme duration, expressed in hours and minutes		1:40
(c) electricity consumption, expressed in kWh/drying cycle		0,85 kWh/drying cycle
(d) final moisture content after the drying cycle		0%

Synthetics iron dry at full load
(a) rated capacity in kg		3,5kg
(b) programme duration, expressed in hours and minutes		1:20
(c) electricity consumption, expressed in kWh/drying cycle		0,60 kWh/drying cycle
(d) final moisture content after the drying cycle		12%

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at:

www.darty.com

0978 970 970

24 Hours

7 Days a week

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.
The appliance should be taken to your local collection point for recycling. Some collection points accept
appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1

EN 61000-3-3:2013+A1+A2

LVD :

EN IEC 60335-2-11:2022+A11:2022

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021+A16:2023

EN 62233:2008

ErP :

(EU) No 932/2012

(EU) No 392/2012

(EU) 2016/2282

(EC) No 1275/2008

(EC) No 801/2013

EN 61121:2013+A11:2019

EN 50564:2011

EN IEC 60704-1:2021, EN 60704-2-6:2012

(EU) 2023/2533

(EU) 2023/2534

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :
