WEP570 - Wireless Earbuds SAMSUNG - Free user manual and instructions

Product Type	Wireless Earbuds (Bluetooth Mono Headset)
Brand	SAMSUNG
Model	WEP570
Bluetooth Version	2.1+EDR
Supported Bluetooth Profiles	Headset Profile (HSP), Hands-Free Profile (HFP)
Maximum Range	Up to 10 meters
Standby Time	Up to 180 hours
Talk Time	Up to 6 hours
Charging Time	Approximately 2 hours
Power Source	Internal non-removable rechargeable battery (charges via connector or car charging cradle)
Battery Level Indicator	LED indicator: Blue (>80%), Purple (80-20%), Red (<20%)
Main Functions	Make/answer/end call, reject call, redial last number, voice dialing, pairing mode, volume adjustment, microphone mute, call transfer, call hold, call waiting
Care and Cleaning	Use a soft, dry cloth
Safety Instructions	Do not disassemble, avoid temperatures >50°C, do not expose to moisture, moderate volume to protect hearing
Included Accessories	Mains charger, car charging cradle, ear hook, earpiece cover, user manual
Warranty	1 year from date of purchase (may vary by country)
Recycling	Do not dispose of with household waste, follow WEEE instructions

Frequently Asked Questions - WEP570 SAMSUNG

How do I pair my WEP570 headset with my phone?

Turn on the headset, then press and hold the communication button until the LED stays on (pairing mode). Enable Bluetooth on your phone, search for devices, and select WEP570. Enter the PIN 0000 if prompted.

What is the Bluetooth PIN of the headset?

The PIN is 0000 (four zeros).

Can I use the headset with a laptop or PC?

Yes, provided the computer supports the Bluetooth Headset or Hands-Free profile.

Why do I hear background noise during calls?

Interference may come from nearby wireless devices (cordless phones, routers). Move the headset away from these sources.

How do I clean my headset?

Use a soft, dry cloth. Do not use liquid or abrasive products.

The headset does not charge fully, what should I do?

Check the connection between the charger and the headset. Unplug and reconnect the charger. Make sure you are using an approved Samsung charger.

What is the battery life of the headset?

Talk time up to 6 hours, standby time up to 180 hours. Full charging takes about 2 hours.

Can I reject an incoming call?

Yes, press and hold the communication button when receiving a call.

How do I transfer a call from the phone to the headset?

During a call, press the communication button to transfer audio from the phone to the headset.

What if the headset does not reconnect automatically?

Press the communication button or use your phone's Bluetooth menu to manually reconnect to WEP570.

USER MANUAL WEP570 SAMSUNG

Solid blue rounded square shape with no text or symbols

English....1

Français....21

Italiano....41

Ελληνικά......61

Nederlands 81

Contents

Getting started

Your headset overview .... 3

Button functions....4

Charging the headset 4

Wearing the headset 8

Using your headset

Turning the headset on or off....9

Pairing and connecting the headset 10

Using call functions....12

Appendix

Frequently asked questions....14

Warranty and parts replacement 16

Correct disposal of this product....17

Correct disposal of batteries in this product 18

Specifications 19

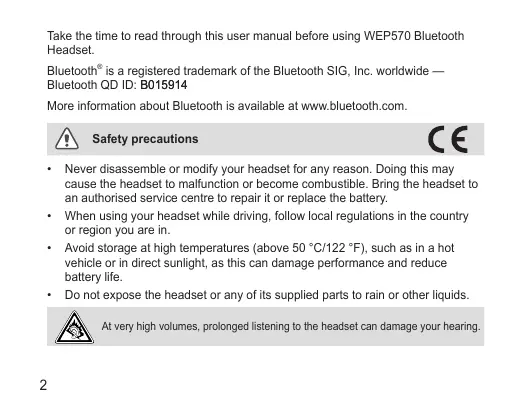

Take the time to read through this user manual before using WEP570 Bluetooth Headset.

Bluetooth ^® is a registered trademark of the Bluetooth SIG, Inc. worldwide — Bluetooth QD ID: B015914

More information about Bluetooth is available at www.bluetooth.com.

Safety precautions

• Never disassemble or modify your headset for any reason. Doing this may cause the headset to malfunction or become combustible. Bring the headset to an authorised service centre to repair it or replace the battery.
• When using your headset while driving, follow local regulations in the country or region you are in.
• Avoid storage at high temperatures (above 50 °C/122 °F), such as in a hot vehicle or in direct sunlight, as this can damage performance and reduce battery life.
• Do not expose the headset or any of its supplied parts to rain or other liquids.

At very high volumes, prolonged listening to the headset can damage your hearing.

Getting started

This section explains the proper use of your Bluetooth headset.

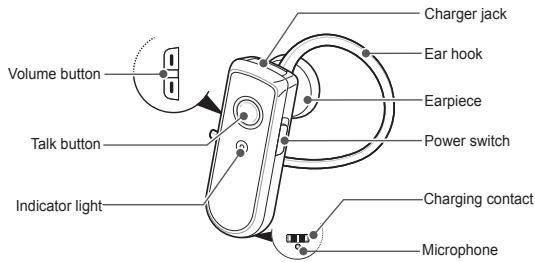

Your headset overview

Make sure you have the following items with your headset: Travel adapter, Car cradle, User manual, Earpiece cover, Ear hook.

The items supplied with your headset may vary depending on your region.

Button functions

Button		Function
Power		Slide the switch to turn the headset on or off.
Talk		Press to make or answer a call.Press to end a call.Press and hold to enter Pairing mode.
Volume		Press to adjust the volume.During a call, press and hold to mute the microphone.

Charging the headset

This headset has a rechargeable internal battery which is non-removable. Ensure that you fully charge the battery before using the headset for the first time.

• The battery will gradually wear out while charging or discharging because it is a consumable part.
• The headset is not able to operate while charging. Try connecting after charging is completed.
• When charging the headset in very hot temperatures, the red indicator light flashes and charging will stop. This is a normal event to protect the headset from damage. Unplug the travel adapter from the headset. You can charge the headset normally below 50 °C/122 °F (±5 °C/9 °F).

Charging the headset using the travel adapter

1 Plug the small end of the travel adapter into the charger jack.

Line drawing of a device with a cable and connector, showing no text or symbols

2 Plug the large end of the travel adapter into a power outlet.

During charging, the indicator light will turn red. If charging does not begin, unplug the travel adapter and plug it in again.

3 When the headset is fully charged, the indicator light changes to blue. Unplug the travel adapter from the power outlet and the headset.

Use only a Samsung-approved travel adapter. Unauthorised travel adapters may cause an explosion or damage to the headset.

Charging the headset using the car cradle

1 Plug the headset into the car cradle.

Make sure the direction of the headset is as shown in the figure when plugging the headset into the cradle. If inserted in the incorrect direction, your headset will not be charged and may be damaged.

To the car cigarette lighter socket

Line drawing of a mechanical device with a hook and lever, no text or symbols present

2 Plug the car cradle's cigar jack into your car's cigarette lighter socket.

During charging, the indicator light will turn red. If charging does not begin, unplug the car cradle and the headset and plug them in again.

3 When the headset is fully charged, the indicator light changes to blue. Unplug the car cradle from the lighter socket and unplug the headset from the car cradle.

• You can also charge other devices using the car cradle. Connect the device to the USB port on the car cradle with a USB cable.
• If you connect a device that does not comply with the USB standard, charging may not work properly.

Checking the battery level

At the same time, press and hold the Volume down button and the Talk button. Depending on the battery level, the indicator light flashes 5 times in one of the following colours:

Battery level	Indicator light colour
Above 80%	Blue
80 ~20%	Violet
Below 20%	Red

When the battery power is low

The headset beeps and the indicator light flashes red. Recharge the battery. If the headset powers off during a call, the call will be automatically transferred to the phone.

Wearing the headset

Place the headset on your ear.

Depending on what ear you are going to wear the headset, simply adjust the ear hook accordingly.

Line drawing of a ear with a loop and connector (no text or symbols)

▲ Left

Line drawing of a handheld device with a loop handle and circular button (no text or symbols)

▲ Right

Using your headset

This section explains how to turn the headset on, pair and connect to the phone, and use various functions.

• Activated functions and features may differ depending on the types of your phone.
• Some devices, especially those that are not tested or approved by Bluetooth SIG, may be incompatible with your headset.

Turning the headset on or off

• Slide the power switch 1 ^① to turn the headset on. The blue indicator light flashes 4 times.
• Slide the power switch ↓ to turn the headset off. Both blue and red indicator lights flash.

Pairing and connecting the headset

Pairing will create a unique and encrypted wireless link between two Bluetooth-enabled devices, such as a Bluetooth phone and your Bluetooth headset.

To use the headset with other Bluetooth devices, the devices must be paired. When trying to pair the two devices, keep the headset and the phone reasonably close together. After pairing, you can connect the two devices.

Pairing and connecting the headset with a phone

1 Enter Pairing mode.

• With the headset turned on, press and hold the Talk button until the indicator light stays lit.
• When you turn on the headset for the first time, it automatically enters Pairing mode.

2 Activate the Bluetooth feature on your phone and search for the headset (see your phone's user manual).

3 Select the headset (WEP570) from the list of devices found by your phone.
4 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your phone.

Your headset supports the Simple Pairing feature which allows the headset to be paired with a phone without requesting a PIN. This feature is available for phones that are compliant with Bluetooth version 2.1 or higher.

Disconnecting the headset

To disconnect the headset from your phone:

• Turn off the headset.
  • Use the Bluetooth menu on your phone.

Reconnecting the headset

When the headset is paired with a phone, it will attempt to automatically reconnect each time you turn it on.

If the headset does not automatically attempt to reconnect:

• Press the Talk button.
  • Use the Bluetooth menu on your phone.

Using call functions

Making a call

Redialling the last number

Press the Talk button to redial the last number.

For some phones, pressing the Talk button opens the call log list. Press the Talk button again to dial the selected number.

Dialling a number by voice

Press and hold the Talk button, and then say a name to dial a number by voice.

Answering a call

When you hear incoming call tones, press the Talk button to answer a call.

Ending a call

Press the Talk button to end a call.

Rejecting a call

When a call comes in, press and hold the Talk button to reject a call.

Using options during a call

You can use the following functions to control your call:

Muting the microphone

Press and hold the Volume up or down button to turn the microphone off so that the person with whom you are speaking cannot hear you. When the microphone is turned off, the headset beeps at regular intervals. Press and hold the Volume up or down button again to turn the microphone back on.

Transferring a call from the phone to the headset

Press the Talk button to transfer a call from the phone to the headset.

Placing a call on hold

Press and hold the Talk button to place the current call on hold.

Answering a second call

• When you hear call waiting tones, press the Talk button to end the first call and answer a second call.
• When you hear waiting tones, press and hold the Talk button to place the first call on hold and answer a second call.
• To switch between the current call and a held call, press and hold the Talk button.

Appendix

Frequently asked questions

Will my headset work with laptops, PCs, and PDAs?	Your headset will work with devices that support the same Bluetooth version and profiles. For specifications, see page 19.
Why do I hear static or interference while on a call?	Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the headset away from other devices that use or produce radio waves.
Will my headset interfere with my car's electronics, radio, or computer?	Your headset emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard, consumer-grade electronic equipment.
Can other Bluetooth phone users hear my conversation?	When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone.
Why do I hear an echo while on a call?	Adjust the headset volume, or move to another area and try again.
How do I clean my headset?	Wipe it with a soft dry cloth.
The headset does not fully charge.	The headset and the travel adapter may not have been connected properly.Separate the headset from the travel adapter, reconnect, and charge the headset.

Warranty and parts replacement

Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase. (Depending on your country, the length of warranty may vary.)

If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or qualified service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.

• The warranty is limited to the original purchaser.
- A copy of your receipt or other proof of purchase is required for a proper warranty service.
- The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third parties.
- Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories.
- Samsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty.

Correct disposal of this product

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Specifications

Item	Specifications and description
Bluetooth version	2.1+EDR
Support Profile	Headset Profile, Hands-Free Profile
Operating range	Up to 33 feet (10 metres)
Standby time	Up to 180 hours*
Talk time	Up to 6 hours*
Charging time	Approximately 2 hours*

* Depending on the phone type and usage, the actual time may vary.

Declaration of Conformity (R&TTE)

We,

Samsung Electronics

declare under our sole responsibility that the product

Bluetooth Headset: WEP570

to which this declaration relates, is in conformity with the following standards and/or other normative documents.

SAFETY EN 60950-1:2001+A11:2004

EMC EN 301 489-01 V1.8.1 (04-2008)

EN 301 489-17 V1.3.2 (04-2008)

RADIO EN 300 328 V1.7.1 (10-2006)

We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

which will be made available upon request.

(Representative in the EU)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2009.11.04

CE

p. r. p. 2

Yong-Sang Park / S. Manager

(place and date of issue)

(name and signature of authorised person)

* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.

Table des matières

Préparation

Diagram of a cable being inserted into a device, showing cable attachment and cable outlet (no text or symbols)

Line drawing of a mechanical device with a hook and internal components, no text or symbols present

Symbol of a trash bin crossed with a diagonal line, representing no waste or restriction (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

Line drawing of a cable being inserted into a device, showing cable attachment and cable outlet (no text or symbols)

Diagram of a plug being inserted into a socket (no text or symbols present)

Line drawing of a ear with a coiled cable and a separate clip (no text or symbols)

▲ Sinistro

Line drawing of a handheld ear tag with a loop handle (no text or symbols)

▲ Destro

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2009.11.04

Line drawing of a cable being inserted into a device, showing cable attachment and cable outlet (no text or symbols)

Line drawing of a handheld electrical plug with a separate terminal block connected by wires (no text or symbols)

Line drawing of a ear with a clip attached (no text or symbols)

▲ Αριστερό

Line drawing of a handheld ear tag with a loop handle (no text or symbols)

▲ Δεξί

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2009.11.04

CE

p.s.paz

Yong-Sang Park / S. Manager

Line drawing of a device with a cable and plug, showing a connector or cable attachment (no text or symbols present)

Line drawing of a mechanical device with a clamped cable and directional arrows indicating motion (no text or symbols)

Line drawing of a ear with a loop and connector (no text or symbols)

▲ Links

Line drawing of a handheld ear tag with a loop handle (no text or symbols)

▲ Rechts

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

(Elektrische & elektronische afvalapparatuur)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2009.11.04

CE

p.s.paz

Yong-Sang Park / S. Manager
