USER MANUAL THBIDW45DFULLSLID THOMSON

MISES EN GARDE IMPORTANTES. 2

DESCRIPTION DU PRODUIT 5

AVANT D'INSTALLER VOTRE LAVE-VAISSELLE 6

INSTRUCTIONS D'INSTALLATION 7

AVANT DE CHARGER LES PANIERS 14

CHARGEMENT DU LAVE-VAISSELLE 15

AJUSTER LE PANIER SUPERIEUR 17

PLIER LE PORTE-TASSES 17

PLIER LES POINTES 17

UTILISATION DE L'ADOUCISSEUR D'EAU 18

UTILISATION DES DISTRIBUTeurs DE RINÇAGE ET DE DÉTERGENT 20

PROGRAMMES DE LAVAGE 22

DÉMARRER UN CYCLE DE LAVAGE 23

NETTOYAGE ET ENTRETIEN 25

GUIDE DE DÉPANNAGE 29

SPECIFICATIONS 31

FICHE D'INFORMATION SUR LE PRODUIT 32

SERVICE DE RÉPARATION ET PIEÇES DE RECHANGE 33

MISE AU REBUT 34

https://eprel.ec.europa.eu/screen/product/dishwashers2019/1889772

https://eprel.ec.europa.eu/screen/product/dishwashers2019/1889772

LIMPEZA E MANUTENÇA 22

https://eprel.ec.europa.eu/screen/product/dishwashers2019/1889772

This product has been manufactured and sold under the responsibility of Etablissements Darty et Fils (S.A.S).

THOMSON, and the THOMSON logo are trademarks used under license by Etablissements Darty et Fils (S.A.S) – further information at www.thomson-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Regarding the instructions for the method and frequency of cleaning, refer to the section "CLEANING AND MAINTENANCE" in pages 23-25.
• The openings must not be obstructed by a carpet.
• The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.
• The maximum number of place settings to be washed by this dishwasher is 10 place settings.
• The door should not be left in the open position since this could present a tripping hazard.
• Regarding the detailed instructions on how to load the dishwasher, refer to the section "LOADING THE DISHWASHER" in pages 14-15.
• WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

• The minimum permissible inlet water pressure is 0.04 MPa . The maximum permissible inlet water pressure is 1 MPa .

• The plug must be remained easily accessible after installation of the appliance.

• Regarding the instructions for the method of fixing and how the appliance is to be fixed to its support, refer to the section "INSTALLATION INSTRUCTIONS" in pages 7-13.

Safety Precautions

• Installation and repair can only be carried out by a qualified technician.
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not immerse the appliance, cord or plug in water or any other liquid.
• Children should be supervised to ensure that they do not play with the appliance.
• Turn off and unplug the appliance before cleaning and performing maintenance.
• Do not sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Carefully open the door when the dishwasher is operating because there might be a risk of water squirting out.
• Do not place any heavy object on or stand on the door when it is open. The appliance could tip forward.
• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

• Do not tamper with controls.

• Earthing Instructions:

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.

• The plug must be plugged into an appropriate outlet that is installed and

earthed in accordance with all local codes and ordinances.

• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

Cutlery basket

Upper basket

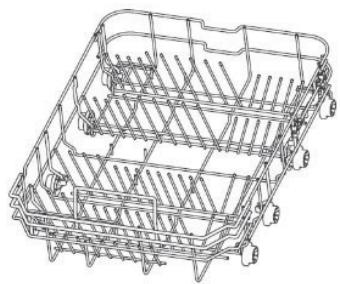

Lower basket
Cutlery rack
Upper spray arm

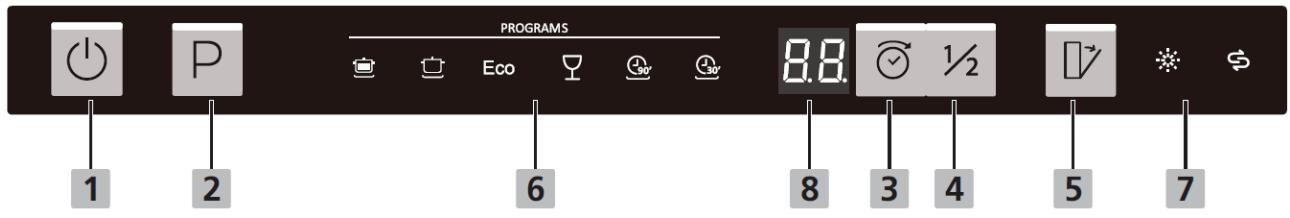

Control Panel

1. Power button
2. P Program button
3. Delayed start button
4. 1 / 2 Half load button
5. Auto open button
6. Program indicator lights

		Eco		90° minutes	30° Rapid wash
Intensive	Universal	Eco	Glass

1. To show status indicator lights

※	◎
Refill rinse aid	Refill salt

1. Display

To show program time, delayed start time, water hardness setting and error codes

Before connecting your dishwasher to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

WARNING: Disconnect electrical power before installing your dishwasher.

INSTALLATION INSTRUCTIONS

Your dishwasher can be installed in various locations in your kitchen as long as there is space and accessibility to connect your dishwasher to the water/drainage and electrical supply.

Do not connect an extension lead to the appliance to avoid potential safety hazards.

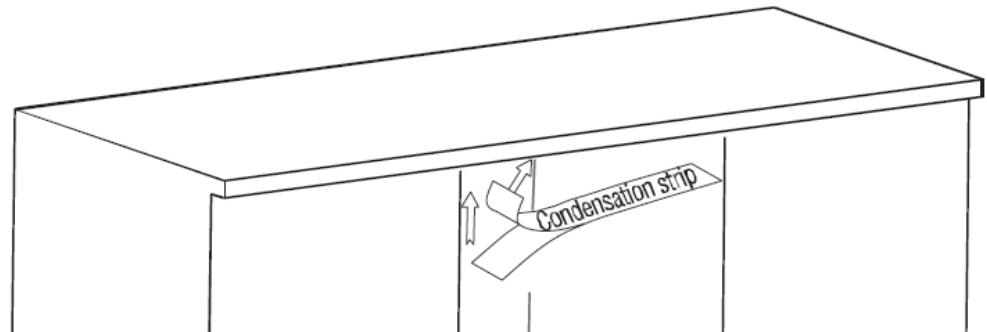

Applying the Condensation Strip

The condensation strip must be fitted to the underside of the worktop to protect it against the ingress of moisture.

1. Ensure that the underneath of the worktop is clean.
2. Separate the backing paper away from the strip.
3. Stick the condensation strip to the underneath of the worktop.

Cold Water Connection

The installation of the hose should be done by professionals.

Connect the supplied water supply hose to a threaded 3/4'' connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

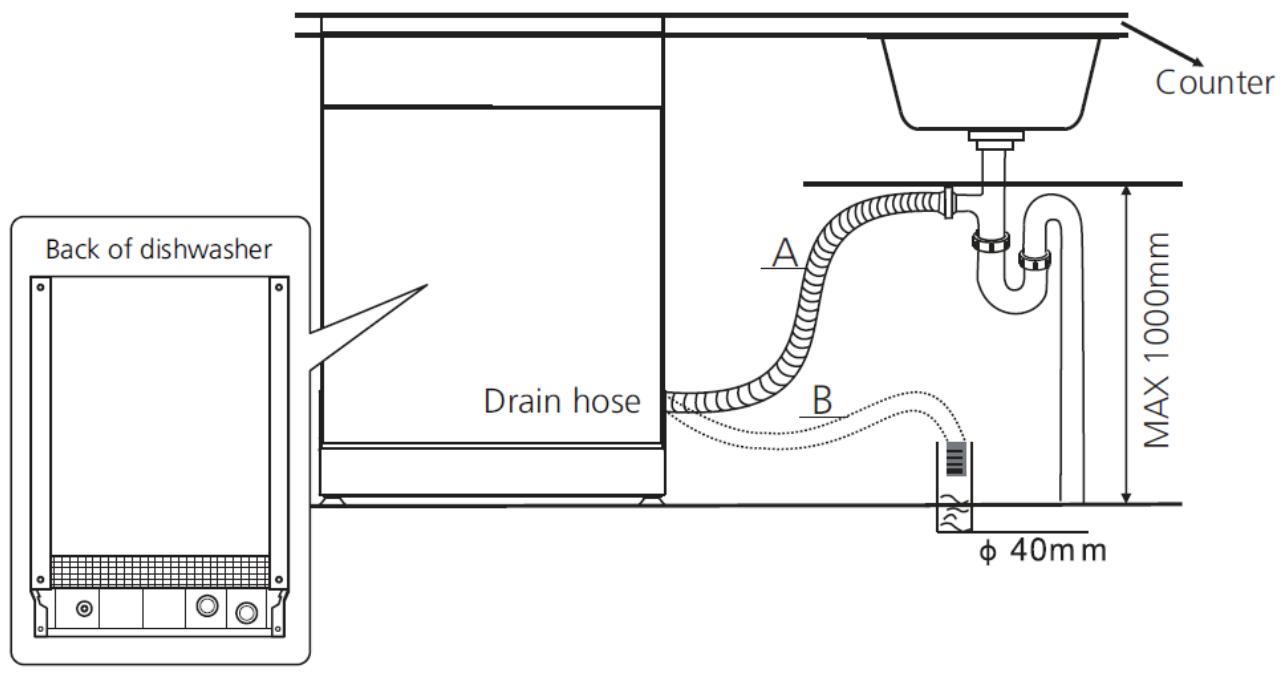

Connection of the Drain Hose

Insert the drain hose into a drain pipe with a minimum diameter of 4cm , or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm . The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B.

The installation of the hose should be done by professionals.

If leaks are detected, immediately shut the water supply and check the hose

connections fully. Re-tighten the connections if necessary.

If for any reason you are unable to stop the leak yourself, please seek advice from a qualified plumber.

Electrical Connection

The installation of electrical equipment should be done by professionals.

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Ensure the voltage and frequency of the dishwasher correspond to those indicated on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Ensure that proper earthing exists before use.

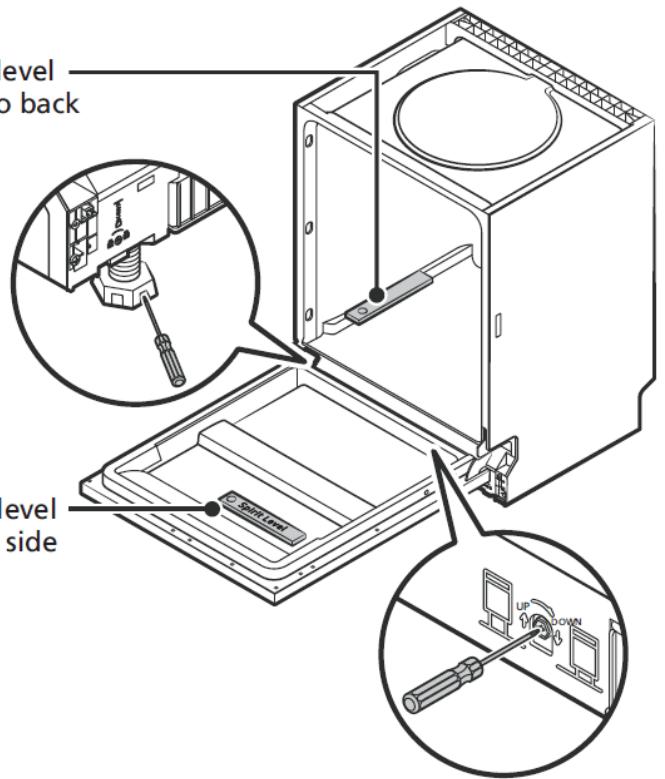

Levelling Your Dishwasher

Dishwasher must be level for proper dish rack operation and wash performance.

1. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2. Level the dishwasher by adjusting the three levelling feet individually.
3. When level the dishwasher, please pay attention not to let the dishwasher tip over. The maximum adjustment height of the feet is 50~mm .

Check level - front to back

Check level side to side

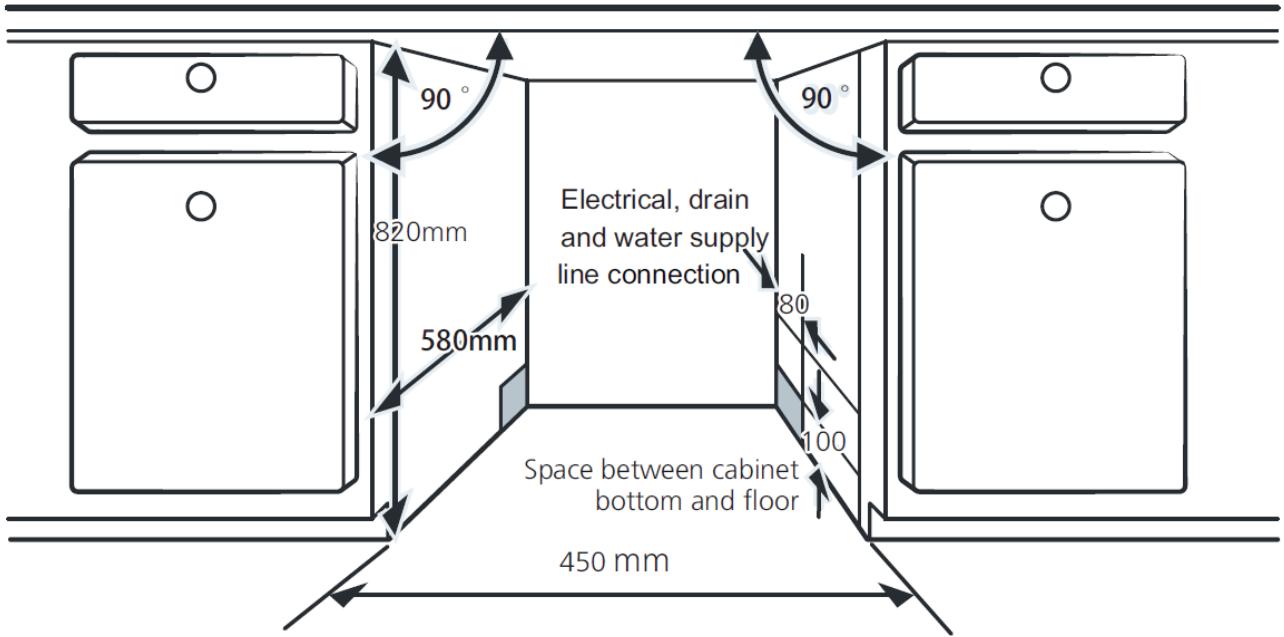

Cabinet Opening Requirements

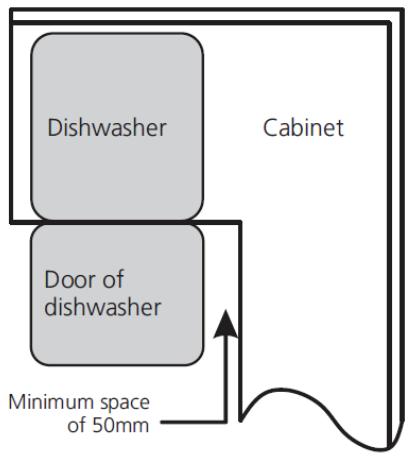

There should be at least a 50 mm gap between the side of the dishwasher door and the wall or cabinet next to it.

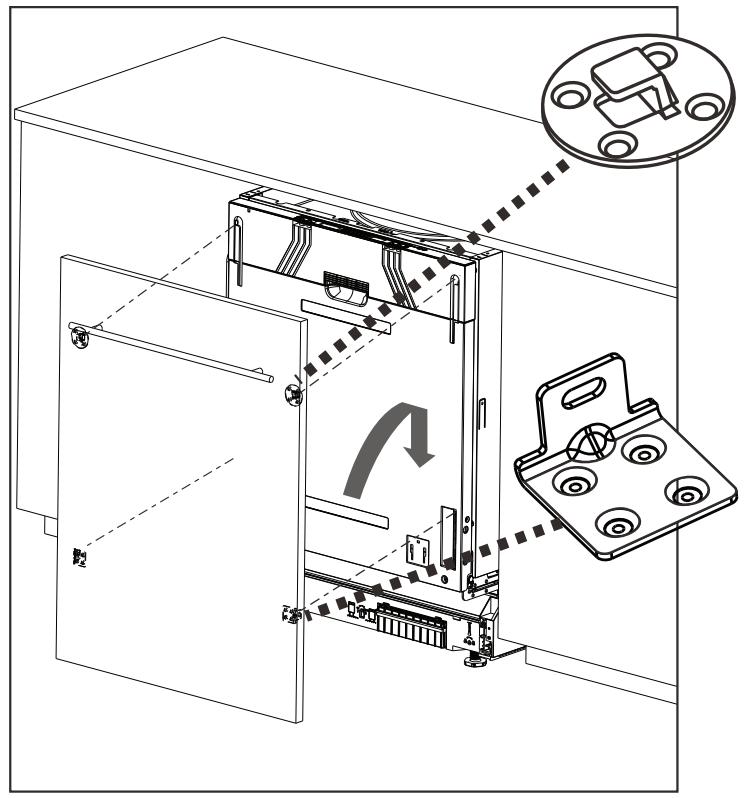

1. The aesthetic panel could be processed according to the above illustrated dimensions.

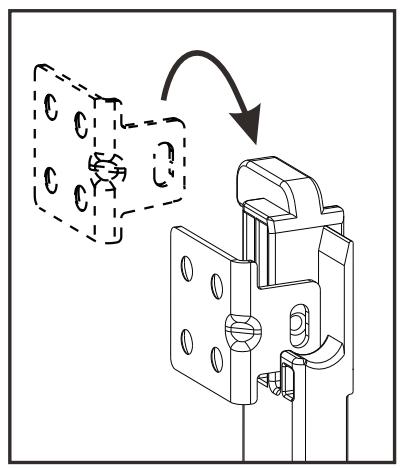

2. Install the hook on the aesthetic panel (see figure A).
3. Put the hook into the slot of the door of the dishwasher (see figure B).
4. After positioning of the panel, it should be fixed by two screws from two lower installation holes (see figure C). After tightening the screws, two rubber plugs should be plugged into the holes to avoid finger clamping.

NOTE:

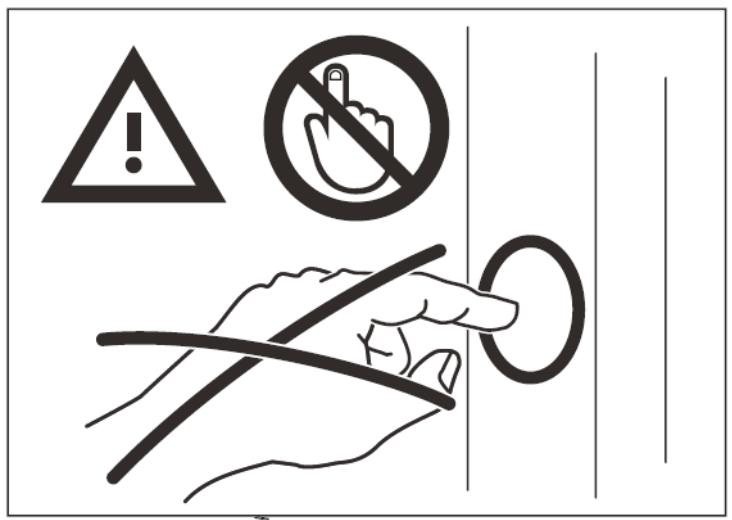

In any cases, please DO NOT insert the fingers into the side holes on dishwasher door, since that may cause serious hazard.

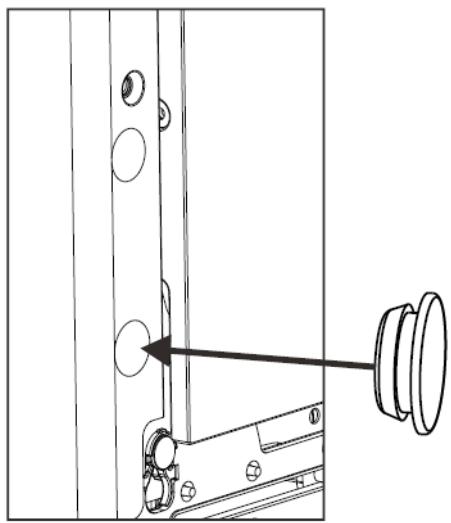

Please DO NOT leave the installation hole open after installation. Plug the holes by the rubber plug immediately after installation to avoid any potential damage to children.

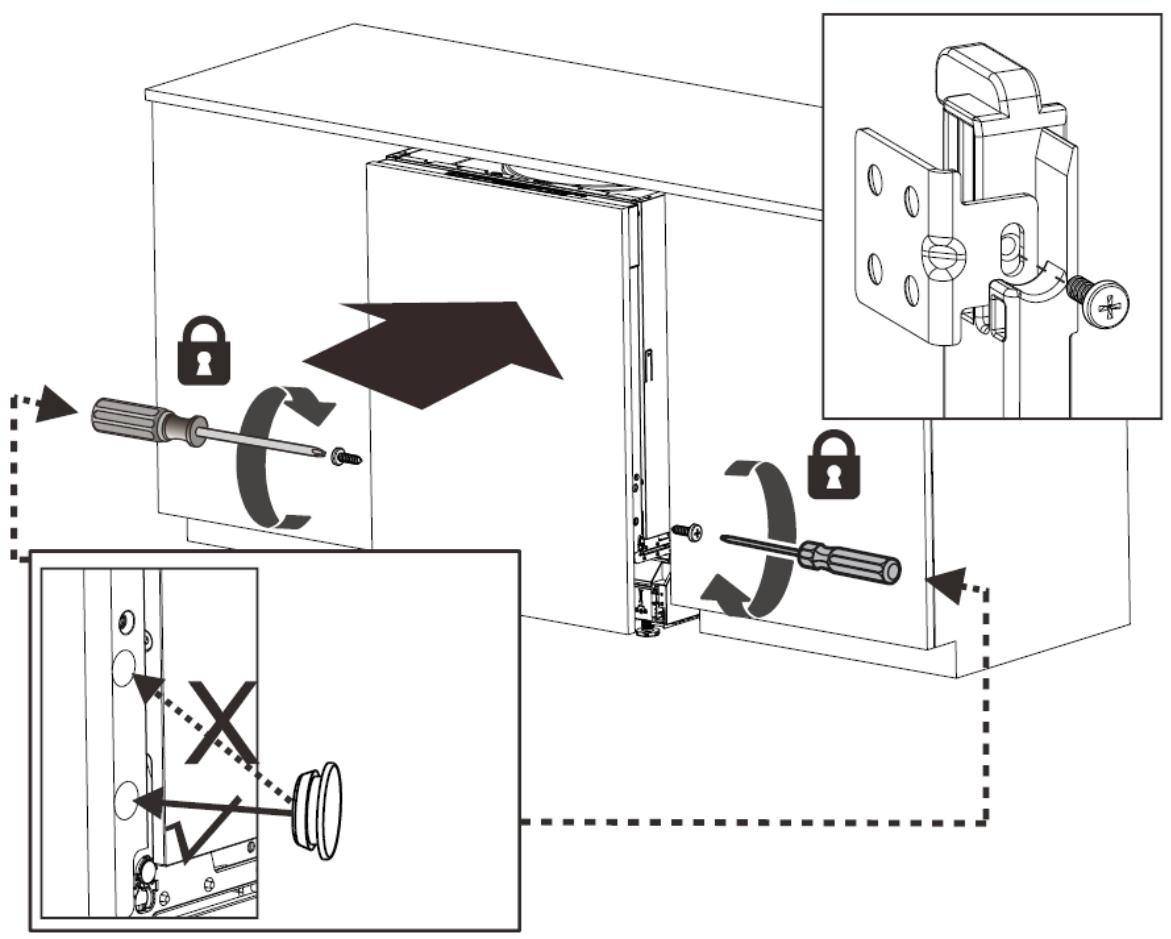

Securing the Dishwasher in Place

There are two ways to do this:

A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the screws.
B. Marble or granite work top: Fix the side with Screw.

BEFORE LOADING THE BASKETS

• Remove coarse food remains, e.g. bones, which may clog the filter or damage the wash pump.
• Soak any pots or pans with burnt-on food remains on the bottom then load them into the basket.

WARNING:

• Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle.
• Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavities at an angle, to allow the water to drain out.
• Do not stack dishes.
• Do not place glasses too close together because they may knock against each other and break.
• Load large items which are most difficult to clean into the lower basket.
• Make sure that the items being washed are dishwasher-safe.

Items which are not dishwasher-safe:

Wooden dishes, pots or pans
- Handcrafted items
- Plastic dishes (except when marked dishwasher-safe
- Dishes and objects in copper, tin, zinc or brass
Aluminium dishes
Silverware
Glass and crystal
- Decorated items

Loading the Upper and Lower Baskets

• The upper basket is designed to hold delicate and light items such as glasses, cups, saucers, serving bowls and shallow pans.
• The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.
• Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.
• Arrange items so that water can reach all surfaces.

Upper basket

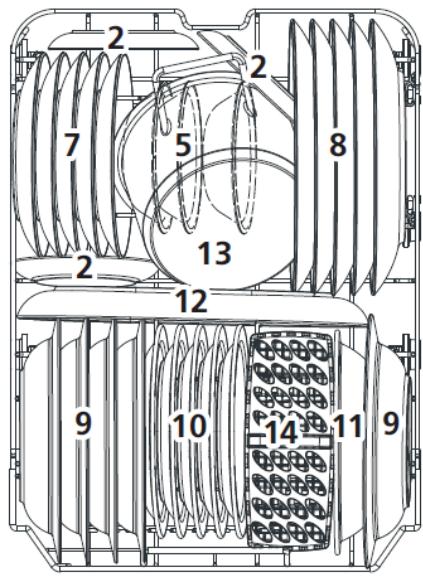

Lower basket

1. Cups
2. Saucers
3. Glasses
4. Mugs
5. Dessert bowls
6. Glass bowl

7. Dessert plates

8. Dinner plates

9. Soup plates
10. Melamine dessert plates
11. Melamine bowl
12. Oval platter
13. Small pot
14. Cultery Basket

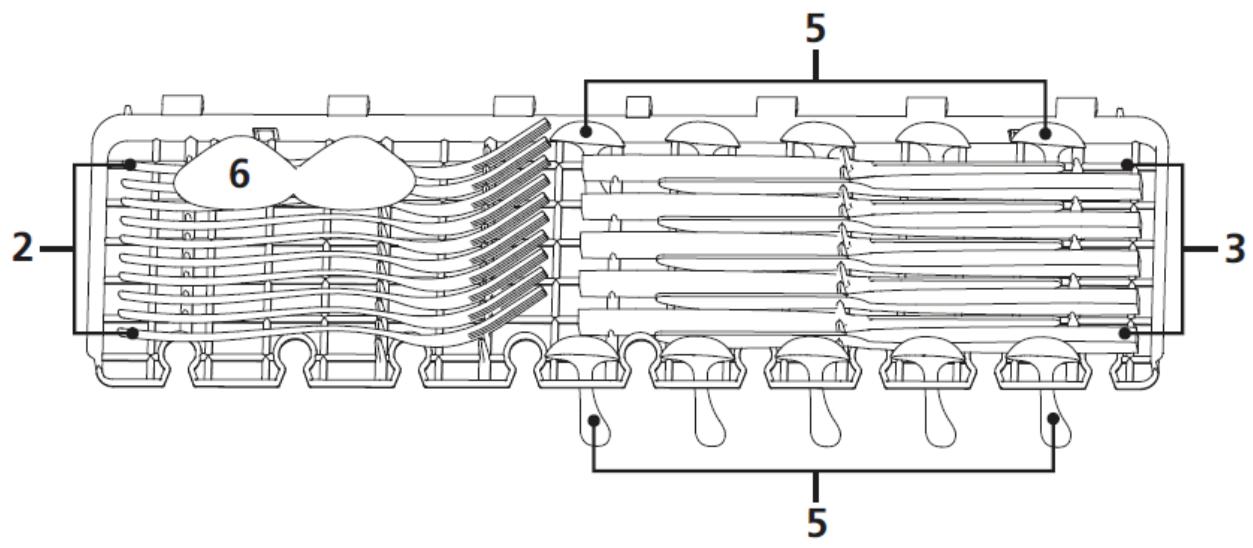

Loading the Cutlery Rack and Basket

Please place the lightweight flatwares on the cutlery rack. The total weight is less than 1.5 ~kg .

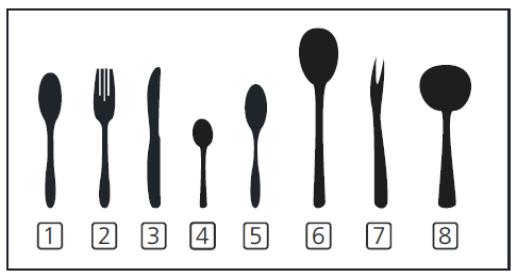

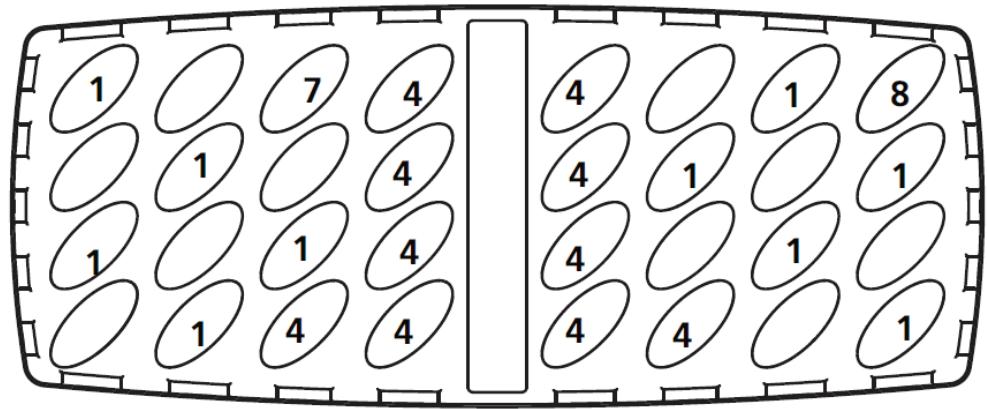

Cultery Basket

1. Soup spoons 5. Dessert spoons
2. Forks 6. Serving spoons
3. Knives 7. Serving fork
4. Teaspoons 8. Gravy ladle

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

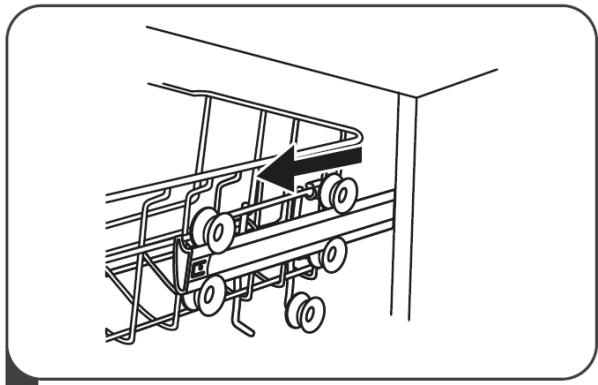

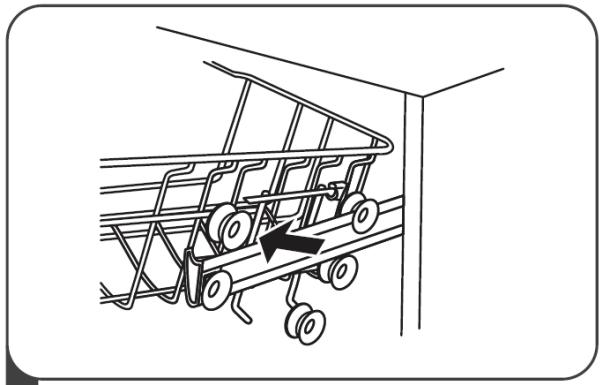

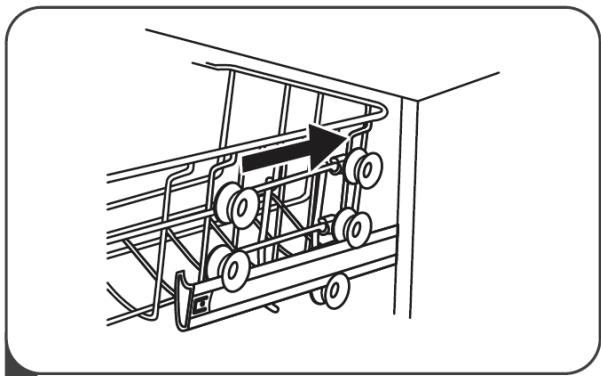

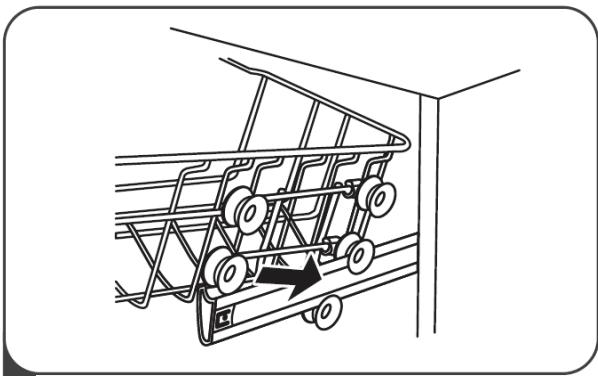

1 Pull out the upper basket.

2 Remove the upper basket.

3 Re-attach the upper basket to upper or lower rollers.

4 Push in the upper basket.

FOLDING THE CUP RACK

To make room for taller items in the upper basket, raise the cup rack upwards.

You can then lean the tall glasses against it. You can also remove it when it is not required for use.

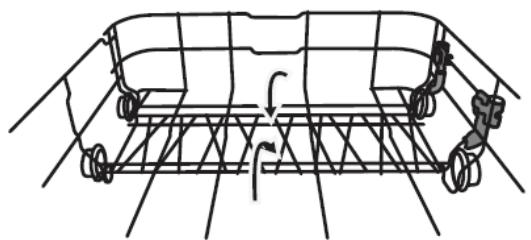

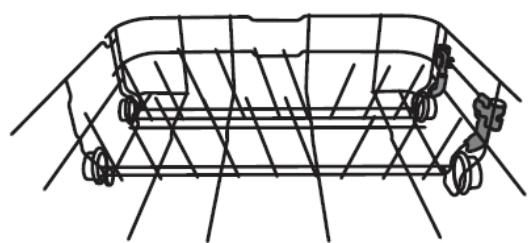

FOLDING SPIKES

The spikes of the lower basket are used to hold plates and a platter.

They can be folded down to make more room for large items.

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will be formed on the utensils. This appliance is equipped with a water softener which uses a salt specifically designed to eliminate the minerals from the water.

CAUTION:

• Only use salt specially formulated for domestic dishwashers.
• Do not use table salt as it contains insoluble substances which may damage the water softening system.
• Fill the salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion.

Adjusting the salt consumption

1. Open the door and switch on the appliance.
2. Enter the status of adjusting the salt consumption by holding down P until the value "H3" (factory setting flashes on the display.
3. Repeatedly press P to adjust the setting to suit the water hardness.
4. Press to validate settings.

WATER HARDNESS				Display	Salt consumption (gram / cycle
°dH	°fH	°Clarke	Mmol/l
0 - 5	0 - 9	0 - 6	0 - 0.94	H1	0
6 - 11	10 - 20	7 - 14	1.0 - 2.0	H2	9
12 - 17	21 - 30	15 - 21	2.1 - 3.0	H3	12
18 - 22	31 - 40	22 - 28	3.1 - 4.0	H4	20
23 - 34	41 - 60	29 - 42	4.1 - 6.0	H5	30
35 - 55	61 - 98	43 - 69	6.1 - 9.8	H6	60

NOTE:

1°dH=1.25°Clarke=1.78°fH=0.178 mmol/l

°dH: German degree °fH: French degree °Clarke: British degree

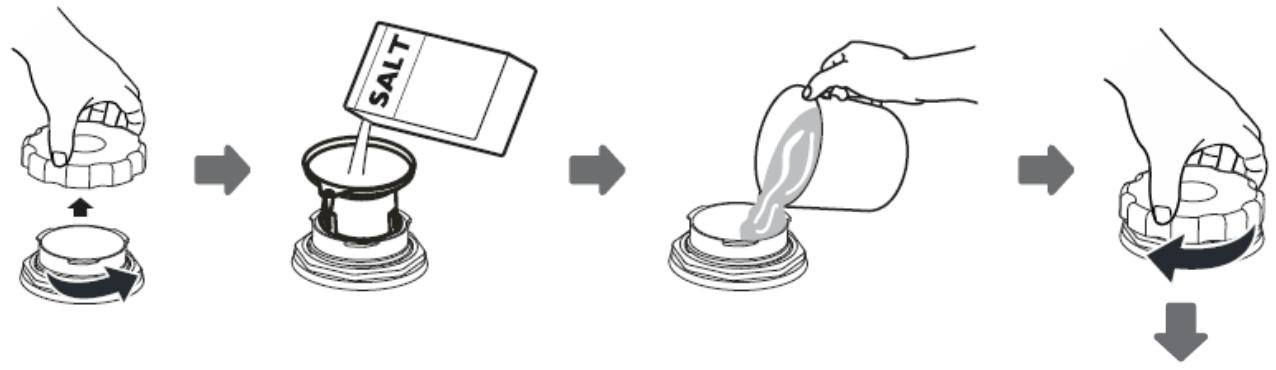

Filling with salt

The salt container must be refilled when the salt warning light illuminates.

1. Remove the lower basket and unscrew the cap from the salt container.
2. Place the end of the funnel (supplied into the hole and pour in about 1.5kg dishwasher salt.
3. Fill the salt container to its maximum limit with water.

It is normal for small amount of water to come out of the salt container.

1. Screw back the cap tightly.

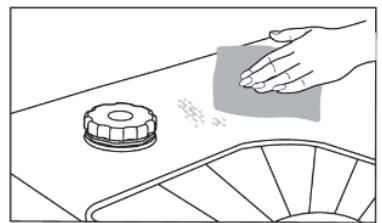

2. Remove any salt that has fallen around the opening of the container and into the tub.

WARNING!

Salt is corrosive, it is strongly recommended to run a shortest program without dishes after each salt container filling to wash away any salt that may have been spilled into the tub.

NOTE: Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

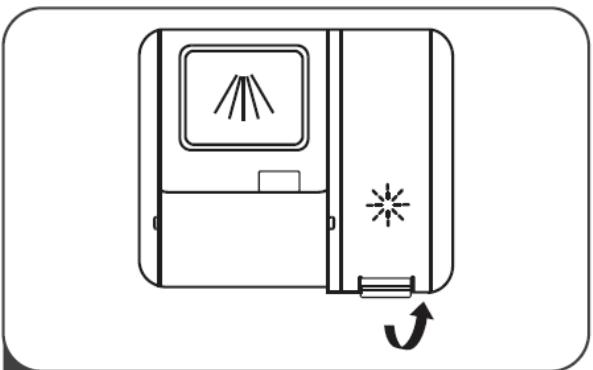

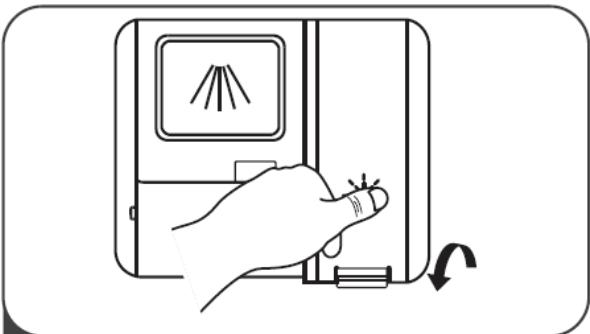

USING THE RINSE AND DETERGENT DISPENSERS

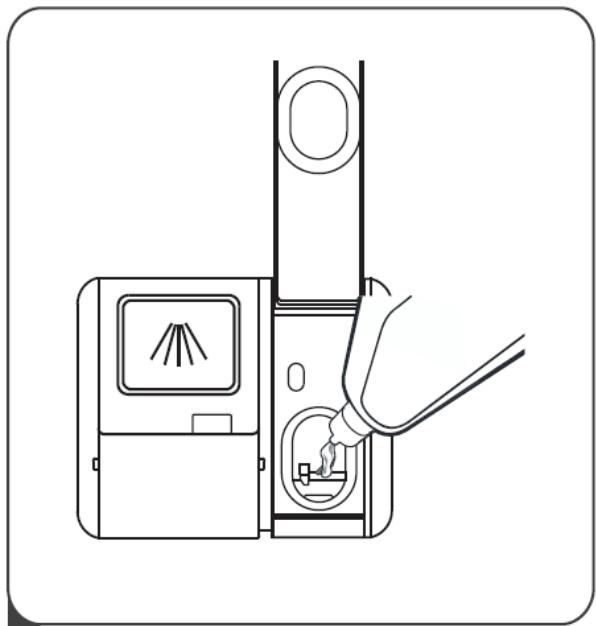

Function of the rinse aid

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes.

WARNING! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent. This would damage the appliance.

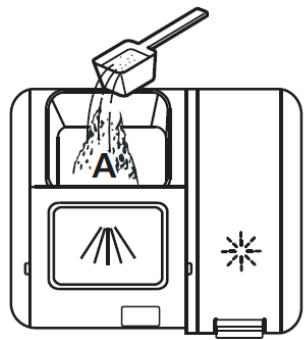

Function of the detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher.

WARNING!

• Proper use of detergent
• Use only detergent specifically made for dishwasher use. Keep your detergent fresh and dry.

• Do not put powdered detergent into the dispenser until you are ready to wash dishes.

• Dishwasher detergent is corrosive! Keep it out of the reach of children.

1 Remove the rinse aid dispenser cap by lifting up the tab.

Pour the rinse aid into the dispenser, being careful not to overfill.

3 Close the cap.

Adjusting the rinse aid dispenser

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps:

1. Open the door and switch on the dishwasher.
2. Within 60 seconds after powering on the dishwasher, press and hold P for about 5 seconds and then

press to enter the setting mode.

The display will show d3.

1. Repeatedly press P to select the proper setting.
2. The setting will be confirmed if there is no operation in about 5 seconds.

Filling the detergent dispenser
1 Slide the control to the right to open the detergent cap.

2 Add the detergent into the compartment.

Display	Amount of rinse aid (mL)
d1	1,2
d2	2,4
d3	3,6
d4	4,8
d5	6,0

3 Close the cap by sliding it to the front and pressing it down.

Program	Type of Dishes	Cycle Description	Detergent Pre/Main	Program duration (min)	Energy (kWh)	Water consumption (L)	Rinse aid needed?
	For heavily soiled crockery with or without dried-on food	Pre-wash(50°C) Wash(65°C) Rinse Rinse Rinse(60°C) Drying	4/14g (1 piece)	205	1,199	15,2	Yes
	For normally soiled crockery	Pre-wash(45°C) Wash(55°C) Rinse Rinse Rinse(60°C) Drying	4/14g (1 piece)	175	0,972	15,1	Yes
Eco (*EN60436)	Standard cycle for normally soiled loads such as pots, plates, glasses and lightly soiled pans	Wash(45°C) Rinse Rinse(45°C) Drying	18g (1 piece)	215	0,674	9,0	Yes
	For lightly soiled crockery and glass	Pre-wash(40°C) Wash(50°C) Rinse Rinse(50°C) Drying	4/14g (1 piece)	120	0,734	12,4	Yes
	For normally soiled loads that need quick wash	Wash(55°C) Rinse Rinse(50°C) Drying	18g (1 piece)	90	0,659	9,5	Yes
	A shorter wash for lightly soiled loads that do not need drying	Wash(40°C) Rinse(40°C) Rinse(50°C)	12g (1 piece)	30	0,600	10,2	No

NOTE:

EN 60436: This program is the test cycle. The information for comparability test is in accordance with EN 60436.

• The eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
  The values given for programmes other than the eco programme are indicative only.

• Turn the water tap on.

• Open the dishwasher door.

• Check the filters.

• Ensure that they are clean and properly positioned. See the section Cleaning and Maintenance.

• Check that there is rinse aid and salt.

• Load the dishes.
• Ensure that the spray arms can rotate freely.
• Add the required amount of detergent into the dispenser according to the Washing Program chart.
• Press to switch on the dishwasher.

• Repeatedly press P to select the desired washing program.

• The corresponding programme indicator light will illuminate.

• Delay Timer: The delay timer allows you to delay the start of a washing program from 1 hour up to 24 hours.

Repeatedly press until the desired delayed start time is shown on the display, e.g. 03 for a 3-hour delay.

Once the delay timer has been set, close the door to activate the function.

To cancel the delayed start, repeatedly press until the display shows "00".

1. If you want to perform a half load wash, press 12 and the corresponding indicator light will illuminate.

2. When you have about or less than 6 place setting dishware to wash, you can choose this function to save energy and water.

3. This function can only be used with Intensive, Universal, ECO, Glass and 90 min.

4. Close the door securely. The washing cycle will start.

5. After the program has ended, the diswasher will buzz and stop.

6. If the dishwasher is set for a delay start, the dishwasher wil not buzz.

7. On the display, "00" will flash for a few seconds and then "--" will be displayed.

8. After a period of time, the display will shut off and the dishwasher will turn off.

9. Wait for 15 minutes before you open the dishwasher door in order to avoid burns.

10. Unload the dishes.

WARNING!

• The washing cycle will not start if the dishwasher door is left open or not properly closed.
• Do not open the door when the dishwasher is working since hot water may be ejected, which could cause scalding.

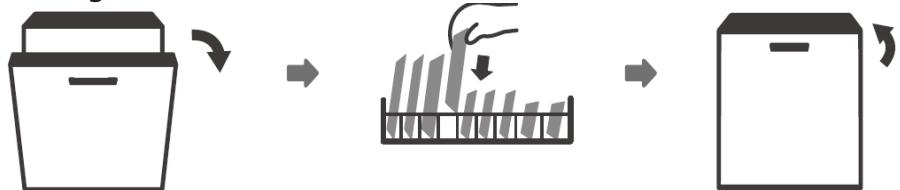

Adding extra dish

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. The cycle will start from the point at which it was interrupted.

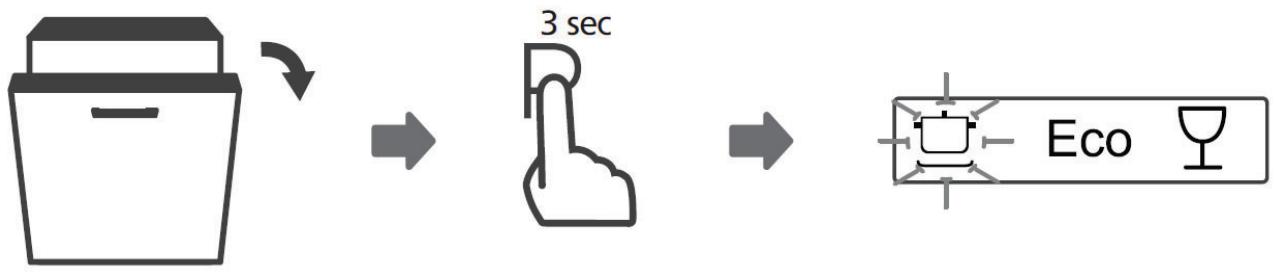

Changing the program in progress

A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Open the door a little to stop the washing. After the spray arms stop working, you can open the door completely.
2. Press and hold P for more than 3 seconds - the program will be cancelled. You will hear a beep.
3. Repeatedly press P to select a new program.
4. Close the door to start the program.

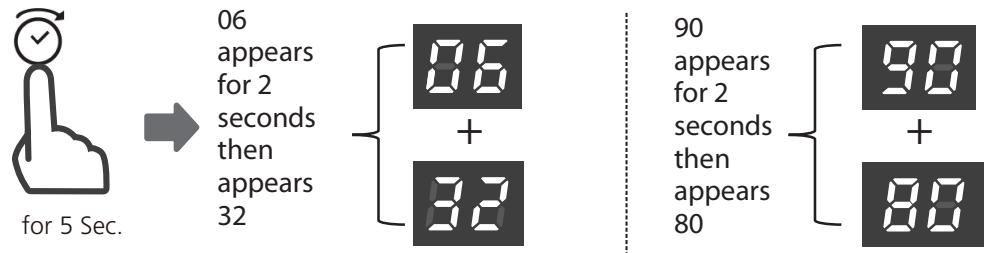

USAGE COUNTER

When the power cord is connected, but the dishwasher is not turned on, open the door, press and hold

for 5 seconds, the dishwasher display will show the number of cycles.

Example:

06 is displayed for two seconds, then 32 is displayed for two seconds, and then the display turns off. A total of 632 cycles were completed.

90 is displayed for two seconds, then 80 is displayed for two seconds, and then the display turns off. A total of 9080 cycles were completed.

Auto open

To select this function, press and the indicator light on this button will illuminate.

This function can only be used with Intensive, Universal, ECO, Glass and 90 min. After washing, the door will open automatically to achieve better drying results.

NOTE!

The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality.

• Always switch off and unplug the appliance before cleaning.
• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish.

Your dishwasher cleans by spraying a mixture of clean water and detergent (under pressure against the soiled surface of dishes. The water is pumped through a rotating spray arm, drained through a filter removing food and soiled particles and pumped back through the spray arm.

Soiled water is pumped out and replaced with clean water at the end of each cycle (the number of times depends on the cycle being used.

NOTE:

Hard water conditions will adversely affect washability performance of your dishwasher.

Hard water conditions will also contribute to "Lime" (white film substance deposits and/or "Scaling" on the stainless steel surface of the dishwasher tub and heater element located in the sump underneath the removable filter screen.

To minimise these conditions, it is recommended to periodically operate/rinse the inside of the dishwasher (empty using 1 cup of white vinegar (at least once a week.

Cleaning the door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits.

When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

Cleaning the control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

Cleaning the filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water.

Follow the steps below to clean the filters in the wash cabinet.

Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

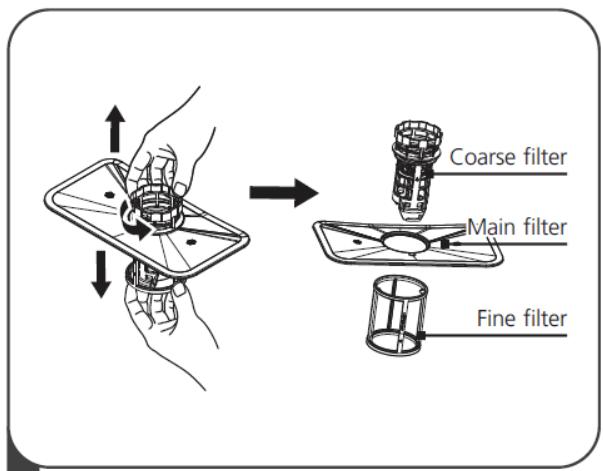

2 Pull the fine filter off the filter assembly. Detach the coarse filter from the main filter by gently squeezing the tabs at the top and pulling it away.

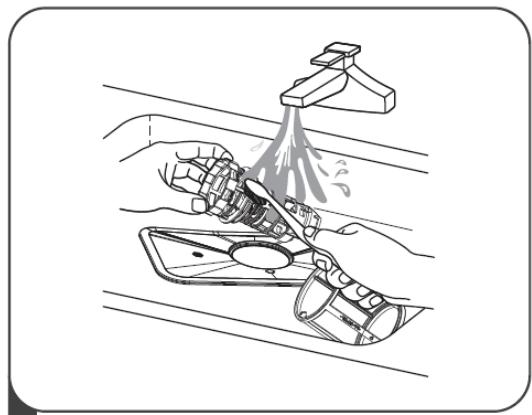

3 Rinse the filters under running water. For a more thorough clean, use a soft cleaning brush.

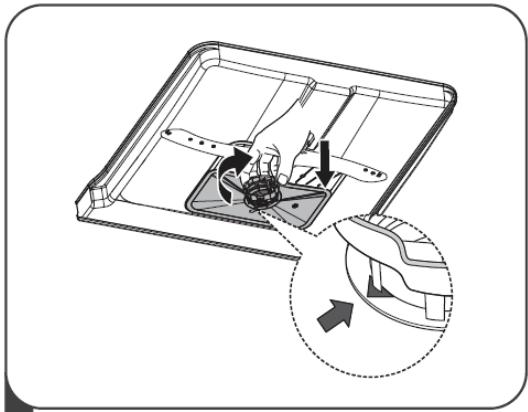

4 Reassemble the filters, replace the filter insert, and rotate clockwise to the close arrow.

WARNING!

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filters may reduce the performance level of the appliance and damage dishes and utensils.

Cleaning the spray arms

It is necessary to clean the spray arms regularly, otherwise hard water chemicals will clog the spray arms jets and bearings.

To clean the spray arms, follow the instructions below:

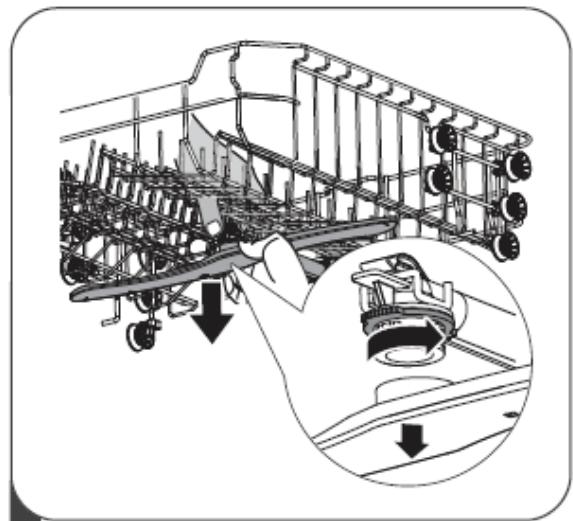

1 To remove the upper spray arm, hold the nut in the centre still and rotate the spray arm anticlockwise to remove it.

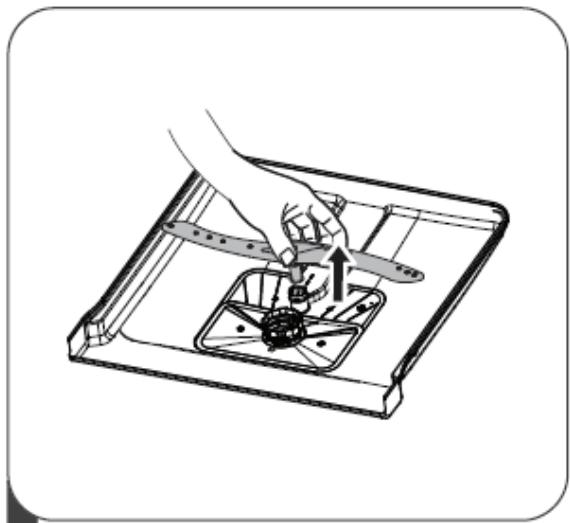

To remove the lower spray arm, pull out the spray arm upward.

3 Wash the arms in warm soapy Water using a soft brush. Replace them after rinsing them thoroughly.

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve (Use a pan to gather the water .
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the mains socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Cleaning the seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

Reviewing the charts on the following pages may save you from calling for service.

Before Calling For Service

Problem	Possible Causes	Possible Solution
Dishwasher will not start.	Fuse blown, or the ir庚 breaker tripped	Replace fuse or reset circuit breaker. Remove any other appliance sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low.	Check that the water supply is connected properly and the water is turned on.
	The door has not been properly closed.	Close the door securely.
Water not pumped from dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check the filters (see "Cleaning the Filtering System".
	Kitchen sink clogged	Check kitchen sink to make sure it is draining well. If kitchen sink is not draining, you may ask a plumber to check it.
Suds in the tub	Improper detergent	Use only the detergent special for dishwasher to avoid suds. If this occurs, open the door and let the suds evaporate. Add 1 litre of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary.
	Spilled rinse aid	Always wipe up rinse aid spills immediately.
Stained tub interior	Detergent with colourant may be used.	Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals.	To clean the interior, use a damp soft cloth with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise it may cause foaming or suds.
There are rust stains on cutlery.	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program is not run after adding dishwasher salt. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt.
	The cap of the salt container is loose.	Check the cap is secure.
The dishwasher is noisy.	Dishes are rattling against each other. The spray arms are knocking against the dishes.	Refer to "Loading the Dishwasher" to rearrange the dishes.
The dishes are not clean.	The dishes have not been arranged properly.	Refer to "Loading the Dishwasher".
	The washing program selected is too gentle.	Select a more intensive program. Refer to "Washing Programs".
	Not enough detergent has been used or it is unsuitable.	Use more detergent or change the detergent.
	The spray arms are clogged.	Rearrange the items so that the spray arms can rotate freely.
	The filters are not clean or not in the correct position.	Clean and/or position the filters correctly.
Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses	Hard water area can cause limescale deposits.	Check water softener settings or fill status of salt container.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly. Use gloves if detergent residue can be found on dishes to avoid skin irritations.
The dishes are not quite dry.	Improper loading	Refer to "Loading the Dishwasher".
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
	Wrong program has been selected.	Choose a program with long washing time.
	Use of cutlery with a low-quality coating	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error codes

Codes	Meanings	Possible Causes	Possible Solution
E1	Longer inlet time.	Tap is not opened, or water inlet is restricted, or water pressure is too low.	Turn on the water tap. Check the water inlet hose is not blocked. Increase inlet water pressure.
E3	Not reaching required temperature	Malfunction of heating element	Contact the after-sales service to replace the heating element.
E4	Overflow	Some dishwasher parts are leaking.	Contact the after-sales service to repair and replace parts.

WARNING!

• If overflow occurs, turn off th main water supply before calling service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

SPECIFICATIONS

Rated voltage / frequency	220-240V~ 50Hz
Rated power	1760-2100 W
Water pressure	0.04 – 1 MPa

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2017 with regard to energy labelling of household dishwashers
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: THBIDW45DFULLSLID
General product parameters:
Parameter	Value	Parameter	Value
Rated capacity (a) (ps)	10	Dimensions in cm	Height	82
			Width	45
			Depth	55
EEI (a)	49,9	Energy efficiency class (a)		D
Cleaning performance index (a)	1,125	Drying performance index (a)		1,065
Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0,674	Water consumption in litres [per cycle], based on the eco programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.		9,0
Programme duration (a) (h:min)	3:35	Type		Built-in
Airborne acoustical noise emissions (a) (dB)(A re 1 pW)	44	Airborne acoustical noise emission class (a)		B
Off-mode (W) (if applicable)	N/A	Standby mode (W) (if applicable)		0,49
Delay start (W) (if applicable)	1,00	Networked standby (W) (if applicable)		N/A
Minimum duration of the guarantee offered by the supplier: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.dirty.com

(a) for the eco programme.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/dishwashers2019/1889772

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

www.darty.com

0978 970 970

24 Hours

7 Days a week

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.
The appliance should be taken to your local collection point for recycling. Some collection points accept
appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN IEC 55014-1:2021
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019
EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A1:2019

LVD :

EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 +A14:2019 + A2:2019 + A15:2021
EN 60335-2-5:2015+ A11:2019 + A1:2020
EN 62233:2008

ErP :

(EU) 2019/2017
(EU) 2019/2022
(EU) 2021/340
(EU) 2021/341
EN 60436:2020+A11:2020+A12:2022
EN 50564:2011

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :
