Product type	Fridge-freezer
Brand	Haier
Model	HSR3918FIPW
Energy class	F
Annual consumption	393 kWh/year
Total volume	515 L
Refrigerator volume	337 L
Freezer volume	178 L
Freezing capacity	10 kg/24h
Autonomy in case of power failure	5 h
Frost-free system	Yes (No Frost)
Climate class	SN-N-ST (10 °C to 38 °C)
Refrigerant	R600a (isobutane)
Voltage	220-240 V, 50 Hz
Dimensions (H × W × D)	1775 × 908 × 659 mm
Lighting	LED
Water and ice dispenser	Water, ice cubes, crushed ice
Ice maker	Integrated, capacity 1.1 kg/day
Water filter	Yes, replacement every 6 months
Defrosting	Automatic
Maintenance	Cleaning every 4 weeks with warm water and mild detergent
Safety	Panel lock, door alarm, child safety (3 sec lock)
Spare parts available	Thermostats, sensors, electronic boards, LED (7 years); handles, hinges, shelves, baskets (7 years); door gaskets (10 years)

Frequently Asked Questions - HSR3918FIPW HAIER

What to do if the dispenser does not dispense water or ice?

Check that the water tap is open, the supply hose is not kinked, water pressure is between 0.15 and 0.6 MPa, and the water filter is not clogged. Make sure the door is properly closed and that the Cool Water and Ice Maker functions are activated on the control panel. If the ice bucket is empty, wait up to 12 hours for the first production.

Why are my ice cubes small or have an odor?

Small ice cubes may indicate that the water filter needs to be replaced or that water pressure is below 0.15 MPa. An unpleasant odor usually comes from unpacked food in the freezer. Discard the ice cubes, clean the ice tray with hot water, and make sure food is properly covered.

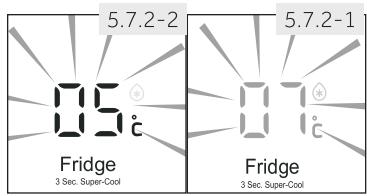

How to adjust the temperature of the refrigerator and freezer?

Unlock the panel by pressing the lock button (G) for 3 seconds. For the refrigerator, press the F button repeatedly until the desired temperature (1 to 9 °C, recommended 5 °C). For the freezer, press the B button to select from -14 to -24 °C (recommended -18 °C). Confirmation is automatic after 5 seconds.

What does the audible alarm mean and how to stop it?

The alarm sounds if a door is left open for more than one minute. Close the door to deactivate it. If the door remains open for more than 7 minutes, the interior light turns off automatically to save energy.

Why is there frost in the freezer?

Excessive frost can be caused by a door not closed properly, too frequent opening, poorly wrapped food, or a dirty or worn door gasket. Check that the door closes properly, clean the gasket, and ensure food is well wrapped. The appliance is No Frost, so frost should be minimal.

The appliance makes an abnormal noise, what to do?

Check that the appliance is level by adjusting the adjustable feet. Make sure it is not in contact with a wall or furniture. Liquid or ice cube noises are normal. If the noise persists, consult the troubleshooting table in the manual.

The interior light does not work, how to replace it?

LED lamps must be replaced only by the manufacturer or an authorized service. Do not attempt to replace them yourself. Contact Haier customer service. Parameters: 12 V, max. 3 W.

An error code appears on the control panel, what to do?

An error code indicates an electrical problem. Unplug the appliance for a few minutes, then plug it back in. If the code persists, contact Haier customer service with the model and serial number (on the rating plate).

How to clean the appliance properly?

Unplug the appliance. Use a soft cloth or sponge soaked in warm water with a mild detergent. Never use hard brushes, abrasive powder, gasoline, acetone, or steam cleaners. Rinse with clean water and wipe dry. Clean door gaskets and accessories separately. Wait 5 minutes before plugging back in.

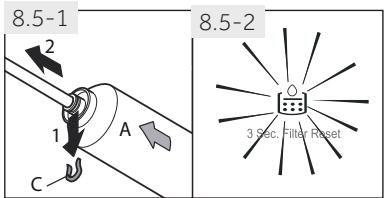

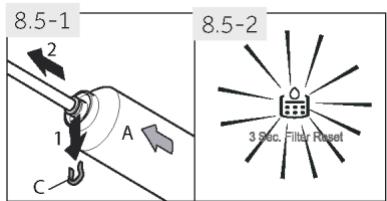

When and how to replace the water filter?

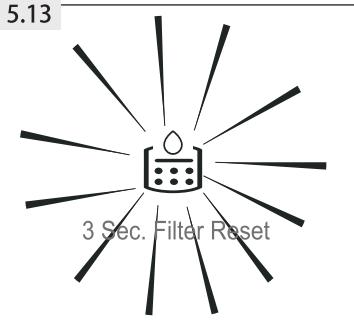

The Change Filter indicator lights up approximately every 6 months. To replace: unplug the appliance and shut off water supply. Remove the locking clips, disconnect the hoses, install the new filter in the correct direction (arrow indicating flow), reconnect, turn on water and plug back in. Then press and hold the filter reset button (C) for 3 seconds to turn off the indicator.

USER MANUAL HSR3918FIPW HAIER

• = MP, MX, PG, PH, PB, PW

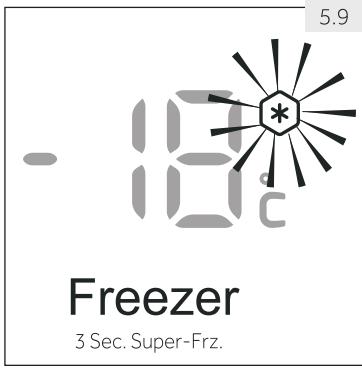

5.9 Fonction Super-Freeze (super surgélation)

*Assistance technique

• = MP, MX, PG, PH, PB, PW

Refrigerator

User Guide

Kuhlschrank

Bedienungsanleitung

Réfrigérateur

Mode d'emploi

Frigorifo

Guida per l'utente

Frigorifico

Manual del usuario

Frigorifico

Guiado Utilizador

Koelvriescombinatie

Handleiding

Lodówka

EN WARNING: Risk of fire/flammable material.

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

• = MP, MX, PG, PH, PB, PW

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning - Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulation foam.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused.

For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals.

1 - Safety information. 4
2 - Intended use 9
3 - Product description 12
4-Control panel 13
5-Use 14
6 - Energy saving tips 24
7 - Equipment 25
8-Care and cleaning. 27
9 - Troubleshooting 30
10-Installation 34
11 - Technical data 39
12 - Customer service 40

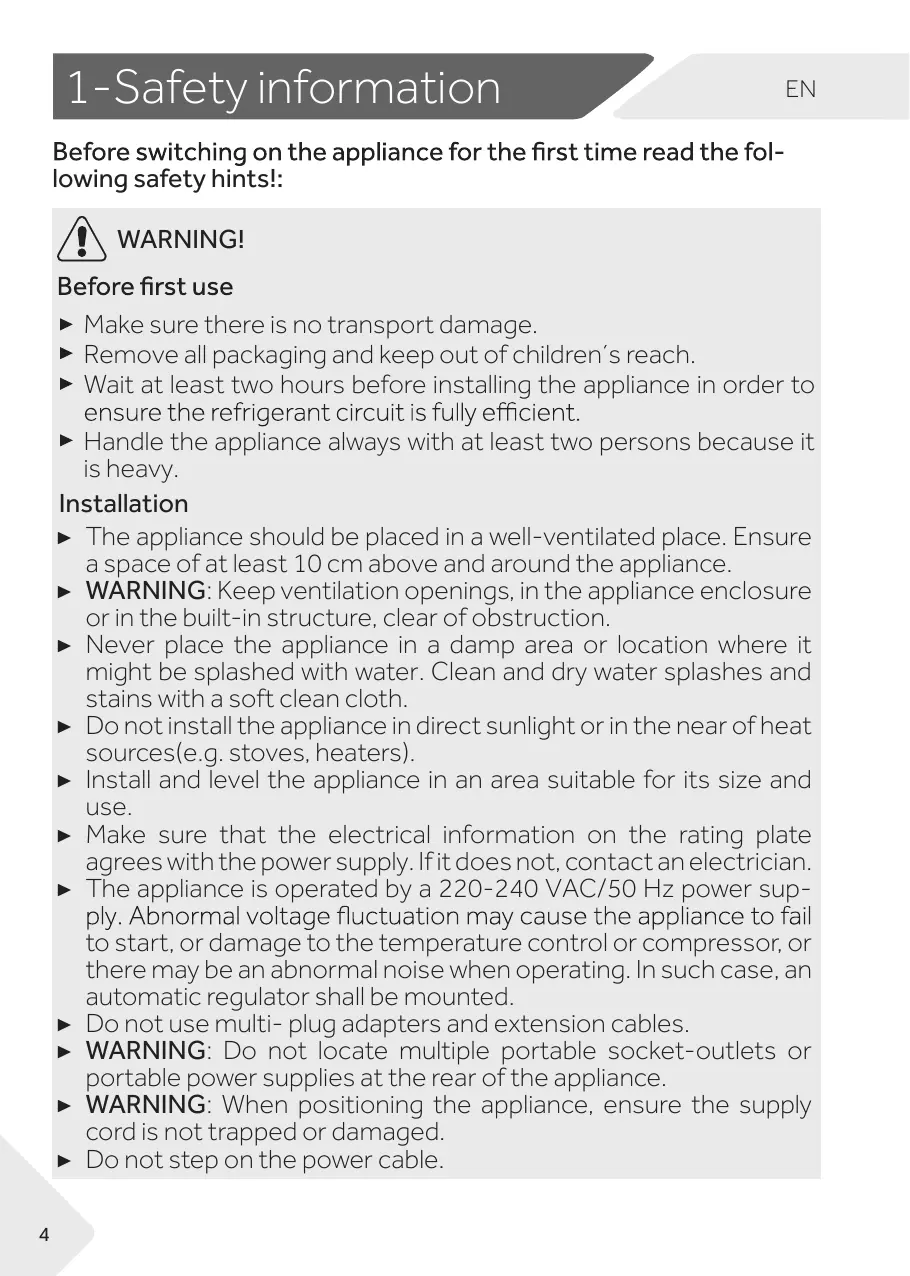

1-Safety information

Before switching on the appliance for the first time read the following safety hints!

WARNING!

Before first use

Make sure there is no transport damage.
- Remove all packaging and keep out of children's reach.
- Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
- Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10cm above and around the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
- Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
Do not use multi- plug adapters and extension cables.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
Do not step on the power cable.

WARNING!

• Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.
  Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
  WARNING: Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
- Cleaning and user maintenance shall not be made by children without supervision.
The appliance must be positioned so that the plug is accessible
- If coal gas or other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the refrigerator/freezer or any other appliance.
- Notice that the appliance is set for operation at the specific ambient range between 10 and 38^ . The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator/freezer, to avoid personal injury caused by falling or electric shock caused by contact with water.
- Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple.

WARNING!

• Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the refrigerator/freezer doors only when there are no children standing within the range of door movement.
• Never store bottled beer or beverages, liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
• Check the condition of food if a warming in the freezer has taken place.
• Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
• Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
• Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
• Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
  WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING!

Maintenance / cleaning

• Make sure children are supervised if they carry out cleaning and maintenance.
• Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
  Hold the plug, not the cable, when unplugging the appliance.
• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
• Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
  WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
• If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

1-Safety information

• Do not spray or flush the appliance during cleaning.
  Do not use water spray or steam to clean the appliance.
• Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break.
• If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gass information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse it immediately under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please, install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.

WARNING!

For refrigerators with ice-water function, please pay attention to the following warning:

For appliances not intended to be connected to the water supply:

WARNING: fill with potable water only.

For appliances intended to be connected to the water supply:

WARNING: connect to potable water supply only.

If you want to clean the water system, please refer to the User Manual. If you have any questions, please contact the after-sales service.

2.1 Intended use

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• If the appliance is not used for an extended period of time, and you will use only the Holiday-function or the fridge off function for the refrigerator/freezer:

• Take out the food.

• Unplug the power cord.
• Empty and clean the water tank.
• Clean the appliance as described above.
• Keep the doors open to prevent the creation of bad odours inside.

To ensure the safe preservation of foodstuffs or wine, please comply with this instruction to use.
The appliance should be cleaned at least once every four weeks for good maintenance and to prevent stored food odours. Always keep the door gasket clean.

(1.) Please scrub the interior and exterior of the refrigerator, including door gasket, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (neutral detergent can be added).
(2.) If liquids are accidentally spilled, all contaminated components should be removed and placed under the running water. After washing, wipe and dry.
(3.) If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put them into the warm water at about 40^ C for a while, then rinse with the flow water, dry and place it back into the refrigerator/freezer.
(4.) In case some small part or component enters inside of the fridge (between the shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 ~h ; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator/freezer, so that it is not in contact with or drip onto other food. To ensure the safe preservation of foodstuffs, instant food and raw meat / fish shall be stored separately.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Since the flammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.

WARNING!

Risk of injury of suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance.

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig. 2.2):

Water pipe

Water filter

6.35mm adapter with valve

6.35mm adapter

Egg tray

2 clips

Energy label

Warranty card

User manual

2.2

1 Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

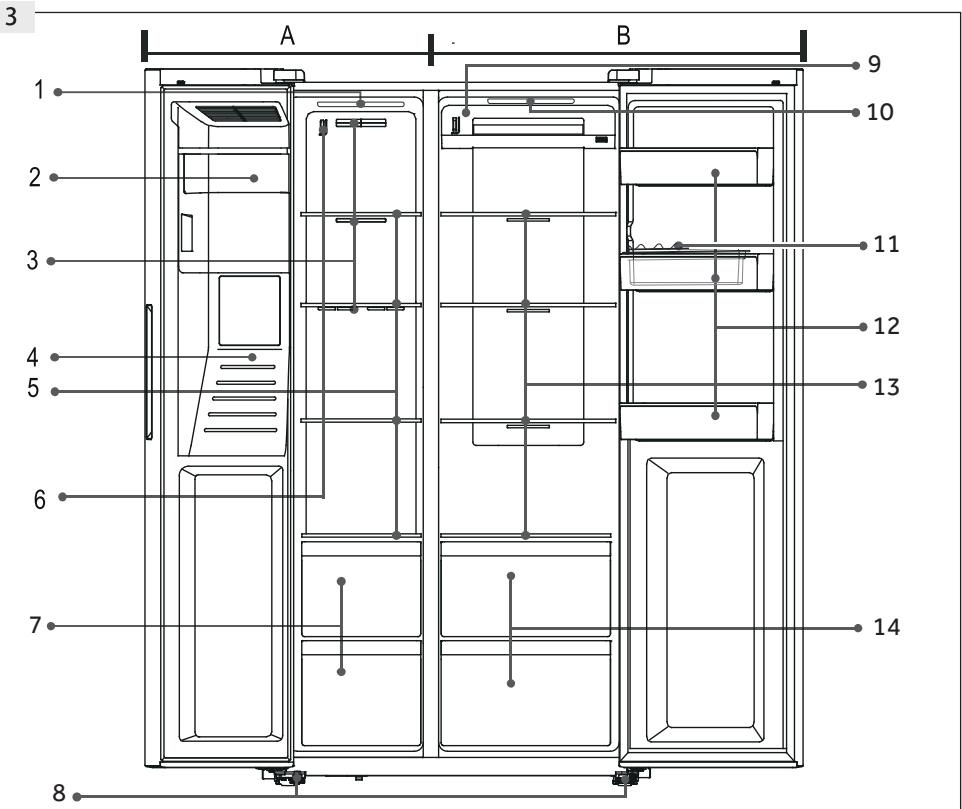

Picture of appliance (Fig. 3)

A: Freezer compartment

1 Ceiling camp
2 Ice maker with ice container
3 Airduct
4 Water and ice dispenser
5 Storage shelves
6 Sensor
7 Drawers

B: Fridge compartment

8 Adjustable feet
9 Airduct
10 Ceiling lamp
11 Egg tray

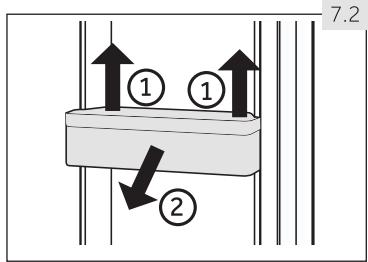

12 Door rack/bottle holder

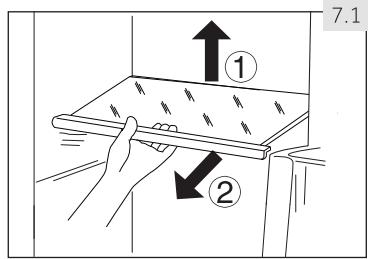

13 Shelves
14 Drawers

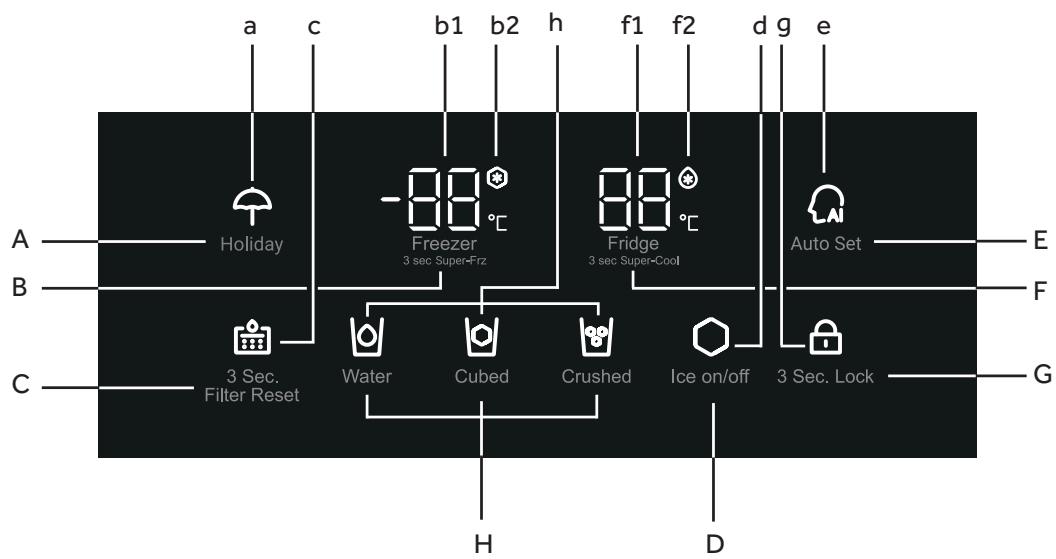

Control panel (Fig. 4)

4

Keys:

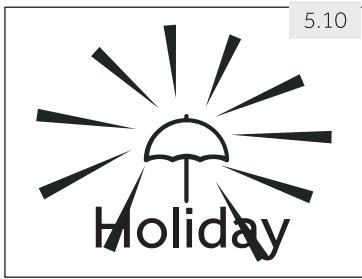

A Holiday function on/off
B Freezer temperature adjustment
C Filter Reset
D IceMaker function on/off
E Auto Set function on/off
F Fridge temperature adjustment
G Panel lock selector
H Dispenser function selection

Indicators:

a Holiday mode
b1 Temperature of freezer
b2 Super-Freeze mode
c Filter change status
d Ice Maker status
e Auto Set status
f1 Temperature of fridge
f2 Super-Cool mode
g Panellock

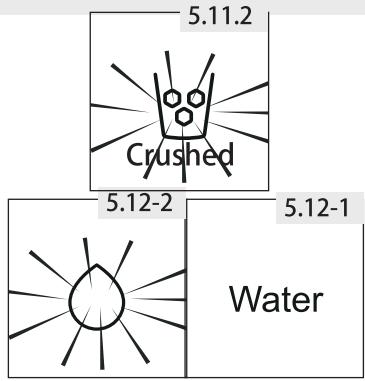

Dispenser status

5.1 Before first use

• Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
  Clean the inside and outside of the appliance, as well as the interior and accessories with water and a mild detergent and dry it well with soft cloth.
  After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION.
  Precool the compartments at high settings before loading with food. The function Super Cool and Super Freeze helps to cool down the compartments quickly.
  The refrigerator temperature and freezer temperature are automatically set to 5^ and -18^ respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see Manual adjusting mode.

5.2 Sensor keys

The keys on the control panel are sensor keys, which could respond when lightly touched with the finger.

5.3 Switching the appliance on /off

The appliance is in operation as soon as it is connected to the power supply. The temperatures displayed will show the actual temperatures in the compartment. The panel lock might be active.

Empty the appliance before switching it off. To switch off the appliance, pull the power cord out off the power socket.

Notice: Presettings

The appliance is preset to the recommended temperature of 5^ (refrigerator) and -18^ (freezer). Under normal ambient condition you need not to set a temperature.
- When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

5.4 Lock/unlock panel

• Touch key "G" (3 Sec. Lock) for 3 seconds to block the temperature and function setting keys against activation.
  The indicator "g" lights up (Fig. 5.4) and the illumination of the panel is switched off. The icon flashes if a key is touched while the panel lock is activated.
  To unlock the panel, touch the key again for 3 seconds.

Notice: Panel lock

The control panel is automatically blocked against activation if no key is touched for 30 seconds. For any settings except dispenser function, the control panel must be unlocked.

5.5 Standby-mode

The display screen turns off automatically 30 seconds after a key was touched. The display is locked automatically. It lights up automatically when any key is touched or one of the doors is opened.

5.6 Door opening alarm

When a door is left open for more than 1 minute, the door opening alarm sounds. The alarm can be silenced by closing the door. If the door is left open for more than 7 minutes, the light inside the compartment automatically switches off.

5.7 Select the working mode

You need to select one of the following two ways to set the appliance:

5.7.1 Auto Set mode

If you do not have any special requirements, we recommend that you use Auto Set mode: In this mode, the appliance automatically adjusts the temperature setting according to the ambient temperature and temperature change in the appliance.

1. Unlock the panel by touching key "G" if it is locked (Fig. 5.4).
2. Touch key "E" (Auto Set) (Fig. 5.7.1-1)
3. Indicator "e" lights up and the function is activated (Fig. 5.7.1-2).

By repeating the above steps or selecting Holiday/ Super-Freeze/Super-Cool mode, this function can be switched off again.

Notice: Auto Set mode

In Auto Set mode, the temperature of the fridge and freezer cannot be adjusted manually.

5.7.2 Manual adjusting mode

If you want to manually adjust the temperature of the appliance in order to store a particular food, you can set the temperature via a temperature adjusting key:

5.7.2.1 Adjust the temperature of the fridge

1. Unlock the panel by touching key "G" if it is locked (Fig. 5.4).
2. Touch key "F" (Fridge) to select the fridge compartment. The temperature in the fridge compartment (f1) starts flashing (Fig. 5.7.2-1).
3. Touch key "F" (Fridge) repeatedly until the desired temperature is flashing (Fig. 5.7.2-2). A signal will sound at each key touch. The temperature increases in sequences of 1^ from a minimum of 1^ to a maximum of 9^ . The optimum temperature in the fridge is 5^ . Colder temperatures mean unnecessary energy consumption.
4. Touch any key except "F" (Fridge) to confirm, or the setting confirms automatically after 5 seconds. The displayed temperature stops flashing.

Notice: Conflict with other functions

The temperature cannot be adjusted, if any other function (Super Cool, Super Freeze, Holiday or Auto Set) is activated or the display is locked. The corresponding indicator will flash accompanied by a buzzer.

5.7.2.2 Adjust the temperature of the freezer

1. Unlock the panel by touching key "G" if it is locked (Fig. 5.4).
2. Touch key "B" (Freezer) to select the freezer compartment. The temperature in the freezer compartment (b1) starts flashing (Fig. 5.7.2-3).
3. Touch key "B" (Freezer) repeatedly until the desired temperature is flashing (Fig. 5.7.2-4). A signal sounds at each key press. The temperature increases in sequences of 1^ from -14^ to -24^ . The optimum temperature in the freezer is -18^ . Colder temperatures mean unnecessary energy consumption.
4. Touch any key except "B" (Freezer) to confirm, or the setting confirms automatically after 5 seconds. The displayed temperature stops flashing.

Notice: Influences on temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature
Amount of stored foods
Frequency of door opening
Installation of the appliance

5.8

Fridge

3 Sec. Super-Cool

5.8 Super-Cool function

Switch on the Super-Cool function if you want to add a large quantity of food at once (for example after purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming.

1. Unlock the panel by touching key "G" if it is locked (Fig. 5.4).
2. Touch key "F" (Fridge) for 3 seconds. Indicator "f2" lights up and the function is activated. (Fig. 5.8).

The same operation stops the Super-Cool function.

Notice: Automatic switch off

This function will automatically disabled after approximately 6h.
The function is also disabled if the Auto Set mode or Holiday function is chosen.

5.9 Super-Freeze function

Fresh food should be frozen to the core as quickly as possible. This preserves the best nutritional value, appearance and taste. The Super-Freeze function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If you need to freeze a large amount of food at once, it is recommended to set the Super-Freeze function ahead of time 12 h before adding the food.

1. Unlock the panel by touching key "G" if it is locked (Fig. 5.4).
2. Touch key "B" (Freezer) for 3 seconds Indicator "b2" lights up and the function is activated. (Fig. 5.9).

The same operation stops the Super-Freeze function.

Notice: Automatic switch off

The Super-Freeze function automatically switches off after approximately 50h.
The function is also disabled if the Auto Set mode or Holiday function is chosen.

5.10 Holiday function

This function sets the fridge temperature to 17^

This allows to keep the door of the empty fridge closed without causing an odour or mold during a long absence (e.g. during holiday). The freezer compartment is not affected by this setting.

1. Unlock the panel by touching key "G" if it is locked (Fig. 5.4).
2. Touch key "A" (Holiday) for 3 seconds. Indicator "a" lights up and the function is activated (Fig. 5.10).

By repeating the above steps or selecting another function this function can be switched off.

WARNING!

When the Holiday function is activated, no goods must be stored in the fridge compartment. The temperature of +17^ is too high to store food.

5.11

5.11 Ice Maker function

This function allows to produce ice, which can be removed through the dispenser.

The ice maker periodically receives an automatic flow of water which is frozen into ice cubes. Capacity of the ice maker depends on the ambient temperature, frequency of freezer door openings, and the temperature setting of the freezer compartment. The maximum quantity of ice production per day is 1.1kg if the freezer temperature is set at -24^ under the 25^ ambient temperature condition.

1. Make sure the water supply valve is opened.
2. Unlock the panel by touching key "G" if it is locked (Fig. 5.4).
3. Touch key "D" (Ice on/off).
4. Indicator "d" lights up and the function is activated (Fig. 5.11).

By repeating step 2 - step 4, this function can be switched off again.

Notice: Ice Maker function

When the application is powered on, the ice maker is off by default.
- When you don't need ice cubes for a long period of time, please turn off the Ice Maker function, empty the container and insert the cleaned container.
The Icemaker can only be configured with manufacturer or purchased from its service agent.

5.11.1-2
5.11.1-1

5.11.1 Getting ice cubes from the dispenser

1. Press the "Cubed" key to select ice cubes. The "Cubed" icon lights up (Fig. 5.11.1-1).
2. Place a glass under the water and ice dispenser (Fig. 5.11.1-2) on the front of the appliance.
3. Make sure the glass is close to the dispenser outlet to prevent ice cubes from falling out.
4. Push the glass against the lever. Ice cubes fall into the glass.

Notice: Getting ice

• When the appliance is switched on for the first time and if you start the ice function while the container is empty, it may take up to 24 hours to make your first batch of ice cubes.
  The first production of ice cubes (approx. 20 pieces) should not be consumed after first use, after a long non-use of the Ice Maker function and after a filter change.

Notice: Getting ice

• Do not take the filled ice container out off the freezer longer than necessary as ice cubes may melt.
  In periods of infrequent ice withdrawal, cubes may stick together. This is normal.
  If ice cubes get stale, throw them away and clean the ice container.
  3 seconds after the delivery of ice, the dispenser flap closes with a 'phutt' sound. Don't remove the glass for 2 to 3 seconds as additional water or ice might be produced.
• Crushed ice might be dispensed instead of cubed ice if crushed ice was the last option selected.
• Do not place ice cubes which were not produced by the icemaker into the ice container to prevent damage to the mechanism.
  You can switch the setting of the dispenser to Water, Cubed, or Crushed even when the display is locked.

5.11.2 Getting crushed ice from the dispenser

1. Press the "Crushed" key to select crushed ice, The "Crushed" icon lights up(Fig. 5.11.2).
2. Place a glass under the water and ice dispenser (Fig. 5.11.1-2) on the front of the appliance.
3. Make sure the glass is close to the dispenser outlet to prevent crushed ice from falling out.
4. Push the glass against the lever. Crushed ice falls into the glass.

WARNING!

Do not use deep, narrow, fragile or delicate glasses or paper cups with the dispenser.
- Never place canned drinks or food inside the ice container, as this will damage the crushing mechanism.
- Do not remove the cover of the ice maker to avoid accidental injury or damage to the appliance.

5.12 Cool Water function

With this function the tank in the fridge is filled automatically with drinking water which is cooled to drinking temperature and can be tapped.

1. Make sure the water supply valve is opened.
2. Touch key (Water) (Fig. 5.12-1).
3. Indicator lights up, the function is activated (Fig. 5.12-2) and water can be tapped.

5.12.1 Getting water from the dispenser

1. Press the "Water" key to select cool water. The Water icon lights up.
2. Place a glass underneath the water and ice dispenser (Fig. 5.11.1-2) on the front of the appliance.
3. Make sure the glass is in line with the dispenser to prevent water from splashing out.
4. Push the glass against the lever. Water flows into the glass.

Notice: Water dispenser

For the first use it is necessary to press the dispenser lever for 3 minutes in order to clear the air in the line.
The first 7 glasses of water should not be consumed after initial start up or following a lengthy break in use.
The first few glasses of water you take out are warmer than the next glasses. This is normal.
If you like very cold water put some ice cubes from the ice container into the glass.
Water in the tray should be removed, as it could spill when the door opens and closes.

5.13

5.13 Change filter indicator

Approximately every 6 months, the "Change Filter" indicator light turns on (Fig. 5.13). This indicates that the water filter has to be changed. Refer to CARE AND CLEANING.

The filter in the water pipe absorbs impurities and makes water/ice clean and hygienic. After a long time of usage ice cubes can become smaller because the filter is blocked by the impurities.

Notice: Filter change

For an impeccable quality of the ice cubes, it is important to change the water filter regularly. If the water quality shows signs of deterioration, either visually or in taste, the filter should be changed sooner – before the indicator light turns on.
After installation of new filter the next production of ice cubes (20 pieces approx) or water (7 glasses approx) should not be consumed.

5.13.1 Reset the Change filter indicator

Touch key "C" (3 Sec. Filter Reset) for 3 seconds, The "Change Filter" indicator (c) becomes dark.

Notice: Reset Change filter indicator

To avoid diseases, do not deactivate the Change Filter indicator without changing the filter.

5.14 Tips on storing fresh food

5.14.1 Storing into the fridge compartment

• Keep your fridge temperature below 5^ C .
  Hot food must be cooled to room temperature before storing in the appliance.
  Foods stored in the fridge should be washed and dried before storing.
  Food to be stored should be properly sealed to avoid odour or taste alterations.
  Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogeneous cooling.
  Foods eaten daily should be stored at the front of the shelf.
  Leave a gap between foods and the inner walls, allowing air flow. Especially don't store foods against the rear wall: foods could freeze against rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.
• Defreeze frozen food in the fridge storage compartment. This way, you can use the frozen food to decrease the temperature in the compartment and save energy.
  The ageing process of fruit and vegetables such as courgettes, melons, papaya, banana, pineapple, etc. can be accelerated in the fridge. Therefore, it is not advisable to store them in the fridge. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.
  Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See CARE AND CLEANING.

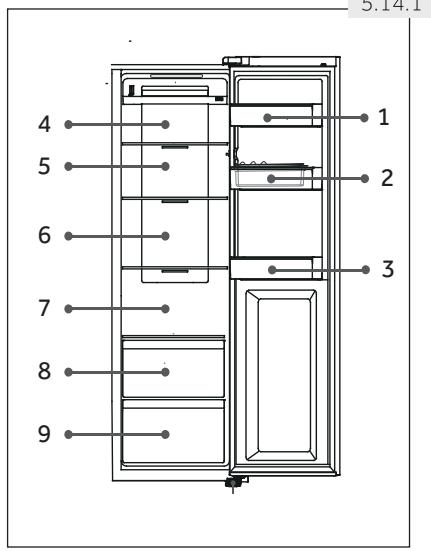

  Different kinds of food should be placed in different areas according to their properties (Fig. 5.14.1):

1Butter,cheese etc.
2 Eggs, canned food, spices etc.
3 Drinks and bottled foods.
4 Pickled foods, canned food, etc.

5/6 Meat products, fish, raw food

7 Cans, dairy products etc.
8 Fruits, vegetables, lettuce, etc
9 Cooked meat, sausages, etc.

5.14.2 Storage into the freezer compartment

• Keep the freezer temperature at -18°C.
  12 hours before freezing additional items switch on the Super-Freeze function; for small quantities of food 4-6 hours are sufficient.
  Hot food must be cooled to room temperature before storing in the freezer compartment.
• Food cut into small portions will freeze faster and is easier to defrost and cook. The recommended weight for each portion is less than 2.5kg
  It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic.
  In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.
  WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer. Do not place the food having these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately.
• Do not exceed the food storage times recommended by the manufacturers. Only take the required amount of food out of the freezer.

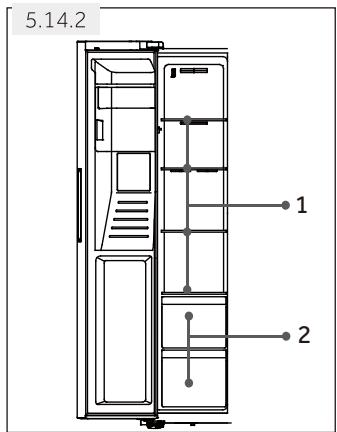

• Different kinds of food should be placed in different areas according to their properties (Fig. 5.14.2):

1 Less weighty items, such as ice cream, vegetables, bread etc.
2 Large/heavier portions of food, such as meat joints for roasting

Notice: Storage

• Please keep a distance of more than 10mm between the food and the sensor to ensure the cooling effect.
• Please leave the lowest drawer in the appliance when it is working in order to ensure the cooling effect.

• Food items that include ice (like ice cream etc.) should be stored inside the freezer compartment instead of in the bottle holders. The temperature changes the bottle holders are exposed to, caused by opening and closing the door, may thaw the food.

• Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is firstly cooked, otherwise it may become inedible.

• Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate.
• Food can be stored in the freezer at a temperature of at least -18^ for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months)
• When freezing fresh food, avoid bringing it in contact with already frozen food. Risk of thawing!
• Defreeze frozen food in the fridge. This way, you can use the frozen food to decrease the temperature in the compartment and save energy.

5.14.3 When storing commercially frozen foods, please follow these guidelines:

Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines!
Try to keep the length of time between purchase and storage as short as possible to preserve food quality.
Buy frozen foods, which have been stored at a temperature of -18^ or below.
- Avoid buying food which has ice or frost on the packaging – This indicates that the products might have been partially defrosted and refrozen at some point – temperature rises affect the quality of food.

Energy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
Functions like Super-Cool or Super-Freeze consume more energy.
- Allow warm food to cool down before placing it in the appliance.
- Open the appliance door as little and briefly as possible.
Do not overfill the appliance to avoid obstructing the air flow.
Avoid air within the food packaging.
- Keep door seals clean so that the door always closes properly.
Defreeze frozen food in the fridge storage compartment.

The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be placed as far as possible without blocking the air outlet of the duct.

7.1 Adjustable shelves

The height of the shelves can be adjusted to fit your storage needs.

1. To relocate a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.1).
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

Notice: Shelves

Ensure that all ends of a shelf are level.

7.2 Removable door racks/bottle holder

The door racks/bottle holder can be removed for cleaning:

1. Place hands on each side of the rack/holder and lift it upwards (1) (Fig. 7.2).
2. Pull the door rack/bottle holder out (2).
3. In order to insert the door rack/bottle holder, the above steps are carried out in reverse order.

7.3 Removable drawer

To remove the drawer of the fridge or freezer compartment pull out to the maximum extent (1), lift and remove (2) (Fig. 7.3).

In order to insert the drawer, the above steps are carried out in reverse order.

7.4 Ice container

7.4.1 Stopping the production of ice

If no ice or water is needed over a long period of time, the valve between the water supply and the appliance can be turned off.

The ice box should be cleaned, dried and put back into the appliance to prevent the emergence of odours.

7.4.2 Removing the ice container (Fig.7.4.2)

1. Grip both side handles.
2. Lift the container up.
3. Pull the container out.

7.4.3 Reinstalling the ice container (Fig.7.4.3)

To reinstall the ice container, the U-shaped bracket behind the ice container (1 in Fig.7.4.3) must be aligned with the corresponding metal structure. Follow the steps from 7.4.2 in the reverse order.

Notice: ice box

Moisture can condense and freeze the ice box in place.

7.5 The light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliance's other settings.

WARNING!

Disconnect the appliance from the power supply before cleaning.

8.1 General

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special fridge detergent to avoid damage.
  Do not spray or flush the appliance during cleaning.
  Do not use water spray or steam to clean the appliance.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
  In case of heating check the condition of frozen goods.

Always keep the door gasket clean.

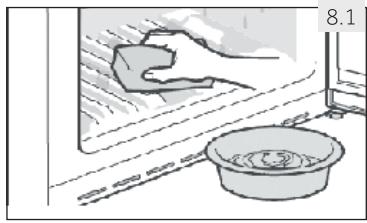

Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent (Fig. 8.1).
Rinse and dry with soft cloth.
Clean the accessories only with warm water and neutral detergent.
Do not clean any of the parts of the appliance in a dishwasher.
- Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

8.2 Cleaning the ice container

Clean the ice container periodically with warm water, especially if ice cubes get older and stale. Dry the container well before putting it back into the appliance in order to prevent ice cubes from sticking to the walls.

8.3 Defrosting

The defrosting of the fridge and the freezer compartment are done automatically; no manual operation is needed.

8.4 Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopt LED as their light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUS-TOMER SERVICE.

Parameters of the lamps: 12 V; max 3 W

8.5 Replacing the filter

The water filter has to be changed approximately every 6 months, when the "Change Filter" indicator light (c) lights up (Fig. 5.13).

The filter set can be ordered via the CUSTOMER SERVICE.

WARNING!

Before replacing the filter deactivate the appliance and disconnect the mains plug from the mains socket.
Turn off water supply.

1. Remove (1) the locking clip (C) on both sides of the filter (A) and disconnect both pipes (2) (Fig. 8.5-1).
2. Install the new filter in correct position; the dart shows the direction of water flow. Repeat step 1 in reverse order.
3. Put the plug into the socket and open the water tab to flush the hoses.
4. Reset the "Change Filter" indicator: Touch key "C"(Filter reset) for 3 seconds, indicator "c" turns off (Fig.8.5-2).

WARNING!

Ensure always that the connection is firm, dry and leak free!
Take care the hose never to be crushed, kinked, or twisted.

8.6 Non-use for a longer period

If the appliance is not used for an extended period of time, and you do not want to use the Holiday-function for the fridge:

Turn off the water supply (a few hours before you switch off the appliance).
Take out the food.
Empty and clean the ice container.
Unplug the power cord.
Clean the appliance as described above.
- Keep the doors open to prevent the creation of bad odours inside.
- Provide a new filter to install before the next use.

Notice: Switch off

Turn the appliance off only if strictly necessary.

8.7 Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the appliance more than 45^ to avoid damaging the refrigerating system.

WARNING!

Do not lift the appliance by its handles.
Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
- Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9.1 Troubleshooting table

Problem	Possible Cause	Possible Solution
The compressor does not work.	• Mains plug is not connected in the mains socket. • The appliance is in the defrosting cycle.	• Connect the mains plug. • This is normal for an automatic defrosting.
The appliance runs frequently or runs for a too long period of time.	• The indoor or outdoor temperature is too high. • The appliance has been off power for a period of time. • A door of the appliance is not tightly closed. • The door has been opened too frequently or for too long. • The temperature setting for the freezer compartment is too low. • The door gasket is dirty, worn, cracked or mismatched. • The required air circulation is not guaranteed. • The ice maker is running.	• In this case, it is normal for the appliance to run longer. • Normally, it takes 8 to 12 hours for the appliance to cool down completely. • Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door. • Do not open the door too frequently. • Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable. • Clean the door gasket or replace them by the customer service. • Ensure adequate ventilation. • This is normal. The ice maker adds extra work load.
The inside of the fridge is dirty and/or smells.	• The inside of the fridge needs cleaning. • Food of strong odour is stored in the fridge.	• Clean the inside of the fridge. • Wrap the food thoroughly.
It is too cold in-side the appliance.	• The temperature is set too low. • The Super-Cool / Super-Freeze function is activated or is running too long.	• Reset the temperature. • Switch off the Super-Cool/Super-Freeze function.
It is not cold enough inside the appli- ance.	·The temperature is set too high. ·Too warm goods has been stored. ·Too much food has been stored at one time. ·The goods are too close to each other. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long.	·Reset the temperature. ·Always cool down goods before storing them. ·Always store small quantities of food. ·Leave a gap between several foods allowing air flowing. ·Close the door. ·Do not open the door too frequently.
Moisture forma- tion on the in- side of the fridge compartment.	·The climate is too warm and too damp. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long. ·Food containers or liquids are left open.	·Increase the temperature. ·Close the door. ·Do not open the door too frequently. ·Let hot foods cool to room temperature and cover food and liquids.
Moisture accumu- lates on the fridges es outside surface or between the doors.	·The climate is too warm and too damp. ·The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	·This is normal in damp climate and will change when the humidity de-creases. ·Ensure that the door is tightly shut.
Strong ice and frost in the freez- er compartment.	·The goods were not adequately packaged. ·A door/drawer of the appliance is not tightly closed. ·The door has been opened too frequently or for too long. ·The door gasket is dirty, worn, cracked or mismatched. ·Something on the inside prevents the door to close properly.	·Always pack the goods well. ·Close the door/drawer. ·Do not open the door too frequently. ·Clean the door gasket or replace them by new ones. ·Reposition the shelves, door racks, or internal containers to allow the door to close.
The door does not close properly.	·The refrigerator is not level.	·Make sure the floor is level and sturdy. Adapt adjustable feet.
The appliance makes abnormal sounds.	·The appliance is not located on level ground. ·The appliance touches some object around it.	·Adjust the feet to level the appli- ance. ·Remove objects around the appli- ance.
Water drops col- ect in the lower drawers of the fridge.	·Humidity levels are too high.	·Raise the compartment tempera- ture of the fridge.
A slight sound can be heard, similar to that of flowing water.	This is normal.	-
You hear an alarm beep.	The door is open.	Close the door.
You hear a faint hum.	The anti-condensation system is working.	This prevents condensation and is normal.
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.The light switch is blocked.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.Disconnect the power supply. Locate the light switch and move it a few times to see if this dislodges the stuck food.
The sides of the cabinet and door strip get warm.	This is normal.	-
You can get no water from the water dispenser or no ice cubes	Water tap is closed.Inlet hose is kinked.Water pressure is less than 0.15 MPa.Filter is blockedDoor is not fully closed.Cool Water/Ice Maker function is not activatedNo ice cubes in the containerIce cubes are sticking together.Freezer temperature set too high.	Check water tap.Check inlet hose.Check water pressure.Change the filter.Close the door Activate Cool Water/Ice Maker functionWait until ice cubes are supplied.Take out the lump of ice cubes, crush it, and return to ice box.Lower the freezer temperature.
	Keep in mind that it may take up to 12 hours to produce the first ice cubes.
Only small ice cubes are produced.	Filter must be changed.Water pressure is less than 0.15 MPa	Change the filterCheck water pressure
Ice dispenser is jammed.	Water has frozen to the spindle in the ice box. The spindle pushes the ice out.Ice cubes are jammed between the ice maker and the ice box.Other ice cubes were placed in the ice box.	Remove the ice box. Clean and dry the spindle. Replace the box.Remove the ice cubes between the ice maker and ice box.Only ice cubes produced by the ice maker can be dispensed.
The ice cubes smell and taste unpleasantly.	Ice Maker function is not used of-ten. Unpacked food is stored in the freezer compartment.	Ice can take the smell and odour of other substances. Discard the ice cubes.
You hear sounds like flowing water or ice cubes dropping	This is normal when ice or water function is activated	-
Water leaks out of the appliance	Water pressure is too high. Water hose is damaged.	Interrupt the power supply, close the water tab and call the Cus-tomer Service
The control pan-el shows an error code.	An electric operating problem has occurred.	Call the Customer Service.

9.2 Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

• Open the door/drawer as few times as possible.
  Do not put additional food into the appliance during a power interruption.
  If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the fridge compartment.
  An inspection of the goods is required immediately after the interruption.
  As temperature in the fridge will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Notice: Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

10.1 Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
Take the appliance out of the packaging.
Remove all packaging materials including the transparent protective film.

10.2 Environmental conditions

The room temperature should always be between 10^ and 38^ , since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, fridges) without isolation.

• Extended temperate(SN): this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ C to 32^ C ;
• Temperate(N): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C ;
• Subtropical (ST): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C ;
• Tropical(T): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C ;

10.3 Space requirement

Required space when door is opened (Fig. 10.3):

Appliance width: 158.8 cm
Appliance depth: 110.3 cm

10.4 Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed (Fig. 10.4).

Notice: For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

10.5 Fresh water connection

Follow the installation instructions below (Fig. 10.5-1 to Fig. 10.5-6).

WARNING!

It is recommended to have the appliance installed by a qualified technician.
Make sure that the mains plug is disconnected from the mains socket.
Make sure the water supply is blocked.
A shut-off valve which must be easy accessible after installation must be installed between the hose and the domestic water connection in order to be able to interrupt the water supply if necessary.
Only connect to cold water supply.
Use only the supplied hose set for the connection.

WARNING!

• Only connect to drinking water supply. The water filter only filters impurities in the water and makes ice clean and hygienic. It cannot sterilize or destroy germs or other harmful substances.
• Too high water pressure in the hose can damage the appliance. Install a pressure reducer when the water pressure in the hose exceeds 0.6MPa .
  Before connection, check whether the water is clean and clear.

Notice: Water connection

Pressure of the cold water has to be 0.15-0.6 MPa.
The maximum permitted length of water hose is 8 meter. Longer hoses will affect the ice cubes and cold water content.
Ambient temperature has to be 0^ minimum.
- Keep the water hose away from heat sources.

1. Cut the pipe into two pieces with the required length to connect the filter (A) with the appliance (B1) and the water tap (B2) (Fig. 10.5-1). Make sure to get a square cut by using a sharp knife.

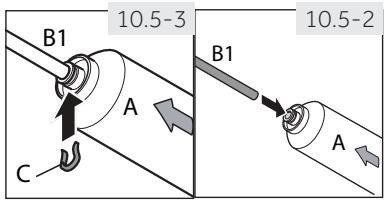

2. Insert pipe (B1) approx. 12 mm deep into the mounting fixture of the water filter (A) (Fig. 10.5-2). Take care to install the filter in the correct direction. The dart shows the direction of water flow.
3. Secure the pipe with a locking clip (C) according to Fig. 10.5-3.
4. Repeat step 2 and 3 with the pipe (B2) on the other side of the filter

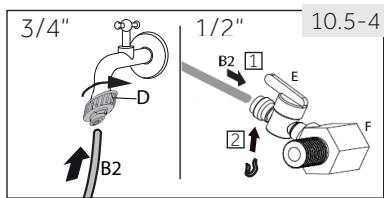

5. Connect the end of pipe (B2) to one of the adapters "D" or "E and F" which suits to the water main (Fig. 10.5-4).
6. Remove the plug in the valve at the back of appliance (Fig.10.5-5).
7. Connect the end of B1 to the valve at the back of the appliance (Fig. 10.5-6).
8. Open the water tab to check if the system is leak free and flush the pipe.

WARNING!

• Ensure that the connections are always firm, dry and leak free.
• Make sure the hose is never crushed, kinked, or twisted.

10.6 Aligning the appliance

The appliance should be placed on a flat and solid surface.

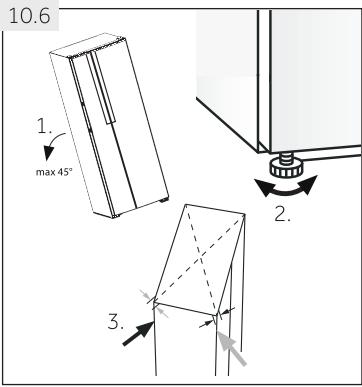

1. Tilt the appliance slightly backwards (Fig. 10.6).
2. Set the feet to the desired level.

Make sure the distance to the wall on the hinges is at least 10 cm.

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

10.7 Fine tuning of the doors

If the doors are still not in one level after levelling the doors by the feet, this mismatch can be remedied by turning the hinge lifting shaft at the right bottom corner of refrigerating door with a spanner (Fig. 10.7)

Clockwise turn lifting shaft with spanner to lower door height (Fig. 10.7-1).

Antic lock wise turn lifting shaft with spanner to lift door height (Fig. 10.7-2).

WARNING!

Do not adjust the hinge lifting shaft excessively to a height which might cause the shaft to leave its original locked position. (Adjustable height range: 3 mm)

10.8 Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours (Fig.10.8) so that the oil runs back into the capsule.

10.9 Electrical connection

Before each connection check if:

power supply, socket and fusing are appropriate to the rating plate.
the power socket is earthed and no multi-plug or extension.
the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

10.10 Removing and installing the doors

In the event that you need to remove the appliance doors, please follow the door removal and installation instructions below (Fig. 10.10).

WARNING!

Before any operation, deactivate the appliance and disconnect the mains plug from the mains socket.
Block the water supply.
The appliance is heavy. Always handle with at least two persons.
Do not tilt the appliance more than 45^ or place it horizontally on the ground
The door may fall over and hurt people, or get damaged during these steps, please pay more attention when removing and installing doors.

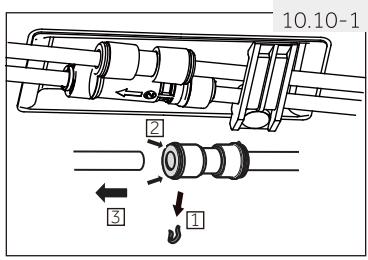

1. Release the left side of two water couplers on the front left corner at the bottom of appliance: press and hold in the collar as shown and remove the water pipe. (Fig.10.10- 1).

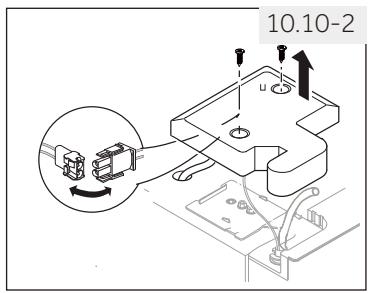

2. Undo the hinge cover screw and remove the cover (Fig. 10.10-2). When removing the freezer door, disconnect all wires except for the grounding wire.

10-Installation

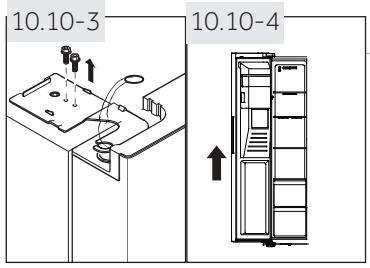

1. Undo the screws holding the upper hinge in position and then remove the hinge (Fig.10.10-3).
2. Lift the door to remove it (Fig.10.10-4). When removing the freezer door, lift it high enough to pull out the water connection from the bottom of the appliance.
3. Refit the door by reversing the removal steps. Ensure that the grounding cable will be fixed by the screw.
4. Refit the water connection.

Notice: Fridge door

The pictures show the removing of the freezer compartment door. For the fridge door please use the corresponding parts on the other side.

11.1 Product fiche according to regulation EU No. 2019/2016

Trade mark	Haier
Model identifier	HSR3918FI*/HSOBPIF9183 / HSOGPIF9183
Category of the model	Refrigerator-freezer
Energy efficiency class	F
Annual energy consumption (kWh/year) 1)	393
Volume cooling (L)	337
Volume freezing (L)	178
Star rating	* * * *
Temperature of other compartments > 14 °C	Non applicable
Frostfree system	Yes
Temperature rise time (h)	5
Freezing capacity (kg/24h)	10
Climate class This appliance is intended to be used at an ambient temperature between 10 °C and 38 °C.	SN-N-ST
Noise emission class and airborne acoustical noise emissions (db(A) re 1pW)	C(40)
Construction type	Freestanding

based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

11.2 Additional technical data

Total storage volume (L)	515
Voltage / Frequency	220-240V ~/ 50Hz
Defrosting input power (W)	200
Main fuse (A)	15
Coolant	R600a
Water pressure in MPa	0.15-0.6
Dimensions (H/W/D in mm)	1775/908/659

11.3 Standards and directives C

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

12- Custom service

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

your local dealer or
- the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model

Serial No.

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find below our addresses in Europe:

European Haier addresses
Country*	Postal address	Country*	Postal address
Italy	Haier Europe Trading SRL Via De Cristoforis, 12 21100 Verese ITALY	France	Haier France SAS 3-5 rue des Graviers 92200 Neuilly sur Seine FRANCE
Spain Portugal	Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN	Belgium-FR Belgium-NL Netherlands Luxembourg	Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM
Germany Austria	Haier Deutschland GmbH Hewlett-Packard-Str. 4 D-61352 Bad Homburg GERMANY	Poland Czechia Hungary Greece Romania Russia	Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND
United Kingdom	Haier Appliances UK Co.Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR UK

*For more information please refer to www.haier.com

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*Technical Assistance

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance

• For further information about the product, please consult: https://eprel.ec.europa.eu/

5.3 BkJIIOUBaHe/ɪzKJIIOUBaHe Ha ypeDa

YpeIbT 3aOnuBa Da pa6Otn, BeDnHa rSOM 6bDe cCBp3aH KbM 3axpaHbAHeTo. Noka3BaHInTe Tempeatypu Ca DeiCTBnTEJHInTe Tempeatypu B OTdeJeHneTo. 3akJIouvBaHeTo Ha naHeJa MoKe Da e aKTHBHO.

I3npa3Hete ypeia, npedei da ro n3KJIouHTe. 3a da n3KJIouHTe ypeia, n3BaTe 3axpaHbaun Ka6en ot KOHTaKaTa.

PpeDynpexkdeHne: PpeDbapntnHaCtpoKu

YpeIbTe hAcTpoEH npeIbapuTeJIHO ha npenopbUHTeJIHaTa TeMnepaTypa ot 5^ (xnaunHnK) n-18°C (Φpns3ep).Пи HopmaHn ycNoBna Ha OKoJHaTa cpea He e Hne6xoDmO da 3aDaBaTe TempepaTypa.
Korato ypeIbT 6bIe BKNIOueH CNEI npeKbcBAHe Ha OCHOBHOTo 3axpaHBAHe, MOKe Da oTHEme do 12 Yaca, 3a da 6bIaT DOCTINHATN IpaBnHInTe TEMnpaTyPi.

5.4 3aKJIIOUBAHe/OTKJIIOUBAHe Ha nAHeJa

IokocHeTe 6yToH, G" (3 cek 3aKJIIOUBaHe) 3a 3cekyHn, 3a da 6IOKuPate 6yToHInTe 3a HacTpoKa Ha TeMnepaTypaTa n FyHKUnTE cpeSy aKTINBupaHe.
HnIkaTOpbT g" CBeTba (m.5.4) n oCBeTJeHneTo Ha naHeJa ce n3KJIIOUba. Ako ce dOKoche 6yTOH, DOKaTo 3aKJIIOUBAHeTo Ha naHeJa e aKTINBIPAHO, IKOHaTa npIMnIRBa.
3a Da OTKIIOUHTe NaHeJa, DOKOCHTe OTHOB6yToHa 3a 3ceKyuHn.

PpeynpeXdHHe:3aKJIouBaHe Ha naHeJa

KoHTpOHNHnT NaHeI aBTOMaTHUHO ce 6JIOKInpa cpeu yakTNbnpaHe, aKO B npOJIbJIxHeHne Ha 30 cekyHn He ce dOKocBa HkaKaBb 6yToH. C n3KIIpoHeHne Ha cyHKunTa Ha nCnpeHcbpa, KOHTpOHNHnT NaHeI Tp8Ba Da 6bJe OTKnIOueH 3a BCaKaBn HacTPOIKn.

5.5 Pekim Ha RotobHOCT

EkpaHbT Ha DnCpIeA ce N3KJIIOUvBa aBtOMaTNUHO 30 cekyHn cnei DoKOCBaHe Ha 6yToH. DnCpIeT ce 3akJIIOUvBa aBtOMaTNUHO. Toi CBETBa aBtOMaTNUHO npN DoKOCBaHe Ha KOIT O da e 6yToH nIN OTbapRHe Ha eDHa OT BpATte.

5.6 Anapma 3a OTBaprHe Ha BpaTaTa

Korato Bpata e octaBeHa OTBopeHa 3a NOBue O T MInHyTa, Ie Ce BKJIouH 3ByKOBaTa aIapMa 3a OTBopeHa Bpata. AnapMaTcnpa npi 3aTbapAne Ha BpataTa. Ako BpataTe OCTaBeHa OTBopeHa 3a NOBue O 7 MInHyTu, OCBeTIeHHeTO B OTDeJIeHHeTO ABTomaTuHOC He N3KJIIOUBA.

5.7Изберетe рек imma ha pa6ota

Tp6Ba da n36peTe eINH OT cneHNHe Da HauHa 3a HacTroKa Ha ypeHa:

5.7.1 PexkM 3a aBtOMaTHUHa HacTPOKa

Ako Harnate HkaBn CneuHn N3NCKBaHn, npenOpbVbme Bn Da N3NoJ3BaTe pexIma 3a aBTOMaTHHa hactpoika. B To3n pexim ypeDbT aBTOMaTHUHO perynipa hactpoikata Ha TemnepaTypa cnopei TemnepaTypaHa OKoJIHaTa CpeDa N TemnepaTypHte npomeHn B ypeda.

1. Ako nHaHbT e 3aKJIoueH, MoKe da rO OTKnIOHTe Cdo-KocBaHe Ha 6yToH, G" (ΦnR. 5.4).
2. ДOKОСHEТе 6уTOH „E" (aBToMaTnUHa HacTpOuKa) (ФИ. 5.7.1-1)
3. Инданахет „e" CBETBa и Фуннкцията e akтураHA (ФИг.5.7.1-2).

Kato noBtopHe ropnHe CTbIkn IIN n36peTe peXIM "Holiday"/Super-Freeze"/Super-Cool", Ta3n 4yHKZnO oTHOBo MoKe da 6bJe n3KnUoyeHa.

PpeynpejdeHne: Pekim 3a aBtOMaTnHa HacTpoKa

8.5 CmHa Ha φnIITbpa

BɔdHnT ΦnIbTpIbBa Da ce CmEHa IπpIbIaIeIHo Ha BcEKn 6 Meceua, KOraTo HnDnKaTOpbT ,CmHa Ha ΦnIbTa" (c) CBtHe (ΦnR. 5.13).

KoMnIeKtBtФuIITpn MoKe da 6bJe npBuaH Upe3 OTeJ OBCJyXBAHE HA KJIneHTN.

PNEyIpeKJdHHe!

Ppei Da CMeHnte fIHTbpa, N3KJIIOUeTe Upea N 13BaIeTe IeIeCeNa OT KOHTaKaTa
V3KJIIOUeTe BOIOCha6IBAHeTo.

1. OtctpaHete (1) 3aknIOuBaIaTa cko6a (C) ot DBeTe CtpaHn Ha fuiNTbpa (A) n pa3kaueTe IBeTe Tpb6n (2) (fir.8.5-1).
2. NocTaBete HOBnIITbP B I npaBnIHHaT a N03nIy; CTpeJIkata NOKa3Ba NOCOKaTa Ha BOHnI NOTOK. NOBtOpTe CtbNka 1 B o6paTeH peI.
3. BkIIOUeTe ⅢeNceJa B KOHTaKTa N OTBopeTe KaNaJeTO 3a BOJa, 3a Na I3PnlaKHeTe MapkyuHte.
4. HynipaIte INHnKaTopa ,CmHa Ha nIITbpa". DOKoCHe 6yToH ,C"(HynpaHe Ha nIITbpa) 3a 3 cekyn, INHnKaTOp ,c" n3racBa (fnr. 8.5-2).

IPEyIPEKDEHNE!

BnHaIcyeBepaTe,Ye Bp3KaTa e 3dpaBa,Cyxa Hma TeOBe!
BnIMaBaIe MapkybT HNKora Da He ce cMaayKba, npereBa nIyucKaBa.

8.6 Hen3non3BaHe 3a IbIbI nepnooT BpeMe

Ako ypeIbT He ce n3noJIb3Ba 3a npOdbJIkHTeJIeH nepIOd OT BpeMe I He NcKaTe Da n3noJIb3BaTeФyHKUraTa 3a ,Holiday" 3a xnaDnHnka:

13KIOUeTe BOOChA6IbAHeTo (HAKOIKO yaca npedn da n3KIOHHTe ypeda).
13BaTe XpaHaTa.
13npa3Hete INoOHCTe KOHTeHepa 3a JeI.
13KnOyTe 3aXpaHbAunKa6eJ.
IouncTe Te ypeDa, KaKTo e oNcHaNo no-rope.
OcTaBete BpaTnte OTbopeHn, 3a da ce npeIoTbpaTn pa3BntneTo Ha HEnpNraTHMmPn3-MN BbTpe.
OcnIpyeTe HOB cnITbP 3a noCTaBnHe npeDn cIeDbAuaTa ynoTpe6a.

PpeynpexdHne: N3KIOUbaHe

I3KJIIOUeTe ypeDa cAmO aKO e a6c0JIIOTHo Heo6XoJIMo.

• = MP, MX, PG, PH, PB, PW

• = MP, MX, PG, PH, PB, PW

5.9 Fonction Super-Freeze (super surgélation)

*Assistance technique

• = MP, MX, PG, PH, PB, PW

• = MP, MX, PG, PH, PB, PW

Consuma rápidamente los alimentos descongelados. Los alimentos descongelados noSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEQ
