Important safety instructions. Before operating this oven, please read these instructions and precautions carefully and keep for future reference. „„ Warning! The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer. „„ Warning! Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be carried by a qualified service person. „„ Warning! Liquids and other foods must not be heated in sealed containers since they are liable to explode. „„ Warning! When heating liquids, e.g. soup, sauces and beverages in your oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. „„

Warning! The contents of feeding bottles and baby food jars are to be stirred or shaken. The temperature has to be checked before consumption to avoid burns. „„ Warning! The appliance shall be disconnected from its power source during service and when replacing parts. Following the removal of the supply plug, the plug should remain visible to the service operator to ensure that inadvertent reconnection is avoided. „„ Warning! Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. „„ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years. „„

When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker. „„ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. „„ Do not place this oven near an electric or gas cooker range. „„ This oven is intended for counter-top use only. It is not intended for Built-in use or for use inside a cupboard. „„ Oven must be placed on a flat, stable surface 85 cm above the floor, with rear of oven placed against a back wall. If one side of the oven is placed flush to a wall, the other side or top must not be blocked. Allow 15 cm of space on the top of the oven. „„ When heating food in plastic or paper containers, keep an eye on the oven as these types of containers ignite if overheated. „„ If smoke is emitted or a fire occurs in the oven, turn Time select dial to zero position and keep the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at fuse or circuit breaker panel. „„

This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential environments; - bed and breakfast type environments. „„ Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended. „„ Clean the inside of the oven, door seals and door seal areas regularly. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended. „„ DO NOT USE COMMERCIAL OVEN CLEANERS. „„ Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation. „„ A steam cleaner is not to be used for cleaning. „„

Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. „„ This appliance is not intended to be operated by means of an external timer or separate remote-control system. „„ Only use utensils that are suitable for use in microwave ovens. „„ The microwave oven is intended for heating food and beverages only. Take care when heating foods low in moisture, e.g. bread items, chocolate, biscuits and pastries. These can easily burn, dry out or catch on fire if cooked too long. We do not recommend heating foods low in moisture such as popcorn or poppodums. Drying of food, newspapers or clothing and heating of warming pads, slippers, sponges, damp cloth, wheat bags, hot water bottles and similar may lead to risk of injury, ignition or fire. „„ The oven lamp must be replaced by a service technician trained by the manufacturer. DO NOT attempt to remove the outer casing from the oven. „„ Metal containers or dishes with metallic trim should not be used during microwave cooking. Sparking will occur. „„

Thank you for purchasing a Panasonic appliance. Panasonic Corporation Osaka, Japan Imported by: Panasonic Marketing Europe GmbH Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

Examine your microwave oven

If your AC outlet is not earthed, it is the personal responsibility of the customer to have it replaced with a properly earthed wall socket.

Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven.

Installation and connection

The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages.

Earthing instructions „„Important!

THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY.

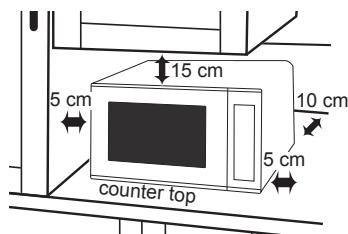

Placement of your oven This oven is intended for counter-top use only. It is not intended for built-in use or for use inside a cupboard. 1. Place the oven on a flat and stable surface more than 85 cm above the floor. 2. For proper operation, ensure a sufficient air circulation for the oven.

Allow 15 cm of space on the top of the oven, 10 cm at the back and 5 cm on both sides.

If one side of the oven is placed flush to a wall, the other side or top must not be blocked. 3. When this oven is installed, it should be easy to isolate the

appliance from the electricity supply by pulling out the plug or operating a circuit breaker. Do not place this oven near an electric or gas cooker range. The power cord should not touch the outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water. The feet should not be removed. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential environments; - bed and breakfast type environments. Do not use outdoors.

Placement of your oven 8. Avoid using the oven in high humidity. 9. Do not block the air vents on left side and back of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.

10. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Important safety instructions 4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. 5. Liquids and other foods must not be heated in sealed containers since they are liable to explode. 6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.

1. The door seals and seal areas should be cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer. 2. Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be carried out by a qualified service person. 3. Do not operate this appliance if it has a damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.

not use the oven for any reason other than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products. QQ Before use, check that utensils/ containers are suitable for use in microwave ovens. QQ When the oven is not being used, do not store any objects inside the oven in case it is accidentally turned on. QQ The appliance must not be operated WITHOUT FOOD IN THE OVEN. Operation in this manner may damage the appliance. QQ If smoke is emitted or a fire occurs in the oven, turn Time select dial to zero position and keep the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at fuse or circuit breaker panel.

oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories.

Glass tray not operate the oven without the roller ring and the glass tray in place. QQ Never use another type of glass tray than the one specially designed for this oven. QQ If the glass tray is hot, let it cool before cleaning or placing in water. QQ The glass tray can turn in either direction. QQ If the food or cooking vessel on the glass tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal. QQ Do not cook foods directly on the glass tray. QQ Do

Roller ring roller ring and the oven floor should be cleaned frequently to prevent noise and build-up of remaining food. QQ The roller ring must always be used for cooking together with the glass tray. QQ The

using the oven the fan motor may rotate for a few minutes to cool the electric components. This is normal and you can take out food even though the fan motor operates. You can continue using the oven during this time.

it becomes necessary to replace the oven light, please consult your dealer.

Important safety instructions Cooking time

Foods low in moisture

cooking time depends on the condition, temperature, amount of food and on the type of cookware. QQ Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer.

microwave oven is intended for heating food and beverages only. Take care when heating foods low in moisture, e.g. bread items, chocolate, biscuits and pastries. These can easily burn, dry out or catch on fire if cooked too long. We do not recommend heating foods low in moisture such as popcorn or poppodums. Drying of food, newspapers or clothing and heating of warming pads, slippers, sponges, damp cloth, wheat bags, hot water bottles and similar may lead to risk of injury, ignition or fire.

If the recommended cooking time is exceeded, the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

Small quantities of foods

quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer in the microwave oven because it may cause sparking.

heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken: a Avoid using straight-sided containers with narrow necks. b Do not overheat. c Stir the liquid before placing the container in the oven and again halfway through the cooking time. d After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

not heat any closed cans or bottles because they might explode. QQ Metal containers or dishes with metallic trim should not be used during microwave cooking. Sparking will occur. QQ If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking.

Feeding bottles/baby food jars

top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven. QQ The contents of feeding bottles and baby food jars are to be stirred or shaken. QQ The temperature has to be checked before consumption to avoid burns.

heating food in plastic or paper containers, keep an eye on the oven as these types of containers ignite if overheated. QQ Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use. QQ Remove wire twist-ties from roasting bags before placing the bags in the oven.

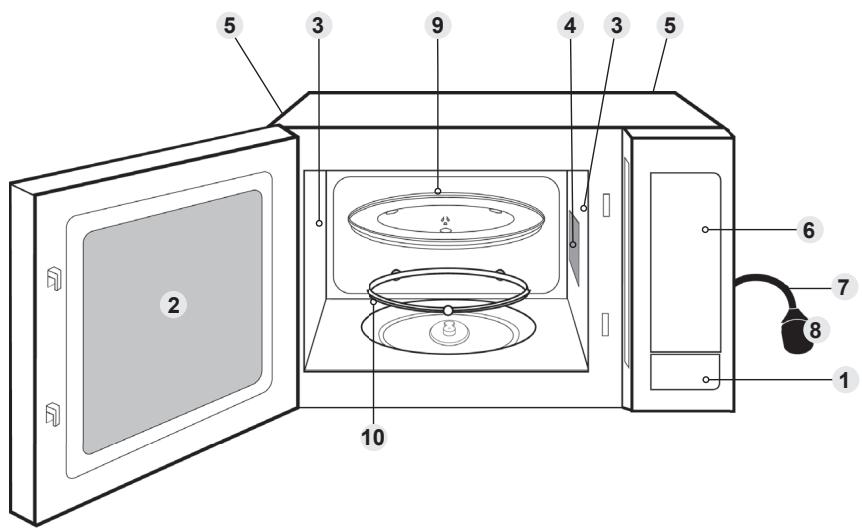

1. Door Release Button Press to open the door. Opening the door during cooking will stop the cooking process without cancelling the programme. Cooking resumes as soon as the door is closed. It is quite safe to open the door at any time during a cooking programme and there is no risk of microwave exposure. 2. Oven window 3. Air vents

Identification label is attached on the oven.

This illustration is for reference only.

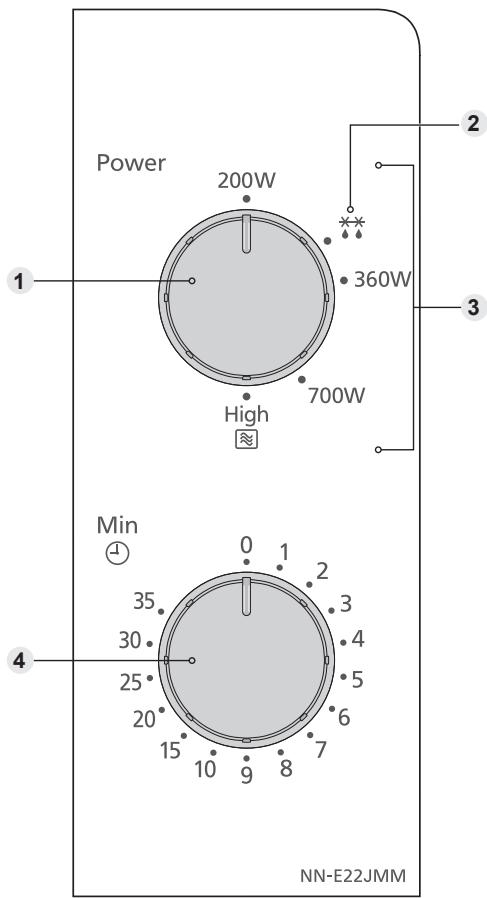

Microwave/Defrost select dial Defrost power Microwave power Time select dial

• Your control panel may have differences in appearance, but the words and functionality will be the same.

Microwave cooking and defrosting The glass tray must always be in position when using the oven.

Turn the dial to select the desired power level.

Power Level High Medium Low Defrost Warm

Turn the dial to set the cooking time. For short cooking time, turn the dial past 2 minutes and then adjust to the time required.

Microwave 800 W 700 W 360 W 270 W 200 W

1. If the door is already closed, the oven will start cooking/defrosting immediately. 2. If you wish to check the food during cooking simply open the door. The oven will automatically stop cooking. To continue cooking, close the door. 3. To stop cooking, turn Time select dial to zero position. Cooking time can be reset at any time during the cooking cycle by turning the dial. 4. When food is removed from the oven after cooking is complete, check the Time select dial is in the zero position. 5. Around half of defrosting time, turn over the food, remove the defrosted part/ food, or shield thin ends/fat/bones of roast with foil. Refer to Defrosting guidelines on page 15.

Defrosting Guidelines Standing times

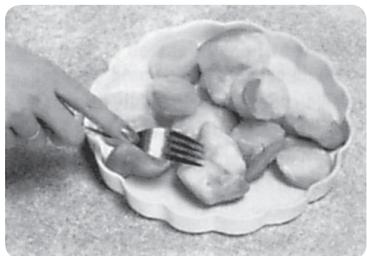

Minced meat or cubes of meat and seafood

Individual portions of food may be cooked almost immediately after defrosting. It is normal for large portions of food to be frozen in the centre. Before cooking, allow to stand for a minimum of one hour. During this standing time, the temperature becomes evenly distributed and the food is defrosted by conduction. N.B. If the food is not going to be cooked immediately, store it in the refrigerator. Never refreeze defrosted food without first cooking it.

Since the outside of these foods quickly defrosts, it is necessary to separate them, break the blocks into pieces frequently while defrosting and remove them when they have defrosted.

Small portions of food

Chops and chicken pieces must be separated as soon as possible so that they defrost evenly throughout. Fatty parts and the ends defrost more quickly. Place them near the centre of the turntable or protect them.

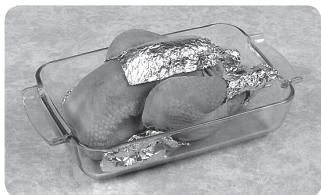

It is preferable to place the joints on an upturned plate or plastic rack so that they are not resting in the juices. It is essential to protect delicate or projecting parts of this food with small pieces of foil to prevent these parts from cooking. It is not dangerous to use small pieces of foil in your oven, provided they do not come into contact with the oven walls.

Loaves will require standing time to allow the centre to thaw. Standing time can be shortened if slices are separated and rolls and loaves cut in half.

Questions and answers Q: Sometimes warm air comes from the oven vents. Why? A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking.

Q: Why won’t my oven turn on? A: When the oven does not turn on, check the following: 1. Is the oven plugged in securely? Remove the plug from the outlet, wait 10 seconds and reinsert. 2. Check the circuit breaker and the fuse. Reset the circuit breaker or replace the fuse if it is tripped or blown. 3. If the circuit breaker or fuse is all right, plug another appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorised Service Centre. Q: My oven causes interference with my TV. Is this normal? A: Some radio and TV interference might occur when you cook with the oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

1. The oven should be unplugged before cleaning. 2. Clean the inside of the oven, door seals and door seal areas regularly. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended. Avoid cleaning the microwave feed guide area situated on the right hand side of the cavity wall. DO NOT USE COMMERCIAL OVEN CLEANERS.

8. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

3. Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering the glass.

9. A steam cleaner is not to be used for cleaning. 10. This oven should only be serviced by qualified personnel. For maintenance and repair of the oven contact the nearest authorised dealer.

4. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

11. Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation.

5. If the Control Panel becomes dirty, clean it with a soft cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel leave the oven door open to prevent the oven from accidentally turning on. After cleaning make sure Time select dial is set to zero position.

12. Keep air vents clean at all times. Check that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

Specifications For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.

Power Source: 230 V, 50 Hz Power Consumption: Maximum; 1250 W Output: 800 W (IEC-60705) Outside Dimensions: 443 mm (W) x 330 mm (D) x 258 mm (H) Oven Cavity Dimensions: 306 mm (W) x 308 mm (D) x 214 mm (H) Overall Cavity Volume: 20 L Glass Tray Diameter: 255 mm Operating Frequency: 2450 MHz Net Weight: 11 kg Noise:

LWA 63 dB Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Weight and Dimensions shown are approximate. Specifications subject to change without notice.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

This product is an equipment that fulfils the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for purpose of warming or cooking food. Class B means that this product may be used in normal household areas.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.
