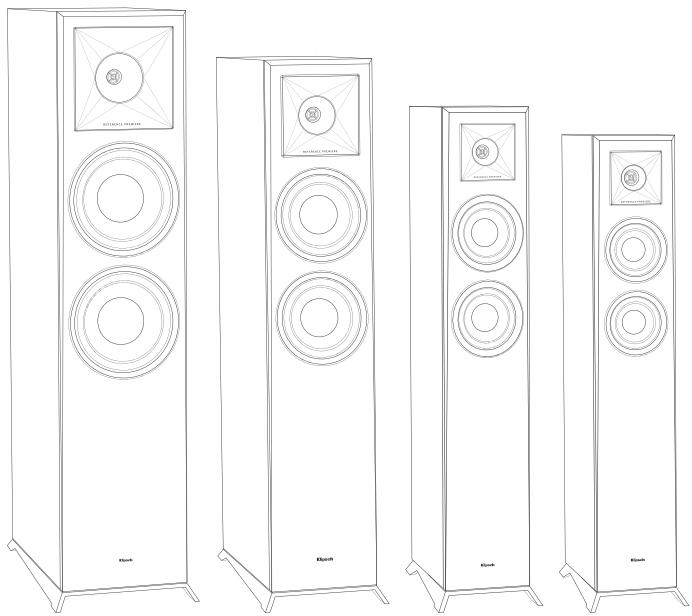

REFERENCE PREMIERE SPEAKERS

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

BEFORE YOU START

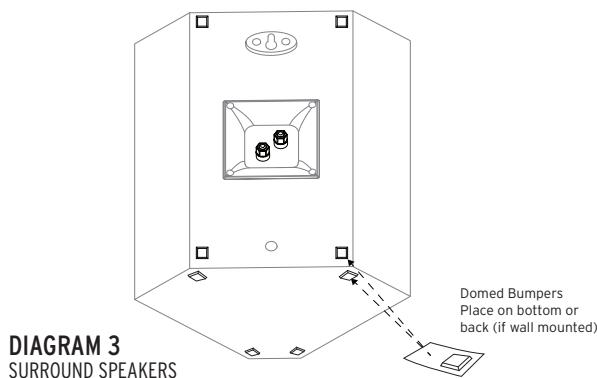

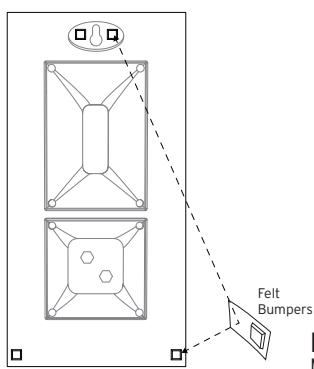

Some Klipsch® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

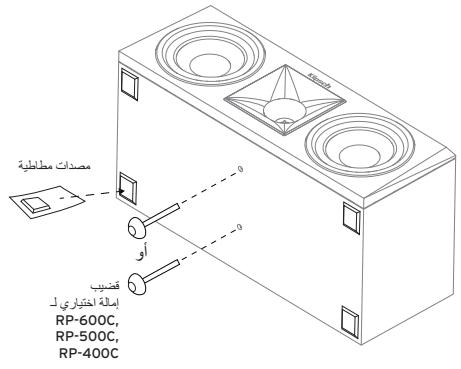

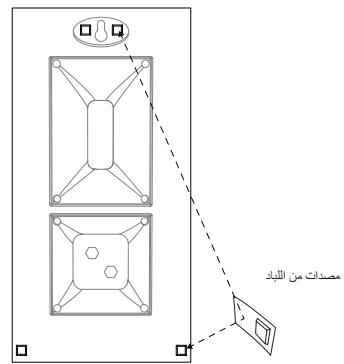

DIAGRAM 1 MONITOR WALL MOUNT

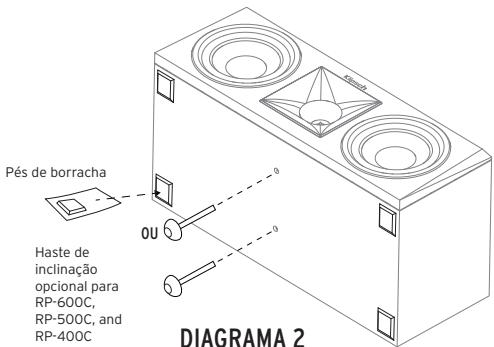

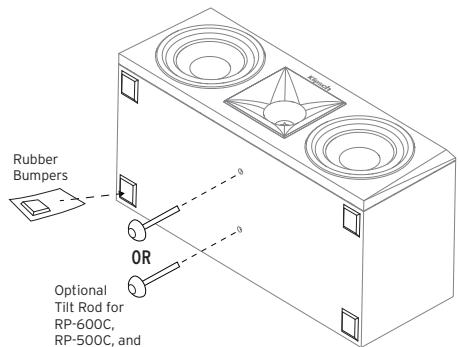

DIAGRAM 2 CENTER CHANNELS

ROOM PLACEMENT

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m ) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

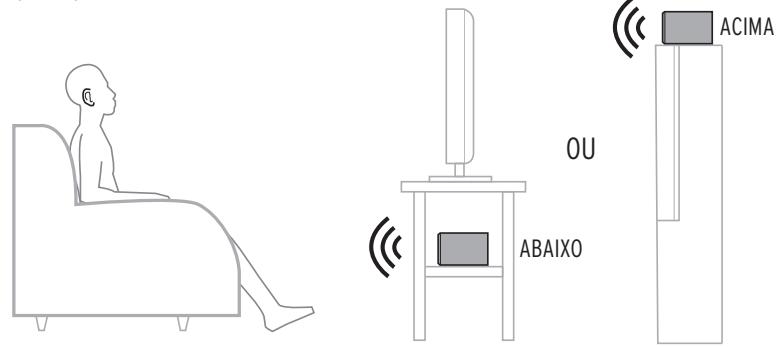

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

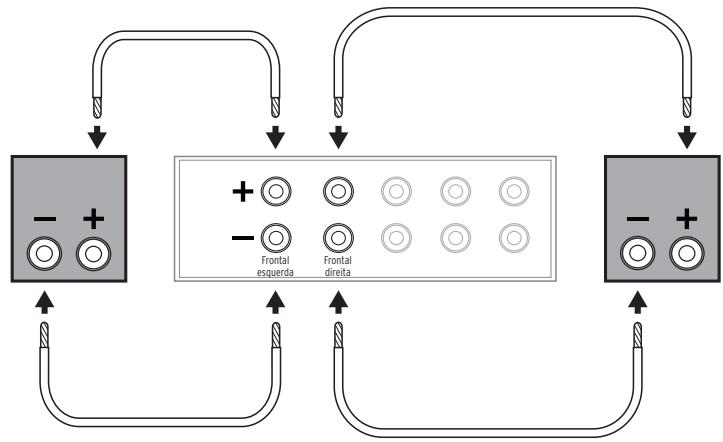

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED “positive” (+) terminal of the LEFT speaker to the RED “positive” (+) terminal of your amplifier's LEFT channel. Connect the BLACK “negative” (-) terminal of the LEFT speaker to the BLACK “negative” (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Reference Premiere models RP-8060FA, RP-8000F, RP-6000F, RP-5000F, RP-4000F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements - Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

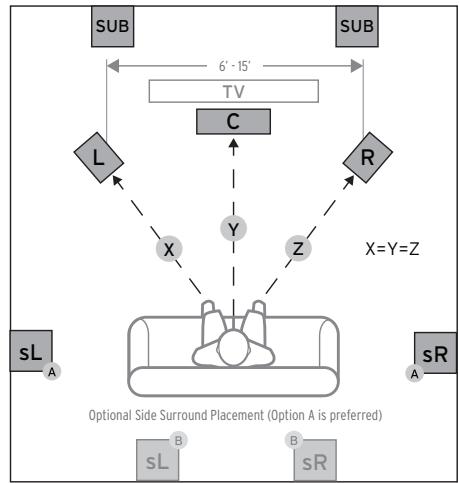

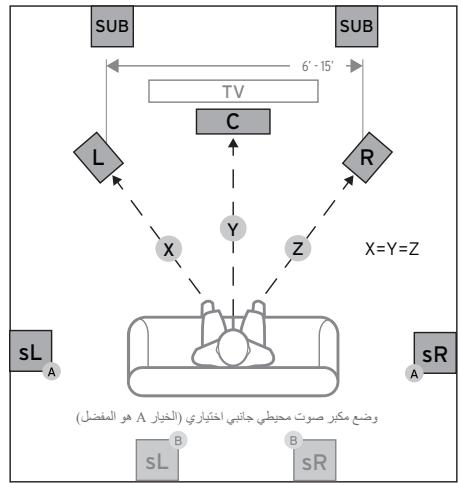

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 2 CENTER CHANNEL

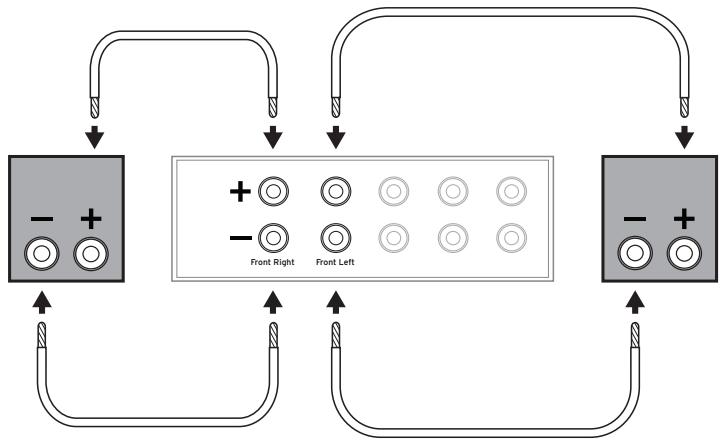

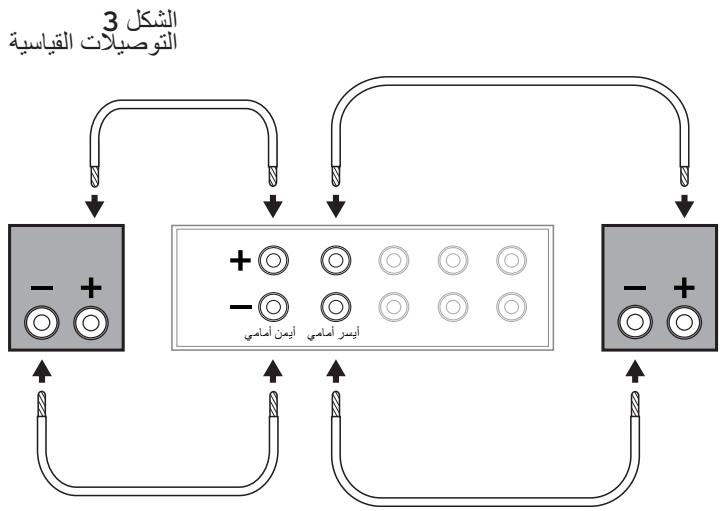

FIGURE 3 STANDARD CONNECTIONS

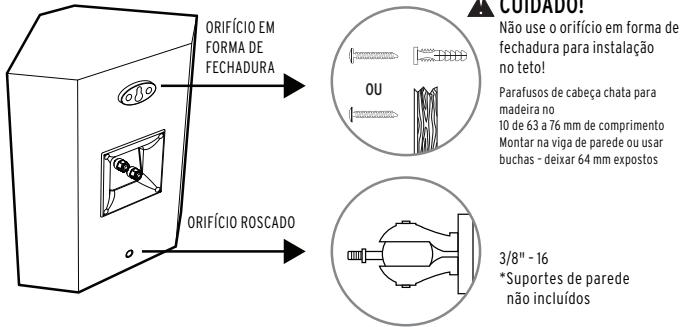

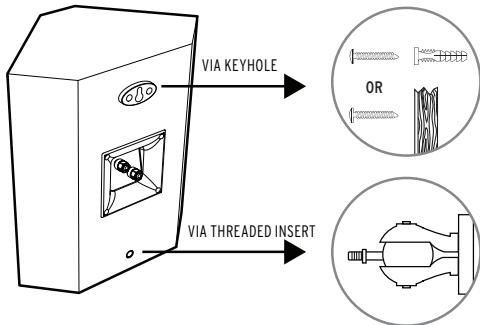

FIGURE4 WALL MOUNTING

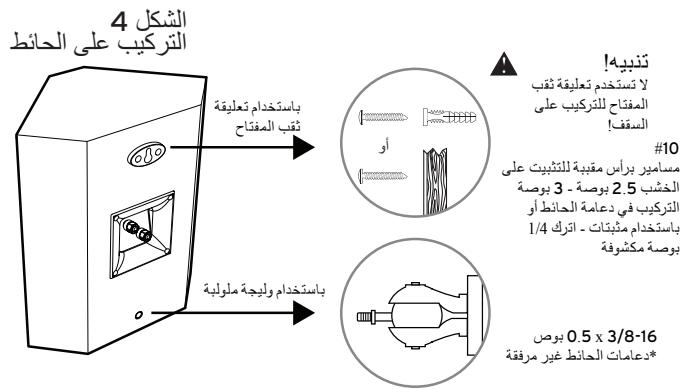

CAUTION! Do not use keyhole for ceiling mounting! #10 2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1 / 4'' exposed

3/8 - 16 × 0.5 *Wall brackets not included

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

RP-8060FA

RP-500SA

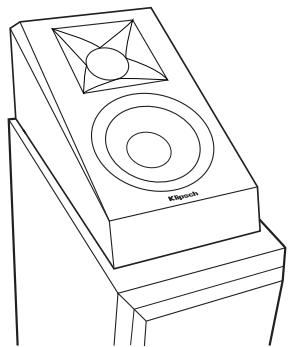

The RP-500SA can be added to any passive loudspeaker setup.

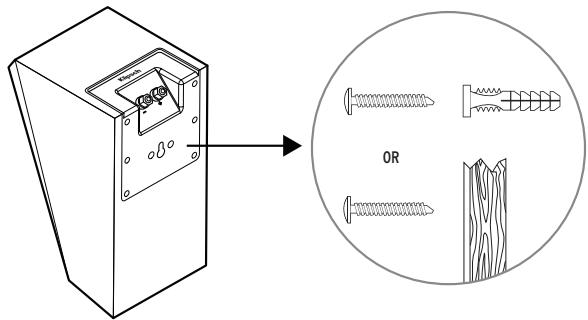

WALL MOUNTING

CAUTION!

Do not use keyhole for ceiling mounting

10

2.5^ - 3^ panhead wood screws

Mount in wall stud or use anchors -

leave 1 / 4'' exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Klipsch, Keepers of the Sound

FRANÇAIS

ENCEINTES REFERENCE PREMIERE

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

AVANT DE COMMENCER

We are the Keepers of the Sound.

REFERENCE PREMIERE-LAUTSPRECHER

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

ERSTE SCHRITTE

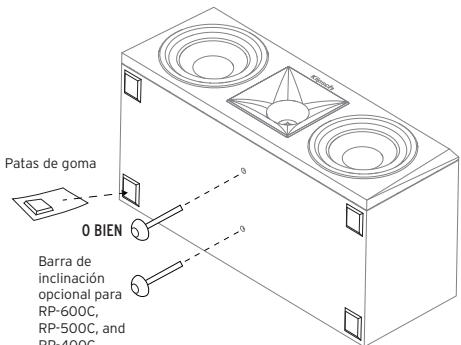

DIAGRAMA 2 CANAL CENTRAL

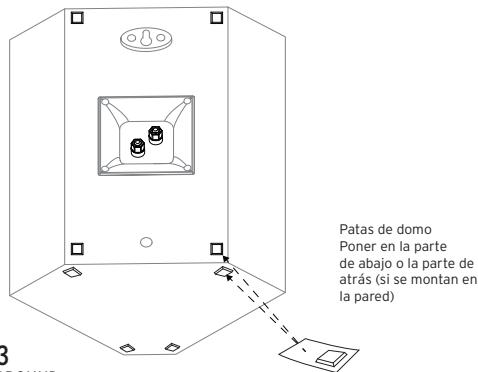

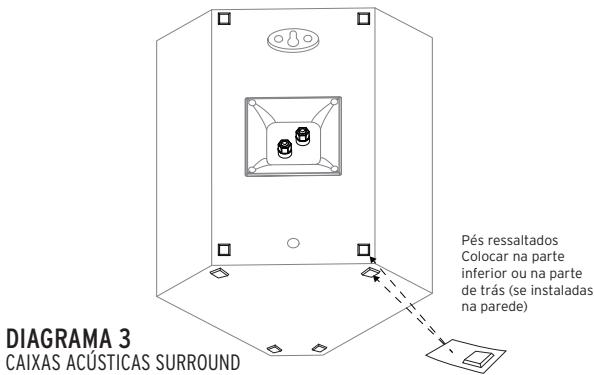

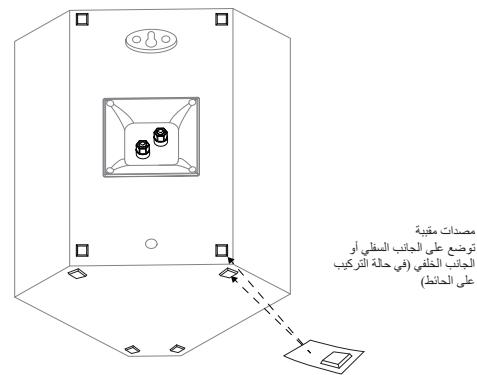

DIAGRAMA 3 ALTAVOCES SURROUND
