GSP545NSYZ - Fridge LG - Free user manual and instructions

Brand	LG
Model	GSP545NSYZ
Product type	Refrigerator-freezer
Refrigerant	R600a (isobutane)
Refrigerant quantity	Less than 3 kg CO₂ equivalent
Required water pressure (ice maker)	147 ~ 834 kPa (1.5 ~ 8.5 kgf/cm²)
Power supply	220-240 V, 50 Hz
Main functions	Automatic ice maker, water dispenser, two-star compartment, vacation mode, smart diagnosis
Cleaning	Warm soapy solution or baking soda; do not spray water directly
Maintenance	Manual defrosting, do not use mechanical devices
Safety	Mandatory grounding, do not use extension cord, do not touch cold surfaces with wet hands
Spare parts and repairability	Contact LG customer service, do not disassemble yourself
Minimum ambient temperature	5 °C
Room size requirement	1 m² per 8 g of R600a refrigerant
Manual	Available as PDF on notice-facile.com

Frequently Asked Questions - GSP545NSYZ LG

How to install the water supply for the ice maker?

Connect the water supply hose only to a potable water source. Pressure should be between 147 and 834 kPa (1.5-8.5 kgf/cm²). The hose length should not exceed 6.5 m. Contact a qualified plumber if necessary.

What to do in case of a power outage?

Most power outages of less than two hours are harmless. Avoid opening the door frequently. If the outage lasts longer, check the food.

How to clean the refrigerator?

Use a warm soapy solution or mild detergent. Rinse and dry. For stubborn stains, use a baking soda solution. Never spray water directly inside or on the display.

Why does the outer wall of the refrigerator heat up?

This is normal, especially after installation. The defrosting pipe circulates hot air to prevent condensation. Do not worry.

How to use the smart diagnosis?

Call LG customer service. Upon their request, hold the microphone of your phone in front of the speaker on the right hinge, then press the freezer temperature button for 3 seconds until you hear three beeps.

What to do if the ice is discolored?

Immediately stop using the dispenser and contact LG customer service.

How to adjust the freezer temperature?

Use the freezer temperature control button. For quick freezing, activate the 'Express Frz' mode several hours before adding fresh food.

Can I use an extension cord?

No. Never use an extension cord. Plug the refrigerator directly into an accessible power outlet. An extension cord may cause a fire or electrocution.

How to dispose of the old refrigerator?

Remove the doors to prevent a child from getting trapped. Do not dispose of the appliance with household waste. Contact your local municipality or an approved collection point.

What to do if the appliance makes a suspicious noise or smells like burning?

Immediately unplug the refrigerator and contact LG customer service. Do not attempt to repair it yourself.

USER MANUAL GSP545NSYZ LG

Please read this owner's manual thoroughly before operating and keep it handy for reference at all times.

Important

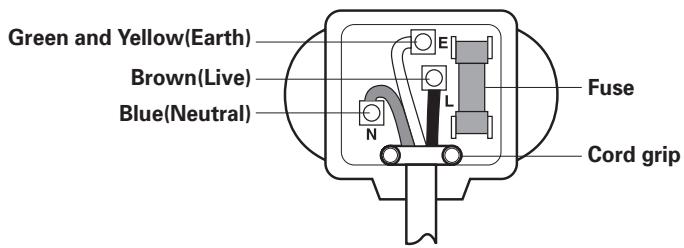

(In the UK Only)

The wires in this mains lead are coloured in accordance with the following code:

GREEN AND YELLOW : EARTH

BLUE:NEUTRAL

BROWN: LIVE

This appliance must be earthed.

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol (1) or coloured Green or Green and Yellow.

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362 fuse.

Table of contents

Entry 3

Important safety instructions 3

Identification of parts 6

Where to Install

Feed water pipe installation 8

Auto ice maker 8

Freezer Compartment (Applicable to some models only) 9

Two stars section (Applicable to some models only) 10

General information 10

Suggestion for energy saving 11

Cleaning 11

Smart Diagnosis 12

Disposal of your old appliance 13

ADDITIONAL INFORMATION OF THE MANUAL

Viewing the owner's manual.

The owner's manual in a PDF file format is supplied on a CD. Install the Adobe Acrobat Reader to view the owner's manual on your PC.

1. Insert the supplied CD.
   The web page appears automatically.
2. Click Owner's Manual on the web page.
3. View the owner's manual.

If the web page does not appear automatically, access My computer and then click LG and index.htm to view the owner's manual.

Entry

The model and serial numbers are found on the inner case on the back or one side of the refrigerator compartment of this unit. These numbers are unique to this unit and are not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of purchase	:
Dealer purchased from	:
Dealer address	:
Dealer phone no.	:
Model no.	:
Serial no.	:

WARNING

Important safety instructions

Before it is used, this refrigerator must be properly installed and located in accordance with the installation instructions in this document. This Refrigerator is intended for Domestic indoor use only.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.

When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way.

After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces.

Unplug the power cord from the power outlet for cleaning or other maintenance. Never touch the appliance with wet hands as you may receive an electric shock or injure yourself.

Never damage, press, severely bend, pull or twist the power cord as damage to the cord may cause a fire or electric shock. Naver touch the cord if you are uncertain if the appliance is correctly earthed.

The fuse on the refrigerator must be changed by a qualified technician or service company.

• Failing to do so may result in electric shock or personal injury.

Never place glass items in the freezer as they may break due to expansion of their contents on freezing.

Never put your hands into the storage bin of the automatic ice maker as you could be injured during its operation.

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Never allow anyone to climb, sit, stand or hang on the refreshment centre door. These actions may damage the refrigerator and even tip it over, causing severe personal injury.

Don't use an extension cord

Accessibility of Supply Plug

Supply Cord Replacement !WARNING

Child entrapment

WARNING

It is advised that this appliance should be connected through an independent power socket to prevent it and other appliances from overloading the circuit and causing a power outage.

The appliance should be positioned so that the supply plug is easily accessible for quick disconnection should an accident occur.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not modify or extend the Power Cord length. It may cause electric shock or fire.

Connect the power plug in proper position with the cord hanging down.

• If you connect the power plug upside down, wire can get cut off and cause fire or electric shock.

Make sure that the power plug is not squashed or damaged by the back of the refrigerator.

DANGER: Risk of child entrapment.

Before you dispose of your old refrigerator please remove doors but leave the shelves in place so that children cannot climb inside.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not store or use gasoline or other flammable vapour and liquids in the vicinity of this or any other appliance.

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock this appliance must be earthed. Improper connection of the earthing plug can cause electric shock. Consult a qualified electrician or service engineer if the earthing instructions are not completely understood, or if you have doubts as to whether the appliance is properly earthed.

Do not move refrigerator while the refrigerator is operating.

Compressor may occur a temporary rattling noise.

(This is normal and will not impact on the performance or the life of the compressor.

The rattling will stop after the refrigerator comes to a rest.)

WARNING

• Keep ventilation openings in the room where the appliance is installed clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Disposal procedures. If disposing of this appliance, please consult with a service agent or a similarly qualified person for more details.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not use aerosols near the refrigerator.
• Aerosols used near the refrigerator may cause an explosion or fire.

This appliance may contain (Check the rating/compliance label for the refrigerant type and amount. Applicable to some models only) a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squiring out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m^2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the Identification plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

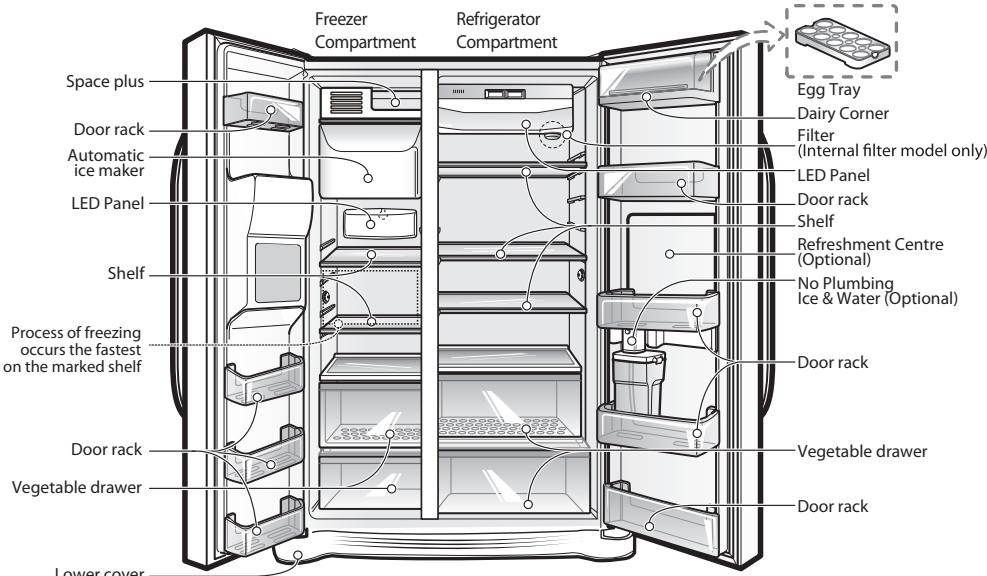

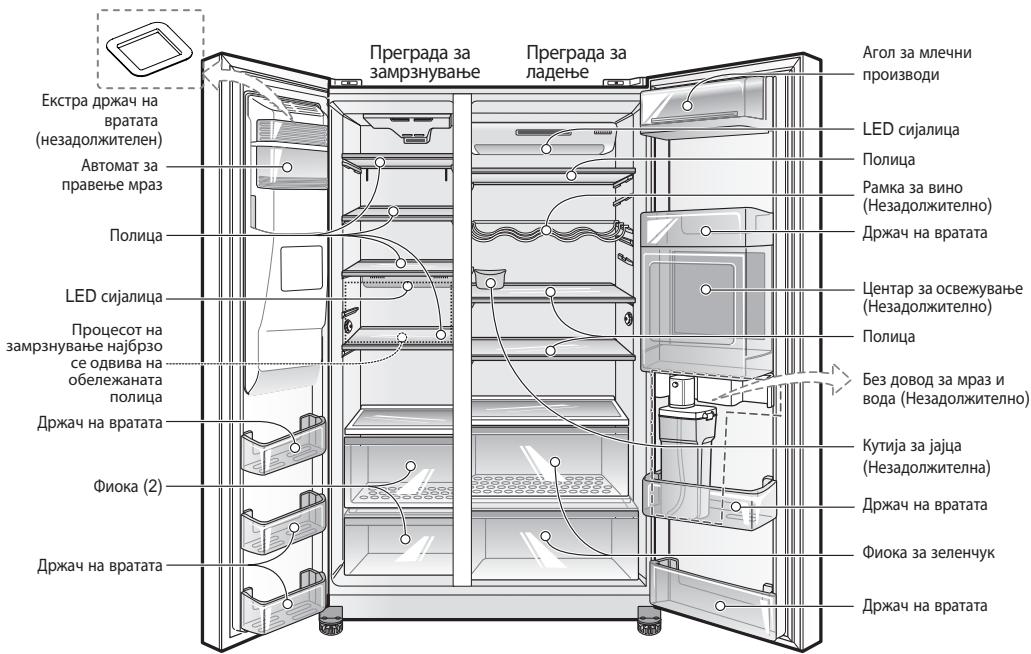

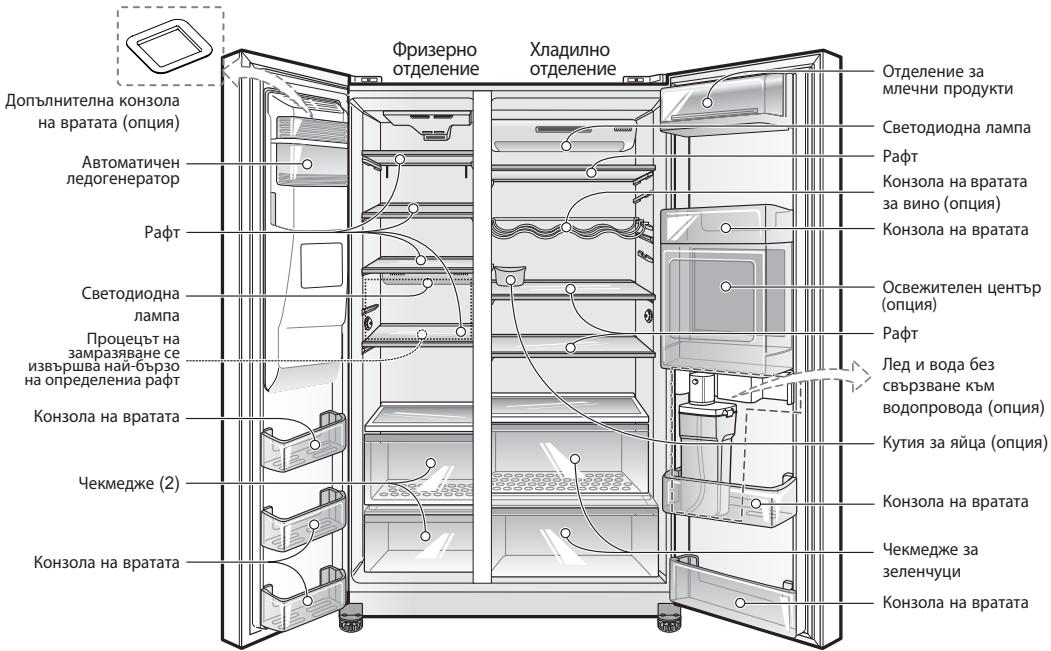

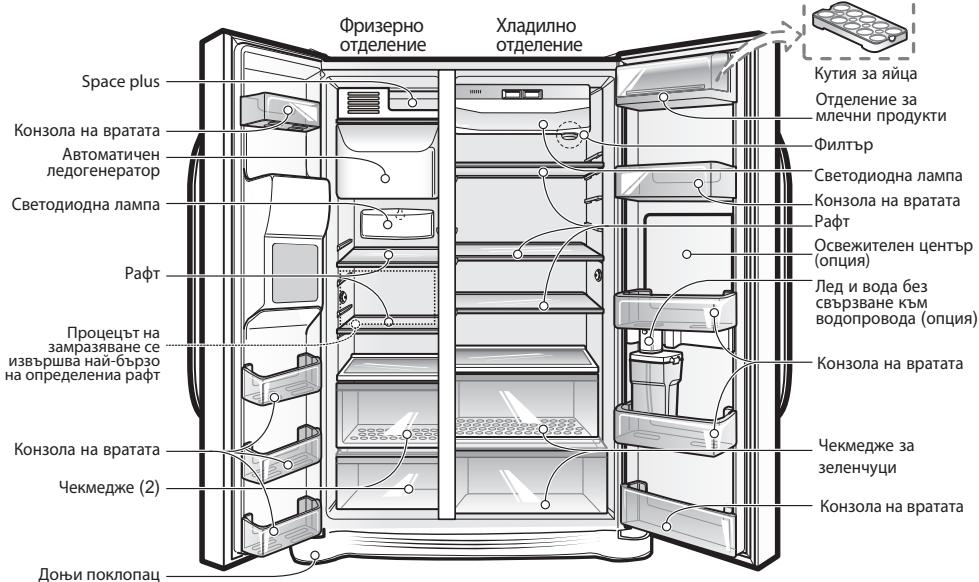

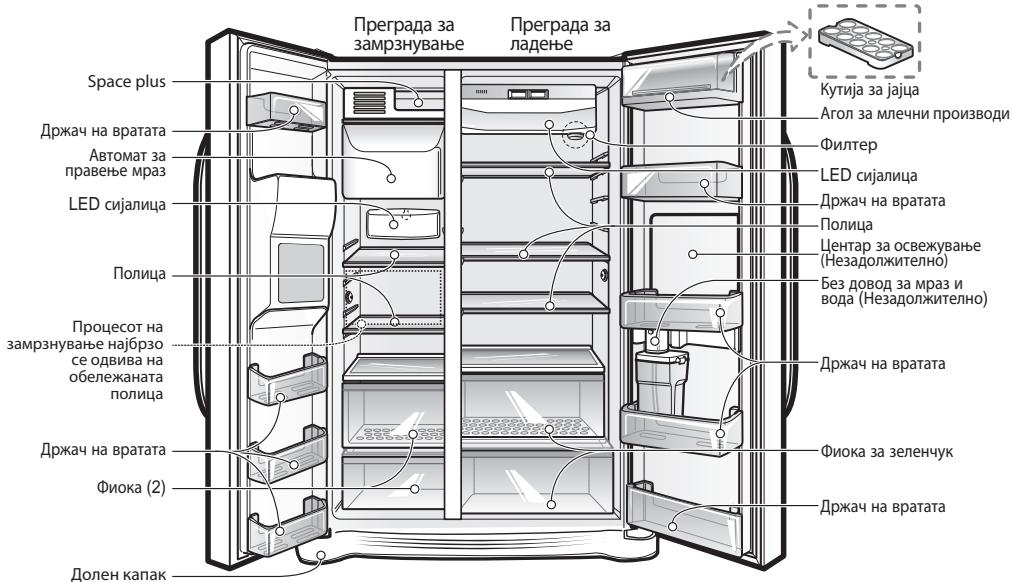

Identification of parts

ENGLISH

Model: GSL32*, GSP32, GWL27, GWP27*

NOTE

Parts, features, and options vary by model. Your model may not include every option.

Installation
ENGLISH	Select a good location	Where to Install 1. Place your appliance where it is easy to use. 2. Avoid placing the unit near heat sources, di-rect sunlight or moisture. Do not operate the appliance outdoors where it can be exposed directly, or indirectly to sun, wind and rain. 3. To ensure proper air circulation around the fridge-fteezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall. 4. To avoid vibrations, the appliance must be levelled. 5. Do not install the appliance in temperatures of less than 5°C as the performance may be affected.
	Appliance usage range	This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.
	Before Installation WARNING	The appliance must be positioned so that the plug is accessible after installation. Never use gas pipes, telephone lines or other potential lightening rods as ground. - Improper use of the ground plug can result in electric shock. If the appliance generates a strange noise, a burning or smell or smoke, unplug the power plug immediately and contact your nearest service center. If any dust or water is in refrigerator, pull out power plug and contact your LG Electronics service center. - There is a risk of fire. The water supply to this refrigerator must only be installed/connected by a suitably qualified person and connect to a potable water supply only. Use only the ice maker provided with the refrigerator. When installing, servicing or cleaning behind the refrigerator, be sure to pull the unit straight out and push back in straight after finishing. After unpacking, keep the packing materials out of reach of children. - There is a risk of death from suffocation if children put them over their head.
	Disposal of the old appliance	This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable. All the packaging materials should be sent to the collection centre for recycling. For details of your local recycling centre, please contact your local council. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.

Feed water pipe installation

Before Installation

Automatic ice maker operation needs water pressure of 147 834kPa (1.5 8.5kgf/ cm²) (The pressure is correct when an instant paper cup (180 cc) is in 3 sec.).
If water pressure does not reach the rating 147kPa (1.5kgf/cm^2) or below, it is necessary to purchase a separate pressure pump for normal automatic icing and cool water feed.
- Keep the total length of the feed water pipe tube within 8m and be careful that the tube does not bend. If the tube is 8m or longer it may cause water feed problems owing to the drain water pressure.
Install the feed water pipe tube at a place free from heat.
- Connect to drinking water supply only.

WARNING

• Connect to potable water supply only. (for Plumbing Type)
• Fill with potable water only. (for Non-Plumbing Type)

Refer to instructions with water filter kit for installation.
- Be careful that the water tube match same colour.
- Before being used, the leakage in these places should be examined.
- LG Warranty does not cover WATER LINE INSTALLATION.
- The cost of connection to a water supply is at the customer expense, unless included in the delivery charge (refer to the delivery agreement with the seller)
- Please contact Plumber or authorised Installer for the installation if needed.
- If Water leakage occurs due to improper installation, Please contact installer.

Auto Ice maker

Precautions when using the dispenser (on some model)

To get cold water

The dispensed water will not be icy cold, but just cool or cold. If you want colder water, dispense ice before dispensing water.

If you have difficulty in replacing the ice storage bin

Rotate the rotary gear in 1/4 cycle as shown in the illustration and then push it back.

①

②

NOTE

Figure depends on model.

WARNING

• Do not put your hands into the ice maker during operation. You may injure yourself.
• Do not store ice (cubes) for longer than two weeks, they can cause the dispenser to malfunction as the ice cubes clump together.

When the ice dispenser will not operate properly

It is normal that the ice maker will not operate correctly when there is only a small amount of ice left in the storage bin. Allow approximately one day for the ice maker to restock.

If the ice forms into a solid lump and interrupts the operation of the automatic ice maker mechanism, remove the ice storage bin, separate the ice, discard the inseparable ice, and put the usable ice pieces back into the bin. The intermittent dispensing of ice is normal. However, since ice may get stuck and block the ice chute, regularly check the ice chute and clear any obstacles.

①
②

NOTE

Figure depends on model.

WARNING

• Naver insert your hand or any other object into the ice chute as this may damage dispenser parts or cause injury to the hand.
• If ice is discoloured, stop using the dispenser and call the service centre.
• Do not touch the blade ①@ as it may injure the hand.
• Naver insert your hands into the ice maker during operation. It may cause injury ②.
• Do not allow your children to hang off the ice dispenser or the ice storage bin. This could cause injury.

①

(2)

Freezer Compartment (Applicable to some models only)

If a large quantity of food is to be placed in the freezer compartment:

The middle drawer of freezer compartment shall be taken out of the appliance and food shall be stacked directly on the wire shelf. Freezer compartment provides wire shelf on default to maximize food storage capacity. And also the drawer is provided to convenient usage for watery meat or half-liquid state food.

Max Freezing capacity

If there is already food in the compartment, please set freezer to the coldest condition (depends of type: -23/-24°C) and press on "Express frz" button several hours before placing fresh produce in the freezer compartment to get maximum capacity. As a rule 4 hours is adequate.

Two stars section \*\*

(Applicable to some models only)

• Two stars means the temperature in the section is -12^ -18^ .
• Freezer foods for short-term storage.

General information

Vacation time

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odour formation.

And won't use water or ice dispensers, close the water valve. - Otherwise, water leakage may occur.

Power failure

Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.

If the products equipped with LED Lamp, do not disassemble Lamp Cover and LED Lamp by yourself. - Please contact your service agents.

If you move

Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the height adjusting screws, turn them all the way into the base.

Anti condensation pipe

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don't be alarmed. This is due to the anti-condensation pipe, which pumps through the refrigerator to prevent "sweating" on the outer cabinet wall.

WARNING

• Use only the LED Lamps provided by manufacturer or service agents.

• Do not disassemble or repair the refrigerator by yourself.

• You run risk of causing a fire, malfunction and/or personal injury. In case of malfunction, please contact your service agents.

WARNING

• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert your hands into the bottom area under the appliance.
• Any sharp edges may cause personal injury.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside of the refrigerator.
• There is a risk of children entrapment and serious personal injury because of low temperature.
• Do not let children step on drawer's cover. - It may break and cause slip hazard.

Exterior

Interior

After cleaning

WARNING

CAUTION

Suggestion for energy saving

• Please do not keep the door open for a long time, close door in the shortest time.
• Storing too much food is not recommended. Sufficient space should be left to ensure proper air circulation.
• Do not set the temperature of fridge freezer lower than needed. Do not put food near the temperature sensors. Keep the distance of at least 5mm from the sensors.
• Allow hot food to cool prior to storing. Placing hot food in the fridge freezer could affect other food, and lead to higher energy consumption.
• Do not block air vents. Smooth circulation of cold air maintains the appropriate temperature.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and causes the temperature to rise.
• The configuration of shelves, baskets and drawers supplied by the manufacturer is the most efficient in terms of energy saving

Cleaning

It is important that your refrigerator be kept clean to prevent undesirable odours. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Use a luke warm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry.

Regular cleaning is recommended. Wash all compartments with a baking soda solution or a mild detergent and warm water. Rinse and dry.

Please verify that the power cord is not damaged, power plug is not overheated, or power plug is well inserted into the wall outlet socket.

Always remove power cord from the wall outlet prior to cleaning near to electrical equipment (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock. Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface. Do not touch frozen surfaces with wet or damp hands, because damp object will stick to extremely cold surfaces.

• Do not directly spray water inside or outside the refrigerator. - There is a risk of fire or electric shock.
• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.
• Remove any foreign matter or dust from the power plug pins. But do not use a wet or damp cloth when cleaning the plug, remove any foreign material or dust from the power plug pins. - Otherwise there is a risk of fire or electric shock.

Smart Diagnosis

Model: GSL54*, GSP54***

GWL31*, GWP31*

Should you experience any problems with your refrigerator, it has the capability of transmitting data via your telephone to the LG service center. This gives you the capability of speaking directly to our trained specialists. The specialist records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis.

If you experience problems with your refrigerator, call to the LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent. The transmission sounds that you will hear are normal and sound similar to a fax machine.

Smart Diagnosis cannot be activated unless your refrigerator is connected to power. If your refrigerator is unable to turn on, then troubleshooting must be done without using Smart Diagnosis.

Using Smart Diagnosis

First, call to the LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent.

1. Lock the display. To lock the display, press and hold the Lock button for three seconds. (If the display has been locked for over five minutes, you must deactivate the lock and then reactivate it.)
2. Open the right refrigerator door.
3. Hold the mouthpiece of your phone in front of the speaker that is located on the right hinge of the refrigerator door, when instructed to do so by the call center.
4. Press and hold the Freezer Temperature button for three seconds while continuing to hold your phone to the speaker.
5. After you hear three beeps, release the Freezer Temperature button.
6. Keep the phone in place until the tone transmission has finished. This takes about 3 seconds, and the display will count down the time. Once the countdown is over and the tones have stopped, resume your conversation with the specialist, who will then be able to assist you in using the information transmitted for analysis.

NOTE

• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.
• Call quality differences by region may affect the function.
• Use the home telephone for better communication performance, resulting in better service.
• Bad call quality may result in poor data transmission from your phone to the machine, which could cause Smart Diagnosis to not work properly.

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your local Council, waste disposal service or the shop where you purchased the product.

This product contains fluorinated greenhouse gases covered by the Kyoto Protocol (Optional).

• Information of fluorinated greenhouse gases used as refrigerant of this refrigerator.

Chemical name	Composition of Gases	Total GWP (kg \( {\mathrm{{CO}}}_{2} \) -eq)
R-600a	100% CH(CH3)3	< 3

AFVOERING VAN UW OUDE APPARAAT

After unpacking, hall forpackningsmaterialen utom rackhall for barn.

Flytt违法犯罪 Flytt isn't a good idea.

Kompressoren kan lage en middertidig raselyd.

HaIMMeHOBaHnHa qaCTnTe

Mодeн: GSL54*, GSP54, GWL31, GWP31***

Moden: GSL32*, GSP32, GWL27, GWP27*

3A6EJIEXKKA

Korato abTomatb3aJeI He pa60Tu HOpmaJHo

HopMaIHO eJeIeOReHepaTopbT da He paBoTI npabINHO, KOraTO B KOHTeHepa IMa MaJIKO KOnuYeCTBO JeI. OctaBeTe HaJeIeOReHepaTopa eIN H de Da ce IpeseapEni.

AkoJeBt Ce 6bpa3yBa Ha roJMa 6ya u n PpeKbCba pa60TaHa MexaHn3Ma Ha aBTOMaTHNHa JeToReHepaTOp, I3BaTe KOnTeHepa 3a JeIe, OTJeTe Jea, INXbPJIeTe CJIeHnHa JeI NocTaBe TnapTeTa JeIe, KOTo MoKe Da Ce I3No13BaT, OpaTHo B KOHeHepa. PyckaHTo Ha JeI e c PpeKbCBAHn E HopMaJIHO. Tb KaTO oBaYe JeIbT MoKe Ja 3aJIeHne I da 6blOKnpa JeToonPoBOda, npObeRaIte peoBHO JeToonPoBOda n IpemaxHete BCNUKO, KOTo ppeu.

(2)

3A6EJIEXKKA

Grounding (Earthing)

UPOZORENJE

U slučaju kratkog spoja, uzemljenje smanjuje rizik od strujnog udara pruzajući dodatnuŽicu za elektricknu struju.

Kako bi se spriječio moguci strujni udar, uredaj je potrebno uzemplji. Nepravilnim spajanjem utikača uzemljenja možete prouzročiti strujni udar. Posavjetujte se s kvalificiranim elektricarom ili serviserom akо ne razumijete upute za uzemljenju u potpunosti ili akо sumnjate u pravlno uzemljenje uredaja.

Ne pomicite hladnjak dok radi. Iz kompressora se privremeno moze začuti zvrčanje.

(To je normalno i nece utjecati na performanse ili radni vijek kompresora. Zvrchanje ce prestati nakon sto se hladjak umiri.)

UPOZORENJE

INFORMATION SHTESW PWR MANULAIN

Shikoni Manualin e Perdorimit.

Manuali I Pederimit ehtte ne formatin PDF ne CD.

Instaloni Adobe Acrobat Reader Pér tí pare manualin e Pérdorimit né kompjuterin tuaj.

1. Fusni CD e instalimit.
   Faqja e webit do shfaqet automatikisht
2. Klikoni Manualin e Pērdorimit ne fagene webit.
3. Shikoni Manualin e Perdorimit.

YIATCTBO 3A KOPINCHIKOT

SXS

ΦΡΙΧΚιΝΕΡ

Be moJIme, BnImaTeJHo npOHTajTe ro OBOj npnpaunHK nped da 3anOuHHe co KopncTeHe Ha ypeDoT n UyBaJTe ro 3apaNn NdHn KOHCyJItaU.

CopKmHa

BheCyBaHBe Ha noDaToCu 2
BaxKn HnΦopMaun 3a 6e36eHocTa 2
IeHTnΦnkaunjaHaJeNoBnte 5
Kade da ro MOHTnpaTe 6
PnKnyBaHe Ha IOBODOT 3a B0da
ABTOMaTcNJIeDOMaT 7
IperpaJa 3a 3amp3HyBaHe (Camo Kaj HeKoN MoJeNi) 8
Дел сдевSBe3d（Само кaj Hekon MoDEJI） 9
OnuHnΦopMaun 9
Cobetn 3a 3aWteHa ha eNeKtpnHa eHepnja 10
Ynctebe 10
PametHa djuarHocTuKa 11
OTcTpaHyBaHBe Ha BaIInOT cTap ypeD 12

DOnOJIHNTEJIHH INHΦOPMAcIIN 3A IPNPAuHNKOT

TJIeIaIbeHa yIaTCTBTO3aKOpIcHnKOT.

YnataCTBOTO 3a KOpICHIKOT BO PDF oopMaTe IocTaBeHo Ha CD.

ИнсталларJTde Adobe Acrobat Reader 3a за го пеладе упа TCВОТо 3a КорисnéКOT Ha kom NJyTeP.

1. BmetheTo IOoctabeHOTo CD.
   Интугент CTранда се поныва abTomatск.
2. Klnkhete YnataCTBO 3a Kopncchikot Ha INTepHET CTpaHaTa.
   3.ПогледенеуунатбтозakopиснкOT.

Ako INTEpHET CTpaHaTa He Ce nojABn ABTOMaTcKn BJIe3e To My computer" a nToa KInKHe T LG i index.htm 3a da ro nOgIeHete yNaTcBTO 3a KopncnKOT.

BheCyBaHe Ha nOdaToCuN

MoJeIOT n cepncknte 6poEBn CE haoraat HbHATpeWHaTc TpaHa OJ 3aHnOt DeJI Hn Ha eHa OD cTpaHnTe Ha pPnxNepoT. Obne 6poEBn CE eHNCTBeHN 3a OBOj ypeI n He nM CE cTabeHN Ha pacnonlaRaHe Ha dpyrHupei. Bne Tpe6a da rH 3aHHte ITOpeBnHe INΦopMaunn OBHe n Da ro yBaTe OBJ npnpauHk KaKo TpaEH Doka3 3a BaWeTo KynyBaHe. CMeTKaTa npNKaYe ta OBHe.

Датум На Кунва bene :

IpoaBaU OJ KOrO e Kynen

AmpcaHa npodabaQT

TelefoHckn 6proj Ha npoJaBaUOT :

Mоделбр. ：

Cepnckn 6p.

Baxhni HΦopMaζη 3a 6e36eHocTa

！PPEIYPIEYBAHBE

Ipeq ynoTpe6a, OOBJ pfnxnep Mopa npabunHo da CE MOHTupa n noCTaBn BO corJaacHOCT co ynaTcBAta 3a moNTaja BO OBOJ dOKyMeH. OObj pfnxnep e HameHET cMo 3a domaSHA ynoTpe6a BO BHaTpeHN yCNOBn.

HnkoraI He ncknyuBajTe ro BaIINOT pPnKInep co nobKeYBaHe Ha KaBeIoT 3a Ctpyja. CekoraI UbpcTo dpXeTe ro npKnyokOT kORA ro BaIIne OJ WTekePoT.

Kora ro npemecTyBaTe BaWnOy rpeI NOdaJeKy OJ SIOTo, BHNMaBajTe Da He ro npera3nte Ka6enot 3a cTpyja IIN Da He ro oWtETnTe Ha dpyr HauHIn.

Otkako Ke ro ctaBnTe Bo yHKunja BaHnOT pnnKnep, He dOnnpajTe rnaHnTe NOBpHnHb BO npepaata 3a 3amp3HyBaHe, Oc0eHo Kora paueTe Bn Ce bIaJxHn IIN BOdeHn. NocToOn onaNoct koxata da BN ce 3aJIeHN Ha OBne EKCTpeMHO NaHN IOBpHnHn.

IImBaTeTo npKJyOKeT OJ TeKeP KOra To YnCTte IInO OJpyBaTe. HnKOraH He IOnpajTeTo ypeDTo CO BlaXHN paue 3aToa WTO nocToN onaCHOCT da IpTePnITe cTpyEn Udap IInI Hekoja NoBpeDa.

HnKorau HEmoJTe da ro OwTeTyBaTe, npNTuCKaTe, cnIHO da ro npBeBnTKyBaTe, BLeueTe nIIN BnTKaTe Ka6eIOT 3aToa 1TO OwTeTeH Ka6eM OMeJa npEdu3BnKa IooKap nIIN CTpyEH yIap. HnKorau He dOnpajTe ro Ka6eIOT DOKoIKy He cTe CnryPhN daJIe e npabInHo 3a3emJeH.

OcnpyuBaHT Ha pnnKnepoT mOpa Da ro 3ameHn KBaIINpkyBaH TexHnap nn KOMpaHnja 3a cepBnC.

IeHTnΦnKaunja Ha JeNoBnte

Model: GSL54*, GSP54, GWL31, GWP31***

Model: GSL32*, GSP32, GWL27, GWP27***

3AbeJIeLUKA

-ДеловITE, KapakTepnCTKNTe n OIuNTe BapnPaat BO 3aBnCHOCT OJ MOeJIOT. BaWnOT Moen MoKeJa He rN BknyBa CnTe OIuIN.

I36epeTe do6pa Iokaunja.

Kaide da ro MOHTnpate

1.ПoctabeTe ro Baunot ypeI Ha MeCTo oJ KaIe uTo eJeNecHO da Ce Kopunctn.
2.ИЗБЕГИВAJTEДЯгSTавATEBOбИЗИHAиИЗВОПи HA TOnJIINA，ДИРЕКТНСончЕBAСБЕТЛHЯИВАг. He pakyBJTe COуpeIOT BOHaIbOpeUHIN yCNoBи KaDE MOXKeДИРЕKTTHOИNINHINIPeKTHOДаБИDEИЗЛОЖEH H coHZe,BETAPиdoxJd.
3. 3a da o6e36eDnTe COOBeTHa CnRPKyaCnJa Ha BO3dyXoT OKOJy cpnxKnepOT-3amp3HyBaOT, BE MOJIme OCTaBeTe IOBOJHO npocToP OJ ObTe CTpaH N OJ rope, a OCTaBeTe HajMaNky 5 CM OD 3aDnHOT sId.
4.3a da n36eHHe Bn6paun, ypeoT mopa da ce npamHn.
5. He MoHTnpajTe ro ypeDTo BO npocTopm co TempepaTpa noHncka oJ 5^ 3aUTo Toa. MoKe da BnJae Ha HerOBaTa pa6Ota.

IoppaueHa ynoptpe6a Ha anapatot

Oboj anapat e HameHeT 3a KOpIcTeHBe BO DOMaKInHCTBOTO I CNUHa HameHa KaKa HO NaPIMep BO - KyJHn Ha nepcoHaIOT BO pOdaBnIci, KaHcEapnI N dpyrNa p6oTHN cpeiHn;
- BIVKeHnIuKIn N OI CTpaHa Ha IocTnte BO XOTeJI, MToJI IN IpyrN BnIOBn Ha CpeINH 3a npceTojYBaHe;
- cpeDHHO TINOT Ha HOKeBaHBe CO noJaONK;
- yroctntTeJIcTBo n CInuHa He npBaTHa HameHa.

Ppe MOHTIPAhe

TPEIYTIPEIYBAHBE

UpeoT Mopa da 6nde nocTaBeH Taka 7TO npKJyHncaTa da 6nde JecHO npCTaHa no MOHTaxaTa.

Hikorai He KopinTe Te CEBKn 3a rac, TeJefoHcN JInHm IIn dpyrgn NoteHuaJHn rpomobpaHn 3a 3a3emjyBaHe.

• HénpaBnHTo KOpIcTeHBe Ha npKJyOkoT 3a 3a3eMjyBaHe MoKe Ja pe3yItnpa Co cTpyEn ynap.

Ako anapatot daba yuede H 3byk, ropehe nnn Mnpn36a nn qan, ncknyte ja BeDaaw npknkyuHncaata n KOHTAKpajte ro HajbInckNOT cepBnceH ceHTap.

Ako Ima npaunHa nn B0a Bo o pnnKnepoT, noteIe ja npNKlyuHncaTa N KOthaktnpaJte ro cepBcHnOt ceHTap Ha LG Electronics.

-ПocToI onaChOCT OД пожap.

IbOIO7 3a BOJa IO OΦpIXKJIDepOT MOpA Da I Go MOHTnpa/IOBp3e COoDBetHO KBaIIINΦKUBAHO LIue N da I Go IOBp3e CaMo CO IOBOJ HA BOJa 3a PnHe.

KopncTeTe ro caMo aBTOMaTOT 3a npabeHe mpa3doCTaBeH co pnxKepeoT.

Kora moHTnpaTe, cepBncupate nnn uHCTnTe 3aJ pfpnKndepOT, n3BnuepeTe ro ypeoT a noToa nobTOphO bpaTeTe ro Ha3aJ oTKaKO Ke 3aBpInTe.
Ito nakyaBaHeto, yBaJte rMaTePnJaInTe 3a naKyaBaHe npdaJeky od dofoat Ha deca.
-ПocToI onaCHOCT OД CMPT co 3aDyUbAbe aKo DeuTa Tn CTaBt Bp3 rJaBaTа.

OTcpanhyBaHepaBauHCTapyepd

Oboj ypei coopx n Teuhoct (cpeiCTBO 3a JanaHe, ly6pkaHT) n e i3pa6oTeH oD JeIOBn mATEpjuan KOn MoKat NOBTOPO Da Ce KopncTAT n/nn peUknpaAT.

CnTe MaTePiJIaN 3a NaKyBaHe Tpe6a Da ce IcIpaTat Do cObIPHnOT ueHTap 3a peUKNJIpaHe. 3a nobKe deTajn 3a BaIINOT loKaIeH cObIpeH ueHTap 3a peUKNJIpaHe, KOHTAKTIpaJte ro BaWeTo ONUTHNCKO co6paHne.

IpoBepe TeEeKInTe Ha 3aHnO T DeI Od ypeoT da He ce OwTeHen nped OTcTahyBaHe.

IpeMOTaxkata

Kora aTOMaTOT 3a mpa3 He pa60n npabuHIO

HopMaHNo e aBtOMaTOT 3a Mpa3 Da He pa60Tu npabuHIO KORA IMA cMo MaJIoKINHa Mpa3 octaHata BO caIOT 3a YUbaHe Mpa3. Do3BoJIeTe Da IOMnHe pnp6JIxKHO eJeH DeH 3a Da ce ObHOBmpa3oT.

Дokолуce сформima МраЗ BO CBpcta Гутka И Г поpeknHyba pa6oTeHeTo Ha MexaHn3MOT Ha aBtOMaTOT 3a Mpa3, ИЗБаDEte Г садOT 3a УьВаHe Mpa3, pa3ДBOJte Г Mpa30T, Фрlete Г OHOJ ДЕЛ StO He можда се рa3ДВОИ CTabete NapЧиBa Mpa3 BO CаDOT кОн можат дсе КОпСТ. HopmaJIHo e перIoДУнO ИСпУStaHe Na Mpa3.

MeIyToa, 6nIeJkn mpa3 MoKe Ja Ce 3aIaBn I da ro 6Ioknpa KaHaIOT 3a mpa3, peIOBHO npOBepyBaJTe ro KaHaIOT nIcIeTe Ro Od cekkBn 3aTHyBaHa.

①

②

3A6EJIELIKA

LpTeKoT 3aBcN O MOneNoT.

TPEIITPENEYBAHE

Hnkoraa HcTbajte ja Baata paKa IIN npyr npedmet BO KaHaNoT 3a mpa3 bNejKn Toa MoKe da Tn OwTeTN DeIOBNTe Ha NcNeh3epoT INI da cn ja nobpeInTe paKaTa.
-ДOKOLКИmpa3OT e6e36oEH,песаHTe ДЯ ГОКИСТИТЕ ДИССЕНЗЕРOT И NOВИКAJTE cepBIC.
- He do nupajte ro hokot ① @ bni dejk moke da cn ja noBpeuNTe paKaTata.
Hnkoraaw He cTabajTe rpaTe Bo aBTOMaTOT 3a npabeHe mpa3doKe nCTnOte BO cyHKuJa. Toa moke da npedeN3BnKa nobpea ②
HeI03BOnyBajTe IM Ha BaWInTe Dea da ce 6obecyBaat Na IncnEh3epoT 3a Mpa3 IIN Ha KOpNaTa 3a ChyBaHbE mpa3. Toa Moze da npedn3Bnka nOBpeda.

Перрада за замрзные (Само кaj неков морели)

Дokолу BO 3amp3HyBaOT Tpe6a Да ce CTabN Гolem KaJINuHaХpaHa:

CpeHnata fnoka od 3amp3HyBaTuTpe6a da ce n3BaDuHaDbOp oJ anapaTOT, a xpaHATA da ce CTABn DnpeKTHo Ha peWetKaCTata noIuca. 3amp3HyBaTuKako cTaHdApHa ONPeMa CoDPKIN peWetKAcTa noIuca 3a da OBO3MOKIn MAKCMaHIO NCKOPNCTyBaHe HA KanaUteTOT. IVcTo Taka, fNOkata e ONpeMeHa co pni6bOp KOJ OBO3MOKBya 6e36eHNo yBaHe Ha Meco KOe CoDPKIn NOBeKe BOda nnI IOny-TeUHa XpaHa.

MakcmaJIeH KanaIHTET3a 3amp3HyBaHe

Ako Beke Ima xpaHa BO nperpaIaTa, CTabete Ro 3amp3HyBaUOT BO hajlaHa COctoJb6a (-23 IIN -24°C - BO 3aBvHcOCT O BvIoT) IN pInTICHeTe RO KOnTeo „Express frZ" HeKoIky Uca npEi Da CTABITE CBxN pION3BOiD Bo nperpaJaTa Od 3amp3HyBaUOT 3a Da r NoCTrHETe MAKCImajHnOT KanaunTe. OnIto 3emeHo, COODBeTHO BVpe e 4 Yaca.

Грижа и оржувае
Вреема за ветувае	Дел сны сveздм * * (Camо кaj неkon мodyели) • Д Betaе svьздд озачуваат дka temператypata bo delot e -12°C ~ -18°C. • Xpacha 3a kpatkopочno зampснвае.
Преших на постуна Налов��аье	Онишtenи поформаци За р徕он на постуна озачуваат дka probotи. К�с fatite Deka haj dobropo e Фрижиддот дд go octabinte дд probotи. Вд замрзнвачот stabete xpaha koja imma постлг веда на постуна дд go incknyчite, Искаде та щелокунatable храна, Incknyчote go kaibetot 3a stpyja, Incchstete ja цeloscho Bnatpeшоста и OCTabete гд в {@тite OTBOPEHЛ 3д дд срочitehaltaybahe ha helprjatna mprinizha. Ако НEMAда go coprictite dinocnentsherpot 3d BOda Или Мраз, Затоветe go BEHTINOT 3d ВODA. -Инakу може дд dojde do потукваве на BODA.
Преших на постуна Налов��аье	Повекло дд ecfektu BO HanojuBaHeto ce nonpabaat 3d eden Или Дд Саа и Тпe He Влиjaat bpr3 Tempepatypitte BO Bausnot Фрижиддр. Mefytoa, Вп.Treба дд go cbedete нд мимум sbpojt ha OTbopaHe Na BPATA Na Фрижиддр kORA e Incknycheho нановыаго. Ако погизьдот e onрemeh co LED сиалиca, He go packlonnybajte kanakot ha сиалицatura и LED сиалицatura cami. -Контактора对接 BO BAVNOT cepbincep.
Дожлky ro преши�п Калдяп Кондяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп Калдяп	Изваде Гл Или Зацрсте Гл снг Дд Дд BO BANATPESHOCCTA Ha Фрижиддр. Здд Дд Или ZAZERHITENO OTOHOL, OTOHOL BO BANATPESHOCCTA Ha Фрижиддр. Здд Дд Или ZAZERHITENO OTOHOL, OTOHOL BO BANATPESHOCCTA Ha Фрижиддр. Здд Дд Или ZAZERHITENO OTOHOL, OTOHOL BO BANATPESHOCCTA Ha Фрижиддр.
Преших на постуна Налов��аье	Корисе симо LOD LED сиалицima obezhdegen od поизвoditselot Или OBnacthenot cepbicsc. Дд Н go packlonnybaite Или Nonpabate Фрижиддр сим. -Можete дд поизвдате пожар, дд ecket tИли дд ce nopeydite. Во счaj на дд ecket nobikajte对接 BO BAVNOT cepbincep.
Преших на постуна Налов��аье	• He CTabajte поимети BP3 уpedot. • Kora ja OTbopate Или 3aTbopate bparata, поимети MOxat da падати дд • He CTabajte pauee对接 NOBPeDA Или MaTePniJalna StETa. • BiLokonov octpr na riboBNMOxat dд поизвдате NOECA nobpeDA. • He CTabajte OTbopeni bparata He FOxipxijedot 63 naidor und He DozboVByajte decaTa DA Blerybavat BO FOxipxijedot. • Постот ONIAPCHOST od 3aTbopahbe Na DecaTAta and TeUka TeteChecNa NOBpeDa npadri NiHCKIne Tempepatry. • He IMdoZBoVByajte Na DecaTAta da razat BP3 kanaKot Na FOxOKITE. -Можe da ce ckpiin d da dojde do Im3rahe.

Cobetn 3a 3aWTeJa Ha eJektpuHa eHeprNiJa

• Be молиме, He држete ja враза отворега долно врeme, 3aTBOPe ja BO HajKpaTKO врeme.
• He ce npenopaYba YBaHbe Ha npemHory xpaHa. Tpe6a da ce ocTaNIOBOJHO npocToP 3a da ce OBO3MOXn COOdBETHO cIPKUInpaHBe Ha BO3dYxOT.
• He noctabybajte ja Tempepatyata Ha 3amp3hybaot noHnCKO od notpe6hoto. He ctabaje xpaHa BO 6m3nHa Ha CEH3OpTe 3a Tempepatya. Octabete Hajmanky 5 MM pactojaHne oD CEH3OpTe.
• Пгво octabete ja ду се Излду толлах ра на ппд ду сдтбпгьспгь.
• Ставъето толлах ра на bo Фрижидот моче ду влійа врз ду ratухра на и dovedуba до поюма потошувачka на eheprиja.
• He 6bnokupajte rntOBpOHTe 3a Bo3dYx. HenpeyeHTo cnpKuIpaHe Ha Bo3dYx ja OndjyBa TEMpePaTypaTa Ha COoDBETHO HnBO.
• He OTbopajte ja BpaTata yecTo. O'TbopaHéTo ha BpaTata OBO3MOkyBa TOnnIOT Bo3dyx Da HabJIe3e BO 3aMp3HyBaHTи Ja ja 3roJEMI TempePaTypata.
  -Посравецоста на полцит, корпиги и Фнокпге обзбени од позьогделот e hajeфпкаса BOODOC Ha 3aштетаТаHa eheprna.

YnCTeHbE

BaJHo e BaJHOT cPnKJNep Da rO oDpKyBaTe YIcT 3a Da cPneHTe HAcTaHyBaHe Ha He npjatm Mnp36n. VcTypeHaTa XpaHa TpeBaHnAa Da ce I36pnIe, 6InejKn MoKe da Ce CkncenI n Da rI dAMKoCA pIacTHuHNte NOBpHnH DoKoKNy Ce 3acynn Ha HNB.

HaBOpewHocT

Bhatpewhoct

Pocne UcHCTeHbeto

TPEIVTPEIVBAIe

KopncTe Mlaka Boga, pactbop oJ 6Iar canyH nIIeTepeHT 3a da ro nCnCTnTe DOnroTpajHnO TmHnHa H Baunot pPnKndep. N36pnSeTe co Yncta BnaxHa Kpna, a noToa co cyBa.

Ce npenopauyBa peoBHO uCteHBe. N3MjTe rN cTHe nperepaDi co paCTbOp oI cOda 6knapoHa nn 6bnar detepreHT nToTla BODa. NcnnakheTe npe6pnwete.

Поберете дд Кабелот 3астуja e оштeted, пррейнл doбpo Bmet Hat BO wTekepot Ha SINOt.

Cekorau BaTe Ro Ka6eIOT 3a cTpyJa OD uTKepeoT BO sNDoT pIep dIcIteHe BO bIIm3Ha Ha eIeKtpnHa onpema (CBETNa, npeKnHyBaun, KOHTpOIn, nTH.). N3bpiuWeTe rO BnuWooKoB BLara CO cyHep INJ KPNa 3a Da cNpeUHTe BOda ININ TeHuOCT Da HABJe3E BO HEKoj eIeKtpnueH DeJ In Ja pRei3BnKa cTpyEn ydAp. HIKoRaU He KOpNCTe MeTaJIHN CyHepn, abpa3NBn CpeIcTBa 3a cNtceHe, jakn ankaiHn paCTBOPn, 3aapanBn ININ TOKCNHn TeHuOCTn 3a cNtceHe Ha KOJA 6NI0 NobPUnHa. He doIpaJTE rN 3aMP3HaTIte NobPUnHn CO BoDEHn INJ BIAJxHn paue, 3aTOA uTO BIAJxHn ppeMeTN MoKAT da CE 3aIenat Ha ekCTpEmHO NaDHn NOBpUnHn.

BHIMAHNE

• He npckajte nipektho BOa BHaTpe IInn HauBop Ha φpnxKepoT. - PocToI onaChocT od nojkap nn CTpyeH yap.
• He npckajte npoun3bOdn 3a quinCThe DnpeKTHO Bp3 nCnInejoT. - MoKe da ce n3bpiWAT neaTeHnTE 6yKBN Ha nCnInejOT.
• OtctpaheTe KaKbA 6nI0 TyfMaTePjNa IINI npaunHa OJ npKluyHata BnUyka. Ho He KopncTeTe MOKpa IINI BnaXHa KpNA KOra IOnCTNe PnpKluyHnKOt,OTcPaHeTe KaKbA 6nI0 TyfMaTePjNa IINI npaunHa OJ npKluyHata BnUyka.
  -Инakу посTown onaCHOCTOD noxkapил стpyeH yap.

PametHa DnjaHocTnKa

GSL54*, GSP54
Mоден: GWL31, GWP31***

Ako Hannde He NaPObJemn Co BaHInOT cPnKnIep, Toj MoKe Da npEnecyBa noaToCu npeky BaHInOT TelefoH Do ceHTapO 3a cepBncipaHe Ha LG. OBa Bn Daba MoXHOCT dIpeKTHO da pa3roBapate Co HauHte oBuYeHN CTpyuHaun. CtpyHuKaOT rN CHIMa npHeceHnTe NoaToCu ND BaHInOT ypeN rN KOpNCtN 3a aHaJIIN3paHBe Ha pa6oTaT, OBO3MOxYBaJk 6p3a N eFnkacna DnjarHo3a.

Ako HanTe Ha np6IeMn Co BaWInOp fPpIXKuNep, NobiKaJte rO ueHTapoT 3a cepBvncpaHe Ha LG. KopnteTe ja PAmEtHa TnaJiaHocTnka cMo CneJeKn IINCTpykUInTe OJ CTpHa Ha LiueTo OJ KOHTAKT ueHTapoT Ha LG. 3ByuIne OJ pHeHocOT Ha IPOdaTOUIne 7To Ke rCnyShHeTe CE HopMaHN H 3ByuAT CnHNo KaKo φakc ypeD.

PametHaTaNjarHocTKa He MoKe Da ce aKtBnpa DOKoJky Baunot fprNkndep He e noBp3an Ha cTpyja. Ako Baunot fprNkndep He MoKe Da ce Bknyu, ToraM Mopa Da ce Hapabn peWabaHe Na pObIeMeNTe 6e3 KopncTeHe Ha ParnetHa DnjarHocTKa.

Прв, повикajte ro cepвиснnot сентар ha LG. Корисе差别Я паметната диагносткаCAMO сделевги Инструкшипесо odстара на лицeto odkontakt сentapot ha LG.

1. 3aknyeTe ro dincnnejot. 3a da ro 3aknyuTe dincnnejot, npitncheTe ro n dpkTe ro konqueto,3aknyuBaHe" Tprceyni. (Ako dincnpejot 6nil 3aknyen peky net mHyTu, mopa da ja deakntBnpuate 6paBaTa a noToa nobTOPOda ja peakTnBnpaTe.)
2. OTBOpTe ja DechaTa BpaTa Ha φριχιηdepoT.
3. Ctabete ja cnyuankata Ha TelefohoT nped 3BvHnKOT koj e NOCTaBeH ha deChata WaPka OJ BpataTa Ha pfpnKnepoT, Kora Ke BN KaKaT OJ KOHTaKT ueHTapOT.
   4.Пи捜исHTe ro Иджerte ro konчeto „TemnéраTypa Ha 3amp3HyBaUOT"Трп секундnpodIoJxYbajкДа ro ДжITE TelefoHOT Ha 3ByuHnKOT.

1. OTKAKO Ke cnyuHete Tpr 3ByuHn CnHaJI, OTnyuTeTe ro KonUeTo ,TempeTaPHa Ha 3aMp3HyBaUOT".
   6.Држete ro Teleefohot cédokeHa 3abpwn TpaHcMncjata Ha ToHOT.3a Oba e Notpe6hO OKony 3ceyniA nA nCnInejot Ke ro Od6pojyBa BpeMeTo. LtTom Ke 3abpwn Od6pojYBaHbTeo N TOHOBIne Ke 3anpat, npoJolKeTe co pa3roBOpOT co CtpyuHakOT KoJ TOraU Ke MoKe Da BN NOMORHe KOpICTejKn rnpheceHn INHΦopMaun 3a aHAnIm3a.

3A6EJIELIKA

3a hajdobr pe3yntaTn, He ro nomectybajTe TelefoHOT doeka Ce npenecybaat nodaTouHe.
- Ako JIuceTo OJ KOHTaKT ueHapOT He MoKe Ja NoCTnHHe npaBnHc HmMaHbe Ha IpaTOuTe, MoKe6n Ke 6nDEte 3amOHeHn Da ce 6nDEte NOBtOHO.
KBaJIITeTOT Ha NOBIKOT ce pa3JIkyBa OD perIOH Do peRIOH I MOKe da BInjae Bp3 cyHKnJaTa.
KopncTeTe ro domaunnoT teneooh 3a nooobpa KOMyHnkaunija, oNDocno nooobpa ycnyra.
-Пош KBаитет ha NOВИК мосяда довец д слабпehoc ha noДаTOU n O BAИNot Teleфонdo MaSHINHATA, wTo мосяда пpeDn3BIVka ПametHa dinjarHoctNka Де pa6Otn npabINHIO.

OTCTPAHYBAHbE HABALINOT CTAP YPeI

1. Kora kon poin3bOToT e npikaueh BaKOB cM60n Ha npeurTaHa KaHTa 3a fYbpe, Toa 3NaU nEka npoi3BODTo e onphiTeH co EBpONckata DInpeKTnBa 2002/96/EC.
   2.Cnte eJektpnHn H eJektpoHcKn npOn3B0nTpe6a da Ce OTCTpaHyBaat 3ace6HO od ONIHTINCKNOT KOMyHaJIeH OTnAd npeky OndeEH yctaHOBn 3a CObpaHe Ha BaKOB OTnAd Ha3NaueHn OD BlaJaTa IIN JOKaJIHInTe Blaactn.
   3.Праьиното OТСТрануВаБе Ha BaшиOT CTap уред К помоггда Сспесат NOTehцлално HeratNBHn последи CBP XIIIвOTHa TсрEDин aЧОВЕКOBОТо 3дразы.
2. 3a nopeTaNHNHFOpmauu BO Bpcka co OTCpaHyBaHeTo Ha BaIINOT CTap ypeD, Be MOJIIME KOHTaKtIpaJte rN BaIINTe rpaIcckn cnyk6n, cnyk6bTa 3a ynpaBvBaHe co OTnad INI pOdoBHNcaTa oD KaDe CTe FO KyIIne Ipon3BOJOT.

Oboj npOn3BOD coOpJxn rAcobN KOI npEpiN3BkYBaat eFKeT Ha cTaKJIeHa rpaDInHa KOI ce onpTaTeHn CO IpToKoONOT oD Kjoto (He3aDoJXkTeHNo).

Инфорmaциза гасови КОп пгдзвуват eфekt настakлеса Гадина StTO се КОпстат Кабсрдто вларende tbo OBOJ Фржндер.

XeMnKc HMe	CoCTAB na racobin	Bxynen ΠoTeHmUaJI na IroBaIHo zatOnIyBaIbe (GWP) (kg CO2-eq)
R-600a	100% CH(CH3)3	< 3

Life's Good

LG Customer Information Center

LG SERVICE: (ITALIA) 199600099

LG SERVICE: (AUSTRIA) 0810-144-131

(SLOVENIA) 080-543-543

(SWITZERLAND) 0848-543-543

LG SERVICE: (DEUTSCHLAND) 01806 115411

LG SERVICE: (EANAS) 801-11-200-900-210 4800564

LG SERVICE: (NEDERLAND) 0900-543-5454 / 036-5377780
