USER MANUAL LE-32R32B SAMSUNG

LCD TV LE32R3 Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country BELGIUM CZECH REPUBLIC DENMARK FINLAND FRANCE GERMANY HUNGARY ITALIA LUXEMBURG NETHERLANDS NORWAY POLAND PORTUGAL RUSSIA SLOVAKIA SPAIN SWEDEN U.K UKRAINE Owner’s Instructions Before operating the unit, please read this manual thoroughly, and retain it for future reference. ON-SCREEN MENUS PC DISPLAY PICTURE IN PICTURE (PIP) TELETEXT Register your product at www.samsung.com/global/register BN68-00927H-00 © 2006 Samsung Electronics Co., Ltd. All rights reserved. Seogu-Still.indd 1 2006-09-16 ¿ÀÀü 11:37:22 English Contents

CONNECTING AND PREPARING YOUR TV

Setting and Displaying the Current Time ........................ 17 On and Off Automatically ..................................................... 18 Switching the Television

SETTING THE CHANNELS

• Storing Channels Automatically p. 8
• Storing Channels Manually p. 8
• Setting the Channel Manager p. 9
• Activating the Child Lock p. 10
• Sorting the Stored Channels p. 10
• Assigning Channels Names p. 11
• Fine Tuning Channel Reception p. 11

USING THE TELETEXTFEATURE

• Teletext Decoder p. 21
• Displaying the Teletext Information p. 21
• Selecting a Specific Teletext Page p. 22
• Using Fastext to Select a Teletext Page p. 22

RECOMMENDATIONS FOR USE

Using the Anti-Theft Kensington Lock ............................. 25 Troubleshooting: Before Contacting Service Personnel ............................... 25

SETTING THE SOUND

• Changing the Sound Standard p. 15
• Adjusting the Sound Settings p. 15
• Setting the TruSurround XT (SRS TSXT) p. 16
• Adjusting the Volume Automatically p. 16
• Selecting the Internal Mute p. 16
• Listening to the Sound of the Sub Picture p. 17
• Resetting the Sound Settings to the Factory Defaults p. 17
• Connecting Headphones p. 17
• Symbol Press BN68-00927H-00Eng.indd 1 Important Note Technical and Environmental Specifications One-Touch Button English-1 2006-09-16 ¿ÀÀü 11:36:18 List of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. M4 X L16 Remote Control & Batteries (AAA x 2) Power Cord Œ Owner’s Instructions Cover-Bottom Stand Screw X4 Œ Warranty card Stand Œ Safety Guide Cleaning Cloth Œ Registration Card Registration Cards / Warranty card / Safety Guide (Not available in all locations) Installing the Stand <2> <3> p. 26

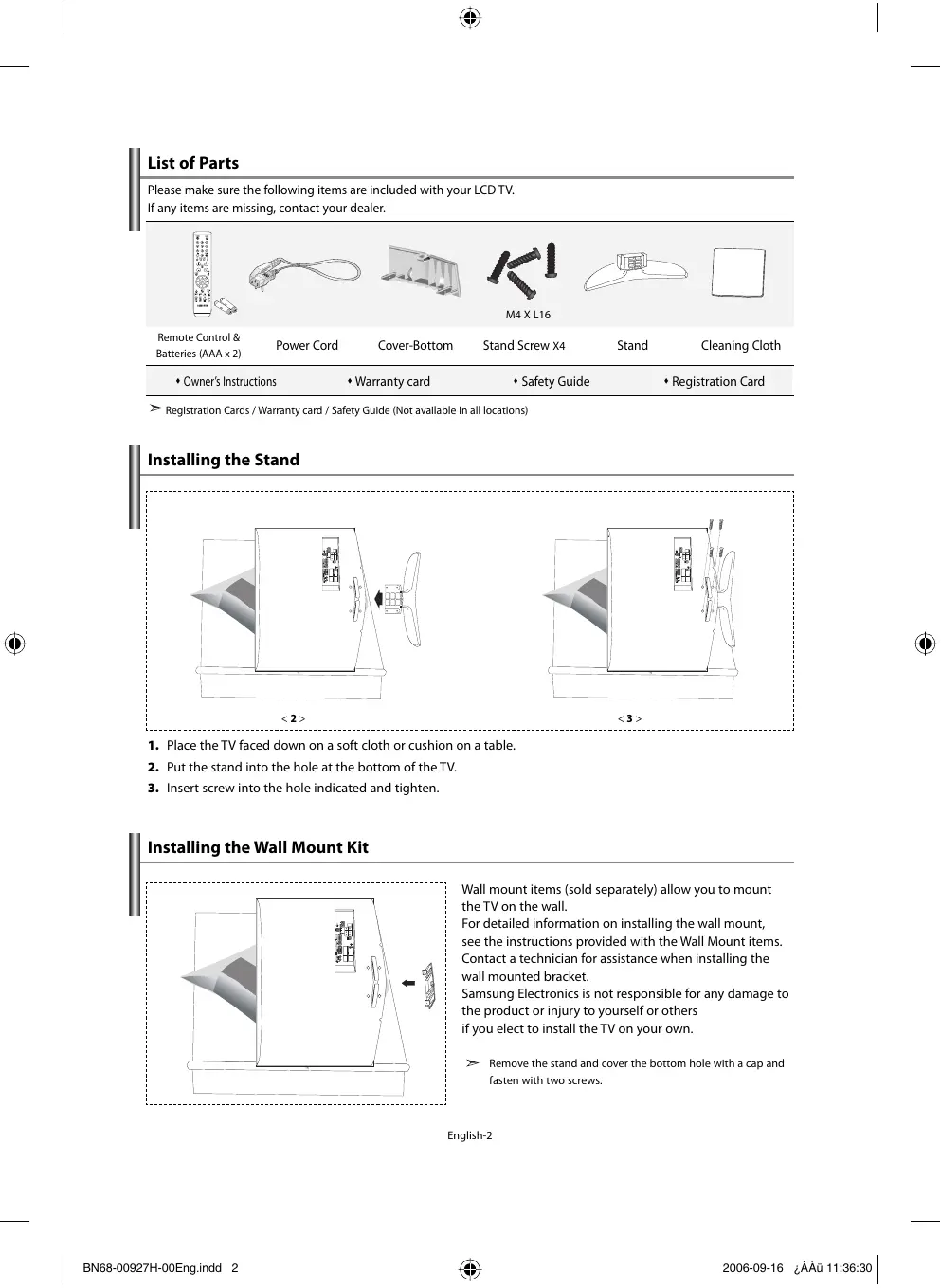

1. Place the TV faced down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV.

3. Insert screw into the hole indicated and tighten.

Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Remove the stand and cover the bottom hole with a cap and fasten with two screws. English-2 BN68-00927H-00Eng.indd 2 2006-09-16 ¿ÀÀü 11:36:30 Viewing the Control Panel The product colour and shape may vary depending on the model. SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI). In the on-screen menu, use this button as you use the ENTER button on the remote control. Press to change channels. buttons In the on-screen menu, use the as you use the and buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.) MENU Press to see an on-screen menu of your TV’s features. (Power) Press to turn the TV on and off. Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode. Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the and buttons on the remote control. Remote Control Sensor Aim the remote control towards this spot on the TV. Speakers English-3 BN68-00927H-00Eng.indd 3 2006-09-16 ¿ÀÀü 11:36:31 Viewing the Connection Panel [Rear Panel Jacks] Power Input Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable. English-4 BN68-00927H-00Eng.indd 4 2006-09-16 ¿ÀÀü 11:36:32 Connecting an Aerial or Cable Television Network To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network Connecting HDMI/DVI - Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs). - No additional Audio connection is needed for an HDMI to HDMI connection. What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio ( 5.1 channels). - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio. You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the “R - AUDIO - L” terminal on DVI for sound output. - When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture. Supported modes for DVI or HDMI 50Hz 60Hz Component 480i

- Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card. (This will result in a blank screen being displayed) Connecting Set-Top Box, VCR or DVD - Connect the VCR or DVD SCART cable to the SCART connector of the VCR or DVD. - If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box to the VCR (or DVD) and connect the VCR (or DVD) to your set. Connecting External A/V Devices - Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. - Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the A/V device. - Headphone may be connected to the headphone output ( ) on the rear of your set. While the headphone is connected, the sound from the built-in speakers will be disabled. SERVICE - Service connection for qualified service engineer. Connecting AUDIO - Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater. Connecting Computer - Connect the D- Sub cable (optional) to “PC (PC IN)” on the rear of your set and the other end to the Video Card of your computer. - Connect the stereo audio cable (optional) to “AUDIO (PC IN)” on the rear of your set and the other end to “Audio Out” of the sound card on your computer. Connecting Component Devices (DTV/DVD) - Connect component video cables (optional) to component connector (“PR”, “PB”, “Y”) on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD. - If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (“PR”, “PB”, “Y”) on your set. - The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. - Connect RCA audio cables (optional) to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD. - This LCD TV displays its optimum picture resolution in 720p mode. - This LCD TV displays its maximum picture resolution in 1080i mode. Kensington Lock - The Kensington lock (optional) is a device used to physically fix the system when used in a public place. - If you want to use a locking device, contact the dealer where you purchased the TV. - The place of the Kensington Lock may be different depending on its model. English-5 BN68-00927H-00Eng.indd 5 2006-09-16 ¿ÀÀü 11:36:33 Viewing the Remote Control Television Standby button Selects the PC mode directly Number buttons for direct channel access Automatic Power-off : Next channel : Previous channel One/Two-digit channel selection

Selects the TV mode directly Exit the OSD It display “Channel Manager” on the screen. Control the cursor in the menu Use to see information on the Volume increase Volume decrease current broadcast Picture freeze Temporary sound switch-off Menu display and change confirmation Picture size selection TeletextFunctions Exit from the Teletextdisplay Sound mode selection Teletextindex Picture-In-Picture On / Off Picture effect selection Teletexthold SOURCE: Teletextsize selection PIP FUNCTIONS SOURCE: Input source selection SWAP: Interchange the main and sub picture SIZE: PIP size selection POSITION: PIP position selection P : Next channel P : Previous channel SWAP: Teletextstore Teletextmode selection (LIST/FLOF) Teletextsub page

Sound effect selection Teletextreveal SRS TSXT selection Alternately select Teletext, Double, or Mix. Available source selection Previous channel Fastext topic selection The performance of the remote control may be affected by bright light. This is a special remote control for the visually impaired, and has Braille points on the Power, Channel and Volume buttons. Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries.

Replace the cover. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.) If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

English-6 BN68-00927H-00Eng.indd 6 2006-09-16 ¿ÀÀü 11:36:33 Switching On and Off The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket.

Press the The standby indicator lights up on the front of the set. button on the front of the set. button or the TV ( You also can press the POWER ) button on the remote control to turn the TV on. The programme that you were watching last is reselected automatically.

Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or button on the right side of the set.

To switch your set off, press the POWER When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed. button again. Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER button on the remote control. The screen is turned off and a red standby indicator appears on the front of your set.

To switch your set back on, simply press the POWER up/down ( / ) button again. Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial. Plug & Play When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

Press the POWER button on the remote control. The message “Start Plug & Play” is displayed with “OK” selected.

Select the appropriate language by pressing the Press the ENTER button to confirm your choice.

The message “Check antenna input.” is displayed with “OK” selected. Press the ENTER button.

Select the appropriate country by pressing the Press the ENTER button to confirm your choice.

The “Auto Store” menu is displayed with the “Start” selected. Press the ENTER button.

button. Please check that the antenna cable is connected correctly.

button. The channel search will start and end automatically. After all the available channels are stored, the “Clock Set” menu appears. Press the ENTER button at any time to interrupt the memorization process.

Press the ENTER button. Select the “Hour” or “Minute” by pressing the or button. Set the “Hour” or “Minute” by pressing the or button.

Press the ENTER button to confirm your setting. You can also set the hour and minute by pressing the number buttons on the remote control. Œ Language: Select your language. Œ Country: Select your country. Œ Auto Store: Automatically scans for and stores channels available in the local area. Œ Clock Set: Sets the current time for the TV clock. English-7 BN68-00927H-00Eng.indd 7 2006-09-16 ¿ÀÀü 11:36:36 If you want to reset this feature...

Press the ENTER button again, to select “Plug & Play”.

The message to “Start Plug & Play” is displayed. - Storing Channels Automatically - Storing Channels Manually Storing Channels Automatically You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

Press the ENTER button to select “Country”.

Select the appropriate country by pressing the Press the ENTER button to confirm your choice.

The TV will begin memorizing all of the available channels. Press the ENTER button at any time to interrupt the memorization process and return to the “Channel” menu.

After all the available channels are stored, the “Sort” menu appears. Storing Channels Manually You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose: Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify.

Press the ENTER button to select “Programme”.

button to select “Manual Store”, then press the ENTER button.

To assign a programme number to a channel, find the correct number by pressing the and then press the ENTER button.

button You can also set a programme number by pressing the number buttons on the remote control. English-8 BN68-00927H-00Eng.indd 8 2006-09-16 ¿ÀÀü 11:36:38

Select the colour standard required by pressing the

Select the sound standard required by pressing the

If there is an abnormal sound or no sound, re-select the sound system required.

If you know the number of the channel to be stored, press the or button to select “Channel”. Press the ENTER button. Select C (Air channel) or S (Cable channel) by pressing the or button. Press the button to select channel. Select the required number by pressing the or button and then press the ENTER button. Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode) You can also set a channel number by pressing number buttons on the remote control.

10. If you do not know the channel numbers, press the or button to select “Search”.

Press the ENTER button. Search by pressing the or button and then press the ENTER button.

11. Press the

button to select “Store”. Press the ENTER button to select “OK”.

12. Repeat steps 3 to 11 for each channel to be stored.

ΠProgramme: Selects a program number for the channel. ΠColour System: Sets the colour supporting system. ΠSound System: Sets the sound supporting system. ΠChannel: Selects a channel. ΠSearch: Scans for the frequency value for the channel. ΠStore: Saves your settings. Setting the Channel Manager Set the channels according to your preference. You can easily delete, add, or lock the channel you want.

Press the MENU button to display the menu. Press the to select “Channel”, then press the ENTER button.

Press the or button to select “Channel Manager”, then press the ENTER button.

Press the ENTER button again, to select “Channel Manager”.

Press the or button to select the undesired channel, then press the ENTER button to cancel.

Repeat steps 5 for each channel to be selected or canceled

button ” line. Press the EXIT button to exit.

” is active when “Child Lock” is selected to “On”. You can select these options by simply pressing the CH MGR button on the remote control. English-9 BN68-00927H-00Eng.indd 9 2006-09-16 ¿ÀÀü 11:36:39 Activating the Child Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children.

Press the MENU button to display the menu. Press the to select “Channel”, then press the ENTER button.

Press the or button to select “Channel Manager”, then press the ENTER button.

Press the or button to select “Child Lock”, then press the ENTER button.

Press the or button to select “Channel Manager”, then press the ENTER button.

button button to select “On”. Press the ENTER button.

Press the or button to select the channels you want to lock, then press the ENTER button.

Repeat steps 7 for each channel to be locked or unlocked.

button to select “ ” line. Press the EXIT button to exit. Select “On” or “Off” in “Child Lock” to easily turn the channels which selected on “ ” to be active or inactive. Sorting the Stored Channels You can exchange the numbers of two channels, in order to: Modify the numeric order in which the channels have been automatically stored. Give easily remembered numbers to the channels that you watch most often.

Press the MENU button to display the menu. Press the to select “Channel”, then press the ENTER button.

Select channel number that you wish to change by pressing the or button repeatedly. Press the ENTER button.

Press the or button to move to the position in which you would like to change and then press the ENTER button.

button The selected channel number and name are moved to right side. The selected channel is exchanged with the one previously stored to the chosen number.

Repeat steps 3 to 4 for another channel to be sorted.

Press the EXIT button to exit. English-10 BN68-00927H-00Eng.indd 10 2006-09-16 ¿ÀÀü 11:36:40 Assigning Channels Names Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

Press the MENU button to display the menu. Press the to select “Channel”, then press the ENTER button.

If necessary, select the channel to be assigned to a new name by pressing the or button. Press the ENTER button.

button The selection bar is displayed around the name box.

To... Then... Select a letter, number or symbol Press the

Move on the next letter Press the button Move back the previous letter Press the button Confirm the name The characters available are : Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters ( -, space)

Repeat steps 3 to 4 for each channel to be assigned to a new name.

Press the EXIT button to exit. Fine Tuning Channel Reception Use fine tuning to manually adjust a particular channel for optimal reception.

Use the number buttons to directly select the channel that you want to fine tune.

Press the or button to adjust the fine tuning. Press the ENTER button.

button to select “Fine Tune”, then press the Press the EXIT button to exit. Fine tuned channels that have been saved are marked with an asterisk “ ” on the right-hand side of the channel number in the channel banner. And the channel number turns red. To reset the fine-tuning, select “Reset” by pressing the or button and then press the ENTER button.

English-11 BN68-00927H-00Eng.indd 11 2006-09-16 ¿ÀÀü 11:36:41 Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements. You can also press the P.MODE button on the remote control to select one of the picture settings.

Press the ENTER button again, to select “Mode”. Press the ENTER button again.

Press the or button to select the desired picture effect. Press the ENTER button.

Press the EXIT button to exit. Œ Dynamic: Selects the picture for high-definition in a bright room. Œ Standard: Selects the picture for optimum display in a normal environment. Œ Movie: Selects the picture for comfortable display in a dark room. Œ Custom: Select to view your favorite display settings. (Refer to “Adjusting the Custom Picture”) The Picture mode must be adjusted separately for each input source. You can return to the factory defaults picture settings by selecting the “Reset”. (Refer to “Resetting the Picture Settings to the Factory Defaults” on page 13) Adjusting the Custom Picture Your set has several settings which allow you to control picture quality.

To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3.

Press the or button to decrease or increase the value of a particular item. Press the ENTER button.

Press the EXIT button to exit. Œ Contrast: Adjusts the lightness and darkness between objects and the background. Œ Brightness: Adjusts the brightness of the whole screen. Œ Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. Œ Colour: Adjusts the colours, making them lighter or darker. Œ Tint (NTSC only): Adjusts the colour of objects, making them more red or green for a more natural look. The adjusted values are stored according to the selected Picture mode. In PC Mode, Only “Contrast”, “Brightness” and “Colour” can be adjusted Changing the Colour Tone You can select the most comfortable colour tone to your eyes.

To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3.

Press the or button to select the desired colour tone setting. Press the ENTER button.

Press the EXIT button to exit.

button to select “Colour Tone”, then press the ENTER button. Œ Cool2: Makes the colour temperature bluer than “Cool1” menu. Œ Cool1: Makes whites bluish. Œ Normal: Keeps whites white. Œ Warm1: Makes whites reddish. Œ Warm2: Makes the colour temperature redder than “Warm1” menu. The adjusted values are stored according to the selected Picture mode. English-12 BN68-00927H-00Eng.indd 12 2006-09-16 ¿ÀÀü 11:36:42 Resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings.

To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3 on page 12.

Press the EXIT button to exit.

The “Reset” will be set for each picture mode. Changing the Picture Size You can select the picture size which best corresponds to your viewing requirements. You can select these options by simply pressing the P.SIZE button on the remote control.

Select the required option by pressing the Press the ENTER button.

Press the EXIT button to exit.

button to button to select “Size”, then press the ENTER button.

button. Œ Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio. Œ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. Œ Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. Œ 4:3: This is the default setting for a video movie or normal broadcasting. “Auto Wide” function is available only in "TV", "Ext1", "Ext2", "AV", and "S-Video" mode. In PC Mode, only “16:9” and “4:3” mode can be adjusted. Select by pressing the or buttons. Use the or button to move the picture up and down. After selecting , use the or button to magnify or reduce the picture size in the vertical direction. Freezing the Current Picture

Press the STILL button to freeze a moving picture into a still one. Press again to cancel.

Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Press the EXIT button to exit.

button to button to select “Digital NR”, then press the ENTER button. button to select “On” or “Off”. Press the ENTER button. English-13 BN68-00927H-00Eng.indd 13 2006-09-16 ¿ÀÀü 11:36:44 DNIe Demo (Digital Natural Image engine) Samsung’s new technology brings you more detailed images with contrast and white enhancement. A new image compensation algorithm gives viewers brighter and clearer images. DNIe technology will match every signal to your eyes. You can see how DNIe improves the picture by setting DNIe Demo mode to On.

Press the EXIT button to exit.

button to button to select “DNIe Demo”, then press the ENTER button. button to select “On” or “Off”. Press the ENTER button. These functions don’t work in PC mode. The DNle Demo is designed to show the difference between the regular and DNIe pictures. By default, the product displays the picture with DNle applied. Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

Press the ENTER button again. Press the or button to select “On”, then press ENTER button.

Press the or button to select “Source”, then press ENTER button. Select a source of the sub picture by pressing the or button and press the ENTER button.

Press the or button to select “Swap”. To interchange the main picture and the sub picture, select “Swap” option and press the ENTER button.

button to If the PIP is activated, the size of the main picture turns to “16:9”. Press the PIP button on the remote control repeatedly to activate or deactivate the “PIP”. The sub picture can serve different source selections based on what the main picture is set to. The main picture and the sub picture are interchanged. If main picture is in “PC” mode, “Swap” is not available.

Press the or button to select “Size” of the sub picture and then press the ENTER button. Select a size of the sub picture by pressing the or button and then press the ENTER button.

Press the or button to select “Position”, then press the ENTER button. Select the position of the sub picture by pressing the or button and then press the ENTER button. If main picture is in “PC” mode, “Size” is not available. Continued… English-14 BN68-00927H-00Eng.indd 14 2006-09-16 ¿ÀÀü 11:36:45

Press the or button to select “Programme” and then press the ENTER button. You can select the channel that you want to view through sub picture by pressing the or button. Press the ENTER button.

Press the EXIT button to exit. The “Programme” can be active when the sub picture is set to TV. You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. Œ Source: Used to select a source of the sub picture. Œ Swap: Used to interchange the main picture and the Œ Size: Used to select a size of the sub picture. Œ Position: Used to move the sub picture. Œ Programme: Used to Change the sub picture. sub picture. PIP Settings (O: PIP operates, X: PIP doesn’t operate) Sub

Main Changing the Sound Standard You can select the type of the special sound effect to be used when watching a given broadcast.

You can also select these options by simply pressing the S.MODE button on the remote control. Press the ENTER button again, to select “Mode”.

Select the required sound effect by pressing the and then press the ENTER button.

Press the EXIT button to exit. ΠStandard: Selects the normal sound mode. ΠMusic: Emphasizes music over voices. ΠMovie: Provides live and full sound for movies. ΠSpeech: Emphasizes voices over other sounds.

button to button repeatedly Œ Custom: Selects your custom sound settings. (Refer to “Adjusting the Sound Settings”) Adjusting the Sound Settings The sound settings can be adjusted to suit your personal preferences.

Press the or button to reach the required setting. Press the ENTER button.

button to Press the EXIT button to exit. If you make any changes to these settings, the Sound Mode is automatically switched to “Custom”. English-15 BN68-00927H-00Eng.indd 15 2006-09-16 ¿ÀÀü 11:36:46 Setting the TruSurround XT (SRS TSXT) TruSurround XT is a patented SRS technology that solves the problem of playing

5.1 multichannel content over two speakers.

TruSurround delivers a compelling,virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Press the EXIT button to exit. You can also set these options simply by pressing the SRS button on remote control.

button to button to select “SRS TSXT”, then press the ENTER button. button to select “On” or “Off”. Press the ENTER button. TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. Adjusting the Volume Automatically Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

Press the EXIT button to exit.

button to button to select “Auto Volume”, then press the ENTER button. button to select “On” or “Off”. Press the ENTER button. Selecting the Internal Mute If you want to hear the sound through separate speakers, cancel the internal amplifier.

button to select “Internal Mute”, then press the ENTER button. button to select “On” or “Off”. Press the ENTER button. Press the EXIT button to exit. When “Internal Mute” is set to “On’, the Sound menus except for “Sound Select” (in PIP mode) cannot be adjusted. English-16 BN68-00927H-00Eng.indd 16 2006-09-16 ¿ÀÀü 11:36:47 Listening to the Sound of the Sub Picture During the PIP features activation, you can listen to the sound of the sub picture.

1. Press the MENU button to display the menu. Press the or button to

select “Sound”, then press the ENTER button.

2. Press the or button to select “Sound Select”, then press the ENTER button.

3. Press the or button to select “Sub”. Press the ENTER button.

4. Press the EXIT button to exit.

Œ Main: Used to listen to the sound of the main picture. Œ Sub: Used to listen to the sound of the sub picture. You can select this option when the “PIP” is set to “On”. Resetting the Sound Settings to the Factory Defaults If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

1. Press the MENU button to display the menu. Press the or button to

select “Sound”, then press the ENTER button.

2. Press the or button to select “Reset”, then press the ENTER button.

3. Press the EXIT button to exit.

You can select this option when the “Game Mode” is set to “On”. Connecting Headphones You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room. When you insert the head set jack into the corresponding port, you can operate only "Internal Mute" and "Sound Select" (in PIP mode) in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. Setting and Displaying the Current Time You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

Press the ENTER button to select “Clock Set”.

button to button to select “Time”, then press the ENTER button. To... Press the... Move to “Hour” or “Minute”

button. Set the “Hour” or “Minute”

button. Press the EXIT button to exit. If you disconnect the power cord, you have to set the clock again. You can also set hour and minute by pressing the number buttons on the remote control. English-17 BN68-00927H-00Eng.indd 17 2006-09-16 ¿ÀÀü 11:36:49 Setting the Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

button to select “Time”, then press the ENTER button.

Press the or button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.

Press the SLEEP button on the remote control repeatedly until the appropriate time interval appears. Press the EXIT button to exit. The TV automatically switches to standby mode when the timer reaches 0. Switching the Television On and Off Automatically You can set the On/Off timers so that the set will: Switch on automatically and tune to the channel of your choice at the time you select. Switch off automatically at the time you select. The first step is to set the television’s clock.

button to select “Time”, then press the ENTER button.

button to select “On Timer”, then press the ENTER button.

Press the or button to adjust “Hour”, then press the button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.

Press the or button to adjust “Hour”, then press the button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.

Press the EXIT button to exit.

button to You can also set hour and minute by pressing the number buttons on the remote control. The "Activation" setting must be set to "Yes" in order for the timers to work. English-18 BN68-00927H-00Eng.indd 18 2006-09-16 ¿ÀÀü 11:36:50 Choosing Your Language When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

Press the MENU button to display the on-screen menu. Press the or button to select “Setup”, then press the ENTER button. Press the or button to select “Language”, then press the ENTER button.

Select a particular language by pressing the Press the ENTER button.

Press the EXIT button to exit.

button repeatedly. You can choose one of 21 languages. Using Game Mode When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu.

Press the EXIT button to exit.

button to button to select “Game Mode”, then press the ENTER button. button to select “On” or “Off”. Press the ENTER button. To disconnect the game console and connect another external device, set Game to Off in the setup menu. If you display the TV menu in Game mode, the screen shakes slightly. Game Mode is not available in TV mode. If Game Mode is On:

• Picture Mode and Sound Mode are automatically changed to Custom and users can not change the mode.
• Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.
• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults. Setting the Blue Screen Mode / Selecting the Melody Blue Screen: If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off". Melody: You can hear melody sound when the television is powered on or off.

Press the or button to select “Blue Screen” or “Melody”. Press the ENTER button.

Press the or button to select “On” or “Off”. Press the ENTER button.

Press the EXIT button to exit. button to English-19 BN68-00927H-00Eng.indd 19 2006-09-16 ¿ÀÀü 11:36:51 Using the Energy Saving Feature This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving " mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

Press the or button to select “Energy Saving”, then press the ENTER button.

Select the required option (Off, Low, Medium, High) by pressing the or button. Press the ENTER button.

Press the EXIT button to exit. Selecting the Source You can select among external sources connected to your TV’s input jacks.

Press the ENTER button again, to select “Source List”. When no external device is connected to your set, only “TV”, “Ext.1”, “Ext.2” are activated in the “Source List”. “AV”, “S-Video”, “Component”, “PC”, “HDMI” are activated only when they are connected to your set.

Select the required device by pressing the Press the ENTER button.

button. Press the SOURCE button on the remote control to toggel between all the available source. TV mode can be selected by pressing the TV button, number buttons(0~9), and the P / button on the remote control. But it cannot be selected using the SOURCE button. You can select PC mode by simply pressing the PC button on the remote control. Editing the Input Source Names Name the device connected to the input jacks to make your input source selection easier.

Press the or button to select “Edit Name”, then press the ENTER button. Press the or button to select the device that you wish to edit. Press the ENTER button.

Press the or button to select the required device. Press the ENTER button.

Press the EXIT button to exit. English-20 BN68-00927H-00Eng.indd 20 2006-09-16 ¿ÀÀü 11:36:52 Teletext Decoder Most set channels carry “ Teletext”, pages of written information that provide information such as: Television programme times. News bulletins and Weather forecasts. Sports results. Subtitles for the hard of hearing. The Teletextpages are organized according to six categories: Part Contents

Selected page number.

Broadcasting station identity.

Current page number or search status.

Status information. Displaying the Teletext Information You can display Teletext information at any time, but signal reception must be good. Otherwise: Information may be missing. Some pages may not be displayed. To activate the Teletextmode and display the contents page:

Using the P ( Teletext service.

) button, select the channel providing the ) button to activate the Teletext mode. The contents page is displayed. It can be redisplayed at any time by pressing the MENU ( ) button.

) button again. The actual bro adcast will be displayed with “Teletext”, “Double”, and “Mix” in order on the screen.

Press the TV( ) button to exit from the Text display. If any broken character appears while Text is being viewed, make sure that the Text language is identical with the language in the “Setup” menu mode. If both languages are different, select the same language with the Text language on the “Setup” menu. English-21 BN68-00927H-00Eng.indd 21 2006-09-16 ¿ÀÀü 11:36:54 Selecting a Specific Teletext Page Press the number buttons on the remote control to enter the page number directly:

Enter the three-digit page number listed in the contents by pressing the corresponding numeric buttons.

If the selected page is linked with several secondary pages, the secondary pages are displayed in sequence. To freeze the display on a given page, press the PIP ( ) button. Press the PIP ( ) button again to resume.

Both Teletextinformation and the normal broadcast TTX/MIX ( Hidden text (answers to quiz games, for example) INFO (

The normal screen INFO (

A secondary page, by entering its 4-digit number PRE-CH ( The next page The previous page

Double-size letters in the: ΠUpper half of the screen

ΠLower half of the screen ΠOnce ΠTwice Normal screen ΠThree times Using Fastext to Select a Teletext Page The various topics included in the Teletextpages are colour-coded, and can be selected by pressing the coloured buttons on the remote control.

Display the Teletext contents page by pressing the TTX/MIX ( ) button.

Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line).

Press the Red button to display the previous page. Press the Green button to display the next page.

Press the TV( ) button to exit from the Text display. English-22 BN68-00927H-00Eng.indd 22 2006-09-16 ¿ÀÀü 11:36:55 Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on “Control Panel” on the Windows start menu.

When the control panel window appears, click on “Appearance and Themes” and a display dialog-box will appear.

When the control panel window appears, click on “Display” and a display dialog-box will appear.

Navigate to the “Settings” tab on the display dialog-box. The correct size setting (resolution): Optimum- 1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box. Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported) Mode Resolution Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640 x 480 720 x 400

VESA 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 The interface mode is not supported. The set might operate abnormally if a non-standard video format is selected. DVI does not support PC function. Separate and Composite modes are supported. SOG is not supported. English-23 BN68-00927H-00Eng.indd 23 2006-09-16 ¿ÀÀü 11:36:57 Setting the PC Coarse and Fine Tuning of the Image (Image Lock): The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. Press the PC button on the remote control to select the PC mode.

Preset: Press the PC button to select PC mode.

Press the or button to select “PC”, then press the ENTER button.

Press the ENTER button to select “Image Lock”.

Press the or button to select “Coarse” or “Fine”, then press the ENTER button.

Press the or button to adjust the screen quality. Press the ENTER button.

Press the EXIT button to exit. Changing the Image Position (Position): Adjust the PC’s screen positioning if it does not fit the TV screen.

Follow the “Coarse and Fine Tuning of the Image (Image Lock)” instructions number 1 to 3.

Press the or button to select “Position”, then press the ENTER button.

Press the or button to adjusting the Vertical-Position. Press the or button to adjust the Horizontal-Position. Press the ENTER button.

Press the EXIT button to exit. Adjusting the PC Screen Automatically (Auto Adjustment): Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Follow the “Coarse and Fine Tuning of the Image (Image Lock)” instructions number 1 to 3.

Press the or button to select “Auto Adjustment”, then press the ENTER button.

Press the EXIT button to exit. Initializing the Image Settings (Image Reset): You can replace all image settings with the factory default values.

1. Follow the “Coarse and Fine Tuning of the Image (Image Lock)”

instructions number 1 to 3.

Press the EXIT button to exit. English-24 BN68-00927H-00Eng.indd 24 2006-09-16 ¿ÀÀü 11:36:57 Using the Anti-Theft Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

1. Insert the locking device into

the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2). Cable Figure 2

2. Connect the Kensington lock

3. Fix the Kensington lock to a desk

or a heavy stationary object. <Optional> The place of the Kensington Lock may be different depending on its model. Troubleshooting: Before Contacting Service Personnel No sound or picture Œ Check that the mains lead has been connected to a wall socket. Œ Check that you have pressed the buttons on the front of the set. Œ Check the picture contrast and brightness settings. Œ Check the volume. Normal picture but no sound Œ Check the volume. Œ Check whether the MUTE button has been pressed on the remote control. Œ Check if “Internal Mute” is off No picture or black and white picture Œ Adjust the colour settings. Œ Check that the broadcast system selected is correct. Sound and picture interference Œ Try to identify the electrical appliance that is affecting the set and move it further away. Œ Plug your set into a different mains socket. Blurred or snowy picture, distorted sound Œ Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial. Remote control malfunctions Œ Replace the remote control batteries. Œ Clean the upper edge of the remote control (transmission window). Œ Check the battery terminals. “Check signal cable.” message is displayed. Œ Check that the signal cable is firmly connected to the PC or video sources. Œ Check that the PC or video sources are turned on. On PC mode, “Mode Not Supported.” message is displayed. Œ Check the maximum resolution and the frequency of the video adaptor. Œ Compare these values with the data in the Display Modes. The TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English-25 BN68-00927H-00Eng.indd 25 2006-09-16 ¿ÀÀü 11:36:58 Technical and Environmental Specifications LE32R3 Model Name 32 inch Screen Size (Diagonal) AC 220-240 V 50 Hz Power Supply 152 W Power Consumption 1360 x 768 @ 60 Hz PC Resolution Sound Output 10 W X 2 Dimension (WxDxH) Body With stand 797 x 99 x 592 mm 797 x 249 x 651 mm Weight With stand

17.7 kg

Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. English-26 BN68-00927H-00Eng.indd 26 2006-09-16 ¿ÀÀü 11:36:59 Installation du support <2> <3> Repeat steps 3 to 4 for each channel to be assigned to a new name.

Passer aux “Heure” ou aux “Minute” bouton

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 Stel “Uur” of “min” met de

toets Druk op ENTER.

Sync Polarity (H/V) IBM 640 x 480 720 x 400 31,469 31,469 59,940 70,087 25,175 28,322

VESA 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 Vaya a “Hora” o “Minuto” El botón

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 Instalar a Base <2> <3> Colocar as pilhas no telecomando

Acertar as “Hora” ou “Minuto” Botão

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768
