Product type	LCD Television
Brand	Samsung
Model	LE-23R32B
Screen size (diagonal)	23 inches (58.4 cm)
Optimal PC resolution	1360 x 768 @ 60 Hz
Dimensions without stand (W x D x H)	583 x 90 x 443 mm
Dimensions with stand (W x D x H)	583 x 206 x 485 mm
Weight with stand	8.6 kg
Power supply	AC 220-240 V, 50 Hz
Power consumption	100 W
Audio output	3 W x 2 (stereo)
Connectivity	HDMI, DVI (via adapter), Composite, S-Video, Component, PC (D-Sub), SCART, Péritel, Headphone
Main features	Automatic/manual channel memory, PIP (Picture in Picture), Teletext, Game Mode, Energy Saving, Sleep Timer
Maintenance and cleaning	Turn off and unplug before cleaning; use a soft dry cloth; do not use chemical products
Safety	Avoid prolonged display of still images (more than 2 hours) to prevent burn-in; use a suitable wall mount (sold separately)
Spare parts and repairability	Batteries (AAA x2) for remote control; optional accessories: cables, wall mounting kit; repair by qualified technician
General information	Operating temperature: 10 °C ~ 40 °C; humidity 10% ~ 80%; design and specifications subject to change without notice

Frequently Asked Questions - LE-23R32B SAMSUNG

How to automatically memorize channels?

Press the MENU button, select Channel > Auto Memory then Start. You can also directly press the AUTO PROG. button on the remote control.

What to do if the screen remains black but sound works?

Check the contrast and brightness settings in the Picture menu. Make sure the TV is turned on (power indicator). If the problem persists, unplug and plug back in after a few minutes.

How to connect a computer to the TV?

Connect the D-Sub cable (sold separately) from the PC to the PC IN port on the back of the TV, and the stereo audio cable to AUDIO (PC IN). Then press the PC button on the remote control.

The remote control no longer works, what to check?

Check that the batteries (type AAA) are correctly inserted (respecting + and - poles) and that they are not used. Make sure no obstacle blocks the infrared sensor on the front of the TV.

How to activate the PIP (Picture in Picture) function?

Press the PIP button on the remote control. The PIP function is only available in PC mode. You can choose the source and position of the secondary image in the Picture > PIP menu.

How to set the time and sleep timer?

Go to Setup > Clock to set the time. For the timer, use the SLEEP button on the remote control (options from 30 to 180 minutes) or set it in the Setup > Clock > Sleep menu.

What does the message 'Unsupported Mode' mean in PC mode?

This message appears if the resolution or frequency of your PC is not supported. Set the graphics card to a supported resolution, for example 1360 x 768 @ 60 Hz.

How to use teletext?

Press the TTX/MIX button on the remote control to activate teletext. Enter the three-digit page number with the numeric keys. Use the colored buttons to access Fastext topics.

How to reduce energy consumption?

Activate Energy Saving mode in Setup > Eco Mode and choose Low, Medium or High. You can also reduce brightness in the Picture menu.

Is there a risk of screen marking with still images?

Yes, prolonged display of still images (more than 2 hours) can cause burn-in (screen burn). Avoid this by reducing brightness/contrast or using a screen saver. Damage is not covered by the warranty.

USER MANUAL LE-23R32B SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Owner's Instructions

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

ON-SCREEN MENUSPC DISPLAYCTURE IN PICTURE (PIP)TELETEXT

Register your product at www.samsung.com/global/register

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.

This image retention is also known as "screen burn".

To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen.

Playing a DVD or a game console may cause a similar effect to the screen.

Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

CONNECTING AND PREPARED YOUR TV

■ List of Parts 2
■ Installing the Stand 2
■ Installing the Wall Mount Kit 2
Viewing the Control Panel 3
Viewing the Connection Panel. 4
Viewing the Remote Control 5
■ Installing Batteries in the Remote Control 6
Switching On and Off. 6
Placing Your Television in Standby Mode 6
Plug & Play 6

SETTING THE CHANNELS

Storing Channels Automatically. 7
Storing Channels Manually 8
■ Editing the Channels 8

SETTING THE PICTURE

Changing the Picture Standard 9
Adjusting the Custom Picture 9
Changing the Colour Tone. 10
Resetting the Picture Settings to the Factory Defaults. 10
Changing the Picture Size 10
Digital Noise Reduction / Dynamic Contrast 11
Viewing the Picture In Picture (PIP) 11
Freezing the Picture 12

SETTING THE SOUND

Changing the Sound Standard 12
Adjusting the Sound Settings 12
Adjusting the Volume Automatically 13
■ Listening to the Sound of the Sub Picture. 13
Resetting the Sound Settings to the Factory defaults. 13
■ Selecting the Sound mode 13

SETTING THE TIME

Setting and Displaying the Current Time. 14
Setting the Sleep Timer 14
Switching the Television On and Off Automatically. 15

SETTING THE OTHERS

Choosing Your Language 15
Using the Game Mode 16
Using the Energy Saving Feature 16
Setting the Blue Screen Mode / Selecting the Melody 16
■ Selecting the Source 17
■ Editing the Input Source Names 17

USING THE TELETEXT FEATURE

Teletext Decoder 17
Displaying the Teletext Information 18
■ Selecting a Specific Teletext Page 18
Using Fastext to Select a Teletext Page 19

SETTING THE PC

Setting up Your PC Software (Based on Windows XP) 19
Display Modes 19
Setting the PC 20

RECOMMENDATIONS FOR USE

Troubleshooting: Before Contacting Service Personnel 21
Technical and Environmental Specifications ....21

Symbol

Press

Important

Note

One-Touch Button

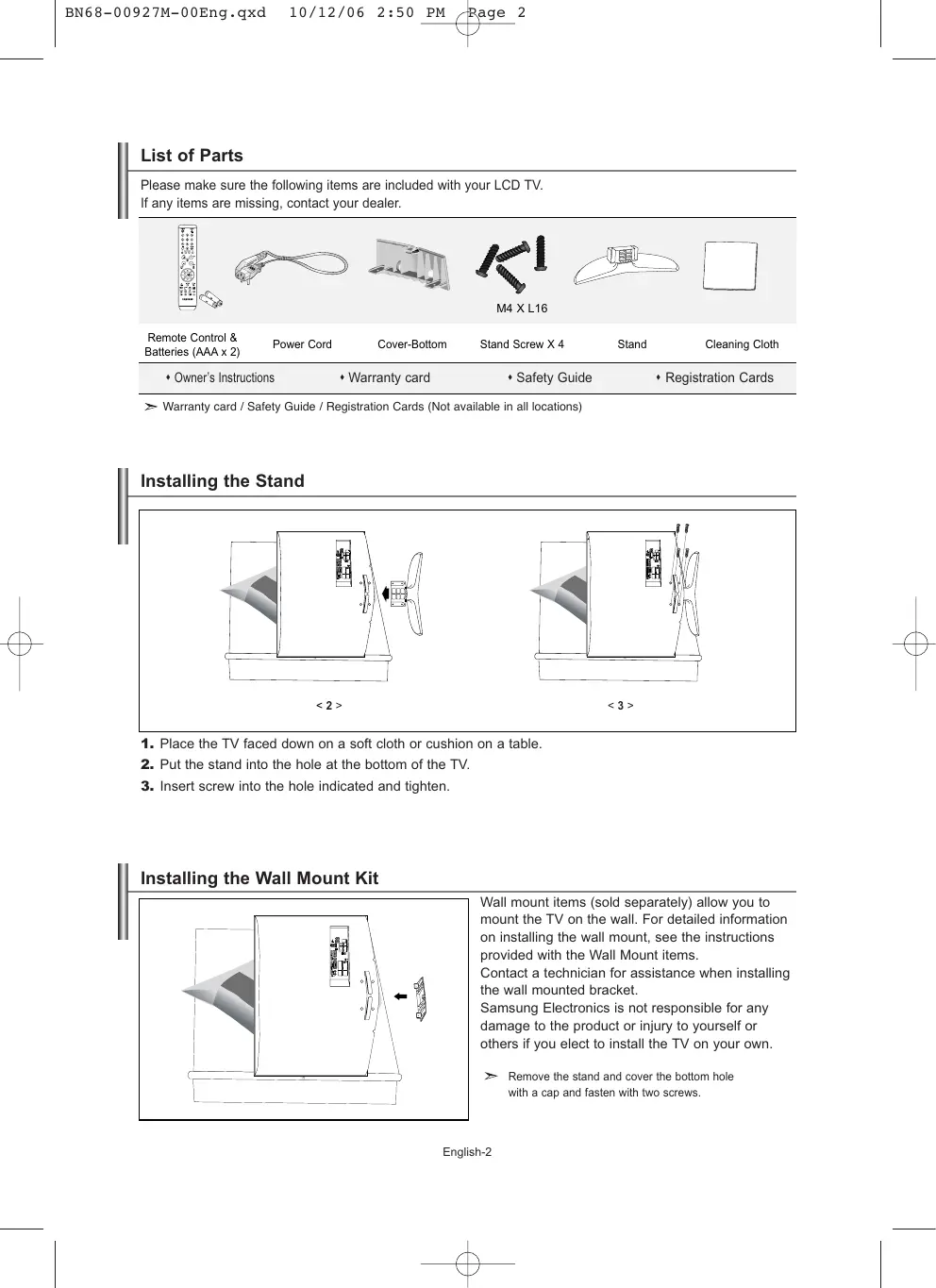

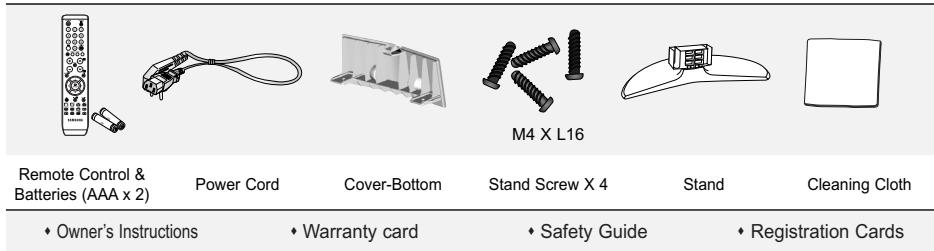

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Warranty card / Safety Guide / Registration Cards (Not available in all locations)

Installing the Stand

<2>

<3>

1. Place the TV faced down on a soft cloth or cushion on a table.
2. Put the stand into the hole at the bottom of the TV.
3. Insert screw into the hole indicated and tighten.

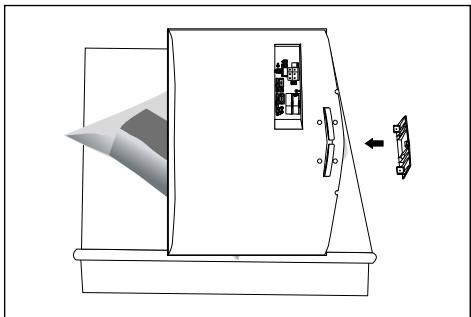

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items.

Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

The product colour and shape may vary depending on the model.

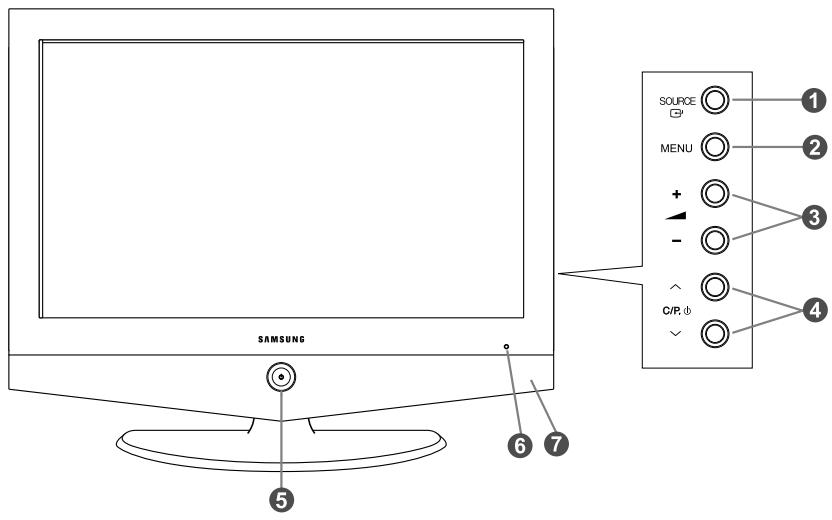

SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI). In the on-screen menu, use this button as you use the ENTER button on the remote control.

2 MENU

Press to see an on-screen menu of your TV's features.

+

Press to increase or decrease the volume. In the on-screen menu, use the + - buttons as you use the and buttons on the remote control.

A C/P. ①

Press to change channels. In the on-screen menu, use the C / P buttons as you use the and buttons on the remote control. (Without the Remote Control, You can turn on TV by using the Channel buttons.)

(Power)

Press to turn the TV on and off.

Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

Speakers

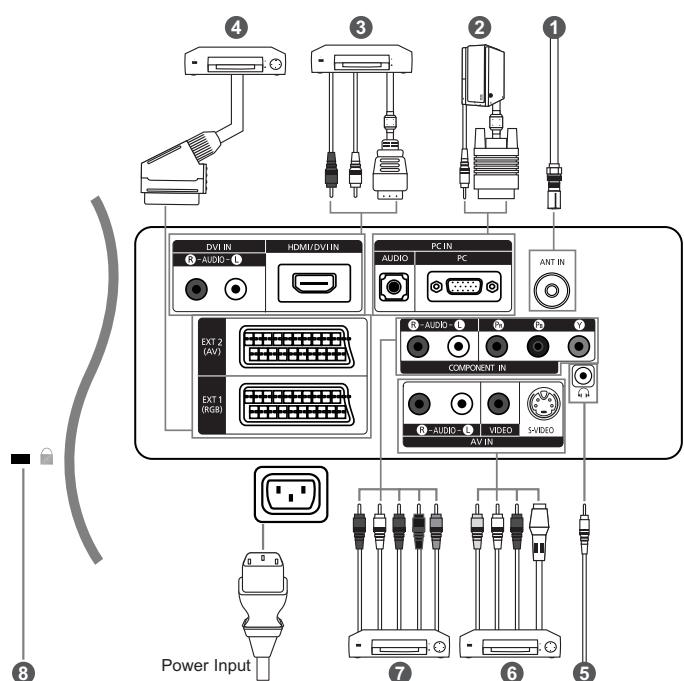

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.

Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

• An outdoor aerial / A cable television network / A satellite network out connectors on the A/V device.

Connecting Computer

• Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of your computer.
• Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio Out" of the sound card on your computer.

3 Connecting HDMI/DVI

• Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs).
• No additional Audio connection is needed for an HDMI to HDMI connection.

What is HDMI?

• "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio (5.1 channels).
• The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP

(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the "R - AUDIO - L" terminal onDVI for sound output.

• When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below.

Failure to observe this may result in picture distortion, image breakup or no picture.

• Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card.

(This will result in a blank screen being displayed)

4 Connecting Set-Top Box, VCR or DVD

• Connect the VCR or DVD SCART cable (optional) to the SCART connector of the VCR or DVD.

6 Connecting External A/V Devices

• Connect RCA (optional) or S-VIDEO cable (optional) to an appropriate external A/V device such as VCR, DVD or Camcorder.
• Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.
• Headphone may be connected to the headphone output ( ) on the rear of your set. While the headphone is connected, the sound from the built-in speakers will be disabled.

7 Connecting Component Devices (DTV/DVD)

• Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.
• If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set.
• The PR,PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
• Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

Kensington Lock

• The Kensington lock (optional) is a device used to physically fix the system when used in a public place.

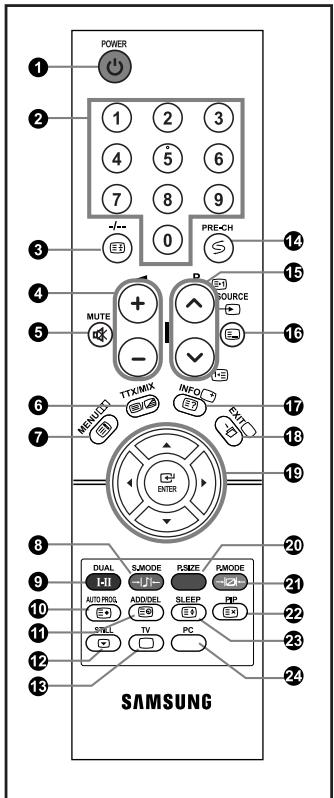

Viewing the Remote Control

Television Standby button
Number buttons for direct channel access
One/Two-digit channel selection
Volume increase Volume decrease
5 Temporary sound switch-off
7 Displays the main on-screen menu
Sound mode selection
Sound effect selection
Press to automatically store selected TV/cable channels
Use to store and delete channels to/from memory
Picture freeze
13 Selects the TV mode directly
14 Previous channel
1P:Next channel P:Previous channel
Available source selection
Use to see information on the current broadcast
16 Exit the on-screen menu

19 Control the cursor in the menu
20 Picture size selection
Picture effect selection
Picture-In-Picture On/Off
Automatic Power-off
2 Selects the PC mode directly

Teletext Functions

Teletext hold
Teletext display/mix both Teletext information and the normal broadcast
7 Teletext index
10 Teletext store
1 Teletext sub page
13 16 Exit from the Teletext display
P: Teletext next page P: Teletext previous page
16 Teletext mode selection (LIST/FLOF)
17 Teletext reveal
Teletext cancel
Teletext size selection
6 9 20 21 Fastext topi

The performance of the remote control may be affected by bright light.

1. Slide the cover out completely.
2. Install two AAA size batteries.

Make sure to match the "+" and - ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

   The standby indicator lights up on the front of the set.

2. Press the button on the front of the set.
   The programme that you were watching last is reselected automatically.
3. Press the numeric buttons (0~9) or channel up/down ( / ) buttons on the remote control or C P . buttons on the right side of the set.
   When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.
4. To switch your set off, press the button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

   The screen is turned off and a red standby indicator appears on the front of your set.

2. To switch your set back on, simply press the POWER button, numeric buttons (0~9) or channel up/down ( / ) buttons again.

   Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

Plug & Play

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER button on the remote control.

The message "Plug & Play" is displayed.

1. Select the appropriate language by pressing the or button.

Press the ENTER button to confirm your choice.

1. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button.

Please check that the antenna cable is connected correctly.

1. Select the appropriate country by pressing the or button. Press the ENTER button to confirm your choice.
2. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically. After all the available channels are stored, the "Clock Set" menu appears.

Press the ENTER button at any time to interrupt the memorization process.

1. Press the ENTER button.

Select the "Hour" or "Minute" by pressing the or button.

Set the "Hour" or "Minute" by pressing the or button.

You can also set the hour and minute by pressing the number buttons on the remote control.

1. Press the ENTER button to confirm your setting.

Language: Select your language.
Country: Select your country.
Auto Store: Automatically scans for and stores channels available in the local area.
Clock Set: Sets the current time for the TV clock.

If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the ENTER button again, to select "Plug & Play".
2. This will change or reset the settings.

• Storing Channels Automatically
• Storing Channels Manually (Refer to page 8)
• Editing the Channels (Refer to page 8)

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

1. Press the ENTER button to select "Country".
2. Select the appropriate country by pressing the or button.

Press the ENTER button to confirm your choice.

1. Press the or button to select "Auto Store", then press the ENTER button.
2. Press the ENTER button.

The TV will begin memorizing all of the available channels.

Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

1. After all the available channels are stored, the "Sort" menu appears.

Channels can be stored automatically by simply pressing the AUTO PROG. button on the remote control.

You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose:

Whether or not to store each of the channels found.
The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

1. Press the or button to select "Manual Store", then press the ENTER button.
2. Press the ENTER button to select "Programme".
3. To assign a programme number to a channel, find the correct number by pressing the or button and then press the ENTER button.

You can also set a programme number by pressing number buttons on the remote control.

1. Press the or button to select "Colour System", then press the ENTER button.
2. Select the colour standard required by pressing the or button then, press the ENTER button.
3. Press the or button to select "Sound System", then press the ENTER button.
4. Select the sound standard required by pressing the or button, then press the ENTER button.

If there is an abnormal sound or no sound, re-select the sound system required.

1. If you know the number of the channel to be stored, press the or button to select "Channel". Press the ENTER button. Select C (Air channel) or S (Cable channel) by pressing the or button. Press the button to select channel. Select the required number by pressing the or button and then press the ENTER button.

Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode)
You can also set a channel number by pressing the number buttons on the remote control.

1. If you do not know the channel numbers, press the or button to select "Search". Press the ENTER button. Search by pressing the or button and then press the ENTER button.

2. Press the or button to select "Store". Press the ENTER button to select "OK".

3. Repeat steps 3 to 11 for each channel to be stored.

Programme: Selects a program number for the channel.
Colour System: Sets the colour supporting system.
Sound System: Sets the sound supporting system.

Channel: Selects a channel.
Search: Scans for the frequency value for the channel.
Store: Saves your settings.

Editing the Channels

You can exclude the channels you chose from the channels you scanned. When you scan through the stored channels, those you have chosen to skip are not displayed.

All channels that you do not specifically choose to skip are displayed during scanning.

1. Use the number buttons to directly select the channel that will be added or deleted.
2. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

1. Press the or button to select "Add/Delete", then press the ENTER button.
2. Repeatedly pressing the ENTER button will alternate between add channel and delete channel.
3. Press the P / buttons to switch to the appropriate channel, then repeat above.
4. Press the EXIT button to exit.

You can view any channel (including an erased channel) by using the number buttons on the remote control.

You can also add or delete channel by simply pressing the ADD/DEL button on the remote control.

You can also press the P.MODE button on the remote control to select one of the picture settings.

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the or button to select "Picture", then press the ENTER button.
2. Press the ENTER button again, to select "Mode", then press the ENTER button again.
3. Press the or button to select the desired picture effect. Press the ENTER button.

4. Press the EXIT button to exit.

5. Dynamic: Selects the picture for high-definition in a bright room.

6. Standard: Selects the picture for optimum display in a normal environment.
7. Movie: Selects the picture for comfortable display in a dark room.
8. Custom: Select to view your favorite display settings. (Refer to "Adjusting the Custom Picture")

The Picture mode must be adjusted separately for each input source.
You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 10)

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3.
2. Press the or button to select a particular item. Press the ENTER button.
3. Press the or button to decrease or increase the value of a particular item, then press the ENTER button.

4. Press the EXIT button to exit.

5. Contrast: Adjusts the lightness and darkness between objects and the background.

6. Brightness: Adjusts the brightness of the whole screen.
7. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
   Colour: Adjusts the colours, making them lighter or darker.
8. Tint (NTSC only): Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.

You can select the most comfortable colour tone to your eyes.

1. To select the desired picture effect, follow the
   "Changing the Picture Standard" instructions number 1 to 3 on page 9.
2. Press the or button to select "Colour Tone", then press the ENTER button.
3. Press the or button to select the desired colour tone setting.

Press the ENTER button.

1. Press the EXIT button to exit.

Cool2: Makes the colour temperature bluer than "Cool1" menu.
Cool1: Makes whites bluish.
Normal: Keeps whites white.

Warm1: Makes whites reddish.
Warm2: Makes the colour temperature redder than "Warm1" menu.

The adjusted values are stored according to the selected Picture mode.

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the
   "Changing the Picture Standard" instructions number 1 to 3 on page 9.
2. Press the or button to select "Reset", then press the
   ENTER button.
3. Press the EXIT button to exit.
   The "Reset" will be set for each picture mode.

Changing the Picture Size

You can select these options by simply pressing the P.SIZE button on the remote control.

You can select the picture size which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the or button to select "Picture", then press the ENTER button.
2. Press the or button to select "Size", then press the ENTER button.
3. Select the required option by pressing the or button. Press the ENTER button.

4. Press the EXIT button to exit.

5. Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.
   16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

6. Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
   4:3: This is the default setting for a video movie or normal broadcasting.

In PC, Component and HDMI Mode, only "16:9" and "4:3" mode can be adjusted. (The "Zoom" mode is not supported.)

Zoom: Select by pressing the or button.

Use the or button to move the picture up and down.

After selecting 回 , use the or button to magnify or reduce the picture size in the vertical direction.

Digital NR:

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Dynamic Contrast:

Dynamic Contrast detects the visual signal input and adjusts to create optimum contrast.

1. Press the MENU button to display the menu. Press the or button to select "Picture", then press the ENTER button.
2. Press the or button to select "Digital NR" or "Dynamic Contrast", then press the ENTER button.
3. Press the or button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.

These functions don't work in PC mode.

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu. Press the or button to select "Picture", then press the ENTER button.
2. Press the or button to select "PIP", then press the ENTER button.
3. Press the ENTER button again.

Press the or button to select "On", then press ENTER button.

PIP is available only in PC mode and will be unavailable for other modes.

1. Press the or button to select "Source", then press ENTER button. Select a source of the sub picture by pressing the or button and press the ENTER button.
   The sub picture can serve different source selections based on what the main picture is set to.
2. Press the or button to select "Position", then press the ENTER button. Select the position of the sub picture by pressing the or button and then press the ENTER button.
3. Press the or button to select "Prog." and then press the ENTER button. You can select the channel that you want to view through sub picture by pressing the or button. Press the ENTER button.

The "Prog." can be active when the sub picture is set to TV.

7. Press the EXIT button to exit.

• Source: Selecting a signal source (external A/V) for PIP.
• Position: Used to move the sub picture.
  Prog.: Used to Change the sub picture.

PIP Settings (0: PIP operates, X: PIP doesn't operate)

Sub Main	TV	Ext.1	Ext.2	AV	S-Video	Component	PC	HDMI
PC	O	O	O	O	O	X	X	X

When the main picture is PC, the sub picture only supports "TV", "Ext.1", "Ext.2", "AV" and "S-Video". The sub picture does not support other input sources in this case.
You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

1. Press the STILL button to freeze a moving picture.

Normal sound will still be heard. Press again to cancel.
This function doesn't work when the input Source is PC.

Changing the Sound Standard

You can also select these options by simply pressing the S.MODE button on the remote control.

You can select the type of the special sound effect to be used when watching a given broadcast.

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.
2. Press the ENTER button again, to select "Mode".
3. Select the required sound effect by pressing the or button repeatedly and then press the ENTER button.

4. Press the EXIT button to exit.

5. Standard: Selects the normal sound mode.
   Music: Emphasizes music over voices.

6. Movie: Provides live and full sound for movies.
7. Speech: Emphasizes voices over other sounds.
8. Custom: Selects your custom sound settings. (Refer to "Adjusting the Sound Settings")

Adjusting the Sound Settings

The sound settings can be adjusted to suit your personal preferences.

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.
2. Press the or button to select "Equalizer", then press the ENTER button.
3. Press the or button to select a particular item. Press the ENTER button.
4. Press the or button to reach the required setting. Press the ENTER button.
5. Press the EXIT button to exit.

If you make any changes to these settings, the Sound Mode is automatically switched to "Custom".

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature let you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.
2. Press the or button to select "Auto Volume", then press the ENTER button.
3. Press the or button to select "On" or "Off", then press the ENTER button.
4. Press the EXIT button to exit.

Listening to the Sound of the Sub Picture

During the PIP feature is activating, you can listen to the sound of the sub picture.

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.
2. Press the or button to select "Sound Select", then press the ENTER button.
3. Press the or button to select "Sub", then press the ENTER button.

4. Press the EXIT button to exit.

5. Main: Used to listen to the sound of the main picture.

6. Sub: Used to listen to the sound of the sub picture.

You can select this option when the "PIP" is set to "On".

Resetting the Sound Settings to the Factory defaults

If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.
2. Press the or button to select "Reset", then press the ENTER button.
3. Press the EXIT button to exit.

You can select this option when the "Game Mode" is set to "On".

Selecting the Sound mode

You can also set these options simply by pressing the DUAL button on remote control.

You can set the sound mode by pressing the "DUAL" button. When you press it, the current sound mode is displayed on the screen.

	Audio Type	DUAL 1/2	Default
FM Stereo	Mono	MONO	Automatic change
	Stereo	STEREO←→MONO
	Dual	DUAL1←→DUAL 2	DUAL 1
NICAM Stereo	Mono	MONO	Automatic change
	Stereo	MONO←→STEREO
	Dual	→MONO←→DUAL1→DUAL 2←→	DUAL 1

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Time", then press the ENTER button.
3. Press the ENTER button to select "Clock Set".

4.

To...	Press the...
Move to “Hour” or “Minute”	← or → button.
Set the “Hour” or “Minute”	▲ or ↓ button.
Press the ENTER button.

1. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.
You can also set hour and minute by pressing the number buttons on the remote control.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Time", then press the ENTER button.
3. Press the or button to select "Sleep Timer", then press the ENTER button.
4. Press the or button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.
5. Press the EXIT button to exit.

The TV automatically switches to standby mode when the timer reaches 0.

Press the SLEEP button on the remote control repeatedly until the appropriate time interval appears.

You can set the On/Off timers so that the set will:

Switch on automatically and tune to the channel of your choice at the time you select.
Switch off automatically at the time you select.

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Time", then press the ENTER button.
3. Press the or button to select "On Timer", then press the ENTER button.
4. Press the or button to adjust "Hour", then press the button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.
5. Press the or button to select "Off Timer", then press the ENTER button.

6. Press the or button to adjust "Hour", then press the button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.

7. Press the EXIT button to exit.

The first step is to set the television's clock.
You can also set hour and minute by pressing the number buttons on the remote control.
The "Activation" setting must be set to "Yes" in order for the timers to work.

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu.
   Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Language", then press the ENTER button.
3. Select a particular language by pressing the or button repeatedly. Press the ENTER button.

You can choose one of 21 languages.

1. Press the EXIT button to exit.

When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting Game Mode.

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Game Mode", then press the ENTER button.
3. Press the or button to select "On" or "Off", then press the ENTER button.
4. Press the EXIT button to exit.

To disconnect the game console and connect another external device, set Game to Off in the setup menu.
If you display the TV menu in Game Mode, the screen shakes slightly.

Game Mode is not available in TV mode.
If Game Mode is On:

• Picture Mode and Sound Mode are automatically changed to Custom and users can not change the mode.
• Adjust the sound using the equalizer.
• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

Using the Energy Saving Feature

This feature adjusts the brightness of TV so as to reduce the power consumption. When you watching TV at night, set the "Energy Saving" mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

1. Press the MENU button to display the on-screen menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Energy Saving", then press the ENTER button.
3. Select the required option (Off, Low, Medium, High) by pressing the or button. Press the ENTER button.
4. Press the EXIT button to exit.

Setting the Blue Screen Mode / Selecting the Melody

Blue Screen: If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

Melody: You can hear melody sound when the television is powered on or off.

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Blue Screen" or "Melody", then press the ENTER button.
3. Press the or button to select "On" or "Off", then press the ENTER button.
4. Press the EXIT button to exit.

You can select among external sources connected to your TV's input jacks.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Input".
2. Press the ENTER button again, to select "Source List".

When no external device is connected to your set, only "TV", "Ext.1", "Ext.2" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI" are activated only when they are connected to your set.

1. Select the required device by pressing the or button. Press the ENTER button.

Press the SOURCE button on the remote control to togget between all the available source. TV mode can be selected by pressing the TV or P / button on the remote control but you cannot select it by pressing the SOURCE button.

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Input".
2. Press the or button to select "Edit Name", then press the ENTER button.
3. Press the or button to select the device that you wish to edit. Press the ENTER button.
4. Press the or button to select the required device. Press the ENTER button.
5. Press the EXIT button to exit.

Teletext Decoder

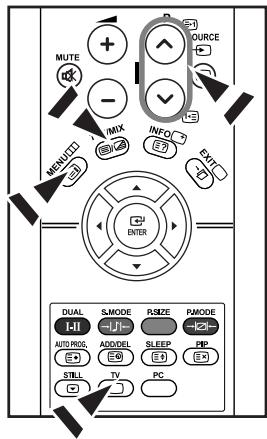

Most set channels carry "Teletext", pages of written information that provide information such as:

Television programme times.
News bulletins and Weather forecasts.
Sports results.
Subtitles for the hard of hearing.

The Teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting station identity.
C	Current page number or search status.
D	Date and time.
E	Text.
F	Status information.

You can display Teletext information at any time, but signal reception must be good. Otherwise:

Information may be missing.
Some pages may not be displayed.

To activate the Teletext mode and display the contents page:

1. Using the P (5) or P (7) button, select the channel providing the Teletext service.
2. Press the TTX/MIX ( 日 ) button to activate the Teletext mode.

The contents page is displayed. It can be redisplayed at any time by pressing the MENU (E) button.

1. Press the TTX/MIX ( 日 / 日 ) button again.
   The actual broadcast will be displayed simultaneously with the Teletext page on the screen.
2. Press the TV(□) button again to exit from the Text display.

If any broken character appears while Text is being viewed, make sure that the Text language is identical with the language in the "Setup" menu mode. If both languages are different, select the same language with the Text language on the "Setup" menu.

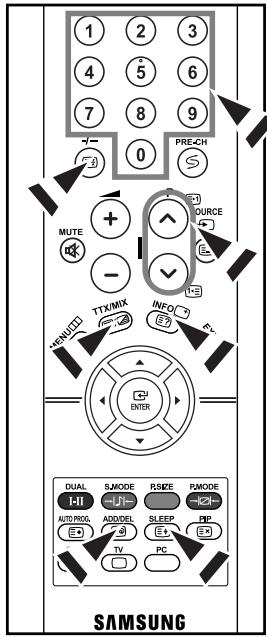

Selecting a Specific Teletext Page

Press the number buttons on the remote control to enter the page number directly:

1. Enter the three-digit page number listed in the contents by pressing the corresponding numeric buttons.

2. If the selected page is linked with several secondary pages, the secondary pages are displayed in sequence. To freeze the display on a given page, press the - - (33). Press the - - (33) button again to resume.

3. Using the various display options:

To display...	Press the...
Both Teletext information and the normal broadcast	TTX/MIX ( ☑/ ☐)
Hidden text (answers to quiz games, for example)	INFO ( ☑)
The normal screen	INFO ( ☑)
A secondary page, by entering its 4-digit number	ADD/DEL ( ☐)
The next page	P ☑ ( ☐)
The previous page	P ☑ ( ☐)
Double-size letters in the:	SLEEP ( ☐)
• Upper half of the screen	• Once
• Lower half of the screen	• Twice
Normal screen	• Three times

The various topics included in the Teletext pages are colour-coded, and can be selected by pressing the coloured buttons on the remote control.

1. Display the Teletext contents page by pressing the TTX/MIX ( 三 /四 ) button.
2. Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line).
3. Press the Red button to display the previous page. Press the Green button to display the next page.
4. Press the TV(□) button again to exit from the Text display.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum- 1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640 x 480	31.469	59.940	25.175	- / -
	720 x 400	31.469	70.087	28.322	- / +
VESA	800 x 600	37.879	60.317	49.500	+ /+
	1024 x 768	48.364	60.000	65.000	- / -
	1024 x 768	56.476	70.069	75.000	- / -
	1360 x 768	47.712	60.015	85.800	+ /+

The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.

HDMI/DVI does not support PC function.
Separate and Composite modes are supported. SOG is not supported.

Press the PC button on the remote control to select the PC mode.

Coarse and Fine Tuning of the Image (Image Lock):

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

1. Preset: Press the PC button to select PC mode.
2. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "PC", then press the ENTER button.
2. Press the ENTER button to select "Image Lock".
3. Press the or button to select "Coarse" or "Fine", then press the ENTER button.
4. Press the or button to adjust the screen quality. Press the ENTER button.
5. Press the EXIT button to exit.

Changing the Image Position (Position):

Adjust the PC's screen positioning if it does not fit the TV screen.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the or button to select "Position", then press the ENTER button.
3. Press the or button to adjusting the Vertical-Position. Press the or button to adjust the Horizontal-Position. Press the ENTER button.
4. Press the EXIT button to exit.

Initializing the Image Settings (Image Reset):

You can replace all image settings with the factory default values.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the or button to select "Image Reset", then press the ENTER button.
3. Press the EXIT button to exit.

Adjusting the PC Screen Automatically (Auto Adjustment):

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the or button to select "Auto Adjustment", then press the ENTER button.
3. Press the EXIT button to exit.

Troubleshooting: Before Contacting Service Personnel

No sound or picture	·Check that the mains lead has been connected to a wall socket. ·Check that you have pressed the Ⓞ buttons on the front of the set. ·Check the picture contrast and brightness settings. ·Check the volume.
Normal picture but no sound	·Check the volume. ·Check whether the MUTE button has been pressed on the remote control.
No picture or black and white picture	·Adjust the colour settings. ·Check that the broadcast system selected is correct.
Sound and picture interference	·Try to identify the electrical appliance that is affecting the set and move it further away. ·Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound	·Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial.
Remote control malfunctions	·Replace the remote control batteries. ·Clean the upper edge of the remote control (transmission window). ·Check the battery terminals.
"Check signal cable." message is displayed.	·Check that the signal cable is firmly connected to the PC or video sources. ·Check that the PC or video sources are turned on.
On PC mode, "Mode Not Supported." message is displayed.	·Check the maximum resolution and the frequency of the video adaptor. ·Compare these values with the data in the Display Modes.

The TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require sophisticated technology to produce.
However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Technical and Environmental Specifications

Model name	LE23R3	LE26R3
Screen Size (Diagonal)	23 inch	26 inch
Power Supply	AC 220-240 V, 50 Hz	AC 220-240 V, 50 Hz
Power Consumption	100 W	120 W
PC resolution	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz
Sound
Output	3 W x 2	5 W x 2
Dimension (WxDxH)
Body	583 x 90 x 443 mm	662 x 94 x 498 mm
With stand	583 x 206 x 485 mm	662 x 206 x 539 mm
Weight
With stand	8.6 kg	11.3 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing

Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.

Table des matieres

CONNEXION ET PREPARATION DE VOTRE TELEVISEUR

Alternatively, you can select any of the options that will help you get a better understanding of the options.

Alternatively, you can use the botón DUAL to establish a distance.

Colocar as pilhas no telecomando

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
