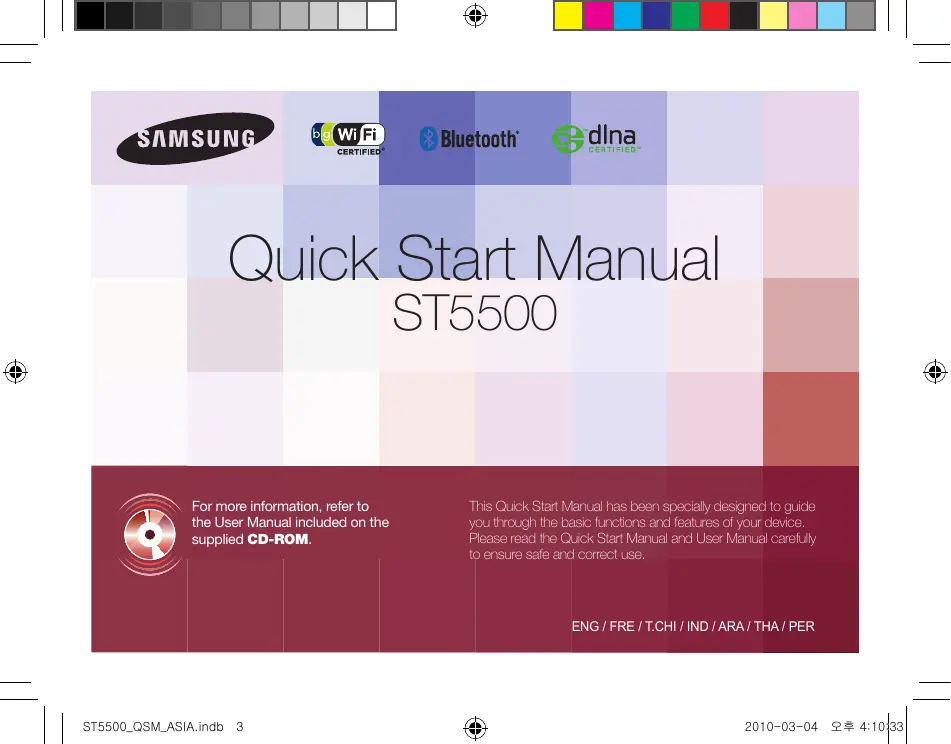

Quick Start Manual ST5500 For more information, refer to the User Manual included on the supplied CD-ROM. This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use. ENG / FRE / T.CHI / IND / ARA / THA / PER ST5500_QSM_ASIA.indb 3 2010-03-04 오후 4:10:33 Contents Health and safety information Health and safety information… 2

Do not use your camera near flammable or explosive gases and liquids Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories. Unpacking… ……………………… 5 Inserting the battery and memory card… …………………… 6 Charging the battery… …………… 6 Turning on your camera…………… 7 Using the touch screen…………… 7 Capturing photos or videos… Warnings

Keep your camera away from small children and pets Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Prevent damage to subjects’ eyesight Do not use the flash in close proximity (closer than 1m/ 3 ft) to people or animals. Using the flash too close to your subject’s eyes can cause temporary or permanent damage.

ST5500_QSM_ASIA.indb 2 2010-03-04 오후 4:10:33 Cautions Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer’s warranty.
• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.
• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories. ST5500_QSM_ASIA.indb 3

• Do not insert foreign objects into any of your camera’s compartments, slots, or access points. This type of damage may not be covered by your warranty. English Handle and dispose of batteries and chargers with care
• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. Protect batteries, chargers, and memory cards from damage
• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0° C/32° F or above 40° C/104° F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Do not allow liquids, dirt, or foreign substances to come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction.
• Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a camera in a certain area.

Battery chamber cover

ST5500_QSM_ASIA.indb 5 2010-03-04 오후 4:10:33 Setting up your camera Inserting the battery and memory card

Charging the battery Before using the camera for the first time, you must charge the battery.

With the goldcoloured contacts facing up ▼ Removing the battery

With the Samsung logo facing down ▼ Removing the memory card Push gently until the card disengages from the camera and then pull it out of the slot. Indicator light

• ▪ Green: Fully charged

Press [POWER] to turn your camera on or off.

• ▪ The initial setup screen appears when you turn on your camera for the first time. Using the touch screen Use the supplied touch pen to touch or drag on the screen. English Turning on your camera Caution Do not use other sharp objects, such as pens or pencils, to touch the screen. Doing so may damage the screen. Touching Touch an icon to open a menu or set an option.

Select a language, set the date and time, select a time zone, and calibrate the screen. Dragging Drag left or right to scroll horizontally.

Make sure that the camera is in the a mode (Auto mode). Align your subject in the frame. Press [Shutter] halfway down to focus automatically.

• ▪ A green frame means the subject in focus. Recording a video

Select a → v. Align your subject in the frame. Press [Shutter].

• ▪ To pause, select .
• ▪ To resume, select . Press [Shutter] again to stop recording. Note Number of photos by resolution (for 1 GB microSDTM) Resolution

Press [Shutter] all the way down to take the photo. Super fine Fine Normal 4320 X 3240 4000 X 3000 3984 X 2656

1,626 1,373 2,575 1,931 3,090 These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings.

• ▪ You can also view files by tilting your camera. Note Make sure that the PC Software option is set to On in the settings menu.

Press [Playback] and select

Use the following icons to control playback.

Pause or resume playback Stop playback Scan forward Turn on the camera.

• ▪ The computer recognizes the camera automatically.
• ▪ For Windows Vista, select Run iStudio.exe from the AutoPlay window. Select a folder on your computer to save new files.

• ▪ If your camera has no new files, the window to save new files will not appear. Scan backward

Connect the camera to your computer with the USB cable. English Transferring files to a PC (Windows)

• ▪ New files will be transferred to your computer. You can now use the Intelli-studio program. Adjust volume or mute sound Note About Intelli-studio Intelli-studio is a built-in program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

In Shooting or Playback mode, select N →

• ▪ The camera will search for and display available AP devices. Select an AP device. Uploading photos or videos

• ▪ The camera will connect to the WLAN.
• ▪ If the selected AP device requires a password, enter a password.
• ▪ If the camera fails to connect to the WLAN automatically, connect to it manually. For more information about connecting to the WLAN, contact your network administrator or network service provider. Select

Select < or > to scroll through files. Drag photos or videos to the selection area or select photos or videos, and select OK. Date Select a website. Enter your login ID and password, and select Login.

Enter a title and select an album, and then select . Note

• The speed of your internet connection may affect how quickly photos upload or web pages open.
• You may not be able to send an email due network connection or email account settings.

• Type: 1/2.3" (Approx. 7.76 mm) CCD
• Effective pixels: approx. 14.2 mega-pixels
• Total pixels: approx. 14.5 mega-pixels Lens

• Focal length: Schneider-KREUZNACH lens f = 5.6 - 39.2 mm (35 mm film equivalent: 31 - 217 mm)
• F-stop range: F3.3 (W) - F5.5 (T) Display 3.7" (9.4 cm) Wide Full Touch Screen Panel Focusing TTL auto focus (Multi AF, Center AF, Face Recognition AF, Face Detection AF, Smart Touch AF, One Touch Shooting) Shutter speed

• Internal memory: approx. 13 MB
• External memory (Optional): microSDTM card (up to 4 GB guaranteed) Internal memory capacity may not match these specifications. English Image sensor Auto: 1/8 - 1/2,000 sec. Program: 1 - 1/2,000 sec. Night: 8 - 1/2,000 sec. Fireworks: 2 sec. DC power input connector 20 pin, 4.4 V Rechargeable battery Lithium-ion battery (SLB-11A, 1130 mAh) Dimensions (W x H x D)

103.8 x 58.3 x 19.6 mm

161.1 g (without battery and memory card)

Operating temperature
