PL100 - Camera SAMSUNG - Free user manual and instructions

Product type	Compact digital camera
Brand	Samsung
Model	PL100
Image sensor	CCD 1/2.33", 12.2 effective megapixels
Lens	Samsung, f=6.3-18.9 mm (equiv. 35-105 mm), aperture F3.0 (W) - F5.6 (T)
Main display	LCD TFT 2.7" (6.9 cm), 230,000 pixels
Front display	LCD TFT 1.5" (3.8 cm), 61,000 pixels
Focus	TTL automatic (multi, center, face detection, tracking)
Shutter speed	Auto: 1/8-1/1500 sec, Program: 1-1/1500 sec, Night: 8-1/1500 sec, Fireworks: 2 sec
Internal storage	Approx. 5 MB
External storage	SD card (up to 4 GB), SDHC (up to 8 GB) - optional
Power supply	Rechargeable lithium-ion battery BP70A (740 mAh)
Dimensions (W×H×D)	95.7 × 56 × 20.3 mm
Weight	111 g (without battery or memory card)
Connectivity	USB 2.0, Audio/Video (20-pin combo jack)
Operating temperature	0 to 40 °C
Operating humidity	5 to 85%
Main functions	Photo and video capture, self-portrait via front display, built-in flash, 3x optical zoom, self-timer, face detection
Care and cleaning	Avoid water, dust, and extreme temperatures. Clean with a soft cloth.
Safety	Do not use near flammable gases. Keep out of reach of children. Use only Samsung batteries and chargers.
Spare parts and repairability	Battery, charger, USB cable, optional memory card. Repair by authorized center.

Frequently Asked Questions - PL100 SAMSUNG

How do I charge the Samsung PL100 battery?

Use the supplied charger or AC adapter. Connect the USB cable to the camera and to a power source. The red light indicates charging, green means charged.

How do I insert a memory card?

Open the battery/memory card compartment. Insert the card with the Samsung logo facing up and the contacts facing inward. Push until it clicks. To remove, push gently to eject.

How do I take a self-portrait with the front display?

In Shooting mode, press the Front LCD button once. The front display turns on. Frame yourself, then press the shutter button halfway to focus, then press fully to take the photo.

How do I transfer photos to a Windows PC?

Connect the camera to the computer with the USB cable. Turn on the camera. The computer recognizes the camera. On Windows Vista, select 'Run Installer.exe'. Choose a folder and click Yes to transfer files. The Intelli-studio software can be used.

What types of memory cards are compatible?

The camera accepts SD cards up to 4 GB and SDHC cards up to 8 GB (optional).

How do I set the date and time?

On first startup, the setup screen appears. Use the navigation buttons to select language, date, time, and time zone. You can also access these settings via the menu.

How do I use the zoom?

Use the Zoom button (marked +/-) to zoom in or out. In Shooting mode, press the Tele side to zoom in, the Wide side to zoom out.

What should I do if the camera does not turn on?

Check that the battery is charged and properly inserted. If the battery is dead, recharge it. If the problem persists, contact an authorized service center.

How can I avoid damaging the camera?

Avoid exposure to water, dust, extreme temperatures (below 0°C or above 40°C). Do not use the flash within one meter of eyes. Use only Samsung accessories.

What is the maximum photo resolution?

The maximum resolution is 12 megapixels (4000×3000 pixels). Other resolutions are available: 10M, 9M, 8M, 5M, 3M, 2M, 1M.

USER MANUAL PL100 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG/GER/FRE/SPA/ITA/DUT/POR

Contents

Health and safety information 2
Camera layout 4 13
Setting up your camera 5 12
Unpacking 5
Inserting the battery and memory card 6
Charging the battery 6
Turning on your camera. 7
Selecting options 7
Capturing photos or videos 8 27
Playing files 9 55
Transferring files to a PC (Windows) 10
Specifications 11 91

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

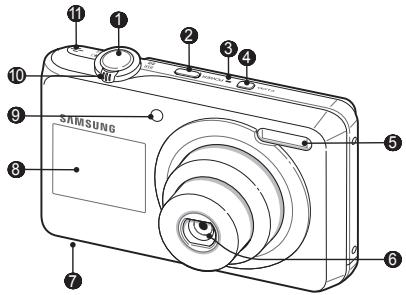

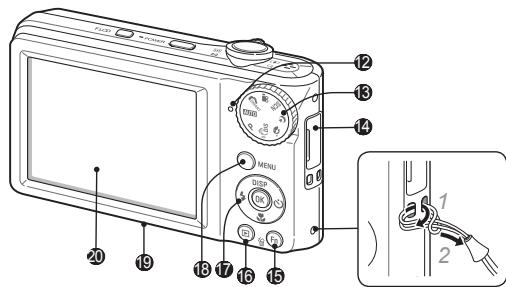

Camera layout

1 Shutter button
2 POWER button
3 Microphone
4 Front LCD button
⑤ Flash
6 Lens
7 Battery chamber cover
8 Front display
9 AF-assist light/timer lamp
10 Zoom button
1 Speaker

12 Status lamp
13 Mode dial
14 USB and AV port (Accepts USB cable or AV cable)
15 Function button
16 Playback button
1 Navigation button/OK button
18 MENU button
19 Tripod mount
Main display

Setting up your camera

Unpacking
Camera

AC adapter/USB cable

Rechargeable battery

Strap

Software CD-ROM (User manual included)

Quick Start Manual

Optional accessories
Camera case

Memory card

AV cable

Battery charger

English

Setting up your camera

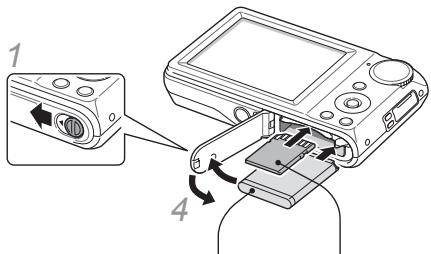

Inserting the battery and memory card

3 With the Samsung logo facing up

2 With the gold-colored contacts facing up

Removing the battery

Removing the memory card

Push gently until the card disengages from the camera and then pull it out of the slot.

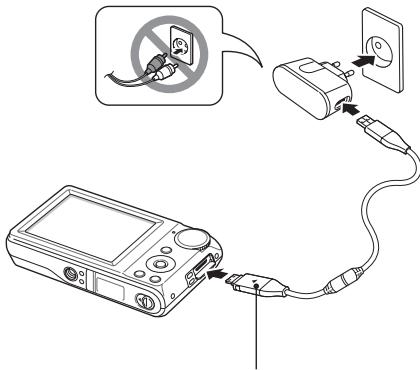

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light

Red:Charging
- Green: Fully charged

Turning on your camera

1 Press [POWER].

• The initial setup screen appears when you turn on your camera for the first time.

2 Select a language, set the date and time, and select a time zone.

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

• To move left or right, press [F] or [O].
• To move up or down, press [DISP] or [].

3 Press [OK] to confirm the highlighted option or menu.

• Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to AUTO.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Taking a photo of yourself using the front display

The front display will help you take self-portraits.

1 In Shooting mode, press [Front LCD] once.

• The front display turns on in the Self-portrait mode.

2 Press [Shutter] halfway down to focus.
3 Press [Shutter] all the way down to take the photo.

Recording a video

1 Rotate the mode dial to
2 Align your subject in the frame.
3 Press [Shutter].

• Press [OK] to pause or resume.
  4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super Fine	Fine	Normal
12M	4000 X 3000	147	284	403
10M	3984 X 2656	167	313	441
9M	3840 X 2160	202	367	528
8M	3264 X 2448	211	374	537
5M	2560 X 1920	339	566	792
3M	2048 X 1536	510	802	1,065
[2x]	1920 X 1080	735	1,144	1,437
1M	1024 X 768	1,287	1,670	1,872

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [O].
2 Press [4] or [0] to scroll through files.

• Press and hold to scroll through files quickly.

Viewing videos

1 Press [O].
2 Press [OK].
3 Use the following buttons to control playback.

[+]	Scan backward
[OK]	Pause or resume playback
[?]	Scan forward
[Zoom] left or right	Adjust the volume level

Transferring files to a PC (Windows)

1 Connect the camera to your computer with the USB cable.

2 Turn on the camera.

• The computer recognizes the camera automatically.
• For Windows Vista, select Run Installer.exe from the AutoPlay window.

3 Select a folder on your computer to save new files.
- If your camera has no new files, the pop-up window for saving new files will not appear.

4 Select Yes.

• New files will be transferred to your computer. You can now use the Intelli-studio program.

Note

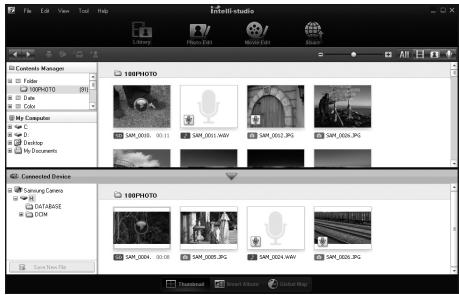

About Intelli-studio

Intelli-studio is a program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

Specifications

Image sensor	• Type: 1/2.33" (approx. 7.79 mm) CCD • Effective pixels: approx. 12.2 mega-pixels • Total pixels: approx. 12.4 mega-pixels
Lens	• Focal length: Samsung lens f = 6.3 - 18.9 mm (35 mm film equivalent: 35 - 105 mm) • F-stop range: F3.0 (W) - F5.6 (T)
Display	• Main Display: 2.7" (approx. 6.9 cm) QVGA (230 K) • Front Display: 1.5" (approx. 3.8 cm) 61 K TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF)
Shutter speed	• Auto: 1/8 - 1/1,500 sec. • Program: 1 - 1/1,500 sec. • Night: 8 - 1/1,500 sec. • Fireworks: 2 sec.
Storage	• Internal memory: approx. 5 MB • External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed) Internal memory capacity may not match these specifications.
DC power input connector	20 pin
Rechargeable battery	Lithium-ion battery (BP70A, 740 mAh)
Dimensions (W x H x D)	95.7 x 56 x 20.3 mm
Weight	111 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Inhalt

Info zu Intelli-studio

Batterie rechargeable

Dragonne

Specifications 11 91

NL-2

Please refer to the warranty that came with your product or visit our website http://www.samsungimaging.com/ for after-sales service or inquiries.

AD68-04782A (1.0)
