PL10 PINK - Camera SAMSUNG - Free user manual and instructions

Product Type	Compact Digital Camera
Brand	Samsung
Model	PL10 Pink
Image Sensor	CCD 1/2.5" (approx. 1.02 cm), 9.0 effective megapixels
Lens	Samsung 3X zoom, f=6.3-18.9 mm (35 mm equivalent: 38-114 mm), F3.5 (W) - F4.5 (T)
Display	LCD TFT 2.7" (6.86 cm), 230,000 pixels
Focus	Auto TTL (multi, center, smart recognition, face detection)
Shutter Speed	1 - 1/2000 sec (AEB, Continuous: 1/4 - 1/2000 sec; Night: 16 - 1/2000 sec)
Internal Memory	Approx. 196 MB
External Memory	SD card (up to 4 GB), SDHC (up to 8 GB), MMC Plus (up to 2 GB)
Battery	Rechargeable Lithium-ion SLB-0937, 900 mAh
Power Supply	AC adapter / USB cable (charges via multi-function jack)
Dimensions (L x H x D)	92.8 x 59.7 x 19.4 mm
Weight	120.7 g (without battery and memory card)
Main Functions	Photo and video shooting, playback, multimedia (music, video, text), 3x optical zoom, built-in flash, self-timer
Maintenance and Cleaning	Clean the memory card with a soft cloth; avoid dust, moisture and liquids
Safety	Do not use near flammable gases; keep out of reach of children; flash more than 1 meter from eyes; use only Samsung batteries and chargers
Spare Parts and Repairability	Battery, charger, USB cable, earphones, CD-ROM; repair by Samsung approved center
General Information	Operating temperature: 0-40 °C; humidity: 5-85%; USB 2.0 connection

Frequently Asked Questions - PL10 PINK SAMSUNG

How do I charge the battery of the Samsung PL10 camera?

Use the supplied AC adapter. Connect the USB cable to the camera and the adapter, then plug the adapter into an outlet. The indicator light is red during charging and turns green when charging is complete.

What type of memory card can I use with the Samsung PL10?

The camera accepts SD cards (up to 4 GB), SDHC (up to 8 GB) and MMC Plus (up to 2 GB). Insert the card with the Samsung logo facing down and the chip facing up.

How do I set the date and language on the camera?

Turn on the camera by pressing [POWER]. The setup screen appears. Use the [DISP] or [↑] buttons to select the language, then press [OK]. Then select Date & Time and set the date using the [←] or [→] buttons.

How do I take a photo in automatic mode?

Press [M] to select Auto mode. Frame the subject, press the shutter button halfway to focus (green frame), then press fully to take the photo.

How do I record a video with the Samsung PL10?

Press [M] and select Video mode. Frame the subject, then press the shutter button to start recording. Press the shutter button again to stop. You can pause with [OK].

How do I transfer photos to a Windows computer?

Install the supplied CD-ROM. Connect the camera to the PC with the USB cable, turn on the camera. On the PC, go to My Computer > Removable Disk > DCIM > 100SSCAM. Select and copy the files.

How do I play multimedia files (music, video, text) on the camera?

Create folders 'MP3', 'PMP' and 'TEXT' on the memory card. Copy the corresponding files. Plug in earphones, press [M], select Multimedia then the file type and the file to play.

How do I view photos on the camera?

Press the Playback button [O]. Use the [←] or [→] buttons to browse photos. Hold your finger pressed for fast scrolling.

What important safety precautions should I follow?

Do not use the camera near flammable gases. Keep it out of reach of children. Do not use the flash less than one meter from eyes. Use only Samsung batteries and chargers to avoid explosions.

How do I clean the camera's memory card?

If the memory card is dirty, clean it with a soft dry cloth before inserting it into the camera. Avoid any contact with liquids, dust or foreign objects.

USER MANUAL PL10 PINK SAMSUNG

Please refer to the warranty that came with your product or visit our website http://www.samsungcamera.com/ for after-sales service or inquiries.

AD68-03908A (1.1)

SAMSUNG

Quick Start Manual

PL10

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG/FRE/TUR/T.CHI/IND/ARA/THA/PER

Contents

Health and safety

information. 2

Camera layout 4

Setting up your camera 5

Unpacking 5

Inserting the battery and memory card 6

Charging the battery 6

Turning on your camera. 7

Selecting options 7

Capturing photos or videos 8

Playing files 9

Transferring files to a PC

(Windows) 10

Specifications 11

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m / 3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

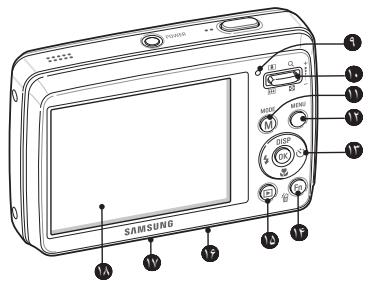

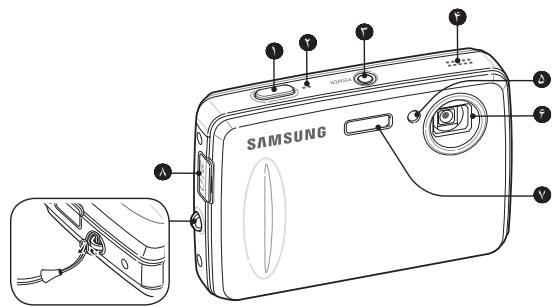

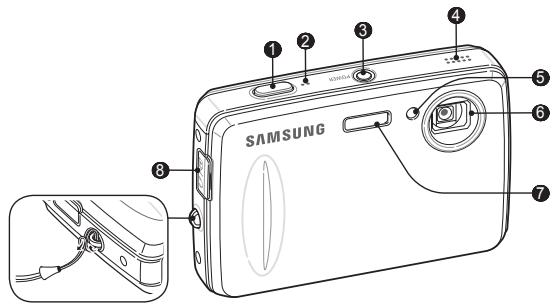

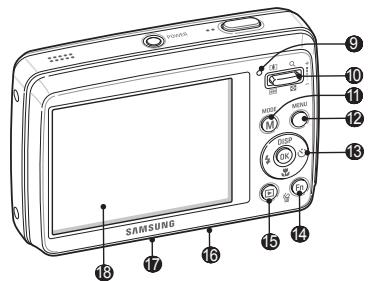

Camera layout

1 Shutter button
2 Microphone
3 POWER button
4 Speaker
⑤ AF-assist light/timer lamp
6 Lens
7 Flash
3 MultifunctionJack (Accepts USB cable, AVV cable, or earphones)

9 Status lamp
10 Zoom button
Mode button
12 MENU button
Navigation button/OK button
14 Function button
15:Playback button
16 Battery chamber cover
17 Tripod mount
Display

Setting up your camera

Unpacking

Camera

AC adapter/ USB cable

Rechargeable battery

Strap

Software CD-ROM (User manual included)

Earphones

Quick Start Manual

Optional accessories

Camera case

AVC cable

Memory cards

Setting up your camera

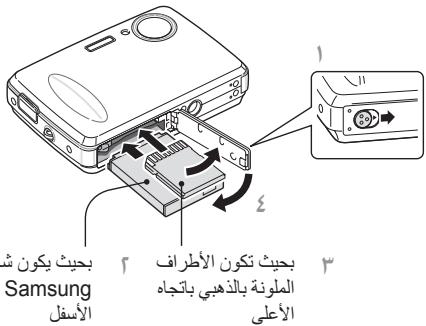

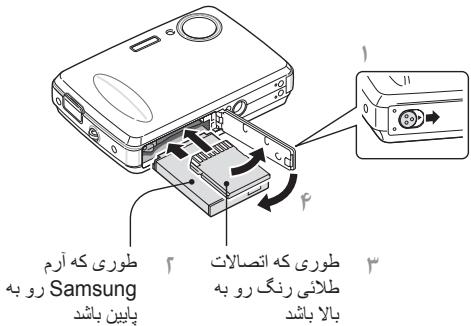

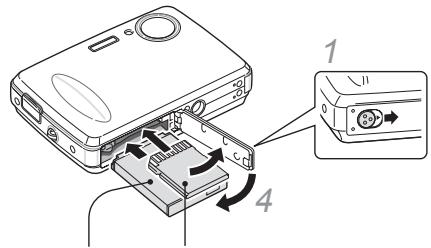

Inserting the battery and memory card

2 With the Samsung logo facing down 3 With the gold-coloured contacts facing up

Removing the battery

Removing the memroy card
Push gently until the card disengages from the camera and then pull it out of the slot.

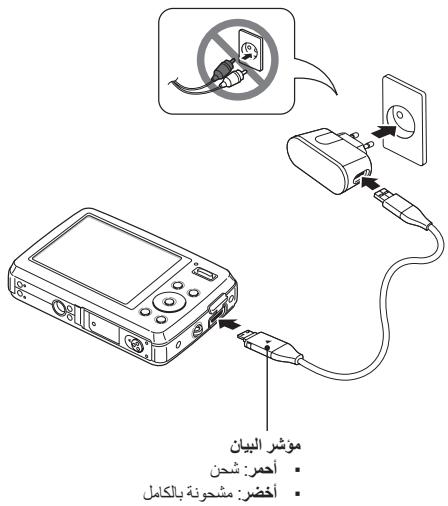

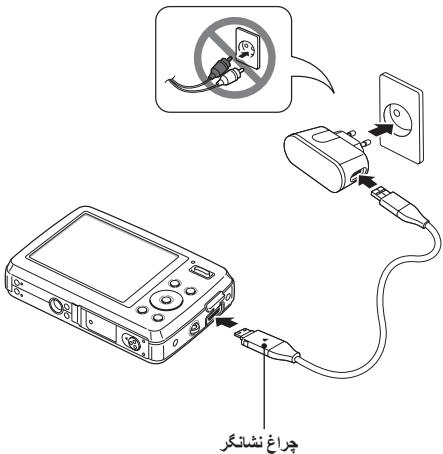

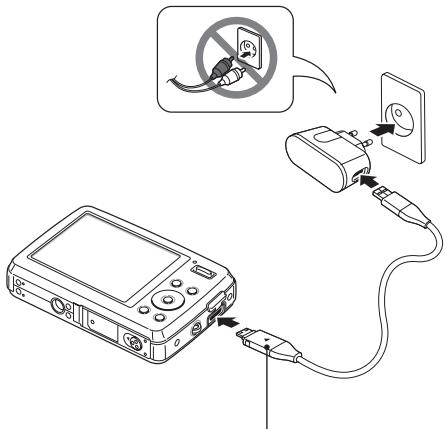

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light

Red:Charging
- Green: Fully charged

Turning on your camera

1 Press [POWER].

• The initial setup screen appears.

2 Press [O] to select Language and press [O].
3 Press [DISP] or [ ] to select a language and press [OK].
4 Press [DISP] or [ ] to select Date & Time and press [].
5 Press [or to select an item.
6 Press [DISP] or [ ] to change the number or select another date format and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

• To move left or right, press [4] or [5].
• To move up or down, press [DISP] or [].

3 Press [OK] to confirm the highlighted option or menu.

• Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 In Shooting mode, press [M].
2 Select Auto.
3 Align your subject in the frame.
4 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

5 Press [Shutter] all the way down to take the photo.

Recording a video

1 In Shooting mode, press [M].
2 Select Movie.
3 Align your subject in the frame.
4 Press [Shutter].

• Press [OK] to pause or resume.

5 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
9M	3456 x 2592	194	376	546
78M	3456 x 2304	221	426	611
74M	3456 x 1944	264	510	744
5M	2592 x 1944	343	637	870
3M	2048 x 1536	532	895	1,211
1M	1024 x 768	1,716	2,059	2,376

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [D].
2 Press [4] or [O] to scroll through files.

• Press and hold to view files quickly.

Viewing videos

1 Press [D].
2 Press [OK].
3 Use the following buttons to control playback.

[+]	Scan backward
[OK]	Pause or resume playback
[O]	Scan forward
[Zoom] up or down	Adjust the volume level

Playing multimedia files

You can play music, video, and text files.

1 Transfer multimedia files to your camera.
2 Plug the supplied earphones into the multifunction jack.

3 In Shooting mode, press [M].
4 Select Multimedia a mode.

: Music
- Videos
- TextViewer

5 Select a file to play.
- Playback begins automatically.

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100SSCAM.
5 Select the files you want and drag or save them to the PC.

Transferring multimedia files to the camera

1 Create new folders named "MP3," "PMP," and "TEXT" in My Computer → Removable Disk.
2 Copy multimedia files to the corresponding folders.

MP3	MP3 files
PMP	SDC files*
TEXT	TXT files

• Convert with Samsung Converter

Disconnecting safely (for Windows XP)

Specifications

Image sensor	• Type: 1/2.5" (approx. 1.02 cm) CCD • Effective pixels: approx. 9.0 mega-pixels • Total pixels: approx. 9.2 mega-pixels
Lens	• Focal length: Samsung lens 3X Inner Zoom f = 6.3 - 18.9 mm (35 mm film equivalent: 38 - 114 mm) • F-stop range: F3.5 (W) - F4.5 (T)
Display	2.7" (6.86 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Recognition AF, Face Detection AF)
Shutter speed	• 1 - 1/2,000 sec. • AEB, Continuous: 1/4 - 1/2,000 sec. • Night: 16 - 1/2,000 sec.
Storage	• Internal memory: approx. 196 MB • External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed), MMC Plus (up to 2 GB guaranteed) Internal memory capacity may not match these specifications.
DC power input connector	20 pin
Rechargeable battery	Lithium-ion battery (SLB-0937, 900 mAh)
Dimensions (W x H x D)	92.8 x 59.7 x 19.4 mm
Weight	120.7 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
