Product Type	Digital compact camera
Model	Samsung PL200
Image Sensor	1/2.3" CCD, approx. 14.2 effective megapixels
Lens	Samsung 7X Zoom, f=5.6-39.2mm (35mm equivalent: 31-217mm), F3.3 (W) - F5.5 (T)
Display	3.0" TFT LCD, 230K dots
Focusing	TTL auto focus (Multi, Center, Face Detection, Tracking AF)
Shutter Speed	Smart Auto: 1/8~1/2000 sec; Program: 1~1/2000 sec; Night: 8~1/2000 sec; Fireworks: 2 sec
Internal Storage	Approx. 90 MB
External Storage	SD card (up to 2 GB), SDHC card (up to 8 GB) - optional
Battery	Rechargeable BP70A (740 mAh)
Dimensions (W x H x D)	99.8 x 59.5 x 21 mm (excluding protrusions)
Weight	143 g (without battery and memory card)
Operating Temperature	0 - 40°C
Operating Humidity	5 - 85%
Power Input	4.2 V DC via USB/AC adapter
Flash Range	Wide: approx. 0.4m-3.0m (ISO Auto); Tele: approx. 0.5m-2.0m (ISO Auto)
ISO Sensitivity	Auto, 80, 100, 200, 400, 800, 1600, 3200
Video Recording	Max resolution 1280x720 (HD) at 30fps, sound mono
Image Stabilization	Digital stabilization (Dual IS - OIS + DIS)
Scene Modes	Smart Auto, Program, Dual IS, Scene, Movie, etc.
Connectivity	USB 2.0, A/V output (NTSC/PAL), DC input
Accessories Included	Rechargeable battery, AC adapter/USB cable, camera strap, Quick Start Manual, Software CD-ROM
Maintenance & Cleaning	Clean lens gently with soft, dry cloth; avoid liquids; store in cool, dry place
Safety Precautions	Do not use near flammable materials; keep away from children; avoid flash closer than 1m
Spare Parts & Repairability	Battery, charger, cables, and memory cards available from Samsung; contact service center for repairs

Frequently Asked Questions - PL200 SAMSUNG

How do I turn on the Samsung PL200 camera?

Press and hold the POWER button until the lens extends and the startup screen appears. To turn off, press and hold the Power button again.

How to take a photo with the PL200?

Set the mode dial to Smart Auto or Program. Compose your subject in the frame. Press the shutter button halfway to focus (a green frame indicates focus), then press fully to capture.

What type of memory card does the PL200 use?

It supports SD and SDHC memory cards (up to 8 GB). Optional cards are recommended for extended storage; internal memory is approx. 90 MB.

How to transfer photos to a computer?

Install the software from the supplied CD-ROM. Connect the camera to your PC using the USB cable. Turn on the camera. On your PC, go to My Computer > Removable Disk > DCIM > 100PHOTO and copy files.

How to charge the PL200 battery?

Insert the battery into the camera. Connect the AC adapter/USB cable to the camera and plug into a wall outlet. The status lamp glows red while charging and turns green when fully charged.

Can I record videos with the PL200?

Yes. Set the mode to Movie (press MODE/SMART button). Press the shutter button to start recording, press OK to pause/resume, and press the shutter again to stop. Max resolution is 1280x720 HD.

How to view photos on the camera?

Press the Playback button (▶). Use the navigation buttons (left/right) to scroll through images. Press and hold to fast scroll. Press OK to play a video.

How to delete a photo?

In Playback mode, press the Fn/Delete button (marked with a trash icon). Use the navigation buttons to select Delete and press OK to confirm.

What safety precautions should I follow?

Never use the flash closer than 1 meter to eyes. Do not expose the camera to water or extreme temperatures. Use only Samsung-approved batteries. Keep away from small children.

How to reset the camera settings?

Go to the MENU, navigate to Settings, and select Reset (or Factory Reset). Confirm your choice. Note that this will erase all custom settings but not photos.

USER MANUAL PL200 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG / FRE / T.CHI / IND / ARA / THA / PER

Health and safety

information.... 2 1

Camera layout 4 13

Setting up your camera ..... 5

Unpacking 5 12

Inserting the battery and memory card 6 15

Charging the battery 7 16

Selecting options 7 18

Capturing photos or videos ... 8 26

Playing files 9 53

Transferring files to a PC

(Windows) 10 67

Specifications 11 89

Health and safety informationContent

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

Use only Samsung-approved batteries and chargers. • Incompatible batteries and chargers can cause serious injuries or damage to your camera.

Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

Avoid using or storing your camera in dusty, dirty, • humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

Exercise caution when connecting cables or adapters • and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.

Prevent memory cards from making contact with • liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

Camera layout

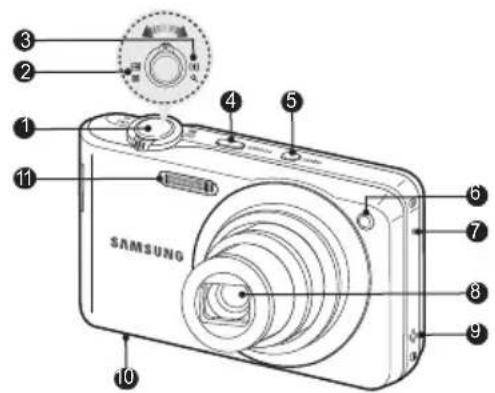

1 Shutter button
2 Zoom W Lever (Thumbnail)
③ Zoom T Lever (Digital zoom)
4 POWER button
5 Smart button
6 AF-assist light/timer lamp
Microphone
8 Lens
9 Speaker
10 Battery chamber cover
11 Flash

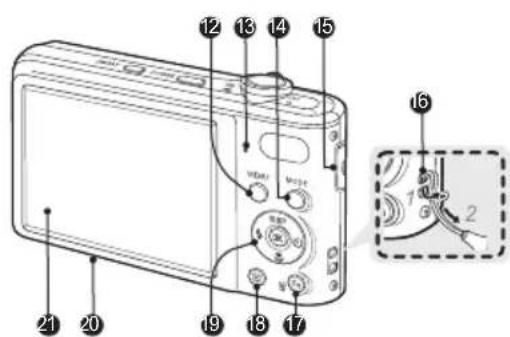

12 MENU button
13 Status lamp
14 MODE button
15 USB and A/V port (Accepts USB cable or A/V cable)
16 Strap eyelet
Fn/Delete button
18 Playback button
19 Navigation button/OK button
20 Tripod mount
21 Main display

Setting up your camera

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service center.

English

Camera Rechargeable Battery AC adapter/

USB cable

Camera strap Quick Start Manual Software CD-ROM
(User manual included)

Optional accessories

Memory cards Camera case

A/V cable Battery charger

Setting up your camera

Inserting the battery and memory card

▼ Removing the battery

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

▼ Removing the memory card

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Push gently until the card disengages from the camera and then pull it out of the slot.

Before using the camera for the first time, you must charge the battery.

Indicator light
Red · : Charging
Green · : Fully charged

Selecting optionsCharging the battery

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

- To move left or right, press [⚡] or [💡]. To move up or down, press [DISP] or [◀]

3 Press [OK] to confirm the highlighted option or menu.

- Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Press [MODE] to select ( ) (Press [SMART], [MODE] select ( ).)

2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically. A green frame means the subject in focus.

Silhouette of a person pointing upward, with control buttons and frame numbers (no readable text or symbols)

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Press [MODE] to select ( ) (Press [SMART] to select ( )
2 Align your subject in the frame.
3 Press [Shutter]. Press [OK] to pause or resume.
4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super fine Fine Normal
14m	4320 x 3240 168 238 362
12m	4000 x 3000 195 267 407
2m	4272 x 2848 195 267 407
10m	4224 x 2376 229 305 477
8m	3264 x 2448 244 326 515
5m	2592 x 1944 362 489 699
3m	2048 x 1536 543 674 752
1m	1024 x 768 978 1,086 1,222

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].
2 Press [+] or [+] to scroll through files. Press and hold to view files quickly.

Silhouette of a person raising one arm, no text or symbols present

Viewing videos

1 Press [播放]
2 Press [OK].

3 Use the following buttons to control playback.

[§]	Scan backward
[OK]	Pause or resume playback
[◎]	Scan forward
[Zoom] left or right	Adjust the volume level

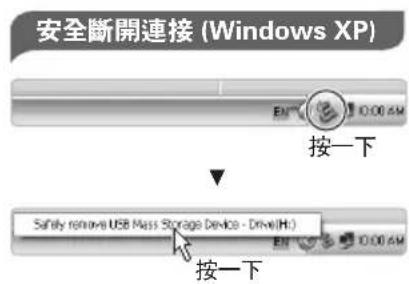

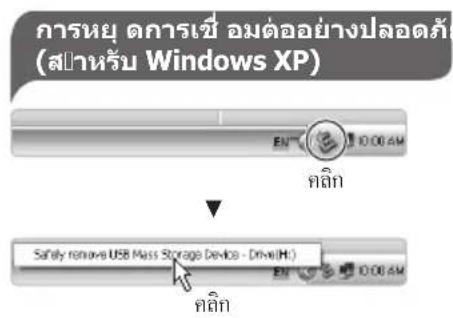

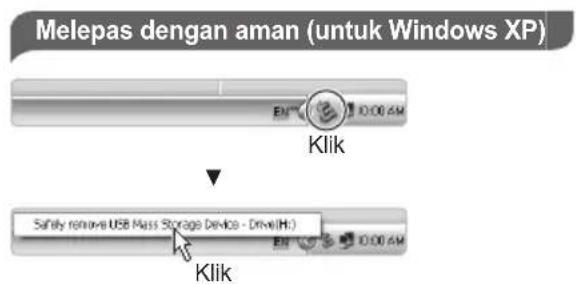

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Line drawing showing a device connected to a laptop via cable (no text or symbols)

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100PHOTO.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	Type: 1/2.3" (approx. 7.76 mm) CCD•Effective pixels: approx. 14.2 mega-pixels•Total pixels: approx. 14.4 mega-pixels •
Lens	Focal length: Samsung 7X Zoom Lens f = 5.6 - 39.2 mm (35 mm film equivalent: 31 - 217 mm)•F-stop range: F3.3 (W) - F5.5 (T)•
Display	3.0" (7.6 cm) TFT LCD, 230 K
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF)
Shutter speed	Smart Auto : 1/8 ~ 1/2,000 sec.•Program : 1 ~ 1/2,000 sec.•Night : 8 ~ 1/2,000 sec.•Fireworks : 2 sec.
Storage	Internal memory: approx. 90 MB•External memory (Optional): SD card (up to 2 GB guaranteed), •SDHC card (up to 8 GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	4.2 V
Rechargeable battery	BP70A (740mAh)
Dimensions (W x H x D)	99.8 x 59.5 x 21 mm (excluding protrusions)
Weight	143 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
