Product type	Compact digital camera
Brand	Samsung
Model	WP10
Sensor resolution	12.2 megapixels
Optical zoom	3x
Digital zoom	5x
LCD screen	2.7 inches (6.9 cm) TFT
Image stabilization	Electronic
Scene modes	Portrait, landscape, night, sports, beach/snow
Video recording	720p HD at 30 fps
Dimensions	95 x 60 x 20 mm
Weight	120 g (with battery)
Power supply	Rechargeable lithium-ion battery (3.7 V, 700 mAh)
Battery type	SLB-07A
Storage	SD/SDHC card (up to 8 GB)
Connectivity	USB 2.0, AV output
Main features	Face recognition, smile detection, red-eye reduction
Care and cleaning	Clean with a soft dry cloth. Do not use solvents.
Safety	Protect from shocks, moisture, and extreme temperatures.
Spare parts and repairability	Battery, charger, USB cable available. Repair by authorized center.
General information	User manual downloadable at notice-facile.com

Frequently Asked Questions - WP10 SAMSUNG

How to turn on the Samsung WP10 camera?

Press the Power button on top of the camera for about 2 seconds. The screen will turn on.

How to insert a memory card into the Samsung WP10?

Open the memory card compartment cover (located under the battery). Insert the SD/SDHC card correctly oriented until it clicks. Close the cover.

What to do if the screen remains black after turning on the camera?

Check that the battery is properly inserted and charged. If the problem persists, remove and reinsert the battery after a few seconds.

How to transfer photos to a computer?

Use the supplied USB cable to connect the camera to the computer. The camera must be in Connection mode (selected automatically). The photos appear as a removable drive.

How to use the zoom?

Use the zoom control around the shutter button. Turn it to the right to zoom in (optical then digital), to the left to zoom out.

How to take a photo in night mode?

Turn the mode dial to the Night icon (moon/stars). The camera uses a longer exposure. Use a tripod to avoid blur.

Why are the photos blurry?

This may be due to camera movement during shooting. Keep the camera steady or use the Image stabilization mode. Also check that the focus is correct.

How to clean the lens?

Use a clean, dry microfiber cloth. Gently wipe the lens in circular motions. Never use chemicals.

How to reset the camera to factory settings?

Go to the Settings menu (gear icon), select Reset or Factory settings. Confirm with 'Yes'. Note: This action erases all your custom settings.

Where to find the complete manual for the Samsung WP10?

The user manual in PDF format is available for free on notice-facile.com. You can download it or request a translation.

USER MANUAL WP10 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG / FRE / T.CHI / IND / ARA / THA / PER

Health and safety

information.... 2 1

Camera layout 4 8

Setting up your camera ..... 5

Unpacking 5 7

Inserting the battery and memory card 6 15

Charging the battery 6 12

Turning on your camera 7 20

Selecting options 7 38

Waterproof management ..... 8 18

Capturing photos or videos ... 10 23

Playing files 11 63

Transferring files to a PC (Windows)....12 95

Specifications 13 92

Health and safety informationContent

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

Use only Samsung-approved batteries and chargers. • Incompatible batteries and chargers can cause serious injuries or damage to your camera.

Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Do not open the battery cover or the USB cover in the sea, a lake or in similar underwater conditions. Do not open the battery cover or the USB cover with a wet hand either.

It may cause electric shock or camera malfunction.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

Avoid using or storing your camera in dusty, dirty, • humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

Exercise caution when connecting cables or adapters • and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0° C/ 32° F or above 40° C/ 104° F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.

Prevent memory cards from making contact with • liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

It is advisable to replace waterproof components once a year to maintain the waterproof performance.

Contact your nearest Samsung service center for the • replacement of waterproof components.

Camera layout

1	Shutter button
2	Flash
3	POWER button
4	Speaker
5	Lens
6	AF-assist light/timer lamp
7	Microphone
8	Strap eyelet
9	USB / AV / DC terminal

10	Status lamp
11	Zoom button
12	MODE button
13	Navigation button/OK button
14	Fn / Delete button
15	Battery chamber cover
16	Playback button
17	MENU button
18	Tripod mount
19	LCD monitor

Setting up your camera

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

English

Camera Rechargeable Battery AC adapter/

USB cable

Camera strap Quick Start Manual Software CD-ROM

(User manual included)

Optional accessories

Memory cards Camera case

A/V cable Battery charger

Setting up your camera

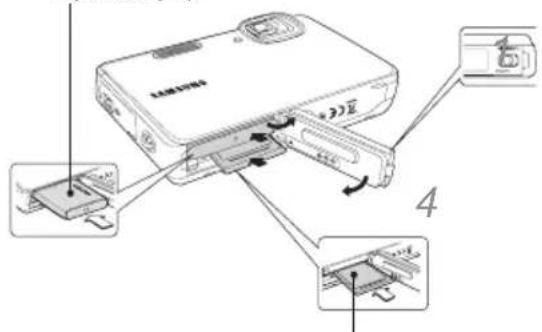

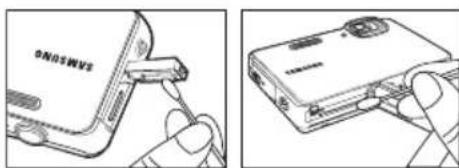

Inserting the battery and memory card Charging the battery

2 With the Samsung logo facing up

3 With the gold-colored contacts facing down

▼ Removing the battery

▼ Removing the memroy card

Push gently until the card disengages from the camera and then pull it out of the slot.

Before using the camera for the first time, you must charge the battery.

Red · : Charging

Green • : Fully charged

Turning on your camera

1 Press [POWER].

The initial setup screen appears.

2 Press [💡] to select Language.
3 Press [DISP] or [to select a language and press [OK].
4 Press [DISP] or [to select Time Zone and press [♡].
5 Press [4] or [3] to select a time zone and press [OK].
6 Press [DISP] or [to select Date & Time and press [©].
7 Press [⚡] or [⚡to select an item.
8 Press [DISP] or [to change the number or select another date format and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

- To move left or right, press [⚡] or [💡]. To move up or down, press [DISP] or [◀]

3 Press [OK] to confirm the highlighted option or menu.
- Press [MENU] again to go back to the previous menu.

Waterproof management

The camera requires the appropriate care for waterproof management before and after using the camera.

• The accessories that came with the camera are not waterproof.
  • Refer to the user manual for more information.

Before using the waterproof function

Check the camera before using the waterproof function.

1 Make sure that there are no foreign objects or moisture on the battery chamber cover or the USB cover. If there are foreign objects or moisture on the battery chamber cover or the USB cover, wipe them with a smooth, lint free cloth. Also check if there are any scratches on the waterproof seal.

2 Make sure that the battery chamber cover and the USB cover make a clicking sound when closing them, so that they are firmly shut.

Waterproof management

After using the waterproof function

Wash the camera after using the waterproof function.

1 First, close the battery chamber cover and the USB cover after using the camera, and wash the sand, salt or other foreign objects off by submerging the camera into clean water for 2 to 3 minutes.

2 If the foreign objects are not removed by shaking the camera in the water, wash the camera directly under a strong flow of water.

3 There may be some water drops inside the battery chamber cover and the USB cover after opening them. Remove the water drops before storing the camera.

Capturing photos or videos

Taking a photo

1 Press [MODE] to select ( )
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Press [MODE] to select ()
2 Align your subject in the frame.
3 Press [Shutter].
4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super fine Fine Normal
12m	4000 x 3000 134 220 329
10m	3984 x 2656 152 249 371
15m	3968 x 2232 181 296 438
8m	3264 x 2448 200 328 487
5m	2592 x 1944 313 510 751
3m	2048 x 1536 494 789 1,154
1m	1024 x 768 1,731 2,597 3,463

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].
2 Press [+] or [+] to scroll through files. Press and hold to view files quickly.

Viewing videos

1 Press [播放]
2 Press [OK].

3 Use the following buttons to control playback.

[4]	Scan backward
[OK]	Pause or resume playback
[∅]	Scan forward
[Zoom] up or down	Adjust the volume level

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100PHOTO.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	Type: 1/2.33" (approx. 7.79 mm) CCD•Effective pixels: approx. 12.2 mega-pixels•Total pixels: approx. 12.4 mega-pixels •
Lens	Focal length: Samsung lens f = 6.3 - 31.5 mm (35 mm film equivalent: 35 - 175 mm)•F-stop range: F3.6 (W) - F4.8 (T)•
Display	2.7" (6.9 cm) 230 K, TFT LCD
Waterproof Specification	Max. 3 m underwater (IEC IPX8)
Dustproof Specification	IEC IP6X
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF)
Shutter speed	Smart Auto : 1/8 ~ 1/1,000 sec.•Program : 1 ~ 1/1,000 sec.•Night : 8 ~ 1/1,000 sec.
Storage	Internal memory: approx. 20 MB•External memory (Optional): SD card (up to 2 GB guaranteed), SDHC card (up to 32GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	4.2 V
Rechargeable battery	BP70A
Dimensions (W x H x D)	93.8 x 61 x 18.5 mm (excluding protrusions)
Weight	121 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

MEMO

MEMO

15

Sommaire

Voyant lumineux

Rouge • : en charge

Vert · : rechargé

3 將記憶卡的金色觸點面朝下。

▼ 取出電池

▼ 取出記憶卡

指示燈亮起

紅色·：充電

綠色·：電池已充滿電

開啟相機

1 按下 [POWER]。

初始安裝螢幕即會顯示。

T.ZH-9

擷取相片或影片

拍照

4 將 [快門] 全部按下，即可拍照。

錄製影片

檢視影片

Mentransfer file ke PC

(Windows) 12 95

Spesifikasi 13 92

Lampu indikator

Merah · : Mengisi

Melihat video

AR-9

ไฟสตงสถานะ

TH-9

ГИЧ

การจับภาพหรือวีดีโอ

การถ่ายภาพ

การตูวิตีโอ

1 กด [▶].
2 กดLOK

FA-11

فیلمرداری

Please refer to the warranty that came with your product or visit our website http://www.samsungimaging.com/ for after-sales service or inquiries.

AD68-04850A (1.1)
